horiba HP-100 User manual

Industrial pH Meter (Two-wired Transmitter)
HP-100
Instruction Manual
CODE:GZ0000247931A

March, 2011 © 2011 HORIBA Advanced Techno, Co., Ltd.
Preface
This manual describes the operation of the Industrial pH Meter (Two-wired Transmitter), HP-
100.
Be sure to read this manual before using the product to ensure proper and safe operation of
the instrument. Also safely store the manual so it is readily available whenever necessary.
Product specifications and appearance, as well as the contents of this manual are subject to
change without notice.
Warranty and Responsibility
HORIBA Advanced Techno, Co., Ltd. warrants that the Product shall be free from defects in
material and workmanship and agrees to repair or replace free of charge, at option of HORIBA
Advanced Techno, Co., Ltd., any malfunctioned or damaged Product attributable to
responsibility of HORIBA Advanced Techno, Co., Ltd. for a period of one (1) year from the
delivery unless otherwise agreed with a written agreement. In any one of the following cases,
none of the warranties set forth herein shall be extended;
zAny malfunction or damage attributable to improper operation
zAny malfunction attributable to repair or modification by any person not authorized by
HORIBA Advanced Techno, Co., Ltd.
zAny malfunction or damage attributable to the use in an environment not specified in this
manual
zAny malfunction or damage attributable to violation of the instructions in this manual or
operations in the manner not specified in this manual
zAny malfunction or damage attributable to any cause or causes beyond the reasonable
control of HORIBA Advanced Techno, Co., Ltd. such as natural disasters
zAny deterioration in appearance attributable to corrosion, rust, and so on
zReplacement of consumables
HORIBA ADVANCED TECHNO, CO., LTD. SHALL NOT BE LIABLE FOR ANY DAMAGES
RESULTING FROM ANY MALFUNCTIONS OF THE PRODUCT, ANY ERASURE OF DATA,
OR ANY OTHER USES OF THE PRODUCT.
Trademarks
Generally, company names and brand names are either registered trademarks or trademarks
of the respective companies.

Regulations
Conformable Directive
This equipment conforms to the following directives and standards:
FCC Rules
Any changes or modifications not expressly approved by the party responsible for compliance
shall void the user's authority to operate the equipment.
JWARNING
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own expense.
Directives: the EMC Directive 2004/108/EC
Standards: [the EMC Directive]
EN61326-1: 2006 Class A, industry
Note
When the sensor cable, the transmission cable, or the contact input cable is extended
to 30 m or longer, the surge test specified in the EMC directive for CE marking is not
applied.

For Your Safety
Hazard Classification and Warning Symbols
Warning messages are described in the following manner. Read the messages and follow the
instructions carefully.
QHazard classification
QWarning symbols
This indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury. This signal word is to be limited to the most
extreme situations.
This indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
This indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injury. It may also be used to alert against
unsafe practices.
Without safety alert indication of hazardous situation which, if not avoided,
could result in property damage.
Description of what should be done, or what should be followed
Description of what should never be done, or what is prohibited

Safety Precautions
This section provides precautions to enable you to use the product safely and correctly and to
prevent injury and damage. The terms of DANGER, WARNING, and CAUTION indicate the
degree of imminency and hazardous situation. Read the precautions carefully as it contains
important safety messages.
WARNING
ELECTRIC SHOCK
Opening the rear cover may cause electric shock while supplying electric power. Do not open the rear
cover without disconenecting the main power.
ELECTRIC SHOCK
Maintain ground to avoid electric shock. Do not ground the unit to a gas pepe or to an indirect ground,
such as another piece of the equipment.
If there is a possible of lighting damage, install lighting arresters both at the instrument and receive
device.
ELECTRIC SHOCK
Make sure that no electric power is supplied to the instrument before staring this work.
CAUTION
FIRE
Do not put water, metal chip or any foreign substances inside the rear cover. The unit may be shorted
catch fire.
• Operating the instrument using a voltage out of the rated range may cause it to malfunction. Be
sure to check the voltage of the power supply. Also make sure that the fluctuation of the power
supply voltage is within the range of 22.5 V to 30 V.
• Use a balanced type shield cable.
• If there is a possible of lighting damage, install an arrester in two place between the HP-100 and
the distributor.

Product Handling Information
Operational Precautions
Use of the equipment in a manner not specified by the manufacturer may impair the protection
provided by the equipment. And it may also reduce equipment performance.
Therefore, exercise the following precautions:
zDo not use organic solvent or the like.
zDo not immerse the HP-100 in dilute hydrochloric acid for long hours.
Disposal of the Product
When disposing of the product, follow the related laws and/or regulations of your country for
disposal of the product.
Manual Information
Description in This Manual
Note
This interprets the necessary points for correct operation and notifies the important points for
handling the unit.
Reference
This indicates the part of where to refer the information.
Tip
This indicates reference information.

Contents
Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Set Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Unpacking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Mounting the Field Transmitter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
External Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Connecting the Electrode (or Holder) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Wiring of Two-wired Transmission. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Fixing the Rear Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Mounting the Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Air Purge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Calibration and Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
pH Calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
STD control and SLOPE control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Calibration cycle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Replaceing the Dry Agent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Reference data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Disposal Method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Outline
1
Outline
Introduction

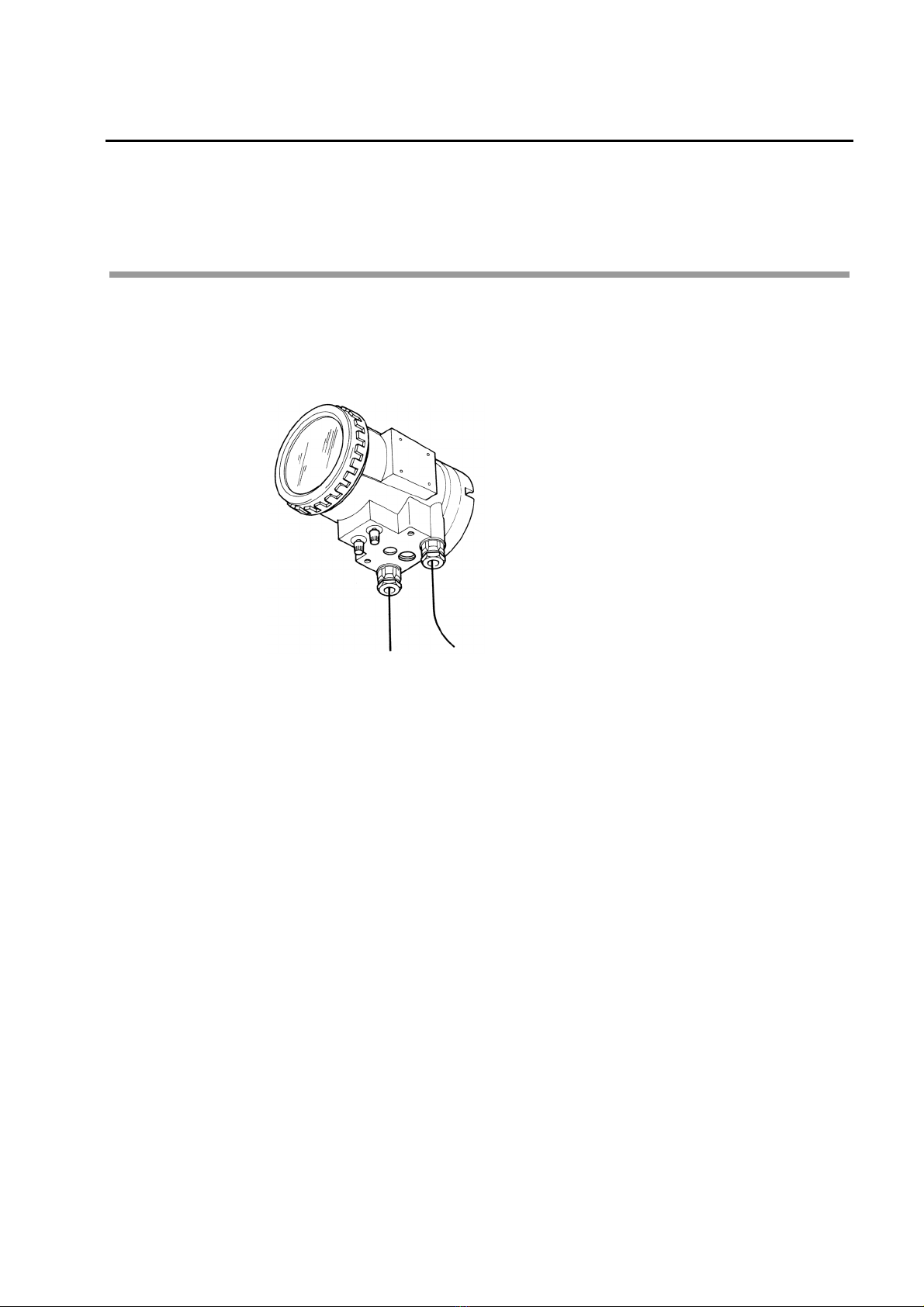

The industrial pH meter HP-100 consists of the pH sensor, the sensor holder, the transmitter,
and the power unit that supplies the power to these components through two lines, receives
signal and provides the output to the extemal receiving instrument.
This manual provides explanation for the two-wired transmitter. For other units, refer to
individual instruction manuals.
This transmitter is a field insulating-type converter. By connecting the lead wire of the
electrode of fixture and connecting power supply of approx. 22.5 V to 30 V DC, this converter
transmits the pH measured value as a signal of 4 mA to 20 mA DC, overlapping the supply
power line (2 wires).
The measured value is displayed on the LC digital meter.
Signal connecting cable
Electrode signal cable

Set Up
2
Set Up
Unpacking
Contains one set of transmitter and one drying agent.

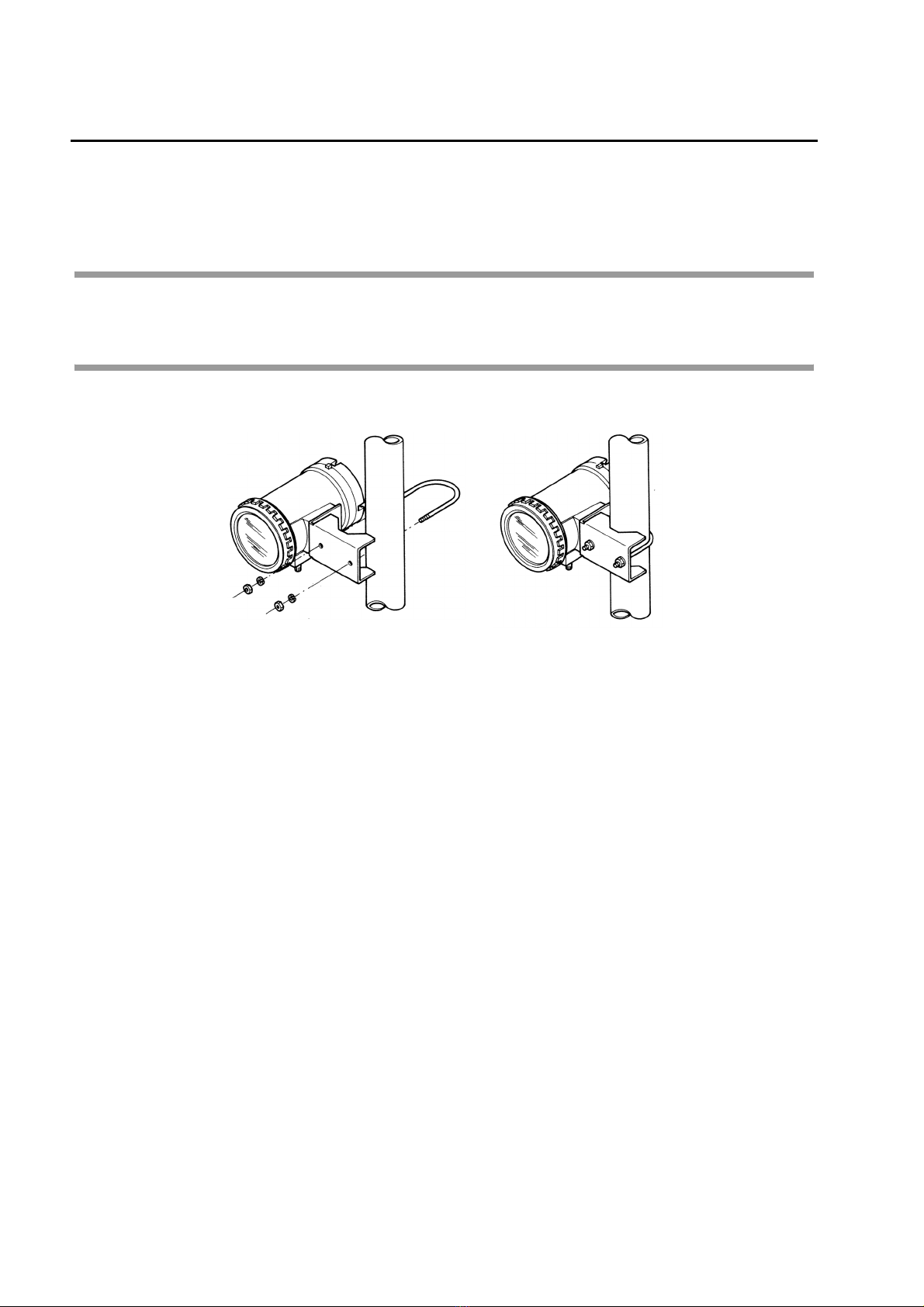

Mounting the Field Transmitter
Prepare a 50 A pipe. Fix the transmitter firmly to the prepared pipe as shown in the figure. You
can mount it in both directions (right or left). An optional hood (FD-10) is available.

Set Up
3
External Wiring
Make wiring in accordance with the external wiring diagram. Use the optional janction box (JB-
30) to relay between the electrode and transmitter.
Use optional special (W-5B). Maximum length of wiring should be within 50 m.
Note
zClass D grounding.
zUse a transmission cable equivalent to CVVS 2 mm2.
zTo connect the terminal, use M4 caulking terminal.
zSupply the power after checking connection.
WARNING
ELECTRIC SHOCK
Opening the rear cover may cause electric shock while supplying electric power. Do not open the rear
cover without disconenecting the main power.
ELECTRIC SHOCK
Maintain ground to avoid electric shock. Do not ground the unit to a gas pipe or to an indirect ground,
such as another piece of the equipment.
CAUTION
FIRE
Do not put water, metal chip or any foreign substances inside the rear cover. The unit may be shorted
catch fire.

Set Up
4

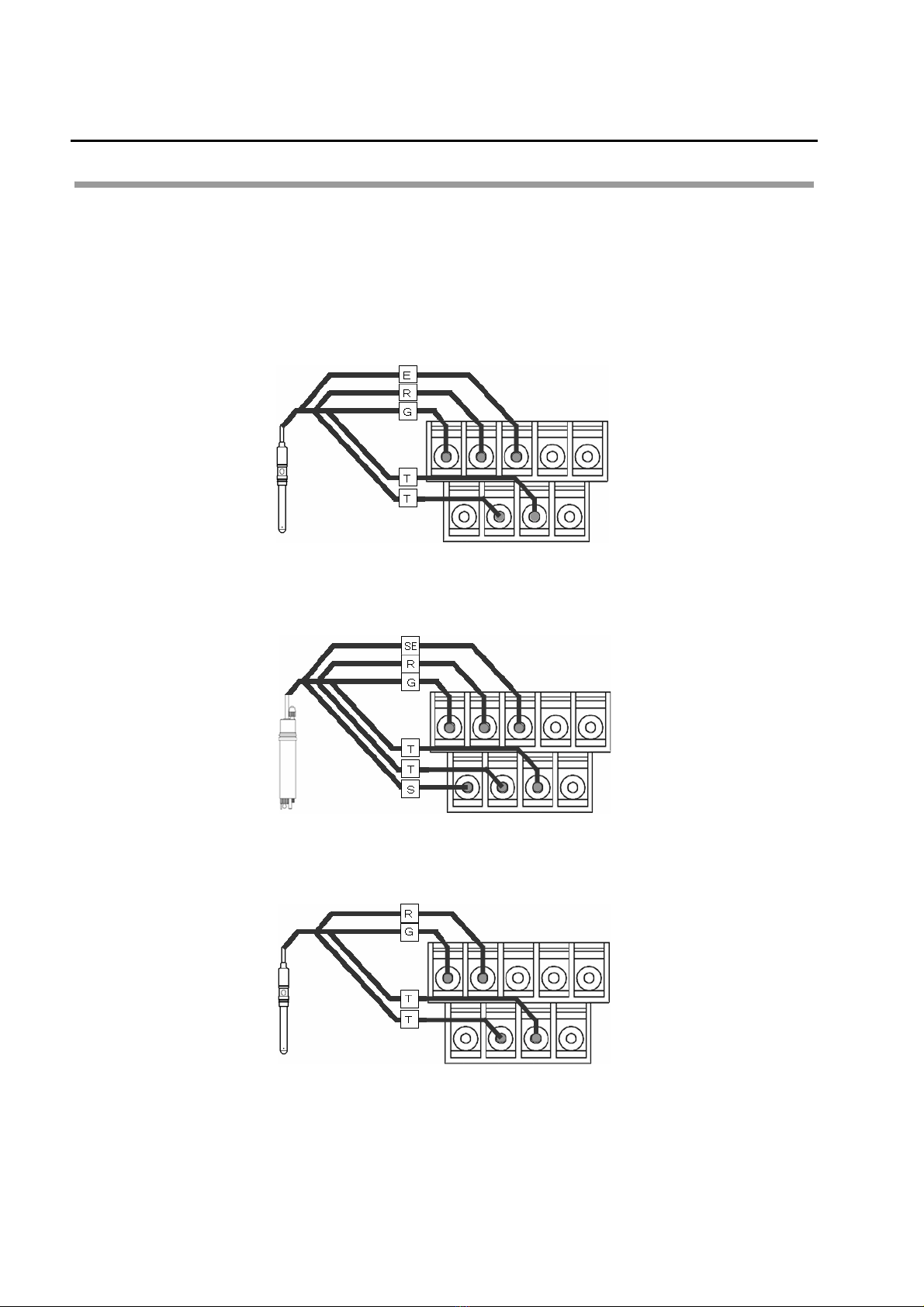

Connecting the Electrode (or Holder)
Open the rear cover of the transmitter and you will find the terminal board.
Electrode lead wire varies depending on the type of the electrode.
Connect lead wires, referring to the following diagram.
QpH electrode
6108, 6109, 6151
Connect G, R, T, T, and E (5 wires).
6171, 6172, 6173, 6174
Connect G, S, R, T, T, and SE (6 wires).
6102
Connect G, R, T, and T (4 wires).

Set Up
5
JWiring of Two-wired Transmission
QPower switch
This instrument has no power switch. Install a power switch.
QConnecting the power supply
The power supply is 2-wire transmission power source that rated voltage is 22.5 V to 30 V DC.
As illustrated below, connect the power cable and grounding cable.
WARNING
If there is a possible of lighting damage, install lighting arresters both at the instrument and receive
device.
ELECTRIC SHOCK
Make sure that no electric power is supplied to the instrument before staring this work.
CAUTION
• Operating the instrument using a voltage out of the rated range may cause it to malfunction. Be
sure to check the voltage of the power supply. Also make sure that the fluctuation of the power
supply voltage is within the range of 22.5 V to 30 V.
• Use a balanced type shield cable.
• If there is a possible of lighting damage, install an arrester in two place between the HP-100 and
the distributor.

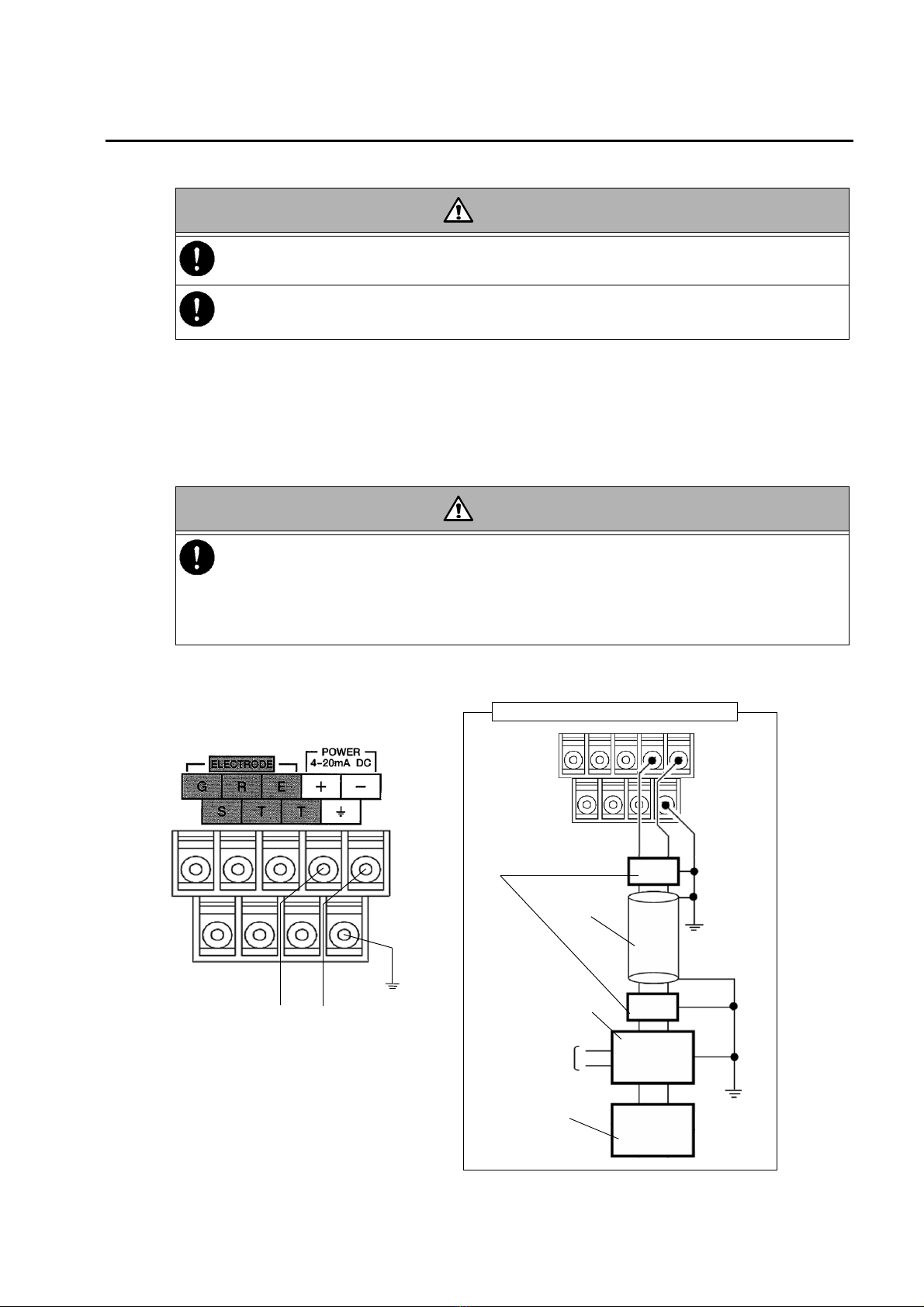

Example of recommended connections
Arrester
Balanced type
shield cable
Distributor
Receiving
instrument
AC power source
（+）（−）
Power supplied
Voltage:DC 22.5 V to 30 V
Class D grounding
Class D
grounding
Class D
grounding

Set Up
6
Fixing the Rear Cover
There are small protrusions in the rear cover and the main unit case. To tighten the cover,
align these protrusions and screw straight. If they are obliquely inserted, the cover cannot be
colsed completely.
Mounting the Hood
To mount the hood (FD-10) provided as an option, use screws on the opposite side where
metal fitting for 50 A pipe is attached.
Air Purge
The two tapped holes of PF 1/8 screw are the side of STD/SLOPE control on the bottom of the
transmitter. The tapped holes are used to be the inlet and outlet ports of air purge after boring
a hole to the inside of the transmitter and connecting the air pipe joints. The air purge is
required in the environment of corrosive gas or huge humidity.
Hood

Calibration and Measurement
7
Calibration and Measurement
pH Calibration
JSTD control and SLOPE control
STD control and SLOPE control are connected to the volume through the shaft and pin, as
following diagram.
Push the control with turning to connect the pin and the volume.
Soak the electrode in the standard solution.
Set the value of the LCD display to the value of the standard solution with STD/SLOPE
controls.
zSTD control
Adjust the value of the LCD display to the value of the pH7 standard solutioin affected by
the temperature. (example: pH6.86 25°C).
zSLOPE control
Adjust the value of the LCD display to the value of the pH7 standard solutioin affected the
temperature. (example: pH4.01 25°C of pH9.18 25°C).
Calibrate other standard solution according to the explanation for that standard solution.
STD control
SLOPE control
Push with turning.
The volume is connected. Pull to release connection.
Push and insert into the notch.
The control is connected to the volume.
Pull to release connection.
The control is ideled.

Calibration and Measurement
8
JCalibration cycle
Calibrate periodically depending on electrodes condition.
Measurement
When calibration is completed, you can start measuremet. Soak the electrode in the sample
liquid.

Maintenance
9
Maintenance
Replaceing the Dry Agent
Put the drying agent in the rear cover of the transmitter unit.
Replace with new drying agent at least every three to six months. (Silica gel is available as
drying agent.)
To open or close the cover, refer to the description in 2.6 Fixing the Rear Cover.
Troubleshooting
No indication appear.
Calibration is not possible.
If you cannot remedy the cause, contact our representative or our service department.
M3 screw
Shield plate
O-ring
Drying agent
Cover
Cause Countermeasure
Power is not turned ON. Turn ON the power.
Load is not connected. Conncect lead resistance (500 Ωor less)
Cause Countermeasure
Standard liquid and electrode
are abnormal. Use normal, standard solution and ecectrede.

Reference data
10
Reference data
Specifications
Product name pH meter
Model HP-100
Combined sensor Glass electrode
Measurement
range pH0 to pH14
Display resolution 0.01pH
Performance Repeatability Within ±0.05 pH (response for equivalent input)
Linearity Within ±0.05 pH (response for equivalent input)
Analog output
Output type 4 mA to 20 mA DC: input/output isolated type
Load resistance Maximum: 500 ΩCase of 24 V DC power supply
Linearity Within ±0.08 mA (output only)
Repeatability Within ±0.08 mA (output only)
Output range pH0 to pH14
Temperature
compensation
Applicable temperature
element Platinum resistor: 1 kΩ (0°C)/6.8 kΩ (25°C) Optionally available
Temperature
compensation range 0°C to 100°C
Calibration
Calibration method Manual calibration
Number of calibration
points Selectable 2 points
Operating temperature
range −10°C to 50°C (without freeze)
Operating humidity
range Relative humidity: 5%to 90%(without condensation)
Storage temperature −25°C to 65°C
Power supply
Power supply voltage
range 24 V DC (22.5 V to 30 V)
Power consumption 0.6 W (max)
Compatible standards
CE
marking
Compatible
standards EMC Directive (2004/108/EC) EN61326-1:2006
EMC
Immunity
Industrial location
Electrostatic discharge IEC61000-4-2
Electromagnetic field of radiated radio
frequency IEC61000-4-3(*Note 1)
Electric fast transient/burst IEC61000-4-4
Surge IEC61000-4-5(*Note 2)
Conducted interference induced by radio
frequency IEC61000-4-6(*Note 1)
Emission ClassA
Radiated disturbance CISPR 11 CLASS A
FCC Rules Part15 CLASS A

Reference data
11
zNote 1: The standard for effect on the reading by the electromagnetic field of the radiated
radio frequency and by the conducted interference is within the measured pH value ±0.3
pH.
zNote 2: When the sensor cable, the transmission cable, or the contact input cable is
extended by 30 m or more, the surge test under the EMC Directive for CE marking is not
applied.
zNote 3: An arrester (spark over voltage: 400 V) is implemented for transmission output
and contact input. However, use a most suitable surge absorption element on the
connection lines in accordance with the ambient environment, the situation of equipment
installed, and the externally connected equipment.
Structure
Installation Outdoor installation and Rain-Proof type
Installation method Mounted on 50A pole or wall
Protection code IP55 (IEC60529) (Category 2)
Case material PPO
Material of fittings SUS304
Material of hood Option (SPCC t1.2 (coated with epoxy-denatured melamine resin))
Material of window Glass
Display element Reflective monochrome LCD
External dimensions 125 (W) ×137.5 (H) ×187 (D) mm (excluding the fittings)
Mass Main body: Approx. 1 kg; fittings: Approx. 500 g

Reference data
12
Disposal Method
To dispose of the HP-100, comply with the ordinances and regulations specified in your
region.
The parts for the HP-100 are made of the following raw materials:
2-Screw
M3×8
2-Screw
M3×8
2-Nut
M8,HW,SW
4-Screw
M5×10 SUS
2-Screw
M3×8
Screw
M3×8
No. Name Raw material No. Name Raw material
1 Cap PPO 16 Pin SUS304
2 Packing CR 17 Collar PPO
3 Window Glass 18 O-ring EPT
4 LCD panel PC 19 VR shaft POM, SUS303
5 Packing EPT 20 Silicon rubber Silicon
6 PCB PCB 21 Cable graund PA,EPDM
7 Bracket A SECC 22 Seal pin EPDM
8 Plate PET 23 Stay SUS304
9 Case PPO 24 Wire PVC, Cv
10 Plate SUS304 25 U-Saped bolt SUS304
11 O-ring EPDM
12 Cap PPO
13 VR Knob POM
14 Screw SUS304
15 Plate PET
