ELLIPTICAL OWNER’S MANUAL
Read the ELLIPTICAL GUIDE before using this OWNER’S MANUAL.
Andes8Andes6

23
ASSEMBLY
There are several areas during the assembly process that special attention must be paid. It is very important to follow the assembly
instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed correctly, the
elliptical could have frame parts that are not tightened and will seem loose and may cause irritating noises. To prevent damage to
the elliptical, the assembly instructions must be reviewed and corrective actions should be taken.
Before proceeding, find your elliptical’s serial number located on the front stabilizer tube and enter it in the space provided
below. Also locate the model name which is next to the serial number.
ENTER YOUR SERIAL NUMBER AND MODEL NAME IN THE BOXES BELOW:
SERIAL NUMBER:
MODEL NAME: Horizon elliptical
WarninG

4 5

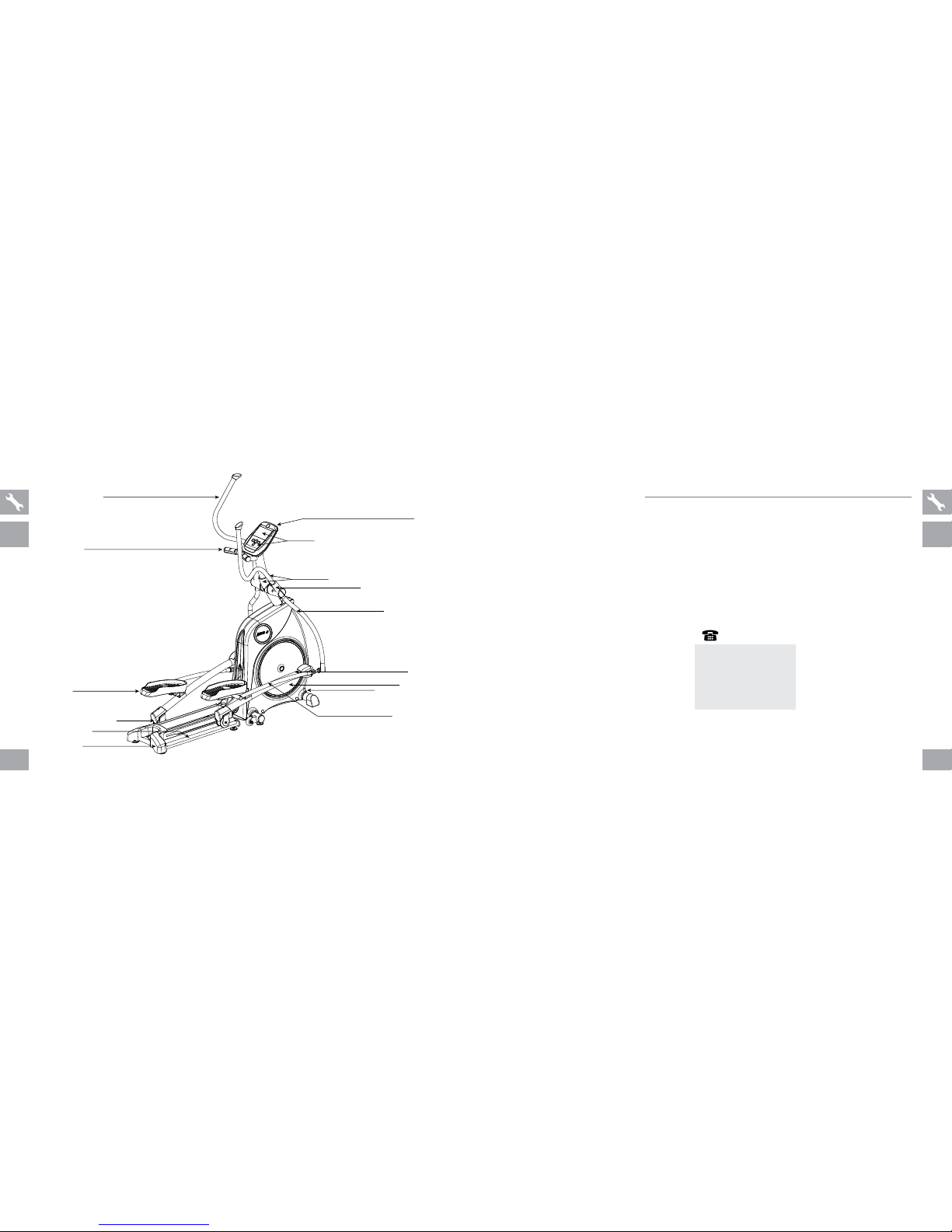

ROLLER WHE EL C OV ERS
GUIDE RAIL S ET
PULSE GRIPS
UPPE R HANDLEBAR
FOOTPAD P OWE R CORD SOC KET
RE AR C OV ER
CONSOLE
TOUCH PAD PANE L AND DISPLAY W INDOW S
LOWE R HANDLEBAR
UPPE R HANDLEBAR COVER
CR ANK COVER
PE DAL ARM
FRONT / REAR CONSO LE MAST COVER
LOWER LINK AR M
Andes6
Andes8
Andes6
Andes8
UnpacKinG
Unpack the product where you will be using it. Place the elliptical carton on a level flat
surface. It is recommended that you place a protective covering on your floor. Never
open box when it is on its side.
NOTE: During each assembly step, ensure that ALL nuts and bolts are in place and
partially threaded in before completely tightening any ONE bolt.
NOTE: A light application of grease may aid in the installation of hardware. Any grease,
such as lithium bike grease is recommended.
If you have questions or if
there are any missing parts,
contact Customer Tech
Support.
neeD Help?
pre ASSEMBLY
partS inclUDeD:
F1 Main Frame
F2 Upper Handlebars Set
F1 Console Mast Set
F1 Console Box
F1 Parts Box
partS BoX inclUDeD:
F1 Hexagon L-Wrench #5 (W/Screwer)
F1 Front Console Mast Cover
( DWG NO.EP247-Q10)
F1 Rear Console Mast Cover
( DWG NO.EP247-Q09)
F1 Power Cord
F1 Owners Manual

6 7
ASSEMBLY Step 1 ASSEMBLY Step 2
Andes6
Andes8
Andes6
Andes8
A Use HEXAGON L WRENCH #5 to remove
PRE-AttACHEd WASHERS (A) & SCREWS
(A) from frame.
B Put CONSOLE WIRES through CONSOLE
MASt.
C Set CONSOLE MASt on the frame.
D Use HEXAGON L WRENCH #5 to
attach CONSOLE MASt to frame with
PRE-AttACHEd WASHERS (A) & SCREWS
(A).
E Use HEXAGON L WRENCH #5 to remove
PRE-AttACHEd SCREWS (B) from frame.
F Then use HEXAGON L WRENCH #5 to
attach CONSOLE MASt COVERS with
PRE-AttACHEd SCREWS (B).
SCREW (A)
M8 x 1.25P x 16 L
Qty: 4
WASHER (A)
φ8.4 xφ17.0 x 1.0T
Qty: 4
SCREW (B)
M4 x 0.75P x 12L
Qty: 2
HEXAGON L
WRENCH #5
(W/SCREW D RIVER)
pre-attacHeD HarDWare partS:
CONSOLE WIRES
REAR CONSOLE
MAST COVER
WASHERS (A)
SCREW(A)
SCREW(B)
FRONT CONSOLE
MAST COVER
CONSOLE MAST
CONSOLE WIRES
CONSOLE MAST
SCREW(C)
CONSOLE
A Use HEXAGON L WRENCH #5 to remove
PRE-AttACHEd SCREW (C) from CONSOLE.
B Attach CONSOLE WIRES to CONSOLE.
C Use HEXAGON L WRENCH #5 to attach
CONSOLE to CONSOLE MASt with PRE-
AttACHEd SCREW (C).
SCREW (C)
M5 x 0.8P x 12L
Qty: 4
HEXAGON L
WRENCH #5
(W/SCREW DRIVE R)
pre-attacHeD HarDWare partS:
REAR CONSOLE
MAST COVER
EP247-Q09
FRONT CONSOLE
MAST COVER
EP247-Q10

8 9
ASSEMBLY Step 3
Andes6
Andes8
SCREW(D)
LOWER HANDLEBARS
UPPER HANDLEBARS
A Use HEXAGON L WRENCH #5 to remove
PRE-AttACHEd SCREWS (d) from UPPER
HANdLEBARS.
B Attach UPPER HANdLEBARS to LOWER
HANdLEBARS with PRE-AttACHEd SCREWS (d).
SCREW (D)
M10 x1.5P x 10L
Qty: 4
HEXAGON L
WRENCH #5
(W/SCREW DRIVE R)
pre-attacHeD HarDWare partS:
YOU ARE FINISHED!
Andes6
Andes8

10 11
FolDinG inStrUction
FolD Up inStrUction
Use right hand to grip the handle.
Pull up until guide rail set locks into place.
FolDinG inStrUction
FolD DoWn inStrUction
Use right hand to grip the handle, push forward gently.
Pull up on the handle to release.
Pull back to fold down.
note: The guide rails have a soft drop shock system. Let the rails unfold, do not push down on the rails.
Doing so may cause the front of the elliptical to tip over.
note: For ease of folding, position footpads so they are parallel or the front footpad is higher than the rear.
Andes6
Andes8
Andes6
Andes8
SUPPORT TUBE
HANDLE
SUPPORT TUBE
HANDLE
SUPP ORT TUBE
HAND LE
SUPP ORT TUBE
HAND LE

12 13
ELLIPTICAL OPERATION
This section explains how to use your elliptical’s console and programming.
The BASIC OPERATION section in the ELLIPTICAL GUIDE has instructions for the following:
• location oF tHe elliptical
• poWer/GroUnDinG inStrUctionS
• Foot poSitioninG
• MoVinG tHe elliptical
• leVelinG tHe elliptical
• poWer/ManUal incline operation
• USinG tHe Heart rate FUnction
MoVinG tHe elliptical
WarninG!
Our ellipticals are heavy, use care and additional help if necessary when moving.
Failure to follow instructions could result in injury.
Andes6
Andes8

14 15
anDeS 6 & 8 conSole operation
QUicK Start
1) Make sure the power is on.
2) Simply press the “START” key and begin exercising.
SetUp YoUr perSonal Data
This console is able to store your personal data which includes name, gender, age and weight. This allows you to start your workout
more quickly and monitor your exercise information more accurately. Please setup your personal data before you use the machine for
the first time. To set up your data, please follow the procedure as below,
1) Select any program
2) Select user 1, 2 or 3
3) Select your gender
4) Select your age
5) Select your weight
6) Input your name
7) Hold the “Start” key for 3 seconds to finish your setup
The console is able to store up to 3 users’ data. If you would like to modify your personal data, please select “USerS SettinG” for
modification.
Start YoUr WorKoUt
1) Select the program you preferred.
2) Select the user. (If your personal data has been entered, just select and then you can start your workout).
3) Select your gender.
4) Select your age.
5) Select your weight.
6) Start your workout.
Andes6
Andes8
Andes6
Andes8
controlS
Click 3 seconds hold 5 seconds hold
• Increase
• Next item
• Decrease
• Previous item
• Quick start
• Select item
• Start the workout
• Enter to the next
step
• Finish inputting
user ’s name
符
• Stop the workout
• Back to the
previous step
• Reset • Language selection
• Metric /British
selection

16 17
• WeiGHt loSS: Promotes weight loss by raising and
lowering the resistance level, while keeping you in your
fat burning zone.
• MoUntain: Improves performance and stamina by
raising the resistance level to high peaks to simulate the
most difficult outdoor terrains.
• Hrc 1: Benefits weight loss by maintaining an optimum
exercise level to burn fat, while adjusting the resistance to
keep you in your target heart rate zone.
proGraM proFileS
• ManUal: Allows you to adjust the resistance level to
your preference, without a preset program.
• interValS: Improves your strength, speed, and
endurance by raising and lowering the resistance
levels throughout your workout to involve both your
heart and muscles.
• rollinG: Maintains weight by gradually raising and
lowering the resistance level to gradually raise and
lower your heart rate.
proGraM proFileS
• Hrc 2: Benefits weight loss by maintaining an optimum
exercise level to burn fat, while adjusting the resistance to
keep you in your target heart rate zone.
• cUStoM 1: Customized workout, time defaults to 15
minutes.
• cUStoM 2.3: Customized workout, time defaults to 15
minutes.
• USB interFace: There is a USB port on the back side of
console. It makes your elliptical trainer compatible with PC.
You are able to upgrade exercise programs via PC, or use
particular PC software which designed for fitness machine.
• WattS control (anDeS 8 onlY) : Exercise at a set
work level. As you increase your pedal rate(RPM), your
resistance will decrease; if you decrease your pedal rate
(RPM), your resistance will increase.
• Fit-teSt (anDeS 8 onlY) : Test your current level of
physical fitness.At completion of the program,it will provide
feedback regarding your fitness level for you to monitor your
progress.

18 19
MonitorinG YoUr Heart rate
FeeDBacK
Your Horizon Fitness elliptical trainer offers two heart rate feedback options. You may choose to use the heart rate handlebars, or the
chest transmitter (sold separately) for a hands free workout.
Heart rate HanDleBar
Place the palm of your hands directly on the heart rate handlebars. Both hands must grip the bars for your heart rate to register.
When gripping the handlebars, do not grip tightly. Holding the grips tightly may elevate your blood pressure. Try to maintain moderate
pressure while holding onto the heart rate handlebars. It is recommended that you hold the handlebars only long enough the see your
heart rate readout on the console. You may experience an erratic readout if consistently holding the handlebars.
teleMetric cHeSt tranSMitter (SolD SeparatelY)
Prior to wearing the chest transmitter sold separately on your chest, moisten the two rubber electrodeswith water. Center the chest
strap just below the breast or pectoral muscles, directly overyour stermum, with the Horizon Fitness logo facing out. NOTE: The chest
strap must be tight and properly placed to receive an accurate and consistent readout. If the chest strap is too loose, or positioned
improperly, you may receive an erratic or inconsistent heart rate readout.
If you have any problems with the heart rate function please refer to pages 16 & 17 in the troubleshooting section of the
elliptical guide.
WarninG!
The heart rate function is not a medical device. Various factors may affect the accuracy of your heart rate reading. The heart rate
reading is intended only as an exercise aid.
proGraM proFileS
• Step teSt (anDeS 8 onlY) : Test your current
level of physical fitness.At completion of the
program,it will provide feedback regarding your fitness
level for you to monitor your progress.
• GaMe 1 (anDeS 8 onlY) : This warm up game
simulates a Car Racing Game. To control the car up
and down, you pedal faster or slower. Try to avoid
those barriers and keep on track. You only have 11
chances to complete the circuit, so be careful .
• GaMe 2 (anDeS 8 onlY) : This warm up game
simulates a Fishing Game. To control the fishhook to
go deeper or shallower, you pedal faster or slower.
After the fish has been caught by you fishhook, then
pedal faster until the fishhook is off of the screen.
Some of the fish are harder to catch than others, but
you will get more points from catching these fish.

20 21
proDUct Spare part liSt
ItEM NO. dESCRIPtION
P01 CONSOLE WIRE;1100(150+400+150)
P02 WIRE RPM 280MM
P06 SCREW;BH; Ø3 X 8L;SM;PH;BAN;POT
P07 SENSOR BRACKET
P08 SCREW;TRH;Ø4 X 10L;SM;PH;BZN;POT
V01 STICKER;CE;EP247
V03 DOCUMENTATION;CHECKLIST;EP247
V04 DOCUMENTATION;CHECKLIST;PART BOX;EP247
V05 STICKER;GREEN;ROHS
V22 MANUAL;ASSEMBLY;EP247
V23 MANUAL;MANIPULATE;EP247
X01 BOX;W/ PRINT
X02 POLYSTYRENE SET
X03 PACKAGING ACCESSORY
X07 BUBBLE BAG;400X600;EP103;EP103-X18A
X10 PLASTIC BAG;1500X100
X11 CABLE TIE;NYLON;L= 300MM
X12 PLASTIC BAG SET;TM171-X20A-00
Z18 WRENCH -ALLEN L-SHAPE 5MM
Z19 CABLE TIE;NYLON;BLACK;160L
Z20 CABLE TIE;100M/ROL
ItEM NO. dESCRIPtION
Z22 WRENCH;HEX;L-TYPE;#4X70L
ADAPTOR;USA;100-240V 12V/2A ; HZ
PWR ADAPTEREUROPE 100-240V/12V/1A;HZ
PWR ADAPTER;HONGK;100-240V/50-
60HZ/12V1A
PWR ADAPTER(CHINA);100-240V/50-60H 12V1A
PWR ADAPTER;AUS;100-240V/50-60H/12V/1A
PWR ADAPTER(TAI);100-240V/50-60HZ/12V1A
WARRANTYCARD;ENGLAND;HF
ADAPTOR;BRIZIL;110V/60HZ 12V/2A;HZ
SWITCH PWR(S AFRICA);100-240V/50HZ 12V/2
SWITCH PWR(INDIA);100-240V/50HZ 12V/2A H
SWITCH PWR(ISRAEL);100-240V 12V/2A GAPR
SWITCH POWER;100-240V/50HZ 12V/2A
HORIZO
SWITCH PWR(ARGENTINA);100-240 HORIZON
proDUct Spare part liSt
ItEM NO. dESCRIPtION
1 CONSOLE MAST SET;SEMI-ASSY;EP247-2KM
2 PEDAL ARM SET;R;SEMI-ASSY;EP247-2KM
4 PEDAL ARM SET;L;SEMI-ASSY;EP247-2KM
5 GUIDE RAIL SET;SEMI-ASSY;EP247-2KM
6 ARM REST SET;R;U;SEMI-ASSY;PAHS;EP247
7 ARM REST SET;L;U;SEMI-ASSY;PAHS;EP247
8 ARM REST SET;R;D;SEMI-ASSY;EP247
10 ARM REST SET;L;D;SEMI-ASSY;EP247
13 LINK ARM SET;L;SEMI-ASSY;EP247-2KM
15 CRANK SET;SEMI-ASSY;EP247-2KM
16 COVER SET;SEMI-ASSY;EP247-2KM
17 GENERATOR SET;SEMI-ASSY;EP247-2KM
18 TRANSMISSION SET;SEMI-ASSY;EP247-2KM
19 FREEWHEEL SA;EP247
20 LINK ARM SET;R;SEMI-ASSY;EP247-2KM
AN1 CONSOLE SET;SA;EP247
B31 SCREW;BH;M8X1.25PX45L;HS;CRMO;G10.9;
NKL
B32 NUT;NLK; M8X1.25P;NKL
B33 WASHER;FLT;Ø8.2 X Ø18.0 X 1.0T;SPHC ;NKL
B34 RVN;HX;39515;YZN
B35 FRONT LEVELER
ItEM NO. dESCRIPtION
B36 CAP;STABILIZER;PVC; Ø60 X 2T;BLF54
B37 FOOT PAD;STABILIZER;R;FRONT;CB131
B38 SCREW;BH;Ø5 X 15L;SM;PH;BZN;POT
B39 FOOT PAD;STABILIZER;L;FRONT;CB131
B40 NUT;HX;3/8-16UNC;SS41;BZN
B41 SWIVEL PLATE;PANTING;EP247
B42 ROLLER;RUBBER;ZN PLATE;EP34
B43 SCREW;BH;M6X1.0PX25L-20L;HS;BP;P-T
B44 WASHER;FLT;Ø6.5 X Ø14.0X1.0T;;BZN
B45 NUT;NLK;M6X1.0P;ZN
B46 SWIVEL PLATE 2;EP247
B46 SWIVEL PLATE;2;PANTING;EP247
B47 BEARING;DRY;PAP 2015;SHUN DE
B48 SCREW;BH;M6X1.0PX20L; HS;BZN
B49 WHEEL MOBILE
B49 AIR SHOCK;EP247
B50 NUT;NLK;M8X1.25P;BZN
B51 SCREW;BH;M8X1.25PX30L;HS
B52 PULL PIN;EP247
B53 SPRING;CMP;Ø1.2 X Ø14.5 X 17.0LX8.5N;SWP;
WZN
B54 CLIP CC S-12 EXTERNAL

22 23
eXploDeD VieW
16
6
8
20
2
15
17
19
18
1
A
N1
7
10
4
B36
B47
B38
B49
B35
B
34
B36
B43
B42
B46
4-B44
4-B45
B41
B38
B37
P01
13
P08 P07
P06
P02
B32
B33 B49 B31
B35
B39
5
A
B
B
47
V01
B
A
C
D
D
C
2-B48
E
E
B
49
B50
B50
B51
B51
B52
B53 B54
B34B40
B40
15

ELLIPTICAL OWNER’S MANUAL
Andes 6 & Andes 8 Owner’s Manual 102710 Rev. 1.2 © 2010 Horizon Fitness
