Horizon Fitness CE4.1 User manual

HORIZON SERIES
ELLIPTICAL USER’S GUIDE
FOR MODELS :
CE4.1
EX-57

BEFORE
YOU BEGIN ASSEMBLYASSEMBLY
3
INTRODUCTION
ELLIPTICAL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY IMPORTANT
PRECAUTIONS INTRODUCTION
CONGRATULATIONS and THANK YOU for your purchase of this Horizon Series elliptical!
Whether your goal is to win races or simply enjoy a fuller, healthier lifestyle, a Horizon Series elliptical
can help you attain it – adding club-quality performance to your at-home workouts, with the ergonomics
and innovative features you need to get stronger and healthier, faster. Because we're committed to
designing fitness equipment from the inside out, we use only the highest quality components. It's a
commitment we back with one of the strongest frame-to-brake warranty packages in the industry.
You want exercise equipment that offers the most comfort, the best reliability and the highest quality
in its class.
The Horizon Series delivers.
INTRODUCTION
TABLE OF CONTENTS
Important Precautions
Assembly
Before You Begin
Elliptical Operation
Conditioning Guidelines
Troubleshooting & Maintenance
Limited Warranty
CONTACT INFORMATION
4
5
13
14
19
27
31
Back Panel

BEFORE
YOU BEGIN
4
INTRODUCTION ASSEMBLY BEFORE
YOU BEGIN ELLIPTICAL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
ASSEMBLY
IMPORTANT
PRECAUTIONS
SAVE THESE INSTRUCTIONS
Read all instructions before using this elliptical. When using an electrical product, basic precautions
should always be followed, including the following: Read all instructions before using this elliptical. It is the
responsibility of the owner to ensure that all users of this elliptical are adequately informed of all warnings
and precautions. If you have any questions after reading this manual, contact Customer Tech Support at the
number listed on the back panel of this manual.
IMPORTANT PRECAUTIONS
At NO time should pets or children under the age of 12 be closer to the elliptical than 10 feet.
At NO time should children under the age of 12 use the elliptical.
Children over the age of 12 should not use the elliptical without adult supervision.
It is essential that your elliptical is used only indoors, in a climate controlled room. If your elliptical has been
exposed to colder temperatures or high moisture climates, it is strongly recommended that the elliptical is
warmed up to room temperature before first time use. Failure to do so may cause premature electronic failure.
To reduce the risk of burns, fire, electrical shock or injury to persons:
• If you experience any kind of pain, including, but not limited to chest pains, nausea, dizziness, or
shortness of breath, stop exercising immediately and consult your physician before continuing.
• Maintain a comfortable pace. Do not sprint above 80 rpms on this machine.
• To maintain balance, it is recommended to keep a grip on the handlebars while exercising, mounting or
dismounting the machine.
• Do not wear clothes that might catch on any part of the elliptical.
• Do not turn pedal arms by hand.
• Make sure handlebars are secure before each use.
• Do not insert or drop any object into any opening.
• Unplug elliptical before moving or cleaning it. To clean, wipe surfaces down with soap and slightly damp
cloth only; never use solvents. (See MAINTENANCE)
• This elliptical should not be used by persons weighing more than 275 pounds. Failure to comply will void
the warranty.
• This elliptical is intended for in-home use only. Do not use this elliptical in any commercial, rental, school
or institutional setting. Failure to comply will void the warranty.
• Do not use a elliptical in any location that is not temperature controlled, such as, but not limited
to garages, porches, pool rooms, bathrooms, car ports or outdoors. Failure to comply may void the
warranty.
• Use the elliptical only as described in this manual.
• Keep the topside of the foot support clean and dry
• Care should be taken when mounting or dismounting the equipment. Before mounting or dismounting,
move the pedal on the mounting or dismounting side to its lowest position and bring the machine to a
complete stop.
• Disconnect all power before servicing the equipment.

BEFORE
YOU BEGIN ASSEMBLY
5
INTRODUCTION
ELLIPTICAL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY IMPORTANT
PRECAUTIONS
ASSEMBLY
IMPORTANT: READ THESE SAFETY INSTRUCTIONS BEFORE USE!
There are several areas during the assembly process of a elliptical that special attention must be paid. It is
very important to follow the assembly instructions correctly and to make sure all parts are firmly tightened.
If the assembly instructions are not followed correctly, the elliptical could have frame parts that are not
tightened and will seem loose and may cause irritating noises. To prevent damage to the elliptical, the
assembly instructions must be reviewed and corrective actions should be taken.
UNPACKING
Unpack the product where you will be using it. Place the product on a level flat surface. It is recommended
that you place a protective covering on your floor. During each assembly step, ensure that ALL nuts and
bolts are in place and partially threaded in before completely tightening any ONE bolt.
NOTE: A light application of grease may aid in the installation of hardware. Any grease, such as lithium
bike grease is recommended.
Before proceeding, find your elliptical’s serial number
located on the front stabilizer tube and enter it in the
space provided below. Also locate the model name
which is located on the side cover badge.
ENTER YOUR SERIAL NUMBER AND
MODEL NAME IN THE BOXES BELOW:
SERIAL NUMBER :
MODEL NAME:
* Refer to the SERIAL NUMBER and MODEL NAME when calling for service.
* Also enter this serial number on your Warranty Card.
IMPORTANT
PRECAUTIONS

BEFORE
YOU BEGIN
6
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN ELLIPTICAL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
If you have questions or if there are any missing parts, contact Customer Tech Support.
Contact information is located on the back panel of this manual.
TOOLS INCLUDED PARTS INCLUDED
c 5mm Allen Wrench
c 6mm Allen Wrench
c Phillips Screw Driver
c 13/15mm Flat Wrench
c 1 Console
c 1 Console Mast
c 1 Front Stabilizer Tube
c 2 Upper Handlebars
c 2 Lower Handlebars
c 2 Lower Link Arms
c 2 Top Covers
c 2 Rear Stabilizer End Caps
c 1 HORIZON FITNESS
12-Volt Power Adapter
c 4 Hardware Bags
c 2 Elbow Cover Sets
c 2 Handle Bar Cover Sets
c 1 Water Bottle Holder
c 1 Console Mast Boot
c 2 Handle Bar Covers
If you have questions or if there are any missing parts, contact Customer Tech Support.
Contact information is located on the back panel of this manual.
If you have questions or if there are any missing parts, contact Customer Tech Support.
Contact information is located on the back panel of this manual.

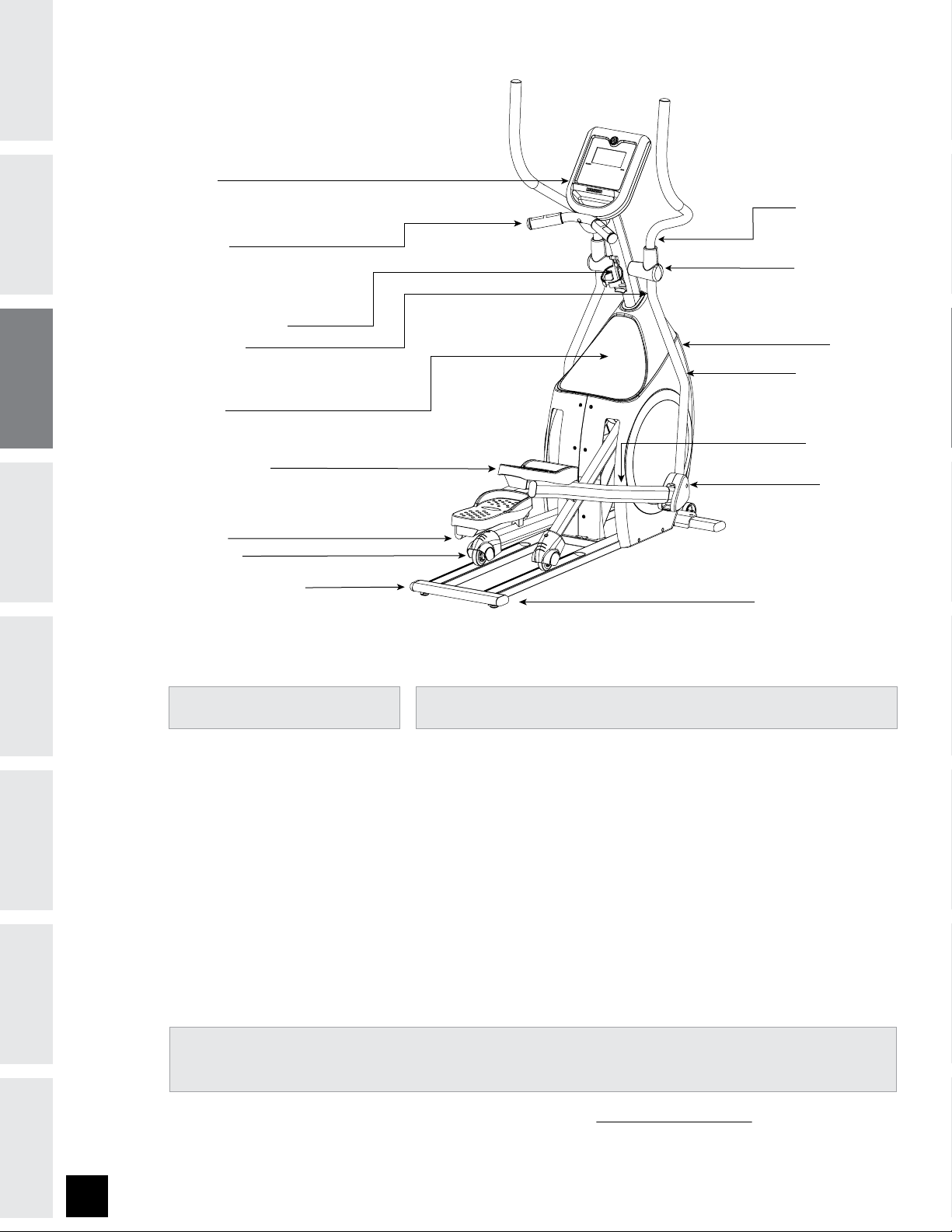

For a complete exploded diagram, visit us at www.horizonfitness.com
UPPER HANDLEBAR
MAIN FRAME
LOWER HANDLEBAR
LOWER LINK ARM
CONSOLE
GRIP PULSE
CONSOLE MAST
TOP COVER
PIVOTING FOOT PAD
PEDAL ARM
WHEEL COVER
WATER BOTTLE HOLDER
REAR STABILIZER END CAP
ELBOW COVER
HANDLE BAR COVER
REAR STABILIZER END CAP

BEFORE
YOU BEGIN ASSEMBLY
7
INTRODUCTION
ELLIPTICAL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY IMPORTANT
PRECAUTIONS
BOLT (A)
SPRING WASHER (B)
FLAT WASHER (C)
FRONT STABILIZER TUBE
MAIN FRAME
BOLT (A)
SPRING WASHER (B)
FLAT WASHER (C)
REAR STABILIZER
BOLT (A)
SPRING WASHER (B)
FLAT WASHER (C)
END CAP
END CAP

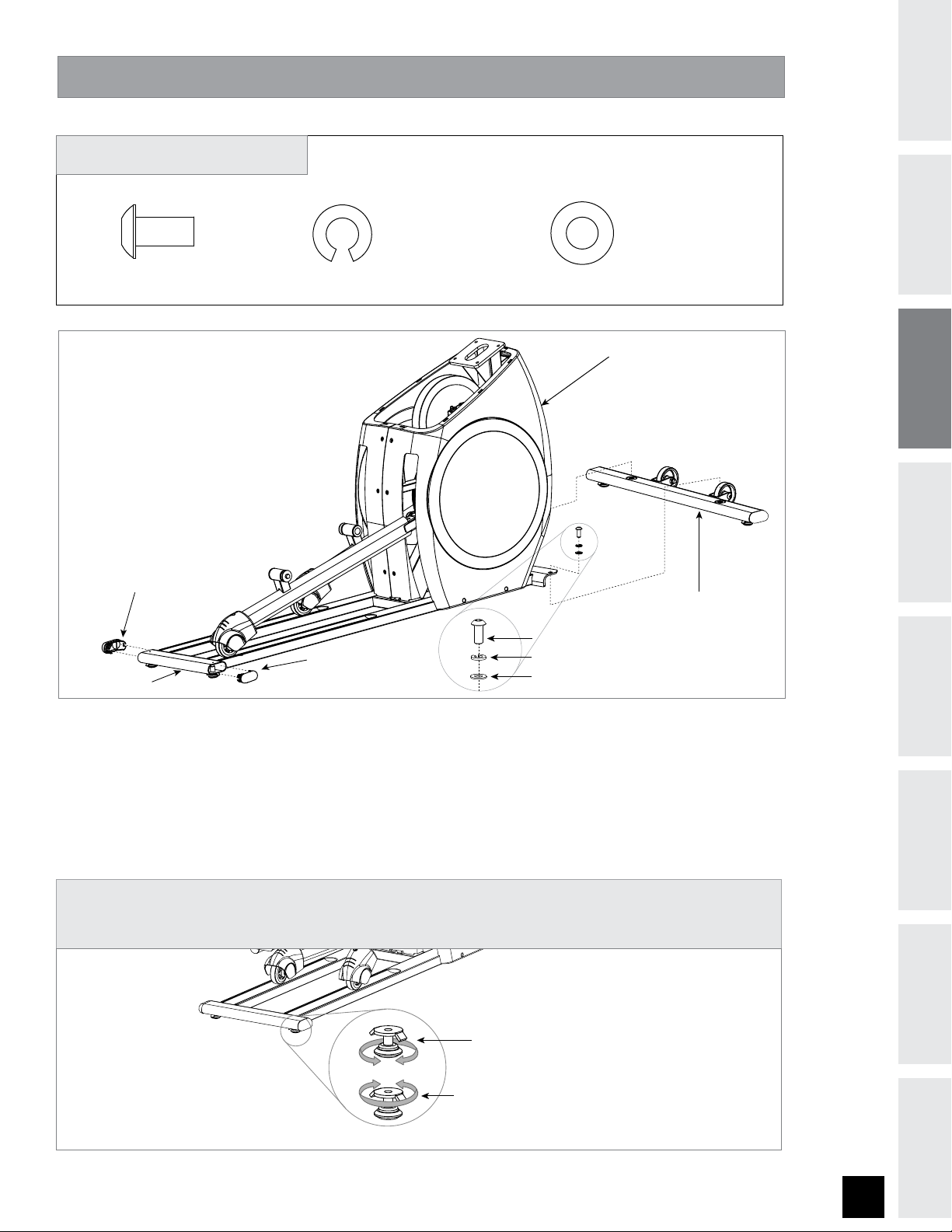

ASSEMBLY STEP 1
A) Open HARDWARE BAG FOR STEP 1.
B) Attach the FRONT STABILIZER TUBE to the MAIN FRAME using 2 BOLTS (A), 2 SPRING WASHERS (B) and 2
FLAT WASHERS (C).
C) Fit both END CAPS into REAR STABILIZER TUBE.
BOLT (A)
20 mm
Qty: 2
SPRING WASHER (B)
18 mm
Qty: 2
END CAP
Qty: 2
FLAT WASHER (C)
20 mm
Qty: 2
HARDWARE BAG FOR STEP 1 CONTENTS :
LOCK ADJUSTMENT
ADJUST HEIGHT
ADJUSTING LEVELERS
Adjust the 2 rear levelers and 2 front levelers so that the elliptical is level on the floor.

BEFORE
YOU BEGIN
8
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN ELLIPTICAL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
A) Open HARDWARE BAG FOR STEP 2.
B)
Carefully pull the CONSOLE CABLE through the CONSOLE MAST using the twist tie located inside the
CONSOLE MAST.
C) Attach the CONSOLE MAST to the MAIN FRAME using 4 BOLTS (A), 4 SPRING WASHERS (B) and 4 FLAT
WASHERS (C).
D) Attach the TOP FRONT COVER, followed by the TOP BACK COVER and snap them together.
E) Slide CONSOLE MAST BOOT down to seal the console mast hole.
CONSOLE MAST
CONSOLE MAST BOOT
MAIN FRAME
BOLT (A)
SPRING WASHER (B)
FLAT WASHER (C)
TOP FRONT COVER
TOP BACK COVER
CONSOLE MAST BOOT
CONSOLE WIRE
BOLT (A)
20 mm
Qty: 4
SPRING WASHER (B)
18 mm
Qty: 4
FLAT WASHER (C)
20 mm
Qty: 4
HARDWARE BAG FOR STEP 2 CONTENTS :
ASSEMBLY STEP 2

BEFORE
YOU BEGIN ASSEMBLY
9
INTRODUCTION
ELLIPTICAL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY IMPORTANT
PRECAUTIONS
ASSEMBLY STEP 3
PEDAL ARM TUBE
TEFLON WASHERS (E)
BOLT (G)
FLAT WASHER (F)
LOWER LINK ARM
LINK ARM BRACKET
SPACER (D)
PEDAL ARM
PEDAL ARM
PEDAL ARM TUBE
TEFLON WASHERS (E)
BOLT (G)
FLAT WASHER (F)
LOWER LINK ARM
LINK ARM BRACKET
SPACER (D)
A ) Open HARDWARE BAG FOR STEP 3.
B) Align the bracket on the LEFT LOWER LINK ARM with the tube on the LEFT PEDAL ARM.
C) Slide the SPACER (D) through the LINK ARM BRACKET and the PEDAL ARM so it can’t rotate.
D) Insert 2 TEFLON WASHERS (E) between the PEDAL ARM and the LINK ARM BRACKET.
E) Secure the joint with a FLAT WASHER (F) and BOLT (G).
F) Repeat on the other side.
BOLT (G)
15 mm
Qty: 2
SPACER (D)
70 mm axis
Qty: 2
FLAT WASHER (F)
35 mm
Qty: 2
SPLIT TEFLON WASHER (E)
30 mm
Qty: 4
HARDWARE BAG FOR STEP 3 CONTENTS :

BEFORE
YOU BEGIN
10
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN ELLIPTICAL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
ASSEMBLY STEP 4
LOWER HANDLEBAR
CONSOLE MAST
PRE-ATTACHED
BOLT & WASHER
UPPER HANDLEBAR
PRE-ATTACHED
SET SCREWS
NOTCH
TAB
WATER BOTTLE HOLDER
PRE-ATTACHED
SCREWS
NOTE: There is NO hardware bag for this step. All hardware is pre-installed.
A) Remove PRE-ATTACHED BOLT & WASHERS from CONSOLE MAST.
B) Slide LOWER HANDLEBARS onto CONSOLE MAST and attach by re-inserting PRE-ATTACHED BOLT & WASHERS.
C) Slide UPPER HANDLEBARS onto LOWER HANDLEBARS and align NOTCH with TAB making sure handlebars are
joined together completely. Secure UPPER HANDLEBARS to LOWER HANDLEBARS using PRE-ATTACHED SET
SCREWS.
D) Repeat on other side.
E) Attach WATER BOTTLE HOLDER to CONSOLE MAST using PRE ATTACHED SCREWS.
After handlebars are assembled they will rotate freely – be cautious. Until the
machine is fully assembled, do not grab the handlebars for support.

BEFORE
YOU BEGIN ASSEMBLY
11
INTRODUCTION
ELLIPTICAL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY IMPORTANT
PRECAUTIONS
ASSEMBLY STEP 5
A) Open HARDWARE BAG FOR STEP 5 (contents on next page).
B) Slide SPACER (H) into LOWER LINK ARM.
C) Place TEFLON WASHERS (I) on either side of SPACER (H). While holding TEFLON WASHERS (I) slide LOWER
LINK ARM into bottom end of LOWER HANDLEBAR.
D) Insert BOLT (J) into LOWER HANDLEBAR and secure using NUT (K).
E) Attach the OUTSIDE ELBOW COVER to elbow joint using 1 SCREW (L).
F) Snap the INSIDE ELBOW COVER onto the OUTSIDE ELBOW COVER.
Note the position of the snap tabs before snapping into position.
G) Repeat on other side.
INSIDE
ELBOW COVER
OUTSIDE
ELBOW COVER
SCREW (L)
LOWER HANDLEBAR
GUIDE RAIL
TEFLON WASHERS (H)
LOWER HANDLEBAR
NUT (E) BOLT (F)
LOWER LINK ARM
SPACER (G)
LOWER LINK ARM
SPACER
TEFLON WASHERS
LOWER
HANDLEBAR
GUIDE RAIL
TEFLON WASHERS (I)
LOWER HANDLEBAR
NUT (K)
BOLT (J)
LOWER LINK ARM
SPACER (H)
LOWER LINK ARM
SPACER
TEFLON WASHERS
LOWER
HANDLEBAR
GUIDE RAIL
TEFLON WASHERS (I)
LOWER HANDLEBAR
NUT (K)
BOLT (J)
LOWER LINK ARM
SPACER (H)
LOWER LINK ARM
SPACER
TEFLON WASHERS
LOWER
HANDLEBAR

BEFORE
YOU BEGIN
12
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN ELLIPTICAL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
NOTE: There is NO hardware bag for this step.
All hardware is pre-installed.
A) Snap the front and back HANDLEBAR
COVERS together onto the UPPER HANDLE
BARS.
Note the position of the snap tabs on the
covers before snapping into position.
B) Attach the CONSOLE WIRES to the
CONSOLE.
C) Carefully tuck the CONSOLE MAST wires
into the CONSOLE MAST before attaching
the CONSOLE.
D) Attach CONSOLE to the CONSOLE MAST
using the 4 PRE-ATTACHED SCREWS
(screws will have to be removed from the
console first).
DO NOT PINCH WIRES!
YOU’RE FINISHED!
NUT (K)
INSIDE DIAMETER:
8 mm
Qty: 2
BOLT (J)
60 mm
Qty: 2
SPACER (H)
44 mm
Qty: 2
TEFLON WASHER (I)
28.4 mm
Qty: 4
SCREW (L)
Qty: 2
HARDWARE BAG FOR STEP 5 CONTENTS :
CONSOLE
CONSOLE MAST
CONSOLE WIRES
PRE-ATTACHED
SCREWS
FRONT
HANDLEBAR
COVER
FRONT
HANDLEBAR
COVER
BACK
HANDLEBAR
COVER
ASSEMBLY STEP 5 (CONTINUED)
Connect AC ADAPTOR to the AC ADAPTOR INPUT, located at front of the main frame. Connect
ADAPTOR to a power outlet. After a “beep”, the CONSOLE will light up.
ASSEMBLY STEP 6

ASSEMBLY
13
INTRODUCTION
ELLIPTICAL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY ASSEMBLY
BEFORE
YOU BEGIN IMPORTANT
PRECAUTIONS
BEFORE YOU BEGIN
CONGRATULATIONS! on choosing your elliptical. You’ve taken an important step in developing and
sustaining an exercise program! Your elliptical is a tremendously effective tool for achieving your personal
fitness goals. Regular use of your elliptical can improve the quality of your life in so many ways.
HERE ARE JUST A FEW OF THE HEALTH BENEFITS OF EXERCISE:
• Weight Loss
• A Healthier Heart
• Improved Muscle Tone
• Increased Daily Energy Levels
The key to reaping these benefits is to develop an exercise habit. Your new
elliptical will help you eliminate obstacles that prevent you from exercising.
Inclement weather and darkness won't interfere with your workout when you
use your elliptical in the comfort of your home. This guide provides you with
basic information for using and enjoying your new machine.

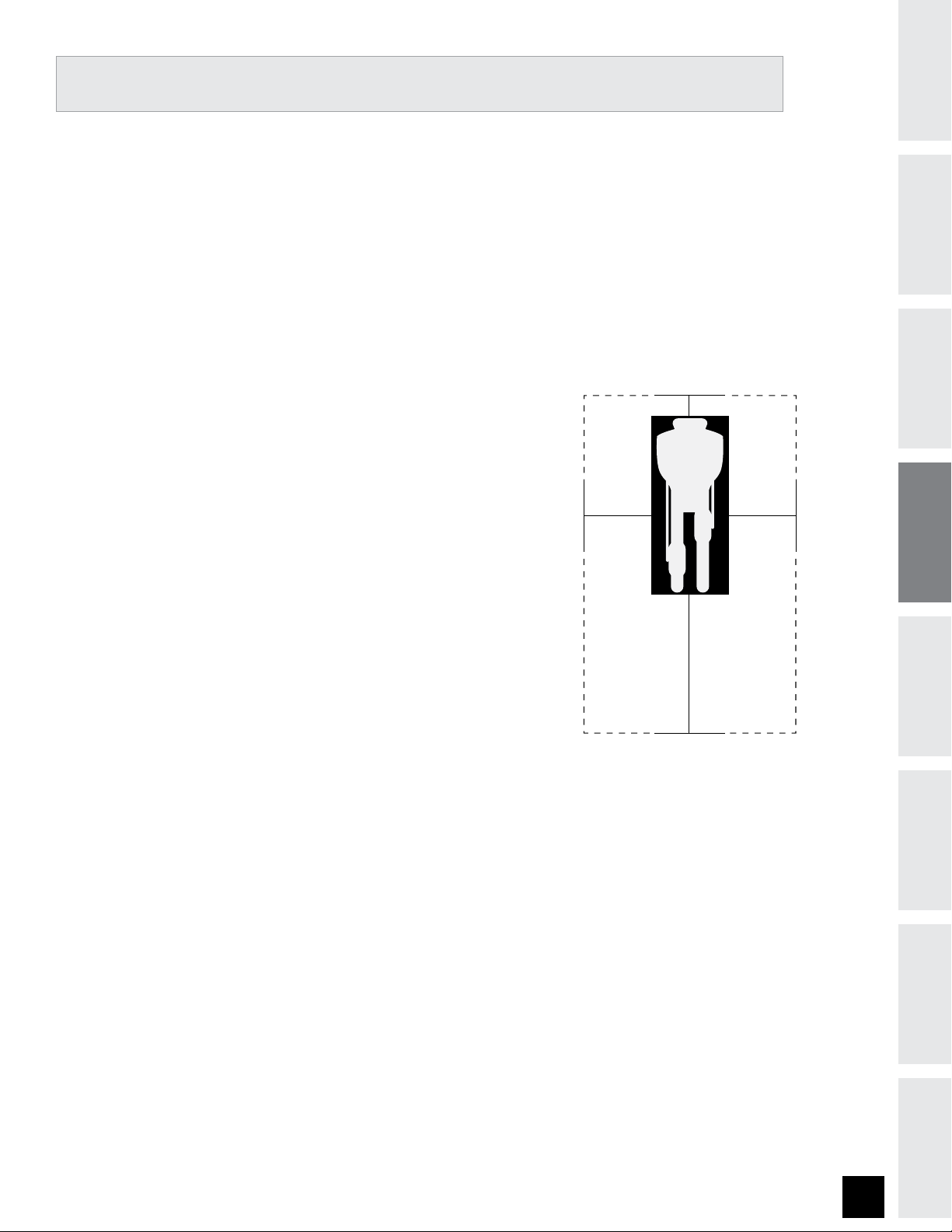

LOCATION OF THE ELLIPTICAL
Place the elliptical on a level surface. There should be 7 feet of clearance
behind the elliptical, 3 feet on each side and one foot in front for the power
cord (See diagram to the right). Do not place the elliptical in any area that
will block any vent or air openings. The elliptical should not be located in a
garage, covered patio, near water or outdoors.
3 ft
7 ft
3 ft
92 cm 92 cm
1 ft
214 cm
31 cm

BEFORE
YOU BEGIN
14
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN ELLIPTICAL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
ASSEMBLY ELLIPTICAL
OPERATION
POWER
Your programmable elliptical is powered by a power supply. The power must be plugged into the power jack,
which is located in the front of the machine near the STABILIZER TUBE. Make sure the console power switch is
in the ON position. Note: Not all units have an ON/OFF switch on the console.
Do not operate the elliptical if the power cord or plug is damaged.
If the elliptical appears to not be working properly, do not use the elliptical.

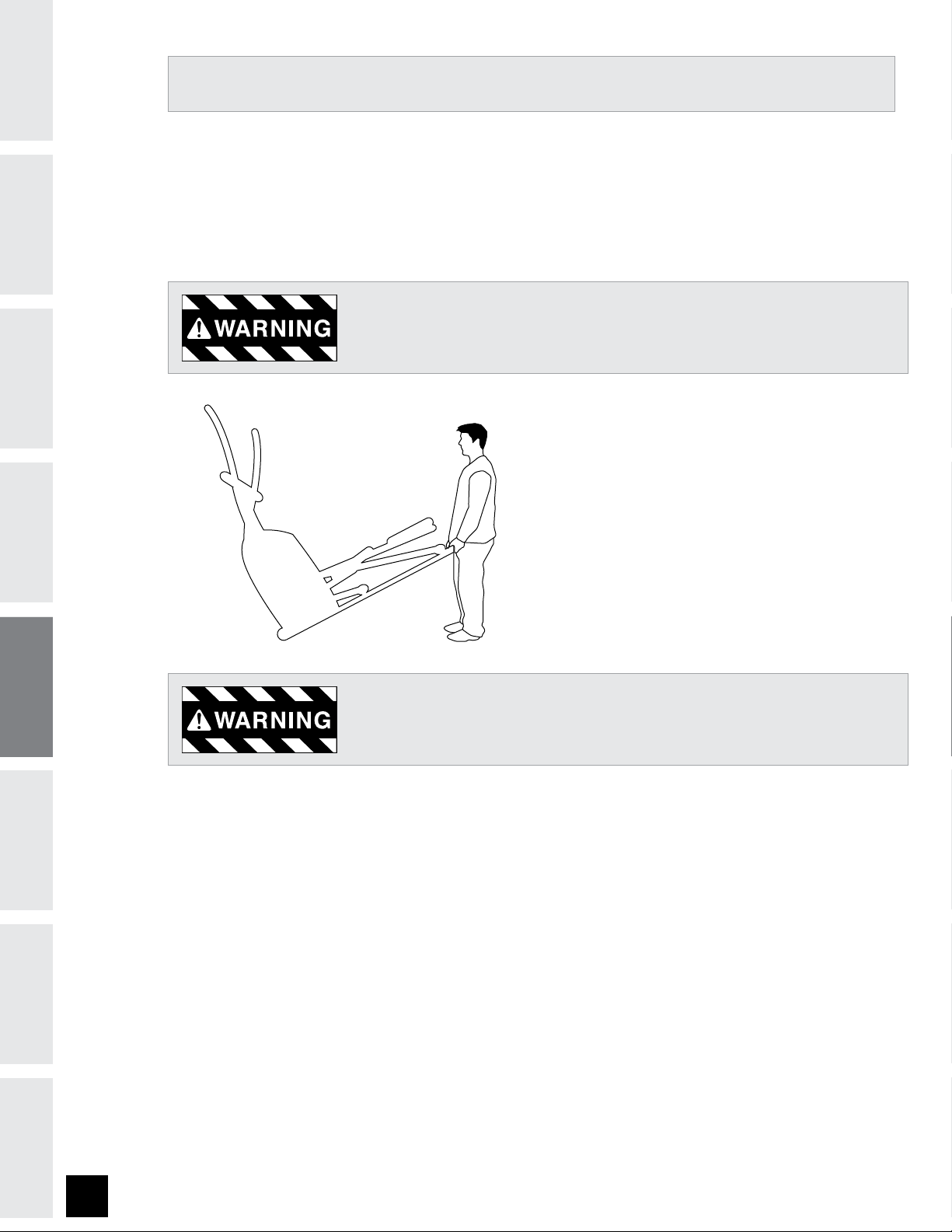

MOVING
Your elliptical has a pair of transport wheels built
into the FRONT STABILIZER TUBE. To move, first
remove the power supply and firmly grasp the
REAR STABILIZER BAR, carefully tilt and roll. Note:
Be sure to grab the bar and not the plastic cover.
Our ellipticals are well built and heavy, weighing up to 200 lbs! Use care and
additional help if necessary when moving.
FOOT POSITIONING
Your elliptical offers a variety of foot positions. Moving your foot to the forward most position of the foot pad
increases your step height, which will create a feel similar to a step machine. Placing your foot toward the back
of the foot pad decreases your step height and creates more of a gliding feel, similar to a smooth walk or run.
Your elliptical also allows you to pedal both forward and backwards to offer a variation to your workout and to
focus on other major leg muscle groups such as your hamstrings and calves.
ELLIPTICAL OPERATION

ASSEMBLY
15
INTRODUCTION
ELLIPTICAL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY ELLIPTICAL
OPERATION BEFORE
YOU BEGIN IMPORTANT
PRECAUTIONS
ASSEMBLY
Note: There is a thin protective sheet of clear plastic on the overlay of the console and should be removed.
A) LARGE WINDOW: Displays program profiles, Time, Level, Calories, Heart Rate, Distance and Speed.
B) PROGRAM KEYS: Used to select the goal of the workout.
C) TERRAIN KEYS: Used to customize the workout.
D) ENTER: Used to confirm your program and program settings.
E) QUICK LEVEL KEYS: Used to quickly adjust your resistance level during the workout.
F) ARROW KEYS: Used to select program settings and adjust resistance level during the workout.
G) START/PAUSE: Press to start your workout or pause an existing workout.
H) STOP: Press to stop your workout. Hold for 3 seconds to reset the elliptical.
NOTE: If the unit is inactive for 10 minutes, the console display will shut off.
Press any key or ride the elliptical to restart the display. Program will be reset.
CONSOLE DISPLAY
F F
DEG H
A
B C

BEFORE
YOU BEGIN
16
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN ELLIPTICAL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
ASSEMBLY ELLIPTICAL
OPERATION
CONSOLE OPERATION
1) Turn on Elliptical.
2) Press START button and begin exercising.
3) Program will automatically default to MANUAL, the time will count up from 0:00, and the
resistance will default to level 1.
4) The resistance level can be adjusted during the workout.
QUICK START
The programs on your elliptical allow you to exercise towards the goal of your choice, either TIME, number of
CALORIES or a certain DISTANCE, while allowing you to choose the “terrain.”
GOAL: TIME
Allows you to work towards a time-based goal.
1) Press TIME key once.
2) Press the arrow keys to select the desired duration of workout.
3) Press ENTER key.
4) Choose desired terrain by pressing MANUAL, HILLS or REVERSE TRAIN keys.
5) Press ENTER key.
6) Press START key to start workout.
GOAL: CALORIES
Allows you to work towards a calorie-based goal.
1) Press CALORIE key once.
2) Press the arrow keys to select the desired caloric expenditure for the workout.
3) Press ENTER key.
4) Choose desired terrain by pressing MANUAL, HILLS or REVERSE TRAIN keys.
5) Press ENTER key.
6) Press START key to start workout.
GOAL: DISTANCE
Allows you to work towards a distance-based goal.
1) Press DISTANCE key once.
2) Press the arrow keys to select the desired mileage of workout.
3) Press ENTER key.
4) Choose desired terrain by pressing MANUAL, HILLS or REVERSE TRAIN keys.
5) Press ENTER key.
6) Press START key to start workout.
GOAL PROGRAMMING

ASSEMBLY
17
INTRODUCTION
ELLIPTICAL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY ELLIPTICAL
OPERATION BEFORE
YOU BEGIN IMPORTANT
PRECAUTIONS
ASSEMBLY
PULSE GRIPS
Place the palm of your hands directly on the grip pulse handlebars. Both hands must grip the bars for your
heart rate to register. It takes 5 consecutive heart beats (15-20 seconds) for your heart rate to register. When
gripping the pulse handlebars, do not grip tightly. Holding the grips tightly may elevate your blood pressure.
Keep a loose, cupping hold. You may experience an erratic readout if consistently holding the grip pulse
handlebars. Make sure to clean the pulse sensors to ensure proper contact can be maintained.
IMPORTANT: The heart rate function on this product is not a medical device. While heart rate grips can
provide a relative estimation of your actual heart rate, they should not be relied on when accurate readings are
necessary. Some people, including those in a cardiac rehab program, may benefit from using an alternate heart
rate monitoring system like a chest or wrist strap. Various factors, including movement of the user, may affect
the accuracy of your heart rate reading. The heart rate reading is intended only as an exercise aid in determining
heart rate trends in general. Please consult your physician.
HEART RATE

BEFORE
YOU BEGIN
18
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN ELLIPTICAL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
ASSEMBLY ELLIPTICAL
OPERATION
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
REVERSE TRAIN
RANDOM
WORKOUT CALENDAR
MANUAL
Allows you to adjust the resistance level to your preference, without a preset program.
HILLS
Motivates with different combinations of RESISTANCE.
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
REVERSE TRAIN
RANDOM
WORKOUT CALENDAR
REVERSE TRAIN
Program cues you to pedal forward (F) and backwards (R) for an exciting and challenging
workout (RESISTANCE levels).
PROGRAM PROFILES
PROGRAM: MANUAL
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
PEAK
INTERVALS
MOUNTAIN
CLIMB
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
PEAK
INTERVALS
MOUNTAIN
CLIMB
Allows ‘On The Fly’ manual RESISTANCE changes.
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
REVERSE TRAIN
RANDOM
WORKOUT CALENDAR
PROGRAM: HILLS
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
PEAK
INTERVALS
MOUNTAIN
CLIMB
PROGRAM: REVERSE TRAIN
Program cues you to pedal forward (F) and backwards (R) for an exciting and challenging workout.
PROGRAM SEGMENTS - REPEAT
SECONDS 60 60 60 60 30 45 60 30 90 60 30 45 60 30 90 60
SEGMENT WARM UP FRFRFRFRFRFR
LEVEL 1112434234234234
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
REVERSE TRAIN
RANDOM
WORKOUT CALENDAR
WARM-UP PROGRAM SEGMENTS - REPEAT
SECONDS 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60
SEGMENTS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
LEVEL 1112123412341234

ASSEMBLY
19
INTRODUCTION
ELLIPTICAL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY CONDITIONING
GUIDELINES BEFORE
YOU BEGIN IMPORTANT
PRECAUTIONS
ASSEMBLY
ALWAYS CONSULT YOUR PHYSICIAN BEFORE BEGINNING AN EXERCISE PROGRAM.
HOW OFTEN? (Frequency of Workouts)
The American Heart Association recommends that you exercise at least 3 to 4 days per week to maintain
cardiovascular fitness. If you have other goals such as weight or fat loss, you will achieve your goal faster with
more frequent exercise. Whether it’s 3 days or 6 days, remember that your ultimate goal should be to make
exercise a lifetime habit. Many people are successful staying with a fitness program if they set aside a specific
time of day to exercise. It doesn’t matter whether it’s in the morning before breakfast, during lunch hour or while
watching the evening news. What’s more important is that it’s a time that allows you to keep a schedule, and a
time when you won’t be interrupted. To be successful with your fitness program, you have to make it a priority in
your life. So decide on a time, pull out your day planner and pencil in your exercise times for the next month!
HOW LONG? (Duration of Workouts)
For aerobic exercise benefits, it’s recommended that you exercise from between 24 and 60 minutes per session.
But start slowly and gradually increase your exercise times. If you’ve been sedentary during the past year, it may
be a good idea to keep your exercise times to as little as five minutes initially. Your body will need time to adjust
to the new activity. If your goal is weight loss, a longer exercise session at lower intensities has been found to
be most effective. A workout time of 48 minutes or more is recommended for best weight loss results.
HOW HARD? (Intensity of Workouts)
How hard you workout is also determined by your goals. If you use your machine to prepare for a 5K workout,
you will probably work out at a higher intensity than if your goal is general fitness. Regardless of your long
term goals, always begin an exercise program at low intensity. Aerobic exercise does not have to be painful to
be beneficial! There are two ways to measure your exercise intensity. The first is by monitoring your heart rate
using the grip pulse handlebars and the second is by evaluating your perceived exertion level (this is simpler
than it sounds!).
PERCEIVED EXERTION LEVEL
A simple way to gauge your exercise intensity is to evaluate your perceived exertion level. While exercising, if you
are too winded to maintain a conversation without gasping, you are working out too hard. A good rule of thumb
is to work to the point of exhilaration, not exhaustion. If you cannot catch your breath, it’s time to slow down.
Always be aware of these warning signs of overexertion.
CONDITIONING GUIDELINES

BEFORE
YOU BEGIN
20
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN ELLIPTICAL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
ASSEMBLY CONDITIONING
GUIDELINES
What is Target Heart Rate Zone?
Target Heart Rate Zone tells you
the number of times per minute
your heart needs to beat to
achieve a desired workout effect.
It is represented as a percentage
of the maximum number of times
your heart can beat per minute.
Target Zone will vary for each
individual, depending on age,
current level of conditioning,
and personal fitness goals. The
American Heart Association
recommends working-out at a
Target Heart Rate Zone of between
60% and 75% of your maximum
heart rate. A beginner will want to
workout in the 60% range while
a more experienced exerciser will
want to workout in the 70-75%
range. See chart for reference.
EXAMPLE:
For a 42-year-old user: Find age along the bottom of the chart (round to 40), follow age column up to
the target zone bar. Results: 60% of maximum Hear Rate = 108 Beats Per Minute, 75% of maximum
Heart Rate = 135 Beat Per Minute.
ALWAYS CONSULT YOUR PHYSICIAN BEFORE BEGINNING AN EXERCISE PROGRAM.
TARGET HEART RATE ZONE CHART
100%
75%
60%
BEATS PER MINUTE
20 25 30 35 40 45 50 55 60 65
AGE
TARGET ZONE
120 117 114 111 108 105 102 99 97 93
150 146 143 139 135 131 128 124 120 116
