ELLIPTICAL OWNER’S MANUAL
MANUEL DU PROPRIÉTAIRE DE L’EXERCISEUR ELLIPTIQUE
MANUAL DEL PROPIETARIO DE LA MÁQUINA ELÍPTICA
Read the ELLIPTICAL GUIDE before using this OWNER’S MANUAL.
Lire le GUIDE D’UTILISATION DE L’EXERCISEUR ELLIPTIQUE avant de se servir du présent MANUEL DU PROPRIÉTAIRE.
Lea la GUÍA DEL USUARIO DE LA MÁQUINA ELÍPTICA antes de usar este MANUAL DEL PROPIETARIO.
EX-79EX-69

2
3 ENGLISH
34 FRANÇAIS
66 ESPAÑOL

3
ASSEMBLY
There are several areas during the assembly process that special attention must be paid. It is very important to follow the assembly
instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed correctly, the
elliptical could have frame parts that are not tightened and will seem loose and may cause irritating noises. To prevent damage to
the elliptical, the assembly instructions must be reviewed and corrective actions should be taken.

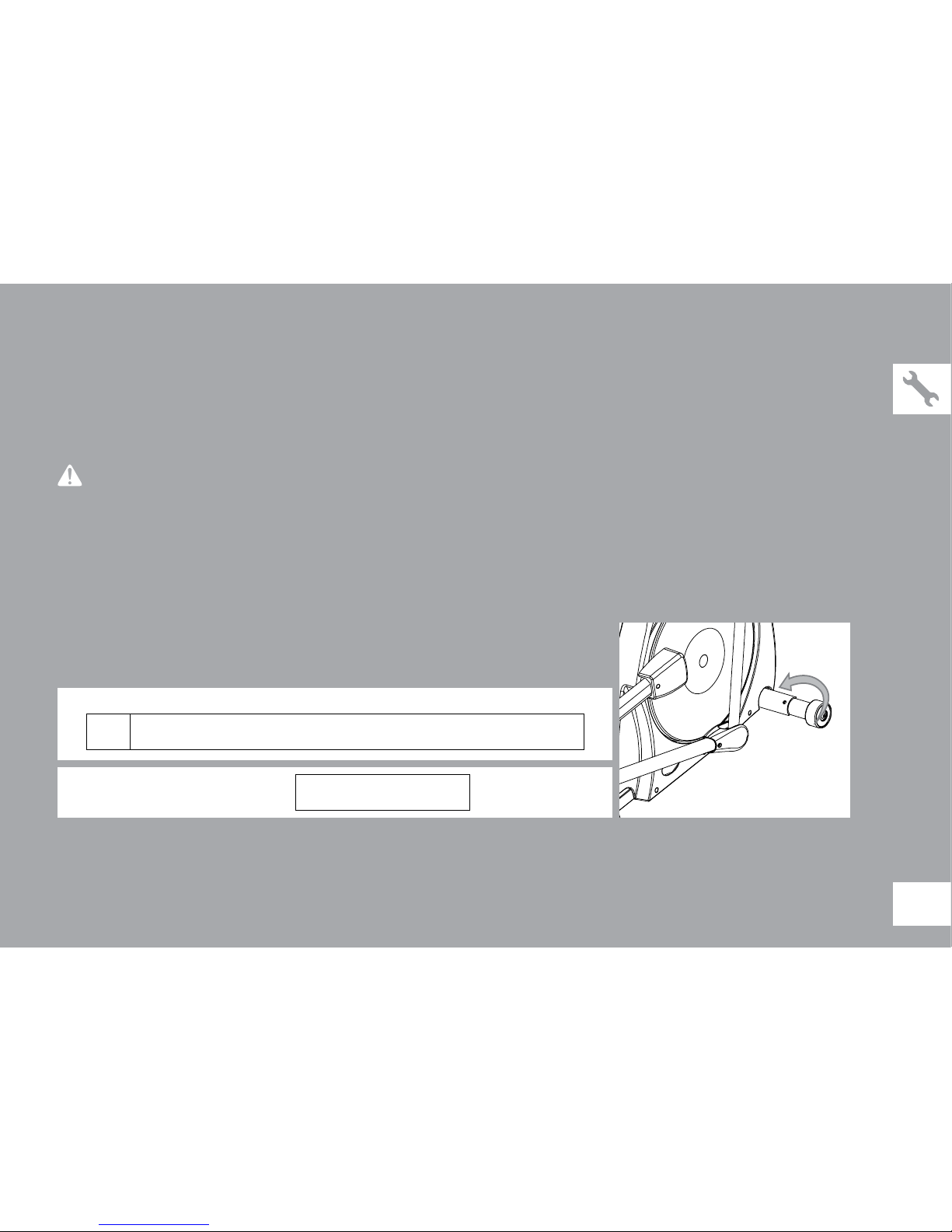

Before proceeding, find your elliptical’s serial number located on a white barcode sticker
on the front stabilizer tube and enter it in the space provided below.
ENTER YOUR SERIAL NUMBER AND MODEL NAME IN THE BOXES BELOW:
» Refer to the SERIAL NUMBER and MODEL NAME when calling for service.
WARNING
SERIAL NUMBER:
EP
MODEL NAME: HORIZON ELLIPTICAL
SERIAL NUMBER LOCATION

4
WARNING
CONSULT A PHYSICIAN PRIOR TO USING ANY
EXERCISE EQUIPMENT. POSSIBILITY OF
SERIOUS INJURY IF EQUIPMENT IS USED
IMPROPERLY. READ INSTRUCTION MANUAL
BEFORE USING. KEEP CHILDREN OFF AND
AWAY FROM THIS EQUIPMENT. FOR
CONSUMER USE ONLY.
AVERTISSEMENT
CONSULTER UN MÉDECIN AVANT D’UTILISER
TOUT ÉQUIPEMENT D’EXERCICE. TOUTE
UTILISATION INCORRECTE PEUT OCCASIONNER
DE GRAVES BLESSURES. LIRE LE MANUEL DU
PROPRIÉTAIRE AVANT DE SE SERVIR DE
L’APPAREIL. TENIR LES ENFANTS À DISTANCE DE
L’APPAREIL. À L’USAGE DU CLIENT SEULEMENT.
CONSULTE A UN MÉDICO ANTES DE USAR CUALQUIER
EQUIPO DE ACONDICIONAMIENTO FÍSICO. EXISTE LA
POSIBILIDAD DE SUFRIR LESIONES GRAVES SI EL
EQUIPO SE USA INCORRECTAMENTE. LEER EL
MANUAL DEL PROPIETARIO ANTES DE USAR EL
EQUIPO. NO DEJE QUE LOS NIÑOS SE ACERQUEN A
ESTE EQUIPO. ESTE EQUIPO ES SÓLO PARA EL USO
DEL CONSUMIDOR.
ADVERTENCIA
CAUTION ATTENTION PRECAUCIÓN
KEEP HANDS AND FEET
AWAY FROM THIS AREA.
GARDER LES MAINS ET LES
PIEDS LOIN DE CETTE REGION.
MANTENGA LAS MANOS Y LOS
PIES LEJOS DE ESTA ÁREA.

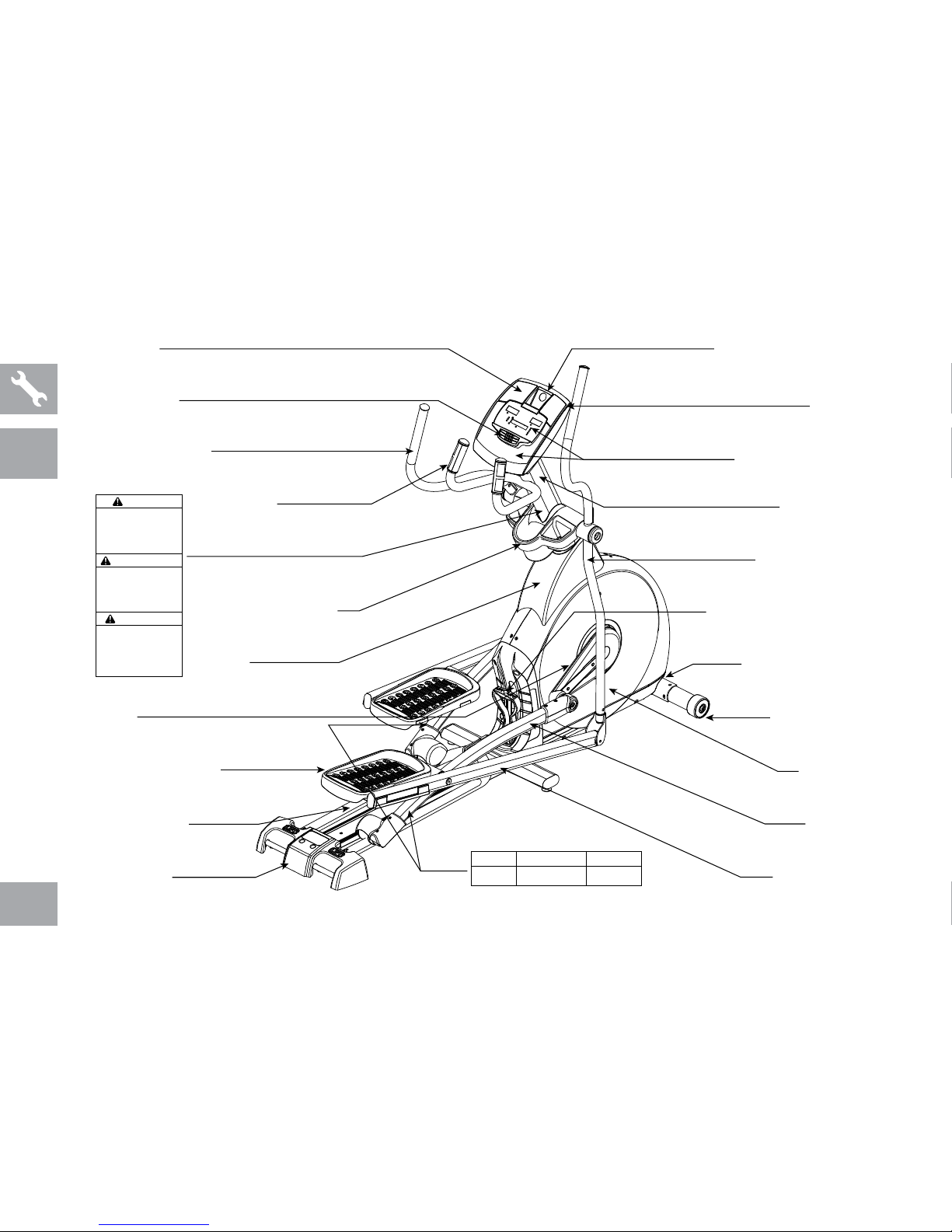

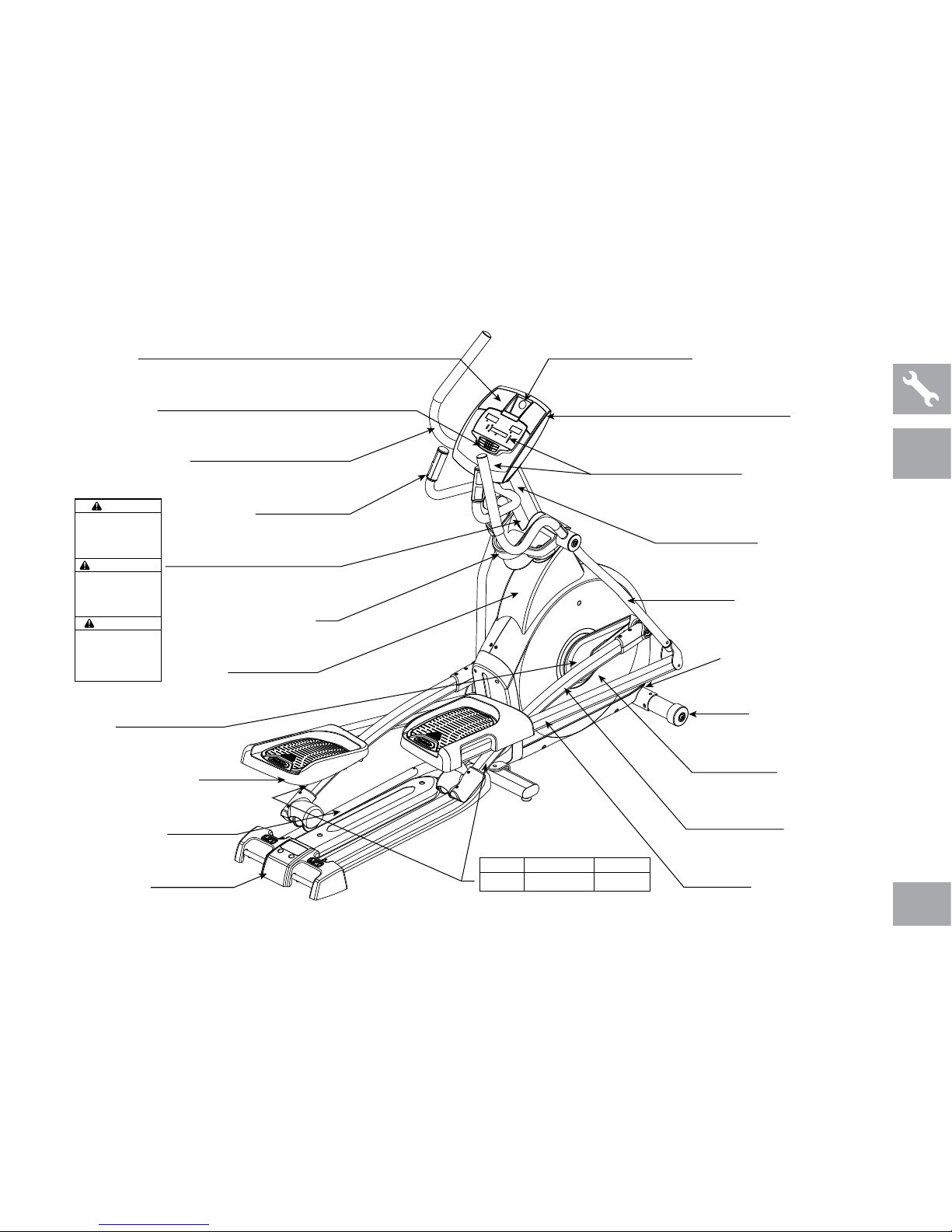

PIVOTING FOOT PADS
CRANK
TOP CAP
GUIDE RAIL SET
SPEAKERS
WATER BOTTLE HOLDER
UPPER HANDLEBAR
PULSE GRIPS
CONSOLE FAN
STABILIZER TUBE
POWER CORD SOCKET
MAIN FRAME
PEDAL ARM
REAR COVER
IPOD/MP3 PLAYER POCKET
CONSOLE
CONSOLE MAST
TOUCH PAD PANEL
AND DISPLAY WINDOWS
LOWER HANDLEBAR
MANUAL INCLINE LIFT LEVER
LOWER LINK ARM
EX-69

5
WARNING
CONSULT A PHYSICIAN PRIOR TO USING ANY
EXERCISE EQUIPMENT. POSSIBILITY OF
SERIOUS INJURY IF EQUIPMENT IS USED
IMPROPERLY. READ INSTRUCTION MANUAL
BEFORE USING. KEEP CHILDREN OFF AND
AWAY FROM THIS EQUIPMENT. FOR
CONSUMER USE ONLY.
AVERTISSEMENT
CONSULTER UN MÉDECIN AVANT D’UTILISER
TOUT ÉQUIPEMENT D’EXERCICE. TOUTE
UTILISATION INCORRECTE PEUT OCCASIONNER
DE GRAVES BLESSURES. LIRE LE MANUEL DU
PROPRIÉTAIRE AVANT DE SE SERVIR DE
L’APPAREIL. TENIR LES ENFANTS À DISTANCE DE
L’APPAREIL. À L’USAGE DU CLIENT SEULEMENT.
CONSULTE A UN MÉDICO ANTES DE USAR CUALQUIER
EQUIPO DE ACONDICIONAMIENTO FÍSICO. EXISTE LA
POSIBILIDAD DE SUFRIR LESIONES GRAVES SI EL
EQUIPO SE USA INCORRECTAMENTE. LEER EL
MANUAL DEL PROPIETARIO ANTES DE USAR EL
EQUIPO. NO DEJE QUE LOS NIÑOS SE ACERQUEN A
ESTE EQUIPO. ESTE EQUIPO ES SÓLO PARA EL USO
DEL CONSUMIDOR.
ADVERTENCIA
CAUTION ATTENTION PRECAUCIÓN
KEEP HANDS AND FEET
AWAY FROM THIS AREA.
GARDER LES MAINS ET LES
PIEDS LOIN DE CETTE REGION.
MANTENGA LAS MANOS Y LOS
PIES LEJOS DE ESTA ÁREA.
PIVOTING FOOT PADS
CRANK
TOP CAP
GUIDE RAIL SET
SPEAKERS
WATER BOTTLE HOLDER
UPPER HANDLEBAR
PULSE GRIPS
CONSOLE FAN
STABILIZER TUBE
POWER CORD SOCKET
MAIN FRAME
PEDAL ARM
REAR COVER
IPOD/MP3 PLAYER POCKET
CONSOLE
CONSOLE MAST
TOUCH PAD PANEL
AND DISPLAY WINDOWS
LOWER HANDLEBAR
LOWER LINK ARM
EX-79

6
TOOLS INCLUDED:
F8 mm L-Wrench
F5 mm L-Wrench
F13/15 mm Flat Wrench
FScrewdriver
PARTS INCLUDED:
F1 Stabilizer Tube
F1 Guide Rail Set
F2 Pedal Arms
F1 Manual Incline Set (EX-69 only)
F2 Lower Handlebars
F2 Upper Handlebars
F2 Lower Link Arms With Footpads
F1 Top Cap (2 pieces)
F1 Console Mast
F1 Console Mast Boot
F1 Console
F2 Handlebar Caps
F1 Water Bottle Holder
F1 Rear Cover
F1 Audio Adapter Cable
F1 Power Cord
F1 Hardware Kit
EX-79:
F4 iPod® Dock Inserts
F1 iPod® Dock Rubber Plug
UNPACKING
Unpack the product where you will be using it. Place the elliptical carton on a level
flat surface. It is recommended that you place a protective covering on your floor.
Never open box when it is on its side.
NOTE: During each assembly step, ensure that ALL nuts and bolts are in place
and partially threaded in before completely tightening any ONE bolt.
NOTE: A light application of grease may aid in the installation of hardware. Any
grease, such as lithium bike grease is recommended.
If you have questions or if
there are any missing parts,
contact Customer Tech
Support. Contact information
is located on the back panel
of this manual.
NEED HELP?
PRE ASSEMBLY
ALL
MODELS

7
ALL
MODELS

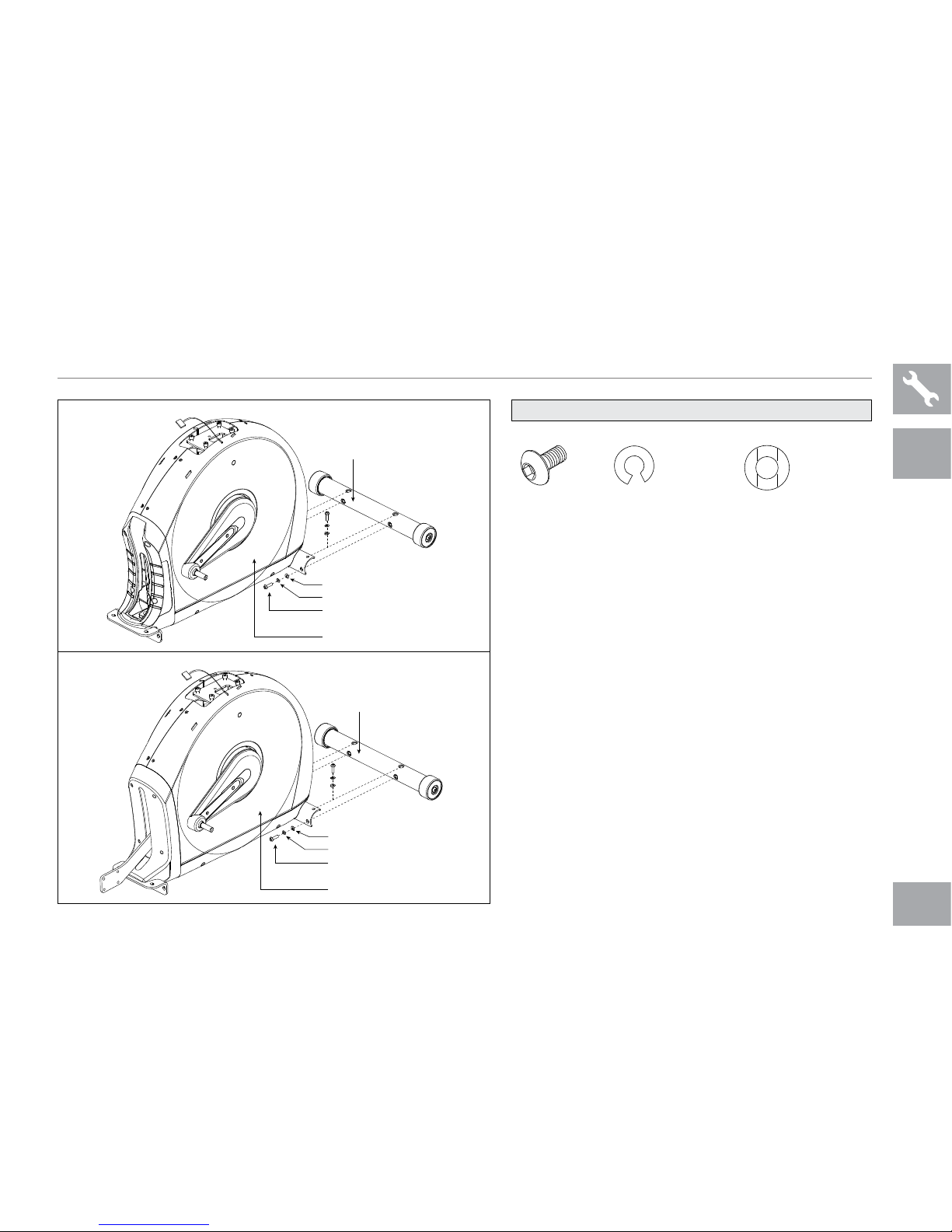

ASSEMBLY STEP 1
A Open hardware bag 1.
B Attach the stabilizer tube to the main
frame using 2 bolts (a), 2 spring
washers (b) and 2 arc washers (c) on
each side.
BOLT (A)
30 mm
Qty: 4
SPRING WASHER (B)
15 mm
Qty: 4
ARC WASHER (C)
17 mm
Qty: 4
HARDWARE BAG 1 CONTENTS :
BOLTS (A)
SPRING WASHERS (B)
ARC WASHERS (C)
STABILIZER TUBE
MAIN FRAME
BOLTS (A)
SPRING WASHERS (B)
ARC WASHERS (C)
STABILIZER TUBE
MAIN FRAME
EX-69 SHOWN
EX-79 SHOWN

8
GUIDE RAIL SET
FLAT WASHERS (E)
SPRING WASHERS (F)
NUTS (G)
BOLTS (D)
MANUAL INCLINE
LIFT LEVER SPRING WASHER (F)
15 mm
Qty: 4
FLAT WASHER (E)
16 mm
Qty: 4
BOLT (D)
35 mm
Qty: 4
NUT (G)
Qty: 4
SPRING WASHER (I)
18 mm
Qty: 4
FLAT WASHER (H)
20 mm
Qty: 4
BOLT (J)
20 mm
Qty: 4

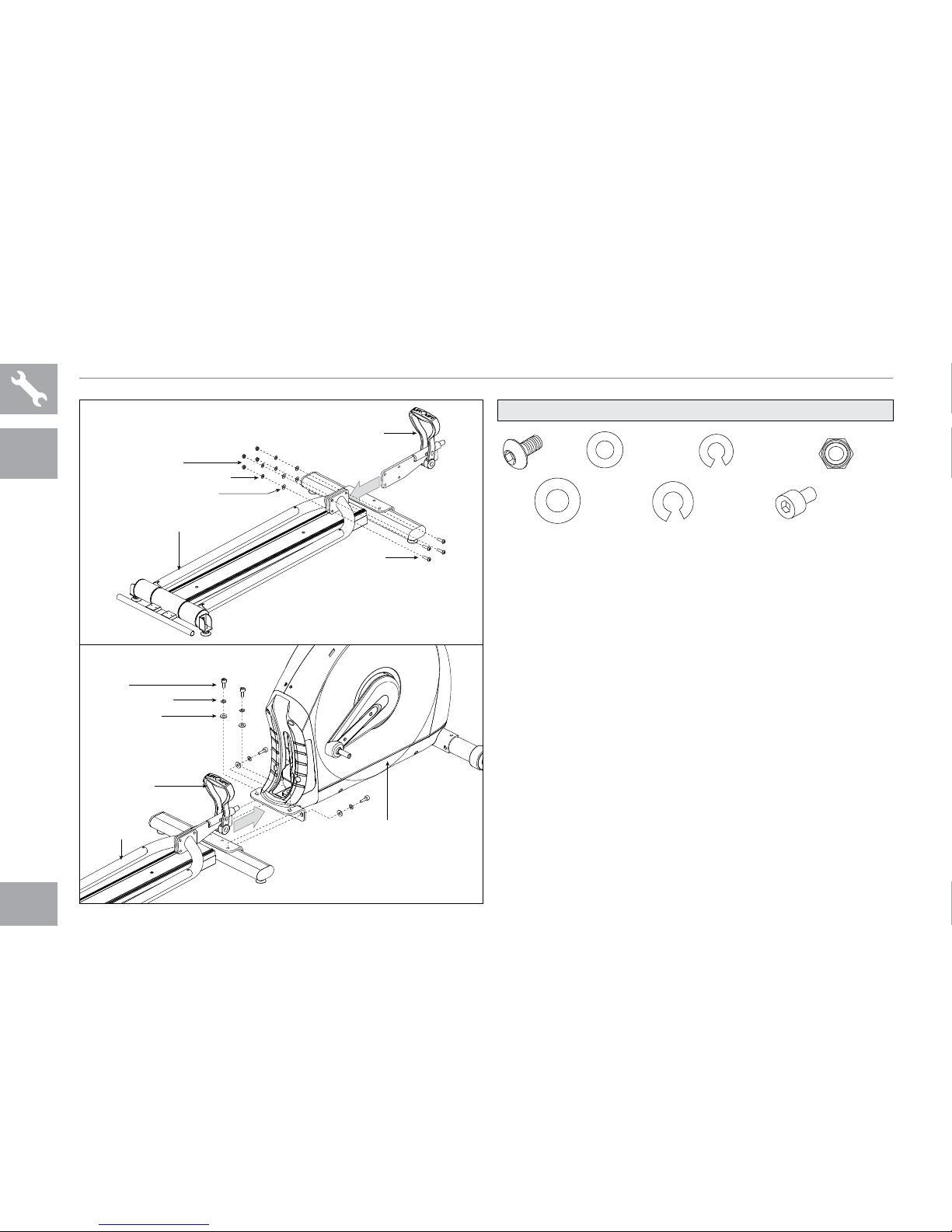

EX-69 ASSEMBLY STEP 2
* This step is for EX-69 only.
A Open hardware bag 2.
B Attach manual incline lift lever to guide
rail set using 4 bolts (d), 4 flat washers
(e), 4 spring washers (f) and 4 nuts (g).
C Align guide rail set with main frame as
shown.
D Lift up on the manual incline lift lever
and place it in one of the holes inside the main
frame.
E Attach the guide rail set to the main frame
using 4 bolts (g), 4 flat washers (h), 4
spring washers (i) and 4 nuts (j).
EX-69 SHOWN HARDWARE BAG 2 CONTENTS
FLAT WASHERS (H)
SPRING WASHERS (I)
BOLTS (J)
MAIN FRAME
GUIDE RAIL SET
MANUAL INCLINE
LIFT LEVER
EX-69
ONLY

9

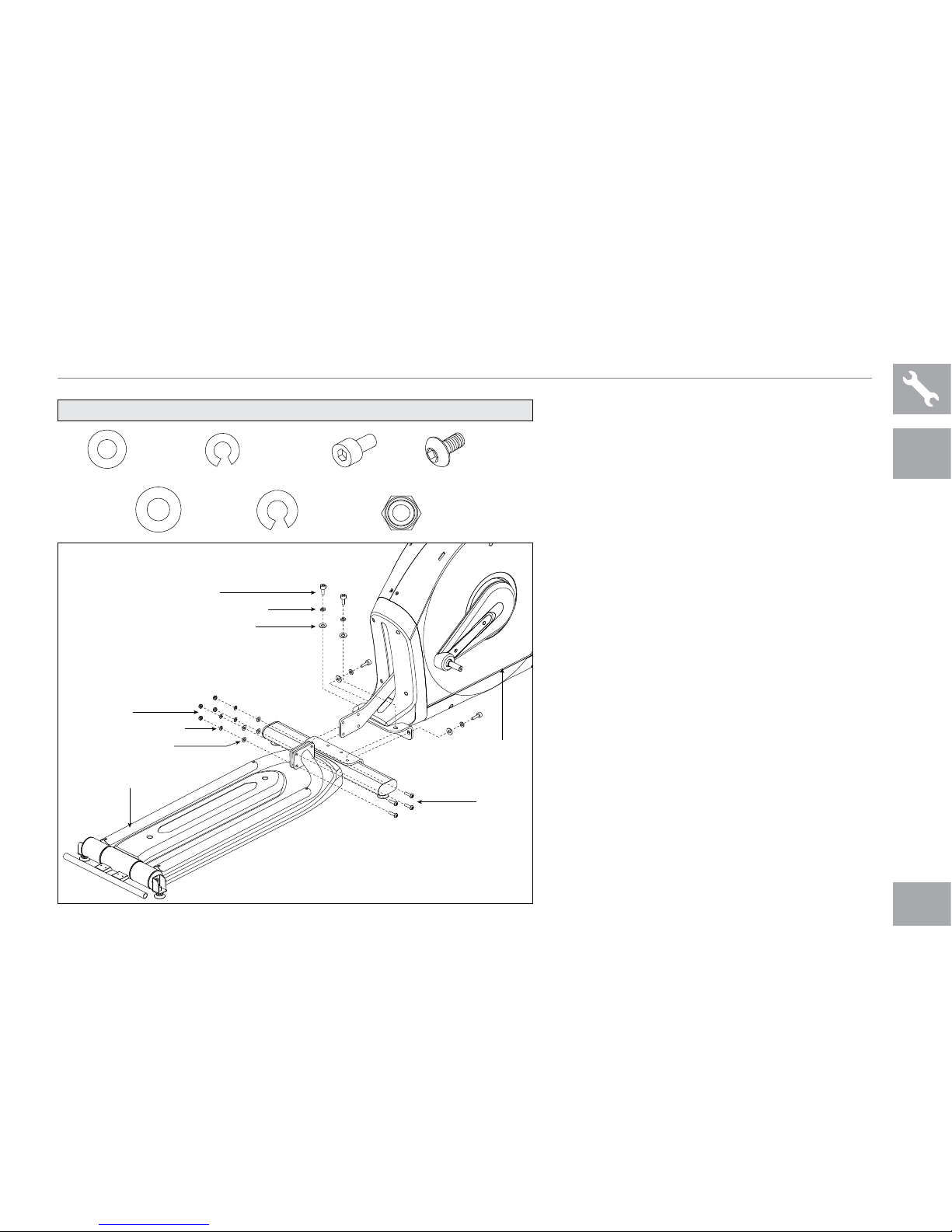

EX-79 ASSEMBLY STEP 2
* This step is for EX-79 models only.
A Open hardware bag 2.
B Attach the guide rail set to the
main frame using 4 bolts (f), 4
spring washers (e) and 4 flat
washers (d).
C Attach the guide rail set to the
main frame using 4 bolts (g),
4 flat washers (h), 4 spring
washers (i) and 4 nuts (j).
SPRING WASHER (E)
15 mm
Qty: 4
FLAT WASHER (D)
16 mm
Qty: 4
BOLT (F)
20 mm
Qty: 4
SPRING WASHER (I)
18 mm
Qty: 4
FLAT WASHER (H)
20 mm
Qty: 4
BOLT (G)
35 mm
Qty: 4
NUT (J)
Qty: 4
HARDWARE BAG 2 CONTENTS
FLAT WASHERS (D)
SPRING WASHERS (E)
GUIDE RAIL SET
BOLTS (F)
MAIN FRAME
FLAT WASHERS (H)
SPRING WASHERS (I)
NUTS (J)
BOLTS (G)
EX-79 SHOWN
EX-79
ONLY

10
BOLT (M)
SPRING WASHER (B)
FLAT WASHER (K)
WAVY WASHER (L)
PEDAL ARM
CRANK
PEDAL ARM WHEEL
GUIDE RAIL
CONSOLE MAST
PRE-INSTALLED BOLTS
CONSOLE CABLE
MAIN FRAME
ASSEMBLY STEP 3
A Open hardware bag 3.
B Carefully pull the console cable through
the console mast using the twist tie located
inside the console mast.
C Gently slide the console mast onto the
main frame and attach console mast to
main frame using pre-installed bolts.
D Slide wavy washer (l) over crank
followed by pedal arm as shown. Rest
pedal arm wheel on guide rail.
E Attach the pedal arm to the crank using 1
flat washer (k), 1 spring washer (b)
and 1 bolt (m).
F Repeat steps D–E on the opposite side of the
elliptical.
BOLT (M)
20 mm
Qty: 2
SPRING WASHER (B)
15 mm
Qty: 2
FLAT WASHER (K)
20 mm
Qty: 2
WAVY WASHER (L)
22.5 mm
Qty: 2
HARDWARE BAG 3 CONTENTS :
NOTE: Be
careful not
to pinch any
wires while
attaching the
console mast.
EX-79 SHOWN
ALL
MODELS

11
ALL
MODELS
SPRING WASHER (Q)
BOLT (P)
FLAT WASHER (R)
WAVY WASHER (O)
FLAT WASHERS (N)
LOWER LINK ARM
PEDAL ARM BRACKET

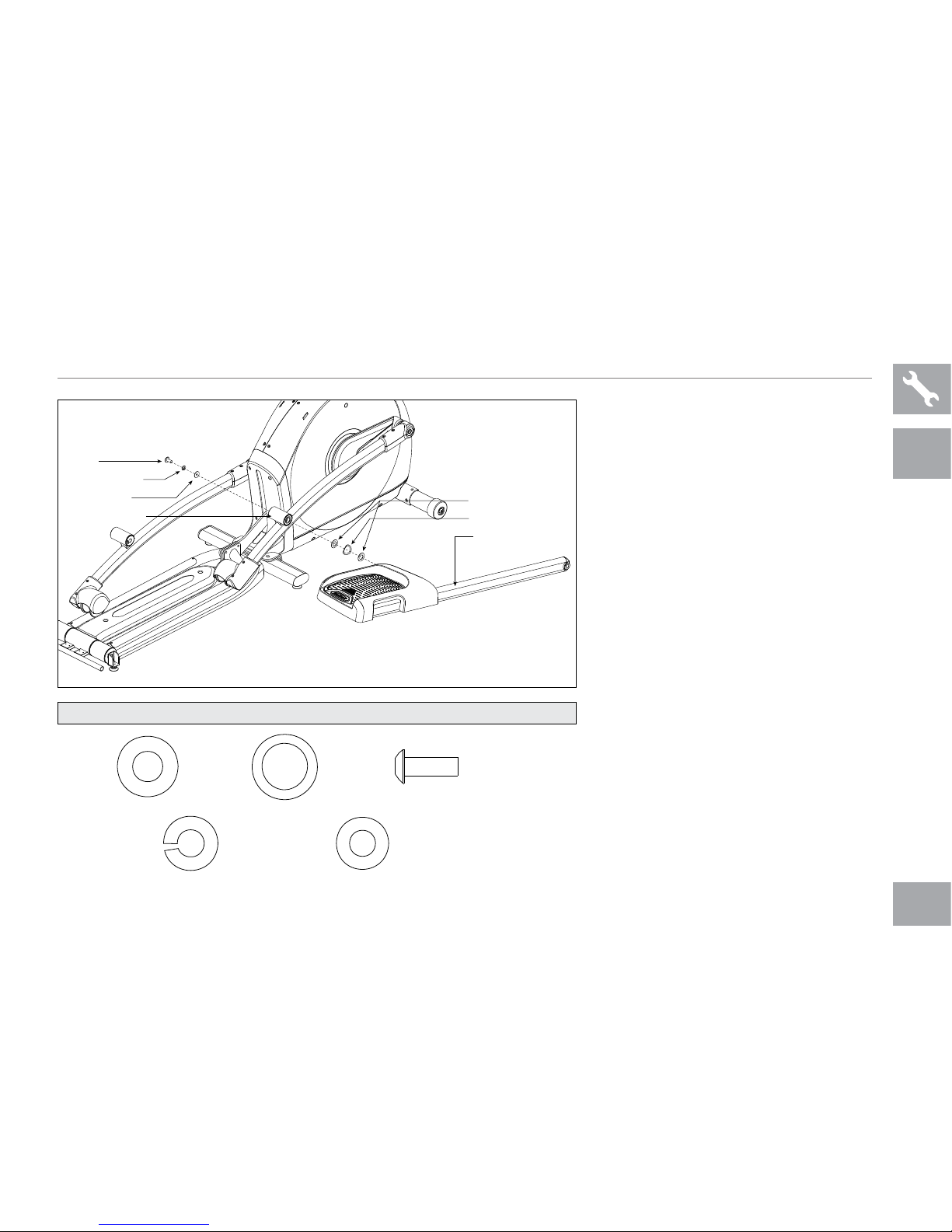

ASSEMBLY STEP 4
A Open hardware bag 4.
B Slide 1 flat washer (n), 1
wavy washer (o) and another
flat washer (n) onto the
lower link arm.
C Slide the lower link arm into
the pedal arm bracket.
D Attach the lower link arm to
the pedal arm bracket using
1 flat washer (r), 1 spring
washer (Q) and 1 bolt (p).
E Repeat steps B–D on the opposite
side of the elliptical.
FLAT
WASHER (N)
27 mm
Qty: 4
WAVY
WASHER (O)
29 mm
Qty: 2
SPRING WASHER (Q)
15.4 mm
Qty: 2
FLAT WASHER (R)
20 mm
Qty: 2
BOLT (P)
20 mm
Qty: 2
HARDWARE BAG 4 CONTENTS :
EX-79 SHOWN

12
BOLT (U)
SPRING
WASHER (B)
FLAT WASHERS (H)
HANDLEBAR
CAP
LOWER HANDLEBAR
FLAT WASHERS (T)RUBBER WASHER (S)
CONSOLE MAST

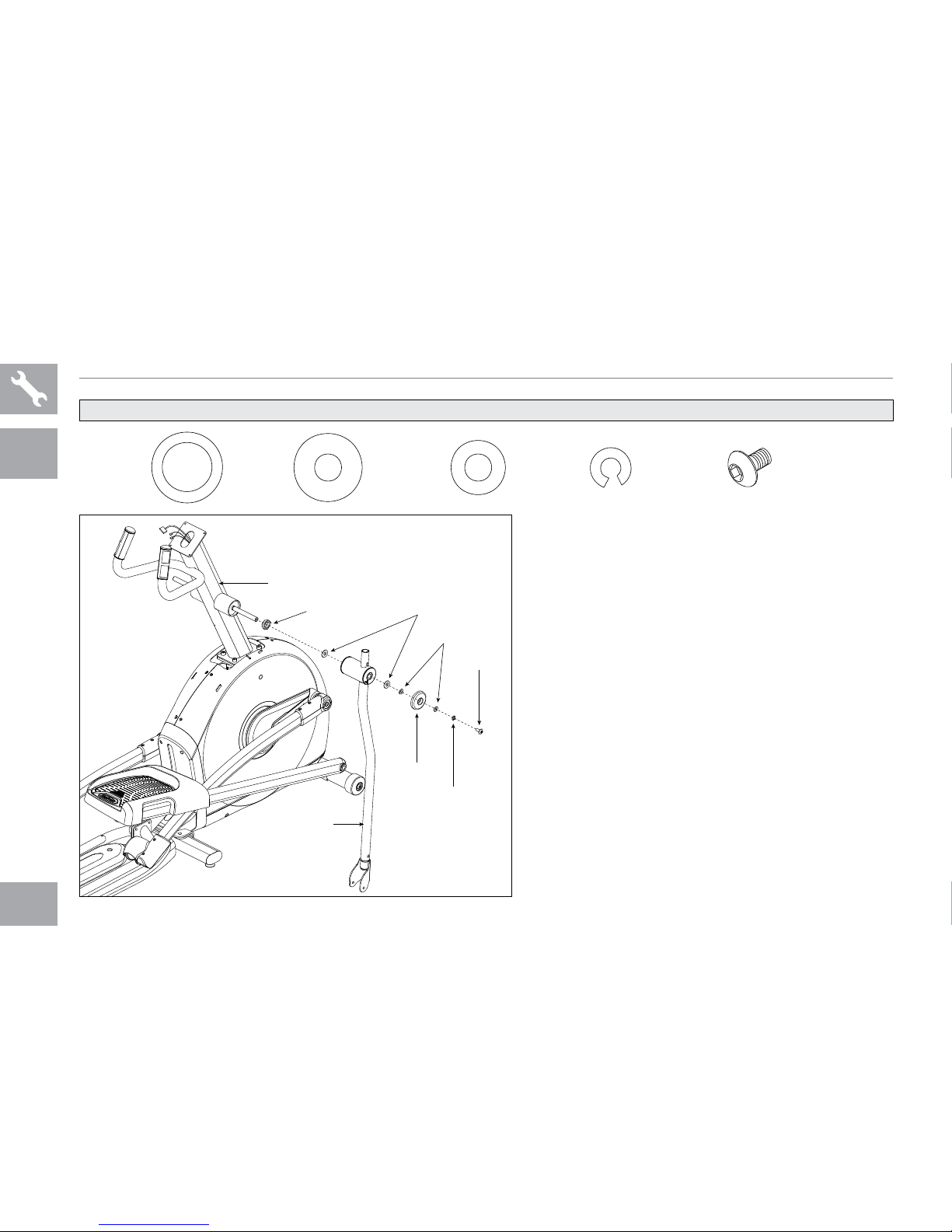

A Open hardware bag 5.
B Slide 1 rubber washer (s) and 1 flat
washer (t) onto the console mast.
C Slide lower handlebar onto console
mast and attach using 1 flat washer (t),
1 flat washer (h), 1 handlebar cap, 1
flat washer (h), 1 spring washer (b)
and 1 bolt (u).
D Repeat steps B–C on the opposite side of the
elliptical.
BOLT (U)
20 mm
Qty: 2
SPRING WASHER (B)
15 mm
Qty: 2
FLAT WASHER (H)
20 mm
Qty: 4
FLAT WASHER (T)
25 mm
Qty: 4
RUBBER
WASHER (S)
26 mm
Qty: 2
HARDWARE BAG 5 CONTENTS :
ALL
MODELS
ASSEMBLY STEP 5
EX-79 SHOWN

13
ALL
MODELS
A Open hardware bag 6.
B Align end of lower link arm with bracket on
bottom of lower handlebar.
C Place teflon washers (v) on both sides of
the lower link arm. While holding teflon
washers (v) slide lower link arm into
bottom end of lower handlebar.
D Secure the joint with 1 flat washer (w), 1
spring washer (b),1 bolt (X) and secure
with 1 nut (y).
E Repeat steps B–D on the opposite side of the
elliptical.
SPRING WASHER (B)
15 mm
Qty: 2
TEFLON
WASHER (V)
28.4 mm
Qty: 4
FLAT WASHER (W)
17 mm
Qty: 2
NUT (Y)
Qty: 2
BOLT (X)
70 mm
Qty: 2
HARDWARE BAG 6 CONTENTS :
BOLT (X)
FLAT WASHER (W)
NUT (Y)
LOWER HANDLEBAR
SPRING WASHER (B)
TEFLON WASHERS (V)
LOWER LINK ARM
ASSEMBLY STEP 6
EX-79 SHOWN

14
ALL
MODELS

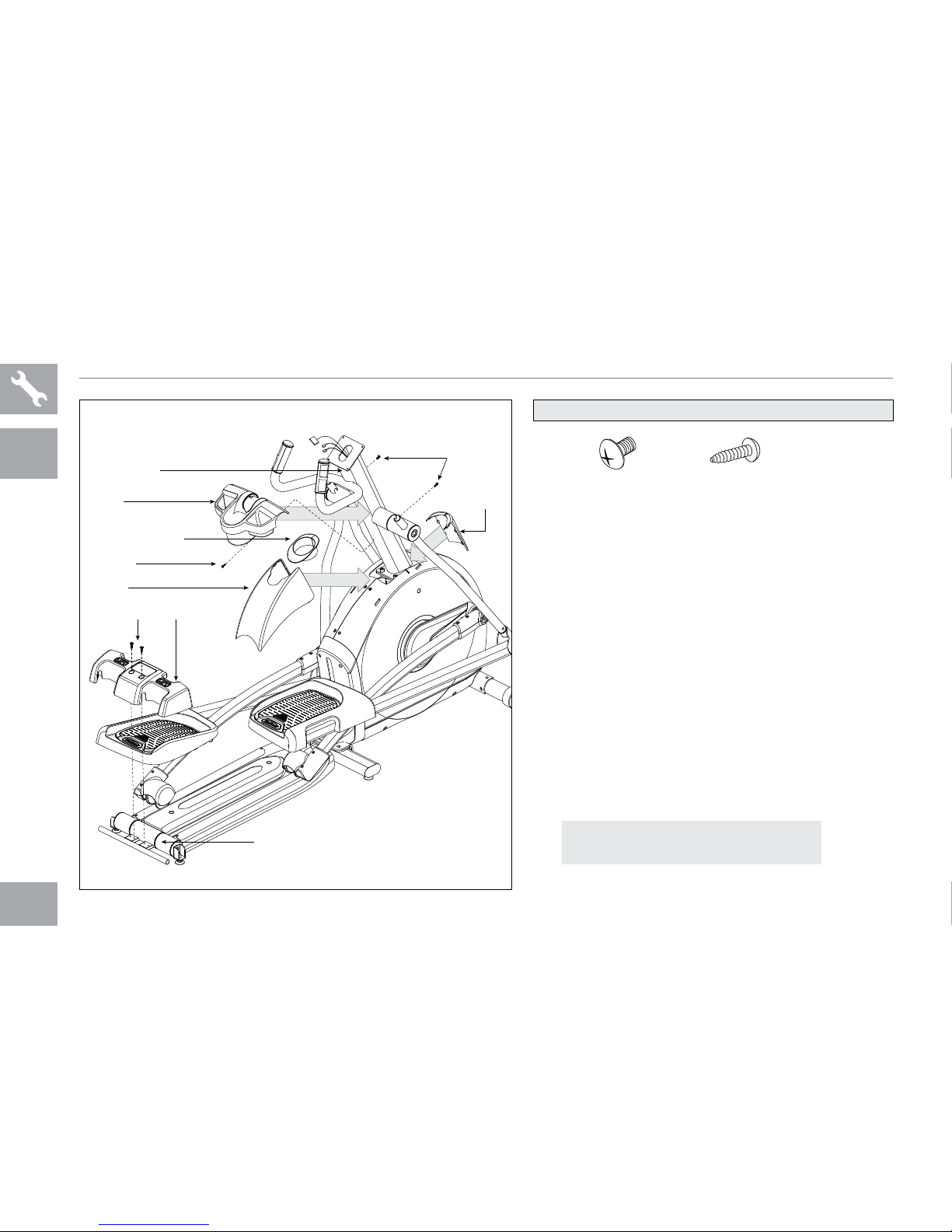

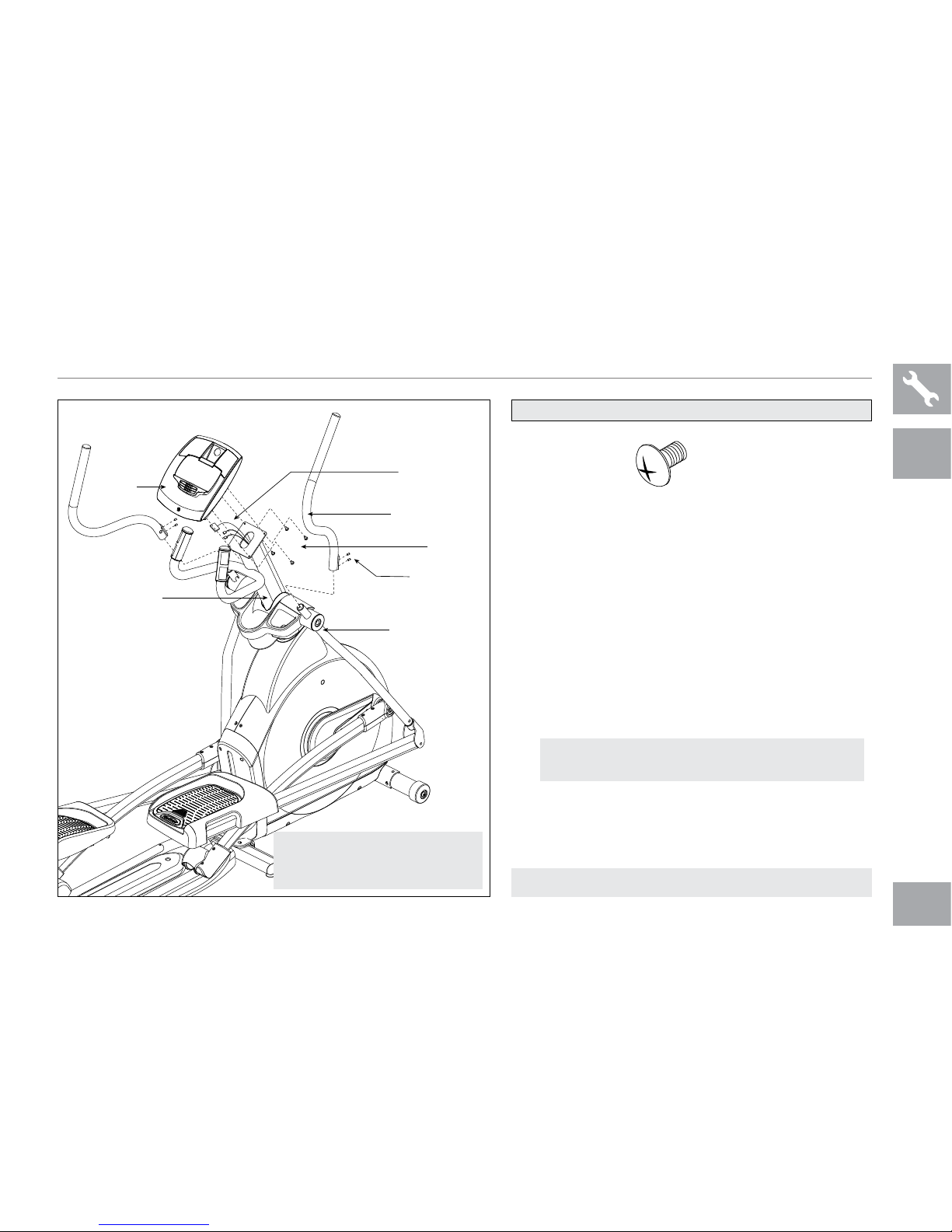

ASSEMBLY STEP 7
WATER
BOTTLE
HOLDER
CONSOLE MAST
CONSOLE MAST BOOT
TOP CAP
SCREW (Z)
SCREWS (AA) REAR CAP
SCREWS (Z)
TOP CAP
REAR
COVER
REAR STABILIZER
A Open hardware bag 7.
B Slide top cap and top cap rear cover
over console mast and snap into place.
C Insert console mast boot over top cap
and snap into place.
D Slide water bottle holder over
console mast and attach using 2
screws (z).
E Slide rear cap over rear stabilizer and
attach using 2 screws (aa).
HARDWARE BAG 7 CONTENTS :
SCREW (Z)
12 mm
Qty: 3
SCREW (AA)
15 mm
Qty: 2
EX-79 SHOWN
NOTE: Be careful not to pinch any
wires while tightening screws.

15
CONSOLE
BOLTS (BB)
UPPER HANDLEBAR
CONSOLE CABLES
LOWER HANDLEBAR
PRE-INSTALLED
SET SCREWS
CONSOLE MAST
BOLT (BB)
12 mm
Qty: 4
HARDWARE BAG 8 CONTENTS :
NOTE: Be careful not to pinch
any wires while attaching the
console or handlebars.
A Open hardware bag 8.
B Attach the console cables to the console.
C Carefully tuck the Console cables into the
console mast before attaching the console.
Attach console to console mast using 4
bolts (bb).
D Slide upper handlebar onto lower
handlebar making sure handlebars are joined
together completely. Secure upper handlebar
to lower handlebar using pre-attached
set screws.
E Repeat step D on other side.
Make sure upper handlebars are as far down as possible.
Handlebars can be damaged If not secured correctly.
ALL
MODELS
ASSEMBLY STEP 8
EX-79 SHOWN
ASSEMBLY COMPLETE!

16

17
ELLIPTICAL OPERATION
This section explains how to use your elliptical’s console and programming.
The BASIC OPERATION section in the ELLIPTICAL GUIDE has instructions for the following:
• LOCATION OF THE ELLIPTICAL
• POWER/GROUNDING INSTRUCTIONS
• FOOT POSITIONING
• MOVING THE ELLIPTICAL
• LEVELING THE ELLIPTICAL
• POWER/MANUAL INCLINE OPERATION
• USING THE HEART RATE FUNCTION

18
EX-69
DISTANCE
TIME
SPEED
LEVEL
C A L O R I E S
HEART RATE
TA R G E T S
TIME
C A LO R I E S
DISTANCE
W O R KO U T S
ROLLING
REVERSE TRAIN
MOUNTAIN
PR E SS TO S ET OR V IE W GOAL
GOAL CENTER
2
4
6
8
10
12
14
16
18
20
EX-69 DISTANCE
TIME
SPEED
LEVEL
C A L O R I E S
HEART RATE
TA R G E T S
TIME
C A LO R I E S
DISTANCE
W O R KO U T S
ROLLING
REVERSE TRAIN
MOUNTAIN C
K
A
L
B
D
H
F
O
E
N
H
G
R
J
I I
M
S
P P
Q
T

19

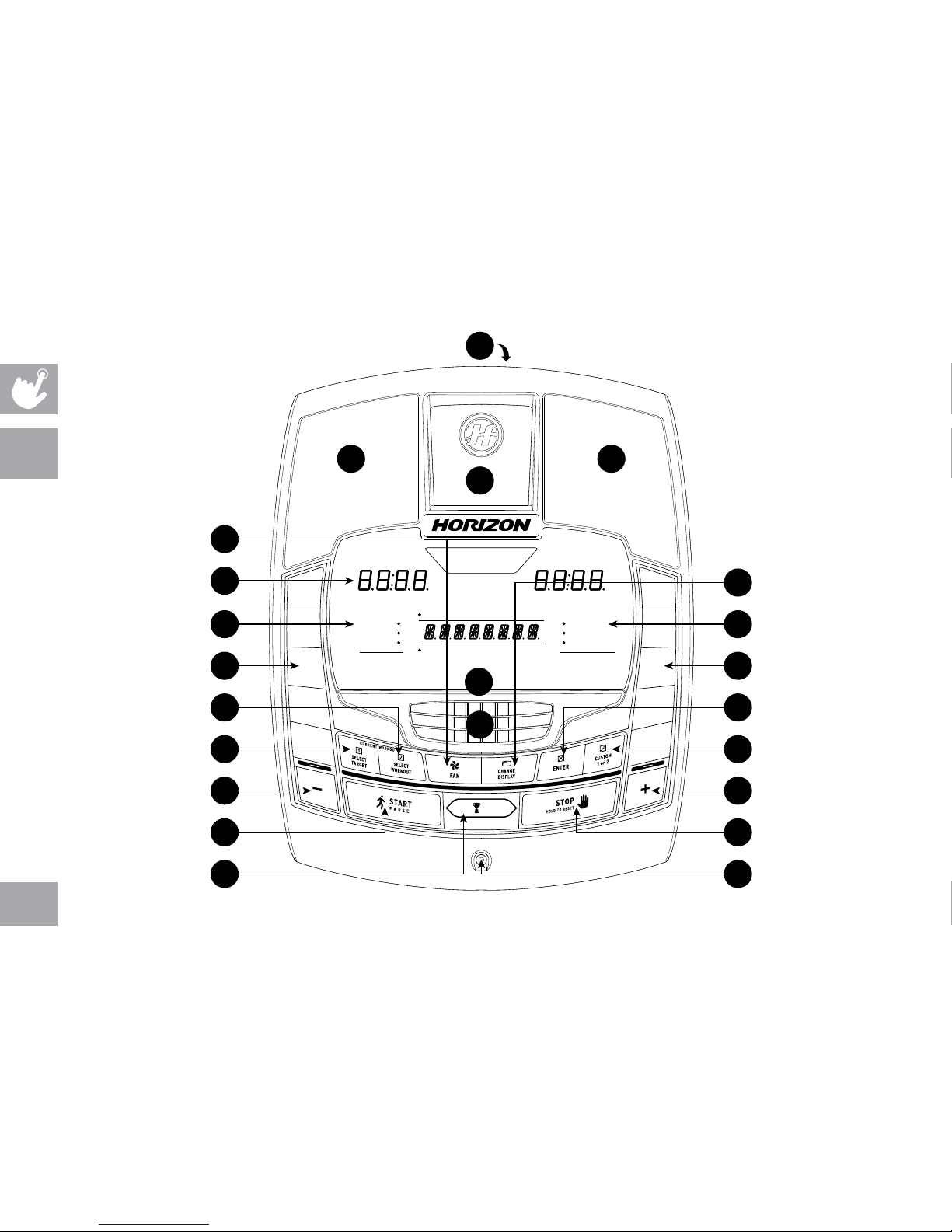

EX-69 CONSOLE OPERATION
Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.
A) LED DISPLAY WINDOWS: time, distance, calories, heart rate, speed and resistance level.
B) TARGET LED INDICATORS: indicate what target (if any) is set for the current program.
C) WORKOUT LED INDICATORS: indicate what workout (if any) is set for the current program.
D) SELECT TARGET: press to select your desired target.
E) SELECT WORKOUT: press to select your desired workout.
F) START: press to begin exercising, start your workout, or resume exercising after pause.
G) STOP: press to pause/end your workout. Hold for 3 seconds to reset the console.
H) + / – KEYS: used to adjust resistance level.
I) QUICK KEYS: used to reach desired resistance level more quickly.
J) ENTER: used to confirm a selection.
K) CHANGE DISPLAY: press to change display feedback during workout.
L) FAN KEY: press to turn fan on and off.
M) FAN: personal workout fan.
N) CUSTOM 1 & 2 KEY: press to select custom 1 or custom 2 program.
O) GOAL CENTER: press to set or view your goal.
P) SPEAKERS: music plays through speakers when your CD / MP3 player is connected to the console.
Q) AUDIO IN JACK: plug your CD / MP3 player into the console using the included audio adaptor cable.
R) AUDIO OUT / HEADPHONE JACK: plug your headphones into this jack to listen to your music through the headphones.
Note: when headphones are plugged into the headphone jack the sound will no longer come out through the speakers.
S) MP3 PLAYER POCKET: used to store your MP3 player.
T) READING RACK: holds reading material.
MANUAL INCLINE OPERATION
The EX-69 has an adjustable incline feature to add variety to your workouts. To adjust the incline up or down, stand on the side of
the elliptical and place your hand firmly on the top of the shroud. With your other hand, grab the MANUAL INCLINE LIFT LEVER
handle, pulling back and guiding it up or down. Ensure the pin is engaged in the slot at the preferred incline level.
EX-69

20
DISTANCE
TIME
SPEED
LEVEL
C A L O R I E S
HEART RATE
TA R G E T S
TIME
C A LO R I E S
DISTANCE
W O R KO U T S
ROLLING
REVERSE TRAIN
MOUNTAIN
4
8
12
16
20
0 %
25 %
50 %
75 %
100 %
EX-79
PR ESS T O S ET O R V IEW G OA L
GOAL CENTER
C
M
A
N R
B
D
H
F
Q
E
P
I
G
U
L
J K
O
V
S S
T
W
EX-79
