I CAUTION
Read all precautions and instructions in this manual before using this equipment.
Save this manual for future reference.

SAVE THESE INSTRUCTIONS
When using an electrical product, basic precautions should always be followed.
Read all instructions before using this exercise product.
WARNING!
To reduce the risk of burns, fire, electrical shock or injury to persons:
•Use this exercise product for its intended use as described in this Owner's
guide. Do not use attachments not recommended by the manufacture.
• Never drop or insert any object into any opening.
• Do not remove the elliptical trainer's side covers. Service should be performed
only by an authorized Horizon Fitness service provider.
• Never operate this elliptical trainer if it has a damaged cord or plug, if it is not
working properly, if it has been damaged, or immersed in water.
• Keep the cord away from heated surfaces.
• Do not use outdoors.
• Only use the power cord provided with your Horizon Fitness Elliptical Trainer.
• Never place the power cord under carpeting or place any obJect on top of the
power cord, which may pinch or damage it.
• Unplug your Horizon Fitness Elliptical Trainer before moving it.

OTHER SAFETY TIPS FOR YOUR HORIZON FITNESS
ELLIPTICAL TRAINER
CAUTION!
•If you experience chest pains, nausea, dizziness or shortness of breath, stop
exercising immediately and consult your physician before continuing.
•Do not turn pedal arms by hand.
•Do not wear clothing that might catch on any part of the elliptical trainer.
•Make sure handlebars are secure before each use.
•Read the owner's guide before operating this elliptical trainer.
•Maintain a comfortable pace. Do not 'sprint' above 80 rpms on this machine.
• To maintain balance it is recommended to keep a grip on the
handlebars while exercising, mounting or dismounting the machine.
OPERA TION
It is essential that your elliptical trainer is used only indoors, in a climate con-
trolled room. If your ellipticaI trainer has been exposed to colder temperatures or
high moisture climates, it is strongly recommended that the ellipticaI trainer is
warmed up to room temperature before first time use. Failure to do so may cause
premature electronic failure.
CHILDREN
•Keep children off of your ellipticaI trainer at all times.
•When the elliptical is in use, young children and pets should be kept at least ]0
feet away.
CLEANING
• clean with soap and slightly damp cloth only. Never use solvents.

CONGRATULATIONS! on choosing a Horizon Fitness Elliptical Trainer.
You've taken an important step in developing and sustaining an exercise program!
Your Horizon Fitness elliptical trainer is a tremendously effective tool for achiev-
ing your personal fitness goals. Regular use of your Horizon Fitness elliptical train-
er can improve the quality of your life in so many ways.
Here are just a few of the health benefits of aerobic exercise:
• Weight Loss
• A Healthier Heart
• Improved Muscle Tone
• Increased Daily Energy Levels
• Reduced Stress
• Help In Countering Anxiety
and Depression
• An Improved Self Image
The key to reaping these benefits is to develop the exercise habit. Your new
Horizon Fitness elliptical trainer will help you eliminate the obstacles that prevent
you from getting in your exercise time. Inclement weather and darkness won't
interfere with your workout when you use your Horizon Fitness elliptical trainer in
the comfort of your home. This manual provides you with basic information for
using and enjoying your new machine. A more complete knowledge of your new
Horizon Fitness elliptical trainer will assist you in realizing your goal of a healthy
lifestyle.
CAUTION: BEFORE BEGINNING ANY EXERCISE PROGRAM, ALWAYS CONSULT
YOUR PHYSICIAN. IF YOU EXPERIENCE CHEST PAINS, NAUSEA, DIZZINESS OR
SHORTNESS OF BREATH, STOP EXERCISING AND CONSULT YOUR PHYSICIAN
BEFORE CONTINUING.
IMPORTANT: PLEASE READ BEFORE USE!
ASSEMBL Y
CAUTION! There are severaI areas during the assembly process of a Horizon
Fitness ellipticaI trainer that special attention must be paid. It is very important to
follow the assembly instructions correctly and to make sure aII parts are firmly
tightened. If the assembly instructions are not followed correctly, the elliptical
trainer could have frame parts that are not tightened and wiII seem loose and may
cause irritating noises. To prevent damage to the ellipticaI trainer, the assembly
instructions must be reviewed and corrective actions should be taken.

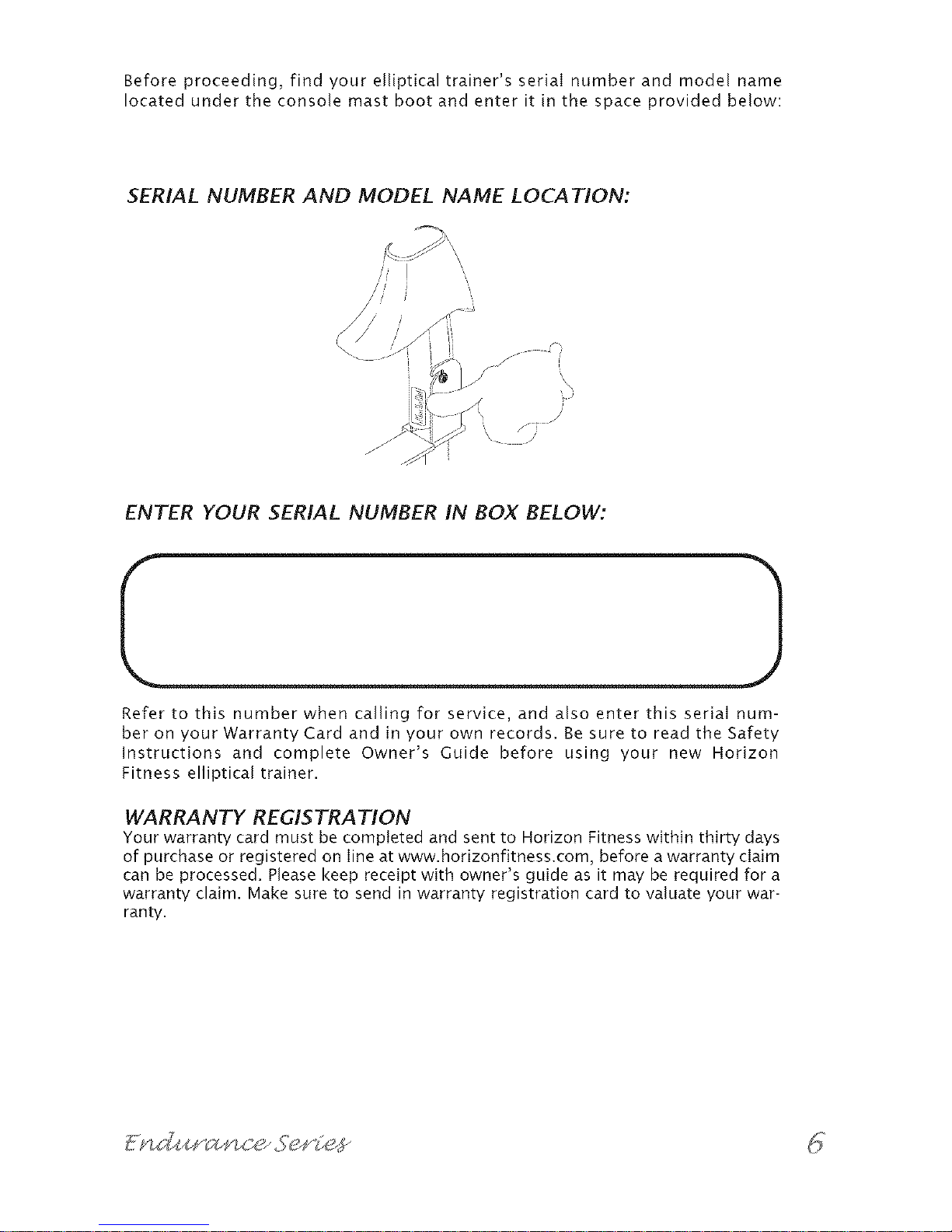

Beforeproceeding,findyourellipticaltrainer'sserialnumberandmodelname
locatedundertheconsolemastbootandenteritinthespaceprovidedbelow:
SERIAL NUMBER AND MODEL NAME LOCATION:
ENTER YOUR SERIAL NUMBER IN BOX BELOW:
Refer to this number when calling for service, and also enter this serial num-
ber on your Warranty Card and in your own records. Be sure to read the Safety
Instructions and complete Owner's Guide before using your new Horizon
Fitness elliptical trainer.
WARRANTY REGISTRATION
Your warranty card must be completed and sent to Horizon Fitness within thirty days
of purchase or registered on line at www.horizonfitness.com, before a warranty claim
can be processed. Please keep receipt with owner's guide as it may be required for a
warranty claim. Make sure to send in warranty registration card to valuate your war-
ranty.

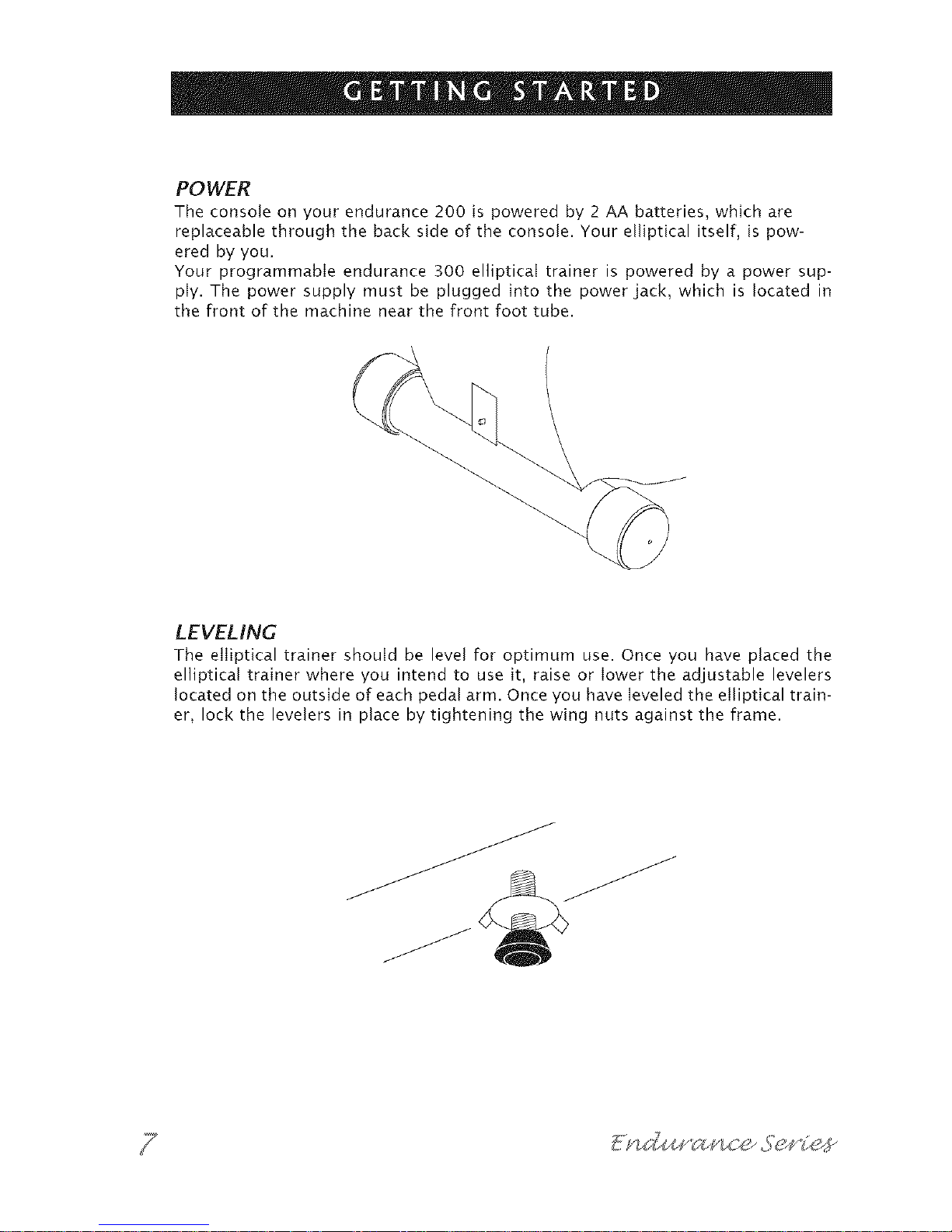

POWER
The console on your endurance 200 is powered by 2 AA batteries, which are
replaceable through the back side of the console. Your elliptical itself, is pow-
ered by you.
Your programmable endurance 300 elliptical trainer is powered by a power sup-
ply. The power supply must be plugged into the power jack, which is located in
the front of the machine near the front foot tube.
LEVELING
The elliptical trainer should be leveJ for optimum use. Once you have pJaced the
elliptical trainer where you intend to use it, raise or lower the adjustable levelers
located on the outside of each pedal arm. Once you have leveled the etJiptical train-
er, lock the levelers in place by tightening the wing nuts against the frame.

Note:Itisimportanttoalwaysfollowthecorrectorderofstepswhenfoldingyour
ellipticaltrainer.

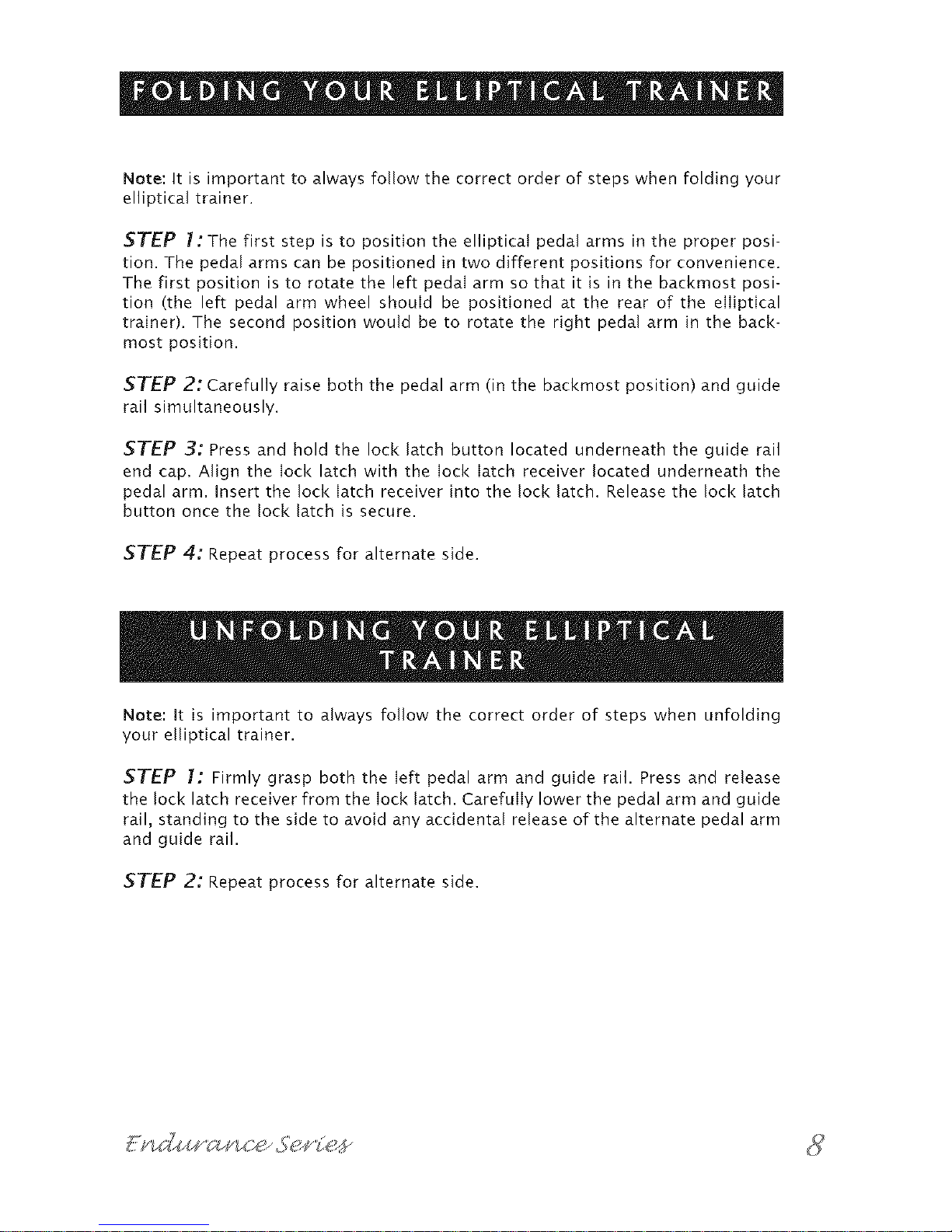

STEP 1:The first step is to position the elliptical pedal arms in the proper posi-
tion. The pedal arms can be positioned in two different positions for convenience.
The first position is to rotate the left pedal arm so that it is in the backmost posi-
tion (the left pedal arm wheel should be positioned at the rear of the elliptical
trainer). The second position would be to rotate the right pedal arm in the back-
most position.
STEP 2: Carefully raise both the pedal arm (in the backmost position) and guide
rail simultaneously.
STEP 3: Press and hold the lock latch button located underneath the guide rail
end cap. Align the lock latch with the lock latch receiver located underneath the
pedal arm. Insert the lock latch receiver into the lock latch. Release the lock latch
button once the lock latch is secure.
STEP 4: Repeat process for alternate side.
Note: It is important to always follow the correct order of steps when unfolding
your elliptical trainer.
STEP I: Firmly grasp both the left pedal arm and guide rail. Press and release
the lock latch receiver from the lock latch. Carefully lower the pedal arm and guide
rail, standing to the side to avoid any accidental release of the alternate pedal arm
and guide rail.
STEP 2: Repeat process for alternate side.

MOVING
Your Horizon Fitness elliptical trainer has a pair of transport wheels built into the
front of the frame. With the treadmill in the folded position and bracing one foot
against the front foot tube, carefully pull back on the console mast and roll the
elliptical to the desired position.
CAUTION! our elliptical trainers are well built and heavy, weighing up to
2001bs.! Use care and additional help if necessary when moving.
FOOT POSITION
When using your elliptical trainer, you may notice that your heel raises off of the
foot pad. This is a natural walking or running motion and you should not try to
prevent this.

CONSOL E
ij HANDLE BAR
GRIP PULSE
TENSION KNOB
CONSOLE
MAST
MAST
BOOT
FRONT FOOT
TUBE
} ....
/
TRANSPORT WHEEL LOCK LATCH
HANDLE BAR
LINK
FOOT PAD
ARM
GUIDE RAIL
J_C
LOCK LATCH
RECEI VER

QUICK START UP
simply begin exercising. The console will automatically begin counting up and
tracking your information.
RESET
Press and hold the select button on the console.
mph/km CONVERSION
The speed readout on the console automatically defaults to mph when installing
the batteries. To convert the speed readout to kilometers, press and hold the
'Select' button for three seconds. At this time, the time display should register
0:00. Continue to press the 'Select' button for an additional 2 seconds until the
time display registers 0:00 once again. The console should now be set for km.
To switch back to mph, simply remove the batteries in the console.

SELECTING OPTIONAL FEEDBACK
Press the 'SELECT' button on the console to scroll through and view your speed,
time, distance, odometer, calories, and pulse.
STARTING YOUR WORKOUT
start pedaling, the console will automaticlly begin counting down.
SCAN FUNCTION
During a workout, you can view alternate information such as speed, distance,
calories, accumulated distance (odometer), and heart rate by pressing the 'select'
button. To continuously scan through all alternate readouts, press the 'select' but-
ton until both scan and time are displayed. This will automatically allow the con-
sole to scan through all alternate readouts.
FINISHING YOUR WORKOUT
Remember to gradually slow down your pace before stopping your workout. The
machine will not stop moving if you stop your feet abruptly. After you have fin-
ished your workout, the console will 'beep' several times to let you know your
workout is finished.

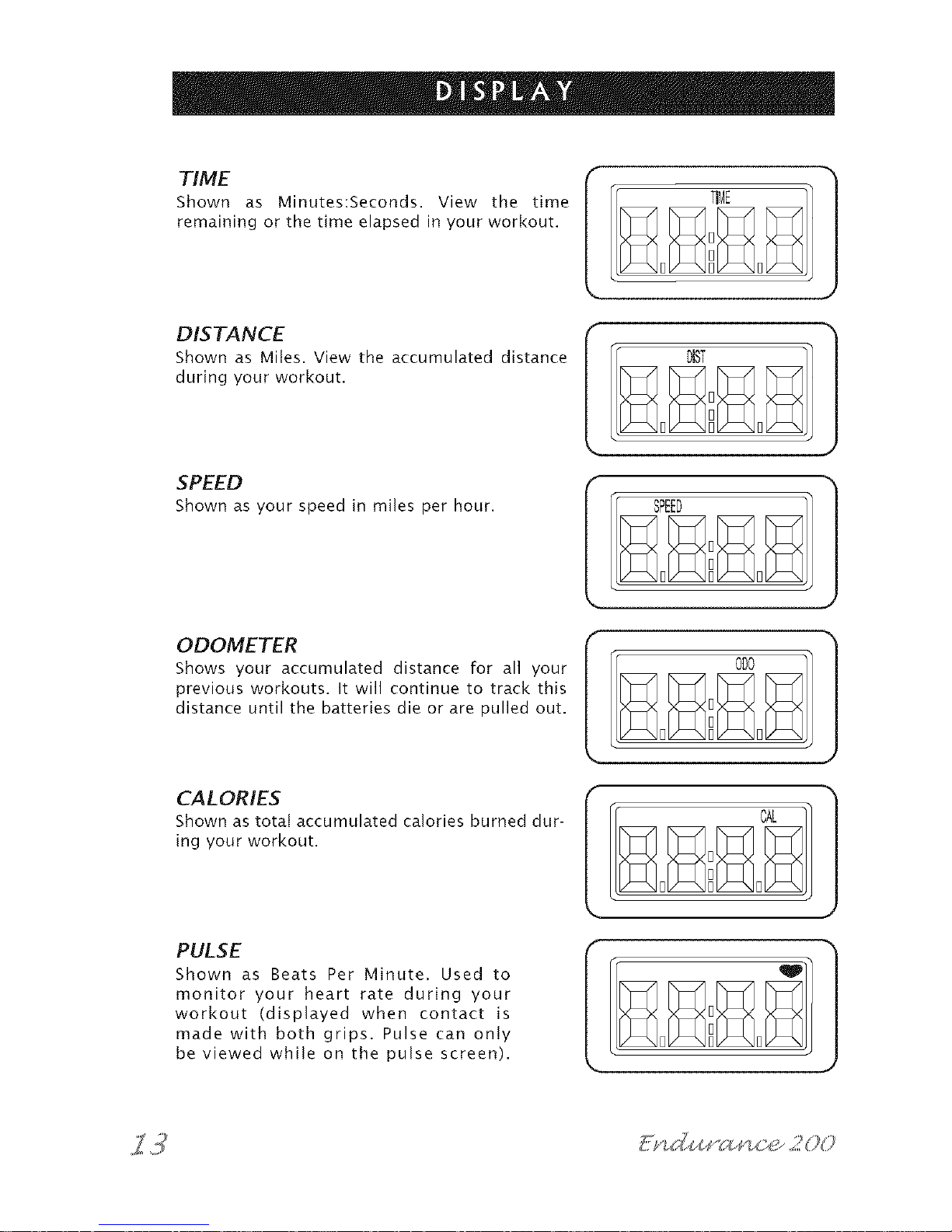

TIME
Shown as Minutes:Seconds. View the time
remaining or the time elapsed in your workout.
DISTANCE
Shown as Miles. View the accumulated distance
during your workout.
SPEED
Shown as your speed in miles per hour.
ODOMETER
Shows your accumulated distance for all your
previous workouts. It will continue to track this
distance until the batteries die or are pulled out.
CALORIES
Shown as total accumulated calories burned dur-
ing your workout.
PULSE
Shown as Beats Per Minute. Used to
monitor your heart rate during your
workout (displayed when contact is
made with both grips. Pulse can only
be viewed while on the pulse screen).

/
CONSOLE /
MAST
CONSOLE MAST
BOOT
FRONT FOOT
TUBE
TRANSPORT WHEEL
FOOT PAD
PEDAL ARM
GUIDE RAIL
"/ /
LOCK LATCH
!
HANDLE BAR
LINK
LOCK LATCH
RECEI VER

QUICK START UP
simply press the 'Start" button to begin exercising. The program wiII automatical-
ly default to the Manual program unless another program is selected.
RPM RESISTANCE
S
RESET
Press and hold the Stop button to reset the Elliptical Trainer.

TIME
Shown as Minutes:Seconds. View the time
remaining or the time elapsed in your workout.
DISTANCE
Shown as Miles. View the accumulated distance
during your workout.
CALORIES
Shown as total accumulated calories burned dur-
ing your workout.
RPM
Shown as Revolutions per Minute. Improve strid-
ing technique while reducing leg muscle fatigue
by striding between 60 & 70 RPM.
IJ,U U j
ICE TIM|
_r J
f
\ I Fil=i=i 1 ii=i
\LI_ I,,-,
_Di;,, ..................................T,;
f
77 r 7 I- 17 7
JJ
CALORIES /
I l:':i!,iLJj'i
HEART RATE
RPM _

RESISTANCE
During a workout, the amount of resistance can
be adjusted by pressing the plus (+) or minus 6)
buttons on the console. The resistance levels
vary from levet I to 16 (level I being the easiest
and level 16 being the most difficult).
WATTS
A measurement of your expending energy. May
be used to evaluate and quantify your fitness
progress over time.
HEART RATE
Shown as Beats per Mhlute. You can monitor
your heart rate at any time during your workout
by holding the heart rate grips or wearing the
chest transmitter.
PROFILE
Allows you to view your program intensity
while you exercise. Each horizontal row of
LED's represents 2 resistance levels.
% 0ooooooooooo6-8%
O0000000000OO000
0000000000000000
OOO000QO0®000000
O00eOQ®OO®QQO000
000000000®000000
0®0®®0000®000000 1
oZ7

CHOOSING A PROGRAM
To choose a program, press the quick
program key. The program profile lights
will show you which program you have
selected. Once you choose a program,
wait for 5 seconds and you will see the
resistance level flashing in the Resistance
window.
CHOOSING A RESISTANCE
With the resistance level flashing, press
the plus (+) or minus (-) buttons to adjust
your resistance level. Once you choose a
resistance level, wait for S seconds and
you will see the time flashing in the Time
window.
_ _J\ _SlSTANCEJ/
...............................................................i
CHOOSING A TIME
With the time flashing, press the plus (+)
or minus (-) buttons to adjust your pro-
gram time. Once you choose your time,
press the 'Start' button and begin you
workout.
OOOO00OOOOOO0_ WATTS
FINISHING YOUR WORKOUT
Press the 'Stop' button to pause your workout, press and hold to reset your work-
out. Remember to gradually slow down your pace before stopping or pausing your
workout. The machine will not stop moving if you stop your feet abruptly. After
you have finished your workout, the console will retain the data from your work-
out for 45 seconds before resetting.

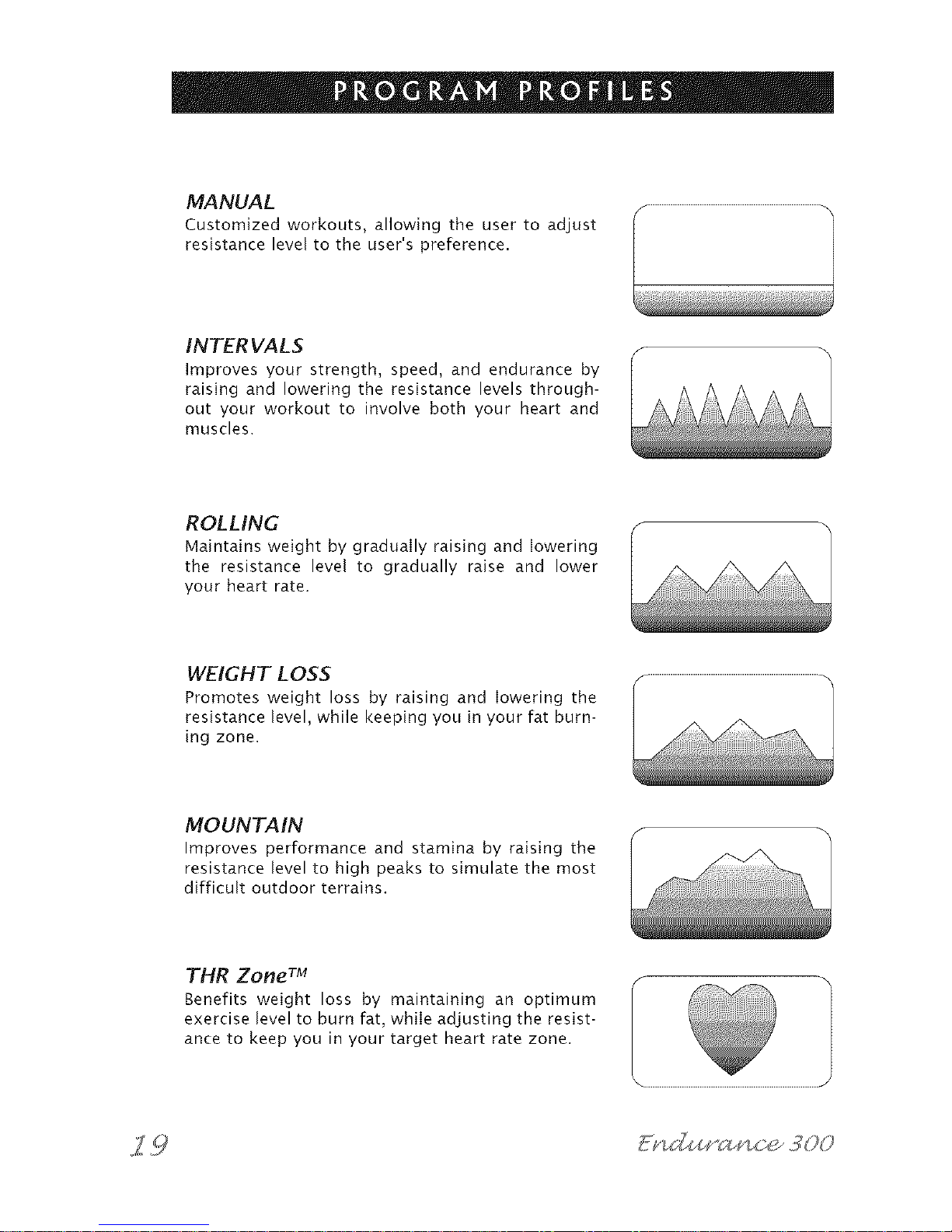

MANUAL
Customized workouts, allowing the user to adjust
resistance level to the user's preference.
f ..............................................................................................................................................-%
INTER VALS
Improves your strength, speed, and endurance by
raising and lowering the resistance levels through-
out your workout to involve both your heart and
muscles.
ROLLING
Maintains weight by gradually raising and lowering
the resistance level to gradually raise and lower
your heart rate.
WEIGHT LOSS
Promotes weight loss by raising and lowering the
resistance level, while keeping you in your fat burn-
ing zone.
MOUNTAIN
Improves performance and stamina by raising the
resistance level to high peaks to simulate the most
difficult outdoor terrains.
THR Zone TM
Benefits weight loss by maintaining an optimum
exercise level to burn fat, whiIe adjusting the resist-
ance to keep you in your target heart rate zone.

The Pulse Zone Program is designed to keep the user at an optimum exercise
level, while adjusting the resistance levels to keep the user at a target heart
rate. To choose the Pulse Zone Program, follow these instructions.
hChoose the Pulse Zone Program by pressing the 'Up' or 'Down' buttons or by
pressing the number 16 quick resistance button. Press 'Enter'.
2. Determine your target Pulse Zone by using the heart rate chart (reference tar-
get heart rate Pulse Zone chart in table of contents). Choose your target pulse zone
by pressing the 'Up' or 'Down' buttons. Your target pulse zone should be set at a
number that you will be able to exercise throughout the majority of your workout.
3. The Pulse Zone Program will have a 5 minute warm-up period before it will start
adjusting the resistance levels to get you to your target pulse zone.
4. After the 5 minute warm-up period, the resistance levels will increase gradually
to get the user to the selected target pulse zone. Once the user is at the target
pulse zone; plus or minus 5 beats, the resistance level will remain at the current
resistance level.
5. If the actual heart rate of the user is above the target pulse zone, the resistance
levels will gradually begin decreasing to keep the user in the target pulse zone. If
the user is more than 25 beats above the target pulse zone, the console will shut
down for safety purposes.
6. The last 5 minutes of the program will be dedicated to a cool-down period. At
this time, the program will gradually decrease the resistance level to give the user
a smooth and easy cool down.
NOTE: The chest strap is required to use the Target Pulse Zone Program
CHEST STRAP TRANSMITTER PLACEMENT AND
MOISTENING THE ELECTRODES
z/ \\
APPL Y MOISTURE HERE
BACKSIDE OF CHEST TRANSMITTER
LOGO
