Horizon Fitness E-flite UMX Radian BNF BASIC User manual

Instruction Manual
Bedienungsanleitung
Manuel d’utilisation
Manuale di Istruzioni
UMX Radian
™ ®

EN
UMX Radian
2
Safety Precautions and Warnings
As the user of this product, you are solely responsible for operating in a manner that does not endanger yourself and
others or result in damage to the product or the property of others.
• Always keep a safe distance in all directions around
your model to avoid collisions or injury.This model is
controlled by a radio signal subject to interference from
many sources outside your control. Interference can cause
momentary loss of control.
• Always operate your model in open spaces away from
full-size vehicles, traffic and people.
• Always carefully follow the directions and warnings
for this and any optional support equipment (chargers,
rechargeable battery packs, etc.).
• Always keep all chemicals, small parts and anything
electrical out of the reach of children.
• Always avoid water exposure to all equipment not
specifically designed and protected for this purpose.
Moisture causes damage to electronics.
• Never place any portion of the model in your mouth as it
could cause serious injury or even death.
• Never operate your model with low transmitter batteries.
• Always keep aircraft in sight and under control.
• Always use fully charged batteries.
• Always keep transmitter powered on while aircraft is
powered.
• Always remove batteries before disassembly.
• Always keep moving parts clean.
• Always keep parts dry.
• Always let parts cool after use before touching.
• Always remove batteries after use.
• Always ensure failsafe is properly set before flying.
• Never operate aircraft with damaged wiring.
• Never touch moving parts.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before
operating. Failure to operate the product correctly can result in damage to the product, personal property and
cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic
mechanical ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage
to the product or other property. This product is not intended for use by children without direct adult supervision. Do
not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon
Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow
all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid
damage or serious injury.
AGE RECOMMENDATION: Not for children under 14 years. This is not a toy.
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon
Hobby, LLC. For up-to-date product literature, visit horizonhobby.com or towerhobbies.com and click on the support or
resources tab for this product.
MEANING OF SPECIAL LANGUAGE
The following terms are used throughout the product literature to indicate various levels of potential harm when
operating this product:
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage,
and serious injury OR create a high probability of superficial injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a
possibility of serious injury.
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no
possibility of injury.

EN
3
Specifications
Box Contents
Table of Contents
28.7 inch (730mm)
16.5 inch (418mm)
Preflight Checklist............................................................. 4
Assembly.......................................................................... 4
Transmitter Setup ............................................................. 5
Install the Flight Battery .................................................... 5
Flight controller LED ......................................................... 5
Binding............................................................................. 6
SAFE® Select Technology................................................. 6
Control Surface Centering................................................. 7
Control Direction Test........................................................ 7
AS3X Control Response Test ............................................. 8
Center of Gravity............................................................... 8
Trimming the Aircraft ........................................................ 9
Flying ............................................................................... 9
Post Flight Checklist .................................................... 10
Maintenance .................................................................. 10
Troubleshooting .............................................................. 11
Parts List ........................................................................ 12
Limited Warranty ............................................................ 12
Recommended Parts....................................................... 12
Optional Parts................................................................. 12
Warranty and Service Contact Information ...................... 13
FCC Information.............................................................. 14
IC Information................................................................. 14
Compliance Information for the European Union.............. 14
Without battery: 1.4oz (41g)
With 1S 150mAh battery: 1.6oz (45g)
Motor: Brushed Installed
Flight Controller: Flight Control Board
(SPMA3186) Installed
Battery: 150mAh 1S 3.7V 25C LiPo Battery
(EFLB1501S25) Required
Battery Charger: S44 4 Port AC/DC 1S LiPo
Charger (SPMXC1040) Required
Transmitter: Full range 6-channel
2.4GHz with Spektrum DSM2 or
DSMX®technology with adjustable
Dual Rates
Required

EN
UMX Radian
4
Find a safe and open area.
Charge the flight battery.
Assemble the aircraft.
Install the transmitter batteries.
Install the flight battery.
Perform control direction test.
Perform the AS3X Control Direction Test with the aircraft.
Plan flight for flying field conditions.
Set a flight timer for 7 minutes.
Have fun!

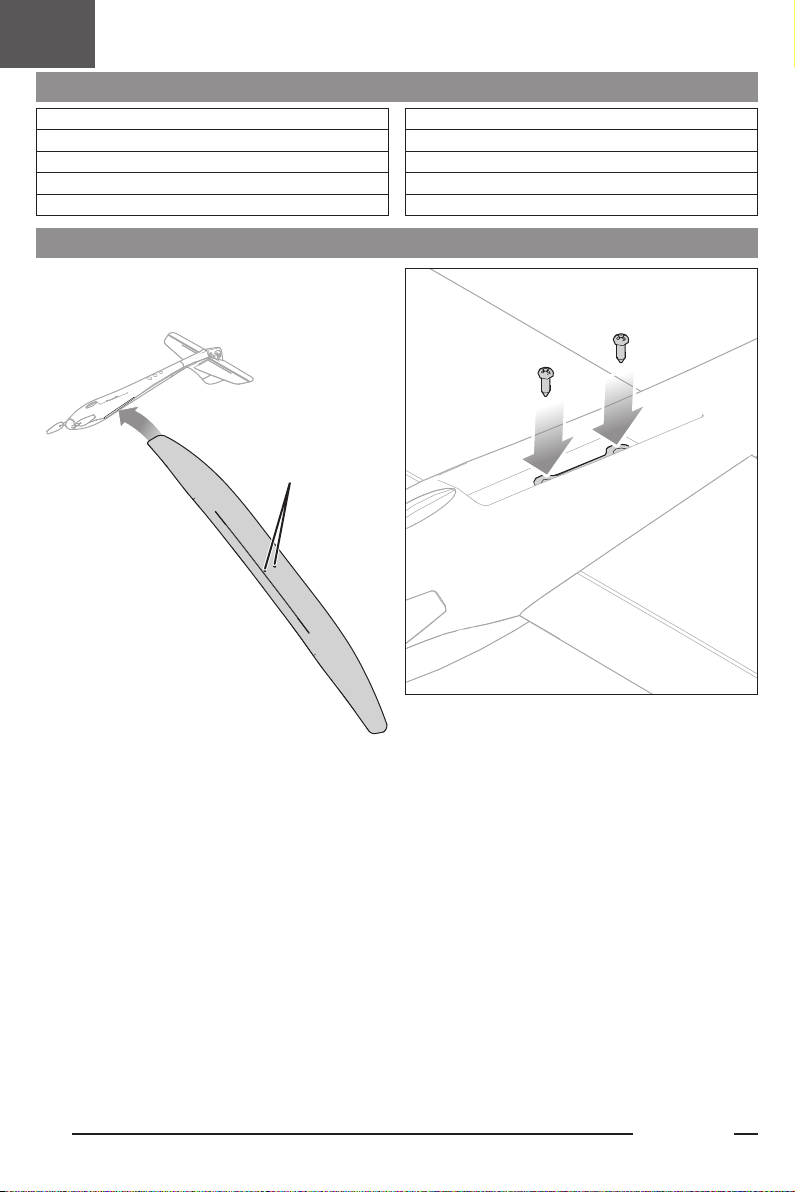

Assembly
Preflight Checklist
Wing Installation
1. Slide the wing into place.
2. Install the two screws.
TIP: Highlight the wing
screw holes with a
black marker so the
holes are easier to see
during assembly.

EN
5

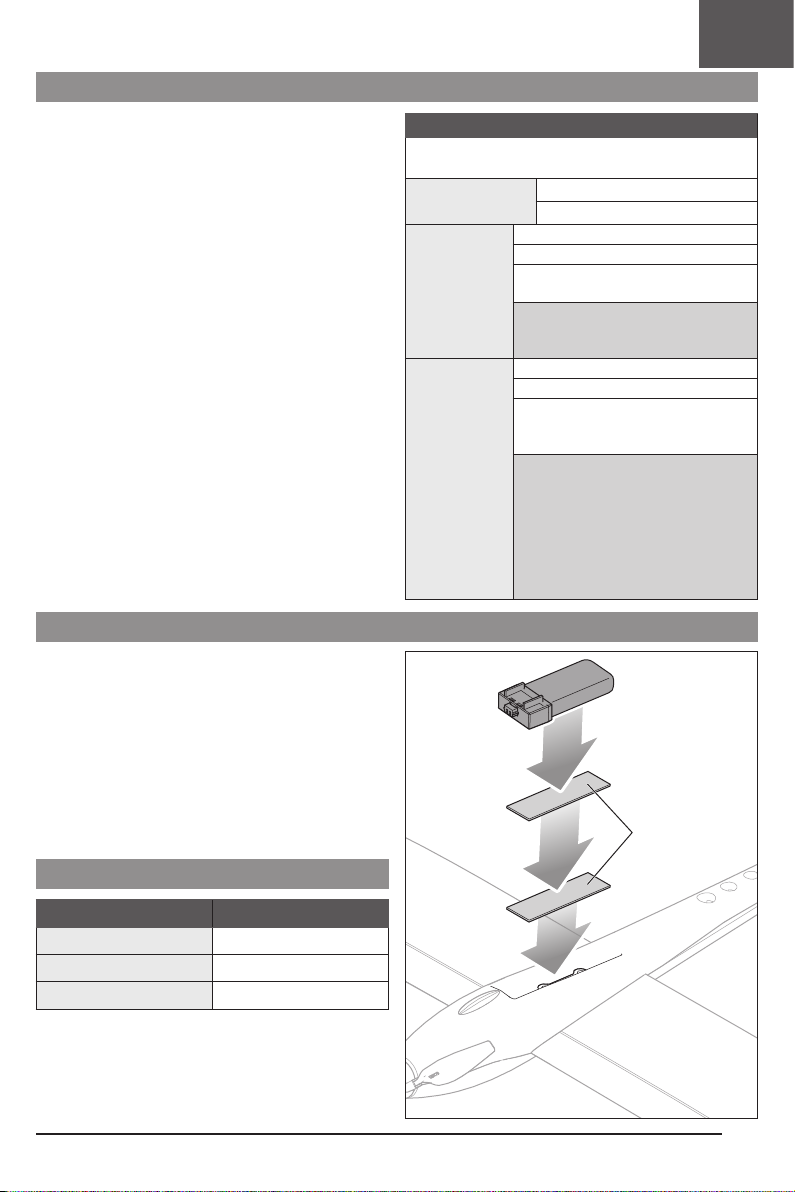

Transmitter Setup
Install the Flight Battery
Hook and loop tape
1. Connect the power lead from the ESC to the battery,
noting correct polarity.
2. Install a fully charged battery in the middle of the
battery tray using double-sided hook and loop
material.
3. Keep the aircraft immobile and away from wind for
five seconds. Once connected to your transmiter, the
LED on the flight controller will illuminate when it is
initialized and ready for flight.
Tip: View the flight controller through the air vent on the
top front of fuselage.
Flight controller LED
LED Color Mode
Red and blue flashing Bind Mode
Solid red and blue SAFE
Solid red AS3X
IMPORTANT: The installed receiver has been
programmed for operation specifically in this aircraft.
To operate the various features of this aircraft, follow the
table to setup your computer transmitter.
• The flight mode selection should be assigned to a
2-position switch.
• There are no ailerons on this aircraft. Rudder control is
on the aileron control stick.
• If your transmitter is telemetry capable, the receiver will
communicate the battery voltage and percentage as well
as frame losses and holds. Navigate to the transmitter
telemetry screen to view after binding.
Refer to your transmitter manual for more information
about transmitter setup.
Computerized Transmitter Setup
Start all transmitter programming with a blank ACRO
model (perform a model reset), then name the model.
Dual Rates HIGH 100%
LOW 70%
DX7S
DX8
1. Go to the SYSTEM SETUP
2. Set MODEL TYPE: AIRPLANE
3. Set SWITCH SELECT:
GEAR: Gear
Gear switch operates the flight modes
0 SAFE mode
1 AS3X mode
DX6e, DX8e
DX6, DX7, DX8
(Gen2)
DX9, DX18,
DX20
iX12, iX20
NX6, NX8,
NX10
1. Go to the SYSTEM SETUP
2. Set MODEL TYPE: AIRPLANE
3. Go to CHANNEL ASSIGN:
Channel Input Config:
GEAR: Switch A
Switch A operates the 2 flight modes
0 SAFE mode
1 AS3X mode

EN
UMX Radian
6

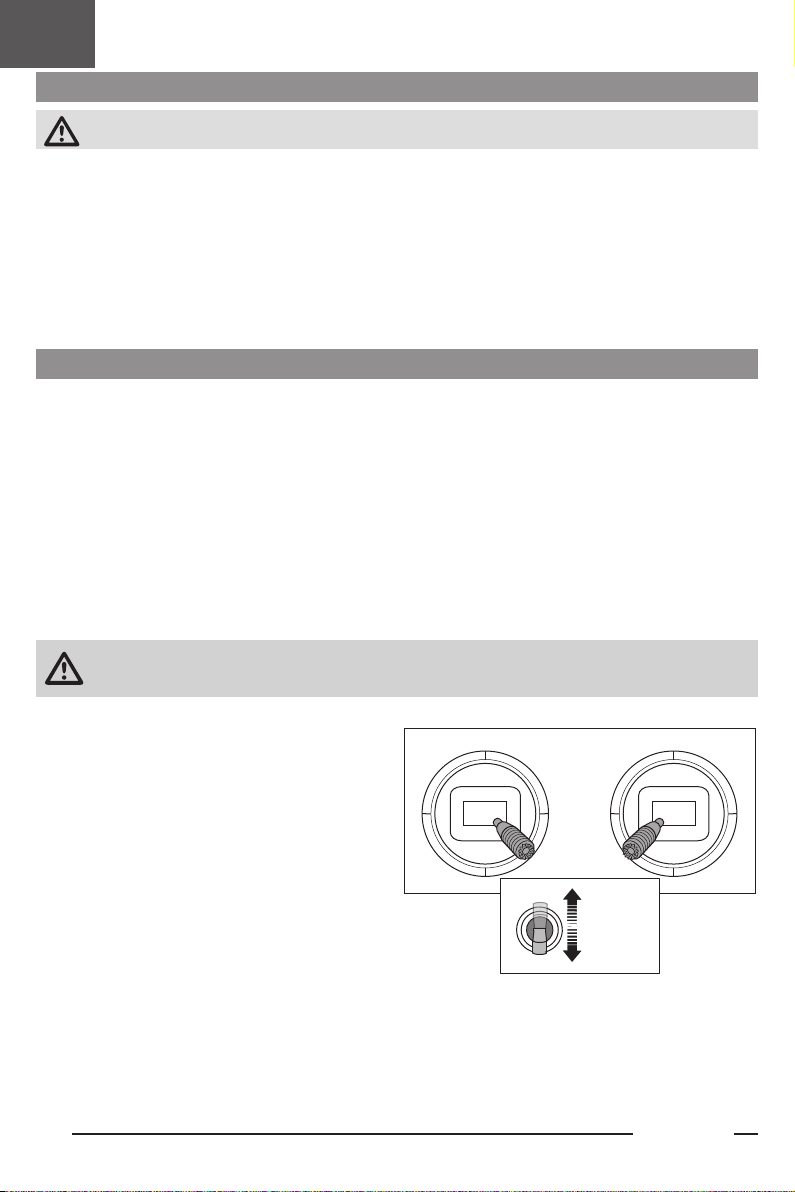

SAFE® Select Technology
Mode 1 and 2 transmitters
X 5
100%
100%
When SAFE Select is activated, bank and pitch limitations keep you from over-controlling the aircraft. Additionally, by
releasing the controls in the event you lose orientation, SAFE Select will keep the aircraft level.
To activate SAFE® Select, flip the Gear channel switch to position 0. Return the Gear switch to position 1 to turn OFF
SAFE Select and fly with just the assistance of AS3X® technology.
If you become disoriented or the aircraft is in a confusing attitude, flip the Gear switch to position 0 and release the sticks.
With the elevator and rudder stick in the neutral position, SAFE Select will automatically keep the airplane in a straight
and level attitude.
Disabling and Enabling SAFE Select
By default, the SAFE Select function of your UMX aircraft is enabled and assigned to the Gear channel switch (channel 5).
If you do not wish to have access to SAFE Select while flying, you can choose to disable SAFE Select functionality. AS3X
will still be active when SAFE Select is disabled.
IMPORTANT: Before attempting to disable or enable SAFE Select, ensure the aileron, elevator, rudder, throttle and gear
channels are all on high rate with the travel set to 100%. Turn throttle hold OFF if it is programmed in the transmitter.
CAUTION: Keep all body parts clear of the propeller and keep the aircraft securely restrained in
case of accidental throttle activation.
1. Power on the transmitter.
2. Power on the aircraft.
3. Hold both transmitter sticks to the inside bottom
corners and toggle the Gear switch 5 times
(1 toggle = full up and down). The control surfaces of
the aircraft will move, indicating SAFE Select has been
enabled or disabled.
Repeat the process again to re-enable or
disable SAFE Select.
DX4e, DX5e, DXe, and DXS Transmitters
The Gear switch is the FMODE switch on the these
transmitters, and the switch needs to be toggled between
position 0 and 2 when disabling/enabling SAFE Select.
Binding
CAUTION: Always keep hands away from the propeller. When armed, the motor will turn the propeller in
response to any throttle movement.
Binding is the process of programming the receiver to recognize the GUID (Globally Unique Identifier) code of a single
specific transmitter.
Binding Procedure
1. Refer to your transmitter’s unique instructions for
binding to a receiver.
2. Ensure the transmitter throttle stick is in the lowest
position.
3. Install and connect a fully charged flight battery to the
aircraft.
4. After approximately 5 seconds, the LED on the aircraft
flight control board will begin to flash rapidly.
5. Put your transmitter into bind mode.
6. The LED on the aircraft flight control board will glow
solid when binding is complete.

EN
7
Control Surface Centering
Control Direction Test
Stick Movement Control Surface Reaction
Before your first flights, or in the event of a crash, check
to make sure the flight control surfaces are centered. It is
much better to do this mechanically due to the mechanical
limits of linear servos.
1. Make sure the transmitter trims are centered, and
sub-trims are set to 0.
2. Check to see if any of the flight control surfaces are
not centered.
3. If the surface is not centered, use a pair of pliers and
carefully lengthen or shorten the pushrod by adjusting
the U-shape in the pushrod.
If at any time during the test the controls respond in the
opposite direction of operation of the flight controls, follow
your transmitter’s instructions to reverse the flight controls.
CAUTION: Always keep hands away from the
propeller. When armed, the motor will turn the
propeller in response to any throttle movement.
Test the controls prior to the first flight to ensure none
of the servos, linkages or parts were damaged during
shipping and handling and the controls function in the
correct directions.
Move the rudder stick to the right. The rudder should
move to the right. This will cause the aircraft to yaw and
bank to the right in flight.
Move the rudder stick to the left. The rudder should move
to the left. This will cause the aircraft to yaw and bank to
the left in flight.
Pull the elevator stick backward. The elevator should
move up. This will cause the nose of the aircraft to pitch
up in flight.
Push the elevator stick forward. The elevator should move
down. This will cause the nose of the aircraft to pitch
down in flight.

EN
UMX Radian
8
22-28mm
AS3X Control Response Test
This test ensures that the AS3X control system is
functioning properly. Assemble the aircraft and bind your
transmitter to the receiver before performing this test.
1. Raise the throttle to any setting above 25%, then
lower the throttle to activate AS3X technology.
CAUTION: Keep all body parts, hair and loose
clothing away from the propeller, as these items
could become entangled.
2. Move the entire aircraft as shown and ensure the
control surfaces move in the direction indicated in
the graphic. If the control surfaces do not respond as
shown, do not fly the aircraft. Refer to the receiver
manual for more information.
Once the AS3X system is active, control surfaces may
move rapidly. This is normal. AS3X remains active until the
battery is disconnected.
Aircraft movement AS3X Reaction
PitchYaw
Center of Gravity
The CG location is 25mm back from the leading edge
at the wing root. This has been determined with the
recommended 1S 150mAh 3.7V Li-Po battery installed in
the middle of the battery cavity.

EN
9
Trimming the Aircraft
Flying
Consult local laws and ordinances before choosing a
location to fly your aircraft.
WARNING: The motor will become hot during normal
use. Do not touch the motor until it has cooled.
We recommend flying your aircraft outside in no greater
than 10mph winds or inside in a large gymnasium. Always
avoid flying near houses, trees, wires and buildings.
Avoid flying in areas where there are many people, such as
busy parks, schoolyards or soccer fields.
Set a timer for 7 minutes.
Hand Launching
To hand launch the aircraft, hold the fuselage under the wings.
Advance to full throttle and give the aircraft a firm throw,
slightly up (5–10 degrees above the horizon), and directly into
the wind. After the model gains altitude and speed, decrease
the throttle and trim the aircraft for level flight
when in AS3X flight mode.
Landing
Always land into the wind. Reduce throttle to zero and
allow the aircraft to settle into a glide path. During landing
approach keep the wings level and the aircraft pointed into
the wind. As the aircraft settles close to the ground, ease
back on the elevator to flare for landing.
NOTICE: Always fully lower the throttle at touch down
when landing the aircraft. Failure to lower the throttle
stick and trim to the lowest possible positions during a
crash could result in damage to the ESC in the receiver
unit or to the propeller shaft.
Crash damage is not covered under warranty.
Repairs
Repair this aircraft using foam safe CA glue or clear tape.
When parts are not repairable, see the Replacement Parts
List for ordering by item number.
Direction of Drift Trim to Correct
Adjusting Trim in Flight
Familiarize yourself with your transmitter’s controls and
the aircraft’s response before flying by performing the
recommended Control Direction Test. Press the trim buttons
on your transmitter to adjust how the aircraft flies.
If the aircraft’s nose drifts in flight while the sticks are at
neutral (centered) and the throttle is at 50% in AS3X flight
mode, adjust the trim to compensate:
• Up trim to stop down drift
• Down trim to stop up drift
• Left trim to stop right drift and roll
• Right trim to stop left drift and roll
If you press a trim button until no beep sounds and the
aircraft does not fly straight and level in no wind, land and
manually adjust the trim as described below.
Manually Adjusting Trim
Only adjust trims in AS3X flight mode. Power on the model,
carefully hold the aircraft and advance the throttle for prop
to spin. Lower throttle to 0% and manually adjust trims if
needed.
Press the trim buttons to return to center (3 beeps will sound),
then use a pair of pliers to carefully adjust the metal U-bend on
the control rod of the surface requiring adjustment:
• Adjust the U-bend smaller for up elevator or right rudder.
• Widen the U-bend for down elevator or left rudder.

EN
UMX Radian
10
Post Flight Checklist
Maintenance
Disconnect the flight battery from the ESC.
Power OFF the transmitter.
Remove the flight battery from the aircraft.
Recharge the flight battery.
Repair or replace all damaged parts.
Store the flight battery apart from the aircraft and monitor
the battery charge.
Make note of the flight conditions and flight plan results,
planning for future flights.
WARNING: Do not perform this or any other equipment maintenance with the propeller installed on the aircraft.
Serious injury or property damage could result from the motor starting inadvertently.
Removing the Top of the Fuselage
To access the inside of the fuselage:
1. Remove the two screws holding the wing and slide the
wing out of the fuselage.
2. Use a fresh hobby knife to cut the tape holding the top
and bottom of the fuselage together.

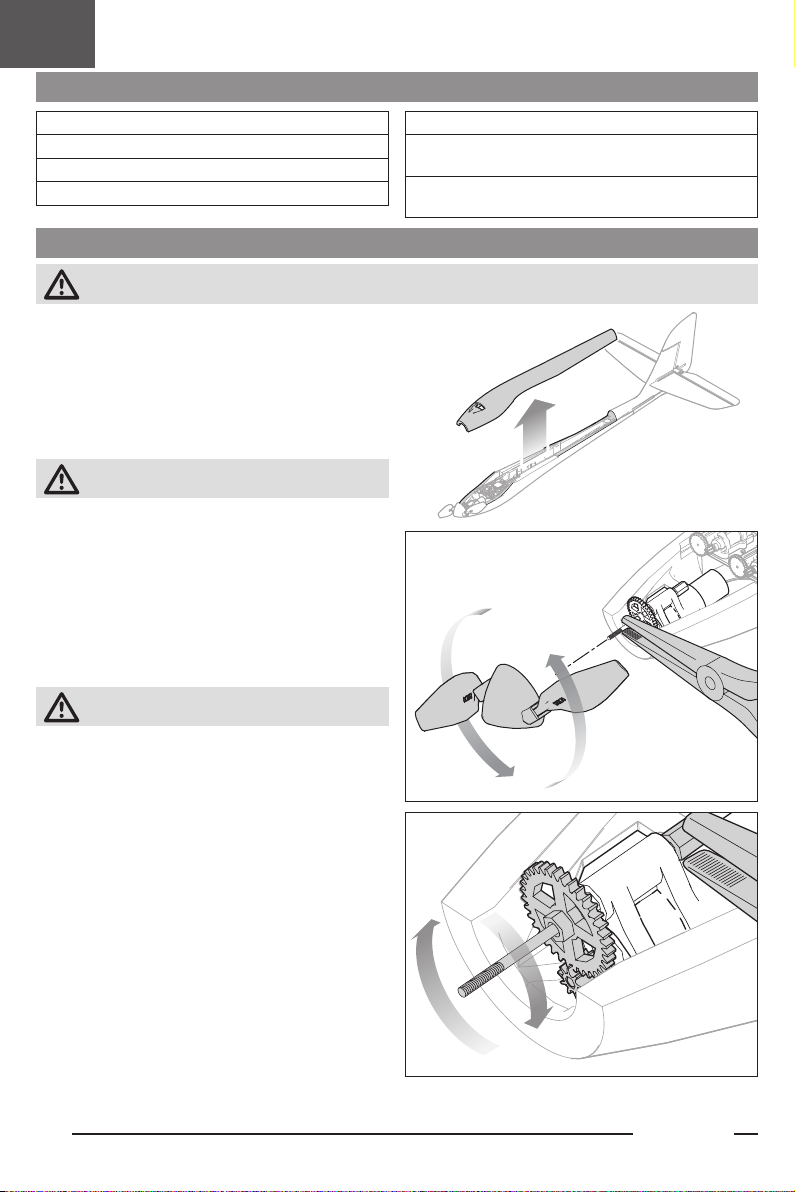

Replacing the Propeller
WARNING: The motor will become hot during normal
use. Do not touch the motor until it has cooled.
To remove/replace the propeller:
1. Use needle-nose pliers or hemostats to grip the
propeller shaft to keep it from turning.
2. Spin the propeller counterclockwise to remove the old
propeller.
3. Thread the new propeller and spinner clockwise onto
the propeller shaft until snug. Do not overtighten the
propeller on the shaft.
Replacing the Propeller Shaft
WARNING: The motor will become hot during normal
use. Do not touch the motor until it has cooled.
IMPORTANT: The rear of the propeller shaft and nylon
nut are reverse-threaded.
To replace the propeller shaft:
1. Gently grasp the white nylon nut located at the back of
the propeller shaft using needle-nose pliers or hemostats.
2. While holding the nylon nut, rotate the spur gear
clockwise. The prop shaft will thread out of the nut.
3. Gently pull on the spur gear to slide the propeller shaft
out of the gearbox.
4. Thread the propeller and spinner onto the new
propeller shaft by holding the spur gear and turning
the prop clockwise.
5. Slide the new propeller shaft into the gearbox.
6. With needle-nose pliers, place the nylon nut on the
back of the propeller shaft. Spin the propeller and
spur gear counterclockwise to thread the nylon nut
onto the propeller shaft. Do not overtighten the nut,
as excessive wear on the motor and gears, as well as
poor performance will result.

EN
11
Troubleshooting
Problem Possible Cause Solution
Aircraft will not
respond to throttle
but responds to
other controls
Throttle stick and/or throttle trim is too high Reset controls with throttle stick and throttle
trim at lowest setting
Motor is disconnected from receiver Ensure the plug for the motor is properly
installed
Extra propeller
noise or extra
vibration
Damaged propeller, prop shaft or motor Replace damaged parts
Reduced flight
time or aircraft
underpowered
Flight battery charge is low Completely recharge flight battery
Flight battery is damaged Replace flight battery and follow flight battery
instructions
Flight conditions may be too cold Make sure battery is warm before use
Battery capacity is too low for flight conditions Replace battery or use a larger capacity battery
LED on receiver
flashes rapidly and
aircraft will not
bind to transmitter
(during binding)
Transmitter is too near aircraft during binding
process
Power off transmitter, move transmitter a larger
distance from aircraft, disconnect and reconnect
flight battery to aircraft and follow binding
instructions
Bind button was not held while transmitter was
powered on Power off transmitter and repeat bind process
Aircraft or transmitter is too close to large metal
object, wireless source or another transmitter
Move aircraft and transmitter to another location
and attempt binding again
LED on receiver
flashes rapidly
and aircraft will
not respond to
transmitter (after
binding)
Less than a 5-second wait between first
powering on transmitter and connecting flight
battery to aircraft
Leaving transmitter on, disconnect and
reconnect flight battery to aircraft
Flight battery/transmitter battery charge is too
low Replace/recharge batteries
Transmitter may have been bound to a different
model
Select the right transmitter or bind to the new
one
Aircraft or transmitter is too close to large metal
object, wireless source or another transmitter
Move aircraft and transmitter to another location
and attempt connecting again
Control surface
does not move
Control surface, control horn, linkage or servo
damage
Replace or repair damaged parts and adjust
controls
Wire damaged or connections loose Do a check of wires and connections; connect or
replace as needed
Flight battery charge is low Fully recharge flight battery
Control linkage does not move freely Make sure control linkage moves freely
Motor loses power Damage to motor or power components Check the motor and power components for
damage (replace as needed)
Motor power
pulses then loss of
power
Battery power is down to the point of receiver/
ESC Low Voltage Cutoff (LVC)
Recharge flight battery or replace battery that is
no longer performing

EN
UMX Radian
12
What this Warranty Covers
Horizon Hobby, LLC, (Horizon) warrants to the original
purchaser that the product purchased (the “Product”) will be
free from defects in materials and workmanship at the date
of purchase.
What is Not Covered
This warranty is not transferable and does not cover (i)
cosmetic damage, (ii) damage due to acts of God, accident,
misuse, abuse, negligence, commercial use, or due to
improper use, installation, operation or maintenance, (iii)
modification of or to any part of the Product, (iv) attempted
service by anyone other than a Horizon Hobby authorized
service center, (v) Product not purchased from an
authorized Horizon dealer, (vi) Product not compliant with
applicable technical regulations, or (vii) use that violates
any applicable laws, rules, or regulations.
OTHER THAN THE EXPRESS WARRANTY ABOVE, HORIZON
MAKES NO OTHER WARRANTY OR REPRESENTATION, AND
HEREBY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES,
INCLUDING, WITHOUT LIMITATION, THE IMPLIED
WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE. THE
PURCHASER ACKNOWLEDGES THAT THEY ALONE HAVE
DETERMINED THAT THE PRODUCT WILL SUITABLY MEET
THE REQUIREMENTS OF THE PURCHASER’S INTENDED USE.
Purchaser’s Remedy
Horizon’s sole obligation and purchaser’s sole and exclusive
remedy shall be that Horizon will, at its option, either (i)
service, or (ii) replace, any Product determined by Horizon
to be defective. Horizon reserves the right to inspect any
and all Product(s) involved in a warranty claim. Service or
replacement decisions are at the sole discretion of Horizon.
Proof of purchase is required for all warranty claims.
SERVICE OR REPLACEMENT AS PROVIDED UNDER THIS
WARRANTY IS THE PURCHASER’S SOLE AND EXCLUSIVE
REMEDY.
Limitation of Liability
HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT,
INCIDENTAL OR CONSEQUENTIAL DAMAGES, LOSS OF
PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY
WAY, REGARDLESS OF WHETHER SUCH CLAIM IS BASED IN
CONTRACT, WARRANTY, TORT, NEGLIGENCE, STRICT LIABILITY
OR ANY OTHER THEORY OF LIABILITY, EVEN IF HORIZON HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Further, in no event shall the liability of Horizon exceed the
individual price of the Product on which liability is asserted.
As Horizon has no control over use, setup, final assembly,
modification or misuse, no liability shall be assumed nor
accepted for any resulting damage or injury. By the act of use,
setup or assembly, the user accepts all resulting liability. If you
as the purchaser or user are not prepared to accept the liability
associated with the use of the Product, purchaser is advised to
return the Product immediately in new and unused condition
to the place of purchase.
Law
These terms are governed by Illinois law (without regard to
conflict of law principals). This warranty gives you specific
legal rights, and you may also have other rights which vary
from state to state. Horizon reserves the right to change or
modify this warranty at any time without notice.
WARRANTY SERVICES
Questions, Assistance, and Services
Your local hobby store and/or place of purchase cannot
provide warranty support or service. Once assembly, setup
or use of the Product has been started, you must contact
your local distributor or Horizon directly. This will enable
Horizon to better answer your questions and service
you in the event that you may need any assistance. For
questions or assistance, please visit our website at www.
horizonhobby.com, submit a Product Support Inquiry, or call
the toll free telephone number referenced in the Warranty
and Service Contact Information section to speak with a
Product Support representative.
Limited Warranty
Parts List Recommended Parts
Optional Parts
Part Number Description
EFLU2925 Tail Set: UMX Radian
EFLU2920 Main Wing: UMX Radian
EFLU2916 Motor, Brushed: UMX Radian
EFLU2967 Fuselage: UMX Radian
EFLU2922 Pushrod Set: UMX Radian
EFLU2903 Spinner (3): UMX Radian
EFLU2927 Gearbox without Motor: UMX Radian
EFLU2902 Folding Propeller, 130 x 70mm: UMX Radian
EFLU2904 Decal Sheet: UMX Radian (Red)
SPMA3186 Flight Controller w/Brake
Part Number Description
EFLB1501S25 150mAh 1S 3.7V 25C LiPo Battery
SPMR6650 DX6e 6CH Transmitter Only
SPMXC1040 S44 4 Port AC/DC 1S LiPo Charger
Part Number Description
EFLB0701S 70mAh 1S 3.7V 14C LiPo Battery
EFLB1501S45 150mAh 1S 3.7V 45C LiPo Battery
EFLB2001S45 200mAh 1S 3.7V 45C LiPo Battery
SPMR6775 NX6 6 Ch Transmitter Only

EN
13
Inspection or Services
If this Product needs to be inspected or serviced and is
compliant in the country you live and use the Product in,
please use the Horizon Online Service Request submission
process found on our website or call Horizon to obtain a
Return Merchandise Authorization (RMA) number. Pack
the Product securely using a shipping carton. Please note
that original boxes may be included, but are not designed
to withstand the rigors of shipping without additional
protection. Ship via a carrier that provides tracking and
insurance for lost or damaged parcels, as Horizon is not
responsible for merchandise until it arrives and is accepted
at our facility. An Online Service Request is available at
http://www.horizonhobby.com/content/service-center_
render-service-center. If you do not have internet access,
please contact Horizon Product Support to obtain a RMA
number along with instructions for submitting your product
for service. When calling Horizon, you will be asked to
provide your complete name, street address, email address
and phone number where you can be reached during
business hours. When sending product into Horizon, please
include your RMA number, a list of the included items, and
a brief summary of the problem. A copy of your original
sales receipt must be included for warranty consideration.
Be sure your name, address, and RMA number are clearly
written on the outside of the shipping carton.
NOTICE: Do not ship LiPo batteries to Horizon. If you
have any issue with a LiPo battery, please contact the
appropriate Horizon Product Support office.
Warranty Requirements
For Warranty consideration, you must include your original
sales receipt verifying the proof-of-purchase date. Provided
warranty conditions have been met, your Product will be
serviced or replaced free of charge. Service or replacement
decisions are at the sole discretion of Horizon.
Non-Warranty Service
Should your service not be covered by warranty, service
will be completed and payment will be required without
notification or estimate of the expense unless the expense
exceeds 50% of the retail purchase cost. By submitting
the item for service you are agreeing to payment of the
service without notification. Service estimates are available
upon request. You must include this request with your item
submitted for service. Non-warranty service estimates will
be billed a minimum of ½ hour of labor. In addition you
will be billed for return freight. Horizon accepts money
orders and cashier’s checks, as well as Visa, MasterCard,
American Express, and Discover cards. By submitting any
item to Horizon for service, you are agreeing to Horizon’s
Terms and Conditions found on our website http://www.
horizonhobby.com/content/service-center_render-service-
center.
ATTENTION: Horizon service is limited to Product
compliant in the country of use and ownership. If received,
a non-compliant Product will not be serviced. Further, the
sender will be responsible for arranging return shipment
of the un-serviced Product, through a carrier of the
sender’s choice and at the sender’s expense. Horizon will
hold non-compliant Product for a period of 60 days from
notification, after which it will be discarded.
10/15
Warranty and Service Contact Information
Country of Purchase Horizon Hobby Contact Information Address
United States
of America
Horizon Service Center
(Repairs and Repair Requests) servicecenter.horizonhobby.com/RequestForm/
2904 Research Rd
Champaign, IL 61822
Horizon Product Support
(Product Technical Assistance)
[e-mail]
877-504-0233
Sales [e-mail]
800-338-4639
European Union
Horizon Technischer Service [e-mail] Hanskampring 9
D 22885 Barsbüttel,
Germany
Sales: Horizon Hobby GmbH [phone]

EN
UMX Radian
14
Compliance Information for the European Union
IC Information
FCC Information
Contains IC: 6157A-WACO1T
CAN ICES-3 (B)/NMB-3(B)
This device contains license-exempt transmitter(s)/
receivers(s) that comply with Innovation, Science, and
Economic Development Canada’s license-exempt RSS(s).
Operation is subject to the following 2 conditions:
1. This device may not cause interference.
2. This device must accept any interference, including
interference that may cause undesired operation of
the device.
Contains FCC ID: BRWWACO1T
This equipment complies with FCC and IC radiation
exposure limits set forth for an uncontrolled
environment. This equipment should be installed and
operated with minimum distance 20cm between the
radiator and/or antenna and your body (excluding
fingers, hands, wrists, ankles and feet). This
transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Supplier’s Declaration of Conformity
E-Flite UMX Radian BNF Basic (EFLU2950)
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that may
cause undesired operation.
CAUTION: Changes or modifications not
expressly approved by the party responsible for
compliance could void the user’s authority to
operate the equipment.
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
Horizon Hobby, LLC
2904 Research Rd.,
Champaign, IL 61822
Email: [e-mail]
Web: HorizonHobby.com
EU Compliance Statement:
E-Flite UMX Radian BNF Basic
(EFLU2950);Hereby, Horizon Hobby, LLC
declares that the device is in compliance with the following:
EU Radio Equipment Directive 2014/53/EU; RoHS 2 Directive
2011/65/EU; RoHS 3 Directive - Amending 2011/65/EU
Annex II 2015/863.
The full text of the EU declaration of conformity is
available at the following internet address: https://www.
horizonhobby.com/content/support-render-compliance.
Wireless Frequency Range and Wireless Output Power:
2404-2476 MHz
1.43 dBm
EU Manufacturer of Record:
Horizon Hobby, LLC
2904 Research Road
Champaign, IL 61822 USA
EU Importer of Record:
Horizon Hobby, GmbH
Hanskampring 9
22885 Barsbüttel Germany
WEEE NOTICE:
This appliance is labeled in accordance with
European Directive 2012/19/EU concerning
waste of electrical and electronic equipment
(WEEE). This label indicates that this product
should not be disposed of with household
waste. It should be deposited at an appropriate
facility to enable recovery and recycling.

© 2021 Horizon Hobby, LLC.
E-flite, UMX, Radian, Bind-N-Fly, BNF, the Bind-N-Fly logo, SAFE, the SAFE logo,AS3X, ModelMatch, and the Horizon Hobby logo are
trademarks or registered trademarks of Horizon Hobby, LLC.The Spektrum trademark is used with permission of Bachmann Industries, Inc.
US 9,056,667. US 9,753,457. US 10,078,329. US 9,930,567. US 10,419,970. US 10,849,013.
https://www.horizonhobby.com
Created 04/21 67416 EFLU2950
