Hoshizaki IM-51BAE User manual

HA
1
HOSHIZAKI
SELF-CONTAINED CUBER
MODEL
PARTS LIST
NO: 71142
IM-51BAE
IM-51BAE-B
ISSUED: MARCH10,1999
REVISED: MAY 30, 2000

HA
2
Auxiliary Codes
IM-51BAE J-0 Jan.1999
K-0 Apr.2000
IM-51BAE-B K-0 Dec. 1999

HA
3
MATERIAL ABBREVIATIONS
ALUMINUM
AL = Aluminum
COPPER
CU = Copper
PLASTIC
ABS = Acrylonitrile -butadiene - styrene
AC = Polyacetal
EVA = Ethylene vinyl acetate
PA = Polyamide = Nylon
PC = Polycarbonate
PE = Polyethylene
PES = Polyester
PE P = Polyethylene terephthalate = etlon
PP = Polypropylene
PS = Polystyrene
P FE = Polytetrafluoroethylene = eflon
PUR = Polyurethane
PVC = Polyvinyl chloride
RUBBER
VN = Vinyl Nitrile
EPDM = EP rubber
NBR = Nitrile butadiene rubber
NR = Natural rubber
NP = Neoprene
SI.R = Silicone rubber
SY.R = Synthetic rubber
EPH = Epichlorohydrin
STEEL
GS = Galvanized steel
SS = Stainless steel
PS = Plated steel
PAS = Primed steel
AUXILIARY CODE
Ex.1 K-0
Parts are the same as in the preceding (Note) - = Part deleted.
year.
x = Part deleted and replaced
"K" is the tenth in alphabetical order with "I" by "o" part.
skipped. So, "K" indicates "2000".
o = New part for "x"
Ex.2 A-1 in the same auxiliary code.
"A" is the first in alphabetical
order. So, "A" indicates "2001".
Ex.3 A-2
Each time a part is changed (non-interchangeably)
in a year, this number advances.

HA
4
IM-51BAE, BAE-B A. ICE CUBER ASSEMBLY J-0, K-0

HA
5
MODEL: IM-51BAE TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL PART NUMBER REQUIRED NUMBER
NUMBER J-0 K-0
B REFRIGERATION CIRCUIT - 1H1877A01 1 1
CICE MAKING MECHANISM
ASSEMBLY
- 1H1875A01 1 1
C1 TRUSS HEAD SCREW 4X12, SS 7C32-0412 4 4
D CONTROL BOX ASSEMBLY - 2H3893A01 1 1
D1 TRUSS HEAD SCREW 4X8, SS 7C32-0408 4 4
E DOOR ASSY - 2H3894A01 1 1
F WATER CIRCUIT ASSEMBLY - 2H3897A01 1 1
G LABEL LOCATION - 3X2348A01 1 1
1 UNIT FRAME GS 1H1872G01 1 1
1a HEX T2 SCREW 6X16 7B03-0616 4 4
1b TOOTH WASHER 6, SS 7R22-0600 2 2
2 TOP PANEL PP 1H1861G01 1 1
3 FRONT PANEL PP 2H3896G01 1 1
3a TRUSS HEAD SCREW 4X10, SS 7C32-0410 2 2
3b WASHER 4, NYLON 7W23-0400 2 2
4 HINGE (R) SS 4X6424-01 1 1
5 HINGE (L) SS 4X6425-01 1 1
5a HEX BOLT 5X16, SS 7B02-0516 4 4
6 LOUVER PP 1H1859-01 1 1
6a TRUSS HEAD SCREW 4X40, SS 7C32-0440 2 2
7 AIR FILTER PP 2H3857G01 1 1
8 COVER – LOUVER PP 3X2230-01 1 1
9 REAR PANEL GS 3X2353-01 1 1
9a T2 SCREW 4X8 7P31-0408 3 3
10 COVER – PIPE GS 3X2354-01 1 1
10a T2 SCREW 4X8 7P31-0408 4 4
11 DRAIN PAN ABS 2H3858-01 1 1
12 THUMBSCREW ABS 4H3270G01 2 2
13 DRAIN TUBE SI.R 4H2585-01 1 1

HA
6
MODEL: IM-51BAE TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL PART NUMBER REQUIRED NUMBER
NUMBER J-0 K-0
14 DRAIN PIPE ABS 4X6426-01 1 1
15 SLOPE ABS 3X2355-01 1 1
16 INSULATION –BIN PE 4X6427-01 1 1
17 COVER –BIN EPDM 3X2232-01 1 1
18 INSULATION –UNIT PE 4X6430-01 1 1
AEC-30 440894-01 1 x119 POWER SUPPLY CORD
- 4A1773-01 o1
20 BUSHING SR-71C-2 420472-02 1 1
21 BRACKET –CORD GS 4X6601-01 1 1
21a T2 SCREW 4X8 7P31-0408 2 2
21b TOOTH WASHER 4 7R21-0400 2 2
22 TOGGLE SWITCH - 443119-01 1 1
23 BRACKET –SW GS 4X6422-01 1 1
23a TRUSS HEAD SCREW 4X8 7C31-0408 1 1
23b T2 SCREW 4X8 7P31-0408 1 1
24 SPACER (A) SS 4X6851-01 1 1
25 SPACER (B) SS 4X6851-02 1 1
26 CAP - 4A1937-01 1 1

HA
7
MODEL: IM-51BAE-B TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL PART NUMBER REQUIRED NUMBER
NUMBER K-0
B REFRIGERATION CIRCUIT - 1H1877A01 1
CICE MAKING MECHANISM
ASSEMBLY
- 1H1875A01 1
C1 TRUSS HEAD SCREW 4X12, SS 7C32-0412 4
D CONTROL BOX ASSEMBLY - 2H3893A01 1
D1 TRUSS HEAD SCREW 4X8, SS 7C32-0408 4
E DOOR ASSY - 2H3894A02 1
F WATER CIRCUIT ASSEMBLY - 2H3897A01 1
G LABEL LOCATION - 3X2348A02 1
1 UNIT FRAME GS 1H1872G01 1
1a HEX T2 SCREW 6X16 7B03-0616 4
1b TOOTH WASHER 6, SS 7R22-0600 2
2 TOP PANEL PP 1H1861G02 1
3 FRONT PANEL PP 2H3896G02 1
3a TRUSS HEAD SCREW 4X10, SS 7C32-0410 2
3b WASHER 4, NYLON 7W23-0400 2
4 HINGE (R) SS 4X6424-01 1
5 HINGE (L) SS 4X6425-01 1
5a HEX BOLT 5X16, SS 7B02-0516 4
6 LOUVER PP 1H1859-02 1
6a TRUSS HEAD SCREW 4X40, SS 7C32-0440 2
7 AIR FILTER PP 2H3857G02 1
8 COVER –LOUVER PP 3X2230-02 1
9 REAR PANEL GS 3X2353-01 1
9a T2 SCREW 4X8 7P31-0408 3
10 COVER –PIPE GS 3X2354-01 1
10a T2 SCREW 4X8 7P31-0408 4
11 DRAIN PAN ABS 2H3858-01 1
12 THUMBSCREW ABS 4H3270G01 2
13 DRAIN TUBE SI.R 4H2585-01 1

HA
8
MODEL: IM-51BAE-B TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL PART NUMBER REQUIRED NUMBER
NUMBER K-0
14 DRAIN PIPE ABS 4X6426-01 1
15 SLOPE ABS 3X2355-01 1
16 INSULATION –BIN PE 4X6427-01 1
17 COVER –BIN EPDM 3X2232-01 1
18 INSULATION –UNIT PE 4X6430-01 1
19 POWER SUPPLY CORD - 4A1773-01 1
20 BUSHING SR-71C-2 420472-02 1
21 BRACKET –CORD GS 4X6601-01 1
21a T2 SCREW 4X8 7P31-0408 2
21b TOOTH WASHER 4 7R21-0400 2
22 TOGGLE SWITCH - 443119-01 1
23 BRACKET –SW GS 4X6422-01 1
23a TRUSS HEAD SCREW 4X8 7C31-0408 1
23b T2 SCREW 4X8 7P31-0408 1
24 SPACER (A) SS 4X6851-01 1
25 SPACER (B) SS 4X6851-02 1
26 CAP - 4A1937-01 1

HA
9

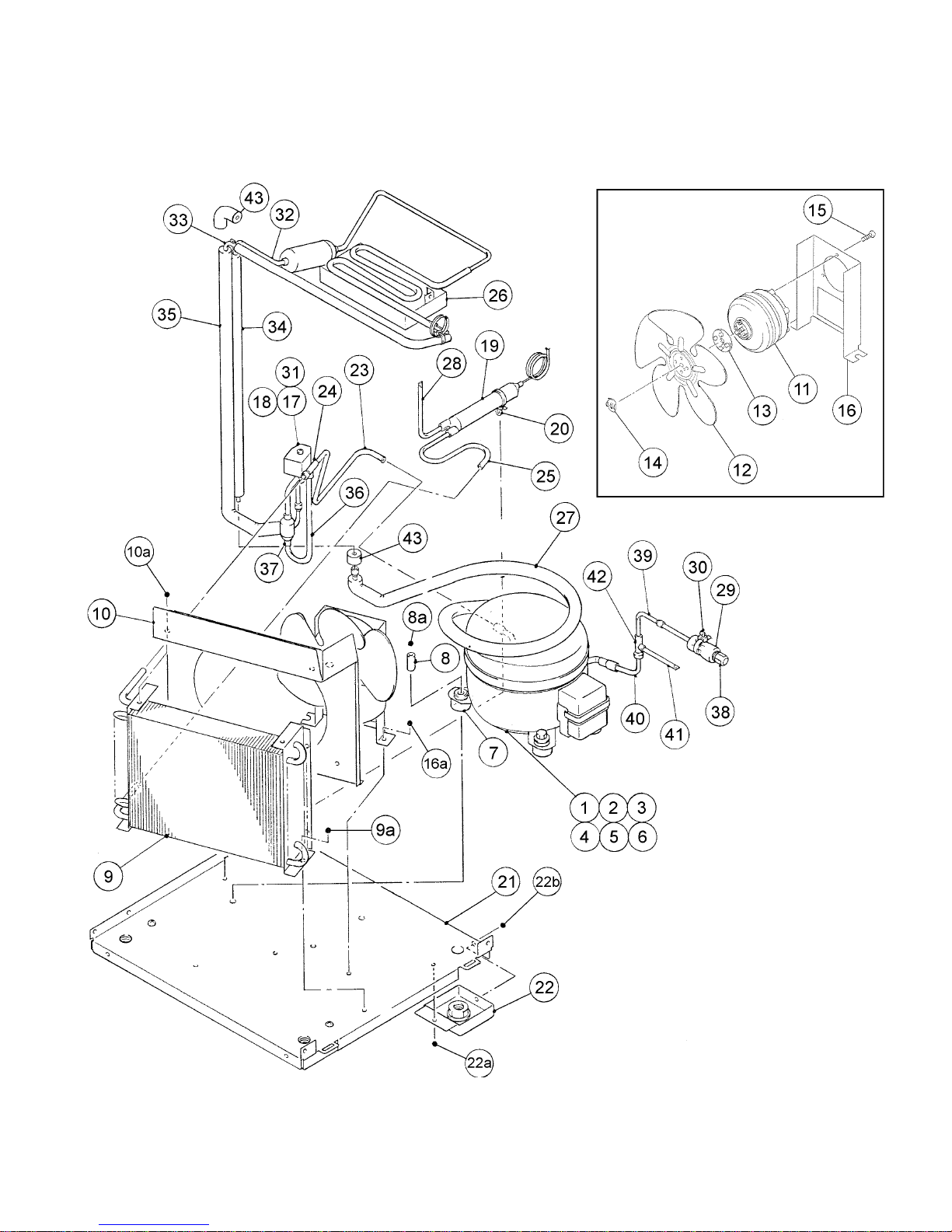

IM-51BAE, BAE-B B. REFRIGERATIONASSEMBLY J-0, K-0

HA
10
MODEL: IM-51BAE TITLE:B. REFRIGERATION ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL PART NUMBER REQUIRED NUMBER
NUMBER J-0 K-0
1 COMPRESSOR QA51K13GAU6 455942-01 1 1
2PTCRELAY MM8-5CDP4M7 456252-01 1 1
3 MOTOR PROTECTOR MM3-38ECA 456254-01 1 1
4 PROTECTOR COVER PC 456255-01 1 1
5 CLAMP - 438846-01 1 1
6 CLIP - 438847-01 1 1
7 RUBBER GROMMET EPT RUBBER 438844-01 4 4
8 GROMMET SLEEVE - 431907-01 4 4
8a BOLT - 448834-01 4 4
9 CONDENSER –AIR COOLED - 3X2356-01 1 1
9a TRUSS HEAD SCREW 4X6 7C31-0406 2 2
10 SHROUD GS 2H3898-01 1 1
10a T2 SCREW 4X8 7P31-0408 4 4
11 FAN MOTOR SPBB4ER1 440916-01 1 1
12 FAN BLADE FV800CCW(
 200) 455943-01 1 1
13 WASHER -435983-01 1 1
NUT - 435982-01 1 x114
HEX NUT - 4A1345-01 o1
15 SCREW - 436863-01 3 3
16 BRACKET-FAN MOTOR GS 4X6429-01 1 1
5X10, SS 7B0230510 2 x216a HEX BOLT SW
5X10 7B0130510 o2
17 VALVE BODY 24 440351-01 1 1
18 COIL VALVE ADS-24HD-3 440354-01 1 1
19 DRIER KC-7861 444792-01 1 1
20 TIE T30RSF 436156-01 2 2
21 BASE GS 2H3899G01 1 1
22 MOUNT LEG GS 4X6428G01 4 4
TRUSS HEAD SCREW 4X8, SS 7C32-0408 4 x422a
T2 SCREW 4X8, SS 7P32-0408 o4

HA
11
MODEL: IM-51BAE TITLE:B. REFRIGERATION ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL PART NUMBER REQUIRED NUMBER
NUMBER J-0 K-0
22b T2 SCREW 4X10, SS 7P32-0410 4 4
23 COPPER TUBE (H) COPPER 4X6222-01 1 1
24 TEE COPPER 420041-03 1 1
25 COPPER TUBE –COND COPPER 4X6586-01 1 1
26 EVAPORATOR - 3X2211G01 1 1
27 COPPER TUBE (L) COPPER 3X2212G01 1 1
28 PROCESS TUBE (B) - 4X6584-01 1 1
29 INSULATION TUBE

7x

17xL50 1H1877-35 1 1
30 TIE CV-100 7920-0002 5 5
31 BOLT 4X40 440354F01 1 1
32 HEAT EXCHANGER COPPER 4X6218G01 1 1
33 COPPER TUBE –HOT GAS COPPER 3X1977G01 1 1
34 INSULATION TUBE
 13 x  23 X
L=420
3X2358-03 1 1
35 SILICONE TUBE
 11 x  14 X
L=450
3X2358-04 1 1
36 COPPER TUBE COPPER 4X6223-01 1 1
37 STRAINER - 430365-01 1 1
FV180D001 446715-01 1 x138 ACCESS VALVE
TCJ-2F20NHDU-1 457729-01 o1
39 CHARGE TUBE (A) COPPER 4X6220-01 1 1
40 CHARGE TUBE (B) COPPER 4X6221-01 1 1
41 PROCESS TUBE (A) COPPER 4X6585-01 1 1
42 TEE COPPER 417394-01 1 1
43 INSULATION TUBE L=60 7762-2030 - 2

HA
12
MODEL: IM-51BAE-B TITLE:B. REFRIGERATION ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL PART NUMBER REQUIRED NUMBER
NUMBER K-0
1 COMPRESSOR QA51K13GAU6 455942-01 1
2PTCRELAY MM8-5CDP4M7 456252-01 1
3 MOTOR PROTECTOR MM3-38ECA 456254-01 1
4 PROTECTOR COVER PC 456255-01 1
5 CLAMP - 438846-01 1
6 CLIP - 438847-01 1
7 RUBBER GROMMET EPT RUBBER 438844-01 4
8 GROMMET SLEEVE - 431907-01 4
8a BOLT - 448834-01 4
9 CONDENSER –AIR COOLED - 3X2356-01 1
9a TRUSS HEAD SCREW 4X6 7C31-0406 2
10 SHROUD GS 2H3898-01 1
10a T2 SCREW 4X8 7P31-0408 4
11 FAN MOTOR SPBB4ER1 440916-01 1
12 FAN BLADE FV800CCW(
 200) 455943-01 1
13 WASHER -435983-01 1
14 HEX NUT - 4A1345-01 1
15 SCREW - 436863-01 3
16 BRACKET-FAN MOTOR GS 4X6429-01 1
16a HEX. BOLT SW 5X10 7B0130510 2
17 VALVE BODY 24 440351-01 1
18 COIL VALVE ADS-24HD-3 440354-01 1
19 DRIER KC-7861 444792-01 1
20 TIE T30RSF 436156-01 2
21 BASE GS 2H3899G01 1
22 MOUNT LEG GS 4X6428G01 4
22a T2 SCREW 4X8, SS 7P32-0408 4
22b T2 SCREW 4X10, SS 7P32-0410 4
23 COPPER TUBE (H) COPPER 4X6222-01 1
24 TEE COPPER 420041-03 1

HA
13
MODEL: IM-51BAE-B TITLE:B. REFRIGERATION ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL PART NUMBER REQUIRED NUMBER
NUMBER K-0
25 COPPER TUBE –COND COPPER 4X6586-01 1
26 EVAPORATOR - 3X2211G01 1
27 COPPER TUBE (L) COPPER 3X2212G01 1
28 PROCESS TUBE (B) - 4X6584-01 1
29 INSULATION TUBE

7x

17xL50 1H1877-35 1
30 TIE CV-100 7920-0002 5
31 BOLT 4X40 440354F01 1
32 HEAT EXCHANGER COPPER 4X6218G01 1
33 COPPER TUBE –HOT GAS COPPER 3X1977G01 1
34 INSULATION TUBE
 13 x  23 X
L=420
3X2358-03 1
35 SILICONE TUBE
 11 x  14 X
L=450
3X2358-04 1
36 COPPER TUBE COPPER 4X6223-01 1
37 STRAINER - 430365-01 1
38 ACCESS VALVE TCJ-2F20NHDU-1 457729-01 1
39 CHARGE TUBE (A) COPPER 4X6220-01 1
40 CHARGE TUBE (B) COPPER 4X6221-01 1
41 PROCESS TUBE (A) -4X6585-01 1
42 TEE COPPER 417394-01 1
43 INSULATION TUBE L=60 7762-2030 2

HA
14
IM-51BAE, BAE-B C. ICE MAKING MECHANISMASSEMBLY J-0, K-0

HA
15
MODEL: IM-51BAE TITLE:C. ICE MAKING MECHANISM ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL PART NUMBER REQUIRED NUMBER
NUMBER J-0 K-0
H WATER PAN ASSY - 2H3892A01 1 1
1 BRACKET - ICE MAKING
MECHANISM
- 1H1863-01 1 1
2 ACTUATOR MOTOR SR65A41-14 455936-01 1 1
2a BOLT - 4A1989-01 2 2
3 CAM (A) - 2H1204-01 1 1
4 CAM (B) - 3H2945-01 1 1
5 CAM SHAFT - 4H5274G01 1 1
6 SPLIT PIN 2x12, SS 711S-0212 1 1
7 SPRING PIN 3x22, SS 712S-0322 1 1
8 TOGGLE SWITCH VAT4-71 431977-01 1 1
9 WASHER - TOGGLE SWITCH - 406196-01 1 1
10 BAG - 4X1559-03 1 1
11 CABLE TIE CV-100 7920-0002 1 1
12 SPRING - 4X6419-01 2 2
13 HOLDER - THERMISTOR - 3H9642-01 1 1
13a TRUSS HEAD SCREW (FT) 4X8, SS 7P32-0408 1 1
14 SCREW - EVAPORATOR
MOUNTING (A) AD
- 4H2819-01 3 3
14a HEX FLANGE NUT 3X8 7J01I3816 22
15 SPACER - 4X6236-01 3 3
16 PROXIMITY SWITCH RS-8103G1 455937-01 1 1
16a T2 SCREW 3X8, SS 7P32-0308 2 2
17 DETECTOR (D) - 3X1279-01 1 1
18 SWITCH - ACTUATOR - 3X2231-01 1 1

HA
16
MODEL: IM-51BAE TITLE:C. ICE MAKING MECHANISM ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL PART NUMBER REQUIRED NUMBER
NUMBER J-0 K-0
19 COVER - ACTUATOR - 4X6234-01 1 1
20 MAGNET MFT-2019 455938-01 1 1
21 CAM SHAFT BEARING - 307256-01 1 1
21a HEX BOLT 5X16, SS 7B02-0516 2 2
21b HEX FLANGE NUT 5, SS 7J02-0500 2 2

HA
17
MODEL: IM-51BAE-B TITLE:C. ICE MAKING MECHANISM ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL PART NUMBER REQUIRED NUMBER
NUMBER K-0
H WATER PAN ASSY - 2H3892A01 1
1 BRACKET - ICE MAKING
MECHANISM
- 1H1863-01 1
2 ACTUATOR MOTOR SR65A41-14 455936-01 1
2a BOLT - 4A1989-01 2
3 CAM (A) - 2H1204-01 1
4 CAM (B) - 3H2945-01 1
5 CAM SHAFT - 4H5274G01 1
6 SPLIT PIN 2x12, SS 711S-0212 1
7 SPRING PIN 3x22, SS 712S-0322 1
8 TOGGLE SWITCH VAT4-71 431977-01 1
9 WASHER - TOGGLE SWITCH - 406196-01 1
10 BAG - 4X1559-03 1
11 CABLE TIE CV-100 7920-0002 1
12 SPRING - 4X6419-01 2
13 HOLDER - THERMISTOR - 3H9642-01 1
13a TRUSS HEAD SCREW (FT) 4X8, SS 7P32-0408 1
14 SCREW - EVAPORATOR
MOUNTING (A) AD
- 4H2819-01 3
14a HEX FLANGE NUT 3X8 7J01I3816 2
15 SPACER - 4X6236-01 3
16 PROXIMITY SWITCH RS-8103G1 455937-01 1
16a T2 SCREW 3X8, SS 7P32-0308 2
17 DETECTOR (D) - 3X1279-01 1
18 SWITCH - ACTUATOR - 3X2231-01 1
19 COVER - ACTUATOR - 4X6234-01 1
20 MAGNET MFT-2019 455938-01 1
21 CAM SHAFT BEARING - 307256-01 1
21a HEX BOLT 5X16, SS 7B02-0516 2
21b HEX FLANGE NUT 5, SS 7J02-0500 2

HA
18
IM-51BAE, BAE-B D. CONTROL BOX ASSEMBLY J-0, K-0

HA
19
MODEL: IM-51BAE TITLE:D. CONTROL BOX ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL PART NUMBER REQUIRED NUMBER
NUMBER J-0 K-0
1 CONTROL BOX GS 3X2343-01 1 1
2 COVER - CONTROL BOX GS 3X2345-01 1 1
2a T2 SCREW 4X8 7P31-0408 2 2
3 SHIELD PLATE - 4H2594-01 1 1
3a TRUSS HEAD SCREW 4X6 7C31-0406 1 1
4 CONTROLLER BOARD H2AA136C23 436572-23 1 1
5 NYLON TIE PRT1.5S 427466-01 1 1
6 GROMMET - 4H2568-01 1 1
7 SURGE ABSORBER DSA-
302MA(UL)
436573-03 1 1
7a T2 SCREW 4X8 7P31-0408 1 1
8 BRACKET - PCB - 4X6605-01 2 2
8a T2 SCREW 4X8 7P31-0408 4 4
9 PCB RAIL - 3H5268-01 3 3
10 CAPACITOR SPU40X564AQSA 455945-01 1 1
10a T2 SCREW 4X10 7P31-0410 1 1
11 CUSHION - 4H2718-01 1 1
12 TRANSFORMER - 3U0081-01 1 1
12a T2 SCREW 3X8 7P31-0308 2 2

HA
20
MODEL: IM-51BAE-B TITLE:D. CONTROL BOX ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL PART NUMBER REQUIRED NUMBER
NUMBER J-0
1 CONTROL BOX GS 3X2343-01 1
2 COVER - CONTROL BOX GS 3X2345-01 1
2a T2 SCREW 4X8 7P31-0408 2
3 SHIELD PLATE - 4H2594-01 1
3a TRUSS HEAD SCREW 4X6 7C31-0406 1
4 CONTROLLER BOARD H2AA136C23 436572-23 1
5 NYLON TIE PRT1.5S 427466-01 1
6 GROMMET - 4H2568-01 1
7 SURGE ABSORBER DSA-
302MA(UL)
436573-03 1
7a T2 SCREW 4X8 7P31-0408 1
8 BRACKET - PCB - 4X6605-01 2
8a T2 SCREW 4X8 7P31-0408 4
9 PCB RAIL - 3H5268-01 3
10 CAPACITOR SPU40X564AQSA 455945-01 1
10a T2 SCREW 4X10 7P31-0410 1
11 CUSHION - 4H2718-01 1
12 TRANSFORMER - 3U0081-01 1
12a T2 SCREW 3X8 7P31-0308 2
