Hoshizaki KM-2000SRF3 User manual

NO.
JAN. 8, 1999ISSUED:
71131
PARTS LIST
HOSHIZAKI
STACKABLE CRESCENT CUBER
MODELS
KM-2000SWF3
KM-2000SRF3
KM-2000SWH3
KM-2000SRH3
OCT. 14, 2002REVISED:

HA
2
KM-2000SWF3 H-0 MARCH 1998
H-1 JULY 1998
J-0 DEC., 1998
K-0 DEC., 1999
KM-2000SRF3 H-0 MARCH 1998
H-1 JULY 1998
J-1 FEB., 1999
K-0 DEC., 1999
KM-2000SWH3 L-0 JAN., 2001
M-0 DEC., 2001
M-1 MARCH, 2002
M-3 MAY, 2002
KM-2000SRH3 L-0 DEC., 2000
M-0 JAN., 2002
M-1 MARCH, 2002
M-2 MAY, 2002

HA
3
MATERIAL ABBREVIATIONS
ALUMINUM
AL = Aluminum
COPPER
CU = Copper
PLASTIC
ABS = Acrylonitrile -butadiene - styrene
AC = Polyacetal
EVA = Ethylene vinyl acetate
PA = Polyamide = Nylon
PC = Polycarbonate
PE = Polyethylene
PES = Polyester
PE P = Polyethylene terephthalate = etlon
PP = Polypropylene
PS = Polystyrene
PIFE = Polytetrafluoroethylene = eflon
PUR = Polyurethane
PVC = Polyvinyl chloride
RUBBER
VN = Vinyl Nitrile
EPDM = EP rubber
NBR = Nitrile butadiene rubber
NR = Natural rubber
NP = Neoprene
SI.R = Silicone rubber
SY.R = Synthetic rubber
EPH = Epichlorohydrin
STEEL
GS = Galvanized steel
SS = Stainless steel
PS = Plated steel
PAS = Primed steel
AUXILIARY CODES
Ex.1 K-0
(Note) - = Part deleted.
x = Part deleted and replaced
"K" is the tenth in alphabetical order with "I" by "o" part (interchangeable).
skipped. So, "K" indicates "2000".
o = New part for "x"
Ex.2 L- 0 in the same auxiliary code.
"L" is the next in alphabetical
order. So, "L" indicates "2001".
Ex.3 L- 1
Each time a part is changed (non-interchangeably)
in a year, this number advances.

HA
4

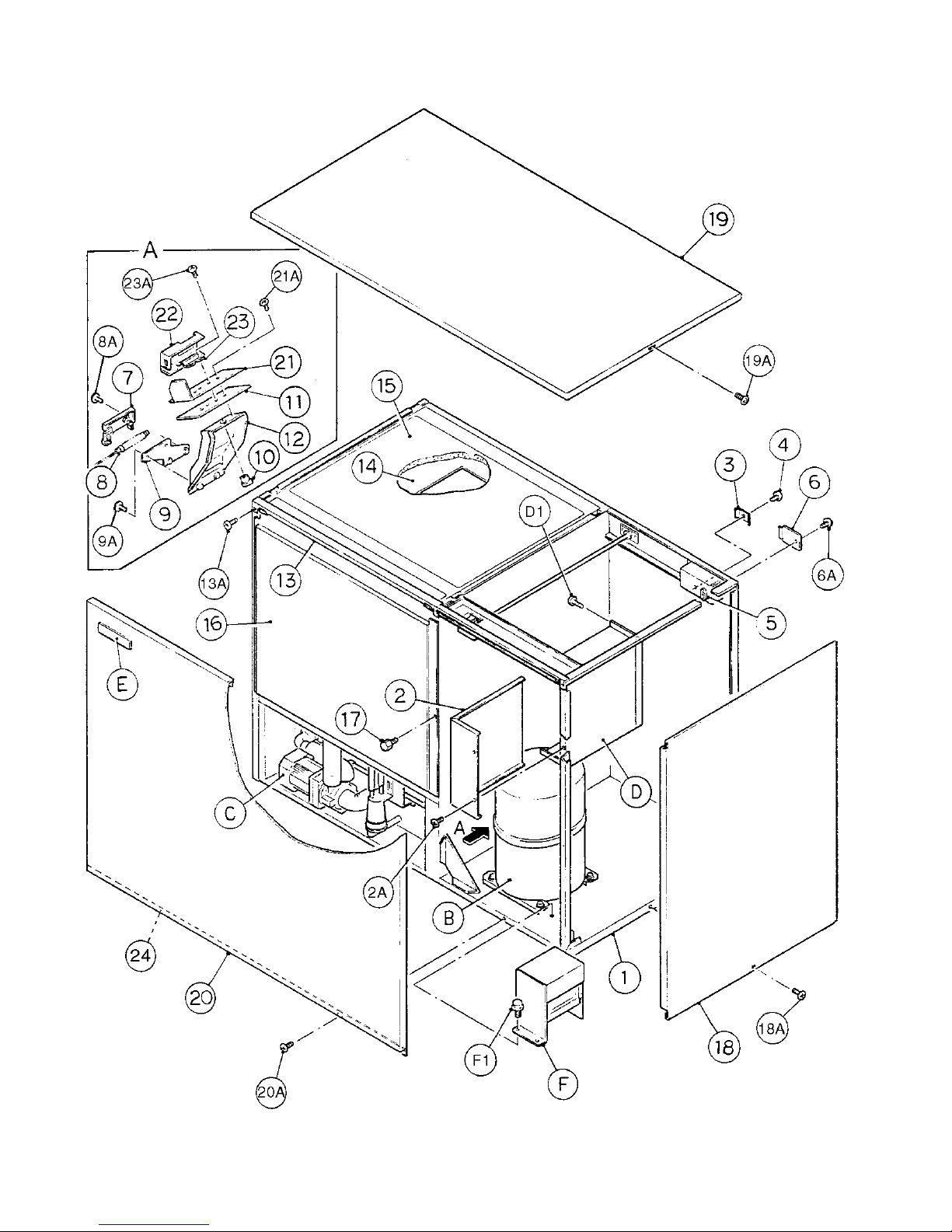

KM-2000SWF3, KM-2000SWH3 A. ICE CUBER ASSEMBLY H-0, H-1, J-0, K-0,
L-0, M-0, M-1, M-3

HA
5
MODEL:KM-2000SWF3, SWH3 TITLE:A. ICE CUBER ASSEMBLY
REQUIRED NUMBER
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER KM-2000SWF3 KM-2000SWH3
NUMBER H-0 H-1 J-0
K-0
L-0 M-0 M-1 M-3
B REFRIGERATION CIRCUIT - 1A0228A01 1 1 1 1 1 -
- 1A0707A01 1 1
C WATER CIRCUIT - 105122A05 1 1 1 1 1 1 1
D CONTROL BOX ASSEMBLY HS-1105 2A1122A03 1 1 1 1 1 1 -
- 2A2527A01 1
D1 T2 SCREW 4X8 7P31-0408 3 3 3 3
E LABEL LOCATION - 2A1124A01 1 1 1
- 2A2098A01 1 1 1 -
- 2A2560A01 1
F TRANSFORMER BOX ASSEMBLY HS-0126 3A1102A01 1 1 1 1 1 1 1
F1 HEX HEAD BOLT W/WASHER (LF) 5X10 7B0130510 4 4 4 4 4 4 4
1 EVAPORATOR CASE - 2A1102G06 1 1 1
- 2A2100G03 1 1 -
- 2A2100G04 1 1
2 CONTROL BOX COVER GS 3A0174-01 1 1 1 1 1 1 -
GS 3A2386-01 1
2A T2 SCREW 4X8 7P31-0408 3 3 3 3 3 3 3
3 SQUARE WASHER BRASS 433537-02 1 1 1 1 1 1 1
4 SCREW - GROUNDING BRASS 433304-02 1 1 1 1 1 1 1
5 BUSHING SR-34-2 420472-05 1 1 1 1 1 1 1
6 JUNCTION BOX COVER GS 433410-01 1 1 1 1 1 1 1
6A T2 SCREW 4X8 7P31-0408 2 2 2 2 2 2 2
7 BULB HOLDER PE 328919-01 1 1 1 1 1 1 1
8 SPACER PE 443545-01 1 1 1 1 1 1 2
8A T2 SCREW 4X16, SS 7P32-0416 2 2 2 2 2 2 2
9 BULB HOLDER (C) ABS 325845G01 1 1 1 1 1 1 1
9A TRUSS HEAD SCREW 4X12, SS 7C32-0412 2 2 2 2 2 2 2
10 BUSHING EPDM 425307-01 1 1 1 1 1 1 1
11 SPACER ABS 439727-01 1 1 1 1 1 1 1

HA
6
MODEL:KM-2000SWF3, SWH3 TITLE:A. ICE CUBER ASSEMBLY
REQUIRED NUMBER
INDEX
NO.
DESCRIPTION MATERI AL
OR MODEL
PART
NUMBER KM-2000SWF3 KM-2000SWH3
NUMBER H-0 H-1
J-0
K-0 L-0 M-0 M-1 M-3
12 BULB HOLDER (D) ABS 215644G01 1 1 1 1 1 1 1
13 FRONT PANEL - BRACKET SS 323903-01 1 1 1 1 1 1 1
13A T2 SCREW 4X12, SS 7P32-0412 3 3 3 3 3 3 3
14 SPACER ABS 324321-01 1 1 1 1 1 1 1
15 TOP INSULATION ABS, PE 324216G01 1 1 1 1 1 1 1
16 FRONT INSULATION ABS, PE 326041G01 1 1 1 1 1 1 1
17 THUMBSCREW ABS, SS 415949G01 1 1 1 1 1 1 1
18 SIDE PANEL (R) SS 215381G01 1 1 1
SS 215381G02 1 1 1 1
18A TRUSS HEAD SCREW 4X8, SS 7C32-0408 3 3 3 3 3 3 3
19 TOP PANEL SS 213669-02 1 1 1
SS 2A2096-01 1 1 1 1
19A TRUSS HEAD SCREW 4X8, SS 7C32-0408 3 3 3 3 3 3 3
20 FRONT PANEL SS 325848G01 1 1 1
SS 3A1838G01 1 1 1 1
20A TRUSS HEAD SCREW 4X16, SS 7C32-0416 2 2 2 2 2 2 2
21 BULB HOLDER (E) GS 439725-01 1 1 1 1 1 1 1
21A TRUSS HEAD SCREW 4X12, SS 7C32-0412 2 2 2 2 2 2 2
22 BULB HOLDER (F) GS 328743-01 1 1 1 1 1 1 1
23 BULB HOLDER (G) GS 439726-01 1 1 1 1 1 1 1
23A TRUSS HEAD SCREW 4X6, SS 7C32-0406 2 2 2 2 2 2 2
24 GASKET L=1219 4A0808L02 1 1 1 1 1

HA
7
KM-2000SRF3, KM-2000SRH3 A. ICE CUBER ASSEMBLY H-1, H-1, J-1, K-0,
L-0, M-0, M-1, M-2

HA
8
MODEL:KM-2000SRF3, SRH3 TITLE:A. ICE CUBER ASSEMBLY
REQUIRED NUMBER
INDEX
NO.
DESCRIPTION
MATERIAL
OR MODEL
PART
NUMBER KM-2000SRF3 KM-2000SRH3
NUMBER H-0 H-1 J-1
K-0
L-0 M-0 M-1 M-2
B REFRIGERATION CIRCUIT - 1A0237A01 1 1 1 1 1 x1
- 1A0237A02 o1 1
C WATER CIRCUIT - 105122A05 1 1 1 1 1 1 1
D CONTROL BOX ASSEMBLY - 2A1122A03 1 1 1 1 1 1 -
- 2A2527A01 1
D1 T2 SCREW 4X8 7P31-0408 3 3 3 3 3 3 3
E LABEL LOCATION - 2A1125A01 1 1 1
- 2A2097A01 1 1 1 -
- 2A2561A01 1
F TRANSFORMER BOX ASSEMBLY HS-0126 3A1102A01 1 1 1 1 1 1 1
F1 HEX HEAD BOLT W/WASHER (LF) 5X10 7B0130510 4 4 4 4 4 4 4
1 EVAPORATOR CASE - 2A1102G07 1 1 1
- 2A2100G02 1 1 1 1
2 CONTROL BOX COVER GS 3A0174-01 1 1 1 1 1 1 -
GS 3A2386-01 1
2A T2 SCREW 4X8 7P31-0408 3 3 3 3 3 3 3
3 SQUARE WASHER BRASS 433537-02 2 2 2 2 2 2 2
4 SCREW - GROUNDING BRASS 433304-02 2 2 2 2 2 2 2
5 BUSHING SR-34-2 420472-05 1 1 1 1 1 1 1
6 JUNCTION BOX COVER GS 433410-01 2 2 2 2 2 2 2
6A T2 SCREW 4X8 7P31-0408 2 2 2 2 2 2 2
7 BULB HOLDER PE 328919-01 1 1 1 1 1 1 1
8 SPACER PE 443545-01 1 1 1 1 1 1 2
8A T2 SCREW 4X16, SS 7P32-0416 2 2 2 2 2 2 2
9 BULB HOLDER (C) ABS 325845G01 1 1 1 1 1 1 1
9A TRUSS HEAD SCREW 4X12, SS 7C32-0412 2 2 2 2 2 2 2
10 BUSHING EPDM 425307-01 1 1 1 1 1 1 1
11 SPACER ABS 439727-01 1 1 1 1 1 1 1

HA
9
MODEL:KM-2000SRF3, SRH3 TITLE:A. ICE CUBER ASSEMBLY
REQUIRED NUMBER
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER KM-2000SRF3 KM-2000SRH3
NUMBER H-0 H-1 J-1
K-0
L-0 M-0 M-1 M-2
12 BULB HOLDER (D) ABS 215644G01 1 1 1 1 1 1 1
13 FRONT PANEL - BRACKET SS 323903-01 1 1 1 1 1 1 1
13A T2 SCREW 4X12, SS 7P32-0412 3 3 3 3 3 3 3
14 SPACER ABS 324321-01 1 1 1 1 1 1 1
15 TOP INSULATION ABS, PE 324216G01 1 1 1 1 1 1 1
16 FRONT INSULATION ABS, PE 326041G01 1 1 1 1 1 1 1
17 THUMBSCREW ABS, SS 415949G01 1 1 1 1 1 1 1
18 SIDE PANEL (R) SS 215381G01 1 1 1
SS 215381G02 1 1 1 1
18A TRUSS HEAD SCREW 4X8, SS 7C32-0408 3 3 3 3 3 3 3
19 TOP PANEL SS 213669-02 1 1 1
SS 2A2096-01 1 1 1 1
19A TRUSS HEAD SCREW 4X8, SS 7C32-0408 3 3 3 3 3 3 3
20 FRONT PANEL SS 325848G01 1 1 1
SS 3A1838G01 1 1 1 1
20A TRUSS HEAD SCREW 4X16, SS 7C32-0416 2 2 2 2 2 2 2
21 BULB HOLDER (E) GS 439725-01 1 1 1 1 1 1 1
21A TRUSS HEAD SCREW 4X12, SS 7C32-0412 2 2 2 2 2 2 2
22 BULB HOLDER (F) GS 328743-01 1 1 1 1 1 1 1
23 BULB HOLDER (G) GS 439726-01 1 1 1 1 1 1 1
23A TRUSS HEAD SCREW 4X6, SS 7C32-0406 2 2 2 2 2 2 2
24 BUSHING SR-30-1 420472-03 1 1 1 1 1 1 1
25 GASKET L=1219 4A0808L02 1 1 1 1 1

HA
10

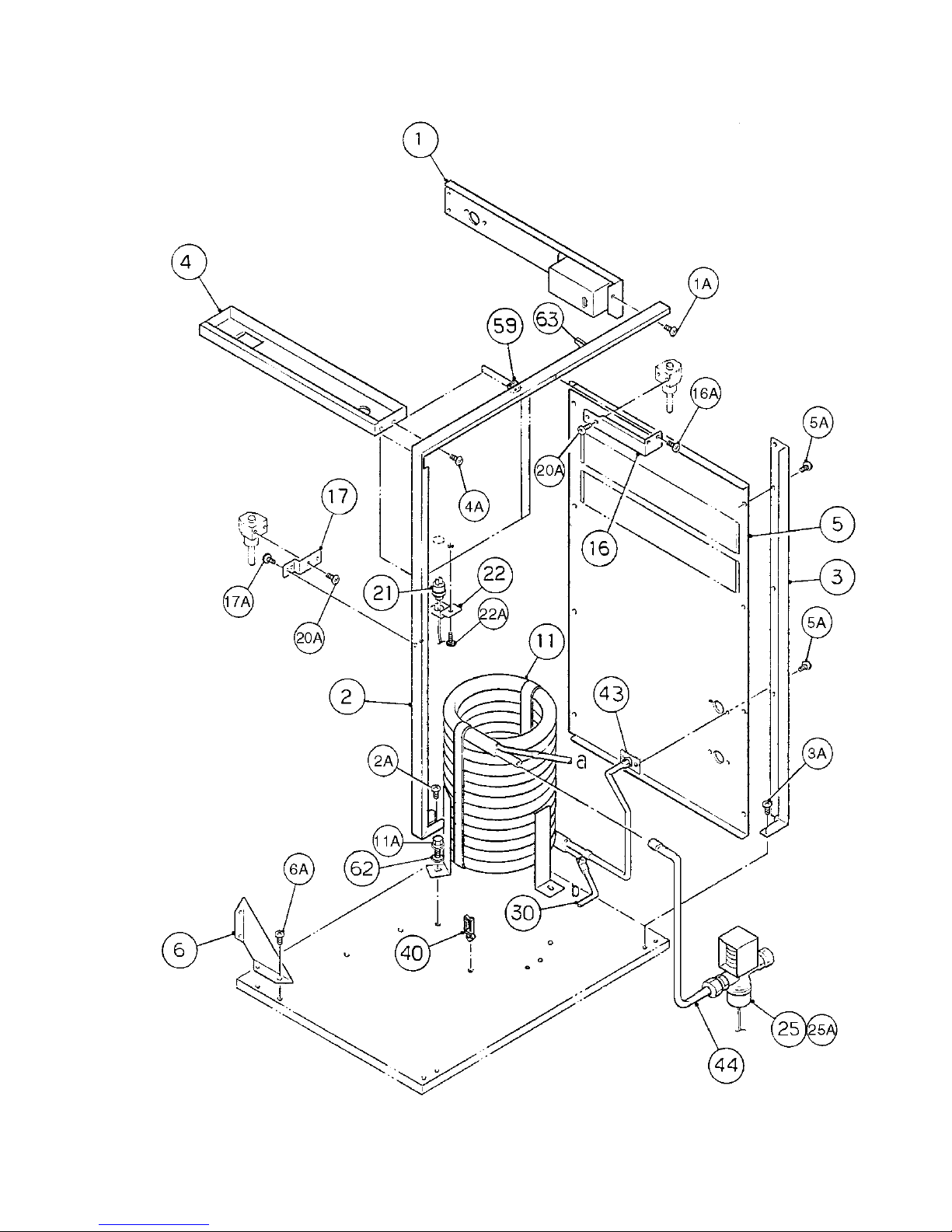

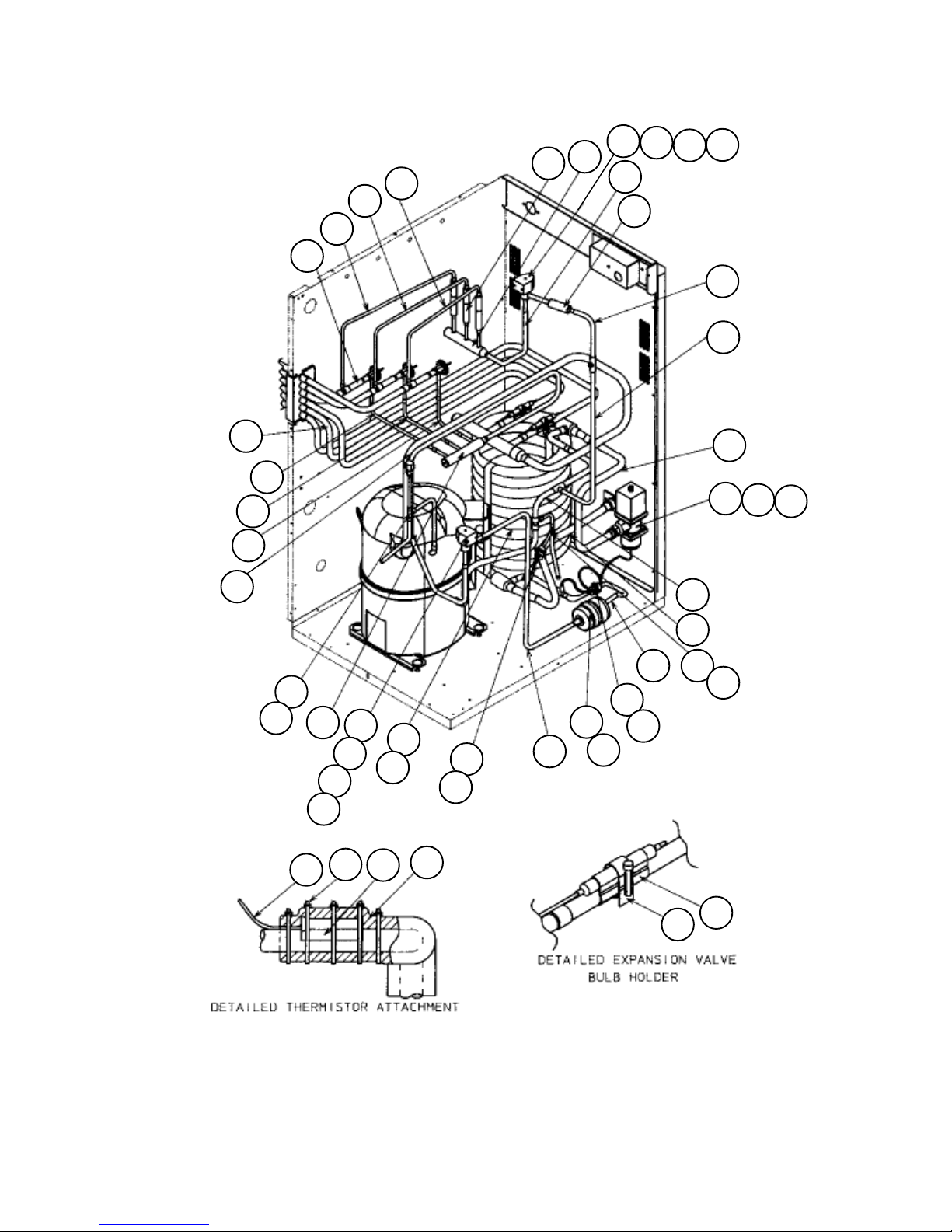

KM-2000SWF3, KM-2000SWH3 B. REFRIGERATION CIRCUIT 1/2 H-0, H-1, J-0, K-0, L-0, M-0

HA
11
KM-2000SWF3, KM-2000SWH3 B. REFRIGERATION CIRCUIT 2/2 H-0, H-1, J-0, K-0, L-0, M-0

HA
12
KM-2000SWH3 B. REFRIGERATION CIRCUIT 1/2 M-1, M-3
1
1A
5
5A
16
16A
59
63
47 48
64 65
56 57
33A
21
22
17
17A
40 22A
53
54
54A
55
66
67
68
58 49
4
4A
6
6A
48
7
8
9
10
2
2A
G

HA
13
KM-2000SWH3 B. REFRIGERATION CIRCUIT 2/2 M-1, M-3
50 48 51 52
46 45
47
48
11
11A
18
19
20
20A
23
32
24
35
34
33
41
36
39
14
37
38
32
27
19
18 20A
20
26
42
71
29
25
44
25A 69
13
31
12
47
48
30 24
70
43
28

HA
14

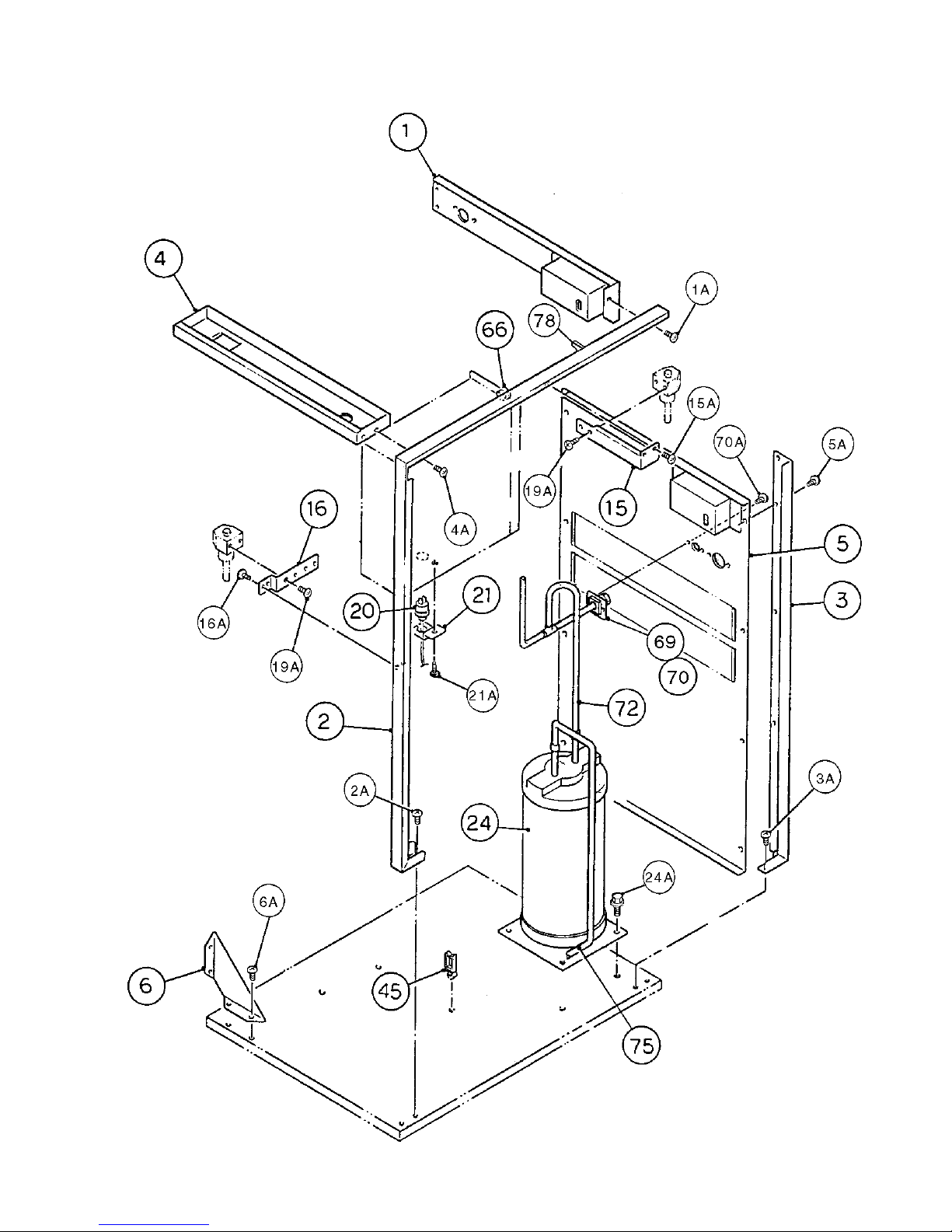

MODEL:KM-2000SWF3, SWH3 TITLE:B. REFRIGERATION CIRCUIT
REQUIRED NUMBER
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER KM-2000SWF3 KM-2000SWH3
NUMBER H-0 H-1 J-0
K-0
L-0 M-0 M-1 M-3
G EVAPORATOR - 105103A01 1 1 1 1 1 1 1
1 REAR FRAME GS 439285G04 1 1 1 1 1 1 1
1A T2 SCREW 4x8 7P31-0408 2 2 2 2 2 2 2
2 SIDE FRAME (A) GS 215375G01 1 1 1 1 1 1 1
2A T2 SCREW 4x8 7P31-0408 3 3 3 3 3 3 3
3 SIDE FRAME (B) GS 215376G01 1 1 1 1 1 1 1
3A T2 SCREW 4x8 7P31-0408 4 4 4 4 4 4 4
4 FRONT FRAME GS 325857-01 1 1 1 1 1 1 1
4A T2 SCREW 4x8 7P31-0408 4 4 4 4 4 4 4
5 REAR PANEL GS 2A1112-01 1 1 1 1 1 1 1
5A T2 SCREW 4x8 7P31-0408 10 10 10 10 10 10 10
6 BRACE GS 325858-01 1 1 1 1 1 1 1
6A T2 SCREW 4x8 7P31-0408 4 4 4 4 4 4 4
7 COMPRESSOR CS20-K6E-TF5-237 4A1419-01 1 1 1 1 1 1 1
8 GROMMET 027-0167-00 434922-01 4 4 4 4 4 4 4
9 SPACER 028-0188-02 434921-01 4 4 4 4 4 4 4
10 BOLT 8 x 45 437889-01 4 4 4 4 4 4 4
11 CONDENSER - WATER-COOLED - 219382-02 1 1 1 1 1 -
- 2A2359G05 1 1
11A HEX HEAD BOLT W/WASHER (LF) 5X12 7B0130512 3 3 3 3 3 2 2
12 DRIER C-053-S 4A1461-01 1 1 1 1 1 1 x1
- 4A2663-01 o1
13 DRIER BRACKET GS 445251-01 1 1 1 1 1 1 -
NYLON TIE - 8911-0301 1
13A T2 SCREW 4x8 7P31-0408 1 1 1 1 1 1 -
14 EXP. VALVE HFE-10NHD-2 4A1414-01 3 3 3 3 3 3 3
15 FRAME SEAL EPDM 323925-01 4 4 4 4 4 4 4
15A T2 SCREW 4x12, SS 7P32-0412 6 6 6 6 6 6 6

HA
15
MODEL:KM-2000SWF3, SWH3 TITLE:B. REFRIGERATION CIRCUIT
REQUIRED NUMBER
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER KM-2000SWF3 KM-2000SWH3
NUMBER H-0 H-1
J-0 K-0
L-0 M-0 M-1 M-3
16 HOT GAS VALVE BRACKET GS 442162-01 1 1 1 1 1 1 1
16A T2 SCREW 4x8 7P31-0408 2 2 2 2 2 2 2
17 LINE VALVE BRACKET GS 4A1406-01 1 1 1 1 1 1 1
17A T2 SCREW 4x8 7P31-0408 2 2 2 2 2 2 2
18 VALVE BODY 70 440352-01 2 2 2 2 2 2 2
19 COIL - VALVE ABS-25-1-HD-2 440353-01 2 2 2 2 2 2 2
20 BOLT 4 X6 440353F01 2 2 2 2 2 2 2
20A TRUSS HEAD SCREW 4X8 7C31-0408 4 4 4 4 4 4 4
21 PRESSURE SWITCH ACB-2UB04 433441-05 1 1 1 1 1 1 1
22 PRESSURE SWITCH BRACKET GS 434938-01 1 1 1 1 1 1 1
22A T2 SCREW 4x8 7P31-0408 1 1 1 1 1 1 1
23 COPPER TUBE - ACCESS VALVE COPPER 4A1497G01 1 1 1 1 1 1 1
24 ACCESS VALVE TCJ-2F15-HD 446715-01 2 2 x2 2 x2
- 457729-01 o2 2 o2 2
25 WATER REGULATOR V46EB-20D 4A1417-01 1 1 1 1 1 1 1
25A TRUSS HEAD SCREW 4X6 7C31-0406 2 2 2 2 2 2 2
26 STRAINER - 441569-02 1 1 1 1 1 1 1
27 CHECK VALVE SKC 30564 4A1373-01 3 3 3 3 3 3 3
28 COPPER TUBE (A) - HIGH SIDE COPPER 2A1105G01 1 1 1 1 1 -
COPPER 2A2481G01 1 1
29 COPPER TUBE (B) - HIGH SIDE COPPER 332460-01 1 1 1 1 1 -
COPPER 2A344-01 1 1
30 COPPER TUBE (C) - HIGH SIDE COPPER 4A1469G01 1 1 1 1 1 -
COPPER 4A2763G01 1 1
31 COPPER TUBE (F) - HIGH SIDE COPPER 3A1104-01 1 1 1 1 1 1 -
COPPER 3A2343-01 1
32 HEADER - S 750489 441038-01 2 2 2 2 2 2 2
33 COPPER TUBE (A) - EXP. VALVE COPPER 4A1464-01 1 1 1 1 1 1 1
34 COPPER TUBE (B) - EXP. VALVE COPPER 4A1465-01 1 1 1 1 1 1 1

HA
16
MODEL:KM-2000SWF3, SWH3 TITLE:B. REFRIGERATION CIRCUIT
REQUIRED NUMBER
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER KM-2000SWF3 KM-2000SWH3
NUMBER H-0 H-1
J-0
K-0 L-0 M-0 M-1 M-3
35 COPPER TUBE (C) - EXP. VALVE COPPER 4A1466-01 1 1 1 1 1 1 1
36 COPPER TUBE - LOW SIDE COPPER 106803G01 1 1 1 1 1 1 1
37 COPPER TUBE (A) - LOW SIDE COPPER 2A1108-01 1 1 1 1 1 1 1
38 COPPER TUBE (B) - LOW SIDE COPPER 2A1109-01 1 1 1 1 1 1 1
39 COPPER TUBE (C) - LOW SIDE COPPER 2A1110G01 1 1 1 1 1 1 1
40 WIRE SADDLE - 4A0448-02 3 3 3 3 3 3 3
41 HEAT EXCHANGER COPPER 1A0235G01 1 1 1 1 1 1 1
42 COPPER TUBE - HOT GAS COPPER 4A1463-01 1 1 1 1 1 1 1
43 COPPER TUBE (A) COPPER 3A0997G01 1 1 1 1 1 -
COPPER 3A2315G01 1 1
44 COPPER TUBE (B) COPPER 4A1470G01 1 1 1 1 1 -
COPPER 4A2762G01 1 1
45 HOLDER / EXP. VALVE - 3/8 SS 3A0107-01 3 3 3 3 3 3 3
46 CLAMP SS 443461-01 3 3 3 3 3 3 3
47 INSULATION TUBE L=40 7762-1020 3 3 3 3 3 3 3
48 CABLE TIE CV-200 7920-0010 14 14 14 14 14 14 14
49 EXP. VALVE COVER PE FOAM 3A0944-01 3 3 3 3 3 3 3
50 THERMISTOR - 429006-03 1 1 1 1 1 1 1
51 HOLDER - THERMISTOR COPPER 438247-01 1 1 1 1 1 1 1
52 INSULATION - THERMISTOR PE FOAM 427441-01 1 1 1 1 1 1 1
53 RUBBER INSULATION (A) EPDM 325864-01 1 1 1 1 1 1 1
54 RUBBER INSULATION (B) EPDM 325865-01 1 1 1 1 1 1 1
54A T2 SCREW 4x8, SS 7P32-0408 2 2 2 2 2 2 2
55 INSULATION HOLDER SS 325863-01 1 1 1 1 1 1 1
56 HEADER COVER (B1) PE FOAM 325862-01 1 1 1 1 1 1 1
57 HEADER COVER (B2) PE FOAM 325862-02 1 1 1 1 1 1 1
58 INSULATION PE FOAM 436671-02 1 1 1 1 1 1 1
59 BUSHING OCB-500 428394-02 1 1 1 1 1 1 1
60 INSULATION TUBE L=105 7762-1630 1 1 1 1 1 -

HA
17
MODEL:KM-2000SWF3, SWH3 TITLE:B. REFRIGERATION CIRCUIT
REQUIRED NUMBER
INDEX
NO.
DESCRIPTION
MATERIAL
OR MODEL
PART
NUMBER KM-2000SWF3 KM-2000SWH3
NUMBER H-0 H-1
J-0
K-0 L-0 M-0 M-1 M-3
61 TERMINAL GASKET -334084-01 1 1 1 1 1 -
62 WASHER SS 4A0655-03 1 1 1 1 1 -
63 CLAMP - 4A2338-01 1 1 1 1 1
64 HEADER COVER (A1) - 325861-01 1 1
65 HEADER COVER (A2) - 325861-02 1 1
66 INSULATION TUBE L=239 7762-1020 1 1
67 INSULATION TUBE L=284 7762-1020 1 1
68 INSULATION TUBE L=328 7762-1020 1 1
69 MALE CONNECTOR - 445180-01 1 1
70 COPPER TUBE (J) – HIGH SIDE COPPER 3A1105G01 1 1
71 COPPER TUBE (M) – HIGH SIDE - 4A2898G01 1 1

HA
18
KM-2000SRF3, KM-2000SRH3 B. REFRIGERATION CIRCUIT 1/2 H-0, H-1, J-1, K-0,
L-0, M-0, M-1, M-2

HA
19
KM-2000SRF3, KM-2000SRH3 B. REFRIGERATION CIRCUIT 2/2 H-0, H-1, J-1, K-0,
L-0, M-0, M-1, M-2

HA
20
MODEL:KM-2000SRF3, SRH3 TITLE:B. REFRIGERATION CIRCUIT
REQUIRED NUMBER
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER KM-2000SRF3 KM-2000SRH3
NUMBER H-0 H-1 J-1
K-0
L-0 M-0 M-1 M-2
G EVAPORATOR - 105103A01 1 1 1 1 1 1 1
1 REAR FRAME GS 439285G04 1 1 1 1 1 1 1
1A T2 SCREW 4X8 7P31-0408 2 2 2 2 2 2 2
2 SIDE FRAME (A) GS 215375G01 1 1 1 1 1 1 1
2A T2 SCREW 4X8 7P31-0408 3 3 3 3 3 3 3
3 SIDE FRAME (B) GS 215376G01 1 1 1 1 1 1 1
3A T2 SCREW 4X8 7P31-0408 4 4 4 4 4 4 4
4 FRONT FRAME GS 325857-01 1 1 1 1 1 1 1
4A T2 SCREW 4X8 7P31-0408 4 4 4 4 4 4 4
5 REAR PANEL GS 215378G01 1 1 1 1 1 1 1
5A T2 SCREW 4X8 7P31-0408 10 10 10 10 10 10 10
6 BRACE GS 325858-01 1 1 1 1 1 1 1
7 COMPRESSOR C520-K6E-TF5-279 4A1419-02 1 1 1 1 1 1 1
8 GROMMET 027-0167-00 434922-01 4 4 4 4 4 4 4
9 SPACER 028-0188-02 434921-01 4 4 4 4 4 4 4
10 BOLT 8 x 45 437889-01 4 4 4 4 4 4 4
11 DRIER C-053-S 4A1461-01 1 1 1 1 1 x1
o1 1
12 DRIER BRACKET GS 445251-01 1 1 1 1 1 -
NYLON TIE - 8911-0301 1 1
12A T2 SCREW 4X8 7P31-0408 1 1 1 1 1 -
13 EXPANSION VALVE HFE-10NHD-1 4A1414-01 3 3 3 3 3 3 3
14 FRAME SEAL EPDM 323925-01 4 4 4 4 4 4 4
14A TRUSS HEAD SCREW 4X12, SS 7C32-0412 6 6 6 6 6 6 6
15 HOT GAS VALVE BRACKET GS 442162-01 1 1 1 1 1 1 1
15A T2 SCREW 4X8 7P31-0408 2 2 2 2 2 2 2
16 LINE VALVE BRACKET GS 4A1406-01 1 1 1 1 1 1 1
16A T2 SCREW 4X8 7P31-0408 2 2 2 2 2 2 2
17 VALVE BODY 70 440352-01 2 2 2 2 2 2 2
