Hoshizaki DKM-500BWH User manual

Hoshizaki
“A Superior Degree
of Reliability”
www.hoshizaki.com
Models
DKM-500BAH
DKM-500BWH
Crescent Cube Icemaker/Dispenser
Hoshizaki America, Inc.
PARTS LIST
™
Number: 71253
Issued: 11-2-2001
Revised: 2-21-2011

2
CONTENTS
Auxiliary Codes...................................................................................................................... 3
Note About Ordering Parts .................................................................................................... 3
Material Abbreviations ........................................................................................................... 4
A. Ice Dispenser Assembly .................................................................................................... 5
DKM-500BAH.................................................................................................................... 5
DKM-500BWH................................................................................................................... 8
B. Refrigeration Unit .............................................................................................................11
DKM-500BAH...................................................................................................................11
DKM-500BWH................................................................................................................. 17
C. Water Circuit.................................................................................................................... 21
D. Control Box Assembly...................................................................................................... 24
DKM-500BAH.................................................................................................................. 24
DKM-500BWH................................................................................................................. 26
E. Bin Assembly................................................................................................................... 28
F. Bin Cover Assembly ......................................................................................................... 30
G. Front Panel Assembly ..................................................................................................... 31
H. Label Location................................................................................................................. 32
J. Fan Motor Assembly......................................................................................................... 34
DKM-500BAH.................................................................................................................. 34
K. Mechanism Assembly...................................................................................................... 35
L. Solenoid Assembly .......................................................................................................... 37
M. Shutter Assembly ............................................................................................................ 39
N. Gear Motor Assembly...................................................................................................... 40
P. Accessories and Packaging ............................................................................................. 41

3
Auxiliary Codes
DKM-500BAH R-0 January 2006
R-1 April 2006
S-0 January 2007
S-1 May 2007
T-0 March 2008
T-1 July 2008
U-0 January 2009
U-1 October 2009
V-0 January 2010
V-5 February 2010
V-6 July 2010
V-7 August 2010
A-5 February 2011
A-6 March 2011
DKM-500BWH T-0 February 2008
T-1 August 2008
U-0 January 2009
U-1 August 2009
V-0 January 2010
V-5 February 2010
V-6 July 2010
V-7 October 2010
A-5 January 2011
A-6 March 2011
Auxiliary Code Breakdown
The auxiliary code is the rst two characters in the serial number. The rst character
indicates the year. Years progress or regress in alphabetical order. The series runs from
"A" through "V" and the letters "I" and "O" are skipped. The second character indicates
signicant part changes within a year. Base is "0" and this number advances for each
change. In cases where there is a letter in parentheses, this designates the month. This is
the last character in the serial number. The series runs from "(A)" through "(M)" and the
letter "(I)" is skipped. This designation is only included when identifying a parts change
within an auxiliary code.
Note About Ordering Parts
Most assemblies cannot be ordered as complete units; parts in the assemblies generally
must be ordered separately.

4
Material Abbreviations
ALUMINUM
AL = Aluminum
COPPER
CU = Copper
PLASTIC
ABS = Acrylonitrile -butadiene-styrene
AC = Polyacetal
EVA = Ethylene vinyl acetate
PA = Polyamide = Nylon
PC = Polycarbonate
PE = Polyethylene
PES = Polyester
PETP = Polyethylene terephthalate = Tetlon
PP = Polypropylene
PS = Polystyrene
PTFE = Polytetrauoroethylene = Teon
PUR = Polyurethane
PVC = Polyvinyl chloride
RUBBER
VN = Vinyl Nitrile
EPDM = EP rubber
NBR = Nitrile butadiene rubber
NR = Natural rubber
NP = Neoprene
SI.R = Silicone rubber
SY.R = Synthetic rubber
EPH = Epichlorohydrin
STEEL
GS = Galvanized steel
SS = Stainless steel
PS = Plated steel
PAS = Primed steel

5

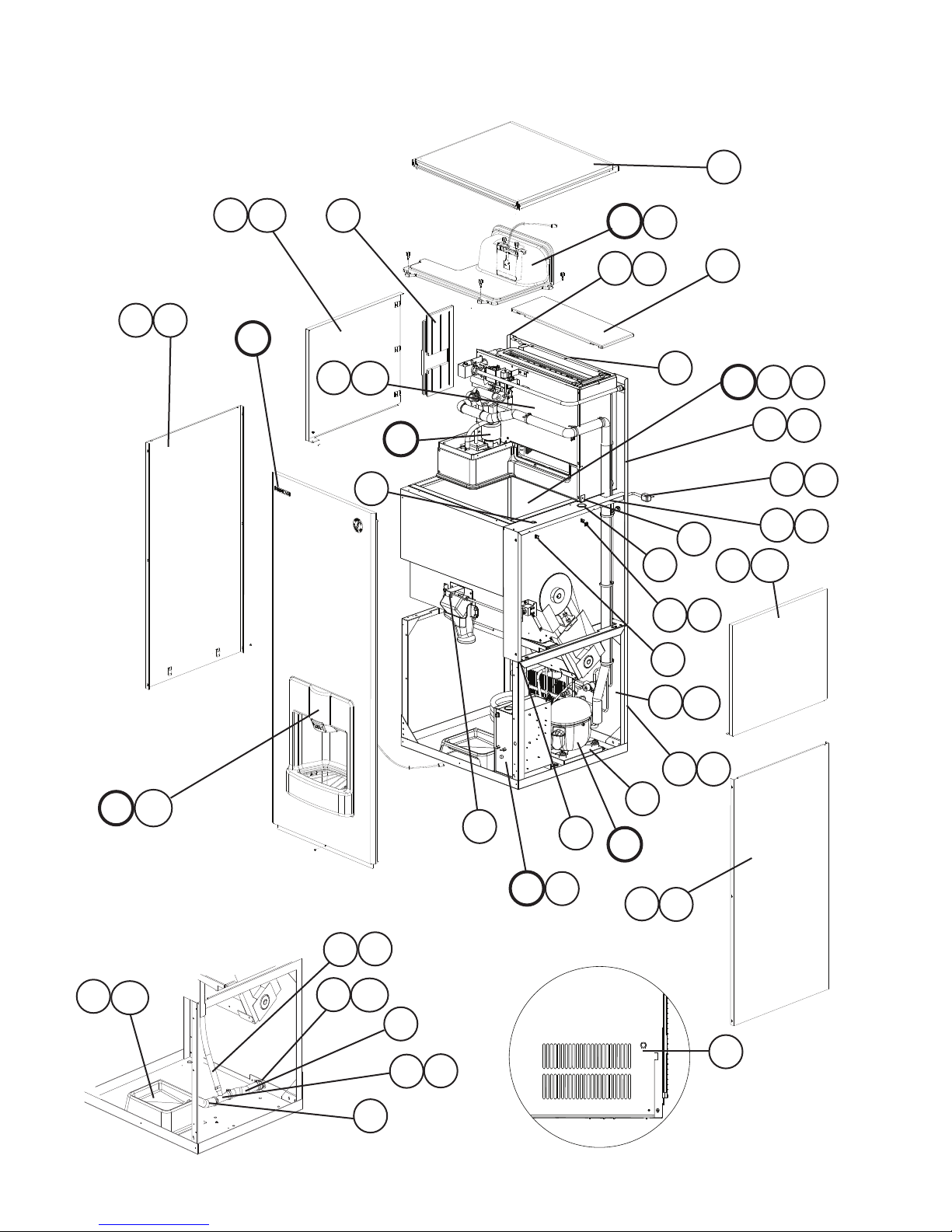

A. Ice Dispenser Assembly
DKM-500BAH
R-0 to A-6
33a
65
78
11
13
16
33 33a
30
25
26
C
DD1
17a
23
21
22
17
20
19
18 18a
B
H
EE2
E1
FF1
GG1
1
44a
14a
14
15
27
28
29
1a
22a
99a
99a
11a
12 12a
24
32 31
10a
10
Louver located
more slightly
towards front
on 3A4355A01
34a
34
35
10 16
10a
36

6
Title: A. Ice Dispenser Assembly Model: DKM-500BAH
Index
No. Description
Material or
Model Number Part Number
Required Number
R-0
R-1
S-0
S-1 T- 0
T- 1
U-0
U-1
to
V-6
V-7
A-5 A-6
B Refrigeration Unit - 1A1071A01 1 1 1 1 -
1A1071A02 1 -
1A2041A01 1 1
C Water Circuit - 2A3808A01 1 1 1 1 -
2A5136A01 1 -
2A5136A03 1 1
DControl Box Assembly - 2A3608A01 1 1 1 1 -
2A3608A02 1 -
2A6095A02 1 1
D1 FT Screw 4×8, SS 7F32-0408 4 4 4 4 4 4 4
EBin Assembly - 2A3581A01 1 1 -
2A3581A02 1 1 1 1 -
2A3581A03 1
E1 Hex Bolt w/Washer (LF) 8×20, SS 7B0230820 4 4 4 4 4 4 4
E2 FT Screw 4×8, SS 7F32-0408 3 3 3 3 3 3 5
FBin Cover Assembly - 3A3877A01 1 1 1 1 1 1 1
F1 Thumbscrew ABS, SS 434168G02 3 3 3 3 3 3 3
GFront Panel Assembly - 3A3582A01 1 1 1 1 1 1 1
G1 FT Screw 4×8, SS 7F32-0408 1 1 1 1 1 1 1
H Label Location - 2A3768A01 1 1 1 1 1 -
2A6099A03 1 1
1 Frame - 1A1177G01 1 1 1 1 -
Frame (includes item 36) 1A1177G02 1 1 1
1a FT Screw 4×8, SS 7F32-0408 3 3 3 3 3 3 3
2 Rear Frame (A) - 2A3527-01 1 1 1 1 1 1 1
2a FT Screw 4×8, SS 7F32-0408 7 7 7 7 7 7 7
3 Side Frame (R) - 1A1075-01 1 1 1 1 -
1A1878-01 1 1 1
3a FT Screw 4×8, SS 7F32-0408 5 5 5 5 5 5 5
4 Side Frame (L) - 3A3584-01 1 1 1 1 1 1 1
4a FT Screw 4×8, SS 7F32-0408 4 4 4 4 4 4 4
5Square Washer Brass 433537-02 1 1 1 1 1 1 1
6 Ground Screw - 433304-02 1 1 1 1 1 1 1
7 Bushing SR-7K-2 420472-02 1 1 1 1 1 1 1
8 Power Supply Cord - 4A0520-01 1 1 1 1 1 1 1
9 Side Panel (includes 1 of item
10 and 3 of item 10a)
- 3A3744A01 2 -
111111
9a FT Screw 4×8, SS 7F32-0408 11 -
666666
10 Louver 1A0547-01 2 2 2 2 2 2 2
10a Push Retainer 4A2414-01 6 6 6 6 6 6 6
11 Side Panel-(L1) SS 2A3532G01 1 1 1 1 1 1 1
11a FT Screw 4×8, SS 7F32-0408 1 1 1 1 1 1 1
12 Side Panel-(R1) SS 2A3529G01 1 1 1 1 1 1 1
12a FT Screw 4×8, SS 7F32-0408 1 1 1 1 1 1 1
13 Top Panel Assembly - 3A3583G01 1 1 1 1 1 1 1

7
Title: A. Ice Dispenser Assembly Model: DKM-500BAH
Index
No. Description
Material or
Model Number Part Number
Required Number
R-0
R-1
S-0
S-1 T- 0
T- 1
U-0
U-1
to
V-6
V-7
A-5 A-6
14 Rear Panel - 3A3586-01 1 1 1 1 1 1 1
14a FT Screw 4×8, SS 7F32-0408 4 4 4 4 4 4 4
15 Hook - 4A3984-01 1 1 1 1 1 1 1
16 Air Filter - 2A2062G01 2 2 2 2 2 2 2
17 Drain Pan Assembly - 2A3522G01 1 1 1 1 1 1 1
17a FT Screw 4×8, SS 7F32-0408 4 4 4 4 4 4 4
18 Fitting-Drain - 438729-01 1 1 1 1 1 1 1
18a Truss Head Screw 5×8, SS 7C32-0508 2 2 2 2 2 2 2
19 Te e PVC 4A0525-05 1 1 1 1 1 1 1
20 Hose Clamp 2346 HC 1250 4A2017-03 4 4 4 4 4 4 4
21 Vinyl Hose-Clear L=195 4A0658L01 1 1 1 1 1 1 1
22 Vinyl Hose-Clear L=170 4A0658L01 1 -
L=192 1 1 1 1 1 1
23 Vinyl Hose L=550 7716-2025 1 1 1 1 1 1 1
24 Hose Clamp 2338 HC 953 4A2017-01 2 2 2 2 2 2 2
25 Insulation Panel - 2A0664G01 1 1 1 1 1 1 1
26 Top Insulation - 215730G01 1 1 1 1 1 1 1
27 Wire Saddle VWS4274-C 4A0338-03 5 5 5 5 5 5 5
28 Evaporator Bracket - 4A4068-01 1 1 1 1 -
29 Bushing OCB-875 428394-04 1 1 1 1 1 1 1
30 Bushing SB-1500-21 420470-06 1 1 1 1 1 1 1
31 Rubber Gasket L=50 4A0662L01 1 1 1 1 1 1 1
32 Front Panel Support - 4A4133G01 1 1 1 1 1 1 1
33 Evaporator Case - 2A3586G01 1 1 1 1 1 1 1
33a FT Screw 4×8, SS 7F32-0408 4 4 4 4 4 4 4
34 Side Panel (L) (includes 1 of
item 10 and 3 of item 10a)
- 3A4355A01 1 1 1 1 1 1
34a FT Screw 4×8, SS 7F32-0408 5 5 5 5 5 5
35 Locking Hole Plug - 4A0586-04 1 1 1 1
36 Compressor Base Assembly - 4A4835G01 1 1 1

8
A. Ice Dispenser Assembly
DKM-500BWH
T-0 to A-6
33a
65
78
11
13
10 10a
30
25
26
C
DD1
17a
23
21
22
17
20
19
18 18a
B
H
EE2
E1
FF1
GG1
1
44a
14a
14
15
27
28
29
1a
22a
99a
99a
11a
12 12a
24
16 31
32
33

9
Title: A. Ice Dispenser Assembly Model: DKM-500BWH
Index
No. Description
Material or
Model Number Part Number
Required Number
T- 0
T- 1
U-0
U-1
to
V-5
V-6
to
A-5 A-6
B Refrigeration Unit - 1A1480A01 1 1 -
1A1480A02 1 -
1A2086A01 1 1
C Water Circuit - 2A3808A02 1 1 -
2A5136A02 1 1 1
DControl Box Assembly - 2A4574A01 1 1 -
2A4574A02 1 -
2A6214A01 1 1
D1 FT Screw 4×8, SS 7F32-0408 4 4 4 4 4
EBin Assembly - 2A3581A02 1 1 1 1 -
2A3581A03 1
E1 Hex Bolt w/Washer (LF) 8×20, SS 7B0230820 4 4 4 4 4
E2 FT Screw 4×8, SS 7F32-0408 3 3 3 3 5
FBin Cover Assembly - 3A3877A01 1 1 1 1 1
F1 Thumbscrew ABS, SS 434168G02 3 3 3 3 3
GFront Panel Assembly - 3A3582A01 1 1 1 1 1
G1 FT Screw 4×8, SS 7F32-0408 1 1 1 1 1
H Label Location - 2A3768A02 1 1 1 -
2A6099A02 1 1
1 Frame - 1A1177G01 1 1 -
Frame (includes item 33) 1A1177G02 1 1 1
1a FT Screw 4×8, SS 7F32-0408 3 3 3 3 3
2 Rear Frame (A) - 2A3527-01 1 1 1 1 1
2a FT Screw 4×8, SS 7F32-0408 7 7 7 7 7
3 Side Frame (R) - 1A1075-01 1 1 -
1A1878-01 1 1 1
3a FT Screw 4×8, SS 7F32-0408 5 5 5 5 5
4 Side Frame (L) - 3A3584-01 1 1 1 1 1
4a FT Screw 4×8, SS 7F32-0408 4 4 4 4 4
5Square Washer Brass 433537-02 1 1 1 1 1
6 Ground Screw - 433304-02 1 1 1 1 1
7 Bushing SR-7K-2 420472-02 1 1 1 1 1
8 Power Supply Cord - 4A0520-01 1 1 1 1 1
9 Side Panel w/clip - 4A4483G01 2 2 2 2 2
9a FT Screw 4×8, SS 7F32-0408 11 11 11 11 11
10 Evaporator Case - 2A3586G01 1 1 1 1 1
10a FT Screw 4×8, SS 7F32-0408 4 4 4 4 4
11 Side Panel-(L1) SS 2A3532G01 1 1 1 1 1
11a FT Screw 4×8, SS 7F32-0408 1 1 1 1 1
12 Side Panel-(R1) SS 2A3529G01 1 1 1 1 1
12a FT Screw 4×8, SS 7F32-0408 1 1 1 1 1
13 Top Panel Assembly - 3A3583G01 1 1 1 1 1
14 Rear Panel - 2A4484-01 1 1 1 1 1
14a FT Screw 4×8, SS 7F32-0408 4 4 4 4 4
15 Hook - 4A3984-01 1 1 1 1 1

10
Title: A. Ice Dispenser Assembly Model: DKM-500BWH
Index
No. Description
Material or
Model Number Part Number
Required Number
T- 0
T- 1
U-0
U-1
to
V-5
V-6
to
A-5 A-6
16 Front Panel Suppport - 4A4133G01 11111
17 Drain Pan Assembly - 2A3522G01 1 1 1 1 1
17a FT Screw 4×8, SS 7F32-0408 4 4 4 4 4
18 Drain Fitting - 438729-01 1 1 1 1 1
18a Truss Head Screw 5×8, SS 7C32-0508 2 2 2 2 2
19 Te e PVC 4A0525-05 1 1 1 1 1
20 Hose Clamp 2346 HC 1250 4A2017-03 4 4 4 4 4
21 Vinyl Hose-Clear L=195 4A0658L01 1 1 1 1 1
22 Vinyl Hose-Clear L=192 4A0658L01 1 1 1 1 1
23 Vinyl Hose L=550 7716-2025 1 1 1 1 1
24 Hose Clamp 2338 HC 953 4A2017-01 2 2 2 2 2
25 Front Insulation - 2A0664G01 1 1 1 1 1
26 Top Insulation - 215730G01 1 1 1 1 1
27 Wire Saddle VWS4274-C 4A0338-03 5 5 5 5 5
28 Evaporator Bracket - 4A4068-01 1 1 -
29 Bushing OCB-875 428394-04 1 1 1 1 1
30 Bushing SB-1500-21 420470-06 1 1 1 1 1
31 Rubber Gasket L=50 4A0662L01 1 1 1 1 1
32 Locking Hole Plug - 4A0586-04 1 1 1 1
33 Compressor Base Assembly - 4A4835G01 1 1 1

11

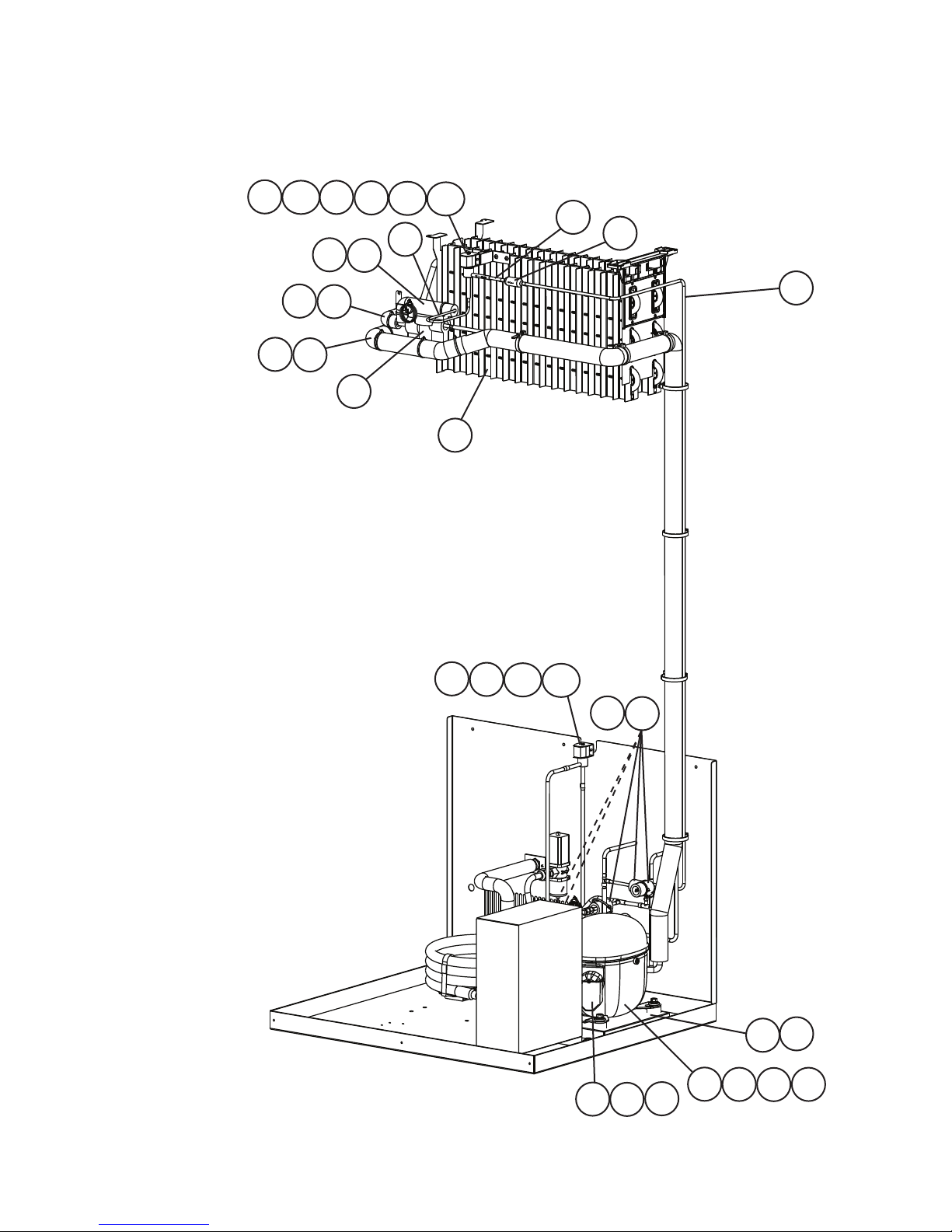

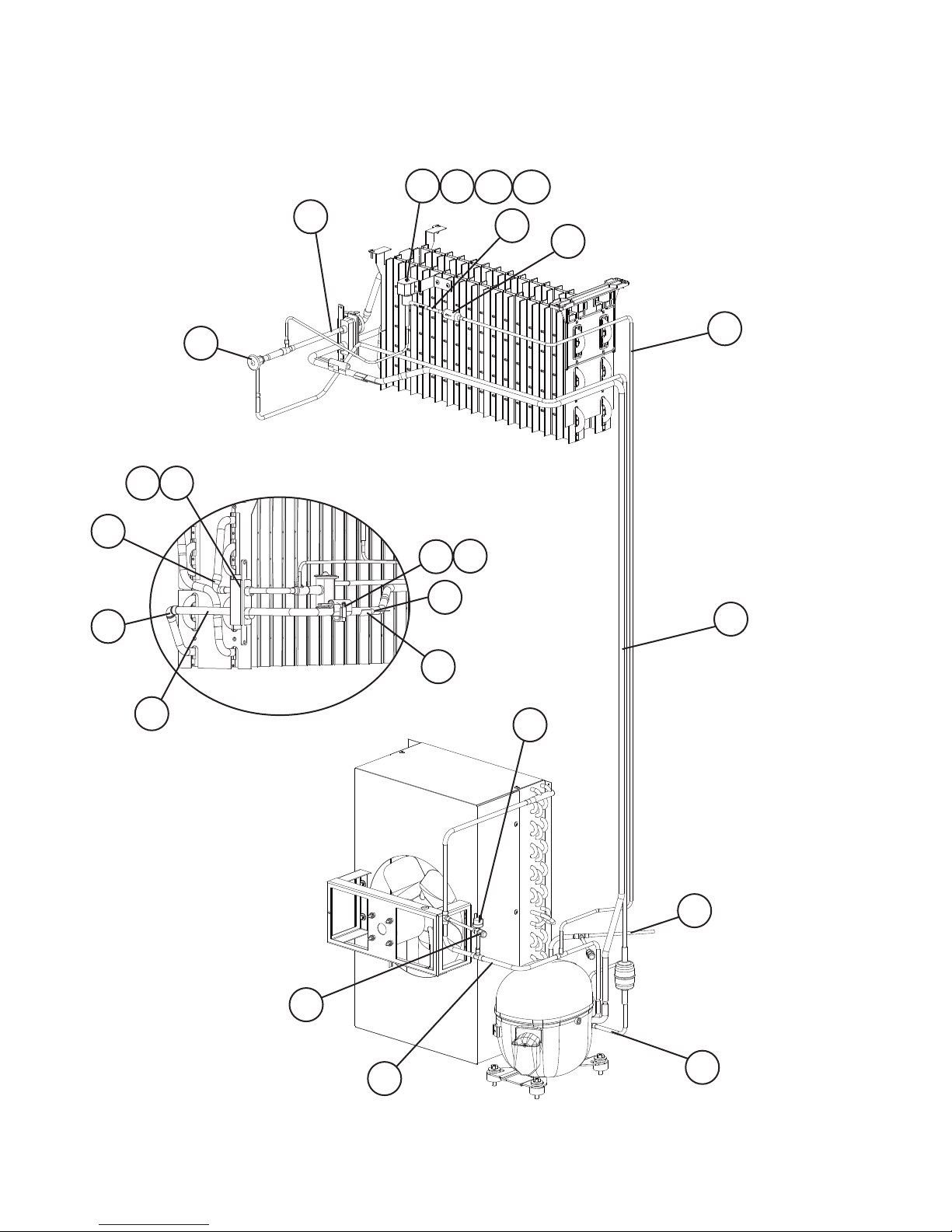

B. Refrigeration Unit
1/2
DKM-500BAH
R-0 to V-6
7
35
34
40
39
27a
27
24
38
1a1

12

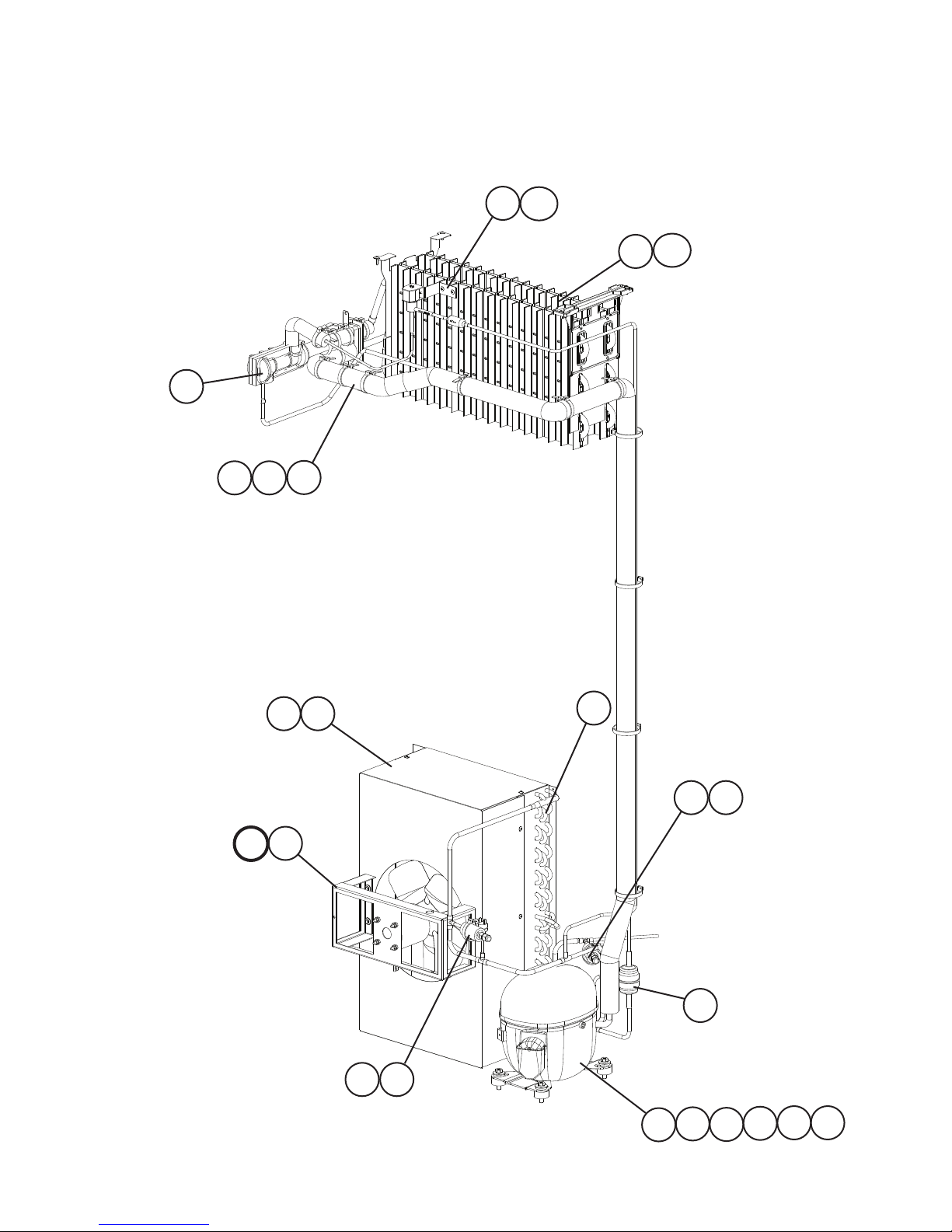

B. Refrigeration Unit
2/2
DKM-500BAH
R-0 to V-6
13
21
33
15
12
17
18
22
23
19
20
25 26
29b
28 29 29a
3736
2
3456
11
14
30
10
JJ1
2c
8
9
16
2a 2b
8a
9a
31 32
41
31a
42
U-1 and Later
R-0 to U-0
33a

13
B. Refrigeration Unit
1/2
DKM-500BAH
V-7 to A-6
35
34
27a
27
24
38
33
24 6
30
JJ1
2c
8
9
2a 2b
9a
33a
38
35 38
42

14
B. Refrigeration Unit
2/2
DKM-500BAH
V-7 to A-6
13
21
15
12
17
22
23
19
20
25 26
29b
28 29 29a
11
14
10
16
32
41
43
3736

15
Title: B. Refrigeration Unit Model: DKM-500BAH
Index
No. Description
Material or
Model Number Part Number
Required Number
R-0
to
U-0
U-1
to
V-6
V-7
to
A-6
JFan Motor Assembly - 3A3836A01 1 -
3A5412A01 1 1
J1 Hex Head Bolt w/Washer (LF) 6×12, SS 7B0230612 4 -
5×12, SS 7B0130512 4 4
1Compressor Base Assembly GS 4A3823G01 1 -
1a Hex Head Bolt (SW) 8×16, SS 7B0230816 4 -
2 Compressor RS55C2E-
CAA-219
4A1843-01 1 1 -
RST61C1E- CFA-
202
4A5158-01 1
2a Grommet 027-0073-00 434403-01 4 4 -
- 4A2593-01 4
2b Spacer 027-0072-02 434404-01 4 4 -
- 4A2595-01 4
2c Bolt 8×45 437889-01 4 4 -
8×40 437889-02 4
3 Protector Holder 032-0186-00 4A1843F04 1 1 -
4 Terminal Cover 505-0312-01 4A1843F01 1 1 -
- 4A5158F01 1
5 Protector 071-0518-02 4A1877-01 1 1 -
6 Spring Clip 006-0123-02 4A1843F02 1 1 -
- 4A5158F02 1
7 Compressor Insulation - 4A3992-01 1 1 -
8 Condenser - 1A1099-01 1 1 1
8a T2 Screw 4×8, SS 7P32-0408 2 2 -
9 Shroud GS 2A3519-01 1 -
2A3519-02 1 1
9a T2 Screw 4×8, SS 7P32-0408 8 8 8
10 Copper Tube (A)-High Side
(includes item 41)
- 2A3525G01 1 1 -
Copper Tube (A)-High Side 2A6089G01 1
11 Copper Tube (B)-High Side - 3A3575G01 1 1 -
3A6066G01 1
12 Copper Tube (A)-Low Side - 3A3612-01 1 1 -
3A6086G01 1
13 Copper Tube (B1)-Low Side - 3A3613-01 1 1 1
14 Copper Tube-HV - 3A3573-01 1 1 -
3A6065-01 1
15 Copper Tube-HV2 - 4A3850-01 1 1 -
Copper Tube-HV3 L=50 4A4490-01 1
16 Copper Tube-Access Valve - 4A3825G01 1 1 -
Copper Tube B-Access Valve 4A5159G02 1
17 Heat Exchanger - 2A3568G01 1 1 -
2A6091G01 1
18 Te e - 436000-08 1 1 -
19 Elbow - 4A1059-01 1 1 1
20 Elbow - 417395-03 1 1 1

16
Title: B. Refrigeration Unit Model: DKM-500BAH
Index
No. Description
Material or
Model Number Part Number
Required Number
R-0
to
U-0
U-1
to
V-6
V-7
to
A-6
21 Thermistor Holder COPPER 427430-01 1 1 1
22 Thermistor - 429006-06 1 1 1
23 Expansion Valve - 4A1870-01 1 1 -
4A4008-01 1
24 Expansion Valve Cover - 4A1168-01 1 1 -
3A0944-01 1
25 Expansion Valve Bulb Holder 1/2" 3A0112-01 1 1 -
3/8" 3A0107-01 1
26 Clamp - 443461-01 1 1 -
443461-02 1
27 Solenoid Bracket GS 4A3852-01 1 1 1
27a FT Screw 4×8, SS 7F32-0408 3 3 4
28 Hot Gas Valve Body ATS-B7SHDU-2 4A3978-01 1 1 1
29 Valve Coil - 4A3277-01 1 1 1
29a Bolt - 440353F01 1 1 1
29b FT Screw 4×8, SS 7F32-0408 2 2 -
30 Drier - 4A2666-01 1 1 1
31 Pressure Switch Bracket GS 434938-01 1 1 -
31a FT Screw 4×8 7P31-0408 1 1 -
32 Pressure Switch ACB-1UB09 433441-07 1 1 -
- 463180-04 1
33 Evaporator Assembly - 2A3562G01 1 1 1
33a T-2 Screw 4×16 4P32-0416 4 4 4
34 Insulation Tube L=1554 7762-2040 1 1 -
L=385 1
35 Insulation Tube L=50 7762-2030 2 2 2
36 Insulated Rubber Tube - 4A1008G01 1 1 1
37 Insulation Holder SS 4A3902-01 1 1 1
38 Cable Tie CV-150 8911-0150 14 14 14
39 Insulation Tube L=150mm 7762-0717 1 1 -
40 Insulation Tube L=170mm 7762-1030 1 1 -
41 Strainer - 4A0397-01 1 1 -
441569-01 1
42 Thermistor Insulation - 427441-01 1 1 1
43 Access Valve - 457729-01 1

17
B. Refrigeration Unit
1/2
DKM-500BWH
T-0 to A-6
15
27a
27 29
2
3452c2a 2b
11a
16
17
24
30a
30 30b
28 30a
30 30b
31
32
43 47
44 47
45 47
46 47

18
B. Refrigeration Unit
2/2
DKM-500BWH
T-0 to A-6
20 21
10
66a 6b
77a
8
9
11
12
13
14
18
19
22
23
25 26
33 34
33a
35
36 37
36a
38
39
40
41 42 47
37
V-7 and Later
19

19
Title: B. Refrigeration Unit Model: DKM-500BWH
Index
No. Description
Material or
Model Number Part Number
Required Number
T-0
to
U-0
U-1
to
V-6
V-7
to
A-6
1Compressor Base Assembly GS 4A3823G01 1 -
1a Hex Head Bolt w/Washer (LF) 8×16 7B0130816 4 - 4
2 Compressor RST55C1E-
CAA-202
4A4376-01 1 1 1
2a Grommet 027-C210-04 4A2593-01 4 4 4
2b Spacer 028-0188-12 4A2595-01 4 4 4
2c Bolt Assembly 8×45 437889-01 4 4 4
3 Terminal Cover - 4A4376F01 1 1 1
4 Spring Clip - 4A4376F02 1 1 1
5 Protector - 4A2634-02 1 1 1
6 Condenser HS-0160 2A2359G01 1 1 1
6a Flat Washer - 4A0655-03 2 2 2
6b Hex Head Bolt w/Washer (LF) 5×12, SS 7B0230512 2 2 2
7Copper Tube(A)-Water Circuit - 3A1251G01 1 1 1
7a Truss Head Screw 4×8 7C31-0408 2 2 2
8 Copper Tube (B)-Water Circuit - 4A2681G01 1 1 1
9 Copper Tube (A)-High Side - 3A4797G01 1 1 -
3A4797G02 1
10 Copper Tube (B)-High Side - 2A4527G01 1 1 1
11 Copper Tube (C)-High Side - 4A4447G01 1 1 1
12 Copper Tube (D)-High Side - 4A4449-01 1 1 1
13 Copper Tube (A)-Low Side - 3A3612-01 1 1 1
14 Copper Tube (B1)-Low Side - 3A3613-01 1 1 1
15 Copper Tube-HV - 3A4741-01 1 1 1
16 Copper Tube-HV2 - 4A3850-01 1 1 1
17 Copper Tube-HV3 - 4A4490-01 1 1 1
18 Heat Exchanger - 2A4502G01 1 1 1
19 Copper Tube-Access Valve - 4A4488G01 1 1 -
4A5133G01 1
20 Thermistor Holder COPPER 427430-01 1 1 1
21 Thermistor - 429006-06 1 1 1
22 Thermistor Insulation - 427441-01 1 1 1
23 Expansion Valve - 4A1870-01 1 1 1
24 Expansion Valve Cover - 4A1168-01 1 1 1
25 Expansion Valve Bulb Holder 1/2" 3A0112-01 1 1 1
26 Clamp - 443461-01 1 1 1
27 Solenoid Bracket GS 4A3852-01 1 1 1
27a FT Screw 4×8, SS 7F32-0408 2 2 2
28 Liquid Line Valve Body - 4A3276-01 1 1 1
29 Hot Gas Valve Body -4A3978-01 1 1 1
30 Valve Coil - 4A3277-01 2 2 2
30a Bolt - 440353F01 2 2 2
30b FT Screw 4×8, SS 7F32-0408 4 4 4
31 Strainer - 441569-01 1 1 1
32 Evaporator Assembly - 2A3562G01 1 1 1
33 Water Regulator - 4A0911-06 1 1 1
33a Truss Head Screw 4×6 7C31-0406 2 2 2
34 Male Connector - 4A1087-01 1 1 1

20
Title: B. Refrigeration Unit Model: DKM-500BWH
Index
No. Description
Material or
Model Number Part Number
Required Number
T-0
to
U-0
U-1
to
V-6
V-7
to
A-6
35 Drier 4A2666-01 1 1 1
36 Pressure Switch Bracket GS 434938-01 1 1 -
36a FT Screw 4×8, SS 7F32-0408 1 1 -
37 Pressure Switch ACB-2UB04 433441-05 1 1 -
- 463180-05 1
38 Elbow - 4A1059-01 1 1 1
39 Elbow - 417395-03 1 1 1
40 Te e - 436000-08 1 1 1
41 Insulated Rubber Tube - 4A1008G01 1 1 1
42 Insulation Holder SS 4A3902-01 1 1 1
43 Insulation Tube L=180mm 7762-0717 1 1 -
L=150mm 1
44 Insulation Tube L=170mm 7762-1030 1 1 1
45 Insulation Tube L=50mm 7762-2030 5 5 5
46 Insulation Tube L=385mm 7762-2040 1 1 1
47 Cable Tie - 8911-0150 16 16 15
