Hoshizaki KM-250BAF User manual

NO.
MAY 5, 2000
ISSUED:
71169
CRESCENT CUBER
WITH STORAGE BIN
MODEL
KM-250BAF
KM-250BWF
PARTS LIST
NOV. 4, 2002
REVISED:
HOSHIZAKI

2
HA
Auxiliary Codes
KM-250BAF K-0 APRIL 2000
L-0 DEC. 2000
M-0 DEC. 2001
KM-250BWF K-0 MAY 2000
L-0 JAN. 2001
M-0 DEC. 2001
M-1 APRIL 2002

3
HA
MATERIAL ABBREVIATIONS
ALUMINUM
AL = Aluminum
COPPER
CU = Copper
PLASTIC
ABS = Acrylonitrile -butadiene - styrene
AC = Polyacetal
EVA = Ethylene vinyl acetate
PA = Polyamide = Nylon
PC = Polycarbonate
PE = Polyethylene
PES = Polyester
PE P = Polyethylene terephthalate = etlon
PP = Polypropylene
PS = Polystyrene
P FE = Polytetrafluoroethylene = eflon
PUR = Polyurethane
PVC = Polyvinyl chloride
RUBBER
VN = Vinyl Nitrile
EPDM = EP rubber
NBR = Nitrile butadiene rubber
NR = Natural rubber
NP = Neoprene
SI.R = Silicone rubber
SY.R = Synthetic rubber
EPH = Epichlorohydrin
STEEL
GS = Galvanized steel
SS = Stainless steel
PS = Plated steel
PAS = Primed steel
AUXILIARY CODE
Ex.1 K-0
Parts are the same as in the preceding (Note) - = Part deleted.
year.
x = Part deleted and replaced
"K" is the tenth in alphabetical order with "I" by "o" part.
skipped. So, "K" indicates "2000".
o = New part for "x"
Ex.2 L - 0 in the same auxiliary code.
"L" is the next in alphabetical
order. So, "L" indicates "2001".
Ex.3 L -1
Each time a part is changed (non-interchangeably)
in a year, this number advances.

4
HA

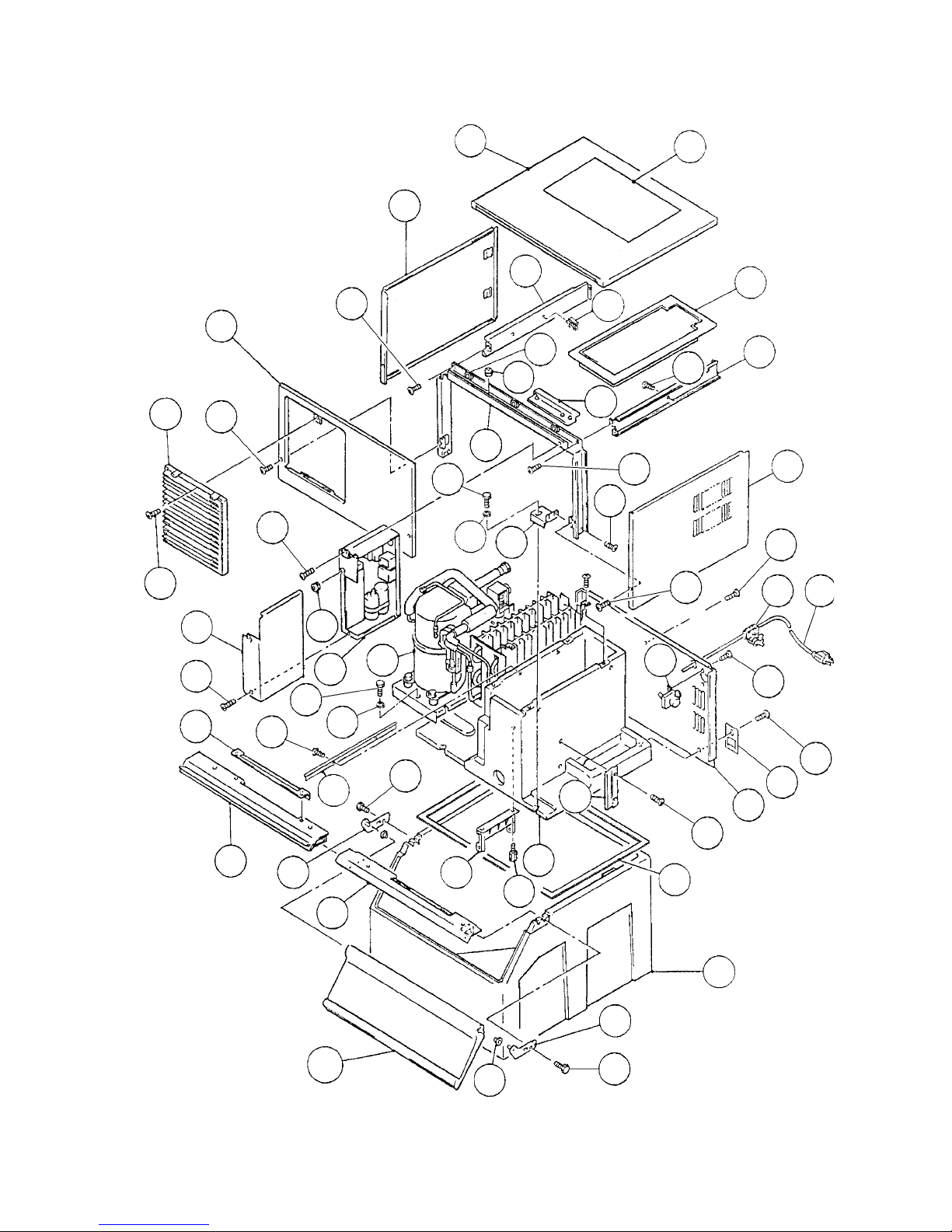

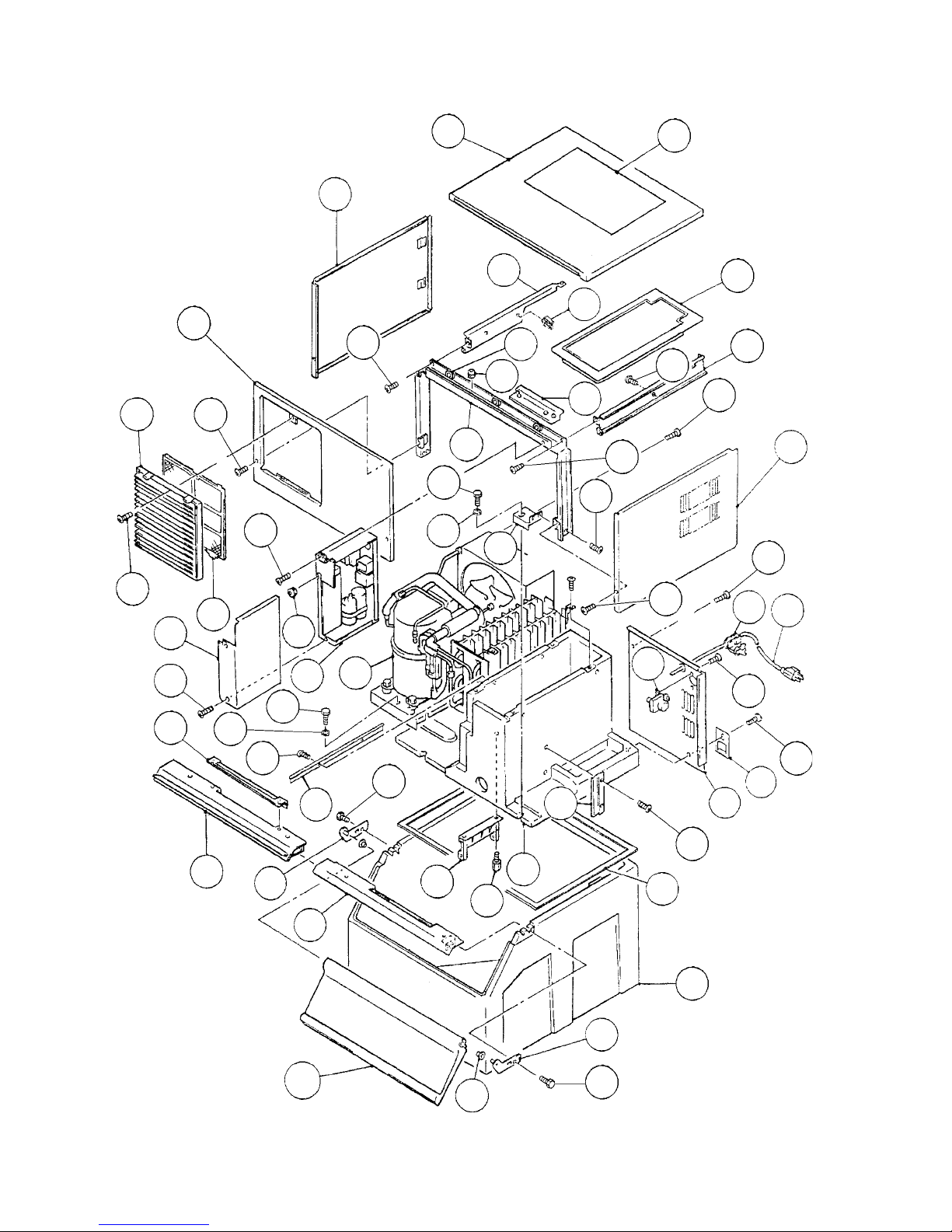

KM-250BAF A. ICE CUBER ASSEMBLY K-0, L-0, M-0
1
11
FE
20
25
19
36
24
35
37
13
15
14
56
DB
1a
24a
25a
23a
24a 12
1a
16a
17 18
C
16
21
21a
4
4a
7
3
9
8
2
30
30a
31
10
27
29
26
30a
34a
34
33
5b
28
D1
23
33 22
5a
32
18a
38

5
HA
MODEL: KM-250BAF TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER K-0 L-0 M-0
B REFRIGERATION CIRCUIT - 1A0501A01 1 1 1
C WATER CIRCUIT - 105672A02 1 1 1
D CONT. BOX ASSEMBLY - 2A1801A01 1 1 1
D1 TRUSS HEAD SCREW 4X8 7C31-0408 1 1 1
E LABEL LOCATION - 3A1636A01 1 1 1
F TOP PANEL - 331619A01 1 1 1
1 FRONT PANEL - 216843-01 1 1 1
1a TRUSS HEAD SCREW 4X16, SS 7C32-0416 2 2 2
2 BIN - 218178G01 1 1 1
3 BODY - 217214G01 1 1 1
4 CONT. BOX GUIDE GS 441714-01 1 1 1
4a TRUSS HEAD SCREW 4X10 7C31-0410 2 2 2
5 CONT. BOX COVER GS 216867-02 1 1 1
5a TRUSS HEAD SCREW 4X8 7C31-0408 2 2 2
5b HEX HEAD BOLT 8X60 7B01-0860 1 1 1
6 BUSHING OCB-500 428394-02 1 1 1
7 GASKET L=1885 4A0753L01 1 1 1
8 BULB HOLDER ABS 2A0190-01 1 1 1
9 THUMB SCREW SS, ABS 441847G01 2 2 2
10 DOOR - 105927G01 1 1 1
11 SIDE PANEL (L) GS 216810G01 1 1 1
12 SIDE PANEL (R) GS 216811G01 1 1 1
13 LOUVER (B) ABS 103121-03 1 1 1
14 AIR FILTER (B) ABS 208283G03 1 1 1
15 TAPPING SCREW (BLACK) STEEL, 4X8 433954-01 1 1 1
16 REAR PANEL GS 216808-01 1 1 1
16a TRUSS HEAD SCREW 4X16 7C31-0416 2 2 2
17 BUSHING SR-7K-2 420472-02 1 1 1
18 POWER SUPPLY CORD - 4A1773-01 1 1 1
18a TRUSS HEAD SCREW 4X8 7C31-0408 2 2 2
19 BUSHING EPDM 327768-01 1 1 1

6
HA
MODEL: KM-250BAF TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER K-0 L-0 M-0
20 TOP INSULATION PS 327756G01 1 1 1
21 BRACE GS 441739-01 2 2 2
21a TRUSS HEAD SCREW 4X16 7C31-0416 3 3 3
22 BRACKET GS 443596-01 1 1 1
23 FRAME GS 218105G01 1 1 1
23a TRUSS HEAD SCREW 4X8 7C31-0408 4 4 4
24 FRAME (L1) GS 329439-01 1 1 1
24a TRUSS HEAD SCREW 4X8 7C31-0408 2 2 2
25 FRAME (R) GS 329437-01 1 1 1
25a TRUSS HEAD SCREW 4X8 7C31-0408 3 3 3
26 COVER ABS 327764-01 1 1 1
27 FRONT FRAME SS 329427G01 1 1 1
28 SHEET EPDM 329828-01 1 1 1
29 HINGE (L) SS 441722G01 1 1 1
30 HINGE (R) SS 441723G01 1 1 1
30a HEX HEAD BOLT W/W ASHER (LF) 6X30, SS 7B0230630 4 4 4
31 COLLAR AC 431496-01 2 2 2
32 BOLT 8X30 7B01-0830 1 1 1
33 WASHER PS 4A0655-02 2 2 2
34 HOOK SS 330442-01 1 1 1
34a TRUSS HEAD SCREW 4X8 7C31-0408 2 2 2
35 BUSHING OCB-625 428394-03 3 3 3
36 WIRE SADDLE VWSV238-C 4A0338-02 2 2 2
37 BUSHING SB-625-8 420470-01 1 1 1
38 T2 SCREW 4X8 7P31-0408 1 1 1

7
HA
KM-250BWF A. ICE CUBER ASSEMBLY K-0, L-0, M-0, M-1
2
15
24a
12
1E
20
25
32
33
8
19
25a
24a
23a
16a
18
2a
C
17
16
21
21a
5a
9
5
4
10
35
30a
34
27
29
26
11 31
30
3
30a
14 2a
D1
D
6a
28
23
36 22
7
6
B
36
34a
38
37 13
24
18a

8
HA
MODEL: KM-250BWF TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER K-0 L-0 M-0 M-1
B REFRIGERATION CIRCUIT - 1A0500A01 1 1 1 -
- 1A0672A01 1
C WATER CIRCUIT - 105672A02 1 1 1 1
D CONT. BOX ASSEMBLY - 2A1801A01 1 1 1 1
D1 TRUSS HEAD SCREW 4X8 7C31-0408 1 1 1 1
E LABEL LOCATION - 3A1634A01 1 1 1 1
1 TOP PANEL - 216841-01 1 1 1 1
2 FRONT PANEL - 216843-01 1 1 1 1
2a TRUSS HEAD SCREW 4X16, SS 7C32-0416 2 2 2 1
3 BIN - 218178G01 1 1 1 2
4 BODY - 217214G01 1 1 1 1
5 CONT. BOX GUIDE GS 441714-01 1 1 1 1
5a TRUSS HEAD SCREW 4X10 7C31-0410 2 2 2 1
6 CONT. BOX COVER GS 216867-02 1 1 1 2
6a TRUSS HEAD SCREW 4X8 7C31-0408 2 2 2 1
7 BUSHING OCB-500 428394-02 1 1 1 2
8 BUSHING SB-625-8 420470-01 1 1 1 1
9 GASKET L=1885 4A0753L01 1 1 1 1
10 THUMBSCREW SS, ABS 441847G01 2 2 2 1
11 DOOR - 105927G01 1 1 1 2
12 SIDE PANEL (L) GS 216810G01 1 1 1 1
13 SIDE PANEL (R) GS 216811G01 1 1 1 1
14 LOUVER ABS 103121-03 1 1 1 1
15 TAPPING SCREW (BLACK) STEEL, 4X8 433954-01 1 1 1 1
16 REAR PANEL GS 2A1802-01 1 1 1 1
16a TRUSS HEAD SCREW 4X16 7C31-0416 2 2 2 2
17 BUSHING SR-7K-2 420472-02 1 1 1 1
18 POWER SUPPLY CORD - 4A1773-01 1 1 1 1
18a TRUSS HEAD SCREW 4X8 7C31-0408 2 2 2 2
19 BUSHING EPDM 327768-01 1 1 1 1

9
HA
MODEL: KM-250BWF TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER K-0 L-0 M-0 M-1
20 TOP INSULATION PS 327756G01 1 1 1 1
21 BRACE GS 441739-01 2 2 2 2
21a TRUSS HEAD SCREW 4X16 7C31-0416 2 2 2 2
22 BRACKET GS 443596-01 1 1 1 1
23 FRAME GS 218105G01 1 1 1 1
23a TRUSS HEAD SCREW 4X8 7C31-0408 4 4 4 4
24 FRAME (L1) GS 329438-01 1 1 1 1
24a TRUSS HEAD SCREW 4X8 7C31-0408 3 3 3 3
25 FRAME (R) GS 329437-01 1 1 1 1
25a TRUSS HEAD SCREW 4X8 7C31-0408 3 3 3 3
26 COVER ABS 327764-01 1 1 1 1
27 FRONT FRAME SS 329427G01 1 1 1 1
28 SHEET EPDM 329828-01 1 1 1 1
29 HINGE (L) SS 441722G01 1 1 1 1
30 HINGE (R) SS 441723G01 1 1 1 1
30a HEX HEAD BOLT W/ WASHER (LF) 6X30, SS 7B0230630 4 4 4 4
31 COLLAR AC 431496-01 2 2 2 2
32 WIRE SADDLE VWSV238-C 4A0338-02 2 2 2 2
33 BUSHING OCB-625 428394-03 3 3 3 3
34 HOOK SS 330442-01 1 1 1 1
34a TRUSS HEAD SCREW 4X8 7C31-0408 2 2 2 2
35 BULB HOLDER ABS 2A0190-01 1 1 1 1
36 WASHER PS 4A0655-02 2 2 2 2
37 BOLT 8X30 7B01-0830 1 1 1 1
38 HEX HEAD BOLT 8X60 7B01-0860 1 1 1 1

10
HA

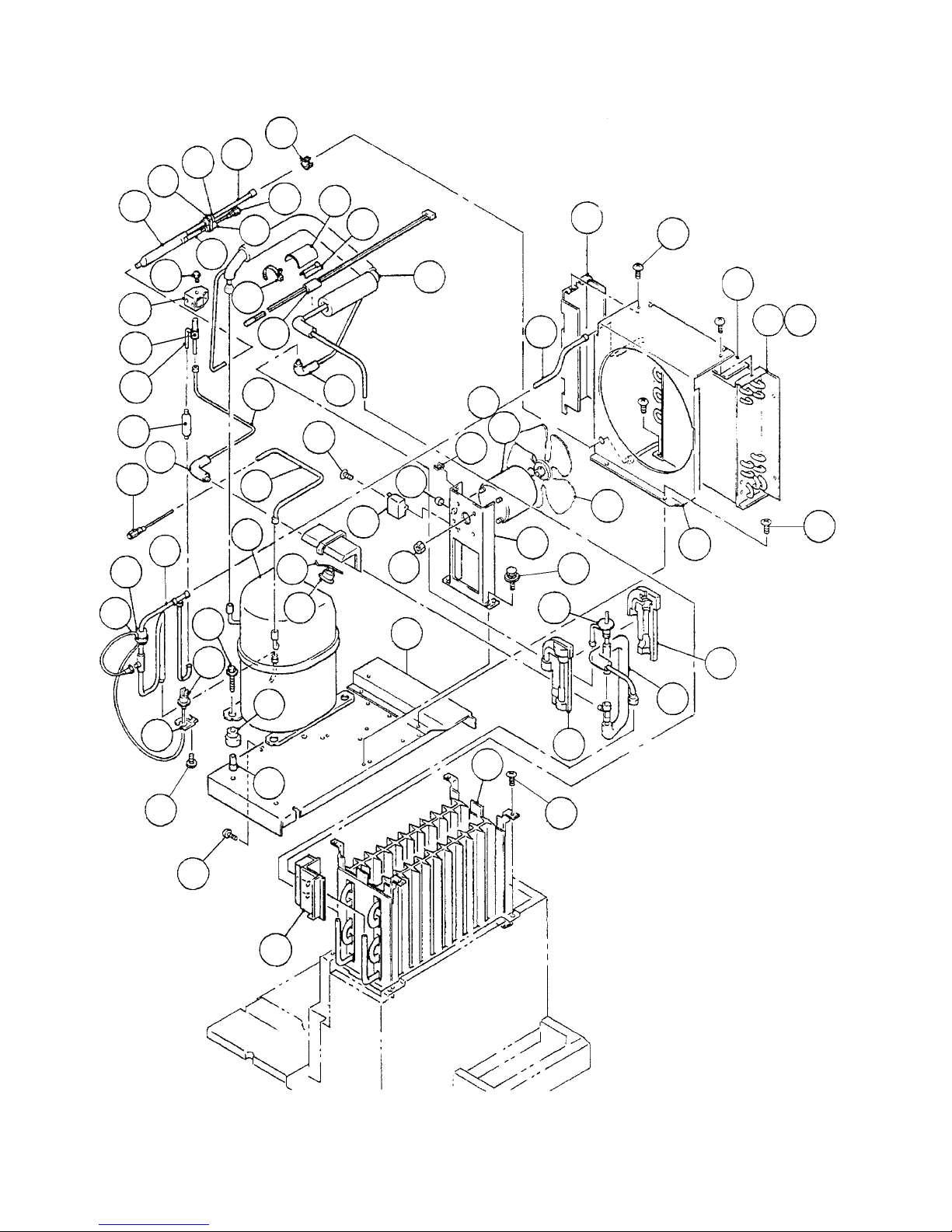

KM-250BAF B. REFRIGERATION CIRCUIT K-0, L-0, M-0
12a
16
47
48 50
41
21
39
49
22 28
27
36
32
26
20
19
23
43
22
35
37
43
3
33
45
46
25
4
24
8
7
5
6
1
31
40
14
17
12
15
13
10
34
11
42
9
18
29
38
30
2
2a
25a
12a
11a
15a
10a
9a
1a
40a
44

11
HA
MODEL: KM-250BAF TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER K-0 L-0 M-0
1 EVAPORATOR - 105638G01 1 1 1
1a TRUSS HEAD SCREW 5X8, SS 7C32-0508 4 4 4
2 BASE - 329441G02 1 1 1
2a TRUSS HEAD SCREW 4X10 7C31-0410 1 1 1
3 COMPRESSOR RS43C1E-CAA-
219
4A1272-01 1 1 x1
- 4A2300-01 o1
4 BOLT 8X45 437889-01 3 3 3
5 GROMMET 527-0039-04 434403-01 4 4 4
6 SPACER 027-0072-02 434404-01 4 4 4
7 PROTECTOR 071-0527-004 4A1805-01 1 1 1
8 PROTECTOR HOLDER COPPER 437339-01 1 1 1
9 CONDENSER - 216813-01 1 1 1
9a TRUSS HEAD SCREW 4X8 7C31-0408 1 1 1
10 SHROUD (A) GS 216829-01 1 1 1
10a TRUSS HEAD SCREW 4X8 7C31-0408 4 4 4
11 FRAME (C) GS 329436-01 1 1 1
11a T2 SCREW 4X8 7P31-0408 2 2 2
12 FAN MOTOR 7190-1031 440911-01 1 1 1
12a SELF LOCKING NUT NO. 8-32 7N21I0832 4 4 4
13 FAN BLADE - 444898-01 1 1 1
14 BUSHING OCB-500 428394-02 1 1 1
15 FAN MOTOR BRACKET GS 327754-01 1 1 1
15a HEX HEAD BOLT W/WASHER (LF) 5X12 7B0130512 4 4 4
16 DRIER KC-7424 4A2140-01 1 1 1
17 WIRE SADDLE VWSV238-C 4A0338-02 1 1 1
18 EXP. VALVE - 4A2149-01 1 1 1
19 VALVE BODY 70 440352-01 1 1 1
20 COIL VALVE ABS-25-1HD-2 440353-01 1 1 1
21 BOLT M4 X 0.7 440353F01 1 1 1
22 ACCESS VALVE 2F20NHDU-1 457729-01 2 2 2

12
HA
MODEL: KM-250BAF TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER K-0 L-0 M-0
23 STRAINER - 441569-01 1 1 1
24 PRESSURE SWITCH ACB-1UB09 433441-07 1 1 1
25 PRESSURE SWITCH BRACKET GS 434938-01 1 1 1
25a T2 SCREW 4X8 7P31-0408 1 1 1
26 THERMISTOR - 429006-02 1 1 1
27 HOLDER-THERMISTOR COPPER 436455-01 1 1 1
28 INSULATION-THERMISTOR PE FOAM 427441-01 1 1 1
29 EXP. VALVE COVER (A) PE FOAM 329504-01 1 1 1
30 EXP. VALVE COVER (B) PE FOAM 329504-02 1 1 1
31 RUBBER TUBE EPDM 327987G01 1 1 1
32 CLAMP D11-S 443461-02 2 2 2
33 COPPER TUBE (A) – HIGH SIDE COPPER 3A1760G01 1 1 1
34 COPPER TUBE (B) – HIGH SIDE COPPER 443789-01 1 1 1
35 COPPER TUBE (B) – HOT GAS COPPER 3A1680G01 1 1 1
36 HEAT EXCHANGER COPPER 218376G02 1 1 1
37 COPPER TUBE –ACCESS VALVE COPPER 4A2150G01 1 1 1
38 COPPER TUBE (A) –LOW SIDE COPPER 329683G01 1 1 1
39 COPPER TUBE (A) –DRIER COPPER 4A2151G01 1 1 1
40 CAPACITOR 5.0µf 250 VAC 443192-02 1 1 1
40a T2 SCREW 4X10 7P31-0410 1 1 1
41 BUSHING OCB-625 428394-03 1 1 1
42 INSULATION SHEET PE FOAM 444686-01 1 1 1
43 INSULATION TUBE L=80 7762-1020 2 2 2
44 COPPER TUBE (D) COPPER 4A2277-01 1 1 1
45 INSULATION TUBE L=40 7762-2030 1 1 1

13
HA
MODEL: KM-250BAF TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER K-0 L-0 M-0
46 CABLE TIE CV-100 7920-0002 1 1 1
47 CABLE TIE CV-200 7920-0010 6 6 6
48 INSULATION TUBE L=40 7762-0717 1 1 1
49 INSULATION TUBE L=40 7762-1020 1 1 1
50 COPPER TUBE - CONDENSER COPPER 4A0195-01 1 1 1

14
HA
KM-250BWF B. REFRIGERATION CIRCUIT K-0, L-0, M-0, M-1
24
17a
17
15
25
35
10
29
41
14
13
39
32
16
41
15
33
30 3
28
40 4
20
19 5
6
8
7
31
37
36
38
28
9a
9
11
26
34
27
2
2a
11a 21 22 24 23
43
12
42
18 17b
19a

15
HA
MODEL: KM-250BWF TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER K-0 L-0 M-0 M-1
1 EVAPORATOR - 105638G01 1 1 1 1
1a TRUSS HEAD SCREW 5X8, SS 7C32-0508 4 4 4 4
2 BASE - 329440G02 1 1 1 -
- 2A2408G01 1
2a TRUSS HEAD SCREW 4X10 7C31-0410 1 1 1 1
3 COMPRESSOR RS4-3C1E-
CAA-219
4A2300-01 1 1 1 1
4 BOLT 8X45 437889-01 3 3 3 3
5 GROMMET 027-0073-00 434403-01 4 4 4 4
6 SPACER 027-0072-02 434404-01 4 4 4 4
7 PROTECTOR 071-0527-004 4A1805-01 1 1 1 1
8 PROTECTOR HOLDER COPPER 437339-01 1 1 1 1
9 CONDENSER-WATER COOLED (S-0800) 218184G01 1 1 1 -
HS-0160 2A2359G01 1
9a HEX HEAD BOLT W/WASHER (LF) 4X12 7B0230412 3 3 3 -
5X12 7B0230512 2
10 DRIER SKC 20665 4A2140-01 1 1 1 1
11 EXP. VALVE - 4A2149-01 1 1 1 1
12 VALVE BODY 70 440352-01 1 1 1 1
13 COIL VALVE - 440353-01 1 1 1 1
14 BOLT M4 X 0.7 440353F01 1 1 1 1
15 ACCESS VALVE TCJ-
2F20NHDU-1
457729-01 2 2 2 2
16 STRAINER - 441569-01 1 1 1 1
17 WATER REGULATOR - 4A0911-03 1 1 1 1
17a TRUSS HEAD SCREW 4X8 7C31-0408 2 2 2 2
17b T2 SCREW 4X8 7P31-0408 4 4 4 4
18 MALE CONNECTOR 48F-8-6 4A1284-01 1 1 1 1
19 PRESSURE SWITCH BRACKET GS 434938-01 1 1 1 1
19a T2 SCREW 4X8 7P31-0408 1 1 1 1
20 PRESSURE SWITCH ACD-1UB04 433441-05 1 1 1 1

16
HA
MODEL: KM-250BWF TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER K-0 L-0 M-0 M-1
21 THERMISTOR - 429006-02 1 1 1 1
22 HOLDER-THERMISTOR COPPER 436455-01 1 1 1 1
23 INSULATION-THERMISTOR PE FOAM 427441-01 1 1 1 1
24 CABLE TIE CV-200 7920-0010 6 6 6 6
25 INSULATION TUBE L=40 7762-0717 1 1 1 1
26 EXP. VALVE COVER (A) PE FOAM 329504-01 1 1 1 1
27 EXP. VALVE COVER (B) PE FOAM 329504-02 1 1 1 1
28 INSULATION TUBE L=40 7762-2030 2 2 2 2
29 CLAMP D11-S 443461-02 1 1 1 1
30 COPPER TUBE (A) –HIGH SIDE COPPER 329684G02 2 2 2 2
31 COPPER TUBE (B) –HIGH SIDE COPPER 4A2162G01 1 1 1 -
COPPER 4A2689G01 1
32 COPPER TUBE (B) –HOT GAS COPPER 4A2219G01 1 1 1 -
COPPER 3A1680G01 1
33 COPPER TUBE –ACCESS VALVE COPPER 4A2150G01 1 1 1 1
34 COPPER TUBE (A) –LOW SIDE COPPER 329683G01 1 1 1 1
35 COPPER TUBE (A) - DRIER COPPER 4A2151G01 1 1 1 1
36 COPPER TUBE (B) –DRIER COPPER 443793G01 1 1 1 -
COPPER 4A2688G01 1
37 COPPER TUBE (A) COPPER 4A2174G01 1 1 1 1
38 COPPER TUBE (B) COPPER 3A1638G01 1 1 1 -
COPPER 3A2233G01 1
39 COPPER TUBE (D) COPPER 4A2217-01 1 1 1 1
40 CABLE TIE CV-100 7920-0002 2 2 2 2
41 INSULATION TUBE L=80 7762-1020 2 2 2 2
42 HEAT EXCHANGER COPPER 218376G02 1 1 1 1
43 RUBBER TUBE EPDM 327987G01 1 1 1 1

17
HA
KM-250BAF, BWF C. WATER CIRCUIT (1/2) K-0, L-0, M-0, M-1

18
HA
KM-250BAF, BWF C. WATER CIRCUIT (2/2) K-0, L-0, M-0, M-1

19
HA
MODEL: KM-250BAF, BWF TITLE:C. WATER CIRCUIT
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER K-0 L-0 M-0 M-1
G PUMP MOTOR ASSEMBLY (S-0759) 216963A01 1 1 1 1
G1 TRUSS HEAD SCREW 5X10, SS 7C32-0510 1 1 1 1
1 WATER VALVE J248-12 3U0145-01 1 1 1 1
1a TRUSS HEAD SCREW 4X8 7C31-0408 2 2 2 2
2 DISTRIBUTOR HOSE (B) EPDM 443489-01 1 1 1 1
3 JOINT ABS 443490-01 1 1 1 1
4 DISTRIBUTOR HOSE (C) EPDM 443491-01 1 1 1 1
5 WATER SPRAY TUBE PE 1A0066-01 1 1 1 1
6 SPRAY GUIDE PE 208586-01 4 4 4 4
7 WATER SUPPLY TUBE PE 2A0198-01 1 1 1 1
8 PLUG EPDM 4A0176-01 2 2 2 2
9 ELBOW ABS 4A0393-01 1 1 1 1
10 TANK ABS 216844G01 1 1 1 1
11 INSERT COUPLING PE 4A1632-01 1 1 1 1
12 THUMB SCREW SS, ABS 415949G04 2 2 2 2
13 VINYL HOSE L=40 7716-1216 1 1 1 1
14 OVERFLOW PIPE ABS 327771-01 1 1 1 1
15 OVERFLOW CAP PE 327769-01 1 1 1 1
16 TANK DRAIN HOSE EPDM 327751-01 1 1 1 1
17 CUBE GUIDE ABS 218436G01 1 1 1 1
18 FLOAT SWITCH BRACKET ABS 327757-01 1 1 1 1
18a T2 SCREW 4X12, SS 7P32-0412 2 2 2 2
19 FLOAT SWITCH 163795 4A0886-01 1 1 1 1
19a T2 SCREW 4X8, SS 7P32-0408 2 2 2 2
20 SOLENOID VALVE 207CB-
GS1873
439322-01 1 1 1 1
20a TRUSS HEAD SCREW 4X8 7C31-0408 2 2 2 2
21 ARROW LABEL PES 4A0096-01 1 1 1 1
22 VINYL HOSE L=310 7716-2025 1 1 1 1
23 SOLENOID VALVE BRACKET GS 4A0340-01 1 1 1 1

20
HA
MODEL: KM-250BAF, -BWF TITLE:C. WATER CIRCUIT
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER K-0 L-0 M-0 M-1
23a TRUSS HEAD SCREW 4X10 7C31-0410 2 2 2 2
24 VINYL HOSE L=360 7716-1519 1 1 1 1
25 BUSHING (A) EPDM 443277-01 1 1 1 1
26 CAP ABS 443278-01 1 1 1 1
27 DRAIN (A) ABS 329078-01 1 1 1 1
28 FITTING (A) - 443613-01 1 1 1 1
29 HOSE CLAMP 18MM, SS 427443-05 7 7 7 7
30 HOSE CLAMP 20MM, SS 427443-06 1 1 1 1
31 HOSE CLAMP 25MM, SS 427443-03 3 3 3 3
32 HOSE CLAMP 23MM, SS 127443-10 1 1 1 1
33 INSULATION TUBE L=300 7762-2030 1 1 1 1
34 DRAIN AC 309246-01 1 1 1 1
35 RUBBER GASKET NR 413854-01 1 1 1 1
36 VINYL HOSE L=150 7716-1216 1 1 1 1
37 ELBOW ABS 436311-01 1 1 1 1
38 VINYL HOSE L=200 7716-2025 1 1 1 1
39 TIE CV-150 7920-0003 2 2 2 2
40 “O”RING AS568-218 4A1234-01 1 1 1 1
41 “O”RING 1AP15 7611-P015 1 1 1 1
