Hoshizaki KM-150BAF-E User manual

PARTS LIST
SELF-CONTAINED CRESCENT CUBER
89/336
73/23
HOSHIZAKI
NUMBER: 71179
ISSUED: FEB. 29, 2000
KM-150BAF-E
KM-150BWF-E
REVISED: MARCH 7,2000

HA
2
Auxiliary Codes
KM-150BAF-E J-0 FEB. 1999
KM-150BWF-E K-0 MARCH 2000
IMPORTANT
IEC standards require that the clamping means of earthing terminals be
adequately secured against accidental loosening and that accessible metal parts
of the icemaker which may become live in the event of an insulation fault be
permanently and reliably connected to an earthing terminal within the icemaker or
to the earthing contact of the icemaker inlet.
This is accomplished in this icemaker through the use of stainless steel toothed
washers, Hoshizaki Part # 7R22-0400.

HA
3
MATERIAL ABBREVIATIONS
ALUMINUM
AL = Aluminum
COPPER
CU = Copper
PLASTIC
ABS = Acrylonitrile -butadiene - styrene
AC = Polyacetal
EVA = Ethylene vinyl acetate
PA = Polyamide =Nylon
PC = Polycarbonate
PE = Polyethylene
PES = Polyester
PETP = Polyethylene terephthalate = Tetlon
PP = Polypropylene
PS = Polystyrene
PTFE = Polytetrafluoroethylene = Teflon
PUR = Polyurethane
PVC = Polyvinyl chloride
RUBBER
VN = VinylNitrile
EPDM = EP rubber
NBR = Nitrile butadiene rubber
NR = Natural rubber
NP = Neoprene
SI.R = Silicone rubber
SY.R = Synthetic rubber
EPH = Epichlorohydrin
STEEL
GS = Galvanizedsteel
SS = Stainless steel
PS = Plated steel
PAS = Primedsteel
AUXILIARYCODE
Ex.1 K-0Parts are the same as in the preceding (Note) - = Part deleted.
year. x = Part deleted and replaced
"K" is the tenth in alphabetical order with "I" by "o" part.
skipped. So, "K" indicates "2000". o = New part for "x"
Ex.2 A-1 in the same auxiliary code.
"A" is the first in alphabetical
order. So, "A" indicates "2001".
Ex.3 A-2Each time a part is changed (non-interchangeably)
in a year, this number advances.

HA
4

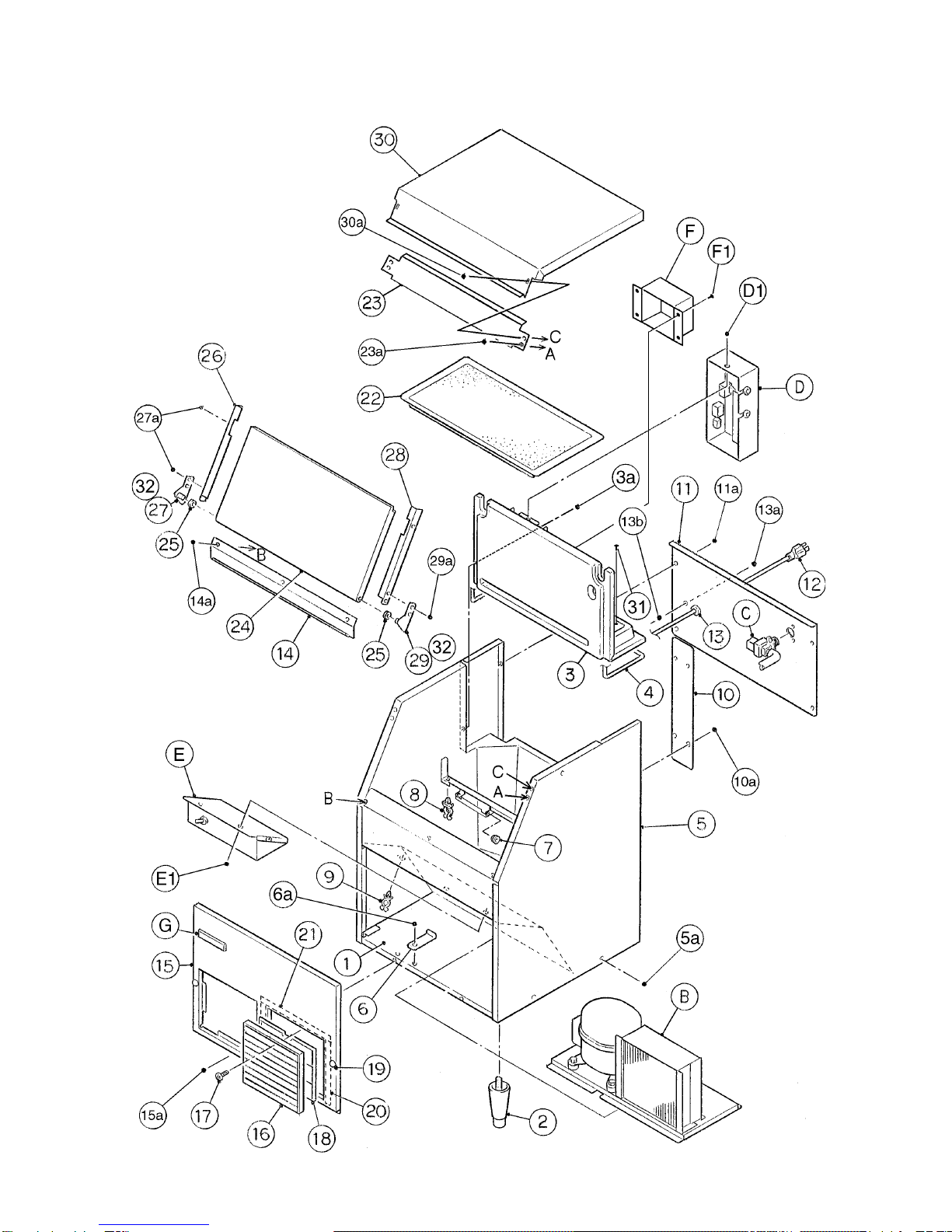

KM-150BAF-E A.ICE CUBER ASSEMBLY J-0

HA
5
MODEL: KM-150BAF-E TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL OR
MODEL PART NUMBER REQUIRED NUMBER
NUMBER J-0
B REFRIGERATION CIRCUIT - 1A0404A01 1
C WATER CIRCUIT - 108446A02 1
D CONT. BOX ASSEMBLY (A) - 338868A03 1
D1 T2 SCREW 4X8 7P31-0408 1
E CONT. BOX ASSEMBLY (B) - 226318A02 1
E1 T2 SCREW 4X8 7P31-0408 2
F TRANSFORMER BOX ASSEMBLY - 3A1243A01 1
F1 TRUSS HEAD SCREW 4X8, SS 7C32-0408 4
G LABEL LOCATION - 3A1255A01 1
1 BASE - 108448G02 1
2 LEG AE62-99124 4A1181-01 4
3 PANEL REAR - 226469G02 1
3a TRUSS HEAD SCREW 4X25, SS 7C32-0425 5
4 GASKET L=1260 4A0753L01 1
5 BODY-INSULATION - 108444G01 1
5a T2 SCREW 4X8, SS 7P32-0408 4
6 STOPPER GS 452825-01 1
6a T2 SCREW 4X8, SS 7P32-0408 1
7 CAPILLARY RING EPDM 425307-01 2
8 CLAMP WS50-25-C 4A0337-07 2
9 CLAMP WS75-25-C 4A0337-10 2
10 REAR PANEL (B) GS 452641-01 1
10a T2 SCREW 4X8, SS 7P32-0408 4
11 REAR PANEL (A) GS 2A1436-01 1
11a T2 SCREW 4X8, SS 7P32-0408 6
12 POWER SUPPLY CORD - 452359-02 1
13 BUSHING CEE SR-6P30 450414-01 1
13a TRUSS HEAD SCREW 4X8, SS 7C32-0408 1
13b HEX NUT 4, SS 7N12-0400 1
14 FRONT COVER (B) PS 338861-01 1

HA
6
MODEL: KM-150BAF-E TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL OR
MODEL PART NUMBER REQUIRED NUMBER
NUMBER J-0
14a T2 SCREW 4X8, SS 7P32-0408 3
15 FRONT PANEL GS 226307-01 1
15a TRUSS HEAD SCREW 4X8, SS 7C32-0408 2
16 LOUVER - 103344-08 2
17 TAPPING SCREW (BLACK) - 433954-01 2
18 AIR FILTER (A) ABS 208840G03 1
19 CUSHION SJ-5027 4A1178-01 2
20 INSULATION (D) PE FOAM 452649-01 2
21 INSULATION (A) PE FOAM 452694-01 1
22 INSULATION-TOP PS 338859G01 1
23 SUPPORT-TOP PANEL SS 453877-01 1
23a FLAT HEAD SCREW 4X12, SS 7C22-0412 2
24 DOOR PE 226305G01 1
25 COLLAR AC 431496-01 2
26 FRONT COVER (L) SS 339026-01 1
27 HINGE (L) SS 452824G01 1
27a TRUSS HEAD SCREW 4X16, SS 7C32-0416 3
28 FRONT COVER (R) SS 338860-01 1
29 HINGE (R) SS 452640G01 1
29a TRUSS HEAD SCREW 4X16, SS 7C32-0416 3
30 TOP PANEL SS 108449-01 1
30a TRUSS HEAD SCREW 4X8, SS 7C32-0408 2
31 T2 SCREW 4X8, SS 7P32-0408 1
32 WASHER 8, SS 7W22-0800 2

HA
7
KM-150BWF-E A.ICE CUBER ASSEMBLY K-0

HA
8
MODEL: KM-150BWF-E TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL OR
MODEL PART NUMBER REQUIRED NUMBER
NUMBER K-0
B REFRIGERATION CIRCUIT - 1A0405A01 1
C WATER CIRCUIT - 108446A02 1
D CONT. BOX ASSEMBLY (A) - 338868A03 1
D1 T2 SCREW 4X8 7P31-0408 1
E CONT. BOX ASSEMBLY (B) - 226318A02 1
E1 T2 SCREW 4X8 7P31-0408 2
F TRANSFORMER BOX ASSEMBLY - 3A1243A01 1
F1 TRUSS HEAD SCREW 4X8, SS 7C32-0408 4
G LABEL LOCATION - 3A1256A01 1
1 BASE - 108448G02 1
2 LEG AE62-99124 4A1181-01 4
3 PANEL REAR - 226469G02 1
3a TRUSS HEAD SCREW 4X25, SS 7C32-0425 5
4 GASKET L=1260 4A0753L01 1
5 BODY-INSULATION - 1A0312G01 1
5a T2 SCREW 4X8, SS 7P32-0408 4
6 STOPPER GS 452825-01 1
6a T2 SCREW 4X8, SS 7P32-0408 1
7 CAPILLARY RING EPDM 425307-01 2
8 CLAMP WS50-25-C 4A0337-07 2
9 CLAMP WS75-25-C 4A0337-10 2
10 REAR PANEL (B) GS 452641-01 1
10a T2 SCREW 4X8, SS 7P32-0408 4
11 REAR PANEL (A) GS 226306-01 1
11a T2 SCREW 4X8, SS 7P32-0408 6
12 POWER SUPPLY CORD - 4A1773-02 1
13 BUSHING CEE SR-6P30 450414-01 1
13a TRUSS HEAD SCREW 4X8, SS 7C32-0408 1
13b HEX NUT 4, SS 7N12-0400 1
14 FRONT COVER (B) PS 338861-01 1

HA
9
MODEL: KM-150BWF-E TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL OR
MODEL PART NUMBER REQUIRED NUMBER
NUMBER K-0
14a T2 SCREW 4X8, SS 7P23-0408 3
15 FRONT PANEL GS 226783-01 1
15a TRUSS HEAD SCREW 4X8, SS 7C32-0408 2
16 LOUVER - 103344-08 2
17 TAPPING SCREW (BLACK) - 433954-01 2
18 REAR PANEL (C) GS 4A1667-01 1
18a T2 SCREW 4X8, SS 7P32-0408 2
19 CUSHION SJ-5027 4A1178-01 2
20 INSULATION-TOP PS 338859G01 1
21 SUPPORT-TOP PANEL SS 453877-01 1
21a FLAT HEAD SCREW 4X12, SS 7C22-0412 2
22 DOOR PE 226305G01 1
23 COLLAR AC 431496-01 2
24 FRONT COVER (L) SS 339026-01 1
25 HINGE (L) SS 452824G01 1
25a TRUSS HEAD SCREW 4X16, SS 7C32-0416 3
26 FRONT COVER (R) SS 338860-01 1
27 HINGE (R) SS 452640G01 1
27a TRUSS HEAD SCREW 4X16, SS 7C32-0416 3
28 TOP PANEL SS 108449-01 1
28a TRUSS HEAD SCREW 4X8, SS 7C32-0408 2
29 T2 SCREW 4X8, SS 7P32-0408 1
30 WASHER 8, SS 7W220800 2

HA
10
KM-150BAF-E B. REFRIGERATION CIRCUIT J-0

HA
11
MODEL: KM-150BAF-E TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO. DESCRIPTION MATERIAL OR
MODEL PART NUMBER REQUIRED NUMBER
NUMBER J-0
H EVAPORATOR - 108456A02 1
H1 TRUSS HEAD SCREW 4X8, SS 7C32-0408 4
1 UNIT BASE GS 3A1254G01 1
1a HEX HEAD BOLT W/WASHER (LF) 5X12, SS 7B0230512 2
2 COMPRESSOR #SC10CL 4A1845-01 1
3 STARTING CAPACITOR #117U5017 4A1460-01 1
4 RUBBER GROMMET #118-3655 4A1452-01 4
5 SLEEVE #112-2052 4A1451-01 4
6 BOLT #681x1130 4A1459-01 4
7 WASHER #112-2053 4A1450-01 4
8 START RELAY #117U6003 4A1847-01 1
9 CONDENSER - 226311-01 1
9a T2 SCREW 4X8 7P31-0408 4
10 SHROUD GS 338864-01 1
10a T2 SCREW 4X8 7P31-0408 6
11 FAN MOTOR SP-825EM1 (25W) 4A1883-01 1
12 SCREW C-1021 STEEL 436863-01 4
13 WASHER #A12C20A19 435983-01 1
14 HEX NUT PS 4A1345-01 1
15 FAN BLADE AD9CW30UBA 3A0436-01 1
16 BRACKET – FM GS 452650-01 1
16a HEX HEAD BOLT W/WASHER (LF) 5X12, SS 7B0230512 2
17 DRIER KC-7980 446574-01 1
18 VALVE BODY - 3U0151-01 1
19 COIL VALVE - 3U0151F01 1
19a BOLT - 3U0151F02 1
19b TRUSS HEAD SCREW 4X6 7C31-0406 2
20 BRACKET HG GS 452652-01 1
20a T2 SCREW 4X8 7P31-0408 2

HA
12
MODEL: KM-150BAF-E TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO. DESCRIPTION MATERIAL OR
MODEL PART NUMBER REQUIRED NUMBER
NUMBER J-0
21 PRESSURE SWITCH ACB-1UB09 433441-07 1
22 PRESSURE SWITCH BRACKET GS 434938-01 1
22a T2 SCREW 4X8 7P31-0408 1
23 COPPER TUBE –HIGH SIDE COPPER 3A1283G01 1
24 COPPER TUBE –CONDENSER COPPER 4A2022G01 1
25 HEAT EXCHANGER COPPER 2A1492G01 1
26 COPPER TUBE (A) –HOT GAS COPPER 2A1671G01 1
27 COPPER TUBE (A) –ACCESS VALVE COPPER 4A1852G01 1
28 EXP. VALVE HFE-5NDH-1 452870-01 1
29 RUBBER TUBE EPDM 452651-01 2
30 THERMISTOR L=750 429006-02 1
31 HOLDER-THERMISTOR COPPER 436455-01 1
32 INSULATION-THERMISTOR PE FOAM 427441-01 1
33 EXP. VALVE COVER (A) PE FOAM 324214-01 1
34 EXP. VALVE COVER (B) PE FOAM 324214-02 1
35 CLAMP 6806 443461-02 2
36 SEPARATOR PS 226329-01 1
37 CLAMP GS 452692-01 1
37a T2 SCREW 4X8 7P31-0408 1
38 INSULATION TUBE L=30 7762-1020 3
39 CABLE TIE CV-200 7920-0010 12
40 INSULATION (B)-EXPV L=140 7762-0717 1
41 INSULATION –DRIER L=145 7762-2030 1
42 COVER 103N2002 4A1453-01 1

HA
13
KM-150BWF-E B. REFRIGERATION CIRCUIT K-0

HA
14
MODEL: KM-150BWF-E TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO. DESCRIPTION MATERIAL OR
MODEL PART NUMBER REQUIRED NUMBER
NUMBER K-0
H EVAPORATOR - 108456A02 1
H1 TRUSS HEAD SCREW 4X8, SS 7C32-0408 4
1 UNIT BASE GS 3A1281G01 1
1a HEX HEAD BOLT W/WASHER (LF) 5X12, SS 7B0230512 2
2 COMPRESSOR #SC10CL 4A1845-01 1
3 STARTING CAPACITOR #117U5017 4A1460-01 1
4 RUBBER GROMMET #118-3655 4A1452-01 4
5 SLEEVE #112-2052 4A1451-01 4
6 BOLT #681x1130 4A1459-01 4
7 WASHER #112-2053 4A1450-01 4
8 START RELAY #117U6003 4A1847-01 1
9 CONDENSER –WATER COOLED COPPER 226808-01 1
9a T2 SCREW 4X8 7P31-0408 3
10 DRIER KC-7980 446574-01 1
11 WATER REGULATOR V46DA-3 4A0911-03 1
12 MALE CONNECTOR 48F-6-6 4A1284-01 1
12a TRUSS HEAD SCREW 4X6 7C31-0406 2
13 WATER REGULATOR BRACKET GS 453147-01 1
13a T2 SCREW 4X8 7P31-0408 3
14 VALVE BODY - 3U0151-01 1
15 COIL VALVE - 3U0151F01 1
15a BOLT - 3U0151F02 1
15b T2 SCREW 4X6 7P31-0406 2
16 BRACKET HG GS 4A2037-01 1
16a T2 SCREW 4X8 7P31-0408 2
17 PRESSURE SWITCH PS 433411-05 1
18 PRESSURE SWITCH BRACKET GS 434938-01 1
18a T2 SCREW 4X8 7P31-0408 1
19 COPPER TUBE –HIGH SIDE COPPER 3A1505G01 1
20 COPPER TUBE (A) –WATER SIDE COPPER 3A1139G01 1

HA
15
MODEL: KM-150BWF-E TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO. DESCRIPTION MATERIAL OR
MODEL PART NUMBER REQUIRED NUMBER
NUMBER K-0
21 COPPER TUBE (B) –WATER SIDE COPPER 4A2038G01 1
21a T2 SCREW 4X8, SS 7P32-0408 2
22 COPPER TUBE (C) –WATER SIDE COPPER 4A1695G01 2
22a T2 SCREW 4X8, SS 7P32-0408 2
23 HEAT EXCHANGER - 2A1681G01 1
24 COPPER TUBE (A) –HOT GAS COPPER 2A1671G01 1
25 COPPER TUBE (A) –ACCESS VALVE COPPER 4A1852G01 1
26 EXP. VALVE HFE-5NDH-1 452870-01 1
27 RUBBER TUBE EPDM 452651-01 2
28 THERMISTOR L=750 429006-02 1
29 HOLDER-THERMISTOR COPPER 436455-01 1
30 INSULATION-THERMISTOR PE FOAM 427441-01 1
31 EXP. VALVE COVER (A) PE FOAM 324214-01 1
32 EXP. VALVE COVER (B) PE FOAM 324214-02 1
33 CLAMP 6806 443461-02 2
34 SEPARATOR PS 226329-01 1
35 CLAMP GS 452692-01 1
35a T2 SCREW 4X8 7P31-0408 1
36 INSULATION TUBE L=30 7762-1020 2
37 CABLE TIE CV-200 7920-0010 13
38 INSULATION (B) –EXPV. L=140 7762-0717 1
39 INSULATION –DRIER L=145 7762-2030 1
40 FLARE NUT MN30J 403695-01 1
41 FLEXIBLE TUBING L=650 4A1685-01 1
42 INSULATION L=800 7762-1323 1
43 FLEXIBLE TUBING L=750 4A1685-02 1
44 INSULATION L=890 7762-1323 1
45 MALE CONNECTOR 48F-8-6 4A1087-01 4
46 COVER 103N2002 4A1453-01 1
47 COPPER TUBE (K) –HIGH SIDE COPPER 339426G02 1

HA
16

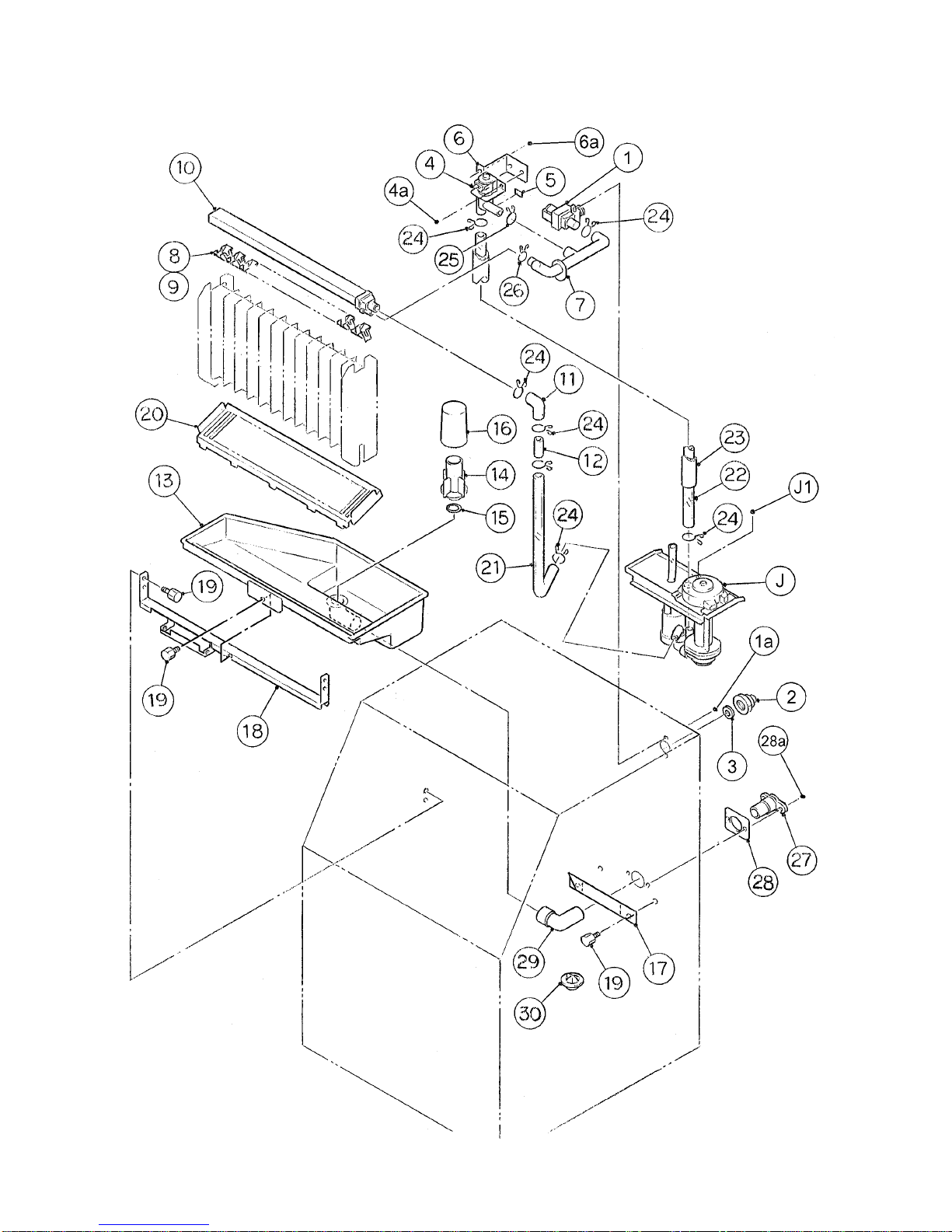

KM-150BAF-E, BWF-E C.WATER CIRCUIT J-0, K-0

HA
17
MODEL: KM-150BAF-E TITLE:C. WATER CIRCUIT
INDEX
NO. DESCRIPTION MATERIAL OR
MODEL PART NUMBER REQUIRED NUMBER
NUMBER J-0
J PUMP MOTOR ASSEMBLY - 226314A01 1
J1 TRUSS HEAD SCREW 5X10, SS 7C32-0510 1
1 WATER VALVE - 4A1955A02 1
1a TRUSS HEAD SCREW 4X8 7C31-0408 2
2 FITTING (A) - 443613-01 1
3 RUBBER GASKET NR 412854-03 1
4 SOLENOID VALVE 207CG-GS1873 439322-01 1
4a TRUSS HEAD SCREW 4X8 7C31-0408 2
5 ARROW LABEL PES FILM 4A0096-01 1
6 BRACKET-SOLENOID VALVE GS 452656-01 1
6a TRUSS HEAD SCREW 4X8 7C31-0408 2
7 WATER SUPPLY HOSE EPDM 338865-01 1
8 SPRAY GUIDE (A) - 208586-01 2
9 SPRAY GUIDE (D) - 208586-04 1
10 SPRAY TUBE ABS 452657G02 1
11 ELBOW EPDM 433467-01 1
12 JOINT PIPE ABS 439329-01 1
13 TANK ABS 108458G01 1
14 OVERFLOW PIPE ABS 327771-01 1
15 “O”RING - 4A1234-01 1
16 OVERFLOW CAP PE 327769-01 1
17 SUPPORT-TANK SS 452658-01 1
18 RAIL-TANK SS 339526G01 1
19 THUMB SCREW - 415949G04 7
20 CUBE GUIDE ABS 226313-01 1
21 VINYL HOSE L=460 7716-1519 1
22 VINYL HOSE L=335 7716-1519 1
23 INSULATION TUBE L=180 7762-2030 1
24 HOSE CLAMP 18mm, SS 427443-05 7

HA
18
MODEL: KM-150BAF-E TITLE:C. WATER CIRCUIT
INDEX
NO. DESCRIPTION MATERIAL OR
MODEL PART NUMBER REQUIRED NUMBER
NUMBER J-0
25 HOSE CLAMP 20mm, SS 427443-06 1
26 HOSE CLAMP 13.5mm, SS 427443-07 1
27 FITTING-DRAIN 85-5-5-5 BRASS 452659-01 1
28 SPACER ABS 452660-01 1
28a TRUSS HEAD SCREW 4X12, SS 7C32-0412 2
29 TANK DRAIN HOSE ABS 452693-01 1
30 DRAIN CAP - 322015-01 1

HA
19
MODEL: KM-150BWF-E TITLE:C. WATER CIRCUIT
INDEX
NO. DESCRIPTION MATERIAL OR
MODEL PART NUMBER REQUIRED NUMBER
NUMBER K-0
J PUMP MOTOR ASSEMBLY - 226314A01 1
J1 TRUSS HEAD SCREW 5X10, SS 7C32-0510 1
1 WATER VALVE - 4A1955A02 1
1a TRUSS HEAD SCREW 4X8 7C31-0408 2
2 FITTING (A) - 443613-01 1
3 RUBBER GASKET NR 413854-03 1
4 SOLENOID VALVE 207CG-GS1873 439322-01 1
4a TRUSS HEAD SCREW 4X8 7C31-0408 2
5 ARROW LABEL PES FILM 4A0096-01 1
6 BRACKET-SOLENOID VALVE GS 452656-01 1
6a TRUSS HEAD SCREW 4X8 7C31-0408 2
7 WATER SUPPLY HOSE EPDM 338865-01 1
8 SPRAY GUIDE (A) - 208586-01 2
9 SPRAY GUIDE (D) - 208586-04 1
10 SPRAY TUBE ABS 452657G02 1
11 ELBOW EPDM 433467-01 1
12 JOINT PIPE ABS 439329-01 1
13 TANK ABS 108458G01 1
14 OVERFLOW PIPE ABS 327771-01 1
15 “O”RING - 4A1234-01 1
16 OVERFLOW CAP PE 327769-01 1
17 SUPPORT-TANK SS 452658-01 1
18 RAIL-TANK SS 339526G01 1
18a THUMB SCREW - 415949G04 7
19 CUBE GUIDE ABS 226313-01 1
20 VINYL HOSE L=460 7716-1519 1
21 VINYL HOSE L=335 7716-1519 1
22 INSULATION TUBE L=180 7762-2030 1
23 HOSE CLAMP 18mm, SS 427443-05 7

HA
20
MODEL: KM-150BWF-E TITLE:C. WATER CIRCUIT
INDEX
NO. DESCRIPTION MATERIAL OR
MODEL PART NUMBER REQUIRED NUMBER
NUMBER K-0
24 HOSE CLAMP 20mm, SS 427443-06 1
25 HOSE CLAMP 13.5mm, SS 427443-07 1
26 FITTING-DRAIN 85-5-5-5 BRASS 452659-01 1
27 SPACER ABS 452660-01 1
27a TRUSS HEAD SCREW 4X12, SS 7C32-0412 2
28 TANK DRAIN HOSE ABS 452693-01 1
29 DRAIN CAP - 322015-01 1
