Hoshizaki KMH-2100SRJZ User manual

Models
KMH-2100SWJ3, SRJZ/3
Stackable Crescent Cuber
Instruction Manual
Issued: 1-19-2022
hoshizakiamerica.com

2
WARNING
Only qualied service technicians should install and service the appliance. To
obtain the name and phone number of your local Hoshizaki Certied Service
Representative, visit www.hoshizaki.com. No installation or service should be
undertaken until the technician has thoroughly read this Instruction Manual.
Likewise, the owner/manager should not proceed to operate the appliance until the
installer has instructed them on its proper operation. Failure to install, operate, and
maintain the appliance in accordance with this manual will adversely affect safety,
performance, component life, and warranty coverage and may result in costly water
damage. Proper installation is the responsibility of the installer. Product failure or
property damage due to improper installation is not covered under warranty.
Hoshizaki provides this manual primarily to assist qualied service technicians in the
installation, maintenance, and service of the appliance.
Should the reader have any questions or concerns which have not been satisfactorily
addressed, please call, send an e-mail message, or write to the Hoshizaki Technical
Support Department for assistance.
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
618 Highway 74 South
Peachtree City, GA 30269
Attn: Hoshizaki Technical Support Department
NOTE: To expedite assistance, all correspondence/communication MUST include the
following information:
• Model Number
• Serial Number
• Complete and detailed explanation of the problem.

3
CONTENTS
Important Safety Information ................................................................................................. 4
I. Specications...................................................................................................................... 6
A. Electrical and Refrigerant Data ..................................................................................... 6
B. Dimensions/Connections .............................................................................................. 7
1. Water-Cooled Models (SWJ3) .................................................................................. 7
2. Remote Models (SRJZ/3) ........................................................................................ 8
3. Remote Condenser Unit URC-22FZ........................................................................ 9
II. Installation and Operating Instructions ............................................................................ 10
A. Location ...................................................................................................................... 10
B. Checks Before Installation........................................................................................... 10
C. How to Remove Panels................................................................................................11
D. Setup........................................................................................................................... 12
1. Ice Storage Bin and Icemaker Setup ..................................................................... 12

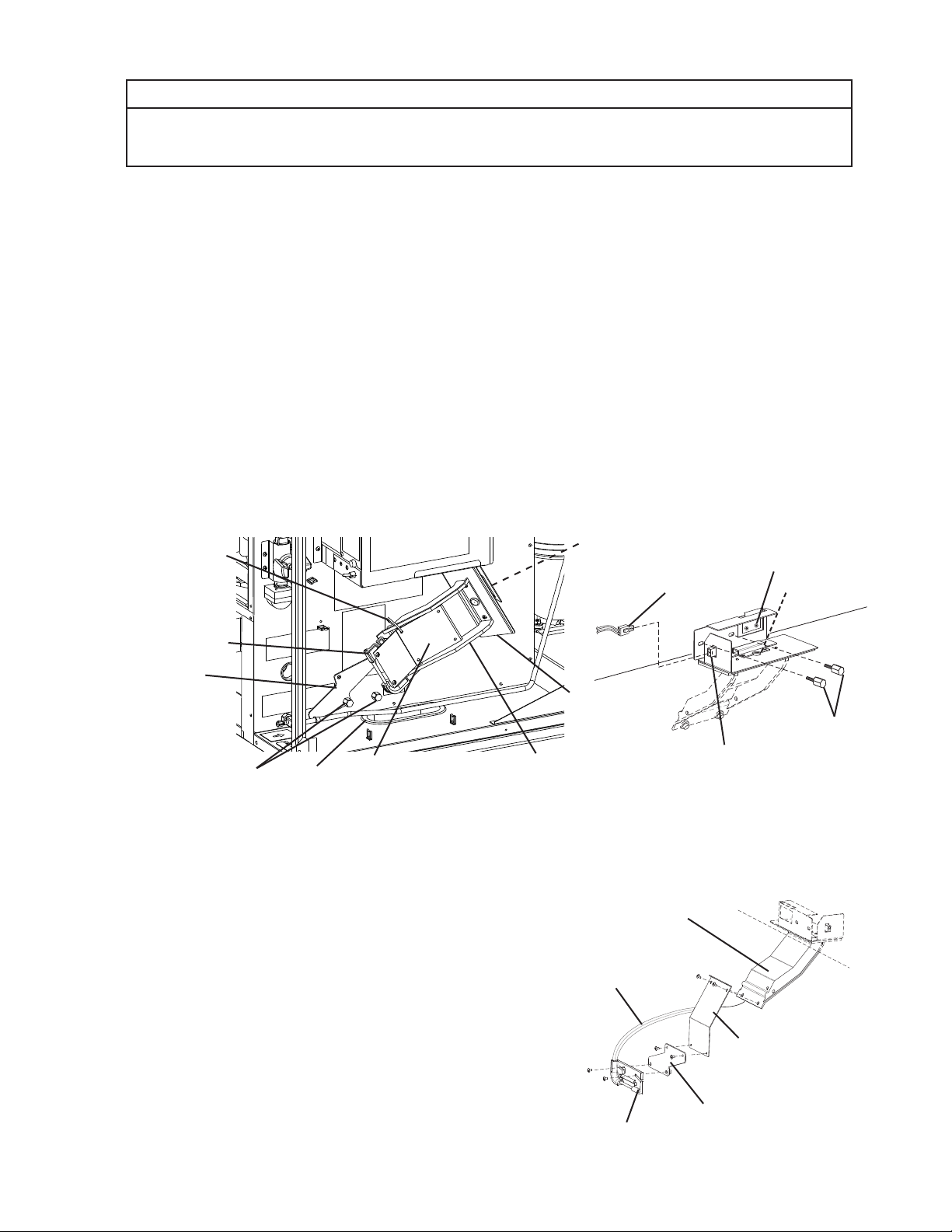

2. Bin Control Installation........................................................................................... 13
3. Installation of Upper Unit ....................................................................................... 14
F. Electrical Connection ................................................................................................... 16
G. Water Supply and Drain Connections ......................................................................... 18
1. Icemaker ................................................................................................................ 19
2. Water-Cooled Condenser....................................................................................... 20
H. Installation of Remote Condenser Unit ....................................................................... 22
1. Location ................................................................................................................. 22
2. Checks Before Installation ..................................................................................... 23
3. Setup ..................................................................................................................... 23
4. Line Set Size and Refrigerant Charge ................................................................... 23
5. Line Set Installation ............................................................................................... 24
6. Electrical Connection............................................................................................. 26
7. Stacking Remote Condenser Unit .......................................................................... 27
I. Final Checklist .............................................................................................................. 28
1. Pre-Startup............................................................................................................. 28
2. Post-Startup........................................................................................................... 29
J. Startup ......................................................................................................................... 30
III. Maintenance ................................................................................................................... 31
A. Maintenance Schedule................................................................................................ 31
B. Cleaning and Sanitizing Instructions ........................................................................... 32
IV. Preparing the Icemaker for Periods of Non-Use ............................................................. 36
V. Disposal ........................................................................................................................... 38
IMPORTANT
This manual should be read carefully before the appliance is installed and operated.
Read the warnings and guidelines contained in this manual carefully as they
provide essential information for the continued safe use and maintenance of the
appliance. Retain this manual for any further reference that may be necessary.

4
Important Safety Information
Throughout this manual, notices appear to bring your attention to situations which could
result in death, serious injury, damage to the appliance, or damage to property.
WARNING Indicates a hazardous situation which could result in death or
serious injury.
NOTICE Indicates a situation which could result in damage to the
appliance or property.
IMPORTANT Indicates important information about the installation, use, and
care of the appliance.
WARNING
The appliance should be destined only to the use for which it has been expressly
conceived. Any other use should be considered improper and therefore dangerous.
The manufacturer cannot be held responsible for injury or damage resulting
from improper, incorrect, and unreasonable use. Failure to install, operate, and
maintain the appliance in accordance with this manual will adversely affect safety,
performance, component life, and warranty coverage and may result in costly water
damage.
To reduce the risk of death, electric shock, serious injury, or re, follow basic
precautions including the following:
• Only qualied service technicians should install and service the appliance.
• The appliance must be installed in accordance with applicable national, state, and
local codes and regulations.
• Electrical connection must be hard-wired and must meet national, state, and local
electrical code requirements. Failure to meet these code requirements could result
in death, electric shock, serious injury, re, or damage.
• The icemaker requires an independent power supply of proper capacity. See the
nameplate for electrical specications. Failure to use an independent power supply
of proper capacity can result in a tripped breaker, blown fuse, damage to existing
wiring, or component failure. This could lead to heat generation or re.
• THE ICEMAKER MUST BE GROUNDED. Failure to properly ground the icemaker
could result in death or serious injury.
• To reduce the risk of electric shock, do not touch the control switch with damp
hands.
• Move the control switch to the "OFF" position and turn off the power supply before
servicing. Lockout/Tagout to prevent the power supply from being turned back on
inadvertently.
• Do not make any alterations to the appliance. Alterations could result in electric
shock, serious injury, re, or damage.
• The appliance is not intended for use by persons (including children) with reduced
physical, sensory, or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.

5
WARNING, continued
• Children should be properly supervised around the appliance.
• Do not climb, stand, or hang on the appliance or allow children or animals to do so.
Serious injury could occur or the appliance could be damaged.
• Do not use combustible spray or place volatile or ammable substances near the
appliance. They might catch re.
• Keep the area around the appliance clean. Dirt, dust, or insects in the appliance
could cause harm to individuals or damage to the appliance.
Additional Warning for Remote Models
• THE REMOTE CONDENSER UNIT MUST BE GROUNDED. The power supply and
ground connection to the remote condenser unit are supplied from the icemaker.
Failure to properly ground the remote condenser unit could result in death or
serious injury.
• Wire routing (conduit) and disconnect (if required) must meet national, state, and
local electrical code requirements. Failure to meet these code requirements could
result in death, electric shock, serious injury, re, or damage.
NOTICE
• Follow the water supply, drain connection, and maintenance instructions carefully to
reduce the risk of costly water damage.
• In areas where water damage is a concern, install in a contained area with a oor
drain.
• Install the icemaker in a location that stays above freezing. Normal operating
ambient temperature must be within 45°F to 100°F (7°C to 38°C).
• Do not leave the icemaker on during extended periods of non-use, extended
absences, or in sub-freezing temperatures. To properly prepare the icemaker for
these occasions, follow the instructions in "IV. Preparing the Icemaker for Periods of
Non-Use."
• Do not place objects on top of the appliance.
• The dispenser unit/ice storage bin is for ice use only. Do not store anything else in
the dispenser unit/ice storage bin.

6
I. Specications
A. Electrical and Refrigerant Data
The rating label and nameplate provide electrical and refrigerant data. The rating label
can be seen by removing the front panel. The nameplate is located on the rear panel. For
certication marks, see the nameplate.
We reserve the right to make changes in specications and design without prior notice.
1. KMH-2100S_J(Z)/3
Single Phase
Model Number KMH-2100SRJZ
AC Supply Voltage 208-230/60/1
Compressor 208-230V 10.9RLA 73LRA
Pump 120V 1.2FLA 60W
Fan 120V 3A MAX (Fans in URC)
Other 115V 0.3A
Maximum Fuse Size 30 AMPS
Max. HACR Breaker
(USA Only)
30 AMPS
Max. Circuit Breaker
(Canada Only)
30 AMPS
Minimum Circuit
Ampacity
30 AMPS
Design Pressure HI-467PSI LO-230PSI
Refrigerant 404A
Total Refrigerant Charge with
Hoshizaki Remote Condenser
Unit URC-22FZ: 16 LB. 1.5 OZ.
Three Phase
Model Number KMH-2100SWJ3 KMH-2100SRJZ3
AC Supply Voltage 208-230/60/3 208-230/60/3
Compressor 208-230V 8.4RLA 66LRA 208-230V 7.9RLA 66LRA
Pump 120V 1.2FLA 60W 120V 1.2FLA 60W
Fan --- --- --- 120V 3A MAX (Fans in URC)
Other 115V 0.3A 115V 0.3A
Maximum Fuse Size 20 AMPS 20 AMPS
Max. HACR Breaker
(USA Only)
20 AMPS 20 AMPS
Max. Circuit Breaker
(Canada Only)
20 AMPS 20 AMPS
Minimum Circuit
Ampacity
20 AMPS 20 AMPS
Design Pressure HI-427PSI LO-230PSI HI-467PSI LO-230PSI
Refrigerant 404A
3 LB. 1.4 OZ.
404A
Total Refrigerant Charge with
Hoshizaki Remote Condenser
Unit URC-22FZ: 16 LB. 1.5 OZ.

7
B. Dimensions/Connections
1. Water-Cooled Models (SWJ3) Units: mm [in.]
NOTICE
• Allow 6" (15 cm) clearance at rear,
sides, and top for proper air circulation
and ease of maintenance and/or
service should they be required.
• The ice storage bin opening must
match the bottom opening as in the
illustration.
Rear
Side
Bottom

8
Bottom

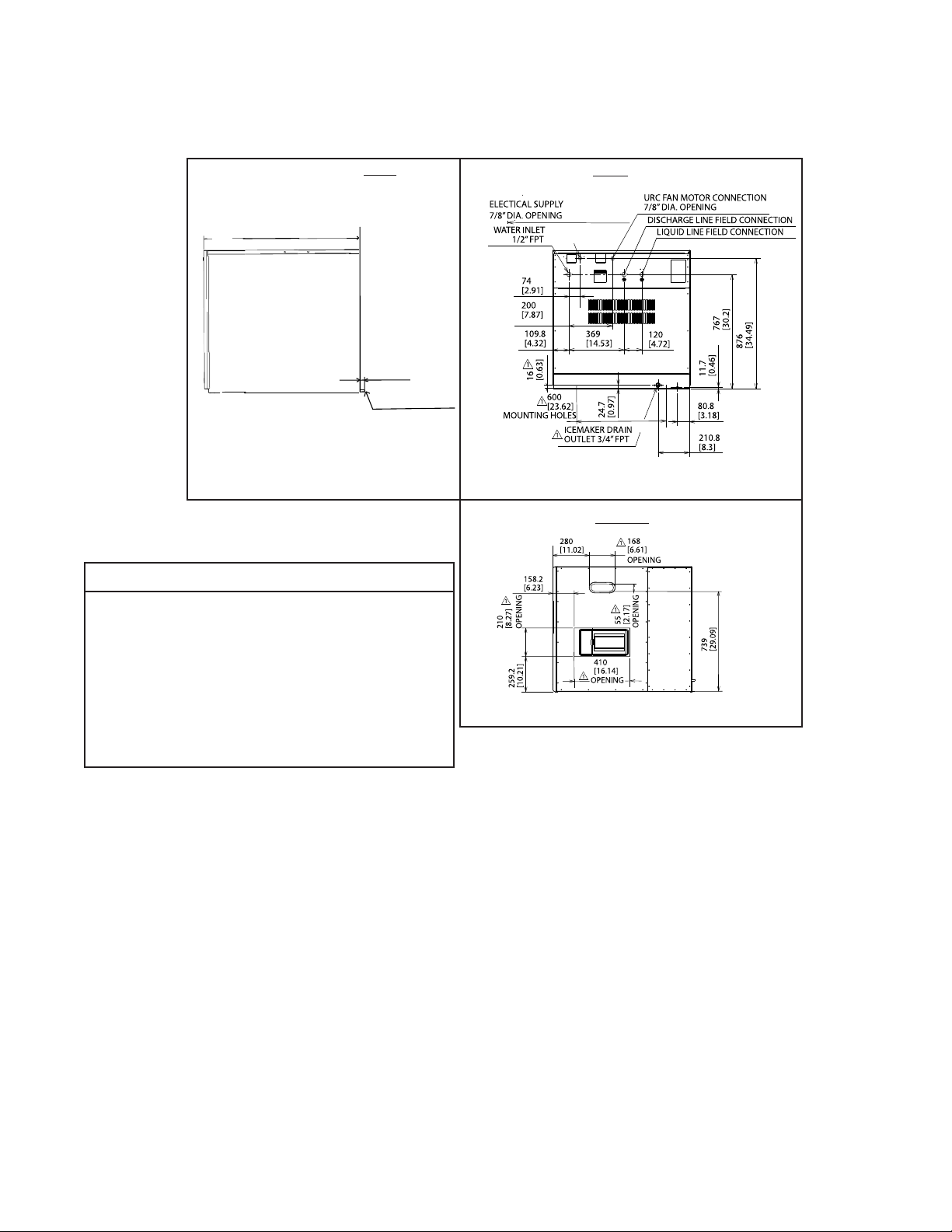

2. Remote Models (SRJZ/3)
NOTICE
• Allow 6" (15 cm) clearance at rear,
sides, and top for proper air circulation
and ease of maintenance and/or
service should they be required.
• The ice storage bin opening must
match the bottom opening as in the
illustration.
Rear
Side
Units: mm [in.]
1020.5
[40.18]
28.4
[1.12]
3/8” O.D. PIPE

9
3. Remote Condenser Unit URC-22FZ
Icemaker Model URC Model
Heat of Rejection
AT 90°F (32°C)
WT 70°F (21°C)
KMH-2100SRJZ URC-22FZ 22,600 BTU/hr
KMH-2100SRJZ3 22,900 BTU/hr
NOTICE
Allow 24" (61cm) clearance
at front and rear for proper
air circulation and ease of
maintenance and/or service
should they be required.
Units: mm [in.]
Rear
Top

10
II. Installation and Operating Instructions
WARNING
• The appliance must be installed in accordance with applicable national, state, and
local codes and regulations.
• Failure to install, operate, and maintain the appliance in accordance with this
manual will adversely affect safety, performance, component life, and warranty
coverage and may result in costly water damage.
• CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews
are securely in place after installation. Make sure that none have fallen into the
dispenser unit/ice storage bin.
A. Location
NOTICE
• The icemaker is not intended for outdoor use. Normal operating ambient
temperature must be within 45°F to 100°F (7°C to 38°C); Normal operating
water temperature must be within 45°F to 90°F (7°C to 32°C). Operation of the
icemaker, for extended periods, outside of these normal temperature ranges may
affect icemaker performance.
• The icemaker will not work at sub-freezing temperatures. To prevent damage
to the water supply line, drain the icemaker if the air temperature is going to go
below 32°F (0°C). See "IV. Preparing the Icemaker for Periods of Non-Use."
• The icemaker should not be located next to ovens, grills, or other high heat producing
equipment.
• Allow 6" (15 cm) clearance at rear, sides, and top for proper air circulation and ease of
maintenance and/or service should they be required.
• The location should provide a rm and level foundation for the appliance.
B. Checks Before Installation
• Visually inspect the exterior of the shipping container and immediately report any
damage to the carrier. Upon opening the container, any concealed damage should also
be immediately reported to the carrier.
• Remove the shipping carton, tape, and packing material. If any are left in the appliance,
it will not work properly.
• See the nameplate on the rear panel, and check that your voltage supplied corresponds
with the voltage specied on the nameplate.
• Remove the panels to prevent damage when installing the appliance. See "II.C. How to
Remove Panels."
• Remove the package containing the accessories.

11
• Remove the protective plastic lm from the panels. If the appliance is exposed to the
sun or to heat, remove the lm after the appliance cools.
• Check that the refrigerant lines do not rub or touch lines or other surfaces, and that the
fan blade (if applicable) turns freely.
• Check that the compressor is snug on all mounting pads.
• For use on large ice storage bins only. This icemaker can be installed on a storage bin
with a depth of 40" or greater. For further details, contact your local distributor.
• NOTICE! Remote models must be connected to an appropriate remote condenser
unit. The remote condenser unit listed below is recommended. Connection to a
different remote condenser unit will void the warranty unless Hoshizaki approves
a different remote condenser unit for your specic application.
For further details, contact your local Hoshizaki distributor.
Model Number Recommended Hoshizaki Remote Condenser Unit
KMH-2100SRJZ/3 URC-22FZ
C. How to Remove Panels
See Fig. 1
• Front Panel: Remove the screws. Lift up and pull towards you.
• Top Panel: Remove the screws, then lift off.
• Right Side Panel: Remove the screw. Slide forward slightly and lift off.
• Insulation Panel: Remove the thumbscrew.Lift up slightly and pull towards you.
• Top Insulation: Lift off.
• Spacer: Lift off.
Fig. 1
Top Panel
Insulation
Panel
Front Panel Side Panel (R)
Side Panel (L) Top
Insulation
Rear
Panel

12
D. Setup
1. Ice Storage Bin and Icemaker Setup
WARNING
The installer must ensure the dispenser unit/ice storage bin is compatible with
the icemaker, and the dispenser unit/ice storage bin and icemaker are properly
attached and secured.
1) Unpack the ice storage bin and attach the 4 adjustable legs provided (bin accessory) to
the bottom of the ice storage bin.
2) Position the dispenser unit/ice storage bin in its permanent location.
3) If required, install an adapter kit or top kit. Contact your local Hoshizaki distributor for
recommendations.
4) Level the dispenser unit/ice storage bin in both the left-to-right and front-to-rear
directions. Ifusing an ice storage bin, adjust the ice storage bin legs to level.
5) Place the icemaker on top of the dispenser unit/ice storage bin.
6) Follow the ice storage bin, adapter kit, or top kit instructions for securing the icemaker.
If no instructions are available, secure the icemaker using the 2mounting brackets and
the bolts provided. See Fig.2.
Fig. 2
Mounting Brackets
Bolts
Icemaker
Ice
Storage
Bin

13
g. Remove the 2 screws securing the thermostat bulb attachment (plastic) to the
thermostat extension bracket (stainless). See Fig. 4. Use the 2 screws to attach the
"Z" bracket (plastic) to the thermostat extension bracket (stainless).
h. Use the two 4×10 stainless steel screws
in the accessory bag to attach the
thermostat bulb attachment (with attached
thermostat bulb) to the "Z" bracket.
i. Remove the 2 screws from the lower part
of the thermostat bracket (plastic) and use
them to attach the thermostat extension
bracket (stainless) to the thermostat
bracket (plastic).
j. Make sure the silicone hose is in place to
prevent ice from striking the capillary tube.
2. Bin Control Installation
NOTICE
Before operating the icemaker, the bin control must be installed. Failure to properly
install the bin control could result in ice backup and icemaker damage.
1) Install the bin control thermostat as follows:
a. Remove the baffle from the bin (if applicable).
b. Remove the tie securing the bin control thermostat assembly. Remove the
2 thumbscrews and the "Z" bracket. See Fig. 3.
c. Remove the bin control thermostat assembly from the shipping hook. Lower the
thermostat extension bracket (stainless) with the thermostat bulb attachment and
thermostat bulb through the hole located at the bottom of the icemaker. Next, lower
the thermostat bracket (plastic) through the hole.
d. Slide the left side of the upper part of the assembly towards you and make sure it
is hooked on the wall. Make sure the left side and bottom of the assembly are ush
against the wall and base panel.
e. Secure the assembly in place with the thumbscrews (unless you are installing an
upper unit).
f. Insert the plug into the receptacle on the assembly until it locks into place.
Note: Icemaker will not run if the plug is not in the receptacle.
Fig. 3
Bin Control
Thermostat
Assembly
Shipping Hook
Thermostat Bracket
(plastic)
Tie
"Z" Bracket
Thermostat Bulb
Attachment
(plastic) and
Thermostat Bulb
Thumbscrews Thermostat Extension
Bracket (stainless)
Hole
Plug
Receptacle
Thumbscrews
Hook
Bushing
Fig. 4
Thermostat Bracket
(plastic)
Thermostat Bulb
Attachment (plastic)
"Z" Bracket (plastic)
Thermostat Extension
Bracket (stainless)
Silicone Hose

14
2) Conrm that the icemaker and storage bin are level in both the left-to-right and
front-to-rear directions. If necessary, level the storage bin in both the left-to-right and
front-to-rear directions according to the storage bin manufacturer's instructions.
3) Replace the panels and baffle (if applicable) in their correct positions (unless you are
installing an upper unit). See "II.E. Installation of Upper Unit."
3. Installation of Upper Unit
1) See "II.D. Setup" for the lower unit installation.
2) Remove the top panel and the top insulation of the lower unit. The top panel and the top
insulation of the lower unit are not required when installing an upper unit.
3) Unpack the upper unit, and remove the shipping carton, tape, and packing material.
4) Remove the panels of the upper unit.
5) Stack the upper unit on top of the lower unit.
6) Secure the upper unit to the lower unit using the 2 mounting brackets and the bolts
provided. See Fig. 5.
Fig. 5
Ice
Storage
Bin
Icemaker
(Upper
Unit)
Icemaker
(Lower
Unit)
Mounting Brackets
Bolts

15
7) Install the bin control thermostat as follows:
a. Remove the thermostat bulb attachment (plastic) of the upper unit from the
thermostat extension bracket (stainless). See Fig. 6.
b. Carefully remove the thermostat bulb from the thermostat bulb attachment (plastic) of
the upper unit, then remove the silicone hose from the capillary tube.
c. Carefully route the thermostat bulb and capillary tubing of the upper unit through
the bottom hole of the upper unit. Remove the bushing from the lower bin control
thermostat assembly. Route the bulb and tubing through the hole in the assembly
and down into the bin. Reattach the bushing.
d. Secure the lower bin control thermostat assembly in place with the thumbscrews.
e. Slide the silicone hose onto the capillary tube, then carefully insert the thermostat
bulb back into the thermostat bulb attachment (plastic).
f. Secure the thermostat bulb attachment (plastic) of the upper unit to the thermostat
bulb attachment (plastic) of the lower unit with the screws of the upper unit.
g. Make sure the silicone hose is in place to prevent ice from striking the capillary tube.
h. Insert the plug of the upper unit into the receptacle of the upper unit's bin control
thermostat assembly until it locks into place.
Note: Icemaker will not run if the plug is not in the receptacle.
8) Replace the panels and baffle in their correct positions..
Thermostat
Capillary
Tubing
Fig. 6
Thermostat Extension
Bracket (stainless)
Thermostat
Bulb Attachment
Removed from
Upper Unit
Thermostat Bulb
Attachment of
Lower Unit Thermostat Bulb
"Z" Bracket
(plastic)
Silicone Hose

16
F. Electrical Connection
WARNING
For All Models
• Electrical connection must be hard-wired and must meet national, state, and local
electrical code requirements. Failure to meet these code requirements could result
in death, electric shock, serious injury, re, or damage.
• The icemaker requires an independent power supply of proper capacity. See
the nameplate for electrical specications. Failure to use an independent power
supply of proper capacity can result in a tripped breaker, blown fuse, damage to
existing wiring, or component failure. This could lead to heat generation or re.
• THE ICEMAKER MUST BE GROUNDED. Failure to properly ground the icemaker
could result in death or serious injury.
• Electrical connection must be made in accordance with the instructions on the
"WARNING" tag, provided with the pig tail leads in the junction box. See Fig. 7.
Additional Warnings for Remote Models
• THE REMOTE CONDENSER UNIT MUST BE GROUNDED. Power supply and
ground connection to the remote condenser unit are supplied from the icemaker.
See "II.H.6. Electrical Connection." Failure to properly ground the remote
condenser unit could result in death or serious injury.
• To reduce the risk of electric shock, make all remote condenser unit connections
before connecting the icemaker power supply.
NOTICE
On remote models, the appliance must have power for a minimum of 4hours prior
to startup to prevent compressor damage.
• Usually an electrical permit and services of a licensed electrician are required.
• The maximum allowable voltage variation is ±10 percent of the nameplate rating.
• NOTICE! The main transformer’s voltage tap switch must be positioned to match
incoming voltage at startup.
• NOTICE! On three phase models, connect the highest incoming voltage supply
("stinger leg") to the power wire dedicated to the compressor. See the wiring label
on the icemaker.
• The opening for the power supply connection is 7/8" DIA to t a 1/2" trade size conduit.

17
KMH-2100SRJZ
KMH-2100SWJ3
KMH-2100SRJZ3
WARNING
ELECTRICAL CONNECTION
THIS UNIT MUST BE GROUNDED
Failure to properly ground or wire
this unit could result in death,
serious injury, or severe damage
to the icemaker. The white lead
must be connected to the neutral
conductor of the power source.
See diagram below.
4A5700-010
208-230/60/1
(3 wire with neutral for 115V)
JUNCTION BOX
208-230
V
BLACK
BROWN
L1
L2
WHITE
N
1
15-
120V
Fig. 7
BROWN
WARNING
ELECTRICAL CONNECTION
THIS UNIT MUST BE GROUNDED
Failure to properly ground or wire
this unit could result in death,
serious injury, or severe damage to
the icemaker.
This unit must be connected to a
three-phase power source.
The transformer’s voltage tap switch
must be positioned to match incoming
voltage at startup.
See diagram below.
208-230/60/3
4A5701-010
JUNCTION BOX
208-230
V
BLACK
L1
L3 RED
L2
208-
230V
208-
230V

18
G. Water Supply and Drain Connections
See Figs. 8 through 10
WARNING
Water supply and drain connections must be installed in accordance with applicable
national, state, and local regulations.
NOTICE
• Normal operating water temperature should be within 45°F to 90°F (7°C to
32°C). Operation of the appliance, for extended periods, outside of this normal
temperature range may affect appliance performance.
• Water supply pressure must be a minimum of 10 PSIG and a maximum of
113PSIG. If the pressure exceeds 113 PSIG, the use of a pressure reducing valve
is required.
• To prevent damage to the appliance, do not operate the appliance when the water
supply is off, or if the pressure is below 10 PSIG. Do not run the appliance until
the proper water pressure is reached.
• External lters, strainers, or softeners may be required depending on water quality.
Contact your local Hoshizaki Certied Service Representative or local Hoshizaki
distributor for recommendations.
• A plumbing permit and services of a licensed plumber may be required in some areas.
• The icemaker drain line, dispenser unit/ice storage bin drain line, and water-cooled
condenser drain line (if applicable) must be run separately. The condensation drain line
can be connected to the icemaker drain line or can be run separately.
• Drain lines must have 1/4" fall per foot (2 cm per 1 m) on horizontal runs to get a good
ow. A vented tee connection is also required for proper ow.
• Drain lines should not be piped directly to the sewer system. An air gap of a minimum of
2vertical inches (5 cm) should be between the end of the drain pipes from the icemaker
and condensation drain, dispenser unit/ice storage bin, and water-cooled condenser
(ifapplicable) and the oor drain.

19
KMH-2100SRJZ/3
Fig. 8
Remote Condenser
Line Set Connections
Separate piping to approved drain.
Leave a 2-inch (5-cm) vertical air
gap between the end of each pipe
and the drain.
Icemaker Water Supply
Line Shut-Off Valve
Icemaker Water Supply Line
Drain Valve
Icemaker
Icemaker
Water Supply
Inlet
1/2" FPT
Bin Drain Outlet
See Manufacturer's Instructions
2-inch (5-cm) air gap
Floor Drain
Icemaker
Drain Outlet
3/4" FPT
Ice
Storage
Bin
Vent Tube
Minimum 1/2" Nominal Copper Water Tubing
Minimum 3/4" Nominal Hard Pipe
Condensation
Drain Outlet
3/8" OD Hard Tube
Vent Tube
1. Icemaker
Icemaker Water
Supply Inlet
Minimum Icemaker
Water Supply Line Size
Icemaker Drain
Outlet
Minimum Icemaker
Drain Line Size
Condensation
Drain Outlet
1/2" Female Pipe
Thread (FPT)
3/8" Nominal ID
Copper Water Tubing or
Equivalent
3/4" Female Pipe
Thread (FPT)
3/4" Nominal
ID Hard Pipe or
Equivalent
3/8" OD Hard
Tube
• An icemaker water supply line shut-off valve and drain valve must be installed.
• Be sure there is sufficient extra water supply line and drain line for the appliance to be
pulled out for service.

20
2. Water-Cooled Condenser
a) Connection to an Open Drain System
Condenser Water
Supply Inlet
Minimum Condenser
Water Supply Line Size
Condenser Drain
Outlet
Minimum Condenser
Drain Line Size
1/2" Female Pipe
Thread (FPT)
3/8" Nominal ID Copper
Water Tubing or Equivalent
3/8" Female Pipe
Thread (FPT)
3/8" Nominal ID Hard Pipe
or Equivalent
• A condenser water supply line shut-off valve and drain valve must be installed.
• In some areas, a back ow preventer may be required in the cooling water circuit.
• In order to maintain the proper high side pressure, the condenser water supply inlet
temperature should not drop below 45°F (7°C) and the condenser drain outlet temperature
must be in the 104°F to 115°F (40°C to 46°C) range. Once the icemaker installation
is complete, conrm the condenser drain outlet temperature 5 minutes after a freeze
cycle starts. If the condenser drain outlet temperature is not in the proper range, use a
at blade screwdriver to rotate the adjustment screw on the water-regulating valve until
the temperature is in the proper range (rotate counterclockwise to raise temperature or
clockwise to lower temperature).
Fig. 9
KMH-2100SWJ3
Connection to an Open Drain System
Separate piping to approved drain.
Leave a 2-inch (5-cm) vertical air
gap between the end of each pipe
and the drain.
Icemaker Water Supply Line
Shut-Off Valve
Icemaker Water Supply Line
Drain Valve
Icemaker
Icemaker
Water Supply
Inlet
1/2" FPT
Bin Drain Outlet
See Manufacturer's Instructions
2-inch (5-cm) air gap
Floor Drain
Icemaker
Drain Outlet
3/4" FPT
Condenser Water Supply Line
Shut-Off Valve
Condenser Water Supply Line
Drain Valve
Condenser Water
Supply Inlet
1/2" FPT
Condenser
Drain Outlet
3/8" FPT
Vent Tube
Vent Tube Minimum 1/2" Nominal Copper Water Tubing
Minimum 3/4" Nominal Hard Pipe
Minimum 3/8"
Nominal Hard
Pipe
Condensation
Drain Outlet
3/8" OD Hard Tube
Vent Tube
Minimum 3/8" Nominal Copper Water Tubing
Ice
Storage
Bin
