Hoshizaki KM-630MAF-E User manual

(FINAL) PARTS LIST
MODULAR CRESCENT CUBER
89/336
73/23
HOSHIZAKI
NUMBER: 71157
ISSUED: DEC. 14, 1999
KM-630MAF-E
KM-630MWF-E
REVISED: JULY 1, 2002

HA
2
Auxiliary Codes
KM-630MAF-E J-0 JAN 1999
J-1 JUNE 1999
K-0 DEC. 1999
L-0 DEC. 2000
KM-630MWF-E J-0 APR. 1999
J-1 AUG. 1999
IMPORTANT
IEC standards require that the clamping means of earthing terminals be
adequately secured against accidental loosening and that accessible metal parts
of the icemaker which may become live in the event of an insulation fault be
permanently and reliably connected to an earthing terminal within the icemaker or
to the earthing contact of the icemaker inlet.
This is accomplished in this icemaker through the use of stainless steel toothed
washers, Hoshizaki Part # 7R22-0400.

HA
3
MATERIAL ABBREVIATIONS
ALUMINUM
AL = Aluminum
COPPER
CU = Copper
PLASTIC
ABS = Acrylonitritrile -butadiene - styrene
AC = Polyacetal
EVA = Ethylene vinyl acetate
PA = Polyamide = Nylon
PC = Polycarbonate
PE = Polyethylene
PES = Polyester
PETP = Polyethylene terephthalate = Tetlon
PP = Polypropylene
PS = Polystyrene
PTFE = Polytetrafluoroethylene = Teflon
PUR = Polyurethane
PVC = Polyvinyl chloride
RUBBER
VN = Vinyl Nitrile
EPDM = EP rubber
NBR = Nitrile butadiene rubber
NR = Natural rubber
NP = Neoprene
SI.R = Silicone rubber
SY.R = Synthetic rubber
EPH = Epichlorohydrin
STEEL
GS = Galvanized steel
SS = Stainless steel
PS = Plated steel
PAS = Primed steel
AUXILIARY CODE
Ex.1 K-0
Parts are the same as in the preceding (Note) - = Part deleted.
year.
x = Part deleted and replaced
"K" is the tenth in alphabetical order with "I" by "o" (interchangeable)
skipped. So, "K" indicates "2000". part.
Ex.2 L-0 o = New part for "x" in the
"L" is the next in alphabetical same auxiliary code.
order. So, "L" indicates "2001".
Ex.3 L-1
Each time a part is changed non-interchangeably
in a year, this number advances.

HA
4

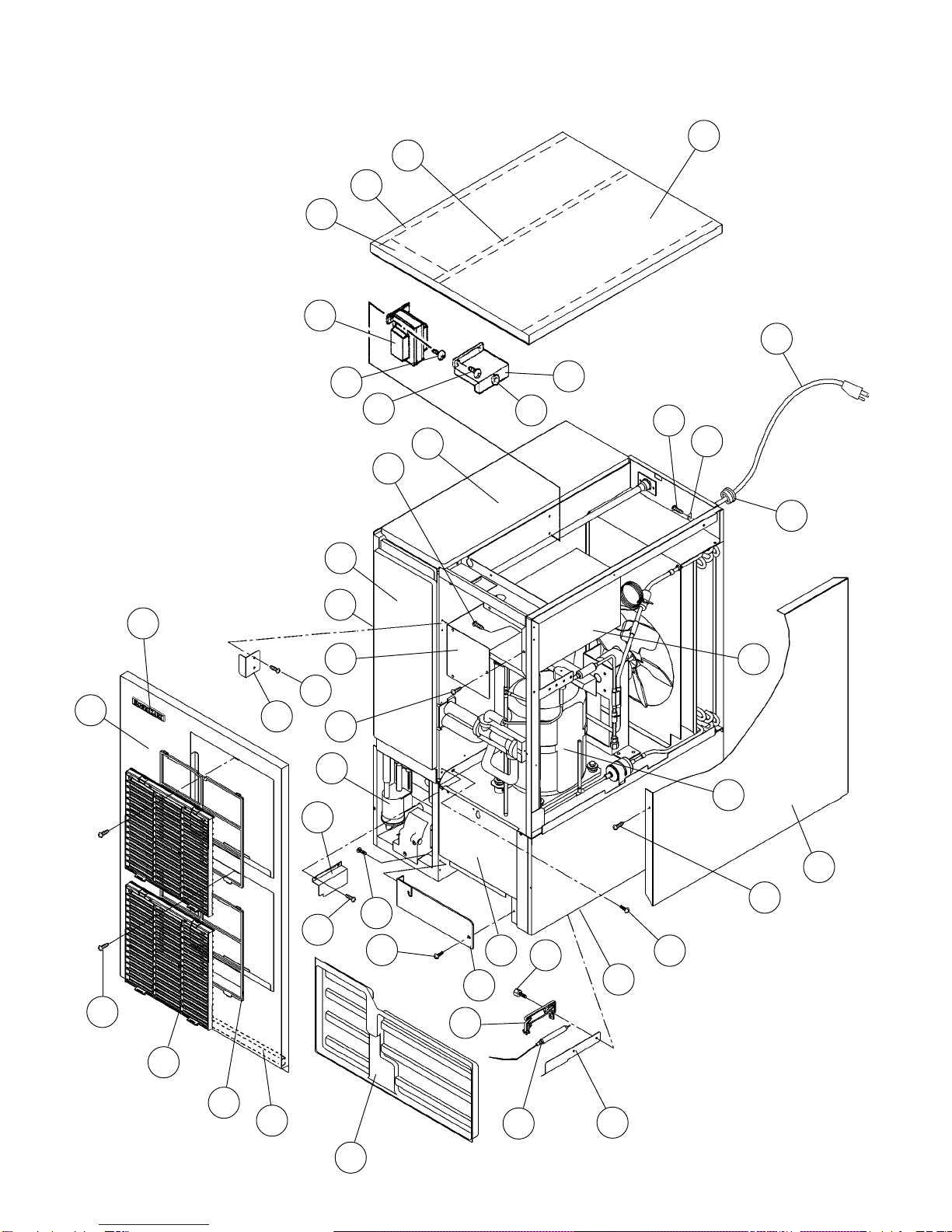

KM-630MAF-E A. ICE CUBER ASSEMBLY J-0, J-1, K-0, L-0
8
6
20
E
B
14
10
19
23
17
3
11
2
C
21
22
25
26
27
4
5
D
14a
2a
24
9
16
18
18a
7
7a
1
13
D1
12
3a
30
29
29a
28a
28
15
15a
3b
31

HA
5
MODEL: KM-630MAF-E TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER
J-0
J-1
K-0
L-0
B REFRIGERATION CIRCUIT - 1A0345A02 1 1
C WATER CIRCUIT 2A0971A01 1 1
D CONTROL BOX ASSEMBLY - 2A1445A01 1 1
D1 T2 SCREW 4X8 7P31-0408 3 3
E LABEL LOCATION - 3A1268-01 1 1
1 EVAP. CASE HS-1013 1A0277G04 1 1
2 BASE - 2A1321G01 1 1
2a FT SCREW 4X8 7F31-0408 7 7
3 FRAME ABS 3A0217G01 1 1
3a TRUSS HEAD SCREW 4X8, SS 7C32-0408 1 1
3b TRUSS HEAD SCREW 4X25, SS 7C32-0425 2 2
4 SQUARE WASHER BRASS 433537-02 1 1
5 SCREW - GROUNDING BRASS 433304-02 1 1
6 FRONT COVER P.S 2A0182-01 1 1
7 BARRIER-INSULATION GS 4A1167-01 1 1
7a T2 SCREW 4X8 7P31-0408 2 2
8 BULB HOLDER PE 328919-01 1 1
9 SPACER PE 443545-01 1 1
10 THUMBSCREW SS, ABS 415949G03 2 2
11 BASE COVER SS 321525G01 1 1
12 TOP INSULATION PP 215730G01 1 1
13 FRONT INSULATION PP 215731G02 1 1
14 SIDE PANEL (R) SS 211811G02 1 1
14a T2 SCREW 4X8, SS 7P32-0408 1 1
15 CONTROL BOX COVER GS 3A0594-01 1 1
15a T2 SCREW 4X8 7P31-0408 3 3
16 FRONT PANEL (A) SS 212935-02 1 1
17 LOUVER (B) ABS 103121-03 2 2

HA
6
MODEL: KM-630MAF-E TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER
J-0
J-1
K-0
L-0
18 BARRIER GS 4A0352-01 1 1
18a T2 SCREW 4X8 7P31-0408 2 2
19 TAPPING SCREW ( BLACK) STEEL, 4x8 433954-01 2 2
20 TOP PANEL SS
(324859A01)
213544-01 1 x1
(324859A03) 220465-01 o1
21 GASKET PVC
(324859A01)
427014-04 2 2
22 INSULATION PE FOAM
(324859A01)
438012-01 1 1
23 AIR FILTER (B) ABS 208283G03 2 2
24 DEFLECTOR SS 4A1951-01 1 1
25 GASKET (A) (324859A01) 324859-03 1 1
26 POWER SUPPLY CORD - 452359-02 1 1
27 BUSHING CEE SR-6P30 450414-01 1 1
28 TRANSFORMER PY12-19204 446202-01 1 1
28a PAN HEAD SCREW W/
WASHER (LF)
4X8 7C1230408 4 4
29 TRANS COVER GS 446359-01 1 1
29a T2 SCREW 4X8 7P31-0408 2 2
30 BUSHING OCB-500 428394-02 1 1
31 GASKET L=554 4A0808L02 1

HA
7

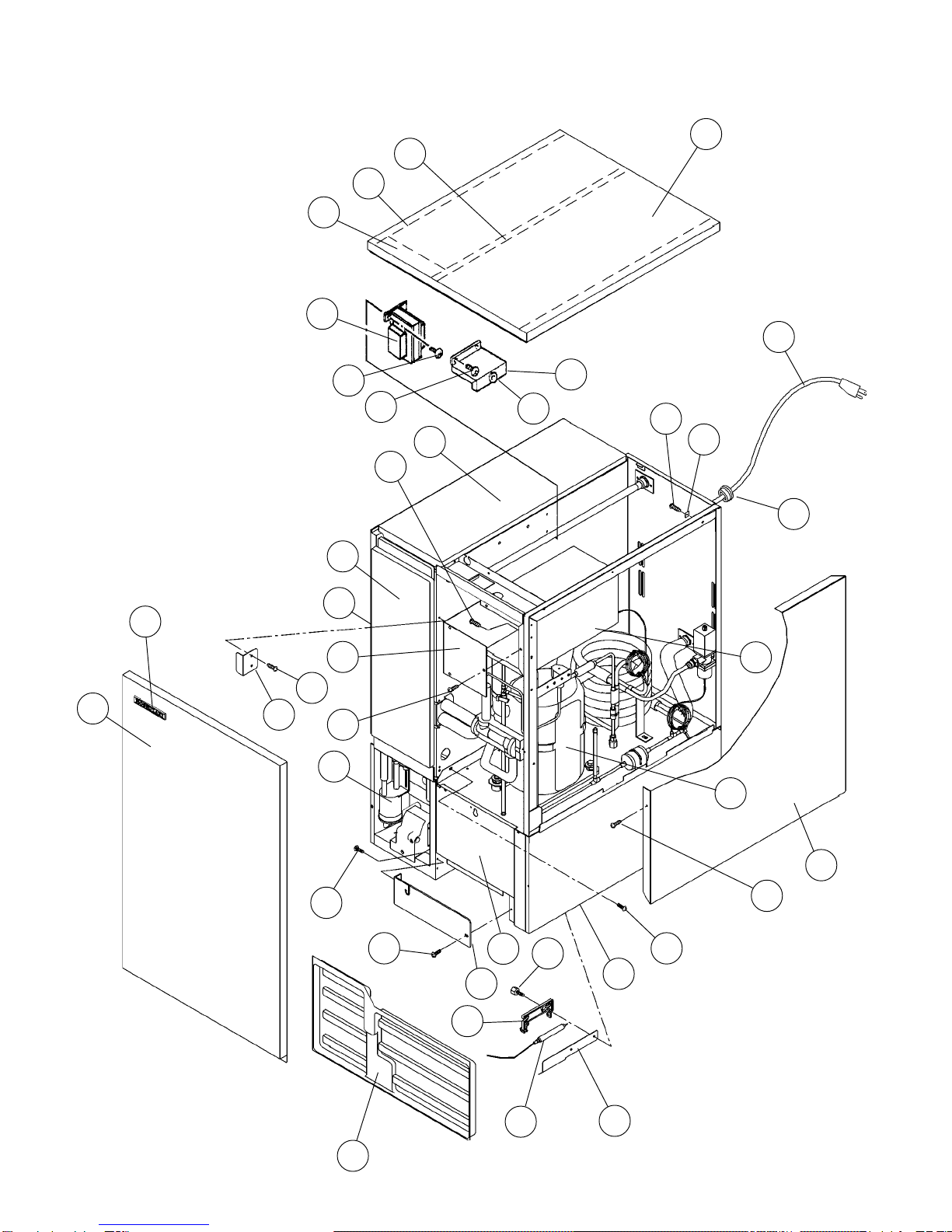

KM-630MWF-E A. ICE CUBER ASSEMBLY J-0, J-1
8
23
20
E
B
14
10
3
11
2
C
21
22
19
24
25
4
5
D
14a
2a
17
9
16 7
7a
1
13
D1
12
3a
28
27
27a
26a
26
15
15a
3b

HA
8
MODEL: KM-630MWF-E TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER
J-0
J-1
B REFRIGERATION CIRCUIT - 1A0343A02 1
C WATER CIRCUIT - 2A0971A01 1
D CONT. BOX ASSEMBLY - 2A1445A02 1
D1 T2 SCREW 4X8 7P31-0408 3
E LABEL LOCATION - 3A1275A01 1
1 EVAP. CASE HS-1013 1A0277G04 1
2 BASE - 2A1321G02 1
2a FT SCREW 4X8 7F31-0408 7
3 FRAME - 3A0217G01 1
3a TRUSS HEAD SCREW 4X8, SS 7C32-0408 1
3b TRUSS HEAD SCREW 4X25, SS 7C32-0425 2
4 SQUARE WASHER BRASS 433537-02 1
5 SCREW - GROUNDING BRASS 433304-02 1
6 - - -
7 BARRIER-INSULATION GS 4A1167-01 1
7a T2 SCREW 4X8 7P31-0408 2
8 BULB HOLDER PE 328919-01 1
9 SPACER PE 443545-01 1
10 THUMBSCREW SS, ABS 415949G03 2
11 BASE COVER SS 321525G01 1
12 TOP INSULATION PP 215730G01 1
13 FRONT INSULATION PP 215731G02 1
14 SIDE PANEL (R) SS 211811G02 1
14a T2 SCREW 4X8, SS 7P32-0408 1
15 CONTROL BOX COVER GS 3A0594-01 1
15a T2 SCREW 4X8 7P31-0408 3
16 FRONT PANEL (A) SS 2A1322-01 1
17 DEFLECTOR SS 4A1951-01 1
18 - - -

HA
9
MODEL: KM-630MWF-E TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER
J-0
J-1
19 GASKET (A) (324859A01) 324859-03 1
20 TOP PANEL SS ,
(324859A01)
213544-01 x1
(324859A03) 220465-01 o1
21 GASKET PVC,
(324859A01)
427014-04 2
22 INSULATION PE FOAM,
(324859A01)
438012-01 1
23 FRONT COVER P.S 2A0182-01 1
24 POWER SUPPLY CORD - 452359-02 1
25 BUSHING CEE SR-6P30 450414-01 1
26 TRANSFORMER PY12-19204 446202-01 1
26a PAN HEAD SCREW W/
WASHER (LF)
4x8 7C1230408 4
27 TRANS COVER GS 446359-01 1
27a T2 SCREW 4x8 7P31-0408 2
28 BUSHING OCB-500 728394-02 1

HA
10
KM-630MAF-E B. REFRIGERATION CIRCUIT J-0, J-1, K-0, L-0

HA
11
MODEL: KM-630MAF-E TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER
J-0
J-1
K-0
L-0
1 SIDE FRAME GS 2A1460G01 1 1
1a T2 SCREW 4X8 7P31-0408 4 4
2 REAR PANEL GS 3A1302G01 1 1
2a T2 SCREW 4X8 7P31-0408 3 3
3 TOP FRAME GS 3A1263-01 1 1
3a T2 SCREW 4X8 7P31-0408 2 2
4 CONDENSER - 218912-01 1 1
4a T2 SCREW 4X8 7P31-0408 2 2
5 BARRIER GS 433693-02 1 1
5a T2 SCREW 4X8 7P31-0408 2 2
6 SHROUD GS 2A1325-01 1 1
6a T2 SCREW 4X8 7P31-0408 2 2
7 COMPRESSOR RS64C1E-IAZ-219 4A1839-01 1 1
8 BOLT 8X45 437889-01 4 4
9 SPACER - 434404-01 4 4
10 GROMMET 527-0039-04 434403-01 4 4
11 FAN MOTOR BRACKET GS 327180-01 1 1
11a HEX HEAD BOLT W/WASHER
(LF)
5X12 7B0230512
4 4
12 FAN MOTOR U90B1 7190-1031 440911-01 1 1
13 FAN BLADE AD10CW32 444898-01 1 1
13a SELF LOCKING NUT NO. 8-32 - 7N21I0832 4 4
14 DRIER CW-0325-S 4A1413-01 1 1
15 ENDCAPS - 4A1413F01 2 2
16 DRIER BRACKET GS 4A0807-01 1 1
16a T2 SCREW 4X8 7P31-0408 2 2
- 446715-01
1 x1
17 HEAT EXCHANGER
- 2A1586G01 o1
18 EXP. VALVE HFE-10 NHDU-3 4A1684-01 1 1
19 EVAPORATOR - 106396G01 1 1

HA
12
MODEL: KM-630MAF-E TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER
J-0
J-1
K-0
L-0
19a T2 SCREW 4X16, SS 7P31-0416 4 4
19b T2 SCREW 4X12, SS 7P32-0412 2 2
20 VALVE BODY 70 440352-01 1 1
21 COIL-VALVE ABS-25-1-HD-2 440353-01 1 1
22 BOLT 440353F01 1 1
22a TRUSS HEAD SCREW 4X8 7C31-0408 2 2
23 PRESSURE SWITCH ACB-1UB09 433441-07 1 1
24 PRESS. SWITCH BRACKET GS 434938-01 1 1
24a T2 SCREW 4X8 7P31-0408 1 1
25 ACCESS VALVE TCJ-2F20NHDU-1 457729-01 2 2
26 RUBBER TUBE (A) EPDM 3A1044-01 1 1
27 RUBBER TUBE (B) EPDM 3A1045-01 1 1
28 INSULATION HOLDER SS 4A1550-01 1 1
28a T2 SCREW 4X8, SS 7P32-0408 2 2
29 COPPER TUBE (A) – HIGH
SIDE
COPPER 3A1157G02
1 1
30 COPPER TUBE (B) – HIGH
SIDE
COPPER 4A1782G01
1 1
31 COPPER TUBE (E) – HIGH
SIDE
COPPER 3A1213G01
1 1
32 CLAMP SS 443461-02 1 1
33 HOLDER/EXP. VALVE – 3/8 SS 3A0107-01 1 1
34 EXP. VALVE COVER PE FOAM 3A0944-01 1 1
35 THERMISTOR - 429006-03 1 1
36 HOLDER-THERMISTOR COPPER 427430-01 1 1
37 INSULATION TUBE L=40 7762-1020 2 2
38 COPPER TUBE – LOW SIDE COPPER 3A1193G01 1 1
39 COPPER TUBE (A) – HOT GAS COPPER 4A1755-01 1 1
40 INSULATION THERMISTOR (A) PE FOAM 439368-01 1 1
41 INSULATION THERMISTOR (B) PE FOAM 439368-02 1 1

HA
13
MODEL: KM-630MAF-E TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER
J-0
J-1
K-0
L-0
42 CABLE TIE CV-200 7920-0010 3 3
43 BUSHING OCB-625 428394-03 1 1
44 ELBOW COPPER 417395-03 1 1
45 COPPER TUBE – ACCESS
VALVE
COPPER 4A1953G01
1 x1
COPPER 4A2025G01 o1
46 STRAINER PARKER 441569-02 1 1
47 COPPER TUBE (F) –HIGH
SIDE
COPPER 4A1108-01
1 1
48 CABLE TIE CV-150 7920-0003 4 4

HA
14
KM-630MWF-E B. REFRIGERATION CIRCUIT J-0, J-1

HA
15
MODEL: KM-630MWF-E TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO.
DESCRIPTION MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER
J-0
J-1
1 REAR PANEL GS 2A1494G01 1
1a T2 SCREW 4X8 7P31-0408 5
2 SIDE FRAME GS 2A1460G01 1
2a T2 SCREW 4X8 7P31-0408 4
3 COMPRESSOR RS64C1E-IAZ-219 4A1839-01 1
4 GROMMET 527-0039-04 434403-01 4
5 SPACER 434404-01 4
6 BOLT 8X45 437889-01 4
7 TOP FRAME GS 3A1263-01 1
7a T2 SCREW 4X8 7P31-0408 2
8 CONDENSER-WATER COOLED 212929-03 1
8a HEX. HEAD BOLT W/WASHER (LF) 5X10 7B0230510 3
9 WASHER 4A0655-03 3
10 DRIER CW-0325-S 4A1413-01 1
11 ENDCAP 4A1413F01 2
12 DRIER BRACKET GS 4A0807-01 1
12a T2 SCREW 4X8 7P31-0408 2
13 EXP. VALVE HFE-10 NHDU-3 4A1684-01 1
14 EVAPORATOR 106396G01 1
14a T2 SCREW 4X16, SUS 7P32-0416 4
14b T2 SCREW 4X12, SUS 7P32-0412 2
15 STRAINER PARKER 441569-02 1
16 VALVE BODY 70 440352-01 1
17 COIL-VALVE ABS-25-1-HD-2 440353-01 1
18 BOLT 440353F01 1
18a TRUSS HEAD SCREW 4X8 7C31-0408 2
19 PRESSURE SWITCH ACB-2UB04 433441-05 1
20 PRESS. SWITCH BRACKET GS 434938-01 1
20a T2 SCREW 4X8 7P31-0408 1

HA
16
MODEL: KM-630MWF-E TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO.
DESCRIPTION MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER
J-0
J-1
21 ACCESS VALVE FV180D001 446715-01 2
22 MALE CONNECTOR 4A1284-01 4A1284-01 1
23 WATER REGULATOR V46DA-3 4A0911-03 1
23a TRUSS HEAD SCREW 4X6 7C31-0406 2
24 INSULATION TUBE L=40 7762-1020 3
25 COPPER TUBE (A) –HIGH SIDE COPPER 3A1157G02 1
26 COPPER TUBE (C) –HIGH SIDE COPPER 4A1787G01 1
27 COPPER TUBE (B) –HIGH SIDE COPPER 4A1780G01 1
28 COPPER TUBE –ACCESS VALVE COPPER 4A2025G01 1
29 COPPER TUBE (E) –HIGH SIDE COPPER 3A1213G02 1
30 COPPER TUBE (A) –HOT GAS COPPER 7A1755-01 1
31 COPPER TUBE –LOW SIDE COPPER 3A1193G02 1
32 COPPER TUBE (A) –WATER CIRCUIT COPPER 4A1788G01
1
33 COPER TUBE (B) –WATER CIRCUIT COPPER 3A1331G01
1
34 HEAT EXCHANGER COPPER 2A1586G01 1
35 CABLE TIE CV-150 7920-0003 6
36 CLAMP SS 443461-02 1
37 HOLDER/EXP. VALVE –3/8 SS 3A0107-01 1
38 EXP. VALVE COVER PE FOAM 3A0944-01 1
39 THERMISTOR 429006-03 1
40 HOLDER –THERMISTOR COPPER 427430-01 1
41 INSULATION –THERMISTOR (A) PE FOAM 439368-01 1
42 CABLE TIE CV-200 7920-0010 3
43 INSULATION –THERMISTOR (B) PE FOAM 439368-02 1
44 RUBBER TUBE (A) EPDM 3A1044-01 1
45 RUBBER TUBE (B) EPDM 3A1045-01 1
46 INSULATION HOLDER SS 4A1550-01
1
46a T2 SCREW 4X8, SS 7P32-0408 2
47 ELBOW COPPER 417395-03 1

HA
17

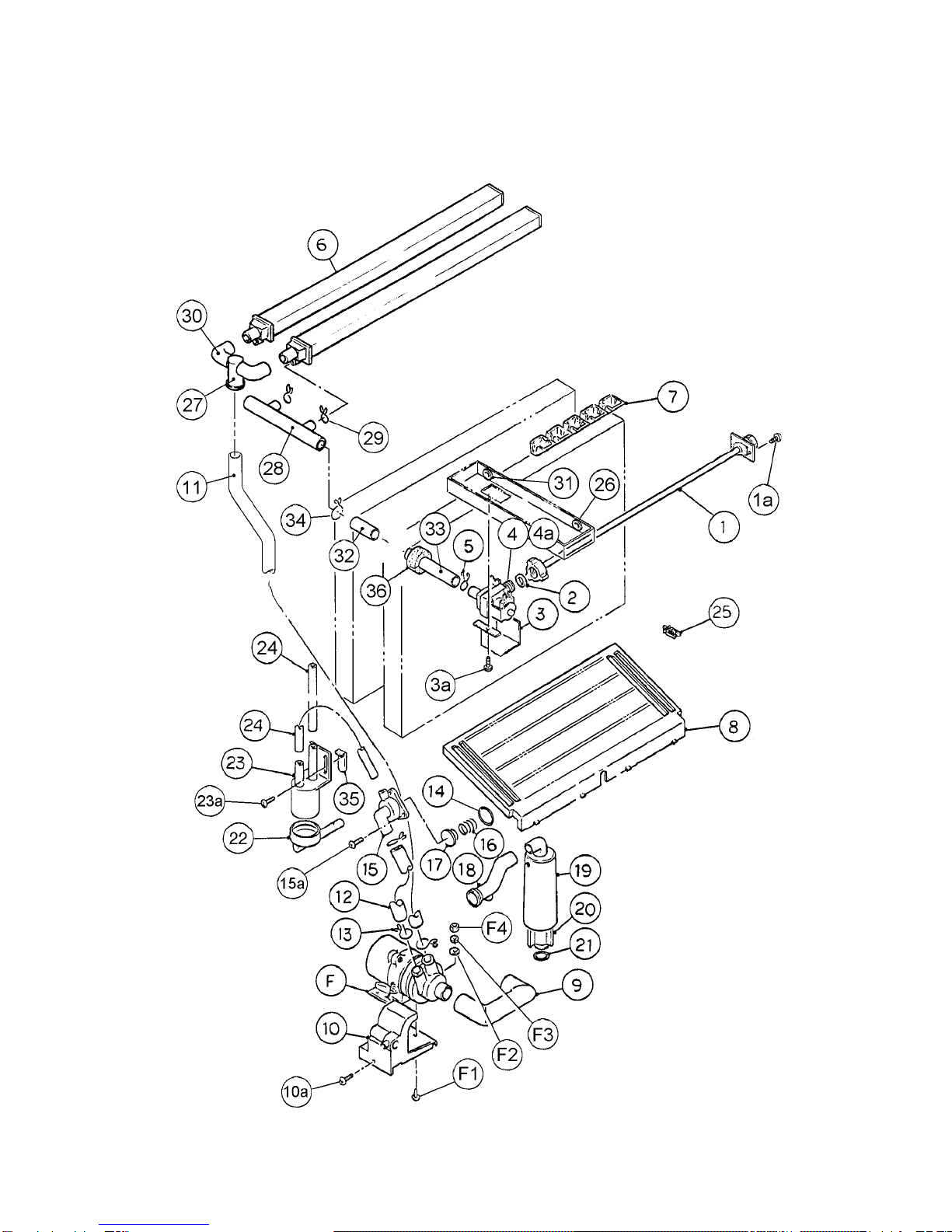

KM-630MAF-E, MWF-E C. WATER CIRCUIT J-0, J-1, K-0, L-0

HA
18
MODEL: KM-630MAF-E, MWF-E TITLE:C. WATER CIRCUIT
INDEX
NO.
DESCRIPTION MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER
J-0
J-1
K-0
L-0
F PUMP MOTOR ASSEMBLY HS-0102 321444A04 1 1
F1 TRUSS HEAD SCREW 4X16, SS 7C32-0416 1 1
F2 FLAT WASHER M4, SS 7W22-0400 1 1
F3 SPLIT LOCK WASHER M4, SS 7L22-0400 1 1
F4 HEX NUT M4, SS 7N12-0400 1 1
1 WATER SUPPLY PIPE COPPER 4A0768G06 1 1
1a T2 SCREW 4X8 7P31-0408 2 2
2 RUBBER GASKET NR 413854-03 1 1
3 WATER VALVE BRACKET GS 3A0736-01 1 1
3a T2 SCREW 4X8 7P31-0408 1 1
4 WATER VALVE V-19 4A1176-01 1 1
4a TRUSS HEAD SCREW 4X8 7C32-0408 2 2
5 HOSE CLAMP SS, 18MM 427443-05 1 1
6 SPRAY TUBE PE 433520G01 2 2
7 SPRAY GUIDE (A) PE 208586-01 6 6
8 CUBE GUIDE ABS 212088-01 1 1
9 SUCTION HOSE EPDM 433466-01 1 1
10 PUMP MOTOR BRACKET PC 211408-01 1 1
10a FLAT HEAD SCREW 4X12, SS 7F32-0412 1 1
11 VINYL HOSE L=785 7716-2025 1 1
12 VINYL HOSE L=110 7716-2025 1 1
13 HOSE CLAMP SS, 25MM 427443-03 6 6
14 "O" RING 1AG35 7611-G035 1 1
15 VALVE HOUSING - DRAIN ABS 321001-01 1 1
15a T2 SCREW 4X10, SS 7P32-0410 3 3
16 SPRING SS 3A0875-01 1 1
17 VALVE SHEET EPDM 433705-01 1 1
18 DRAIN HOSE SANTOPRENE 433468-01 1 1
19 OVERFLOW CAP PE 321002-01 1 1

HA
19
MODEL: KM-630MAF-E, MWF-E TITLE:C. WATER CIRCUIT
INDEX
NO.
DESCRIPTION MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER
J-0
J-1
K-0
L-0
20 OVERFLOW PIPE ABS 430722-01 1 1
21 “O”RING EPDM 4A1234-01 1 1
22 CONNECTOR –FLOAT SWITCH EPDM 3A1325-01 1 1
23 FLOAT SWITCH 163795 4A0886-01 1 1
23a T2 SCREW 4X12, SS 7P32-0412 2 2
24 SILICONE HOSE L=140 7730I3812 2 2
25 WIRE SADDLE VWS4238-C 4A0338-02 4 4
26 BUSHING OCB-500 428394-02 1 1
27 DISTRIBUTOR EPDM 432820-01 1 1
28 DISTRIBUTOR HOSE 439374-01 1 1
29 HOSE CLAMP SS, 13.5 MM 427443-07 2 2
30 ELBOW 433467-01 2 2
31 BUSHING OCB-750 428394-01 2 2
32 JOINT PIPE ABS 439329-01 1 1
33 CONNECTING PIPE DYNAFLEX 4A1142-02 1 1
34 HOSE CLAMP SS, 20 MM 427443-06 1 1
35 FLOAT SWITCH STOP SS 446358-01 1 1
36 INSULATION (E) PE FOAM 4A0392-01 1 1

HA
20

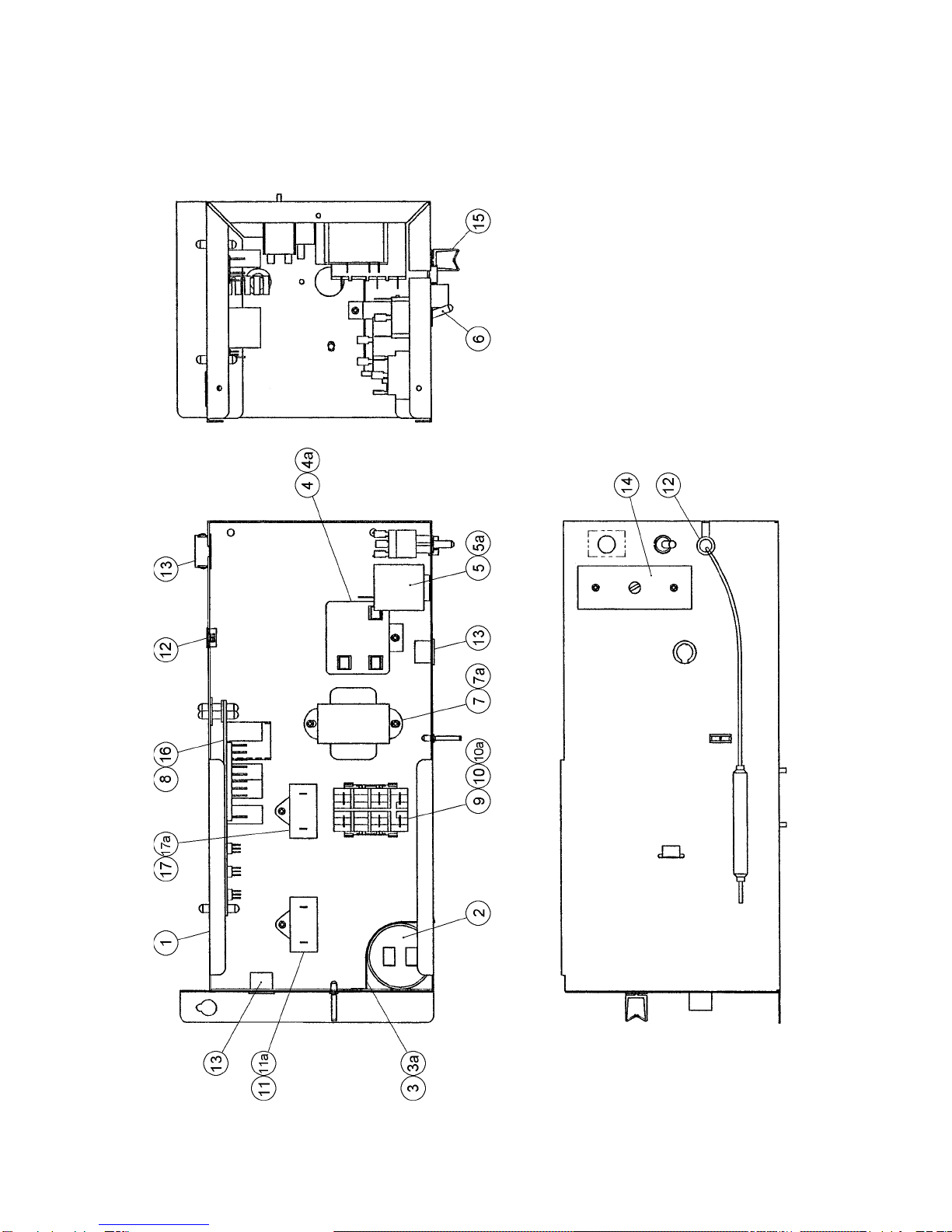

KM-630MAF-E, MWF-E D. CONTROL BOX ASSEMBLY J-0, J-1, K-0, L-0
