Hoshizaki KMS-822MLJ User manual

Models
KMS-822MLJ
Including
Condensing Unit Models
SRK-10J
Modular Crescent Cuber
Serenity Series
Instruction Manual
Issued: 4-9-2018
Revised: 7-16-2018
hoshizakiamerica.com

2
WARNING
Only qualied service technicians should install and service the appliance. To
obtain the name and phone number of your local Hoshizaki Certied Service
Representative, visit www.hoshizaki.com. No installation or service should be
undertaken until the technician has thoroughly read this Instruction Manual.
Likewise, the owner/manager should not proceed to operate the appliance until the
installer has instructed them on its proper operation. Failure to install, operate, and
maintain the appliance in accordance with this manual will adversely affect safety,
performance, component life, and warranty coverage and may result in costly water
damage. Proper installation is the responsibility of the installer. Product failure or
property damage due to improper installation is not covered under warranty.
Hoshizaki provides this manual primarily to assist qualied service technicians in the
installation, maintenance, and service of the appliance.
Should the reader have any questions or concerns which have not been satisfactorily
addressed, please call, send an e-mail message, or write to the Hoshizaki Technical
Support Department for assistance.
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
618 Highway 74 South
Peachtree City, GA 30269
Attn: Hoshizaki Technical Support Department
NOTE: To expedite assistance, all correspondence/communication MUST include the
following information:
• Model Number
• Serial Number
• Complete and detailed explanation of the problem.

3
CONTENTS
Important Safety Information ................................................................................................. 4
I. Specications...................................................................................................................... 6
A. Electrical and Refrigerant Data ..................................................................................... 6
1. KMS-822MLJ ........................................................................................................... 6
2. SRK-10J .................................................................................................................. 6
B. Dimensions/Connections .............................................................................................. 7
1. KMS-822MLJ ........................................................................................................... 7
2. SRK-10J .................................................................................................................. 8
II. Installation and Operating Instructions .............................................................................. 9
A. Location ........................................................................................................................ 9
1. Icemaker .................................................................................................................. 9
2. Remote Condensing Unit....................................................................................... 10
B. Checks Before Installation............................................................................................11
1. Icemaker .................................................................................................................11
2. Remote Condensing Unit........................................................................................11
C. How to Remove Panels............................................................................................... 12
1. Icemaker ................................................................................................................ 12
2. Remote Condensing Unit....................................................................................... 12
D. Setup........................................................................................................................... 13
1. Dispenser Unit/Ice Storage Bin and Icemaker Setup............................................. 13
2. Bin Control Installation........................................................................................... 14
E. Installation of the Remote Condensing Unit................................................................ 15
1. Setup...................................................................................................................... 15
2. Line Set ................................................................................................................. 15
3. Line Set Installation ............................................................................................... 16
F. Electrical Connection ................................................................................................... 18
G. Water Supply and Drain Connections ......................................................................... 21
H. Final Checklist............................................................................................................. 23
I. Startup.......................................................................................................................... 24
III. Maintenance ................................................................................................................... 25
A. Maintenance Schedule................................................................................................ 25
B. Cleaning and Sanitizing Instructions ........................................................................... 26
IV. Preparing the Icemaker for Periods of Non-Use ............................................................. 30
V. Disposal ........................................................................................................................... 31
IMPORTANT
This manual should be read carefully before the appliance is installed and operated.
Read the warnings and guidelines contained in this manual carefully as they
provide essential information for the continued safe use and maintenance of the
appliance. Retain this manual for any further reference that may be necessary.

4
Important Safety Information
Throughout this manual, notices appear to bring your attention to situations which could
result in death, serious injury, damage to the appliance, or damage to property.
WARNING Indicates a hazardous situation which could result in death or
serious injury.
NOTICE Indicates a situation which could result in damage to the
appliance or property.
IMPORTANT Indicates important information about the installation, use, and
care of the appliance.
WARNING
This appliance should be destined only to the use for which it has been expressly
conceived. Any other use should be considered improper and therefore dangerous.
The manufacturer cannot be held responsible for injury or damage resulting
from improper, incorrect, and unreasonable use. Failure to install, operate, and
maintain the appliance in accordance with this manual will adversely affect safety,
performance, component life, and warranty coverage and may result in costly water
damage.
To reduce the risk of death, electric shock, serious injury, or re, follow basic
precautions including the following:
• Only qualied service technicians should install and service the appliance.
• The appliance must be installed in accordance with applicable national, state, and
local codes and regulations.
• To reduce the risk of electric shock, do not touch the control switch with damp
hands.
• Move the control switch to the "OFF" position and turn off the power supply to
the remote condensing unit before servicing. Place the icemaker disconnect
(ifapplicable) in the "OFF" position. Lockout/Tagout to prevent the power supply
from being turned back on inadvertently.
• Do not make any alterations to the appliance. Alterations could result in electric
shock, injury, re, or damage to the appliance.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory, or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Children should be properly supervised around this appliance.
• Do not climb, stand, or hang on the appliance or allow children or animals to do so.
Serious injury could occur or the appliance could be damaged.
• Do not use combustible spray or place volatile or ammable substances near the
appliance. They might catch re.
• Keep the area around the appliance clean. Dirt, dust, or insects in the appliance
could cause harm to individuals or damage to the appliance.

5
WARNING, continued
Icemaker
• Do not connect the icemaker to an external power source. Icemaker power supply
and ground connection are supplied from the remote condensing unit via the wire
bundle provided with the remote condensing unit.
• Wire bundle routing (conduit) and disconnect (if required) must meet national, state,
and local electrical code requirements. Failure to meet these code requirements
could result in death, electric shock, serious injury, re, or damage.
• THE ICEMAKER MUST BE GROUNDED. Failure to properly ground the icemaker
could result in death or serious injury.
Remote Condensing Unit
• Remote condensing unit electrical connection must be hard-wired and must meet
national, state, and local electrical code requirements. Failure to meet these code
requirements could result in death, electric shock, serious injury, re, or damage.
• The remote condensing unit requires an independent power supply of proper
capacity. See the nameplate for electrical specications. Failure to use an
independent power supply of proper capacity can result in a tripped breaker, blown
fuse, damage to existing wiring, or component failure. This could lead to heat
generation or re.
• THE REMOTE CONDENSING UNIT MUST BE GROUNDED. Failure to properly
ground the remote condensing unit could result in death or serious injury.
NOTICE
• Follow the water supply, drain connection, and maintenance instructions carefully to
reduce the risk of costly water damage.
• In areas where water damage is a concern, install in a contained area with a oor
drain.
• Install the icemaker in a location that stays above freezing. Normal operating
ambient temperature must be within 45°F to 100°F (7°C to 38°C).
• Do not leave the icemaker on during extended periods of non-use, extended
absences, or in sub-freezing temperatures. To properly prepare the icemaker for
these occasions, follow the instructions in "IV. Preparing the Icemaker for Periods of
Non-Use."
• Do not place objects on top of the appliance.
• The dispenser unit/ice storage bin is for ice use only. Do not store anything else in
the dispenser unit/ice storage bin.

6
I. Specications
A. Electrical and Refrigerant Data
The rating label (KMS) and nameplate (KMS and SRK) provide electrical and refrigerant
data. The rating label can be seen by removing the front panel. The nameplate is located
on the rear panel of the icemaker and on the side panel of the remote condensing unit.
Forcertication marks, see the nameplate.
We reserve the right to make changes in specications and design without prior notice.
1. KMS-822MLJ
Model Number KMS-822MLJ
AC Supply Voltage 115-120/60/1
Pump 120V 1.2FLA 60W
Other 115V 0.8A
Design Pressure HI-467PSI LO-230PSI
Total Refrigerant
Charge
404A
Total Refrigerant Charge
with Hoshizaki Remote
Condensing Unit
SRK-10J: 14 LB. 1.75 OZ.
2. SRK-10J
Model Number SRK-10J
AC Supply Voltage 208-230/60/1 (3 wire with neutral)
Compressor 230V 7.7RLA 56.0LRA
Fan Motor 115V 2.6FLA (total) 126W
Other 115V 0.4A
Maximum Fuse Size 20 AMPS
Max. HACR Breaker
(USA Only)
20 AMPS
Max. Circ. Breaker
(Canada Only)
20 AMPS
Minimum Circuit
Ampacity
20 AMPS
Design Pressure HI-467PSI LO-230PSI
Refrigerant 404A
Total Refrigerant Charge with
Hoshizaki Icemaker
KMS-822MLJ: 14 LB. 1.75 OZ.

7
565
[ 22 - 1/4 ]
559
[ 22 ]
625
[ 24 - 5/8 ]
30
[ 1 - 1/8 ]
597
[ 23 - 1/2 ]
71
[ 2 - 3/4 ]
123
[ 4 - 7/8 ]
CONDENSATION
DRAIN OUTLET
5/8” O. D. HARD TUBE
345
[ 13 - 5/8 ]
ICE DROP ZONE
AND DRIP OPENING
147
[ 5 - 3/4 ]
55
[ 2 - 1/8 ] 66
[ 2 - 5/8 ]
130
[ 5 - 1/8 ]
36
[ 1 - 3/8 ]
LIQUID LINE
1/2” FIELD CONNECTION
ICEMAKER WATER
INLET 1/2” FPT
505 [ 19 - 7/8 ]
25.4 [ 1 ]
53 [ 2 - 1/8 ]
715 [ 28 - 1/8 ]
491 [ 19 - 3/8 ]
655 [ 25 - 3/4 ]
119 [ 4 - 5/8 ]
14 [ 9/16 ]
SUCTION LINE
5/8” FIELD CONNECTION
WIRE HARNESS
CONNECTION
7/8” DIA. OPENING
ICEMAKER DRAIN
OUTLET 3/4” FPT
MOUNTING HOLES
28 [ 1 - 1/8 ]
565
[ 22 - 1/4 ]
559
[ 22 ]
625
[ 24 - 5/8 ]
30
[ 1 - 1/8 ]
597
[ 23 - 1/2 ]
71
[ 2 - 3/4 ]
123
[ 4 - 7/8 ]
CONDENSATION
DRAIN OUTLET
5/8” O. D. HARD TUBE
345
[ 13 - 5/8 ]
ICE DROP ZONE
AND DRIP OPENING
147
[ 5 - 3/4 ]
55
[ 2 - 1/8 ] 66
[ 2 - 5/8 ]
130
[ 5 - 1/8 ]
36
[ 1 - 3/8 ]
LIQUID LINE
1/2” FIELD CONNECTION
ICEMAKER WATER
INLET 1/2” FPT
505 [ 19 - 7/8 ]
25.4 [ 1 ]
53 [ 2 - 1/8 ]
715 [ 28 - 1/8 ]
491 [ 19 - 3/8 ]
655 [ 25 - 3/4 ]
119 [ 4 - 5/8 ]
14 [ 9/16 ]
SUCTION LINE
5/8” FIELD CONNECTION
WIRE HARNESS
CONNECTION
7/8” DIA. OPENING
ICEMAKER DRAIN
OUTLET 3/4” FPT
MOUNTING HOLES
28 [ 1 - 1/8 ]

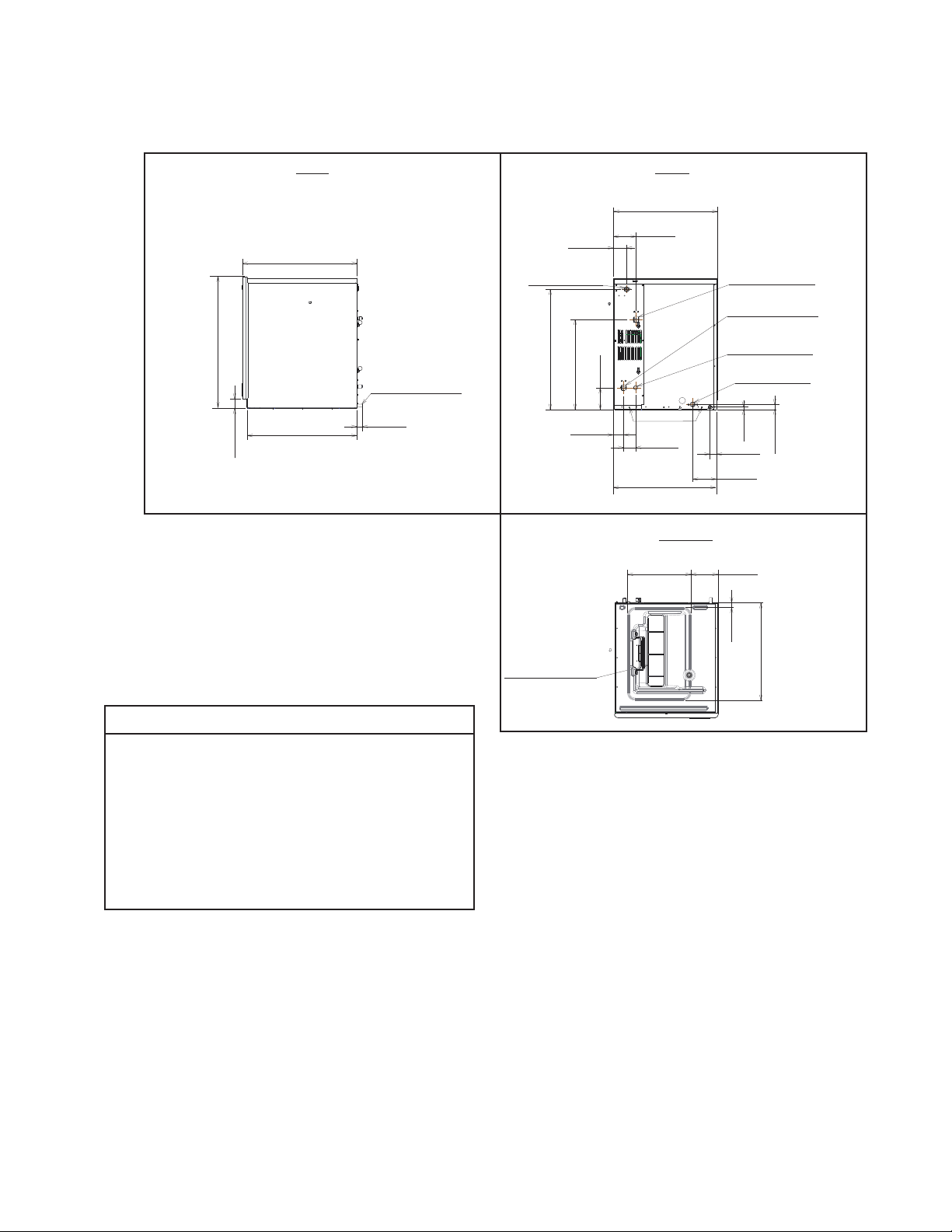

B. Dimensions/Connections
1. KMS-822MLJ
Unit:mm [in.]
NOTICE
• Allow 6" (15 cm) clearance at rear,
sides, and top for proper air circulation
and ease of maintenance and/or
service should they be required.
• The ice storage bin opening must
match the bottom opening as in the
illustration.
RearSide
Bottom
565
[ 22 - 1/4 ]
559
[ 22 ]
625
[ 24 - 5/8 ]
30
[ 1 - 1/8 ]
597
[ 23 - 1/2 ]
71
[ 2 - 3/4 ]
123
[ 4 - 7/8 ]
CONDENSATION
DRAIN OUTLET
5/8” O. D. HARD TUBE
345
[ 13 - 5/8 ]
ICE DROP ZONE
AND DRIP OPENING
147
[ 5 - 3/4 ]
55
[ 2 - 1/8 ] 66
[ 2 - 5/8 ]
130
[ 5 - 1/8 ]
36
[ 1 - 3/8 ]
LIQUID LINE
1/2” FIELD CONNECTION
ICEMAKER WATER
INLET 1/2” FPT
505 [ 19 - 7/8 ]
25.4 [ 1 ]
53 [ 2 - 1/8 ]
715 [ 28 - 1/8 ]
491 [ 19 - 3/8 ]
655 [ 25 - 3/4 ]
119 [ 4 - 5/8 ]
14 [ 9/16 ]
SUCTION LINE
5/8” FIELD CONNECTION
WIRE HARNESS
CONNECTION
7/8” DIA. OPENING
ICEMAKER DRAIN
OUTLET 3/4” FPT
MOUNTING HOLES
28 [ 1 - 1/8 ]

8

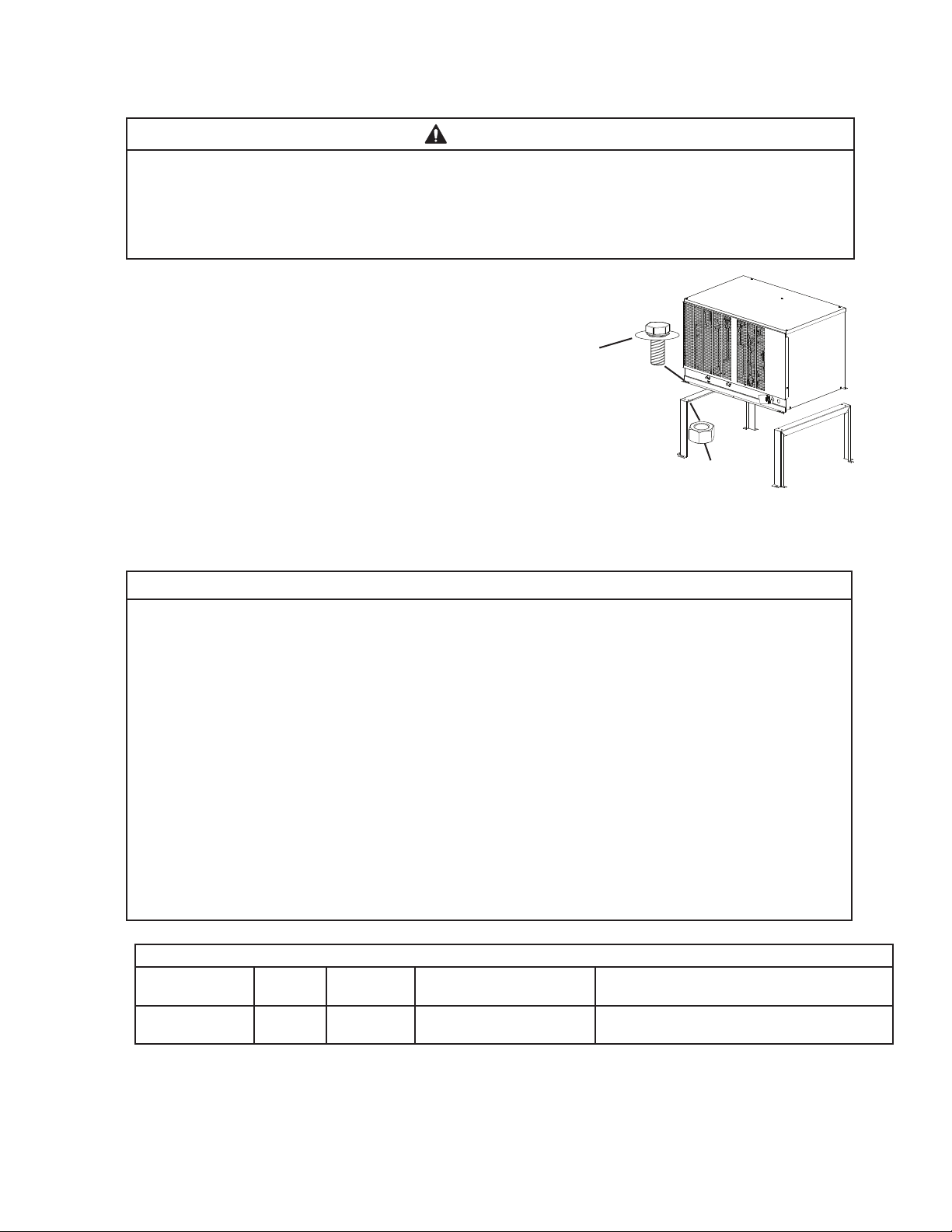

2. SRK-10J
Unit: mm [in.]
Note: Legs are included with remote condensing unit.
Leg height is 380 mm (14.96 in.).
Model
Heat of Rejection
AT 90°F (32°C)
WT 70°F (21°C)
KMS-822MLJ with SRK-10J 14,700 BTU/hr

9
II. Installation and Operating Instructions
WARNING
• The icemaker and remote condensing unit must be installed in accordance with
applicable national, state, and local codes and regulations.
• Failure to install, operate, and maintain the appliance in accordance with this
manual will adversely affect safety, performance, component life, and warranty
coverage and may result in costly water damage.
• CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews
are securely in place after installation. Make sure that none have fallen into the
dispenser unit/ice storage bin.
A. Location
1. Icemaker
NOTICE
• This icemaker is not intended for outdoor use. Normal operating ambient
temperature must be within 45°F to 100°F (7°C to 38°C); Normal operating
water temperature must be within 45°F to 90°F (7°C to 32°C). Operation of the
icemaker, for extended periods, outside of these normal temperature ranges may
affect icemaker performance.
• This icemaker will not work at sub-freezing temperatures. To prevent damage
to the water supply line, drain the icemaker if the air temperature is going to go
below 32°F (0°C). See "IV. Preparing the Icemaker for Periods of Non-Use."
• The icemaker should not be located next to ovens, grills, or other high heat producing
equipment.
• Allow 6" (15 cm) clearance at rear, sides, and top for proper air circulation and ease of
maintenance and/or service should they be required.
• The location must provide a rm and level foundation for the equipment.

10
Remote
Condensing Unit
(with compressor)
2. Remote Condensing Unit
NOTICE
• The remote condensing unit is intended for outdoor use. Normal operating ambient
temperature must be within -20°F to 122°F (-29°C to 50°C). Operation of the
remote condensing unit, for extended periods, outside of this normal temperature
range may affect performance.
• The maximum line set length is 66' (20 m). No refrigerant charge adjustment is
necessary.
• The maximum vertical distance between the remote condensing unit and icemaker
is 33' (10 m) above or 10' (3 m) below the icemaker. These distances are measured
tting to tting. See Fig. 1.
• If the vertical distance between the remote condensing unit and the icemaker
is greater than 20' (6 m) (not to exceed 33' (10 m)), an "S" oil-trap (5/8"OD
copper tubing) must be installed in the suction line. The "S" oil-trap must be
located halfway between the icemaker and remote condensing unit. This ensures
sufficient oil return to the compressor.
The remote condensing unit must be positioned in a permanent site under the following
guidelines:
• A rm and at site.
• A dry and well ventilated area with 24" (61 cm) clearance in both front and rear for proper
air circulation and ease of maintenance and/or service should they be required. See Fig. 2.
Fig. 1
Fig. 2
24"
(61 cm)
Min. 24" (61 cm) Clearance
Air
Air
24"
(61 cm)
Max.
10
Feet
Icemaker
Service Loop
Remote
Condensing Unit
(with compressor)
Icemaker
Suction Line
"S" Oil-Trap
Service Loop
Max.
33
Feet
Max.
16.5
Feet
Ice Storage
Bin
Max.
16.5
Feet
Ice Storage
Bin

11
B. Checks Before Installation
• Visually inspect the exterior of the shipping containers and immediately report any
damage to the carrier. Upon opening the containers, any concealed damage should
also be immediately reported to the carrier.
• Remove the shipping carton, tape, and packing material. If any are left in the icemaker
or remote condensing unit, they will not work properly.
1. Icemaker
• Remove the panels to prevent damage when installing the icemaker. See "II.C. How to
Remove Panels."
• Remove the package containing the accessories.
• Remove the protective plastic lm from the panels. If the icemaker is exposed to the sun
or to heat, remove the lm after the icemaker cools.
• Check that the refrigerant lines do not rub or touch lines or other surfaces.
• This icemaker can be installed on a dispenser unit or ice storage bin 22" wide or wider.
Foroptions, contact your local Hoshizaki distributor.
• NOTICE! This icemaker is designed for connection to Hoshizaki Remote
Condensing Unit Model SRK-10J only! Connection to another remote condensing
unit will void the warranty.
2. Remote Condensing Unit
• See the nameplate on the remote condensing unit. Check that your voltage supplied
corresponds with the voltage specied on the nameplate.
• Remove the panels to prevent damage when installing the remote condensing unit.
See"II.C. How to Remove Panels."
• Remove the package containing the accessories.
• Check that the refrigerant lines do not rub or touch lines or other surfaces, and that the
fan blades turn freely.
• Check that the compressor is snug on all mounting pads.

12

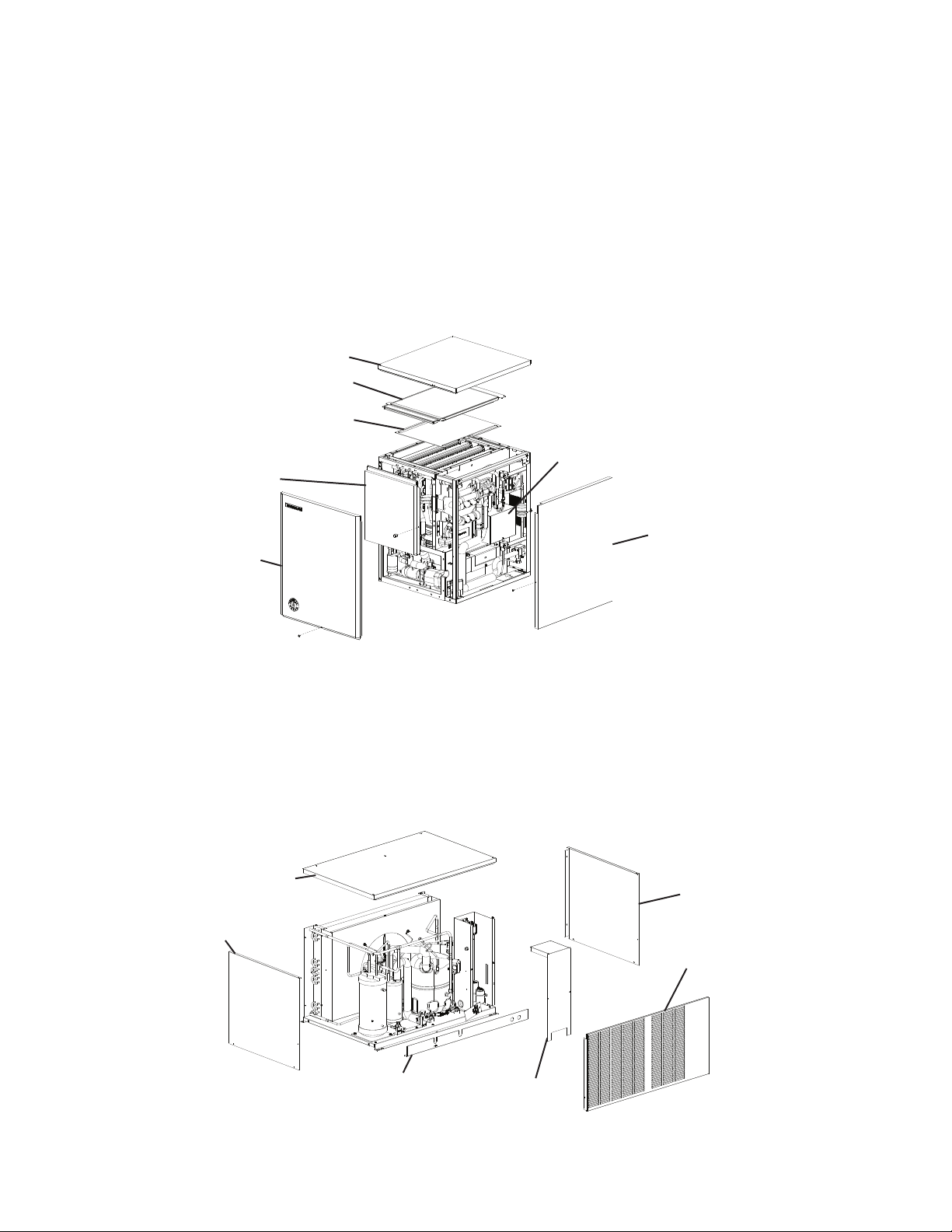

C. How to Remove Panels
1. Icemaker
• Front Panel: Loosen the screw. Lift up and towards you.
• Control Box Cover: Remove the screws and pull towards you.
• Top Panel: Lift off.
• Top Insulation and Top Cover: Lift off.
• Right Side Panel: Remove the screw. Slide forward slightly and lift off.
• Insulation Panel: Remove the thumbscrew. Lift up slightly and pull towards you.
2. Remote Condensing Unit
• Top Panel: Remove the screws and lift off.
• Side Panels: Remove the screws and lift off.
• Louver Panel: Remove the screws and lift off.
• Front Frame: Remove the screws and lift off.
• Control Box Cover: Remove the screws and lift off.
Insulation Panel
Fig. 4
Right Side Panel
Fig. 3
Top Panel
Front Panel
Icemaker
Top Insulation
Top Cover
Top Panel Right Side Panel
Louver Panel
Left Side Panel
Remote Condensing Unit
Control Box
Cover
Front Frame
Control Box Cover

13
D. Setup
1. Dispenser Unit/Ice Storage Bin and Icemaker Setup
WARNING
The installer must ensure the dispenser unit/ice storage bin is compatible with
the icemaker, and the dispenser unit/ice storage bin and icemaker are properly
attached and secured.
NOTICE
• Donot connect the icemaker to an external power source. Icemaker power supply
and ground connection are supplied from the remote condensing unit via the wire
bundle provided with the remote condensing unit. For details, see "II.F. Electrical
Connection."
• Before operating the icemaker, the bin control must be installed correctly. Failure
to properly install the bin control could result in ice backup and unit damage.
1) If mounting the icemaker on top of a dispenser unit, follow the dispenser unit's setup
procedure. If mounting the icemaker on top of an ice storage bin, unpack the ice storage
bin and attach the 4 adjustable legs provided (bin accessory) to the bottom of the ice
storage bin.
2) Position the dispenser unit/ice storage bin in its permanent location.
3) If required, install an adapter kit or top kit. Contact your local Hoshizaki distributor for
recommendations.

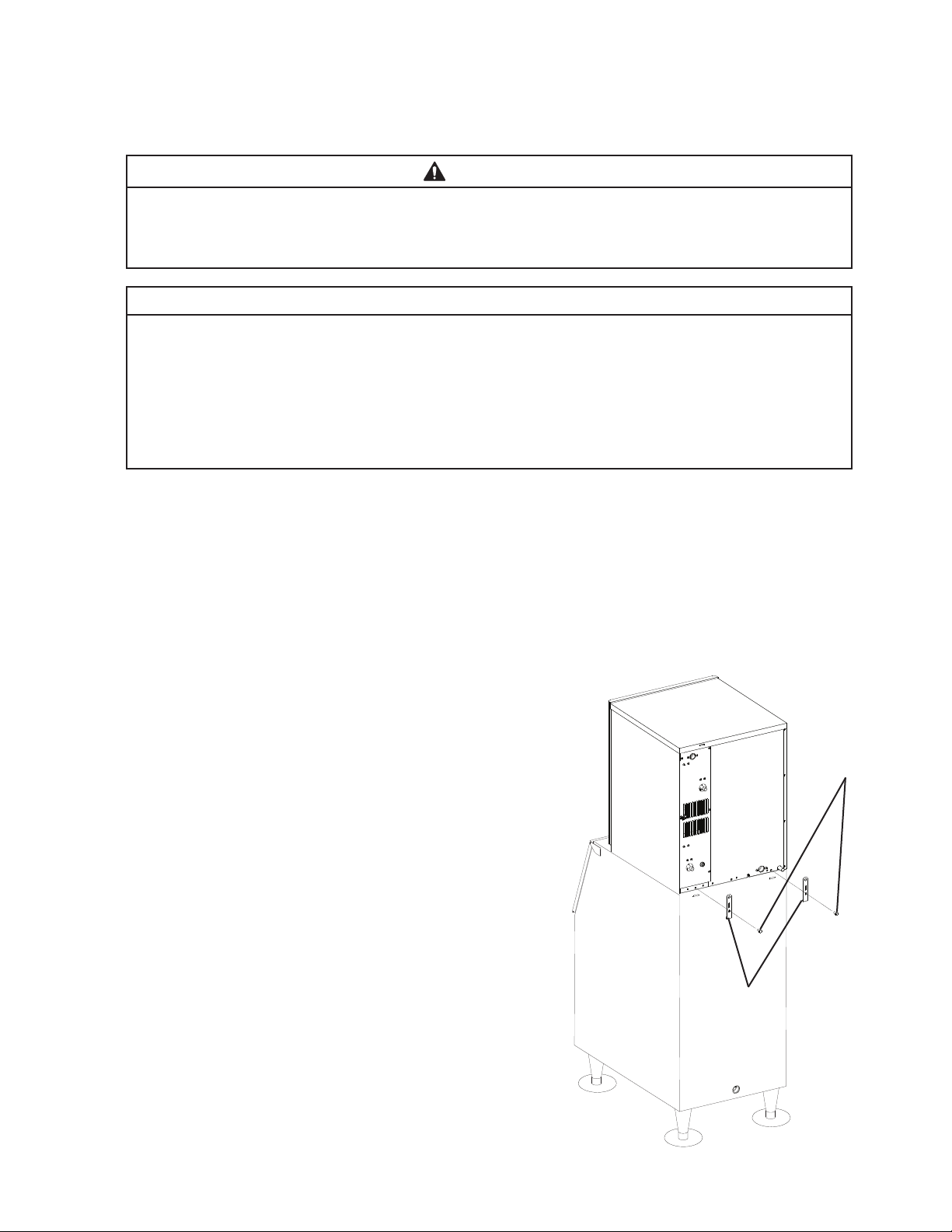

4) Level the dispenser unit/ice storage bin in both the
left-to-right and front-to-rear directions. Ifusing an
ice storage bin, adjust the ice storage bin legs to
level.
5) Place the icemaker on top of the dispenser unit/
ice storage bin.
6) Secure the icemaker to the dispenser unit/ice
storage bin using the standard mounting brackets
and the machine bolts provided. See Fig.5.
Icemaker
Bolts
Mounting
Brackets
Ice Storage
Bin
Fig. 5

14
Fig. 6
Control Box
Bin Control
Insulation
Bin Control
Cover
Bin
Control
Bin
Control
Cover
Bin Control Extension Bracket
and 2 Thumbscrews from
Accessory Bag
Bin Control
Fig. 7
Notch
Slot

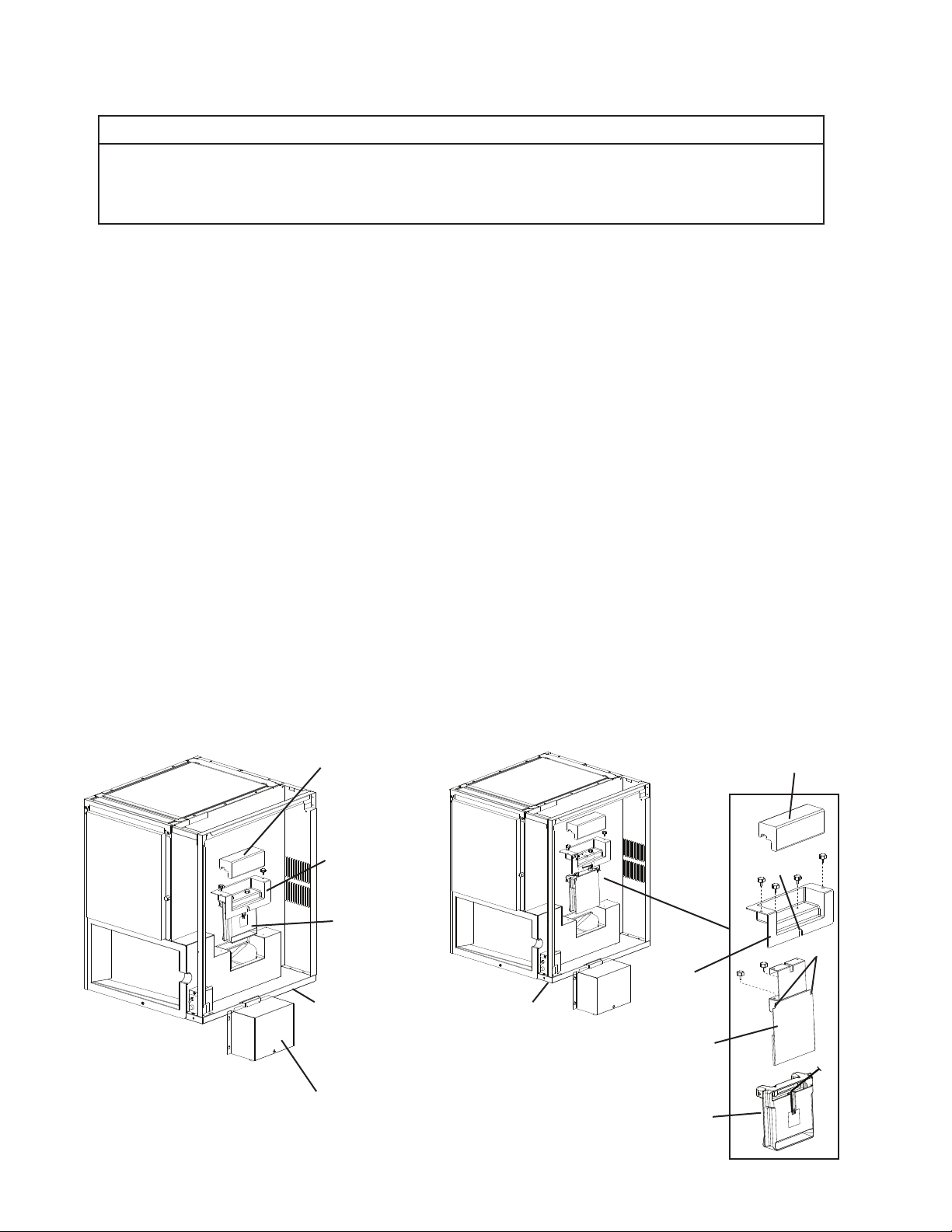

2. Bin Control Installation
NOTICE
Before operating the icemaker, the bin control assembly must be installed correctly.
Failure to properly install the bin control assembly could result in ice backup and
icemaker damage.
Follow the instructions below for bin control assembly installation.
1) If not already removed, remove the front panel, top, and right side panels.
2) Loosen the screws securing the control box, then lift the control box off and hang it from
the base. See Fig. 6.
3) Remove the bin control insulation and bin control cover.
4) Remove bin control from the bin control cover.
5) Remove the bin control extension bracket and 2 thumbscrews from the accessory bag.
Route the bin control cable around one of the notches on either side of the extension
bracket, then secure the bin control to the bin control extension bracket using the
2thumbscrews. See Fig. 7.
Note: All thumbscrews used in the bin control assembly are the same size.
6) Using 2 existing thumbscrews, attach the bin control extension bracket to the bin control
cover.
7) Route the bin control cable through the slot in the bin control cover, then place the bin
control assembly into position and secure with 2 existing thumbscrews.
8) Replace the bin control insulation in its proper position.
9) Secure the control box in its proper position.
Base Base
Bin Control
Insulation

15
E. Installation of the Remote Condensing Unit
WARNING
• Installation must be performed by properly trained and EPA-certied service
personnel.
• Power supply and ground wire to the icemaker are supplied from the remote
condensing unit. For details, see "II.F. Electrical Connection."
1. Setup
1) Secure the legs to the remote condensing
unit with the 8 bolts and nuts provided.
See Fig. 8.
2) The legs have 8 mounting holes. Secure
the legs with 8 bolts (not included).
Nut
Fig. 8
Bolt with
Split Lock
Washer and
Flat Washer
2. Line Set
NOTICE
• The icemaker, line set, and remote condensing unit must contain the same type
of refrigerant. Mixing of refrigerants will result in improper operation and possible
damage to the refrigeration system.
• The maximum line set length is 66' (20 m). No refrigerant charge adjustment is
necessary.
• The maximum vertical distance between the remote condensing unit and icemaker
is 33' (10 m) above or 10' (3 m) below the icemaker. These distances are measured
tting to tting. See Fig. 9. NOTICE! Do not exceed maximum vertical distance.
• If the vertical distance between the remote condensing unit and the icemaker
is greater than 20' (6 m) (not to exceed 33' (10 m)), an "S" oil-trap (5/8"OD
copper tubing) must be installed in the suction line. The "S" oil-trap must be
located halfway between the icemaker and remote condensing unit. This ensures
sufficient oil return to the compressor.
Line Set Size and Length for SRK-10J Remote Condensing Unit
Hoshizaki
Icemaker
Liquid
Line
Suction
Line
Factory Line
Set Lengths Maximum Line Set Length
KMS-822MLJ 1/2" OD 5/8" OD
25' (7.6 m), 35' (10.7 m),
and 55' (16.8 m) 66' (20 m)

16
3. Line Set Installation
WARNING
• R-404A itself is not ammable at atmospheric pressure and temperatures up to
176°F (80°C).
• R-404A itself is not explosive or poisonous. However, when exposed to high
temperatures (open ames), R-404A can be decomposed to form hydrouoric
acid and carbonyl uoride both of which are hazardous.
• Do not use silver alloy or copper alloy containing arsenic.
• Do not open any service valve until the line set installation is complete and leak
tested.
• Ensure that there are no unnecessary traps and no kinks in the line set.
• Do not coil extra line set.
• Use an electronic leak detector or soap bubbles to check for leaks. Add a trace of
refrigerant to the line set tubing through the service valve access ports (ifusing
an electronic leak detector), and then raise the pressure using nitrogen gas
(140PSIG). Do not use R-404A as a mixture with pressurized air for leak testing.
1) Route the factory line set or appropriate size copper tubing. When eld fabricating,
insulate the copper tubes separately. Leave a service loop behind the icemaker to
allow the icemaker to be pulled out for service. See Fig. 9. Note: The service loop is not
considered an oil trap.
2) Remove any extra line set length.
3) NOTICE! Before brazing, remove the Schrader valve cores from the service valve
access ports. When brazing, protect the service valve by using a wet cloth to
prevent the service valve from overheating.
4) Braze the line set to the icemaker service valves rst, then to the remote condensing
unit service valves.
5) Allow the service valves to cool, then replace the Schrader valve cores.
6) Use an electronic leak detector or soap bubbles to check for leaks. Add a trace of
refrigerant to the line set tubing through the service valve access ports (if using an
electronic leak detector), and then raise the pressure using nitrogen gas (140 PSIG).
WARNING! Do not use R-404A as a mixture with pressurized air for leak testing.
7) Attach the gauge manifold hoses to the service valve access ports and evacuate the
line set tubing. Allow the vacuum pump to pull down to a 29.9" Hg vacuum. Evacuating
period depends on pump capacity. Next, charge each line set tube with R-404A vapor
to a pressure of 15 to 30 PSIG.
8) Close both gauge manifold valves.
9) Disconnect the gauge manifold hoses.
10) Replace the service valve access port caps and tighten.
11) Open the icemaker service valves rst, then open the remote condensing unit service
valves.

17
Fig. 9
Remote
Condensing Unit
(with compressor)
Icemaker
Service Loop
5/8" OD Suction Line
(insulated)
1/2" OD
Liquid Line
(insulated)
Max.
10
Feet
Icemaker
Suction Line
"S" Oil-Trap
Service Loop
Max.
33
Feet
Max.
16.5
Feet
Ice
Storage
Bin
Max.
16.5
Feet
Remote
Condensing Unit
(with compressor)
5/8" OD Suction Line
(insulated)
1/2" OD
Liquid Line
(insulated)
12) Replace the service valve caps and tighten.
13) Insulate all exposed tubing and ttings.
Hoshizaki Technical Support is available at 1-800-233-1940 for recommendations.
Line Set Connections
Ice
Storage
Bin

18
F. Electrical Connection
WARNING
Icemaker
• Donot connect the icemaker to an external power source. Icemaker power supply
and ground connection are supplied from the remote condensing unit via the wire
bundle provided with the remote condensing unit.
• Wire bundle routing (conduit) and disconnect (if required) must meet national, state,
and local electrical code requirements. If fabricating a wire bundle, use wire of an
appropriate gage and outdoor rating. Failure to meet these code requirements could
result in death, electric shock, serious injury, re, or damage.
• THE ICEMAKER MUST BE GROUNDED. Failure to properly ground the icemaker
could result in death or serious injury.
• To reduce the risk of electric shock, do not connect the remote condensing unit
power supply until after all wire bundle connections have been made.
Remote Condensing Unit
• Remote condensing unit electrical connection must be hard-wired and must meet
national, state, and local electrical code requirements. Failure to meet these code
requirements could result in death, electric shock, serious injury, re, or damage.
• The remote condensing unit requires an independent power supply of proper
capacity. See the nameplate for electrical specications. Failure to use an
independent power supply of proper capacity can result in a tripped breaker,
blown fuse, damage to existing wiring, or component failure. This could lead to
heat generation or re.
• THE REMOTE CONDENSING UNIT MUST BE GROUNDED. Failure to properly
ground the remote condensing unit could result in death or serious injury.
• Remote condensing unit electrical connection must be made in accordance with
the instructions on the "WARNING" tag provided with the pig tail leads in the
remote condensing unit's power supply junction box. See Fig. 10.
NOTICE
The remote condensing unit must have power for a minimum of 4 hours prior to
startup to prevent compressor damage.
• Usually an electrical permit and services of a licensed electrician are required.
• The maximum allowable voltage variation is ±10 percent of the nameplate rating.
• The openings for the power supply and wire bundle connections are 7/8" DIA to t a
1/2" trade size conduit.

19
1) Route the wire bundle between the icemaker and remote condensing unit. Use the wire
bundle supplied with the remote condensing unit, or fabricate a wire bundle using wire
of an appropriate gage and outdoor rating. Use the wiring label or Fig. 11 as a reference.
2a) Icemaker: Connect the wire bundle ground wire to the icemaker ground screw, then
connect the rest of the wire bundle wires to the icemaker terminal block.
WARNING! Do not connect the wire bundle ground wire to the icemaker terminal
block.
2b) Remote Condensing Unit: Connect the wire bundle ground wire to the remote
condensing unit ground screw (located next to the terminal block).
WARNING! Do not connect the wire bundle ground wire to the remote
condensing unit terminal block.
3) Connect the power supply from the disconnect or electrical panel to the leads in
the remote condensing unit's power supply junction box. This differs from KM style
installations. Connect a ground wire to the ground screw. See Fig. 11.
• The white lead must be connected to the neutral conductor of the power source.
NOTICE! Miswiring may result in severe damage to the icemaker.
4) Replace all removed parts and panels in their correct positions.
5) Turn on the power supply to the remote condensing unit. NOTICE! The remote
condensing unit must have power for a minimum of 4hours prior to startup to
prevent compressor damage.
Fig. 10
SRK-10J
WARNING
ELECTRICAL CONNECTION
THIS UNIT MUST BE GROUNDED
Failure to properly ground or wire
this unit could result in death,
serious injury, or severe damage
to the icemaker. The white lead
must be connected to the neutral
conductor of the power source.
See diagram below.
4A5700-010
208-230/60/1
(3 wire with neutral for 115V)
JUNCTION BOX
208-230
V
BLACK
BROWN
L1
L2
WHITE
N
1
15-
120V

20
Contactor
HGV LLV
Neutral
Fuse 10A
CB
HGV LLV
Neutral
SRK Remote Condensing Unit
BR V PBK W
BR GR
GND
VPBK WBR VP BK W
GR
BR V P BK W
GND
Legend: GND-ground HGV- hot gas valve CB- control board LLV- liquid line valve
Wire Color Code: BK- black BR- brown GR-green P- pink V- violet W- white
KMS Icemaker
Fig. 11
Fuse 10A
Icemaker-Remote Condensing Unit Wire Bundle Connections
Use wire bundle supplied with the Remote Condensing Unit or fabricate a wire bundle using wire of an appropriate gage and outdoor rating.
