Hoshizaki DCM-270BAH-OS User manual

Hoshizaki
“A Superior Degree
of Reliability”
www.hoshizaki.com
Models
DCM-270BAH
DCM-270BAH-OS
Cubelet Icemaker / Dispenser
Hoshizaki America, Inc.
Issued: 5-6-2009
INSTRUCTION MANUAL
®

2
IMPORTANT
Only qualied service technicians should install, service, and maintain the
icemaker. No installation, service, or maintenance should be undertaken
until the technician has thoroughly read this Instruction Manual. Likewise, the
owner/manager should not proceed to operate the icemaker until the installer
has instructed them on its proper operation. Failure to install, operate, and
maintain the equipment in accordance with this manual may adversely affect
safety, performance, component life, and warranty coverage.
Hoshizaki provides this manual primarily to assist qualied service technicians in the
installation, maintenance, and service of the icemaker.
Should the reader have any questions or concerns which have not been satisfactorily
addressed, please call, write, or send an e-mail message to the Hoshizaki Technical
Support Department for assistance.
HOSHIZAKI AMERICA, INC.
618 Highway 74 South
Peachtree City, GA 30269
Attn: Hoshizaki Technical Support Department
Phone: [phone] Technical Support
[phone]
Fax: [phone]
[phone]
E-mail: [email protected]
Web Site: www.hoshizaki.com
NOTE: To expedite assistance, all correspondence/communication MUST include the
following information:
  •ModelNumber
  •SerialNumber
  •Completeanddetailedexplanationoftheproblem.

3
IMPORTANT
This manual should be read carefully before the icemaker is installed and
operated. Only qualied service technicians should install, service, and
maintain the icemaker. Read the warnings contained in this booklet carefully as
they give important information regarding safety. Please retain this booklet for
any further reference that may be necessary.
CONTENTS
Important Safety Information ................................................................................................. 4
I. Specications...................................................................................................................... 5
A. Nameplate Rating ......................................................................................................... 5
B. Dimensions/Connections .............................................................................................. 6
1. DCM-270BAH (push-button model) ......................................................................... 6
2. DCM-270BAH-OS (optical-sensor model)............................................................... 7
II. Installation Instructions ...................................................................................................... 8
A. Checks Before Installation............................................................................................. 8
B. How to Remove Panels ................................................................................................. 9
C. Location ...................................................................................................................... 10
D. Setup........................................................................................................................... 10
E. Electrical Connection ...................................................................................................11
F. Water Supply and Drain Connections .......................................................................... 12
G. Final Checklist ............................................................................................................ 13
H. Startup ........................................................................................................................ 14
III. Cleaning and Maintenance ............................................................................................. 16
A. Cleaning and Sanitizing Instructions ........................................................................... 16
1. Cleaning Solution................................................................................................... 17
2. Cleaning Procedure ............................................................................................... 17
3. Sanitizing Solution ................................................................................................. 18
4. Sanitizing Procedure - Initial .................................................................................. 18
5. Sanitizing Procedure - Final................................................................................... 19
B. Maintenance................................................................................................................ 21
C. Preparing the Icemaker for Long Storage ................................................................... 22

4
Important Safety Information
Throughout this manual, notices appear to bring your attention to situations which could
result in death, serious injury, or damage to the unit.
WARNING Indicates a hazardous situation which could result in death or
serious injury.
CAUTION Indicates a situation which could result in damage to the unit.
IMPORTANT Indicates important information about the use and care of the
unit.
WARNING
This icemaker should be destined only to the use for which it has been
expressly conceived. Any other use should be considered improper and
therefore dangerous. The manufacturer cannot be held responsible for
eventual damage caused by improper, incorrect, and unreasonable use.
To reduce the risk of death, electric shock, serious injury, or re, follow
basic precautions including the following:
•Thisunitrequiresanindependentpowersupply.Seethenameplateforproper
voltage and breaker/fuse size. Failure to use a proper breaker or fuse can
result in a tripped breaker, blown fuse, or damage to existing wiring. This
could lead to heat generation or re.
•THIS APPLIANCE MUST BE GROUNDED: This unit is equipped with a
3-prong grounding plug to reduce the risk of potential shock hazards. It
must be plugged into a properly grounded, independent wall outlet. If the
outlet is a 2-prong outlet, it is your personal responsibility to have a qualied
electrician replace it with a properly grounded, independent 3-prong wall
outlet. Do not remove the ground prong from the power cord and do not use
an adapter plug.
•Donotuseanextensioncord.
•Makesurethepowerswitchisinthe"OFF"positionbeforeplugginginor
unplugging the unit to reduce the risk of electric shock.
•Donotuseaunitwithadamagedpowercord.Thepowercordshouldnotbe
altered, jerked, bundled, weighed down, pinched, or tangled. Such actions
could result in electric shock or re. To unplug the unit, be sure to pull the
plug, not the cord, and do not jerk the cord.
•Toreducetheriskofelectricshock,donottouchtheplugorpowerswitchwith
damp hands.
•Thisunitshouldbedisassembledorrepairedonlybyqualiedservice
personnel to reduce the risk of electric shock, injury, or re.
•Donotmakeanyalterationstotheunit.Alterationscouldresultinelectric
shock, injury, re, or damage to the unit.

5
MOTOR-COMPRESSOR THERMALLY PROTECTED,
NOT INTENDED FOR OUTDOOR USE!
Hoshizaki America, Inc.
Peachtree City, GA
www.hoshizaki.com
ICE MAKER
946Z
186090
I. Specications
A. Nameplate Rating
1. DCM-270BAH (push-button model) and DCM-270BAH-OS (optical-sensor model)
See the nameplate for electrical and refrigeration specications. This nameplate is located
on the rear panel.
Since this nameplate is located on the rear panel of the icemaker, it cannot be read when
the back of the icemaker is against a wall or against another piece of kitchen equipment.
Therefore, the necessary electrical and refrigeration information is also on the rating label,
which can be easily seen by removing only the front panel of the icemaker.
We reserve the right to make changes in specications and design without prior notice.
HOSHIZAKI ICE MAKER
MODEL NUMBER DCM-270BAH
SERIAL NUMBER
AC SUPPLY VOLTAGE 115-120/60/1
AMPERES 8.5 AMPS
DESIGN PRESSURE HI-427PSI LO-230PSI
REFRIGERANT 404A 14.8 oz.
Note:Onlythe"MODELNUMBER"isreplacedforDCM-270BAH-OS.

6
B. Dimensions/Connections
1. DCM-270BAH (push-button model)
Unit: mm [in.]

7
2. DCM-270BAH-OS (optical-sensor model)
Unit: mm [in.]

8
II. Installation and Operating Instructions
WARNING
1. This icemaker must be installed in accordance with applicable national, state,
and local regulations.
2. CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews
are securely in place after installation. Make sure that none have fallen into
the storage bin.
A. Checks Before Installation
•Visuallyinspecttheexterioroftheshippingcontainerandimmediatelyreportany
damage to the carrier. Upon opening the container, any concealed damage should also
be immediately reported to the carrier.
•Removetheshippingcarton,tape,andpackingmaterial.Ifanyareleftintheicemaker,
it will not work properly.
•Removethepanelstopreventdamagewheninstallingtheicemaker.See"II.B.Howto
RemovePanels."
•Removethepackagecontainingtheaccessories.
•Removetheprotectiveplasticlmfromthepanels.Iftheicemakerisexposedtothe
sun or to heat, remove the lm after the icemaker cools.
•Checkthattherefrigerantlinesdonotrubortouchlinesorothersurfaces,andthatthe
fan blade turns freely.
•Checkthatthecompressorissnugonallmountingpads.
•Seethenameplateontherearpanel,andcheckthatyourvoltagesupplied
corresponds with the voltage specied on the nameplate.
•Thisicemakercanbeinstalledonacountertoporonanoptionalstand.Ifusingan
optional stand, Hoshizaki Stand SD-270 is recommended.

9
Fig. 1
B. How to Remove Panels

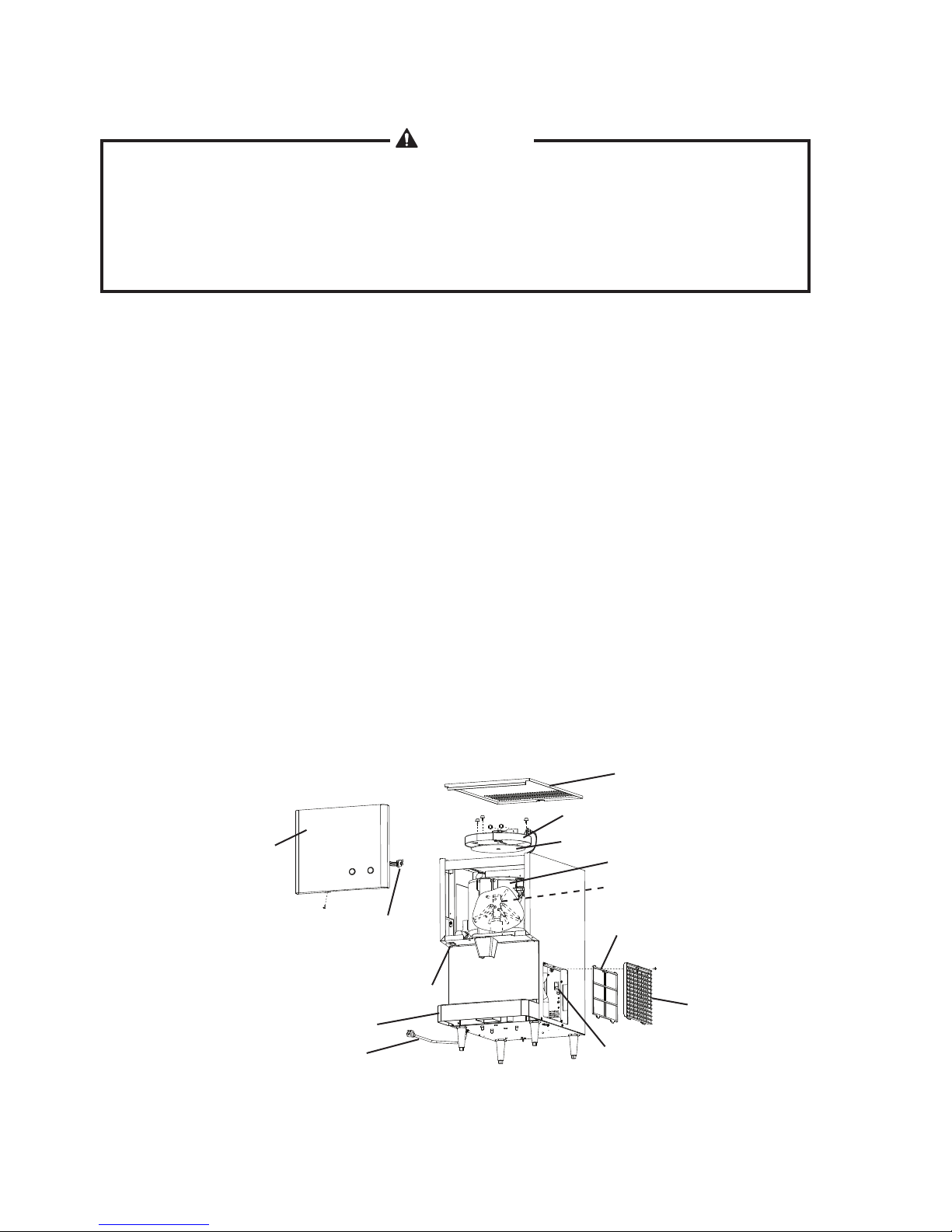

See Fig. 1 or Fig. 2
•FrontPanel:Removethescrew.Liftupandtowardsyou.Onthepush-buttonmodel,
disconnect the connector.
•TopPanel:Liftupatfrontslightly,pushrearwardandliftoff.
•ApronPanel:Removethegrille.Removethescrewsandpulltowardsyou.Onthe
optical-sensor model, disconnect the connectors.
•RearPanel:Removethescrewsandpulltowardsyou.
•SidePanel:Removethescrewsandpulltowardsyou.
Top Panel
Front Panel
Apron Panel
Side
Panel
Grille
Connector
Rear
Panel
Side
Panel
Top Panel
Front Panel
Apron Panel
Side
Panel
Grille
Connectors
Rear
Panel
Side
Panel
DCM-270BAH
(push-button model)
DCM-270BAH-OS
(optical-sensor model)
Fig. 2

10
C. Location
CAUTION
1. This icemaker is not intended for outdoor use. Normal operating ambient
temperature should be within 45°F to 100°F (7°C to 38°C); Normal operating
water temperature should be within 45°F to 90°F (7°C to 32°C). Operation
of the icemaker, for extended periods, outside of these normal temperature
ranges may affect icemaker performance.
2. This icemaker will not work at sub-freezing temperatures. To prevent damage
to the water supply line, drain the icemaker if the air temperature is going to
gobelow32°F(0°C).See"III.C.PreparingtheIcemakerforLongStorage."
IMPORTANT
Optical-Sensor Model (-OS): Sunlight, direct and indirect, can have an effect
on the operation of the dispense sensors. If a problem is noticed, the machine
should be moved out of direct sunlight and/or farther away from any outside
windows.
For best operating results:
•Theicemakershouldnotbelocatednexttoovens,grills,orotherhighheatproducing
equipment.
•Thelocationshouldprovidearmandlevelfoundationfortheequipment.
•Allow6"(15cm)clearanceatrearandleftside,10"(25cm)atrightside,and20"
(51 cm) at top for proper air circulation and ease of maintenance and/or service should
they be required.
D. Setup
1) Position the icemaker in the selected permanent location. If attaching to a stand, refer
to the installation instructions included with the stand.
2) Level the icemaker in both the left-to-right and front-to-rear directions. Adjust the legs to
make the icemaker level.
3) If mounting at to a counter, seal the perimeter where the icemaker contacts the
counter with approved caulk compound in a smooth and easily cleanable manner.
4) Replace the panels in their correct positions.

11
E. Electrical Connection
WARNING
1. Electrical connection must meet national, state, and local electrical code
requirements. Failure to meet these code requirements could result in death,
electric shock, serious injury, re, or severe damage to equipment.
2. This unit requires an independent power supply. See the nameplate for
proper voltage and breaker/fuse size. Failure to use a proper breaker or fuse
can result in a tripped breaker, blown fuse, or damage to existing wiring. This
could lead to heat generation or re.
3. THIS APPLIANCE MUST BE GROUNDED: This unit is equipped with a
3-prong grounding plug to reduce the risk of potential shock hazards. It
must be plugged into a properly grounded, independent wall outlet. If the
outlet is a 2-prong outlet, it is your personal responsibility to have a qualied
electrician replace it with a properly grounded, independent 3-prong wall
outlet. Do not remove the ground prong from the power cord and do not
use an adapter plug. Failure to follow these instructions may result in death,
electric shock, or re.
4. Do not use an extension cord.
5.Makesurethepowerswitchisinthe"OFF"positionbeforeplugginginor
unplugging the unit to reduce the risk of electric shock.
6. Do not use a unit with a damaged power cord. The power cord should not be
altered, jerked, bundled, weighed down, pinched, or tangled. Such actions
could result in electric shock or re. To unplug the unit, be sure to pull the
plug, not the cord, and do not jerk the cord.
7. To reduce the risk of electric shock, do not touch the plug or power switch
with damp hands.
8. The GREEN ground wire in the factory-installed power cord is connected to
a screw on the frame where the cord enters the unit. If it becomes necessary
to remove or replace the power cord, be sure to connect the power cord's
ground wire to this screw upon reattachment.
•Usuallyanelectricalpermitandservicesofalicensedelectricianarerequired.
•Themaximumallowablevoltagevariationis±10percentofthenameplaterating.

12
Fig. 3
Separate piping to
approved drain. Leave a
2-inch (5-cm) vertical air
gap between the end of
the pipe and the drain.
Water Supply Line
Shut-OffValve
Water Supply Line
DrainValve
Water Supply Inlet
1/2"FPT
Drain Outlet
3/4"MPT
2-inch
(5-cm) air
gap
Floor
Drain
F. Water Supply and Drain Connections
See Fig. 3
WARNING
1. Water supply and drain connections must be installed in accordance with
applicable national, state, and local regulations.
2. Normal operating water temperature should be within 45°F to 90°F (7°C
to 32°C). Operation of the icemaker, for extended periods, outside of this
normal temperature range may affect icemaker performance.
3. To prevent damage to equipment, do not operate the icemaker when the
water supply is off, or if the pressure is below 10 PSIG. Do not run the
icemaker until the proper water pressure is reached.
•Aplumbingpermitandservicesofalicensedplumbermayberequiredinsomeareas.
•Externallters,strainers,orsoftenersmayberequireddependingonwaterquality.
Contact your local Hoshizaki distributor for recommendations.
•Watersupplyinletis1/2"femalepipethread(FPT).Aminimumof3/8"ODcoppertubing
is recommended for the water supply line.
•Awatersupplylineshut-offvalveanddrainvalveshouldbeinstalled.
•Watersupplypressureshouldbeaminimumof10PSIGandamaximumof113PSIG.If
the pressure exceeds 113 PSIG, the use of a pressure reducing valve is required.
•Drainoutletis3/4"MPT.Aminimumof3/4"ODhardpipeisrecommendedforthedrain
line.
•Drainlinesmusthave1/4"fallperfoot(2cmper1m)onhorizontalrunstogetgoodow.
A vented tee connection is also required for proper ow.
•Drainlineshouldnotbepipeddirectlytothesewersystem.Anairgapofaminimumof
2 vertical inches (5 cm) should be between the end of the drain pipe from the icemaker
and the oor drain.

13
G. Final Checklist
WARNING
CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews are
securely in place after installation. Make sure that none have fallen into the
storage bin.
1) Is the icemaker level?
2) Is the icemaker in a site where the ambient temperature is within 45°F to 100°F (7°C to
38°C) and the water temperature within 45°F to 90°F (7°C to 32°C) all year around?
3)Isthereatleast6"(15cm)clearanceatrearandleftside,10"(25cm)atrightside,and
20"(51cm)attopforproperaircirculationandeaseofmaintenanceand/orservice
should they be required?
4) Have the shipping carton, tape, and packing material been removed from the icemaker?
5) Have all electrical, water supply, and drain connections been made? Do electrical,
water supply, and drain connections meet all national, state, and local code and
regulation requirements?
6) Has the power supply voltage been checked or tested against the nameplate rating? Is
the power supply a properly grounded, independent wall outlet?
7) Are the water supply line shut-off valve and drain valve installed? Has the water
supply pressure been checked to ensure a minimum of 10 PSIG and a maximum of
113 PSIG?
8) Are all components, fasteners, and thumbscrews securely in place?
9) If the icemaker is on a stand, has it been secured to the stand as outlined in the stand's
installation instructions? If the icemaker is mounted at to a counter, has the perimeter
where the icemaker contacts the counter been sealed with approved caulk compound?
10) Are the compressor hold-down bolts snug? Have the refrigerant lines been checked to
make sure they do not rub or touch other lines or surfaces?
11) Has the end user been given this instruction manual, and instructed on how to operate
the icemaker and the importance of the recommended periodic maintenance?
12) Has the end user been given the name and telephone number of an authorized service
agent?
13) Has the warranty card been lled out and forwarded to the factory for warranty
registration?

14
H. Startup
WARNING
1. All parts are factory-adjusted. Improper adjustments may adversely affect
safety, performance, component life, and warranty coverage.
2. If the icemaker is turned off, wait for at least 3 minutes before restarting the
icemaker to prevent damage to the compressor.
3. At startup, conrm that all internal and external connections are free of leaks.
1)Makesurethepowerswitchisinthe"OFF"position,andtheicemakerisunplugged.
See Fig. 4.
2) Open the water supply line shut-off valve.
3)Removethelouverandairlter.Movethecontrolswitchtothe"ICE"position.Replace
the louver and air lter in their correct positions.
4)Plugintheicemaker.Movethepowerswitchtothe"ON"positiontostarttheautomatic
icemaking process. Once the unit starts to produce ice, allow it to run for another
30 minutes.
5) Dispense all of the ice from the storage bin. Also conrm that the water dispenser is
operating correctly.
6)Movethepowerswitchtothe"OFF"position,thenunplugtheicemaker.
7) Remove the front panel. On the push-button model, disconnect the connector. Remove
the top panel, then remove the bin top. Clean the storage bin liner and actuator using
a neutral cleaner. Rinse thoroughly after cleaning. CAUTION: Be sure to keep the
switch mounted on the bin top dry.
8) Set the bin top in place without fastening it.
Power Switch
Control Switch
Louver
Air Filter
Connector
(push-button
model only)
Front Panel
Top Panel
Bin Top
Actuator
Fig. 4
Agitator
Drain Pan
Storage Bin
Power Cord

15
9) Remove the louver and air lter. Plug the icemaker back in. Move the control switch to
the"DRAIN"position,thenmovethepowerswitchtothe"ON"position.Allowthewater
system to drain completely (you will see the water draining into the drain pan).
10)Movethecontrolswitchtothe"ICE"position.Allowtheicemakertollwithwater
untilthegearmotorstarts,thenmovethepowerswitchtothe"OFF"position.Move
thecontrolswitchtothe"DRAIN"position,thenmovethepowerswitchtothe"ON"
position. Allow the water system to drain completely.
Note: To ensure that the drain valve opens immediately, you must move the power
switchtothe"OFF"positionbeforemovingthecontrolswitchtothe"DRAIN"
position. Otherwise, you may have to wait 2.5 minutes for the components to
cycle down before the drain valve opens.
11) Check the bin control for proper operation. To check, move the control switch to the
"ICE"positionandallowtheunittorununtilthecompressorcomeson(compressor
comes on one minute after the gear motor starts). After the compressor comes on,
carefully lift the bin top off of the storage bin. WARNING! Keep hands, hair, and
loose clothing clear of the agitator rotating inside the storage bin. Lift and hold the
actuator on the bin top to activate the switch. The compressor should stop 90 seconds
later, and the gear motor should stop 60 seconds after the compressor.
12)Movethepowerswitchtothe"OFF"position,thenunplugtheunit.Replaceallremoved
parts and panels in their correct positions. On the push-button model, reconnect the
connector. WARNING! CHOKING HAZARD: Ensure all components, fasteners,
and thumbscrews are securely in place. Make sure that none have fallen into the
storage bin.
13)Plugtheicemakerbackin.Movethepowerswitchtothe"ON"positiontostartthe
automatic icemaking process.

16
III. Cleaning and Maintenance
WARNING
CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews are
securely in place after any cleaning or maintenance is done to the unit. Make
sure that none have fallen into the storage bin.
A. Cleaning and Sanitizing Instructions
Hoshizaki recommends cleaning and sanitizing this unit at least twice a year. More
frequent cleaning and sanitizing, however, may be required in some existing water
conditions.
WARNING
1. To prevent injury to individuals and damage to the icemaker, do not use
ammonia type cleaners.
2. Carefully follow any instructions provided with the bottles of cleaning and
sanitizing solution.
3. Always wear liquid-proof gloves and goggles to prevent the cleaning and
sanitizing solutions from coming into contact with skin or eyes.
4. After cleaning, do not use ice made from the cleaning and sanitizing
solutions. Be careful not to leave any solution on the parts or in the storage
bin.
Fig. 5
Power Switch
Control Switch
Louver
Air Filter
Connector
(push-button model only)
Front Panel
Top Panel
Bin Top
Drip Ring
Agitator
Spout A
Spout B
Grille
Ice Chute
Storage Bin
Spout B
(optical-sensor
model only)
Drain Pan
Extruding Head
Evaporator Assembly
Reservoir
Power Cord

17
1. Cleaning Solution
IMPORTANT
For safety and maximum effectiveness, use the solution immediately after
dilution.
Dilute6.0.oz.(177mlor12tbs)ofHoshizaki"ScaleAway"with1.0gal.(3.8l)ofwarm
water. This is a minimum amount. Make more solution if necessary.
2. Cleaning Procedure
1) Close the water supply line shut-off valve. See Fig. 3.
2) Dispense all of the ice from the storage bin.
3)Movethepowerswitchtothe"OFF"position,thenremovethelouverandairlter.See
Fig.5.Movethecontrolswitchtothe"DRAIN"position,thenmovethepowerswitchto
the"ON"position.Allowthewatersystemtodraincompletely(youwillseethewater
draining into the drain pan).
Note: To ensure that the drain valve opens immediately, you must move the power
switchtothe"OFF"positionbeforemovingthecontrolswitchtothe"DRAIN"
position. Otherwise, you may have to wait 2.5 minutes for the components to
cycle down before the drain valve opens.
4)Movethepowerswitchtothe"OFF"position,thenunplugtheicemaker.Removethe
front panel. On the push-button model, disconnect the connector. Remove the top
panel.
5) Remove the bin top. Remove the agitator and drip ring.
6) Pour the cleaning solution over the extruding head until the evaporator assembly and
the reservoir are full and the solution starts to overow into the drain pan. Allow the
icemaker to soak for about 10 minutes before operation.
Note: If there is excessive scale on the extruding head, ll the evaporator assembly and
reservoir as described above, then use a clamp on the reservoir hose between
the reservoir and evaporator assembly to block ow. Pour additional cleaning
uid over the extruding head until the evaporator assembly is completely full.
7) Remove the grille. Remove spout B, then remove spout A. On the optical-sensor
model, also remove spout B for the water dispenser.
8) Scrub the inside of the storage bin, inside of the bin top, the agitator, drip ring, ice chute
area, spout A, spout B, grille, and the inside of the drain pan using a nylon scouring
pad, brushes, and cleaning solution. Rinse all parts thoroughly with clean water.
CAUTION: Be sure to keep the switch mounted on the bin top dry.
9) Make sure you have allowed the icemaker to soak for about 10 minutes. If you placed a
clamp on the reservoir hose in step 6, remove it.
10)Movethecontrolswitchtothe"ICE"position.Replacetheairlter,louver,dripring,
agitator, bin top, and panels in their correct positions.
11)Plugtheicemakerbackin.Movethepowerswitchtothe"ON"position.Makeiceusing
the solution until the icemaker stops making ice.

18
12)Movethepowerswitchtothe"OFF"position,thenremovethelouverandairlter.
Movethecontrolswitchtothe"DRAIN"position,thenmovethepowerswitchtothe
"ON"position.Allowthewatersystemtodraincompletely.
13)Movethepowerswitchtothe"OFF"position,thenunplugtheicemaker.
14) Remove the front panel, top panel, and bin top.
15) Pour clean, warm water into the storage bin and melt any remaining ice. Remove the
agitator and drip ring. Rinse the inside of the storage bin, the agitator, and drip ring
thoroughly with clean water.
16) Pour clean, warm water over the extruding head until the evaporator assembly and the
reservoir are full and the water starts to overow into the drain pan. Plug the icemaker
backin,thenmovethepowerswitchtothe"ON"position.Allowthewatersystemto
drain completely.
Note:Ifyoudonotsanitizetheunit,movethepowerswitchtothe"OFF"position
after the water system drains. Unplug the icemaker, then replace the drip ring,
grille,spoutA,andspoutBintheircorrectpositions.Gotostep10in"III.2.C.5
SanitizingProcedure-Final."
17)Movethepowerswitchtothe"OFF"position,thenunplugtheicemaker.
3. Sanitizing Solution
IMPORTANT
For safety and maximum effectiveness, use the solution immediately after
dilution.
Dilute 1.5 . oz. (44 ml or 3 tbs) of a 5.25% sodium hypochlorite solution (chlorine
bleach) with 3 gal. (11.4 l) of warm water. This is a minimum amount. Make more
solution if necessary.
4. Sanitizing Procedure - Initial
1)Makesurethepowerswitchisinthe"OFF"position,theicemakerisunplugged,and
the water supply line shut-off valve is closed.
2) Pour the sanitizing solution over the extruding head until the evaporator assembly and
the reservoir are full and the solution starts to overow into the drain pan. Allow the
icemaker to soak for about 10 minutes before operation.
3) Scrub the inside of the storage bin, inside of the bin top, the agitator, drip ring, ice chute
area, spout A, spout B, grille, and the inside of the drain pan using a nylon scouring
pad, brushes, and sanitizing solution. Rinse all parts thoroughly with clean water.
CAUTION: Be sure to keep the switch mounted on the bin top dry.
4) Make sure you have allowed the icemaker to soak for about 10 minutes
5)Movethecontrolswitchtothe"ICE"position.Replacetheairlter,louver,dripring,
agitator, bin top, grille, spout A, spout B, and panels in their correct positions.
6)Plugtheicemakerbackin.Movethepowerswitchtothe"ON"position.Makeiceusing
the solution until the icemaker stops making ice.
7)Movethepowerswitchtothe"OFF"position,thenunplugtheicemaker.

19
8) Remove the front panel, top panel, and bin top.
9) Pour clean, warm water into the storage bin and melt any remaining ice.
10) Remove the louver and air lter. Plug the icemaker back in. Move the control switch to
the"DRAIN"position,thenmovethepowerswitchtothe"ON"position.Allowthewater
system to drain completely.
11)Movethepowerswitchtothe"OFF"position,thenunplugtheicemaker.
5. Sanitizing Procedure - Final
1)Makesurethepowerswitchisinthe"OFF"position,theicemakerisunplugged,and
the water supply line shut-off valve is closed.
2) Remove the agitator. Pour the sanitizing solution over the extruding head until the
evaporator assembly and the reservoir are full and the solution starts to overow into
the drain pan. Allow the icemaker to soak for about 10 minutes before operation.
3)Movethecontrolswitchtothe"ICE"position.Replacetheairlter,louver,agitator,bin
top, and panels in their correct positions.
4)Plugtheicemakerbackin.Movethepowerswitchtothe"ON"position.Makeiceusing
the solution until the icemaker stops making ice.
5)Movethepowerswitchtothe"OFF"position,thenremovethelouverandairlter.
Movethecontrolswitchtothe"DRAIN"position,thenmovethepowerswitchtothe
"ON"position.Allowthewatersystemtodraincompletely.
6)Movethepowerswitchtothe"OFF"position,thenunplugtheicemaker.
7) Remove the front panel, top panel, and bin top.
8) Pour clean, warm water into the storage bin and melt any remaining ice. Remove the
agitator. Pour clean, warm water over the extruding head until the evaporator assembly
and the reservoir are full and the water starts to overow into the drain pan. Plug the
icemakerbackin,thenmovethepowerswitchtothe"ON"position.Allowthewater
system to drain completely.
9)Movethepowerswitchtothe"OFF"position,thenunplugtheicemaker.
10)Movethecontrolswitchtothe"ICE"position.Replacetheairlter,louver,agitator,bin
top, and panels in their correct positions.
11) Open the water supply line shut-off valve to supply water to the reservoir. Move the
powerswitchtothe"ON"positiontostarttheautomaticicemakingprocess.Allowthe
icemaker to run for about 30 minutes.
12)Movethepowerswitchtothe"OFF"position,thenremovethelouverandairlter.
Movethecontrolswitchtothe"DRAIN"position,thenmovethepowerswitchtothe
"ON"position.Allowthewatersystemtodraincompletely.
13) Dispense all of the ice from the storage bin.
14)Movethepowerswitchtothe"OFF"position,thenunplugtheicemaker.
15) Remove the front panel, top panel, and bin top. Remove the agitator and drip ring.
16) Wipe down the inside of the storage bin, inside of the bin top, the agitator, and drip ring
with a clean cloth.

20
17)Movethecontrolswitchtothe"ICE"position.Replacetheairlter,louver,dripring,
agitator, bin top, and panels in their correct positions. On the push-button model,
reconnect the connector. WARNING! CHOKING HAZARD: Ensure all components,
fasteners, and thumbscrews are securely in place. Make sure that none have
fallen into the storage bin.
18)Plugintheicemaker,thenmovethepowerswitchtothe"ON"positiontostartthe
automatic icemaking process.
