Hoshizaki B-300SD User manual

DEC. 23, 2002
HOSHIZAKI STORAGE BIN
ITEM NUMBER:
ISSUED:
MODEL B-300SD
B-500SD
B-700SD
B-800SD
B-900SD
(FINAL)PARTS LIST
REVISED:
APR. 19, 1993
71099

2
B-300SD C-1 Apr., 1993
D-0 Apr., 1994
E-0 Dec., 1994
E-1 Jun., 1995
F-0 Dec., 1995
G-0 Dec., 1996
H-0 Dec., 1997
J-0 Dec., 1998
K-0 Dec., 1999
B-500SD C-1 Mar 1993
D-0 Dec., 1993
E-0 Jan., 1995
E-1 Jun., 1995
F-0 Dec., 1995
G-0 Dec., 1996
H-0 Jan., 1998
J-0 Dec., 1998
K-0 Dec., 1999
L-0 Dec., 2000
B-700SD D-1 Jan., 1994
E-0 Nov., 1994
E-1 Jun., 1995
F-0 Dec., 1995
F-1 Jan., 1996
G-0 Dec., 1996
H-0 Dec., 1997
J-0 Dec., 1998
K-0 Dec., 1999
L-0 Dec., 2000
B-800SD D-1 Jan., 1994
D-0 Nov., 1994
E-1 Jun., 1995
F-0 Dec., 1995
F-1 Jan., 1996
G-0 Dec., 1996
H-0 Dec., 1997
J-0 Dec., 1998
K-0 Dec., 1999
B-900SD D-1 Feb., 1994
E-0 Nov., 1994
E-1 June 1995
F-0 Dec., 1995
F-1 Jan., 1996
G-0 Dec., 1996
H-0 Dec., 1997
J-0 Dec., 1998
K-0 Dec., 1999
L-0 Dec., 2000

3
FASTENER ABBREVIATION LIST
ST Phillips Truss Machine Screw
SP Phillips Pan Head Machine Screw
SF Phillips Flat Head Machine Screw
SS Phillips Pan Head Machine Screw with Split Lock Washer
SW Phillips Pan Head Machine Screw with Split Lock Washer
and Flat Washer
T1 Phillips Truss Head Tapping Screw (Correspond to Type A)
T2 Phillips Truss Head Tapping Screw (Correspond to Type B)
T3 Phillips Truss Head Tapping Screw (Correspond to Type C)
FT Phillips Truss Head Tapping Screw (Special)
BH Hexagon Head Bolt
BC Socket Head Cap Screw
BS Hexagon Bolt with Split Washer
BW Hexagon Bolt with Split Washer and Flat Washer
BF Hexagon Flange Bolt
BR Cross-Recessed Hexagon Head Bolt
BRW Cross-Recessed Hexagon Head Bolt with Split Lock Washer
and Flat Washer
WL Split Lock Washer
WT External Tooth Washer
WF Flat Washer
WS Spring Washer
NH Hexagon Nut
NF Hexagon Flange Nut
NC Hexagon Cap Nut
NS Square Nut
NW Wing Nut
Ex. ST0308S (Phillips Truss Head Machine Screw
3x8, made of stainless steel)
Material None: Plated Steel
Length (mm) S: Stainless Steel
Nominal Diameter (mm) B: Brass
Form of Head P: Plastic
Description
(Note) Second character is numerical except toe list.
Ex. S1, S2, B3 etc.
And abbreviations and names are shown under the illustration.

4
MATERIAL ABBREVIATIONS
ALUMINUM
AL = Aluminum
COPPER
CU = Copper
PLASTIC
ABS = Acrylonitritrile -butadiene - styrene
AC = Polyacetal
EVA = Ethylene vinyl acetate
PA = Polyamide = Nylon
PC = Polycarbonate
PE = Polyethylene
PES = Polyester
PETP = Polyethylene terephthalate = Tetlon
PP = Polypropylene
PS = Polystyrene
PTFE = Polytetrafluoroethylene = Teflon
PUR = Polyurethane
PVC = Polyvinyl chloride
RUBBER
VN = Vinyl Nitrile
EPDM = EP rubber
NBR = Nitrile butadiene rubber
NR = Natural rubber
NP = Neoprene
SI.R = Silicone rubber
SY.R = Synthetic rubber
EPH = Epichlorohydrin
STEEL
GS = Galvanized steel
SS = Stainless steel
PS = Plated steel
PAS = Primed steel
AUXILIARYCODE
Ex.1 K-0
Parts are the same as in the preceding (Note) - = Part deleted.
year.
x = Part deleted and replaced
"K" is the tenth in alphabetical order with "I" interchangeably by "o" part.
skipped. So, "K" indicates "2000".
o = New part for "x"
Ex.2 L-0 in the same auxiliary code.
"L" is the next in alphabetical
order. So, "L" indicates "2001".
Ex.3 L-1
Each time a part is changed non-interchangeably
in a year, this number advances.

5
HA
B-300SD A. BIN ASSEMBLY (C-1, D-0, E-0, E-1)

6

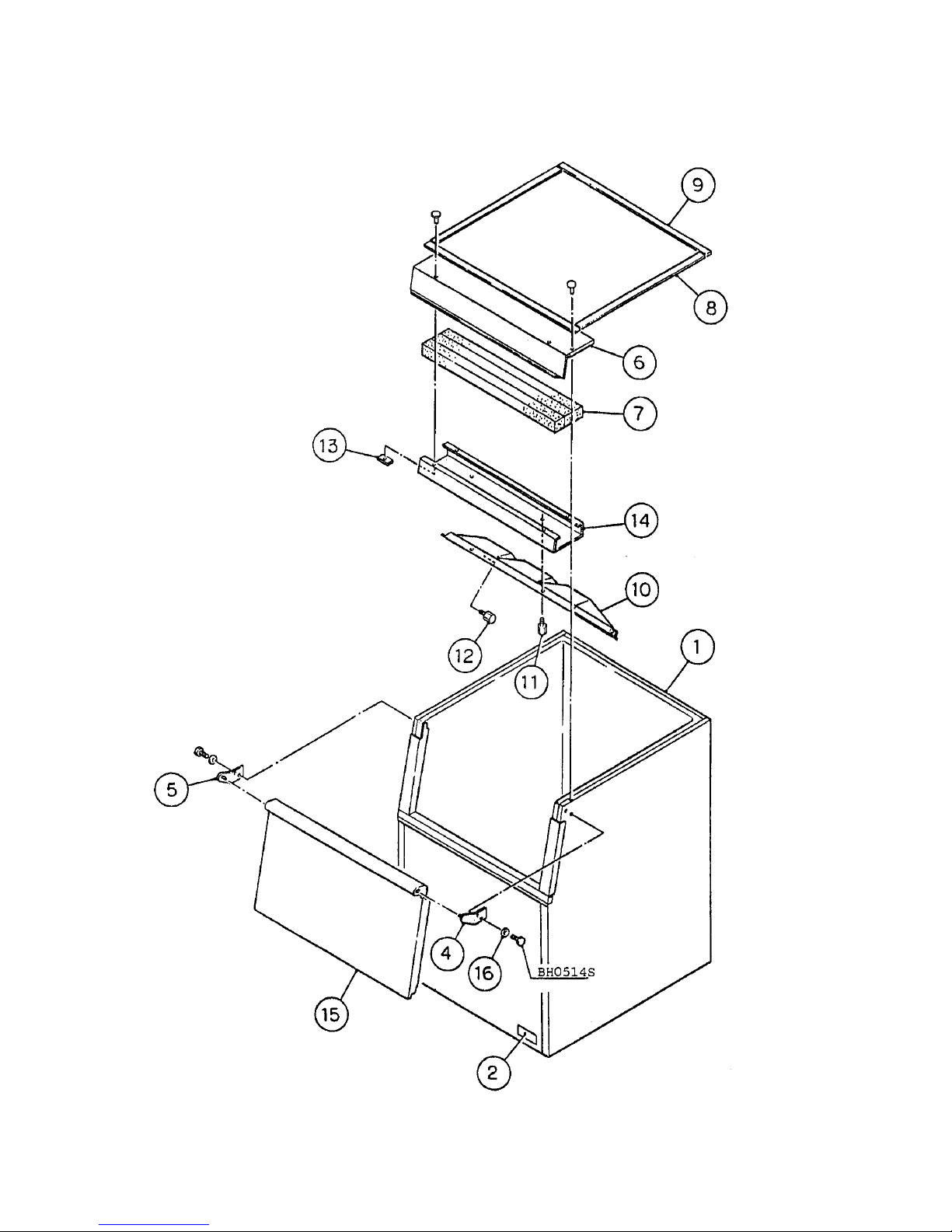

HA
B-300SD A. BIN ASSEMBLY (F-0, G-0, H-0)

7
HA
B-300SD A. BIN ASSEMBLY (J-0, K-0)

8
MODEL: B-300SD TITLE:A. BIN ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER C-1
D-0
E-0
E-1 F-0 G-0
H-0
J-0 K-0
1 BIN BODY - 1A0044G06 x1
- 2A0484G06 o1 -
- 2A0512G06 11111
2 NAMEPLATE PES FILM 4A0158-06 1 1 1111
3 COLLAR POM 431496-01 2 2 x2
POM 431496-02 o2 2 -
4HINGE-BODY(R) S.S 3A0105G01111111
5HINGE-BODY(L) S.S 3A0106G01111111
6TOPCOVER(3) S.S 3A0156-01111111
7INSULATION(C3) PSFORM437687-01333333
8 SEAL(C) PVC 434059-01 2 x2
GASKET PVC, L=630 4A0808L01 o2 2222
9 SEAL(B3) PVC 434058-01 2 x2
GASKET PVC, L=554 4A0808L01 o2 2222
10BAFFLE(3) PS 104391-01111111
11 THUMBSCREW ABS,S.S 415949G01 2 2 2222
12 THUMBSCREW ABS,S.S 434168G01 2 2 2222
13 PLATE S.S 4A0199-01 2 2 2 -
WASHER S.S 4A0928-01 2 2 2
14FRONTFRAMECOVER(3) ABS 324617-01111111
15 DOOR(3) PE 1A0034-01 1 1 1 1 -
BIN DOOR - 3A0540G04 1 1
16WASHER S.S 4A0198-01444444
17 SPACER PA 4A0074-01 2 2 -
18 BIN CAUTION LABEL PAPER 4A0740-01 1 -

9
HA

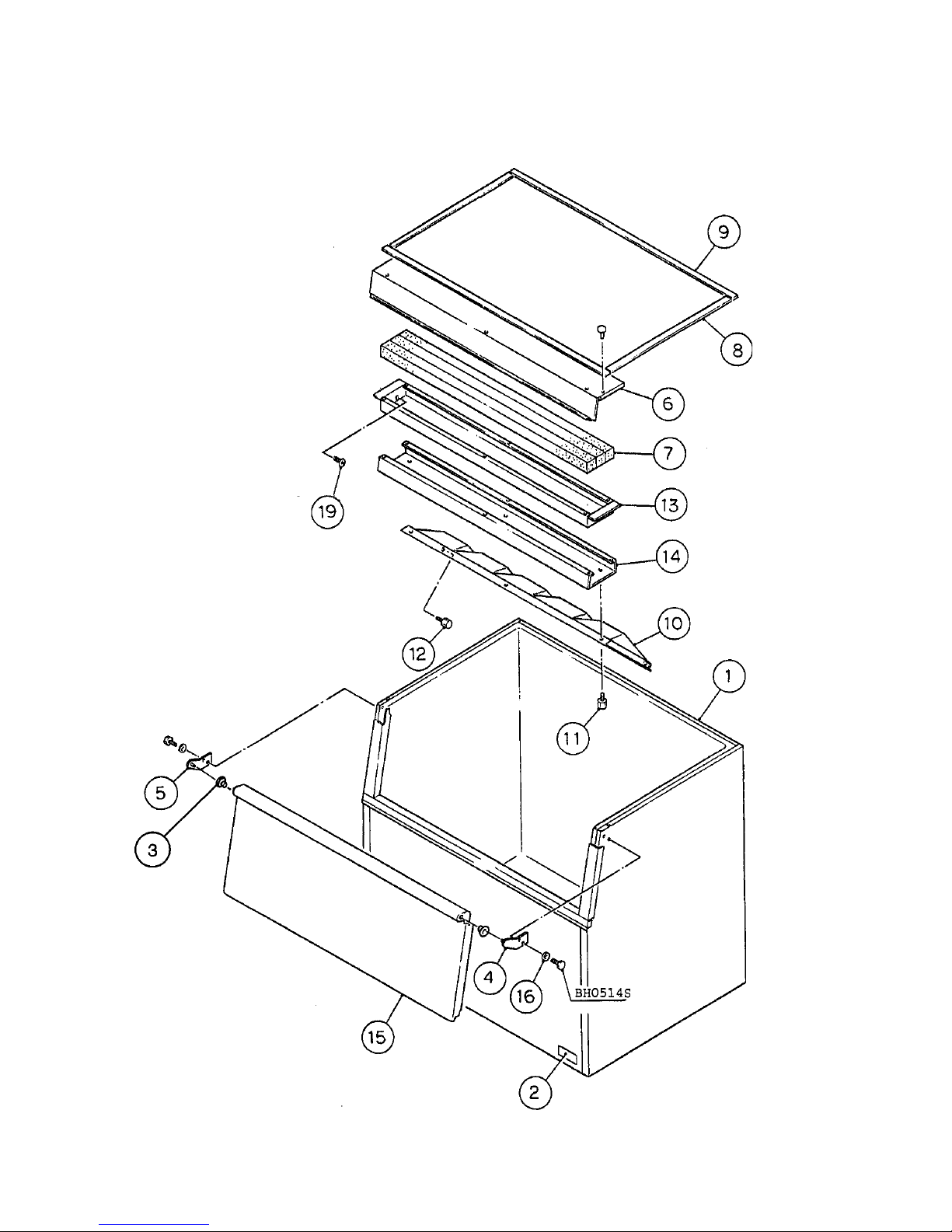

B-500SD A. BIN ASSEMBLY (C-1, D-0, E-0, E-1)

10
HA

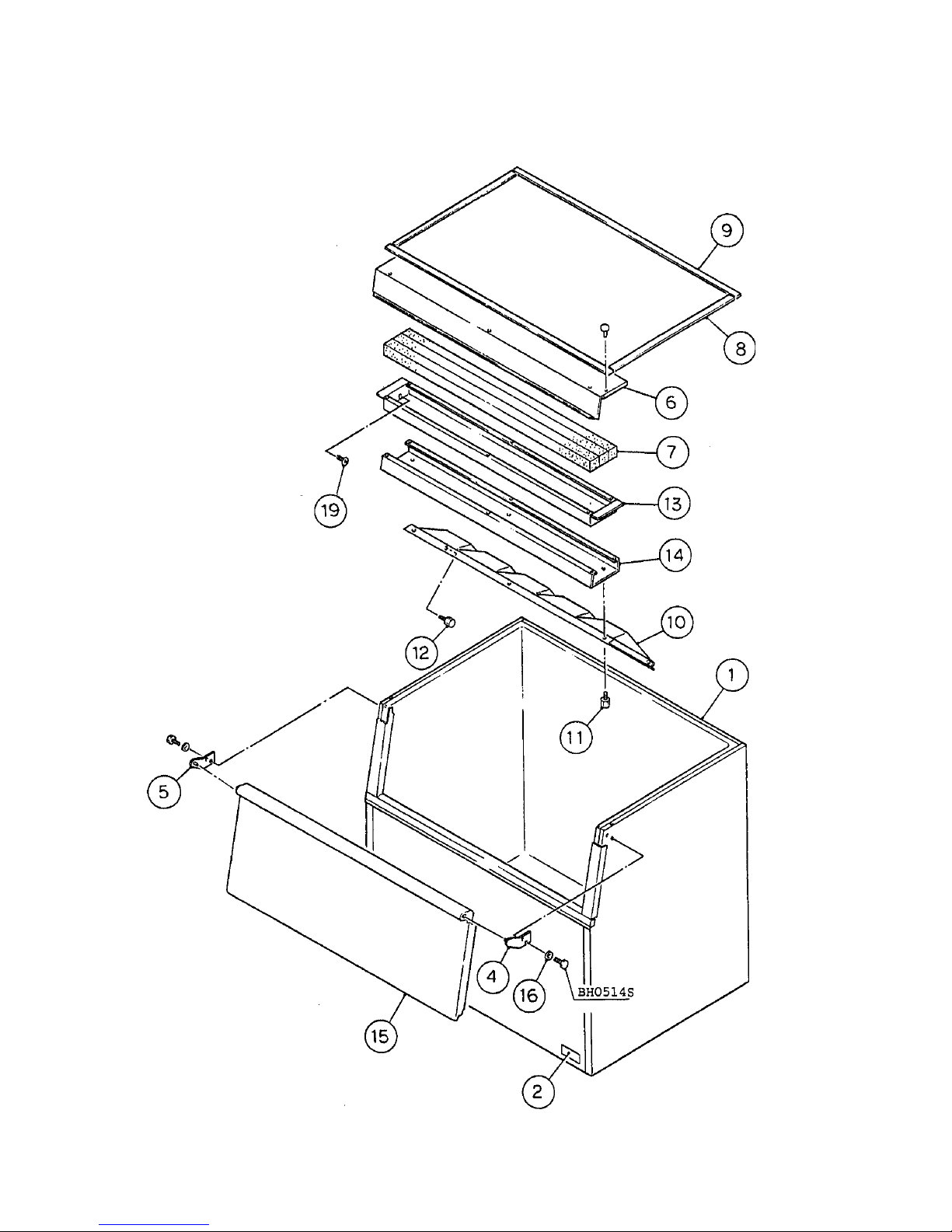

B-500SD A. BIN ASSEMBLY (F-0, G-0, H-0)

11
HA
B-500SD A. BIN ASSEMBLY (J-0, K-0, L-0)

12
MODEL: B-500SD TITLE:A. BIN ASSEMBLY
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER C-1
D-0
E-0
E-1 F-0 G-0
H-0
J-0 K-0
L-0
1BINBODY - 1A0044G07x1
- 2A0484G07 o1 -
- 2A0512G07 1 1 1 1 1
2 NAMEPLATE PES FILM 4A0158-07 1 1 1 1 1 1
3 COLLAR POM 431496-01 2 2 x2
POM 431496-02 o2 2 -
4 HINGE-BODY(R) S.S 3A0105G01 1 1 1 1 1 1
5 HINGE-BODY(L) S.S 3A0106G01 1 1 1 1 1 1
6 TOP COVER(5) S.S 3A0157-01 1 1 1 1 1 1
7 INSULATION(C2) PS FORM 437687-02 3 3 3 3 3 3
8 SEAL(C) PVC 434059-01 2 x2
GASKET PVC, L=630 4A0808L01 o2 2 2 2 2
9 SEAL(B5) PVC 434058-02 2 x2
GASKET PVC, L=757 4A0808L01 o2 2 2 2 2
10 BAFFLE(5) PS 104322-01 1 1 1 1 1 1
11 THUMBSCREW ABS,S.S 415949G01 2 2 2 2 2 2
12 THUMBSCREW ABS,S.S 434168G01 2 2 2 2 2 2
13 FRONT FRAME(5) S.S 3A0159-01 1 -
3A0420-01 1 1 1 1 1
14 FRONT FRAME COVER(5) ABS 324625-01 1 1 1 1 1 1
15 DOOR(5) PE 1A0034-02 1 1 1 1 -
BIN DOOR - 3A0540G05 1 1
16 WASHER S.S 4A0198-01 4 4 4 4 4 4
17 SPACER PA 4A0074-01 2 2 -
18 BIN CAUTION LABEL PAPER 4A0740-01 1 -
19 TAPPING SCREW - 4A0920-01 2 2 2 2

13
MODEL: B-500SD-FM TITLE:A. BIN ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER E-0 F-0 G-0
H-0
J-0 K-0
1 BIN BODY - 2A0512G11 11111
2 NAMEPLATE PES FILM 4A0158-11 11111
3 COLLAR POM 431496-01 2 x2
POM 431496-02 o2 2 -
4 HINGE-BODY(R) S.S 3A0105G01 11111
5 HINGE-BODY(L) S.S 3A0106G01 11111
6 TOP COVER(5) S.S 3A0157-01 11111
7 INSULATION(C2) PS FORM 437687-02 33333
8 SEAL(C) PVC 434059-01 x2
GASKET PVC, L=630 4A0808L01 o2 2222
9 SEAL(B5) PVC 434058-02 x2
GASKET PVC, L=757 4A0808L01 o2 2222
10 BAFFLE(5) PS 104322-01 11111
11 THUMBSCREW ABS,S.S 415949G01 22222
12 THUMBSCREW ABS,S.S 434168G01 22222
13 FRONT FRAME(5) S.S 3A0159-01 11111
14 FRONT FRAME COVER(5) ABS 324625-01 11111
15 DOOR(5) PE 1A0034-02 1 1 1 -
BIN DOOR - 3A0540G05 1 1
16 WASHER S.S 4A0198-01 44444
17 SPACER PA 4A0074-01 2 -
18 BIN CAUTION LABEL PAPER 4A0740-01 1 -
19 TAPPING SCREW - 4A0920-01 2222

14
HA

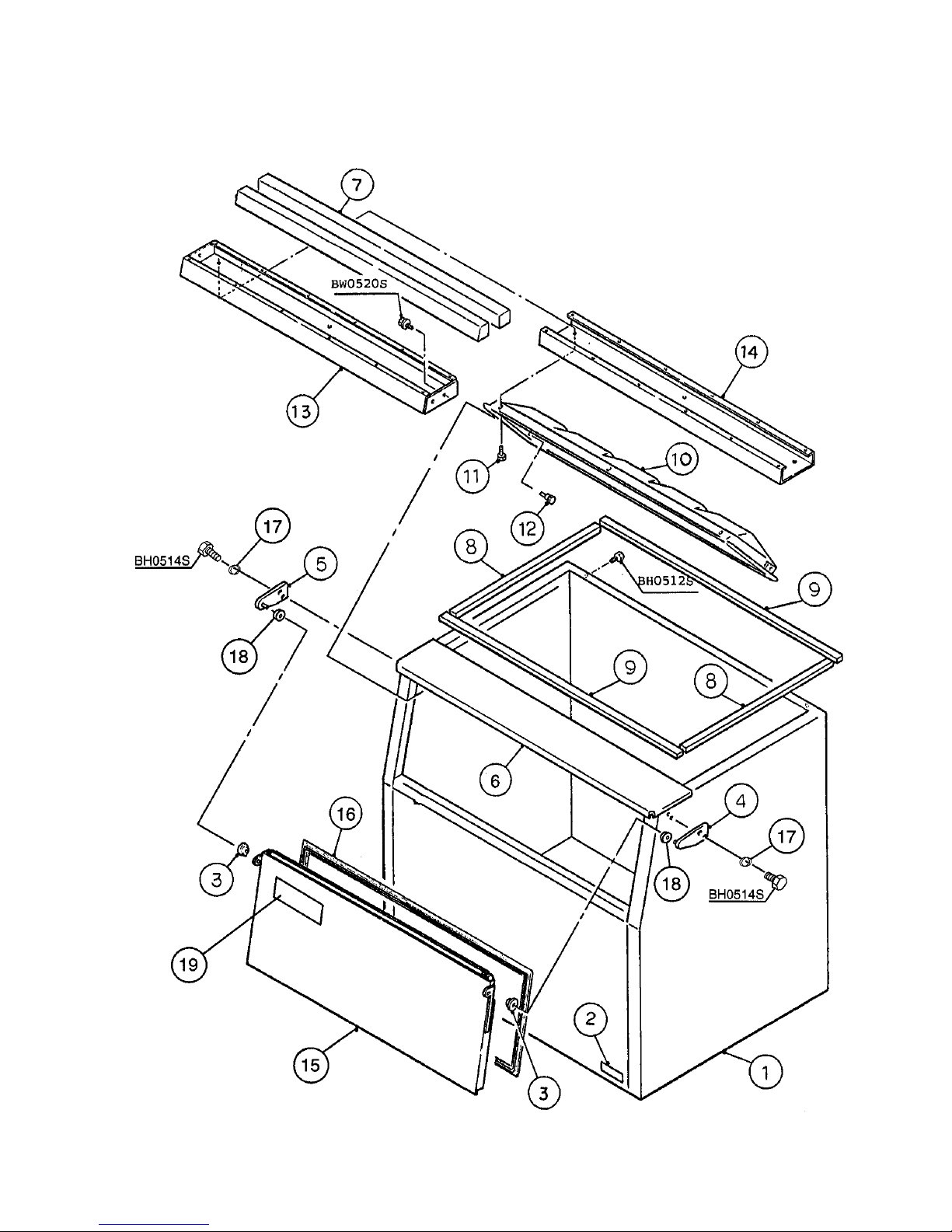

B-700, 800, 900SD A. BIN ASSEMBLY (D-1, E-0, E-1, F-0)

15
HA
B-700, 800, 900SD A. BIN ASSEMBLY (F-1, G-0, H-0, J-0, K-0, L-0)

16
MODEL: B-700SD TITLE:A. BIN ASSEMBLY
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER D-1
E-0
E-1
F-0
F-1 G-0
H-0
J-0
K-0
L-0
1 BIN BODY - 1A0044G14 x1
2A0484G08 o1 -
2A0512G08 1 -
2A0512G15 1 1 1 1
2 NAMEPLATE PES FILM 4A0158-08 1 1 1 1 1 1
3 COLLAR-PC POM 431496-02 2 2 -
4 HINGE(R) S.S 437638G01 1 1 -
HINGE-BODY(R) S.S 3A0105G01 1 1 1 1
5 HINGE(L) S.S 437640G01 1 1 -
HINGE-BODY(L) S.S 3A0106G01 1 1 1 1
6 TOP COVER(7) S.S 214345-01 1 1 -
S.S 3A0158-01 1 1 1 1
7 INSULATION(C7) PS FORM 437687-03 3 3 3 3 3 3
8 SEAL(C) PVC 434059-01 2 x2
GASKET PVC, L=630 4A0808L01 o2 2 2 2 2
9 SEAL(B3) PVC 434058-03 2 x2
GASKET PVC,
L=1112.5
4A0808L01 o2 2 2 2 2
10 BAFFLE(7) PS 104323-01 1 1 1 1 1 1
11 THUMBSCREW ABS,S.S 415949G01 3 3 3 3 3 3
12 THUMBSCREW ABS,S.S 434168G01 2 2 2 2 2 2
13 FRONT FRAME(7) S.S 3A0446-01 1 1 1 1 1 1
14 FRONT FRAME COVER(7) ABS 324617-01 1 1 1 1 1 1
15 DOOR ASSEMBLY 214875A03 214657G03 1 1 -
16 GASKET(7) 3A0052-03 1 1 -
17 WASHER S.S 4A0198-01 4 4 4 4 4 4
18 SPACER PA 4A0074-01 2 2 2 2 2 2
19 BIN CAUTION LABEL PAPER 4A0740-01 1 -
20 BIN DOOR PE 3A0540G01 1 1 1 1
21 TAPPING SCREW 4A0920-01 2 2 2 2

17
MODEL: B-800SD TITLE:A. BIN ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER D-1
E-0
E-1
F-0
F-1 G-0
H-0
J-0
K-0
1 BIN BODY - 1A0044G15 x1
2A0484G09 o1 -
2A0512G09 1 -
2A0512G16 1 1 1
2NAMEPLATE PESFILM4A0158-0911111
3 COLLAR-PC POM 431496-02 2 2 -
4 HINGE(R) S.S 437638G01 1 1 -
HINGE-BODY(R) S.S 3A0105G01 1 1 1
5 HINGE(L) S.S 437640G01 1 1 -
HINGE-BODY(L) S.S 3A0106G01 1 1 1
6 TOP COVER(8) S.S 215331-01 1 1 -
S.S 2A0106-01 1 1 1
7 INSULATION(C8) PS FORM 437687-05 3 3333
8 SEAL(C) PVC 434059-01 2 x2
GASKET PVC,L=630 4A0808L01 o2 2 2 2
9 SEAL(B8) PVC 434058-04 2 x2
GASKET PVC,L=1214.
5
4A0808L01 o2 2 2 2
10 BAFFLE(8) PS 105012-01 1 1111
11THUMBSCREW ABS,S.S415949G0144444
12THUMBSCREW ABS,S.S434168G0122222
13FRONTFRAME(8) S.S 3A0447-0111111
14 FRONT FRAME COVER(8) ABS 325510-01 1 1111
15 DOOR ASSEMBLY 214875A05 214657G05 1 1 -
16 GASKET(8) 3A0052-05 1 1 -
17WASHER S.S 4A0198-0144444
18SPACER PA 4A0074-0122222
19 BIN CAUTION LABEL PAPER 4A0740-01 1 -
20 BIN DOOR PE 3A0540G02 1 1 1
21 TAPPING SCREW - 4A0920-01 2 2 2

18
MODEL: B-900SD TITLE:A. BIN ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER D-1
E-0
E-1
F-0
F-1 G-0
H-0
J-0
K-0
1 BIN BODY - 1A0044G16 x1
2A0484G10 o1 -
2A0512G10 1 -
2A0512G17 1 1 1
2 NAMEPLATE PES FILM 4A0158-10 1 1 1 1 1
3 COLLAR-PC POM 431496-02 2 2 -
4 HINGE(R) S.S 437638G01 1 1 -
HINGE-BODY(R) S.S 3A0105G01 1 1 1
5 HINGE(L) S.S 437640G01 1 1 -
HINGE-BODY(L) S.S 3A0106G01 1 1 1
6 TOP COVER(9) S.S 214346-01 1 1 -
S.S 2A0107-01 1 1 1
7 INSULATION(C9) PS FORM 437687-04 3 3 3 3 3
8 SEAL(C) PVC 434059-01 2 x2
GASKET PVC,L=630 4A0808L01 o2 2 2 2
9 SEAL(B9) PVC 434058-04 2 x2
GASKET PVC,L=1316 4A0808L01 o2 2 2 2
10 BAFFLE(9) PS 104324-02 1 1 1 1 1
11 THUMBSCREW ABS,S.S 415949G01 4 4 4 4 4
12 THUMBSCREW ABS,S.S 434168G01 2 2 2 2 2
13 FRONT FRAME(9) S.S 3A0161-02 1 1 -
S.S 3A0447-02 1 1 1
14 FRONT FRAME COVER(9) ABS 324619-01 1 1 1 1 1
15 DOOR ASSEMBLY 214875A04 214875A04 1 1 -
16 GASKET(9) 3A0052-04 1 1 -
17 WASHER S.S 4A0198-01 4 4 4 4 4
18 SPACER PA 4A0074-01 2 2 2 2 2
19 BIN CAUTION LABEL PAPER 4A0740-01 1 -
20 BIN DOOR PE 3A0540G03 1 1 1
21 TAPPING SCREW - 4A0920-01 2 2 2

19
HA

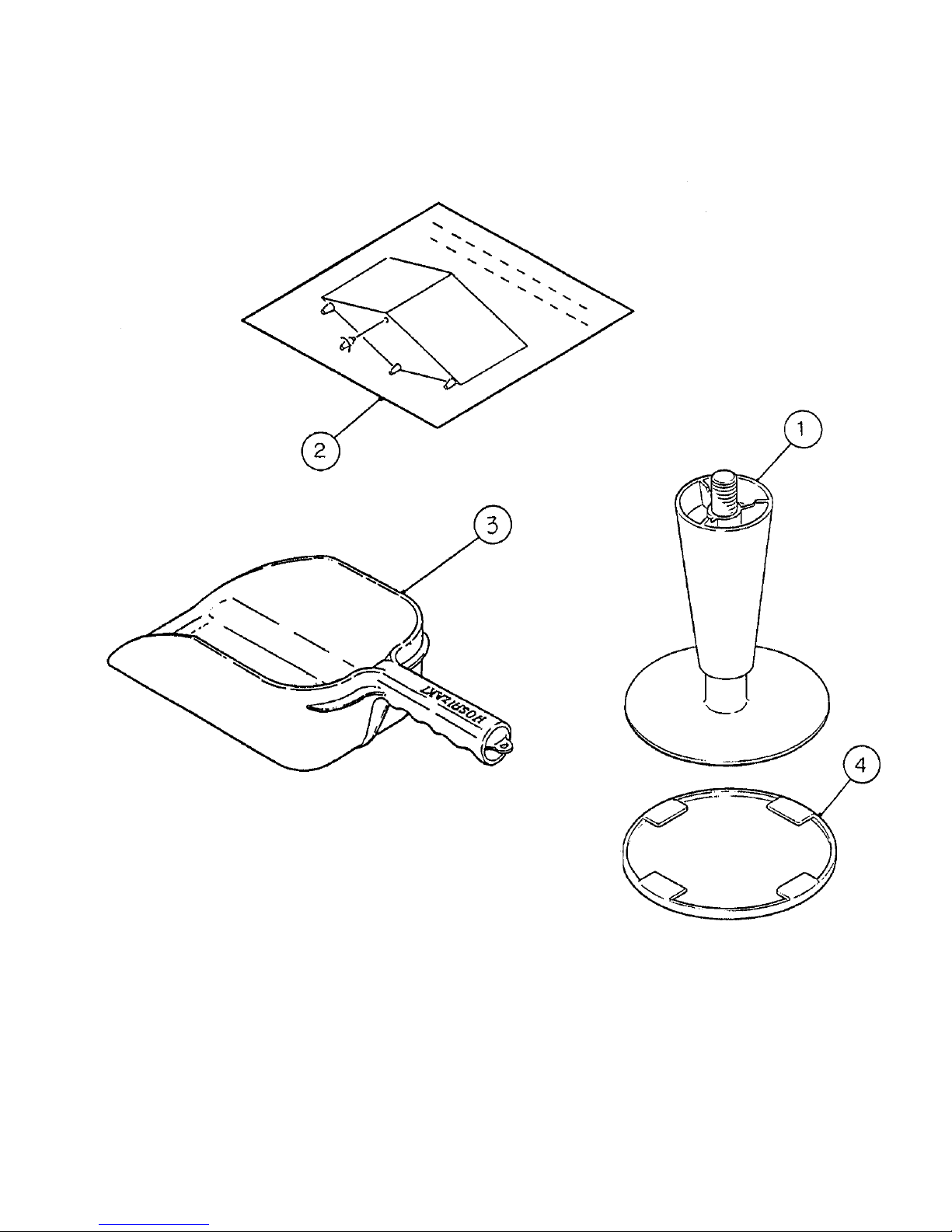

B-300SD B. ACCESSORIES (C-1, D-0, E-0, E-1, F-0, G-0, H-0, J-0, K-0)

20
MODEL: B-300SD TITLE:B. ACCESSORIES
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER C-1
D-0
E-0
E-1
F-0
G-0 H-0 J-0 K-0
1 ADJUSTABLE LEG 1069-0221-
1696
444127-01 4 4 4 4 4 4
2 INSTRUCTION SHEET/LEGS PAPER 434803-01 1 1 1 1 1 1
3 SCOOP PS 437625-01 1 1 1 1 1 x1
- 4A2246-01 o1
4 LEG PROTECTION - 3A0134-01 4 4 4 4 4 4
