Hoshizaki B-300SF User manual

OCT. 9, 2000
HOSHIZAKI STORAGE BIN
ITEM NUMBER:
ISSUED:
MODEL B-300SF
B-500SF
B-700SF
B-800SF
B-900SF
PARTS LIST
REVISED:
DEC. 17, 2002
71214

2
B-300SF L-5 JUNE, 2001
M-5 DEC., 2001
N-5 DEC. 2002
B-500SF L-5 JUNE, 2001
M-5 DEC., 2001
N-5 DEC. 2002
B-700SF L-5 SEPT., 2001
M-5 DEC., 2001
N-5 DEC. 2002
B-800SF L-5 SEPT., 2001
M-5 DEC., 2001
N-5 DEC. 2002
B-900SF L-5 JUNE, 2001
M-5 DEC., 2001
N-5 DEC. 2002

3
MATERIAL ABBREVIATIONS
ALUMINUM
AL = Aluminum
COPPER
CU = Copper
PLASTIC
ABS = Acrylonitritrile -butadiene - styrene
AC = Polyacetal
EVA = Ethylene vinyl acetate
PA = Polyamide = Nylon
PC = Polycarbonate
PE = Polyethylene
PES = Polyester
PETP = Polyethylene terephthalate = Tetlon
PP = Polypropylene
PS = Polystyrene
PTFE = Polytetrafluoroethylene = Teflon
PUR = Polyurethane
PVC = Polyvinyl chloride
RUBBER
VN = Vinyl Nitrile
EPDM = EP rubber
NBR = Nitrile butadiene rubber
NR = Natural rubber
NP = Neoprene
SI.R = Silicone rubber
SY.R = Synthetic rubber
EPH = Epichlorohydrin
STEEL
G.S = Galvanized steel
S.S = Stainless steel
PS = Plated steel
PAS = Primed steel
AUXILIARYCODE
Ex.1 K-0
Parts are the same as in the preceding (Note) - = Part deleted.
year.
x = Part deleted and replaced
"K" is the tenth in alphabetical order with "I" by "o" (interchangeable)
skipped. So, "K" indicates "2000". part.
Ex.2 L-0 o = New part for "x" in the
"L" is the next in alphabetical same auxiliary code.
order. So, "L" indicates "2001".
Ex.3 L-1
Each time a part is changed non-interchangeably
in a year, this number advances.

4
HA

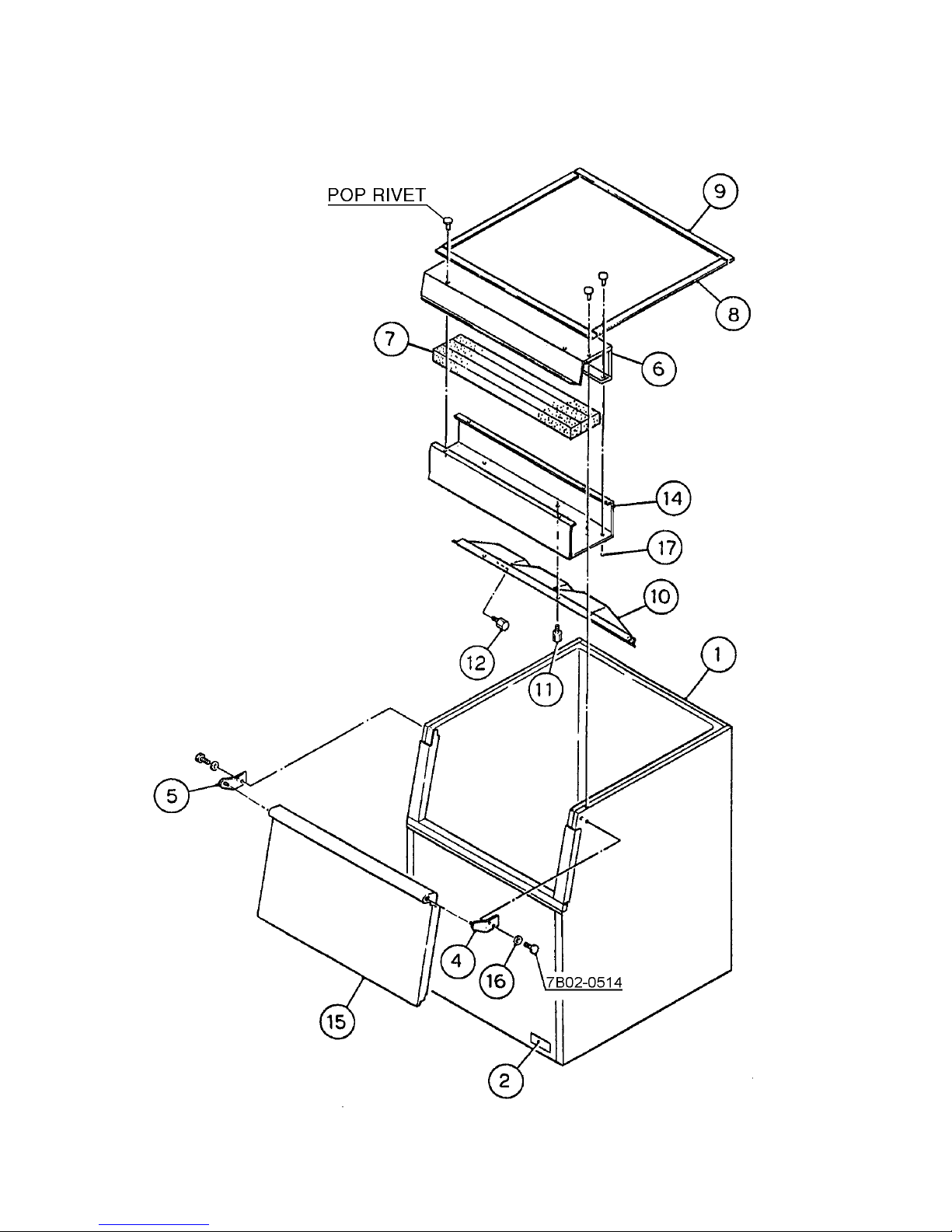

B-300SF A. BIN ASSEMBLY L-5, M-5, N-5

5
MODEL: B-300SF TITLE:A. BIN ASSEMBLY
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER L-5 M-5 N-5
1 BIN BODY - 1A0648A03 1 1 1
2 NAMEPLATE PES FILM 4A2580-03 1 1 1
3 - - -
4 HINGE-BODY(R) SS 3A0105G01 1 1 1
5 HINGE-BODY(L) SS 3A0106G01 1 1 1
6 TOP COVER(3) SS 3A0156-01 1 1 1
7 INSULATION(C3) PS FORM 437687-01 3 3 3
8 GASKET PVC, L=630 4A0808L01 2 2 2
9 GASKET PVC, L=554 4A0808L01 2 2 2
10 BAFFLE(3) PS 104391-01 1 1 1
11 THUMBSCREW ABS,SS 415949G01 2 2 2
12 THUMBSCREW ABS,SS 434168G01 2 2 2
13 - - -
14 FRONT FRAME COVER(3) ABS 324617-01 1 1 1
15 BIN DOOR - 3A2087G04 1 1 1
16 WASHER SS 4A0198-01 4 4 4
17 WASHER - 4A0928-01 2 2 2

6
HA

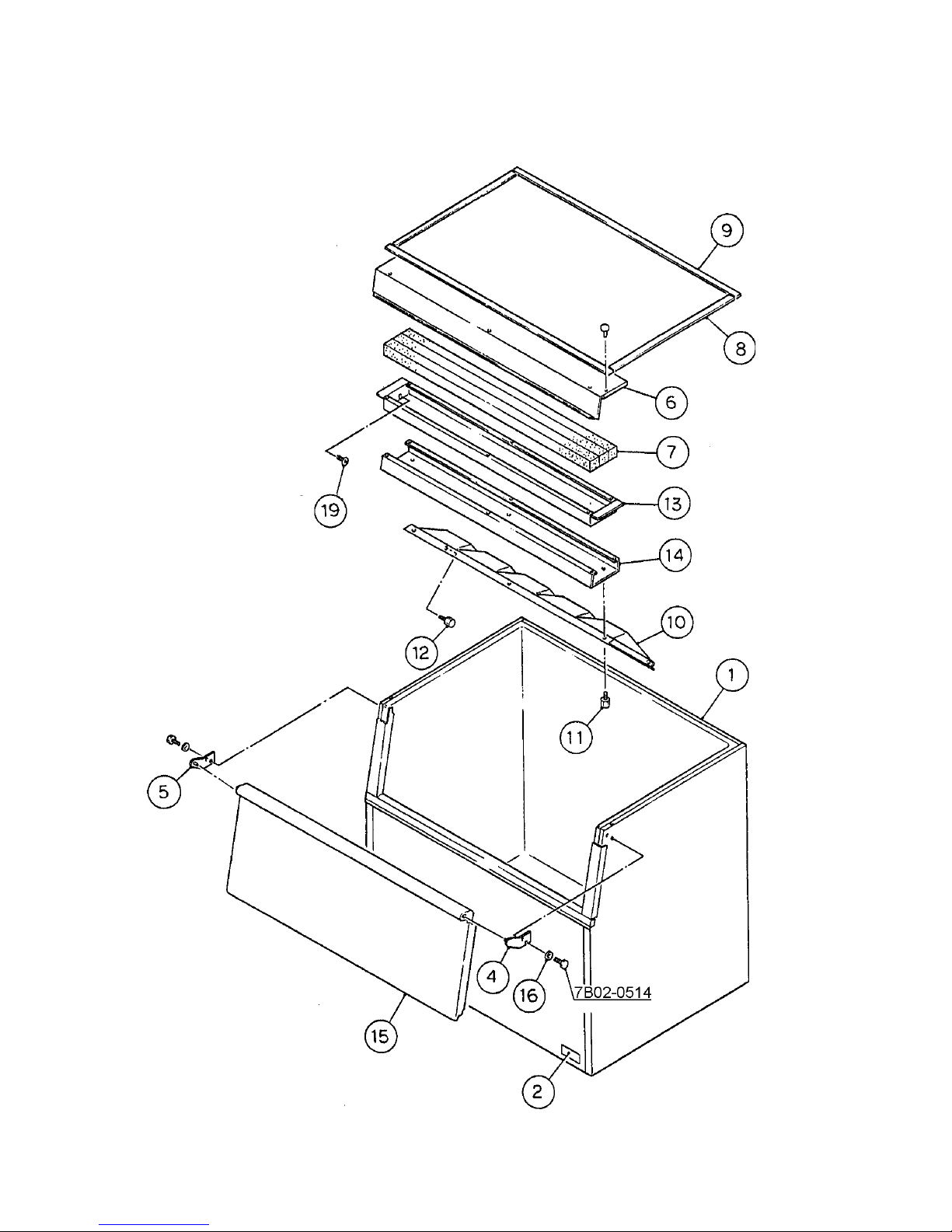

B-500SF A. BIN ASSEMBLY L-5, M-5, N-5

7
MODEL: B-500SF TITLE:A. BIN ASSEMBLY
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER L-5 M-5 N-5
1 BIN BODY - 1A0648A05 1 1 1
2 NAMEPLATE PES FILM 4A2580-05 1 1 1
3 - - -
4 HINGE-BODY(R) SS 3A0105G01 1 1 1
5 HINGE-BODY(L) SS 3A0106G01 1 1 1
6 TOP COVER(5) SS 3A0157-01 1 1 1
7 INSULATION(C2) PS FORM 437687-02 3 3 3
8 GASKET PVC, L=630 4A0808L01 2 2 2
9 GASKET PVC, L=757 4A0808L01 2 2 2
10 BAFFLE(5) PS 104322-01 1 1 1
11 THUMBSCREW ABS,SS 415949G01 2 2 2
12 THUMBSCREW ABS,SS 434168G01 2 2 2
13 FRONT FRAME(5) - 3A0420-01 1 1 1
14 FRONT FRAME COVER(5) ABS 324625-01 1 1 1
15 BIN DOOR - 3A2087G05 1 1 1
16 WASHER SS 4A0198-01 4 4 4
17 - - -
18 - - -
19 HEX HEAD TAPPING SCREW #8, ¾” 7B03I08834 2 2 2

8
HA
B-700, 800, 900SF A. BIN ASSEMBLY L-5, M-5, N-5

9
MODEL: B-700SF TITLE:A. BIN ASSEMBLY
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER L-5 M-5 N-5
1 BIN BODY - 1A0648A07 1 1 1
2 NAMEPLATE PES FILM 4A2580-07 1 1 1
3 - - -
4 HINGE-BODY(R) SS 3A0105G01 1 1 1
5 HINGE-BODY(L) SS 3A0106G01 1 1 1
6 TOP COVER(7) SS 3A0158-01 1 1 1
7 INSULATION(C7) PS FORM 437687-03 3 3 3
8 GASKET PVC, L=630 4A0808L01 2 2 2
9 GASKET PVC,
L=1112.5
4A0808L01 2 2 2
10 BAFFLE(7) PS 104323-01 1 1 1
11 THUMBSCREW ABS,SS 415949G01 3 3 3
12 THUMBSCREW ABS,SS 434168G01 2 2 2
13 FRONT FRAME(7) SS 3A0446-01 1 1 1
14 FRONT FRAME COVER(7) ABS 3A0155-01 1 1 1
15 - - -
16 - - -
17 WASHER SS 4A0198-01 4 4 4
18 - - -
19 - - -
20 BIN DOOR PE 3A2087G01 1 1 1
21 HEX HEAD TAPPING SCREW #8, ¾” 7B03I08834 2 2 2

10
MODEL: B-800SF TITLE:A. BIN ASSEMBLY
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER L-5 M-5 N-5
1 BIN BODY - 1A0648A09 1 1 1
2 NAMEPLATE PES FILM 4A2580-09 1 1 1
3 - - -
4 HINGE-BODY(R) SS 3A0105G01 1 1 1
5 HINGE-BODY(L) SS 3A0106G01 1 1 1
6 TOP COVER(8) SS 2A0106-01 1 1 1
7 INSULATION(C8) PS FORM 437687-05 3 3 3
8 GASKET PVC,L=630 4A0808L01 2 2 2
9 GASKET PVC,L=1214.5 4A0808L01 2 2 2
10 BAFFLE(8) PS 105012-01 1 1 1
11 THUMBSCREW ABS,SS 415949G01 4 4 4
12 THUMBSCREW ABS,SS 434168G01 2 2 2
13 FRONT FRAME(8) SS 3A0447-01 1 1 1
14 FRONT FRAME COVER(8) ABS 325510-01 1 1 1
15 - - -
16 - - -
17 WASHER SS 4A0198-01 4 4 4
18 - - -
19- - -
20 BIN DOOR PE 3A2087G02 1 1 1
21 HEX HEAD TAPPING SCREW #8, ¾” 7B03I08834 2 2 2

11
MODEL: B-900SF TITLE:A. BIN ASSEMBLY
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER L-5 M-5 N-5
1 BIN BODY - 1A0648A11 1 1 1
2 NAMEPLATE PES FILM 4A2580-11 1 1 1
3 - - -
4 HINGE-BODY(R) SS 3A0105G01 1 1 1
5 HINGE-BODY(L) SS 3A0106G01 1 1 1
6 TOP COVER(9) SS 2A0107-01 1 1 1
7 INSULATION(C9) PS FORM 437687-04 3 3 3
8 GASKET PVC,L=630 4A0808L01 2 2 2
9 GASKET PVC,L=1316 4A0808L01 2 2 2
10 BAFFLE(9) PS 104324-02 1 1 1
11 THUMBSCREW ABS,SS 415949G01 4 4 4
12 THUMBSCREW ABS,SS 434168G01 2 2 2
13 FRONT FRAME(9) SS 3A0447-02 1 1 1
14 FRONT FRAME COVER(9) ABS 324619-01 1 1 1
15 - - -
16 - - -
17 WASHER SS 4A0198-01 4 4 4
18 - - -
19 - - -
20 BIN DOOR PE 3A2087G03 1 1 1
21 HEX HEAD TAPPING SCREW #8, ¾” 7B03I08834 2 2 2

12
MODEL: B-300SF TITLE:B. ACCESSORIES
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER L-5 M-5 N-5
1 ADJUSTABLE LEG - 4A2526-01 4 4 4
2 INSTRUCTION SHEET/LEGS PAPER 434803-01 1 1 1
3 SCOOP - 4A2246-01 1 1 1
4 LEG PROTECTOR - 3A0134-01 4 4 4
MODEL: B-500, 700, 800, 900SF TITLE:B. ACCESSORIES
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER L-5 M-5 N-5
1 LEG - 4A2525-01 4 4 4
2 INSTRUCTION SHEET/LEGS PAPER 434803-01 1 1 1
3 SCOOP - 4A2246-01 1 1 1

13
MODEL: B-300SF TITLE:C. PACKAGING
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER L-5 M-5 N-5
PACKAGING - 1A0649A02 1 1 1
1 PALLET - 3A1829-01 1 1 1
2 WOOD BLOCK B - 4A0004-02 2 2 2
3 SIDE PROTECTOR - 4A2304-01 2 2 2
4 CORNER POST - 3A0782-02 4 4 4
5 FOAM BLOCK –FRONT - 4A0059-08 2 2 2
6 CARTON - 2A2010-02 1 1 1
7 PACKAGE LABEL –F - 4A2578-01 4 4 4
8 WOOD BLOCK C - 4A0004-03 2 2 2
9 SIDE PROTECTOR - 4A2304-03 2 2 2
MODEL: B-500SF TITLE:C. PACKAGING
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER L-5 M-5 N-5
PACKAGING - 1A0649A03 1 1 1
1 PALLET - 3A1829-02 1 1 1
2 WOOD BLOCK B - 4A0004-02 4 4 4
3 SIDE PROTECTOR - 4A2304-01 4 4 4
4 CORNER POST - 3A0782-02 4 4 4
5 FOAM BLOCK –FRONT - 4A0059-08 2 2 2
6 CARTON - 2A2010-03 1 1 1
7 PACKAGE LABEL –F - 4A2578-01 4 4 4

14
MODEL: B-700SF TITLE:C. PACKAGING
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER L-5 M-5 N-5
PACKAGING - 1A0649A04 1 1 1
1 PALLET - 3A1829-03 1 1 1
2 WOOD BLOCK B - 4A0004-02 4 4 4
3 SIDE PROTECTOR - 4A2304-01 4 4 4
4 CORNER POST - 3A0782-02 4 4 4
5 FOAM BLOCK –FRONT - 4A0059-08 2 2 2
6 CARTON - 2A2010-04 1 1 1
7 PACKAGE LABEL –F - 4A2578-01 4 4 4
MODEL: B-800SF TITLE:C. PACKAGING
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER L-5 M-5 N-5
PACKAGING - 1A0649A05 111
1 PALLET - 3A1829-04 1 1 1
2 WOOD BLOCK B - 4A0004-02 4 4 4
3 SIDE PROTECTOR - 4A2304-01 4 4 4
4 CORNER POST - 3A0782-02 4 4 4
5 FOAM BLOCK –FRONT - 4A0059-08 2 2 2
6 CARTON - 2A2010-05 1 1 1
7 PACKAGE LABEL –F - 4A2578-01 4 4 4

15
MODEL: B-900SF TITLE:C. PACKAGING
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER L-5 M-5 N-5
PACKAGING - 1A0649A06 1 1 1
1 PALLET - 3A1829-05 1 1 1
2 WOOD BLOCK B - 4A0004-02 4 4 4
3 SIDE PROTECTOR - 4A2304-01 4 4 4
4 CORNER POST - 3A0782-02 4 4 4
5 FOAM BLOCK –FRONT - 4A0059-08 2 2 2
6 CARTON - 2A2010-06 1 1 1
7 PACKAGE LABEL –F - 4A2578-01 4 4 4
