1-1

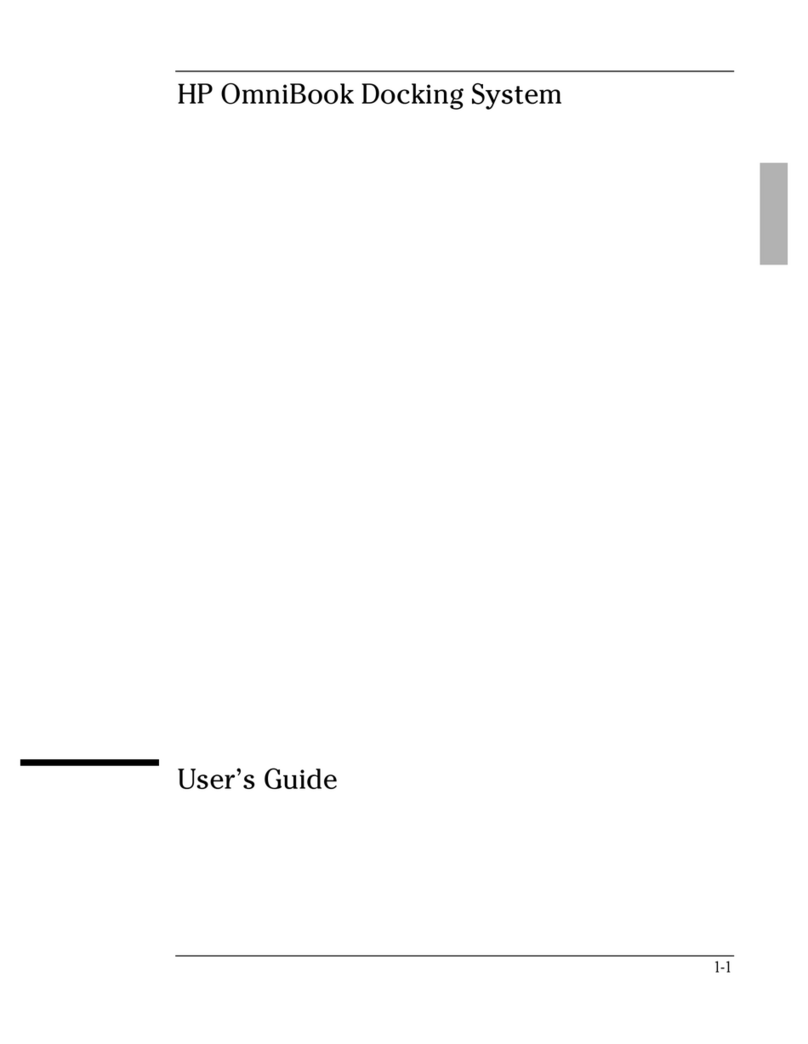

HP OmniBook Docking System
User’s Guide

1-2
Notice
This manual and any examples contained herein are provided “as is” and are
subject to change without notice. Hewlett-Packard Company makes no warranty of
any kind with regard to this manual, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose. Hewlett-Packard
Co. shall not be liable for any errors or for incidental or consequential damages in
connection with the furnishing, performance, or use of this manual or the examples
herein.
Consumer transactions in Australia and the United Kingdom: The above disclaimers
and limitations shall not apply to Consumer transactions in Australia and the United
Kingdom and shall not affect the statutory rights of Consumers.
© Copyright Hewlett-Packard Company 1998. All rights reserved. Reproduction,
adaptation, or translation of this manual is prohibited without prior written
permission of Hewlett-Packard Company, except as allowed under the copyright
laws.
The programs that control this product are copyrighted and all rights are reserved.
Reproduction, adaptation, or translation of those programs without prior written
permission of Hewlett-Packard Co. is also prohibited.
Portions of the programs that control this product may also be copyrighted by
Microsoft Corporation, SystemSoft Corp., Crystal Semiconductor Corporation,
Phoenix Technologies, Ltd., NeoMagic, Inc., and ATI Technologies Inc. See the
individual programs for additional copyright notices.
Microsoft, MS, MS-DOS, and Windows are registered trademarks of Microsoft
Corporation. Pentium and the Intel Inside logo are U.S. registered trademarks and
MMX is a U.S. trademark of Intel Corporation.
For warranty information, see the Support and Service booklet.
,I[PIXX4EGOEVH'SQTER]
1SFMPI'SQTYXMRK(MZMWMSR
4VYRIVMHKI%ZI
'YTIVXMRS'%

1-3
HP Software Product License Agreement
Your HP OmniBook PC contains factory-installed software programs. Please read the
Software License Agreement before proceeding.
'EVIJYPP]VIEHXLMW0MGIRWI%KVIIQIRXFIJSVITVSGIIHMRKXSSTIVEXIXLMW
IUYMTQIRX6MKLXWMRXLIWSJX[EVIEVISJJIVIHSRP]SRXLIGSRHMXMSRXLEXXLI
GYWXSQIVEKVIIWXSEPPXIVQWERHGSRHMXMSRWSJXLI0MGIRWI%KVIIQIRX4VSGIIHMRK
XSSTIVEXIXLIIUYMTQIRXMRHMGEXIW]SYVEGGITXERGISJXLIWIXIVQWERHGSRHMXMSRW
-J]SYHSRSXEKVII[MXLXLIXIVQWSJXLI0MGIRWI%KVIIQIRX]SYQYWXRS[IMXLIV
VIQSZIXLIWSJX[EVIJVSQ]SYVLEVHHMWOHVMZIERHHIWXVS]XLIQEWXIVHMWOWSV
VIXYVRXLIGSQTPIXIGSQTYXIVERHWSJX[EVIJSVEJYPPVIJYRH
4VSGIIHMRK[MXLGSRJMKYVEXMSRWMKRMJMIW]SYVEGGITXERGISJXLI0MGIRWI8IVQW
9RPIWWSXLIV[MWIWXEXIHFIPS[XLMW,47SJX[EVI4VSHYGX0MGIRWI%KVIIQIRXWLEPP
KSZIVRXLIYWISJEPPWSJX[EVIXLEXMWTVSZMHIHXS]SYXLIGYWXSQIVEWTEVXSJXLI
,4GSQTYXIVTVSHYGX-XWLEPPWYTIVWIHIER]RSR,4WSJX[EVIPMGIRWIXIVQWXLEX
QE]FIJSYRHSRPMRISVMRER]HSGYQIRXEXMSRSVSXLIVQEXIVMEPWGSRXEMRIHMRXLI
GSQTYXIVTVSHYGXTEGOEKMRK
2SXI Operating System Software by Microsoft is licensed to you under the Microsoft
End User License Agreement (EULA) contained in the Microsoft documentation.
The following License Terms govern the use of the software:
9WI Customer may use the software on any one computer. Customer may not
network the software or otherwise use it on more than one computer. Customer
may not reverse assemble or decompile the software unless authorized by law.
'STMIWERH%HETXEXMSRW Customer may make copies or adaptations of the software
(a) for archival purposes or (b) when copying or adaptation is an essential step in
the use of the software with a computer so long as the copies and adaptations are
used in no other manner.
3[RIVWLMT Customer agrees that he/she does not have any title or ownership of the
software, other than ownership of the physical media. Customer acknowledges and
agrees that the software is copyrighted and protected under the copyright laws.
Customer acknowledges and agrees that the software may have been developed by
a third party software supplier named in the copyright notices included with the
software, who shall be authorized to hold the Customer responsible for any
copyright infringement or violation of this Agreement.
4VSHYGX6IGSZIV]'(631 If your computer was shipped with a product recovery
CD-ROM: (i) The product recovery CD-ROM and/or support utility software may only
be used for restoring the hard disk drive of the HP computer with which the product
recovery CD-ROM was originally provided. (ii) The use of any operating system

1-4
software by Microsoft contained in any such product recovery CD-ROM shall be
governed by the Microsoft End User License Agreement (EULA).
8VERWJIVSJ6MKLXWMR7SJX[EVI Customer may transfer rights in the software to a third
party only as part of the transfer of all rights and only if Customer obtains the prior
agreement of the third party to be bound by the terms of this License Agreement.
Upon such a transfer, Customer agrees that his/her rights in the software are
terminated and that he/she will either destroy his/her copies and adaptations or
deliver them to the third party.
7YFPMGIRWMRKERH(MWXVMFYXMSR Customer may not lease, sublicense the software or
distribute copies or adaptations of the software to the public in physical media or by
telecommunication without the prior written consent of Hewlett-Packard.
8IVQMREXMSR Hewlett-Packard may terminate this software license for failure to
comply with any of these terms provided Hewlett-Packard has requested Customer
to cure the failure and Customer has failed to do so within thirty (30) days of such
notice.
9THEXIW%RH9TKVEHIW Customer agrees that the software does not include updates
and upgrades which may be available from Hewlett-Packard under a separate
support agreement.
)\TSVX'PEYWI Customer agrees not to export or re-export the software or any copy
or adaptation in violation of the U.S. Export Administration regulations or other
applicable regulation.
97+SZIVRQIRX6IWXVMGXIH6MKLXW Use, duplication, or disclosure by the U.S.
Government is subject to restrictions as set forth in subparagraph (c)(1)(ii) of the
Rights in Technical Data and Computer Software clause in DFARS 252.227-7013.
Hewlett-Packard Company, 3000 Hanover Street, Palo Alto, CA 94304 U.S.A. Rights
for non-DOD U.S. Government Departments and Agencies are as set forth in FAR
52.227-19(c)(1,2).

1-5
Contents
Using the Dock ...................................... 1-7
Docking System Features ............................... 1-9
Understanding the Basics...............................1-11
To set up the dock .................................1-12
To dock the OmniBook ..............................1-14
To undock the OmniBook ............................1-16
To manually undock the OmniBook .....................1-18
To set a docking password............................1-19
To turn the OmniBook on and off .......................1-20
To attach a security cable ............................1-21
To create a docked hardware profile in Windows NT .........1-23
Making Connections ..................................1-24
To connect an external keyboard .......................1-25
To enable an external Fn key ..........................1-25
To connect a PS/2 mouse.............................1-26
To connect a serial mouse ............................1-26
To connect a serial device ............................1-27
To connect a SCSI device.............................1-27
To connect a universal serial bus (USB) device .............1-29
To connect an external monitor ........................1-30
To use the monitor stand with an external display ...........1-31
To enable the built-in and external displays ................1-31
To connect a parallel device ..........................1-32
To insert a PC card .................................1-33
To remove a PC Card.................................34
To connect your audio equipment .......................36
Installing Accessories................................ 1-37
Using the Module Bay Adapter ...........................1-39
To install the module bay adapter.......................1-40
To replace a plug-in module...........................1-44
Installing PCI Boards ..................................1-47
Installing PC Devices..................................1-51
To install the PC device ..............................1-52
Formatting a hard disk in the PC device bay................1-60



1-6
3 Troubleshooting .................................... 1-63
Solving Problems ....................................1-65
Specifications and Regulatory Information ............... 1-69
Specifications.......................................1-71
Regulatory Information ................................1-72
U.S.A. ..........................................1-72
Canada .........................................1-73
Japan ..........................................1-73
Europe .........................................1-74


1-7
1
Using the Dock

1-8
Using the Dock
Congratulations! With the OmniBook docking system (referred to as dock in this
manual), you can significantly increase the convenience of your OmniBook for
desktop use. By making one connection—plugging your OmniBook into the dock—
you can get easy access to these types of devices:
♦ Printer, external floppy drive, or other parallel device.
♦ Modem or other standard serial device.
♦ Universal serial bus (USB) devices.
♦ SCSI-2 and IDE devices.
♦ Type II and Type III CardBus devices
♦ Additional OmniBook plug-in modules.
♦ PCI accessory boards.
♦ PC expansion devices.
♦ External keyboard and external mouse.
♦ External monitor.
♦ Audio connections.

Using the Dock
Docking System Features
1-9
Docking System Features
Dock rear-view
1. Two type II or type III PC card slots (CardBus enabled)
2. PC card security lock
3. Mouse port
4. Keyboard port
5. Two universal serial bus (USB) ports
6. PCI board slots
7. SCSI-2 port
8. Serial port
9. Parallel port
10. AC power connector
11. Monitor port
12. Headphones or speaker-out
13. Microphone-in
14. Audio line-in
15. System-off button
16. Power/Suspend button

Using the Dock
Docking System Features
1-10
Dock front-view
17. Tray release latch
18. PC device bay
19. Undock button
20. Plug-in module bay
21. Docked light
22. Wait light
23. Undocked light
24. AC power light
25. Release lever
26. PCI board door
27. PCI board lock
28. Kensington lock slot
29. Manual release tab

Using the Dock
Understanding the Basics
1-11
Understanding the Basics
Docking the OmniBook to the dock is just like simultaneously adding several
devices to the OmniBook. Docking causes Windows 95 or Windows 98 to create a
new hardware profile. The default hardware profile shipped with the OmniBook is
an undocked profile.
Note
If you are using Windows NT on your system and your system does not have a
docked hardware profile, you need to create a docked profile for your OmniBook.
See “To create a docked hardware profile” on page 1- 23 for instructions.
This section shows you how to get your dock and OmniBook up and running
quickly, including how to
• Set up the dock.
• Dock the OmniBook.
• Undock the OmniBook.
• Turn the OmniBook on and off
• Attach a security cable.

Using the Dock
Understanding the Basics
1-12
To set up the dock
Important
=SYQE]RIIHXSYTKVEHI]SYV3QRM&SSOW&-37FIJSVI]SYGERYWI]SYV
3QRM&SSO[MXLXLIHSGOMRKW]WXIQ7IIXLIYTKVEHIMRWXVYGXMSRWTVSZMHIH[MXLXLMW
HSGOSVXLIVIEHQIJMPISRXLI&-37YTKVEHI'(631TVSZMHIH[MXLXLMWHSGO
1. Plug the power cord into the dock, then plug the power cord into the ac outlet.
2. Select the appropriate dock tray for your OmniBook. Match the letter on the tray
with the letter for your OmniBook listed on the dock label next to the tray
release latch.

Using the Dock
Understanding the Basics
1-13
3. Attach the security post to the tray (optional). The security post preventss
removal of the OmniBook PC cards. The security post on your tray may be in a
different location from that shown below.
4. Insert the tabs on the back of the tray into the slots in the dock and press down
on the front edge of the tray to lock it in place.
5. Connect your external devices to the dock. See “Making Connections”on page
1-24.

Using the Dock
Understanding the Basics
1-14
To remove a tray
To remove a tray, slide the tray release latch forward until the tray pops up.
To dock the OmniBook
1. Place the dock on a flat surface.
2. Slide the OmniBook’s docking door to the left.
Some OmniBook models, including the OmniBook 4100 have a rear port door
that opens automatically when you install it in the dock. Refer to the Reference
Guide for your OmniBook to see if your OmniBook has this feature.
Tray release
latch

Using the Dock
Understanding the Basics
1-15
3. Place the OmniBook on the dock tray, with the back of the computer facing the
dock’s connector.
4. Position your fingers on the platform grips as shown below. Use your thumbs to
push the computer firmly toward the dock until the OmniBook slides into place.
You should hear a click, indicating that the OmniBook is locked to the dock.
When the OmniBook is properly inserted, the amber wait light turns on.
When the OmniBook is ready for use, the green docked light turns on.
Note
If the OmniBook is in suspend or hibernate mode or if the OmniBook is turned off,
the lights will not change until the OmniBook is turned on.

Using the Dock
Understanding the Basics
1-16
To undock the OmniBook
Note
If you have installed the tray security post, make sure that no objects (such as a
phone jack or network connector) are protruding from the OmniBook PC card
slots,.
1. If there is no ac power connected to the dock, turn on the OmniBook to provide
power for undocking.
The dock will not operate in this power mode.
2. Exit any applications that are using devices that are connected through the
dock (network, USB, and PCMCIA devices.)
3. Press the undock button on the dock.
– or –
If you are using Windows 95 or Windows 98, click Start, Eject PC.
The amber wait light then turns on.
4. If you have enabled a docking password, you will be prompted for your
password. You must enter it to undock the OmniBook.
1. Undock button
2. Docked light
3. Wait light
4. Undocked light

Using the Dock
Understanding the Basics
1-17
5. When you hear two beeps and the undock light flashes, pull the release lever
on the right side of the dock toward the front to eject the OmniBook.
You have 30 seconds to pull the release lever. After 30 seconds, the dock
relocks the OmniBook.

Using the Dock
Understanding the Basics
1-18
To manually undock the OmniBook
If you cannot undock the OmniBook using the undock button (for example, you
have no ac power or battery power), you can manually undock the OmniBook.
Manual undocking overrides password protection.
CAUTION
&IWYVIXSWLYXHS[R]SYV3QRM&SSO&IJSVIQERYEPP]YRHSGOMRKMX1ERYEPP]
YRHSGOMRK]SYV3QRM&SSO[LMPIXLIYRMXMWXYVRIHSRQE]GEYWI]SYVW]WXIQXS
LERK
1. Save your work and turn off your OmniBook. Be sure to use the shut down
option from the Start menu.
2. If you are using a Kensington MicroSaver lock to secure your dock, remove the
lock.
3. Pull out and hold the manual release tab on the right rear corner of the dock
while pulling the release lever toward the front to eject the OmniBook.

Using the Dock
Understanding the Basics
1-19
To set a docking password
Note
An administrative password must be set before you can set a user password. Refer to
the Reference Guide provided with your OmniBook for detailed information about
setting administrative passwords.
Password security protects access to your OmniBook. If you use password security,
you must enter the password at certain times (defined in Password Options). This is
how to specify a docking password.
1. Close all applications, then shut down Windows and restart the OmniBook.
2. When you see the HP logo, press F2 to enter the BIOS Setup utility.
3. Use the right or left arrow keys select the Security menu, then use the up or
down arrow key to select Undock password.
Note: The boot password must be enabled before you can select Undock.
4. Press F5 or F6 to select Undock: Enabled.
5. Select Set User Password and type your password.
6. Save and exit Setup.
Refer to your OmniBook Reference Guide for more detailed information on setting
passwords.

Using the Dock
Understanding the Basics
1-20
To turn the OmniBook on and off
To turn on the OmniBook:
• Press the power button on the left side of the dock.
To turn off the OmniBook without undocking.
1. Save your work and close open applications .
2. Properly shut down your operating system.
3. Press the system-off button on the left side of the dock.
To Suspend the OmniBook without undocking.
1. Close open applications and save your work.
2. Press the power button on the left side of the dock.
1. Power button
2. System-off button
