HP 1U Integrated Keyboard Drawer
User Guide
Part Number 269450-001
July 2002 (First Edition)

HP CONFIDENTIAL
Writer: John Turner - Amy Laffitte File Name: a-frnt
Codename: Dachshund Part Number: 269450-001 Last Saved On: 8/2/02 9:53 AM
© 2002 Hewlett-Packard Company
Hewlett-Packard Company shall not be liable for technical or editorial errors or omissions
contained herein. The information in this document is provided “as is” without warranty of
any kind and is subject to change without notice. The warranties for HP products are set forth
in the express limited warranty statements accompanying such products. Nothing herein
should be construed as constituting an additional warranty.
HP 1U Integrated Keyboard Drawer User Guide
July 2002 (First Edition)
Part Number 269450-001

HP 1U Integrated Keyboard Drawer User Guide iii
HP CONFIDENTIAL
Writer: John Turner - Amy Laffitte File Name: a-frnt
Codename: Dachshund Part Number: 269450-001 Last Saved On: 8/2/02 9:53 AM
Contents
About This Guide
Important Safety Information ........................................................................................... vii
Symbols on Equipment..................................................................................................... vii
Rack Stability..................................................................................................................... ix
Symbols in Text.................................................................................................................ix
Getting Help........................................................................................................................ x
Technical Support ........................................................................................................ x
HP Website................................................................................................................... x
Authorized Reseller...................................................................................................... x
Reader’s Comments........................................................................................................... xi
Chapter 1
Introduction
Features............................................................................................................................1-2
Components .....................................................................................................................1-3
Chapter 2
Installing the 1U Integrated Keyboard Drawer
Kit Contents.....................................................................................................................2-1
Tools Required.................................................................................................................2-2
Installation Instructions....................................................................................................2-2
Removing the 1U Integrated Keyboard Drawer..............................................................2-8
Removing the Multipurpose Cover..................................................................................2-8
Chapter 3
Operating the 1U Integrated Keyboard Drawer
Accessing the Keyboard ..................................................................................................3-1

Contents
iv HP 1U Integrated Keyboard Drawer User Guide
HP CONFIDENTIAL
Writer: John Turner - Amy Laffitte File Name: a-frnt
Codename: Dachshund Part Number: 269450-001 Last Saved On: 8/2/02 9:53 AM
Using the Keyboard......................................................................................................... 3-2
Keyboard Programming .................................................................................................. 3-3
Keyboard Hot Key Label ................................................................................................ 3-4
Cable Locking Mechanism.............................................................................................. 3-5
Chapter 4
Care and Maintenance
Maintenance and Shipping Guidelines............................................................................ 4-1
Shipping the 1U Integrated Keyboard Drawer................................................................ 4-1
Moving the 1U Integrated Keyboard Drawer Installed in a Rack................................... 4-2
Appendix A
Regulatory Compliance Notices
Regulatory Compliance Identification Numbers.............................................................A-1
Federal Communications Commission Notice................................................................A-1
Class A Equipment ...................................................................................................A-2
Class B Equipment ...................................................................................................A-2
Declaration of Conformity for Products Marked with the FCC Logo,
United States Only....................................................................................................A-3
Modifications............................................................................................................A-3
Cables .......................................................................................................................A-4
Canadian Notice (Avis Canadien)...................................................................................A-4
Class A Equipment ...................................................................................................A-4
Class B Equipment. ..................................................................................................A-4
Mouse Compliance Statement.........................................................................................A-4
European Union Notice...................................................................................................A-5
Japanese Notice...............................................................................................................A-6
Taiwanese Notice ............................................................................................................A-6
Laser Device....................................................................................................................A-7
Laser Safety Warnings..............................................................................................A-7
Compliance with CDRH Regulations.......................................................................A-7
Compliance with International Regulations .............................................................A-7
Laser Product Label..................................................................................................A-8
Laser Information .....................................................................................................A-8
Battery Replacement Notice............................................................................................A-9

Contents
HP 1U Integrated Keyboard Drawer User Guide v
HP CONFIDENTIAL
Writer: John Turner - Amy Laffitte File Name: a-frnt
Codename: Dachshund Part Number: 269450-001 Last Saved On: 8/2/02 9:53 AM
Appendix B
Electrostatic Discharge
Grounding Methods ........................................................................................................ B-2
Appendix C
Specifications
Index

HP 1U Integrated Keyboard Drawer User Guide vii
HP CONFIDENTIAL
Writer: John Turner - Amy Laffitte File Name: a-frnt
Codename: Dachshund Part Number: 269450-001 Last Saved On: 8/2/02 9:53 AM
About This Guide
This guide provides step-by-step instructions for installation, and reference
information for operation and troubleshooting for the HP 1U Integrated Keyboard
Drawer.
.
Important Safety Information
Before installing this product, read the Important Safety Information document
included with the server.
Symbols on Equipment
The following symbols may be placed on equipment to indicate the presence of
potentially hazardous conditions:
WARNING: This symbol, in conjunction with any of the following symbols,
indicates the presence of a potential hazard. The potential for injury exists if
warnings are not observed. Consult your documentation for specific details.
This symbol indicates the presence of hazardous energy circuits or electric
shock hazards. Refer all servicing to qualified personnel.
WARNING: To reduce the risk of injury from electric shock hazards, do not
open this enclosure. Refer all maintenance, upgrades, and servicing to
qualified personnel.

About This Guide
viii HP 1U Integrated Keyboard Drawer User Guide
HP CONFIDENTIAL
Writer: John Turner - Amy Laffitte File Name: a-frnt
Codename: Dachshund Part Number: 269450-001 Last Saved On: 8/2/02 9:53 AM
This symbol indicates the presence of electric shock hazards. The area
contains no user or field serviceable parts. Do not open for any reason.
WARNING: To reduce the risk of injury from electric shock hazards, do not
open this enclosure
This symbol on an RJ-45 receptacle indicates a network interface connection.
WARNING: To reduce the risk of electric shock, fire, or damage to the
equipment, do not plug telephone or telecommunications connectors into this
receptacle.
This symbol indicates the presence of a hot surface or hot component. If this
surface is contacted, the potential for injury exists.
WARNING: To reduce the risk of injury from a hot component, allow the
surface to cool before touching.
These symbols, on power supplies or systems, indicate that the
equipment is supplied by multiple sources of power.
WARNING: To reduce the risk of injury from electric shock,
remove all power cords to completely disconnect power from the
system.
Weight in kg
Weight in lb
This symbol indicates that the component exceeds the recommended
weight for one individual to handle safely.
WARNING: To reduce the risk of personal injury or damage to the
equipment, observe local occupational health and safety requirements
and guidelines for manual material handling.

About This Guide
HP 1U Integrated Keyboard Drawer User Guide ix
HP CONFIDENTIAL
Writer: John Turner - Amy Laffitte File Name: a-frnt
Codename: Dachshund Part Number: 269450-001 Last Saved On: 8/2/02 9:53 AM
Rack Stability
WARNING: To reduce the risk of personal injury or damage to the equipment,
be sure that:
• The leveling jacks are extended to the floor.
• The full weight of the rack rests on the leveling jacks.
• The stabilizing feet are attached to the rack if it is a single-rack installation.
• The racks are coupled together in multiple-rack installations.
• Only one component is extended at a time. A rack may become unstable if
more than one component is extended for any reason.
Symbols in Text
These symbols may be found in the text of this guide. They have the following
meanings.
WARNING: Text set off in this manner indicates that failure to follow directions
in the warning could result in bodily harm or loss of life.
CAUTION: Text set off in this manner indicates that failure to follow directions could
result in damage to equipment or loss of information.
IMPORTANT: Text set off in this manner presents essential information to explain a concept
or complete a task.
NOTE: Text set off in this manner presents additional information to emphasize or supplement
important points of the main text.

About This Guide
x HP 1U Integrated Keyboard Drawer User Guide
HP CONFIDENTIAL
Writer: John Turner - Amy Laffitte File Name: a-frnt
Codename: Dachshund Part Number: 269450-001 Last Saved On: 8/2/02 9:53 AM
Getting Help
If you have a problem and have exhausted the information in this guide, you can get
further information and other help in the following locations.
Technical Support
In North America, call the HP Technical Support Phone Center at 1-800-652-6672.
This service is available 24 hours a day, 7 days a week. For continuous quality
improvement, calls may be recorded or monitored. Outside North America, call the
nearest HP Technical Support Phone Center. Telephone numbers for worldwide
Technical Support Centers are listed on the HP website, www.hp.com.
Be sure to have the following information available before you call HP:
• Technical support registration number (if applicable)
• Product serial number
• Product model name and number
• Applicable error messages
• Add-on boards or hardware
• Third-party hardware or software
• Operating system type and revision level
HP Website
The HP website has information on this product as well as the latest drivers and flash
ROM images. You can access the HP website at www.hp.com.
Authorized Reseller
For the name of your nearest authorized reseller:
• In the United States, call 1-800-345-1518.

About This Guide
HP 1U Integrated Keyboard Drawer User Guide xi
HP CONFIDENTIAL
Writer: John Turner - Amy Laffitte File Name: a-frnt
Codename: Dachshund Part Number: 269450-001 Last Saved On: 8/2/02 9:53 AM
• In Canada, call 1-800-263-5868.
• Elsewhere, see the HP website for locations and telephone numbers.
Reader’s Comments
HP welcomes your comments on this guide. Please send your comments and
suggestions by e-mail to [email protected].

HP 1U Integrated Keyboard Drawer User Guide 1-1
CONFIDENTIAL
Writer: John Turner - Amy Laffitte File Name: b-ch1 Introduction
Codename: Dachshund Part Number: 269450-001 Last Saved On: 7/29/02 1:20 PM
1
Introduction
The HP 1U Integrated Keyboard Drawer is a rack-mountable keyboard drawer with a
multipurpose cover, featuring a paper holder and two CD holders, and a keyboard
with hot keys and track ball.
NOTE: 1U = 4.45 cm or 1.75 inches

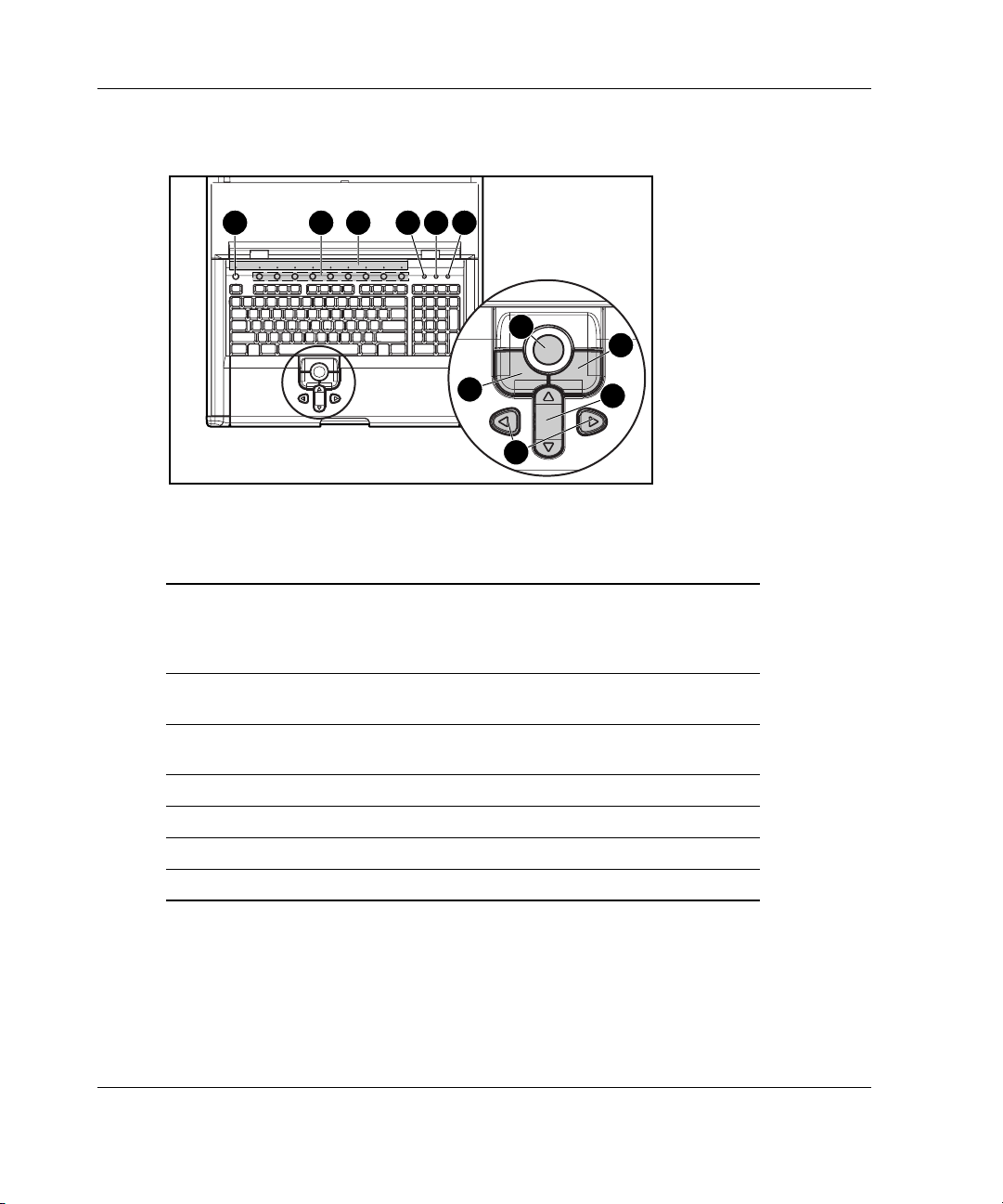

Figure 1-1: 1U Integrated Keyboard Drawer
The 1U Integrated Keyboard Drawer is mounted on rails, with space available to add
the 1U Switch Console behind the unit. This product can be used with all Compaq
Series racks.

Introduction
1-2 HP 1U Integrated Keyboard Drawer User Guide
CONFIDENTIAL
Writer: John Turner - Amy Laffitte File Name: b-ch1 Introduction
Codename: Dachshund Part Number: 269450-001 Last Saved On: 7/29/02 1:20 PM
The 1U Integrated Keyboard Drawer provides integrated hot keys for use with
Keyboard Video Mouse (KVM) switch products. This function facilitates easy
switching between rack-mounted devices. The keyboard has nine programmable hot
keys to provide switching functionality between nine devices with an additional
wizard key for programming.
Features
The following table identifies the 1U Integrated Keyboard Drawer features.
Table 1-1: 1U Integrated Keyboard Drawer Features
Feature Description
Plug and Play Plug and Play capability if supported by your
system
Keyboard with hot keys
and track ball
Nine hot keys to providing switching between
nine rack-mounted devices, with an additional
key for programming
Scroll keys Four scroll keys under track ball
Multipurpose cover Protective cover providing a paper holder and
two CD holders

Introduction
HP 1U Integrated Keyboard Drawer User Guide 1-3
CONFIDENTIAL
Writer: John Turner - Amy Laffitte File Name: b-ch1 Introduction
Codename: Dachshund Part Number: 269450-001 Last Saved On: 7/29/02 1:20 PM
Components
2
13
4
Figure 1-2: Components of the cover
Table 1-2: Components of the cover
1 Multipurpose Cover Providing paper holder and two CD
holders
2 Multipurpose cover
release latch
Pivots up, used to unlatch the
multipurpose cover
3 Paper holder Allows the user to view documents when
the multipurpose cover is open
4 CD holders Allows the user to store two CDs

Introduction
1-4 HP 1U Integrated Keyboard Drawer User Guide
CONFIDENTIAL
Writer: John Turner - Amy Laffitte File Name: b-ch1 Introduction
Codename: Dachshund Part Number: 269450-001 Last Saved On: 7/29/02 1:20 PM
11
12
14
15
13
PROGRAM 1 2 3 4 5 6 7 8 9
5 6 7 8 9 10
Figure 1-3: Components of the keyboard
Table 1-3: Components of the keyboard
5 Programmable wizard key Initiates the programming operations
mode, allows programming of nine
hot keys, and returns the hot keys to
defaults
6 Nine hot keys Allows quick access to the nine most
often used devices
7 Keyboard hot key label
(user installed)
Allows the user to record
programmed hot keys
8 Number lock LED
9 Cap lock LED
10 Scroll lock LED
11 Track ball
continued

Introduction
HP 1U Integrated Keyboard Drawer User Guide 1-5
CONFIDENTIAL
Writer: John Turner - Amy Laffitte File Name: b-ch1 Introduction
Codename: Dachshund Part Number: 269450-001 Last Saved On: 7/29/02 1:20 PM
Table 1-3: Components of the keyboard continued
12 Right pick button
13 Left pick button
14 Scroll up and down button
15 Scroll left and right buttons

HP 1U Integrated Keyboard Drawer User Guide 2-1
HP CONFIDENTIAL
Writer: John Turner - Amy Laffitte File Name: c-ch2 Installing the 1U Integrated Keyboard Drawer
Codename: Dachshund Part Number: 269450-001 Last Saved On: 8/2/02 9:30 AM
2
Installing the 1U Integrated Keyboard Drawer
This chapter discusses the installation and setup procedures for installing the
1U Integrated Keyboard Drawer.
Kit Contents
Below are the items and quantities required for assembly:
• M-6 cage nuts (2)
• M-6 screws (6)
• 6-32 screws (8)
• Mounting rails with slides (2)
• Cable management arm (1)
• Cable management arm brace (1)
• 1U Integrated Keyboard Drawer (1)
• Lock plates (2)
• Clutch hole covers (2)
• Keyboard hot key labels (2)
This kit may contain extra pieces of hardware for your convenience.

Installing the 1U Integrated Keyboard Drawer
2-2 HP 1U Integrated Keyboard Drawer User Guide
HP CONFIDENTIAL
Writer: John Turner - Amy Laffitte File Name: c-ch2 Installing the 1U Integrated Keyboard Drawer
Codename: Dachshund Part Number: 269450-001 Last Saved On: 8/2/02 9:30 AM
Tools Required
You need the following:
• Phillips screwdriver
• T-15 Torx driver
Installation Instructions
To install the 1U Integrated Keyboard Drawer:
1. Determine the rack position for the 1U Integrated Keyboard Drawer, generally
20U from the bottom of the rack, or user preference.
Measuring from the top of the component, use the template on the front and rear
of the rack frame to mark the attachment points for the rail-mounting brackets
and rear cage nuts.
NOTE: When using the template for the rear of the rack, mark the rack at the top of the
template to help align the next component.
1
Figure 2-1: Measuring with the 1U template

Installing the 1U Integrated Keyboard Drawer
HP 1U Integrated Keyboard Drawer User Guide 2-3
HP CONFIDENTIAL
Writer: John Turner - Amy Laffitte File Name: c-ch2 Installing the 1U Integrated Keyboard Drawer
Codename: Dachshund Part Number: 269450-001 Last Saved On: 8/2/02 9:30 AM
2. Install the cage nuts and mounting rails to the rack.
a. Insert one cage nut into the hole you marked using the rack template on the
rear of the rack (1).
b. Hook the rail-mounting bracket tabs into the appropriate holes on the rear of
the rack, and insert one M-6 screw (2).
c. Align the front mounting rail holes to the rack, and insert two M-6
screws (3).
d. Repeat the steps above to install the other mounting rail.
2
13
Figure 2-2: Installing the cage nuts and mounting rails
to the rack

Installing the 1U Integrated Keyboard Drawer
2-4 HP 1U Integrated Keyboard Drawer User Guide
HP CONFIDENTIAL
Writer: John Turner - Amy Laffitte File Name: c-ch2 Installing the 1U Integrated Keyboard Drawer
Codename: Dachshund Part Number: 269450-001 Last Saved On: 8/2/02 9:30 AM
3. Attach the cable management arm brace to each mounting rail, making sure the
cable access hole faces the right side of the rack.
NOTE: The cable access hole must be positioned on the right side of the rack to allow
appropriate routing of the cables.
a. Flex the mounting rail out slightly to allow the cable management arm brace
to be inserted.
b. Align the screw holes on the cable management arm brace with the screw
holes on the mounting rails (1).
c. Insert one 6-32 screw on each side (2).
d. Tighten the screws (3).
1
3
2
Figure 2-3: Attaching the cable management arm brace
to the mounting rail

Installing the 1U Integrated Keyboard Drawer
HP 1U Integrated Keyboard Drawer User Guide 2-5
HP CONFIDENTIAL
Writer: John Turner - Amy Laffitte File Name: c-ch2 Installing the 1U Integrated Keyboard Drawer
Codename: Dachshund Part Number: 269450-001 Last Saved On: 8/2/02 9:30 AM
4. Install the 1U Integrated Keyboard Drawer on the mounting rails.
a. Fully extend the mounting rails until they lock into place (1).
b. Place the 1U Integrated Keyboard Drawer on the mounting rails (2).
c. Align the screw holes on the 1U Integrated Keyboard Drawer with the holes
on the mounting rails, and secure it with two 6-32 screws on each side (3).
3
3
31
1
3
2
Figure 2-4: Installing the 1U Integrated Keyboard
Drawer on the mounting rails
