HPE R1500 User manual

HPE R1500 G5 UPS
User Guide
Abstract
This document is for the person who installs, administers, and troubleshoots power products.
Hewlett Packard Enterprise assumes you are qualified in the servicing of high-voltage
equipment and trained in recognizing hazards in products with hazardous energy levels.
Part Number: 881627-002
October 2019
Edition: 3

Page 2 881627-002 Edition 3
© Copyright 2019 Hewlett Packard Enterprise Development LP
The information contained herein is subject to change without notice.The only warranties for Hewlett Packard
Enterprise products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall
not be liable for technical or editorial errors or omissions contained herein.

881627-002 Edition 3 Page 3
ENGLISH
Special symbols
The following are examples of symbols used on the UPS or accessories to alert you to important
information:
RISK OF ELECTRIC SHOCK - Observe the warning associated with the risk of electric shock symbol.
Important instructions that must always be followed.
Do not discard the UPS or the UPS batteries in the trash.
This product contains sealed lead acid batteries and must be disposed as stated in this manual.
For more information, contact your local recycling/reuse or hazardous waste center.
This symbol indicates that you should not discard waste electrical or electronic equipment (WEEE) in
the trash. For proper disposal, contact your local recycling/reuse or hazardous waste center.
Information, advice, help.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS. This manual contains important instructions that should be followed during installation
and maintenance of the UPS and batteries.
The 1U UPS models described in this manual are intended for installation in an environment
within 0°C to 40°C (32°F to 104°F), free of conductive contaminant.
Certification standards
• UPS directives: UL 1778 (UL listed).
• Performance: IEC 62040-3: 2001.
• Radiated emission: FCC CFR 47 part 15 subpart B, Class A, VCCI.
• Surges withstand ability: IEEE ANSI C62.41 Category A2 (UL Listed).
Regulatory notices
For more information, see Hewlett Packard Enterprise EG regulatory notices at:
www.hpe.com/support/Safety-Compliance-EnterpriseProducts

Page 4 881627-002 Edition 3
Personal safety
• The system has an internal battery as a backup power source. Consequently, the power outlets may be
energized even if the system is disconnected from the AC power source.
• Dangerous voltage levels are present within the system.The system should be opened exclusively by
qualiedservicepersonnel.
• The system must be properly grounded.
• There are no user serviceable parts inside the system, except for the replaceable battery.
• The battery supplied with the system contains small amounts of toxic materials.
• To avoid accidents, observe the following directives:
- BatteryhotswapserviceMUSTbeperformedbyqualiedservicepersonnelknowledgeableabout
batteries and the required precautions.
- When replacing batteries, replace with the same type and number of batteries or battery packs.
- Donotdisposeofbatteriesinare.Thebatteriesmayexplode.
- Batteries constitute a danger (electrical shock, burns).The short-circuit current may be very high.
Precautions must be taken for all handling:
• Wear rubber gloves and boots.
• Do not lay tools or metal parts on top of batteries.
• Battery removal and/or replacement, by the end user, requires powering down the load and UPS.
Consider scheduling during a maintenance window.
• Determine if the battery is inadvertently grounded. If inadvertently grounded, remove source from
ground. Contact with any part of a grounded battery can result in electrical shock.The likelihood
of such shock can be reduced if such grounds are removed during installation and maintenance
(applicable to equipment and remote battery supplies not having a grounded supply circuit).
Product safety
• The UPS should only power IT equipment.
• Do not plug laser printers into the UPS output receptacles.The instantaneous current drawn by this
type of printer can overload the UPS.
• The UPS connection instructions and operation described in this manual must be followed in order.
• A protection circuit breaker must be installed upstream and be easily accessible.The system can be
disconnected from the AC power source by opening this circuit breaker.
• Verify that the indications on the rating plate correspond to your AC powered system and to the actual
electrical consumption of all the equipment to be connected to the system.
• For pluggable equipment, the outlet shall be installed near the equipment and shall be easily
accessible.
• Never install the system near liquids or in an excessively damp environment.
• Never let a foreign body penetrate inside the system.
• Never block the ventilation grates of the system.
• Never expose the system to direct sunlight or source of heat.
• If the system must be stored prior to installation, storage must be in a dry place.
• The storage temperature range is -15°C to +50°C (5°F to 122°F).
• ThesystemisnotforuseinacomputerroomasdenedinthestandardfortheProtectionof
InformationTechnology Equipment, ANSI/NFPA 75 (US installations only).
Special precautions
• All handling operations require at least two people (unpacking, installation in rack system).
• Before and after the installation, if the UPS remains de-energized for a period of more than 6 months,
the UPS must be energized for a period of 24 hours, at least once every 6 months (for a normal
storage temperature less than 25°C/77°F).This charges the battery and avoids possible irreversible
damage.
• During the replacement of the battery module, use the same type and number of elements as the
original battery module provided with the UPS to maintain an identical level of performance and
safety. In case of doubt, contact your Hewlett Packard Enterprise representative.

881627-002 Edition 3 Page 5
ENGLISH
Contents
Table of Contents
1. Overview .......................................................................................................................6
1.1 Environmental protection................................................................................................6
1.2 Weights and dimensions .................................................................................................7
1.3 Rear panels .......................................................................................................................7
2. User Interface...............................................................................................................8
2.1 Control panel....................................................................................................................8
2.2 LCD window .....................................................................................................................9
2.3 Display functions ........................................................................................................... 10
2.4 User settings .................................................................................................................. 10
3. Installation ..................................................................................................................12
3.1Unpackingandcontentsverication............................................................................12
3.2 Battery module connection...........................................................................................12
3.3 Installing the UPS on the rails ......................................................................................13
3.4 Ground connection........................................................................................................13
3.5 Communication ports ................................................................................................... 14
4. Operation.....................................................................................................................15
4.1 Startup and normal operation ......................................................................................15
4.2 Starting the UPS on battery..........................................................................................15
4.3 UPS shutdown ...............................................................................................................15
4.4 Operation on battery power .........................................................................................15
4.5 Return of AC input power..............................................................................................16
4.6 UPS remote control functions ......................................................................................16
5. Maintenance...............................................................................................................17
5.1Troubleshooting .............................................................................................................17
5.2UpdatingtheUPSrmware..........................................................................................17
5.3 Battery module replacement ........................................................................................18
5.4 Spares............................................................................................................................. 19
6. Technical Specifications..........................................................................................20
6.1 HPE R1500 G5 NA UPS and HPE R1500 G5 JP/TWN UPS..........................................20
6.2 HPE R1500 G5 INTL UPS ...............................................................................................21
6.3 Glossary..........................................................................................................................22
7. Support.........................................................................................................................23
7.1 Accessing Hewlett Packard Enterprise Support ...........................................................23
7.2 Accessing updates..........................................................................................................23
7.3 Customer self repair.......................................................................................................23
7.4 Remote support ..............................................................................................................24
7.5 Warranty information .....................................................................................................24
7.6 Regulatory information..................................................................................................24
8. BSMI RoHS..................................................................................................................25

Page 6 881627-002 Edition 3
1. Overview
Save these instructions.This document contains important safety instructions that should be followed
during installation, operation, and maintenance of the UPS and batteries.
1.1 Environmental protection
Products are developed according to an eco-design approach.
Substances
This product does not contain CFCs, HCFCs, or asbestos.
Packing
To improve waste treatment and facilitate recycling, separate the various packing components.
• The cardboard used is comprised of over 50% of recycled cardboard.
• Sacks and bags are made of polyethylene.
• Packingmaterialsarerecyclableandbeartheappropriateidenticationsymbol 01
PET
.
Materials Abbreviations Number in the symbols
Polyethylene terephthalat PET 01
High-density polyethylene HDPE 02
Polyvinyl chloride PVC 03
Low-density polyethylene LDPE 04
Polypropylene PP 05
Polystyrene PS 06
Follow all local regulations for the disposal of packing materials.
End of life
Hewlett Packard Enterprise processes products at the end of their service lives in compliance with local
regulations. Hewlett Packard Enterprise works with companies in charge of collecting and eliminating our
products at the end of their service lives.
Product
The product is made up of recyclable materials.
Dismantling and destruction must take place in compliance with all local regulations concerning waste.
At the end of its service life, the product must be transported to a processing center for electrical and
electronic waste.
Battery
The product contains lead-acid batteries that must be processed according to applicable local regulations
concerning batteries.
The battery can be removed to comply with regulations and correct disposal.

881627-002 Edition 3 Page 7
ENGLISH
1. Overview
1.2 Weights and dimensions
Description Weights
(lb/kg)
Dimensions (in/mm)
D x W x H
HPE R1500 G5 NA 44 / 20 21.8 x 17.2 x 1.7 / 554 x 437 x 43
HPE R1500 G5 JP/TWN UPS 44 / 20 21.8 x 17.2 x 1.7 / 554 x 437 x 43
HPE R1500 G5 INTL UPS 43 / 19.5 21.8 x 17.2 x 1.7 / 554 x 437 x 43
1.3 Rear panels
HPE R1500 G5 NA UPS and HPE R1500 G5 JP/TWN UPS
2 1 48 73 9 6b5 6a
HPE R1500 G5 INTL UPS
6a
2 1 473 6b
5
8
NOTE: The HPE G5 UPSs have 3 programmable output load
segments.ThesearedenedasGroup1,Group2,andPrimary
Group.Theloadsegments/groupscanbeconguredviasoftware
and the unit’s user interface. For advice on configuration through
software, see the HPEPP software or the Hewlett Packard
Enterprise networking device documentation. To configure the
UPS through the front panel, see "2.4 User settings".
Load Groups 1 and 2 can be programmed to switch off/on
independently. The Primary Load Group controls the outlets
indicated and initiates a unit shutdown.The Primary Load Group
is intended for the most critical loads.
(1) USB communication port
(2) RS-232 communication port
(3) Slot for optional communication
card

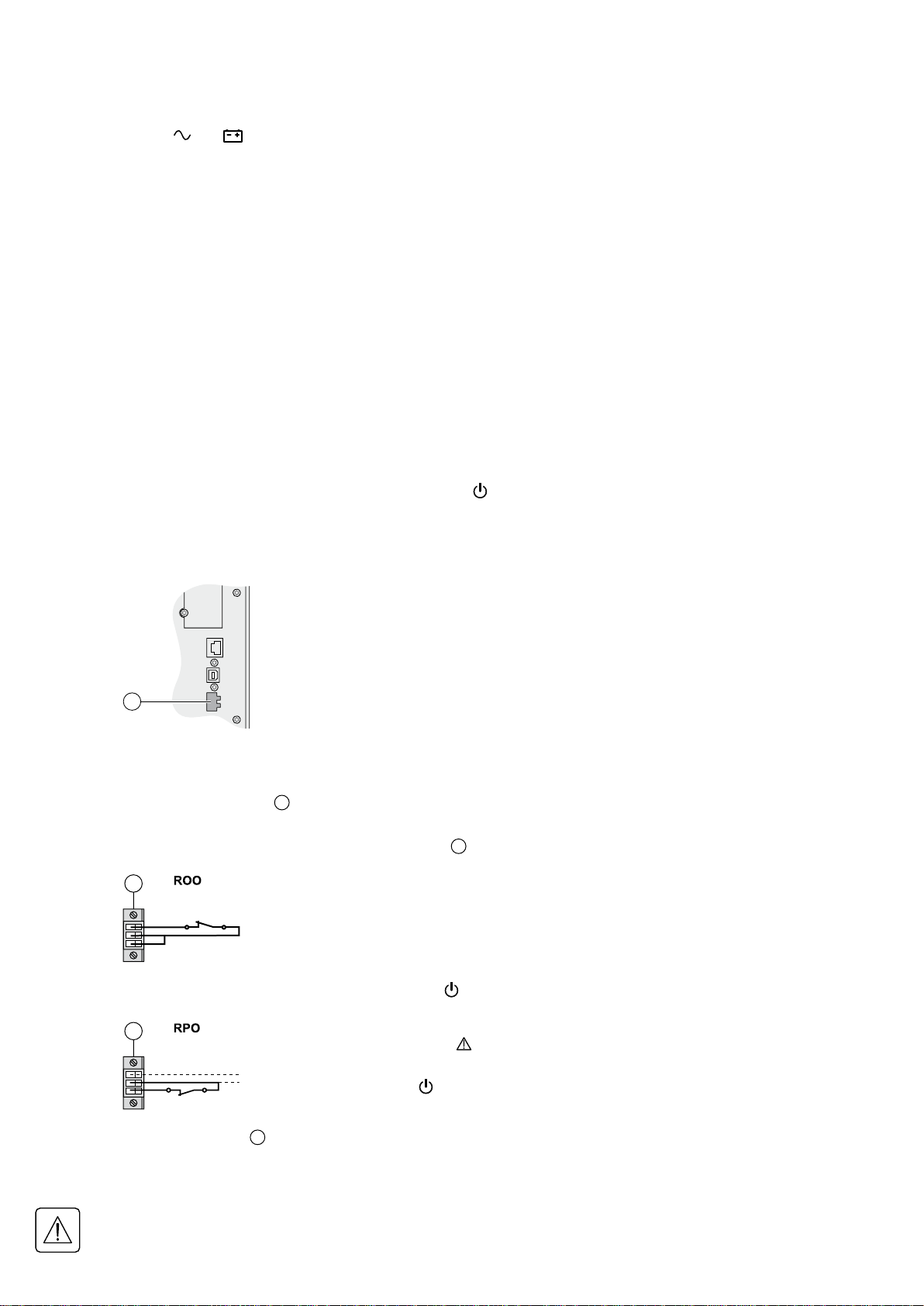

(4) Connector for ROO (remote
on/off) or RPO (remote power off)
control
(5) Outlets for connection of critical
equipment (Primary group)
(6a) Group 1: programmable outlets for
equipment connection
(6b) Group 2: programmable outlets for
equipment connection
(7) Attached 6 ft input power cord for
AC power source
(8) LED indicating site wiring fault
alarm
(9) Ground screw
(1) USB communication port
(2) RS-232 communication port
(3) Slot for optional communication
card
(4) Connector for ROO (Remote
on/off) or RPO (Remote Power off)
control
(5) Outlets for connection equipment
(Primary group)
(6a) Group 1: programmable outlets for
equipment connection
(6b) Group 2: programmable outlets for
equipment connection
(7) Socket for connection to AC power
source
(8) Ground screw

Page 8 881627-002 Edition 3
2. User Interface
Normal mode
100 %
10min
100 %
720 W
800VA
Eciency: ~ 98%
2.1 Control panel
TheUPShasave-buttongraphicalcontrolpanel.
Alarm
Indicator (red)
On battery Indicator
(yellow)
Power On
Indicator (green)
On/Off
ButtonUp
Down
Enter
Escape
The following table shows the indicator status and descriptions:
Indicator Status Description
Green On The UPS is operating normally.
Yellow On The UPS is on battery mode.
Red
On
The UPS has an active alarm or fault. For additional
information, see "5.1 Troubleshooting" for
additional information.

881627-002 Edition 3 Page 9
ENGLISH
2. User Interface

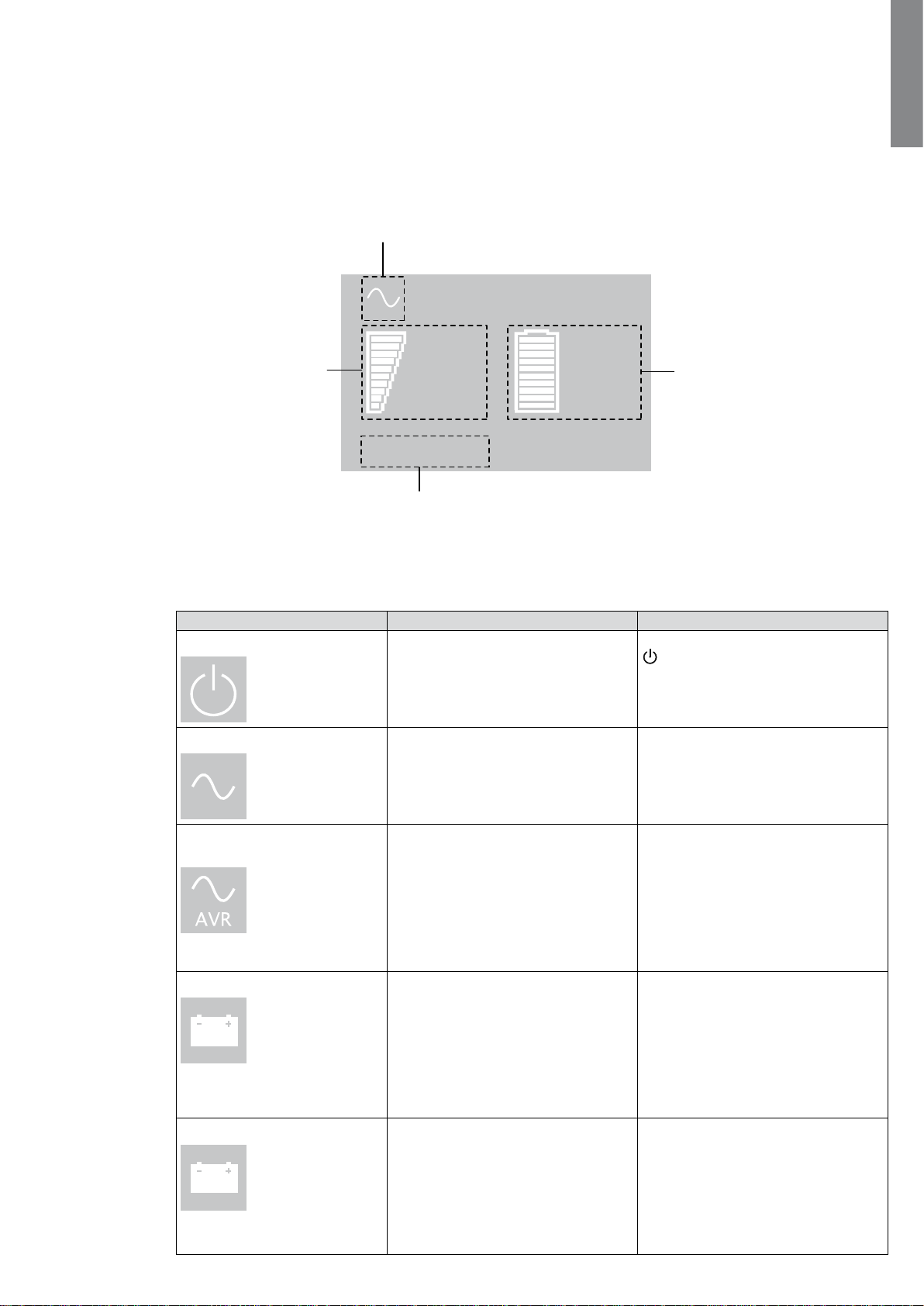

2.2 LCD window
The LCD window provides information about the UPS, load status, events, measurements, and settings. As
thedefault,orafterveminutesofinactivity,theLCDdisplaysthescreensaver.
The backlight LCD automatically dims after 10 minutes of inactivity. Press any button to restore the screen.
Operation Status
Load/equipment Status
Normal mode
100%
10min
100%
720W
800VA
Eciency: ~98%
Battery Status
Efficiency and Load Group Information
The following table illustrates the Operation Status icons that you could see and describes the condition
associated with each icon.
NOTE: If other indicators appear, see "5.1Troubleshooting" for additional information.
Operation status Possible cause Action
Standby mode The UPS is off, waiting for start-up
command from user.
Equipment is not powered until the
button is pressed.
Normal mode The UPS is operating normally. The UPS is powering and protecting
the equipment.
In Automatic Voltage
Regulation mode
Load protected LED is on.
No beep.
The UPS is operating normally but
the utility voltage is outside normal
mode thresholds.
The UPS is powering the
equipment through an AVR device.
The equipment is still protected.
On Battery
Battery LED is on.
Audio alarm beeps every 10
seconds
A utility failure has occurred and
the UPS is in Battery mode.
The UPS is powering the equipment
with the battery power.
Prepare your equipment for
shutdown.
End of backup time
Audio alarm beeps every
three seconds
The UPS is in Battery mode and
the battery is running low.
This warning is approximate and
the actual time to shutdown may
vary significantly.
Depending on the UPS Load, the
"Battery Low" warning may occur
before the battery reaches 20%
capacity.

Page 10 881627-002 Edition 3
2.3 Display functions
Press the button to activate the menu options. Use the and buttons to scroll through the menu
structure. Press the button to select an option. Press the button to cancel or return to the previous
menu.
Display Function Menu
Main menu Submenu Display information or Menu function
Measurements —Load W VA/Load A pf/Output V Hz/Input V Hz/
Battery V min/Efficiency/Power usage
Control Load Segments Group 1: ON/OFF
Group 2: ON/OFF
These commands override user settings for load segments.
Start battery test Starts a manual battery test
Reset fault state Clears active faults (UPS restart required)
Restore factory settings Returns all settings to original values
Reset power usage Clears power usage measurements
Settings Local settings Sets general parameters
Input/output settings Sets input and output parameters
ON/OFF settings Sets on and off conditions
Battery settings Sets battery configuration
Fault log —Displays event log or alarms
Identification —UPS Type/Part Number/Serial Number/Firmware release/Com card
address
2.4 User settings
The following table displays the options that can be changed by the user.
Description Available settngs Default settings
Local settings
Language [English] [French] [German] [Spanish]
[Italian] [Portuguese] [Russian]
Menus, status, notices and alarms, UPS
fault, event log data and settings are in
all supported languages.
English
User selectable when UPS is
powered the first time.
LCD settings Allows LCD screen brightness and
contrast to be adapted to room light
conditions.
—
Audible alarm Mode [Enabled] [Disabled on battery] [Always
disabled]
Allows you to enable or disable the
audio alarm if an alarm occurs.
Enabled
Level [High] [Low]
Allows you to set the audio alarm level
if an alarm occurs.
Low
In/Out settings
Output voltage* [100V] [120V] [125V]
On INTL models: [200V] [208V] [220V] [230V]
[240V]
User selectable when UPS is
powered the first time.
*IMPORTANT: The output voltage of the UPS must be set to the same nominal voltage as the facility input
voltage for optimum UPS performance.
Input thresholds [Normal mode] [Extended mode]
Extended mode reduces lower input
voltage to 70V before UPS transfers to
battery.
This can be used if the load can
withstand low voltage supply.
Normal mode
Sensitivity [High] [Low]
High: For sensitive equipment. The UPS
transfers to battery when AC utility
conditions are poor.
Low: For equipment that can withstand
poor utility conditions. The UPS does
not transfer to battery when AC utility
conditions are poor.
High
Load segments - Auto
start delay
[No Delay] [1 s] [2 s]…[65354 s]
The connected equipment is powered
after the specified delay.
Group 1: 3 s
Group 2: 6 s
2. User Interface

881627-002 Edition 3 Page 11
ENGLISH
2. User Interface
Description Available settngs Default settings
In/Out settings
Load segments - Auto
shutdown delay
[Disable] [0 s] [1 s] [2 s]…[65354 s]
During a power outage,
authorizes UPS to turn off power to
equipment connected to Group 1
and/or Group 2 outlets.
This feature sheds non-critical loads
in order to conserve battery power for
critical loads connected to the primary
group.
Group 1: Disable
Group 2: Disable
Overload prealarm [10%] [15%] [20%] ... [100%] [105%]
Sets alarm for critical percentage of
load where alarm overload occurs.
[105%]
ON/OFF settings
Cold start [Disable] [Enable]
Enables or disables the product to start
on battery.
The first cold start is always disabled.
Enable
Forced reboot [Disable] [Enable]
If power returns during a shutdown
sequence:
If enabled, the shutdown sequence will
complete and there is a 10 second delay
prior to restart.
If disabled, shutdown sequence does
not complete and restart occurs
immediately.
Enable
Auto restart [Disable] [Enable]
Enables or disables the UPS to restart
automatically when power returns after
a complete battery discharge.
Enable
Energy saving [Disable] [Enable]
If enabled, the UPS will shutdown after
five minutes if no load is detected on
the output.
Disable
Sleep mode [Disable] [Enable]
If enabled, LCD and communication
stays on 1h and 30 min after UPS turns
off.
If disabled, LCD and communication
will turn off immediately after the UPS
turns off.
Disable
Remote command [Disable] [Enable]
If enabled, shutdown or restart
commands from software are
allowed.
If disabled, shutdown or restart
commands from software are not
allowed.
Enable
RPO delay [0 s] [1 s ] [2 s]...[180 s]
Delays RPO command for the specified
number of seconds.
[0 s]
Battery settings
Automatic battery test [No test] [Every day] [Every week]
[Every month]
Available only if Battery Charge mode
is set to constant charge.
Every week
(in constant charge)
otherwise following EBM
Low battery
warning
[1%] [2%] ... [100%]
The alarm occurs when the value set
for the low battery capacity warning is
reached.
20%
Restart battery level [1%] [2%] ... [100%]
If set, automatic restart occurs only
when the percentage of battery charge
you specify is reached.
0%
Battery charge mode [EBM cycling] [Constant charge] EBM cycling
Deep discharge
protection
[Yes] [No]
If set to Yes, the UPS automatically
prevents the battery from deep
discharge by adapting the end of the
back-up time
voltage threshold.
Yes

Page 12 881627-002 Edition 3
3. Installation
3.1 Unpacking and contents verification
(1) HPE 1U UPS
(2) Documentation
(3) RS-232 communication cable
(4) USB communication cable
(5) 1U Rack kit
(6) Bezel parts
(7) Two connection cables for the protected equipment (for International models only)
(8) Cable locking system
Packing materials must be disposed of in compliance with all local regulations concerning waste.
Recycling symbols are printed on the packing materials to facilitate sorting.
2
6
1
3
4
5
7
8
3.2 Battery module connection
CAUTION: This operation must be performed when the UPS is switched off and unplugged from the AC
source.
Do not disconnect the connector while the unit is operating from the AC source or in reserve mode.
NOTE: Before starting the UPS, you must connect the internal battery. A small amount of arcing may occur
when connecting the batteries. This is normal and does not damage the UPS or present any safety concern.
AConnect the battery module.
Never pull on the wires.
BSlide the left-hand side of the
bezel to the right. Ensure that the
pushbutton locks.
CAttach the center panel.

881627-002 Edition 3 Page 13
ENGLISH
3. Installation
3.3 Installing the UPS on the rails
Follow steps 1 through 4 for mounting the UPS on the rails.
3.4 Ground connection

Page 14 881627-002 Edition 3
3. Installation
3.5 Communication ports
Connecting RS-232 or USB communication port
The RS-232 and USB communication ports cannot operate simultaneously.
2
1
5
6
1. Connect the RS-232 5or USB
6communication cable to
the serial or USB port on
the computer equipment.
2. Connect the other end of
the communication cable
to the USB 1or RS-232 2
communication port on
the UPS.
The UPS can now communicate
with HPE power management
software.
Installing the communication card
The UPS does not have to be powered down before installing a communication card.
3
1. Remove the slot cover (3).
2. Insert the communication
card in the slot.
3. Secure the card cover with
the two screws you removed
in Step 1.
Characteristics of the optocoupler RS-232 communications port
• Pins 1, 3, 4, 5, 6, 10: not used
• Pin 2: common (user)
• Pin 7: low battery
• Pin 8: operation on battery
power
• Pin 9: UPS on, equipment
supplied
no: normally open contact
When a signal is activated, the contact is closed between the common (pin 2) and the pin for the
corresponding signal.
Contact characteristics (optocoupler)
• Voltage: 48 Vdc max
• Current: 25 mA max
• Power: 1.2W

881627-002 Edition 3 Page 15
ENGLISH
4. Operation
4.1 Startup and normal operation
To start the UPS:
1. Verify that the UPS power cord is plugged in.
2. Press the button on the UPS control panel for at least two seconds.
The UPS LCD window display changes status to "UPS starting...".
3. Check the UPS LCD window display for active alarms or notices.
If the indicator is on, do not proceed until all alarms are cleared.
Correct the alarms and restart if necessary.
4. Verify that the indicator illuminates, indicating that the UPS is operating normally and any loads are
powered and protected.
The UPS should be in Normal mode.
4.2 Starting the UPS on battery
Before using this feature, the UPS must have been powered by utility power with output enabled
at least once.
NOTE: Battery start can be disabled. For more information, see the "Cold start" setting in "ON/OFF settings".
To start the UPS on battery:
1. Press the button on the UPS control panel until the UPS LCD window display illuminates and shows
a status of "UPS starting...".
The UPS cycles through Standby mode to Battery mode.The indicator illuminates.
The UPS supplies power to your equipment.
2. Check the UPS LCD window display for active alarms or notices other than the Battery mode notice
and notices that indicate missing utility power. Resolve any active alarms before continuing.
For more information, see "5.1Troubleshooting".
4.3 UPS shutdown
To shut down the UPS:
1. Press the button on the UPS control panel for three seconds.
2. The audio alarm beeps and shows a status of "UPS shutting OFF...".The UPS then transfers to Standby
mode and the indicator turns off.
3. The audio alarm stops.
4.4 Operation on battery power
Transfer to battery power
• The connected devices continue to be supplied by the UPS when AC input power is no longer available.
The necessary energy is provided by the battery.
• The and indicator illuminates.
• The audio alarm beeps every 10 seconds.
The connected devices are supplied by the battery.

Page 16 881627-002 Edition 3
4. Operation
Low-battery warning
• The and indicator illuminates.
• The audio alarm beeps every three seconds.
• The remaining battery power is low. Shut down all applications on the connected equipment because
automatic UPS shutdown is imminent.
End of battery backup time
• The LCD displays "End of backup time."
• The LEDs are no longer illuminated.
• The audio alarms stops.
4.5 Return of AC input power
Following an outage, the UPS restarts automatically when AC input power returns (unless the restart
function is disabled) and the load is supplied again.
4.6 UPS remote control functions
The UPS offers a choice between two remote control functions.
• ROO: Remote ON/OFF allows remote action of the button to shut down the UPS.
• RPO: Remote Power OFF allows a remote contact to be used to disconnect all the equipment connected
to the UPS. Restarting the UPS requires manual intervention.
These functions are obtained by opening a contact connected between the appropriate connector pins (4) on
therearpaneloftheUPS(seethefollowinggure).
4
Remote control connection and test
1. Verify that the UPS is off and disconnected from the AC input source.
2. Remove connector 4.
3. Connect a normally closed volt-free contact (60 Vdc/30 Vac max., 20 mA max., 0.75 mm2[18 AWG] cable
cross-section) between the two connector pins 4.
4
Contact open: UPS shutdown.
Contact closed: UPS start up (UPS connected to AC power and AC power is available).
NOTE: The local on/off control using the button overrides the remote-control function.
4
Contact open: UPS shutdown, LED illuminates.
To return to normal operation, deactivate the remote external contact and restart
the UPS by pressing the button.
4. Plug connector 4into the back of the UPS.
5. Connect and restart the UPS following the previously described procedures.
6. Activate the external remote shutdown contact to test the function.
WARNING! This connector must only be connected to SELV (Safety Extra-Low Voltage) circuits.

881627-002 Edition 3 Page 17
ENGLISH
5. Maintenance
5.1 Troubleshooting
Operation status Possible cause Action
Batteries disconnected The UPS does not recognize
the internal batteries.
If the condition persists, contact
your service representative.
The batteries are disconnected. Verify that all batteries are properly
connected. If the condition persists,
contact your service representative.
Overload Power requirements exceed the
UPS capacity (greater than 105%
of nominal).
Remove some of the equipment
from the UPS. The UPS continues
to operate, but may shut down
if the load increases. The alarm
resets when the condition becomes
inactive.
End of battery life The end of the battery life is
reached.
Contact your service representative
for battery replacement.
Event A UPS event occurs
Example:
Remote Power OFF, the RPO
contact is activated
to shutdown the UPS and
prevent restart.
Set the contact back to its normal
position and press the button
to restart.
UPS fault The UPS has an internal fault. The UPS does not protect
the equipment anymore.
NOTE: Record the alarm message
and the UPS Serial Number, then
contact your service representative.
.
5.2 Updating the UPS firmware
ToupdatetheUPSrmware,seetheHewlettPackardEnterprisewebsite
(www.hpe.com/info/rackandpower).

Page 18 881627-002 Edition 3
5. Maintenance
5.3 Battery module replacement
DO NOT DISCONNECT the batteries while the UPS is in Battery mode.
Batteriescanbereplacedbyqualiedservicepersonnelknowledgeableofbatteriesandtherequired
precautions without turning off the UPS or disconnecting the load.
If you prefer to remove input power to change the batteries, see "4.3 UPS shutdown", page 15.
Consider all warnings, cautions, and notes before replacing batteries.
• ServicingMUSTbeperformedbyqualiedservicepersonnelknowledgeableofbatteriesandrequired
precautions. Keep unauthorized personnel away from batteries.
• Batteries can present a risk of electrical shock or burn from high short circuit current. Observe the following
precautions:
* Remove watches, rings, or other metal objects.
* Use tools with insulated handles.
* Do not lay tools or metal parts on top of batteries.
* Wear rubber gloves and boots.
• When replacing batteries, replace with the same type and number of batteries or battery packs. Contact
your service representative to order new batteries.
• Proper disposal of batteries is required. Refer to your local codes for disposal requirements.
• Neverdisposeofbatteriesinare.Batteriesmayexplodewhenexposedtoame.
• Do not open or mutilate the battery or batteries. Released electrolyte is harmful to the skin and eyes and
may be extremely toxic.
• Determine if the battery is inadvertently grounded. If inadvertently grounded, remove source from ground.
Contact with any part of a grounded battery can result in electrical shock.The likelihood of such shock can
be reduced if such grounds are removed during installation and maintenance (applicable to equipment and
remote battery supplies not having a grounded supply circuit).
• ELECTRIC ENERGY HAZARD. Do not attempt to alter any battery wiring or connectors. Attempting to alter
wiring can cause injury.
• Battery removal and/or replacement, by the end user, requires powering down the load and UPS. Consider
scheduling during a maintenance window.
Safety recommendations
WARNING! To prevent personal injury from hazardous energy:
• The battery connection must not be disconnected while running in reserve mode.
Replacing the batteries
• Read and observe the requirements in "Important battery safety information" and "Battery care and
storage guidelines" in this section before replacing the battery module.
• Follow the instructions in this section to replace the battery module.
NOTE: Replace all battery modules at the same time.
Important battery safety information
WARNING: Theunitcontainssealedlead-acidbatterymodules.Topreventreorchemicalburns:
• Do not attempt to recharge batteries after removal from the unit.
• Do not disassemble, crush, or puncture the batteries.
• Do not short the external contacts of the batteries.
• Do not immerse the batteries in water.
• Do not expose to temperatures higher than 60°C (140°F).
Battery care and storage guidelines
CAUTION: Because of the short shelf life of the batteries, avoid storing a battery spare as a backup. Do not
maintain an inventory of spare batteries on site unless a procedure to keep these batteries charged while in
storage is implemented.
To maintain the batteries:
• MinimizetheamountoftimetheUPSusesbatterypowerbymatchingtheUPScongurationwiththeutility
voltage (see "6.1 HPE R1500 G5 NA UPS and HPE R1500 G5 JP/TWN UPS" and "6.2 HPE R1500 G5 INTL
UPS").
• Keep the area around the UPS clean and dust-free. If the environment is very dusty, clean the outside of the
UPS regularly with a vacuum cleaner.

881627-002 Edition 3 Page 19
ENGLISH
Battery tray removal
5. Maintenance
C
D
E
• To ensure safety and high performance, only use batteries supplied by Hewlett Packard Enterprise.
• Firmly press together the two parts of the connector during remounting.
Installing the new battery module
Perform the removal instructions in reverse order.
Ordering Spares
To order a spare, visit the Hewlett Packard Enterprise website (http://parts.hpe.com).
To replace parts under warranty, contact an Hewlett Packard Enterprise authorized service representative.
UPS spare parts list
Item Spare Part Number
SPS-UPS R1500 G5 NA (w/o battery) 881404-001
SPS-UPS R1500 G5 JP/TWN (w/o battery) 881405-001
SPS-UPS R1500 G5 INTL (w/o battery) 881406-001
SPS-BATTERY KIT UPS R1500 796776-001
SPS- ACCESSORIES R1500 G5 UPS P02752-001
5.4 Spares
Disconnect the battery-
module by separating the
connectors. Never pull on the
wires.
Remove the metal
protection cover in front of
the battery (two screws).
Remove the middle panel.
Unlock the pushbutton.
Slide the left-hand side of the
bezel to the left.
Pull the plastic tab to remove
the battery block and replace the
block.
A
B
C
D
E

Page 20 881627-002 Edition 3
6. Technical Specifications
6.1 HPE R1500 G5 NA UPS and HPE R1500 G5 JP/TWN UPS
Rack HPE R1500 G5 NA UPS HPE R1500 G5 JP/TWN UPS
Output Power @ 120V 1440 VA
1100 W —
Output Power @ 100V —1200 VA
900 W
AC Input power
•Rated input voltage Single phase 100-125 V
•Input voltage range 80 to 162 V (-10 % to +5 %) (1)
•Input frequency range 47 to 70 Hz (50 Hz system), 56.5 to 70 Hz (60 Hz system) (2)
Output on battery power
•Voltage 100/120 V (-10 % to +5 %) (3)
•Frequency 50/60 Hz ±0.1 Hz
Battery (sealed lead acid, maintenance free)
•Standard 6 x 6 V
9 Ah
Environment
•Operating
temperature range
0°C to 40°C (32°F to 104°F)
•Storage
temperature range
-15°C to +50°C (5°F to 122°F)
•Relative humidity 0 to 90% (without condensation)
•Noise level < 40 dBA
(1)The high and low thresholds can be adjusted using UPS settings.
(2) Up to 40 Hz in low-sensitivity mode (programmable using UPS settings).
(3) Adjustable to 100/120/125 V, but must be set to the identical AC power source value.
CAUTION: Toreducetheriskofre,connectonlytoacircuitprovidedwith20Amaximumbranchcircuit
overcurrent protection in accordance with the National Electric Code, ANSI/NFPA 70.

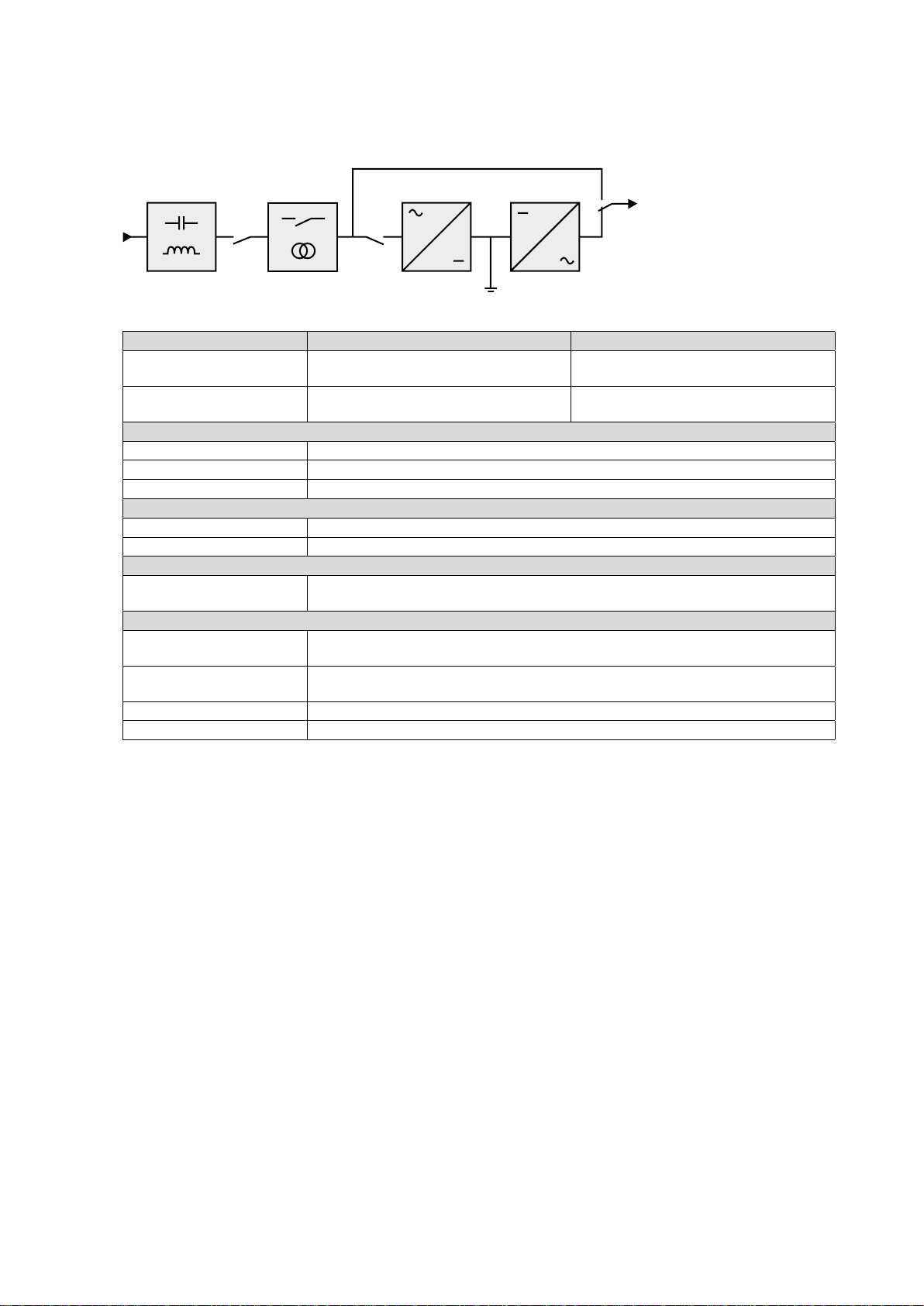

Filter
Transformer
AVR Charger Inverter
Battery
