Huawei C SNAP User manual

YOUR
CELL C SNAP
USER GUIDE
C02-34392 G3512 User Guide.indd 1 2011/12/12 5:16 PM

Copyright © Huawei Technologies Co., Ltd.
2011. All rights reserved.
Trademarks and Permissions
, , and are
trademarks or registered trademarks of
Huawei Technologies Co., Ltd.
Other trademarks, product, service and
company names mentioned are the property
of their respective owners.
NO WARRANTY
THE CONTENTS OF THIS MANUAL ARE
PROVIDED “AS IS”. EXCEPT AS REQUIRED
BY APPLICABLE LAWS, NO WARRANTIES
OF ANY KIND, EITHER EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE, ARE MADE
IN RELATION TO THE ACCURACY,
RELIABILITY OR CONTENTS OF
THIS MANUAL.
2
C02-34392 G3512 User Guide.indd 2 2011/12/12 5:16 PM

TO THE MAXIMUM EXTENT PERMITTED
BY APPLICABLE LAW, IN NO CASE SHALL
HUAWEI TECHNOLOGIES CO., LTD BE
LIABLE FOR ANY SPECIAL, INCIDENTAL,
INDIRECT, OR CONSEQUENTIAL
DAMAGES, OR LOST PROFITS, BUSINESS,
REVENUE, DATA, GOODWILL OR
ANTICIPATED SAVINGS.
3
C02-34392 G3512 User Guide.indd 3 2011/12/12 5:16 PM

GETTING TO KNOW YOUR PHONE

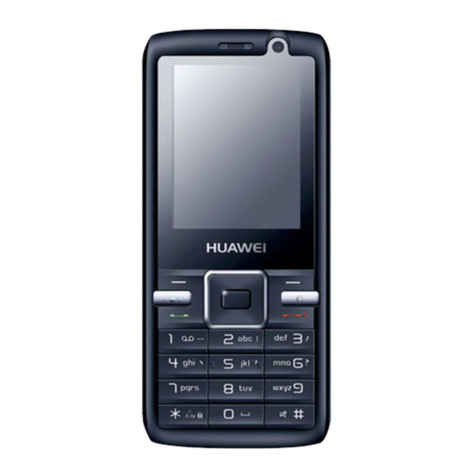

Your Phone
The following figure shows the appearance of
your phone.
1 Torch 7 Microphone
2 Earpiece 8 Number keys
3 Screen 9 End/Power key
4 Navigation keys 10 Right soft key
5 Left soft key 11 Confirm key
6 Call/Answer key 12 Charger jack /
Headset jack

4
C02-34392 G3512 User Guide.indd 4 2011/12/12 5:16 PM

Features marked with “optional” are optional.
These features may vary according to service
providers. For details, contact your service
provider.
KEYS AND FUNCTIONS
PRESS TO...
•Makeacall.
•Answeracall.
•Viewcalllogsforsubscriber
identity module (SIM) card in
standby mode.
•Switchthephoneonoroff
(press and hold the key for
about 3 seconds).
•Endorrejectacall.
•Returntostandbymode.
•Accessthemainmenuin
standby mode.
•Select the option displayed
in the lower left corner of
the screen.



5
C02-34392 G3512 User Guide.indd 5 2011/12/12 5:16 PM

PRESS TO...
•Access Contact list in
standby mode.
•Select the option displayed
in the lower right corner of
the screen.
•Access the main menu in
standby mode.
•Confirm a selection.
•Access Calendar (press )
in standby mode.
•Access Alarm (press ) in
standby mode.
•Access User profiles (press )
in standby mode.
•Access Write message (press
) in standby mode.
•Increase the volume (press
) during a call.



6
C02-34392 G3512 User Guide.indd 6 2011/12/12 5:16 PM

PRESS TO...
•Decrease the volume (press
)during a call.
through
•Enter numbers, letters, and
symbols.
•Call voicemail in standby
mode (press and hold the 1
key for about 3 seconds).
•Speed-dial phone numbers
in standby mode (press and
hold the 2–9 keys for about
3 seconds).
•Select an option labelled with
the corresponding number.
•Enter * (press the key once), +
(press the key twice), P(press
the key three times), and W
(press the key four times) in
standby mode.
•Display the symbol list in
editing mode.

7
C02-34392 G3512 User Guide.indd 7 2011/12/12 5:16 PM

PRESS TO...
•Turn the torch on or off in
standby mode (press and
hold the key for about
3 seconds).
•Enter #.
•Switch between text input
methods in editing mode.
•Lock the keypad in standby
mode (press and hold the key
for about 3 seconds).


8
C02-34392 G3512 User Guide.indd 8 2011/12/12 5:16 PM

SCREEN ICONS
ICON INDICATES...
Signal strength.
General Packet Radio
Service (GPRS) signal.
Ring only enabled.
(optional)
Vibrate only enabled.
(optional)
Vibrate and ring enabled.
(optional)
Vibrate then ring enabled.
Silence profile activated.
(optional)
Headset profile activated.
Missed calls.
Call forwarding enabled.
New text messages.











9
C02-34392 G3512 User Guide.indd 9 2011/12/12 5:16 PM

ICON INDICATES...
New multimedia messages.
New push messages.
Alarms enabled.
Keypad locked.
Battery level.
Bluetooth activated.






10
C02-34392 G3512 User Guide.indd 10 2011/12/12 5:16 PM

GETTING STARTED
INSTALLING THE SIM CARD AND
THE BATTERY
When installing a SIM card, ensure that the
gold contact area faces down, and that the
bevelled edge of the SIM card aligns with
that of the SIM card slot.
REMOVING THE BATTERY AND THE
SIM CARD
Before removing the battery and the SIM
card, ensure that your phone is switched off.


11
C02-34392 G3512 User Guide.indd 11 2011/12/12 5:16 PM

INSTALLING THE MICROSD CARD
NOTE: Before installing or removing a
microSD card, switch the phone off. When
the phone is switched back on, it indicates
whether the microSD card has been installed
correctly.
You can expand your phone’s memory
capacity by installing a microSD card. When
installing a microSD card, ensure that the
gold contact area faces down.
CHARGING THE BATTERY
1. Connect the charger to an AC power
socket.
2.Connect the charger to the charger jack
on the phone.
3. Wait until the battery is completely
charged. During the charging process,

12
C02-34392 G3512 User Guide.indd 12 2011/12/12 5:16 PM

the charging icon is displayed in animation.
When the charging icon becomes static,
the battery is fully charged.
4. Disconnect the charger from the phone.
5.Disconnect the charger from the AC
power socket.
NAVIGATING THE MAIN MENU
1. In standby mode, press (Menu) or .
2. Press to scroll to the desired
application and press (OK) or to
access the application.
3. Press or to scroll to the desired
option, and press (OK) or to access
the option.
4. Press (Back) to return to the
previous menu.
To return to standby mode, press .
13
C02-34392 G3512 User Guide.indd 13 2011/12/12 5:16 PM

PHONE LOCK
The phone lock protects your phone from
unauthorised use. By default, the phone lock
is disabled. Once the phone lock is enabled,
you must enter the phone unlock code each
time you switch on the phone. The preset
phone unlock code is 1234. You can change
this code into any numeric string between
four and eight digits.
If you forget the phone unlock code, contact
your service provider.
PIN AND PUK
The personal identification number (PIN)
protects your SIM card from unauthorised
use. The PIN unblocking key (PUK) unlocks
a blocked PIN. Both the PIN and the PUK
are provided with the SIM card. For details,
contact your service provider.
To enable the PIN lock:
1. Select Menu > Settings > Security
settings > SIM security > PIN lock.
2.Enter the PIN and press (OK).
If you enter the incorrect PIN a specified
14
C02-34392 G3512 User Guide.indd 14 2011/12/12 5:16 PM

number of times, the phone prompts you to
enter the PUK.
If you enter the incorrect PUK a specified
number of times, the SIM card will become
permanently invalid. If this occurs, contact
your service provider for a new SIM card.
LOCKING AND UNLOCKING THE KEYPAD
To lock the keypad, press and hold in
standby mode. To unlock the keypad, press
(Unlock) and .
If the Auto keypad lock function is enabled
and the phone is in standby mode for a
preset period, the phone automatically locks
the keypad.
NOTE: When the keypad is locked, you can
press to answer a call or make an
emergency call.
MY FILES
The My Files manages multimedia files
stored on the phone and its microSD card.
Using My Files, you can view the size and
15
C02-34392 G3512 User Guide.indd 15 2011/12/12 5:16 PM

creation date of an ebook, image, or audio
clip and open a multimedia file.
VOICE SERVICES
MAKING A CALL
1. In standby mode, enter the phone number.
 •Tomakeaninternationalcall,press
twice to enter the plus sign (+). Then
enter the country or region code, area
code, and phone number.
 •Tocallanextensionnumber,enterthe
phone number, press three times to
enter P, and enter the extension number.
2. Press to dial the number.
3. Press to end the call.
NOTE:
 •Youcanalsomakeacallfromthecalllog,
contacts, or messaging screen.
 •Duringacall,youcanpress or
to adjust the volume.
16
C02-34392 G3512 User Guide.indd 16 2011/12/12 5:16 PM

ANSWERING A CALL
When there is an incoming call, you can:
 •Press to answer the call.
 •Press to reject the call.
 •Press (Options) and select Answer
to answer the call.
 •Press (Mute) to mute the speaker,
and then press (Reject) again to
reject it.
If the Any Key answer function is enabled,
you can press any key except and
to answer a call.
TEXT INPUT
CHANGING THE TEXT INPUT MODE
The current text input mode indicator
is displayed in the upper left corner of
the screen. You can press to switch
between text input modes.
17
C02-34392 G3512 User Guide.indd 17 2011/12/12 5:16 PM

INDICATOR TEXT INPUT MODE
ABC, Abc
and abc
Multi-tap input modes
s ABC, s Abc
and s abc
Predictive input modes
123 Number input mode
NOTE:
•Press (Clear) once to delete the
last character entered or press and hold
(Clear) for about 3 seconds to
delete all the characters.
 •Inanyinputmodeexceptthenumber
input mode and the predictive input
mode, press once to enter a space
and twice to enter 0.
ENTERING A WORD
• Toenterawordinmulti-tapinputmode,
repeatedly press the keys labelled with the
letters that spell the word until the desired
letters are entered.
18
C02-34392 G3512 User Guide.indd 18 2011/12/12 5:16 PM

• Toenterawordinpredictiveinputmode:
1. Press each key once according to the
spelling sequence of the desired word.
The phone displays words associated with
the sequence entered.
2.Press the navigation keys to scroll to the
desired word.
3. Press to enter the word.
ENTERING A DIGIT
In number input mode, press the number
key labelled with the desired digit.
ENTERING A SYMBOL
1. Press to display the symbol list.
2. Press to scroll to the desired symbol.
3. Press to enter the symbol.
19
C02-34392 G3512 User Guide.indd 19 2011/12/12 5:16 PM

MESSAGES
WRITING AND SENDING A TEXT MESSAGE
1. Press (Menu) and select Messages >
Write message > SMS.
2.Write the message.
3. Press (Options), select Send to, and
enter the recipient’s phone number or add
a recipient from Contacts.
To add multiple recipients, repeat this step.
4. Scroll to the desired recipient and press
(Options) for the following options:
• Send: sends the message to the recipient.
• Edit recipient: allows you to change the
recipient.
• Remove recipient: removes the recipient
from receiving the message.
• Remove all recipients: removes all
recipients from receiving the message.
• Save to Drafts: saves the message
to Drafts.
20
C02-34392 G3512 User Guide.indd 20 2011/12/12 5:16 PM
