Huawei SUN2000L3KTL User manual

HUAWEI TECHNOLOGIES CO., LTD.
SUN2000L-(2KTL-5KTL)
Quick Guide
Issue: 05
Part Number: 31508725
Date: 2020-03-19

1
1Packing List
Copyright © Huawei Technologies Co., Ltd. 2020.
All rights reserved.
1. The information in this document is subject to change without notice. Every effort has been
made in the preparation of this document to ensure accuracy of the contents, but all statements,
information, and recommendations in this document do not constitute a warranty of any kind,
express or implied.
2. Before installing the device, closely read the user manual to get familiar with product information
and safety precautions.
3. Only certified electricians are allowed to operate the device. Operation personnel must wear
proper personal protective equipment (PPE) all the time.
4. Before installing the device, check that the package contents are intact and complete against
the packing list. If any damage is found or any component is missing, contact your dealer.
5. Huawei shall not be liable for any device damage caused by the violation of instructions in this
document.
6. The cable colors involved in this document are for reference only. Select cables in accordance
with local cable specifications.
Solar inverter
(1 PCS) PV negative connector
(black, 2 set)
PV positive
connector
(black, 2 set)
Battery
negative
connector
(blue, 1 set)
Battery
positive
connector
(blue, 1 set)
AC connector
(1 set) Signal cable connector
(2 set)
Antenna
(1 set) Screw (3 set) Expansion bolt
(3 PCS)
Mounting
bracket
(1 PCS)
Screwdriver
(1 PCS) Quick Guide (1 PCS) Solar Inverter Delivery
Inspection Report
& Packing List
(1 PCS)
Certificate
(1 PCS)

(1) Front panel
(2) LED
(3) Mounting bracket
(4) Mounting plate
(5)
Heat sink
(6) Ventilation valve
(7)
DC switch (DC SWITCH)
(8)
DC input terminals
(PV1+/PV1–)
(9)
DC input terminals
(PV2+/PV2–)
(10) Battery terminals (BAT+/BAT
–)
(11) COM port (COM)
(12) AC output port (AC)
(13) Antenna port (ANT)
(14)
Alarm port (ALARM)
(15) Ground point
Installation Requirements
3.1
2Overview
3Installing the Device
Tilt and Space
2

3
Dimensions
If multiple inverters need to be installed, see SUN2000L-(2KTL-5KTL) User Manual for the
installation dimensions.
Installing the Mounting Bracket
3.2
Avoid drilling holes in the utility pipes and/or cables attached to the back of the wall.
Wall-mounted Installation

4
Installing the SUN2000L
3.3
Prepare M8 stainless bolt assemblies (including flat washers, spring washers, and M8 bolts) with
appropriate lengths as well as matched flat washers and nuts based on the support specifications.
You are advised to apply anti-rust paint
on the hole positions for protection.
•If the bottom of the mounting plate does not snap into place, push the SUN2000L from the front
until the bottom of the mounting plate snaps into the mounting bracket.
•The anti-theft lock needs to be prepared by the customer.
1. Install the SUN2000L on
the mounting bracket. 2. Tighten screw assemblies. 3. (Optional) Install an anti-theft lock.
Support-mounted Installation

5
Prepare cables based on site requirements.
No.
Cable
Type
Conductor Cross
-
sectional Area
Range
Outer
Diameter
1
PE cable
Single
-core outdoor copper cable
4
–10 mm2
N/A
2
AC output power
cable
Two
-core (L and N) outdoor copper
cable or three
-core (L, N, and PE)
outdoor copper cable
4
–6 mm2
10
–21 mm
3
DC input power cable
or battery cable
(optional)
Standard outdoor PV cable in the
industry (recommended model: PV1-
F)
4
–6 mm2
4.5
–7.8 mm
4
Signal
cable
(optional)
Four
-core outdoor shielded twisted
pair
0.25
–1 mm2
4
–11 mm
•Connect cables in accordance with the installation laws and regulations of the country or region
where the SUN2000L is located.
•Before connecting cables, ensure that the DC switch on the SUN2000L and all the switches
connecting to the SUN2000L are OFF. Otherwise, the voltage of the SUN2000L may result in
electric shocks.
Installing the WLAN Antenna
3.4
Ensure that the WLAN antenna is installed
securely.
Preparing Cables
4.1
Antenna port (ANT)
4Connecting Cables
If the antenna washer is not installed, the antenna will lose the waterproof function.

6
Installing the PE Cable
4.2
Do not connect the neutral wire to the enclosure as a PE cable. Otherwise, electric shocks will be
caused.
•The PE point at the AC output port is used only as a PE equipotential point, and cannot
substitute for the PE point on the enclosure.
•Recommended: Apply silica gel or paint around a ground terminal after connecting the ground
cable.
1. Connect the AC output power cable to the AC connector.
Installing the AC Output Power Cable
4.3
Ensure that the protection layer of the AC output power cable is in the connector, and that the
exposed core wire is totally inserted into the cable hole and connected securely. Failing to do so
may cause SUN2000L malfunction or damage.
Click
Ground
point
Three-Core Cable (L, N, and PE)

7
Click
2. Connect the AC connector to the AC output port, and then Check the route of the AC output
power cable.
AC output port (AC)
Two-Core Cable (L and N)

8
To remove the AC connector, follow the
steps of its installation in reverse order.
Then remove the plug insert as shown
in the right figure.
Plug insert
Installing the DC Input Power Cable
4.4
1. Ensure that the PV string is well insulated to ground.
2. The metal contacts supplied with the DC connectors are either cold forming contacts or stamping
forming contacts. Crimp the metal cold forming contacts using crimping tool UTXTC0005 (Amphenol)
or H4TC0001 (Amphenol). Crimp the metal stamping forming contacts using crimping tool
H4TC0003 (Amphenol, recommended) or H4TC0002 (Amphenol).
3. DC terminal model (cold forming metal terminal): straight male HH4CMD5TM and straight female
HH4CFC5DM; DC terminal model (stamping forming metal terminal): straight male HH4CMD4TMS
and straight female HH4CFD4TMS.
4. TheSUN2000Lopencircuitvoltagemustalwaysbelowerthanorequalto600VDC.
5. Before installing the DC input power cable, label the cable polarities correctly to ensure correct cable
connections.
6. Use the positive and negative metal terminals and black DC connectors supplied with the inverter.
Using incompatible positive and negative metal terminals and DC connectors may result in serious
consequences. The caused device damage is not covered under any warranty.
7. If polarity of the DC input power cable is reversed and the DC switch is ON, do not turn off the DC
switch immediately or unplug positive and negative connectors. The device may be damaged if you
do not follow the instruction. This damage is not covered under any warranty or service agreement.
Wait until the solar irradiance declines at night and the PV string current reduces to below 0.5 A, and
then turn off the DC switch and remove the positive and negative connectors. Correct the string
polarity before reconnecting the string to the SUN2000L.

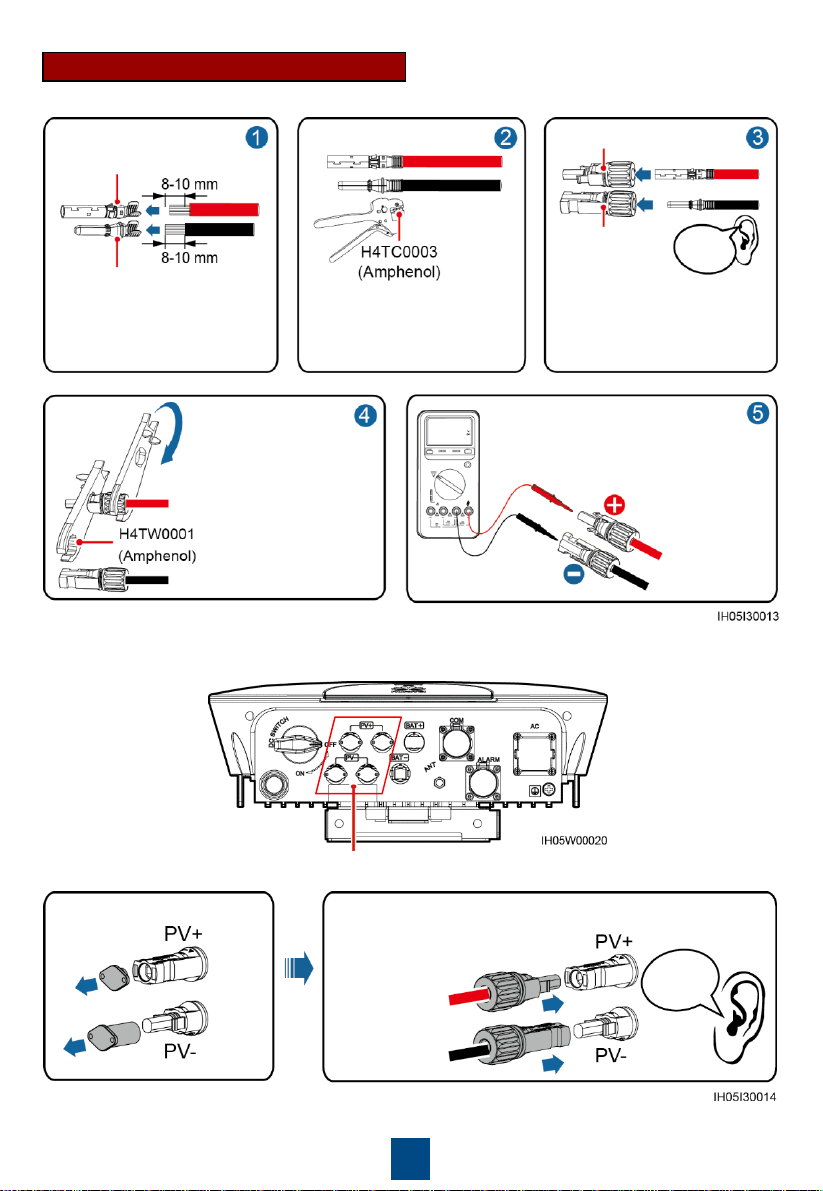

1. Assembling the DC Connector
using metal cold forming contacts
Ensure that the cable will
not be extracted after
crimped.
Positive metal terminal
Negative metal terminal
Positive connector
Negative
connector
Ensure that the locking
nut is secured.
Ensure that the cables are
correctly connected.
Pull the DC input power
cable back to ensure that
it is connected securely.
Click

9
2. Connecting the DC Input Power Cable
DC input terminals
Click
Pull the DC input power cable back to ensure that it is
connected securely.
using metal stamping forming contacts
Ensure that the cable will
not be extracted after
crimped.
Positive metal terminal
Negative metal terminal
Positive connector
Negative
connector
Ensure that the locking
nut is secured.
Ensure that the cables are
correctly connected.
Pull the DC input power
cable back to ensure that
it is connected securely.
Click

10
(Optional) Installing the Battery Cable
4.5
Click
Assemble the blue positive and negative connectors by following the instructions in section 4.4
"Installing the DC Input Power Cable."
Save the
watertight caps
for later use. Pull the battery cable back to ensure that it is connected
securely.
•Use insulation tools to operate batteries.
•Ensure that the battery cable is correctly connected. Avoid reverse polarity.
•If the battery is connected with reverse polarity, the inverter may be damaged.
Battery terminals (BAT+/BAT–)

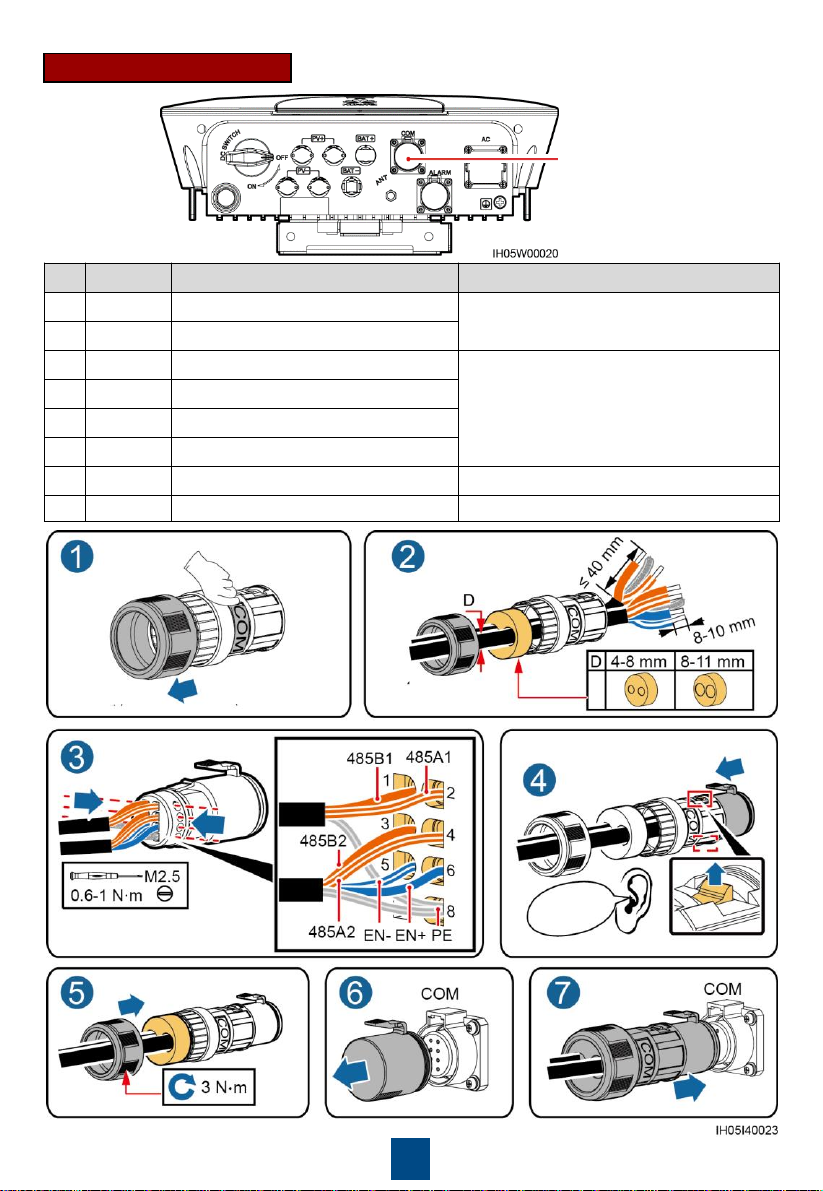

(Optional) Installing the Signal Cable
4.6
•When laying out signal cables, separate them from power cables to avoid strong signal
interference.
•The protection layer of the signal cable is in the connector. Surplus core wires are cut off from
the protection layer. The exposed core wire is totally inserted into the cable hole and connected
securely.
•Do not confuse the connectors to the COM port and ALARM port.
•If a single cable will be connected to a connector, then block the unused cable hole in the seal
using a cap and tighten the cable gland.
•If two signal cables will be connected to a connector, ensure that the cables have the same
outer diameter.

11
COM port (COM)
No.
Label
Definition
Description
1
485B1
RS485B, RS485 differential signal
–
Connect to the RS485 signal port on the
energy meter.
2
485A1
RS485A, RS485 differential signal+
3
485B2
RS485B, RS485 differential signal
–
Connect to the RS485 signal port and
enable signal port on a battery.
4
485A2
RS485A, RS485 differential signal+
5
EN
–
Enable signal
–
6
EN+
Enable signal+
7
N/A
N/A
N/A
8
PE
Grounding the shield layer
Connects to the shield layer of the cable.
Click
COM Port Pin Definitions

12
Alarm port (ALARM)
No.
Label
Definition
Description
1
ALARM
–
Alarm signal
–
Connect to the power port on an alarm
beacon
2
ALARM+
Alarm signal+
3
485B3
RS485B, RS485 differential signal
–
Connect to the RS485 signal port on
SmartPSB2000L smart PV safety box.
Connect to the power port on
SmartPSB2000L smart PV safety box.
4
485A3
RS485B, RS485 differential signal
–
5
12
V–
Negative of the 12 V power supply
6
12V+
Positive of the 12 V power supply
7
N/A
N/A
N/A
8
PE
Grounding the shield layer
Connects to the shield layer of the cable.
Click
ALARM Port Pin Definition

13
No.
Acceptance Criteria
1
The SUN2000L is installed
correctly and securely.
2
The
WLAN antenna is installed correctly and securely.
3
Cables are routed properly as required by the customer.
4
Cable ties are secured evenly and no burr exists.
5
The ground cable is connected
correctly and securely.
6
The DC switch and all the switches connecting to the SUN2000L are OFF.
7
The AC output power cable, DC input power cable, battery cable, and signal cable are
connected
correctly and securely.
8
Unused terminals and ports are locked by watertight caps.
9
The installation space is proper, and the installation environment is clean and
tidy.
5Verifying the Installation
6Powering On the System
•Before turning on the AC switch between the SUN2000L and the power grid,check whether the
AC voltage is within the specified range.
•If the inverters are connected to batteries, turn on the DC switch within 1 minute after turning
on the AC switch. Otherwise, the inverters, connected to the power grid, will shut down and
start again.
1. If a battery is connected, turn on the battery switch.
2. Turn on the AC switch between the SUN2000L and the power grid.
3. Turn on the DC switch between the PV string and the SUN2000L if there is any.
4. Turn on the DC switch at the bottom of the SUN2000L.
If the inverters are connected to the LG RESU7H (Type-R) or LG RESU10H (Type-R) batteries,
turn on the power switch of the batteries, and then the battery switches.

14
5. Observe the LEDs to check the SUN2000L operating status. All status labels are available on the
left side of the SUN2000L.
Type
Status (Blinking at Long Intervals: On for
1s and then Off for 1s; Blinking at Short
Intervals: On for 0.2s and then Off for 0.2s)
Meaning
Running
indication
LED1
LED2
N/A
Steady green
Steady green
The SUN2000L is
exporting
power to the power grid.
Blinking green at
long intervals
Off
The DC is on and the AC is off.
Off
Blinking green at long
intervals
The DC is off and the AC is on.
Blinking green at
long intervals
Blinking green at long
intervals
Both t
he DC and AC are on, and the
SUN2000L is not exporting power to
the power grid.
Off
Off
Both
the DC and AC are off, or the
SUN2000L is in low power
consumption mode.
Steady red
Steady red
The SUN2000L is faulty.
Communicati
on indication
LED3
N/A
Blinking green at short intervals
The SUN2000L is in communication.
Blinking green at long intervals
The SUN2000L has connected to the
mobile phone.
Off
No communication
7Commissioning
For details, please refer to the FusionSolar App Quick Guide, you can download it by scanning the
QR code below.

15
Customer Service Contact Information
Region
Country
Email
Hotline
Europe
France
eu_inverter[email protected]
0080033888888
Germany
Spain
Italy
United Kingdom
Netherlands
Others
For details, visit
solar.huawei.com.
Asia Pacific
Australia
au_inverter[email protected]
1800046639
Turkey
[e-mail]
-
Malaysia
[e-mail]
0080021686868
/1800220036
Thailand
([phone]
(Local Call)
1800290055 (Toll-free
in Thailand)
Others
[e-mail]
0060-3-21686868
Japan
Japan
[email protected]
0120258367
India
India
[e-mail]
1800 103 8009
Korea
Korea
[email protected]
-
North
America
United States
na_inverter[email protected]
1
-877-948-2934
Canada
na_inverter[email protected]
1
-855-482-9343
Latin
America
Mexico
la_inverter_[email protected]
018007703456
/0052
-442-4288288
Argentina
0
-8009993456
Brazil
0
-8005953456
Chile
800201866
(Only for
Fixed)
Others
0052
-442-4288288
The Middle
East and
Africa
Egypt
mea_inverter_suppor[email protected]
08002229000
/0020235353900
United Arab
Emirates
08002229000
South Africa
0800222900
Saudi Arabia
8001161177
Pakistan
0092512800019
Morocco
0800009900
Others
0020235353900
8Customer Service Contact Information

Huawei Technologies Co., Ltd.
Huawei Industrial Base, Bantian, Longgang,
Shenzhen 518129, People's Republic of China
solar.huawei.com
