Huawei SUN600-5KTL-L0 User manual

SUN600-(5KTL, 6KTL)-L0
User Manual
Issue 02
Date 2022-03-10
HUAWEI TECHNOLOGIES CO., LTD.

Copyright © Huawei Technologies Co., Ltd. 2022. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior
written consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective
holders.
Notice
The purchased products, services and features are stipulated by the contract made between Huawei and
the customer. All or part of the products, services and features described in this document may not be
within the purchase scope or the usage scope. Unless otherwise specied in the contract, all statements,
information, and recommendations in this document are provided "AS IS" without warranties, guarantees
or representations of any kind, either express or implied.
The information in this document is subject to change without notice. Every eort has been made in the
preparation of this document to ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute a warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website: https://e.huawei.com
Issue 02 (2022-03-10) Copyright © Huawei Technologies Co., Ltd. i

About This Document
Purpose
This document describes the Smart Solar Inverter-(2KTL-6KTL)-L0 (inverter for
short) in terms of its installation, electrical connection, commissioning,
maintenance, and troubleshooting. Before installing and operating the inverter,
ensure that you are familiar with the features, functions, and safety precautions
provided in this document.
Intended Audience
This document is applicable to:
● Installers
● Users
Symbol Conventions
The symbols that may be found in this document are dened as follows.
Symbol Description
Indicates a hazard with a high level of risk which, if not
avoided, will result in death or serious injury.
Indicates a hazard with a medium level of risk which, if
not avoided, could result in death or serious injury.
Indicates a hazard with a low level of risk which, if not
avoided, could result in minor or moderate injury.
Indicates a potentially hazardous situation which, if not
avoided, could result in equipment damage, data loss,
performance deterioration, or unanticipated results.
NOTICE is used to address practices not related to
personal injury.
SUN600-(5KTL, 6KTL)-L0
User Manual About This Document
Issue 02 (2022-03-10) Copyright © Huawei Technologies Co., Ltd. ii

Symbol Description
Supplements the important information in the main text.
NOTE is used to address information not related to
personal injury, equipment damage, and environment
deterioration.
Change History
Changes between document issues are cumulative. The latest document issue
contains all the changes made in earlier issues.
Issue 02 (2022-03-10)
● Updated 5.7 (Optional) Connecting Signal Cables.
● Updated 10.1 Inverter Technical Specications.
● Updated A Grid Code.
● Updated C Setting Power Adjustment Parameters.
Issue 01 (2021-11-01)
This issue is the rst ocial release.
SUN600-(5KTL, 6KTL)-L0
User Manual About This Document
Issue 02 (2022-03-10) Copyright © Huawei Technologies Co., Ltd. iii

Contents
About This Document................................................................................................................ ii
1 Safety Information.................................................................................................................. 1
1.1 General Safety.......................................................................................................................................................................... 1
1.2 Personnel Requirements....................................................................................................................................................... 2
1.3 Electrical Safety........................................................................................................................................................................3
1.4 Installation Environment Requirements.......................................................................................................................... 4
1.5 Mechanical Safety................................................................................................................................................................... 4
1.6 Commissioning......................................................................................................................................................................... 5
1.7 Maintenance and Replacement..........................................................................................................................................6
2 Product Introduction...............................................................................................................7
2.1 Overview.................................................................................................................................................................................... 7
2.2 Component Description...................................................................................................................................................... 10
2.3 Label Description.................................................................................................................................................................. 11
2.3.1 Enclosure Labels.................................................................................................................................................................11
2.3.2 Product Nameplate...........................................................................................................................................................13
2.4 Working Principles................................................................................................................................................................ 13
3 Inverter Storage..................................................................................................................... 16
4 System Installation............................................................................................................... 17
4.1 Checking Before the Installation..................................................................................................................................... 17
4.2 Preparing Tools and Instruments.................................................................................................................................... 18
4.3 Determining the Installation Position............................................................................................................................19
4.4 Moving an Inverter............................................................................................................................................................... 22
4.5 Installing a Inverter.............................................................................................................................................................. 23
4.5.1 Wall-Mounted Installation............................................................................................................................................. 24
4.5.2 Support-Mounted Installation.......................................................................................................................................26
5 Electrical Connection............................................................................................................29
5.1 Preparing Cables................................................................................................................................................................... 30
5.2 Connecting PE Cables.......................................................................................................................................................... 33
5.3 (Optional) Installing a Smart Dongle............................................................................................................................ 35
5.4 Installing a WLAN Antenna...............................................................................................................................................36
5.5 Connecting an AC Output Power Cable........................................................................................................................37
SUN600-(5KTL, 6KTL)-L0
User Manual Contents
Issue 02 (2022-03-10) Copyright © Huawei Technologies Co., Ltd. iv

5.6 Connecting DC Input Power Cables................................................................................................................................40
5.7 (Optional) Connecting Signal Cables.............................................................................................................................44
6 System Commissioning........................................................................................................ 51
6.1 Verication Before Power-On........................................................................................................................................... 51
6.2 System Power-On................................................................................................................................................................. 52
7 Man-Machine Interaction....................................................................................................55
7.1 App Commissioning............................................................................................................................................................. 55
7.1.1 Downloading the FusionSolar App..............................................................................................................................55
7.1.2 (Optional) Registering an Installer Account............................................................................................................ 56
7.1.3 Creating a PV Plant and a User.................................................................................................................................... 57
7.2 Parameters Settings............................................................................................................................................................. 57
7.2.1 Energy Control.................................................................................................................................................................... 57
7.2.1.1 Grid-tied Point Control................................................................................................................................................. 57
7.2.2 AFCI........................................................................................................................................................................................ 61
7.2.3 IPS Check (for Italy CEI0-21 Grid Code Only)......................................................................................................... 63
7.2.4 DRM (Australia AS4777)................................................................................................................................................. 65
8 System Maintenance............................................................................................................ 67
8.1 System Power-O.................................................................................................................................................................67
8.2 Routine Maintenance.......................................................................................................................................................... 68
8.3 Troubleshooting..................................................................................................................................................................... 68
9 Inverter Disposal....................................................................................................................80
9.1 Removing a Inverter.............................................................................................................................................................80
9.2 Packing a Inverter................................................................................................................................................................. 80
9.3 Disposing a Inverter............................................................................................................................................................. 80
10 Technical Parameters......................................................................................................... 81
10.1 Inverter Technical Specications................................................................................................................................... 81
A Grid Code................................................................................................................................ 86
B Device Commissioning......................................................................................................... 90
C Setting Power Adjustment Parameters........................................................................... 93
D Resetting Password.............................................................................................................. 95
E Rapid Shutdown.................................................................................................................... 98
F Locating Insulation Resistance Faults.............................................................................. 99
G DRM Conguration Guide for Standard As NZS4777.2............................................. 102
H Acronyms and Abbreviations...........................................................................................103
SUN600-(5KTL, 6KTL)-L0
User Manual Contents
Issue 02 (2022-03-10) Copyright © Huawei Technologies Co., Ltd. v

1 Safety Information
1.1 General Safety
Statement
Before installing, operating, and maintaining the equipment, read this document
and observe all the safety instructions on the equipment and in this document.
The "NOTICE", "CAUTION", "WARNING", and "DANGER" statements in this
document do not cover all the safety instructions. They are only supplements to
the safety instructions. Will not be liable for any consequence caused by the
violation of general safety requirements or design, production, and usage safety
standards.
Ensure that the equipment is used in environments that meet its design
specications. Otherwise, the equipment may become faulty, and the resulting
equipment malfunction, component damage, personal injuries, or property
damage are not covered under the warranty.
Follow local laws and regulations when installing, operating, or maintaining the
equipment. The safety instructions in this document are only supplements to local
laws and regulations.
Will not be liable for any consequences of the following circumstances:
● Operation beyond the conditions specied in this document
● Installation or use in environments which are not specied in relevant
international or national standards
● Unauthorized modications to the product or software code or removal of the
product
● Failure to follow the operation instructions and safety precautions on the
product and in this document
● Equipment damage due to force majeure, such as earthquakes, re, and
storms
● Damage caused during transportation by the customer
● Storage conditions that do not meet the requirements specied in this
document
SUN600-(5KTL, 6KTL)-L0
User Manual 1 Safety Information
Issue 02 (2022-03-10) Copyright © Huawei Technologies Co., Ltd. 1

General Requirements
D ANGER
Do not work with power on during installation.
● Do not install, use, or operate outdoor equipment and cables (including but
not limited to moving equipment, operating equipment and cables, inserting
connectors to or removing connectors from signal ports connected to outdoor
facilities, working at heights, and performing outdoor installation) in harsh
weather conditions such as lightning, rain, snow, and level 6 or stronger wind.
● After installing the equipment, remove idle packing materials such as cartons,
foam, plastics, and cable ties from the equipment area.
● In the case of a re, immediately leave the building or the equipment area,
and turn on the re alarm bell or make an emergency call. Do not enter the
building on re in any case.
● Do not scrawl, damage, or block any warning label on the equipment.
● Tighten the screws to the specied torque using tools when installing the
equipment.
● Understand the components and functioning of a grid-tied PV power system
and relevant local standards.
● Repaint any paint scratches caused during equipment transportation or
installation in a timely manner. Equipment with scratches cannot be exposed
to an outdoor environment for a long period of time.
● Do not open the host panel of the equipment.
Personal Safety
● If there is a probability of personal injury or equipment damage during
operations on the equipment, immediately stop the operations, report the
case to the supervisor, and take feasible protective measures.
● Use tools correctly to avoid hurting people or damaging the equipment.
● Do not touch the energized equipment, as the enclosure is hot.
1.2 Personnel Requirements
● Personnel who plan to install or maintain equipment must receive thorough
training, understand all necessary safety precautions, and be able to correctly
perform all operations.
● Only qualied professionals or trained personnel are allowed to install,
operate, and maintain the equipment.
● Only qualied professionals are allowed to remove safety facilities and inspect
the equipment.
● Personnel who will operate the equipment, including operators, trained
personnel, and professionals, should possess the local national required
qualications in special operations such as high-voltage operations, working
at heights, and operations of special equipment.
SUN600-(5KTL, 6KTL)-L0
User Manual 1 Safety Information
Issue 02 (2022-03-10) Copyright © Huawei Technologies Co., Ltd. 2

● Only professionals or authorized personnel are allowed to replace the
equipment or components (including software).
NO TE
● Professionals: personnel who are trained or experienced in equipment operations
and are clear of the sources and degree of various potential hazards in equipment
installation, operation, and maintenance
● Trained personnel: personnel who are technically trained, have required experience,
are aware of possible hazards on themselves in certain operations, and are able to
take protective measures to minimize the hazards on themselves and other people
● Operators: operation personnel who may come in contact with the equipment,
except trained personnel and professionals
1.3 Electrical Safety
Grounding
● For the equipment that needs to be grounded, install the ground cable rst
when installing the equipment and remove the ground cable last when
removing the equipment.
● Do not damage the ground conductor.
● Do not operate the equipment in the absence of a properly installed ground
conductor.
● Ensure that the equipment is connected permanently to the protective
ground. Before operating the equipment, check its electrical connection to
ensure that it is securely grounded.
General Requirements
D ANGER
Before connecting cables, ensure that the equipment is intact. Otherwise, electric
shocks or re may occur.
● Ensure that all electrical connections comply with local electrical standards.
● Obtain approval from the local electric utility company before using the
equipment in grid-tied mode.
● Ensure that the cables you prepared meet local regulations.
● Use dedicated insulated tools when performing high-voltage operations.
AC and DC Power
D ANGER
Do not connect or disconnect power cables with power on. Transient contact
between the core of the power cable and the conductor will generate electric arcs
or sparks, which may cause re or personal injury.
SUN600-(5KTL, 6KTL)-L0
User Manual 1 Safety Information
Issue 02 (2022-03-10) Copyright © Huawei Technologies Co., Ltd. 3

● Before making electrical connections, switch o the disconnector on the
upstream device to cut o the power supply if people may contact energized
components.
● Before connecting a power cable, check that the label on the power cable is
correct.
● If the equipment has multiple inputs, disconnect all the inputs before
operating the equipment.
Cabling
● When routing cables, ensure that a distance of at least 30 mm exists between
the cables and heat-generating components or areas. This prevents damage
to the insulation layer of the cables.
● Bind cables of the same type together. When routing cables of dierent types,
ensure that they are at least 30 mm away from each other.
● Ensure that the cables used in a grid-tied PV power system are properly
connected and insulated and meet specications.
1.4 Installation Environment Requirements
● Ensure that the equipment is installed in a well ventilated environment.
● To prevent re due to high temperature, ensure that the ventilation vents or
heat dissipation system are not blocked when the equipment is running.
● Do not expose the equipment to ammable or explosive gas or smoke. Do
not perform any operation on the equipment in such environments.
1.5 Mechanical Safety
Using Ladders
● Use wooden or berglass ladders when you need to perform live working at
heights.
● When a step ladder is used, ensure that the pull ropes are secured and the
ladder is held rm.
● Before using a ladder, check that it is intact and conrm its load bearing
capacity. Do not overload it.
● Ensure that the wider end of the ladder is at the bottom, or protective
measures have been taken at the bottom to prevent the ladder from sliding.

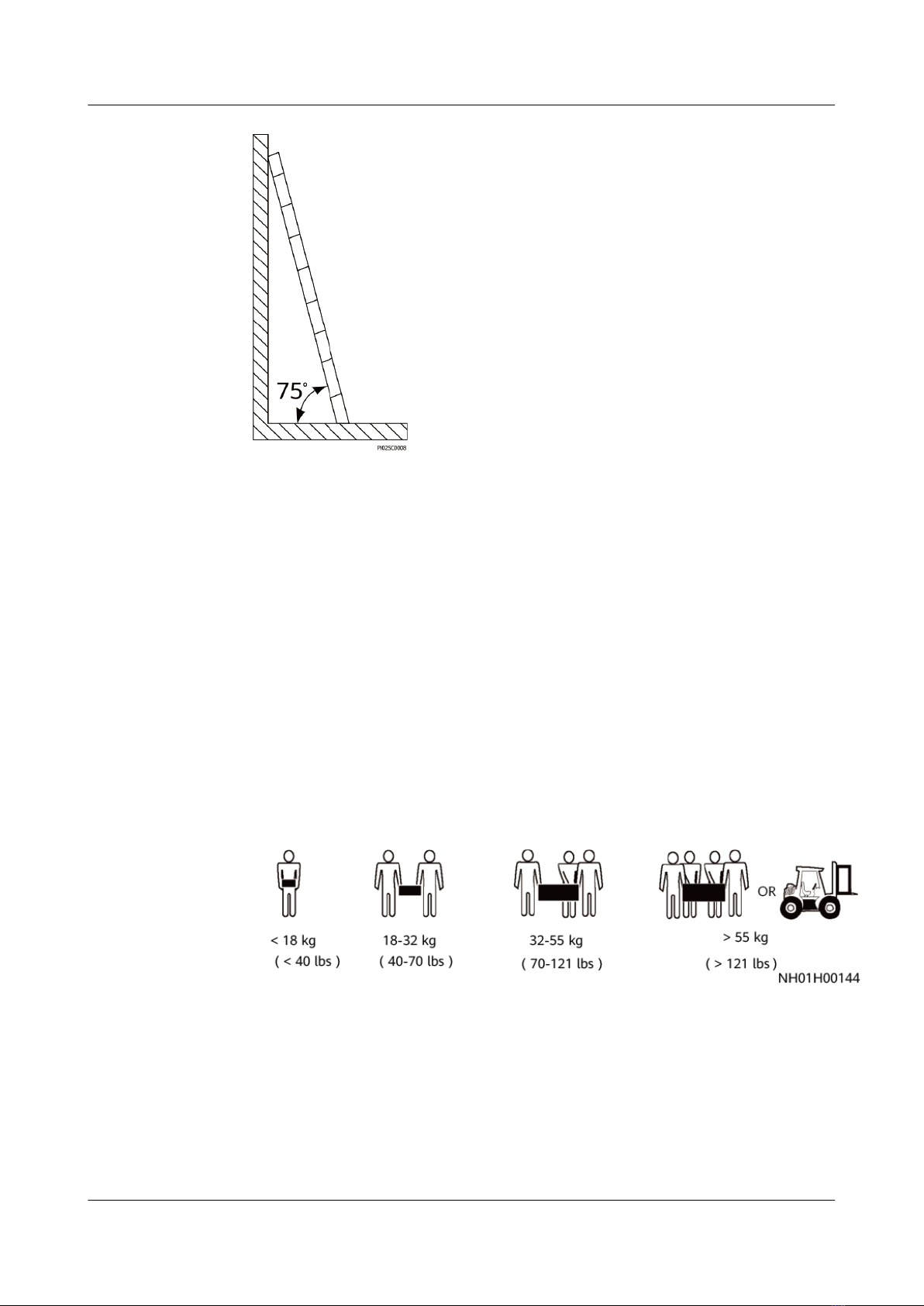

● Ensure that the ladder is securely positioned. The recommended angle for a
ladder against the oor is 75 degrees, as shown in the following gure. An
angle rule can be used to measure the angle.
SUN600-(5KTL, 6KTL)-L0
User Manual 1 Safety Information
Issue 02 (2022-03-10) Copyright © Huawei Technologies Co., Ltd. 4

● When climbing a ladder, take the following precautions to reduce risks and
ensure safety:
– Keep your body steady.
– Do not climb higher than the fourth rung of the ladder from the top.
– Ensure that your body's center of gravity does not shift outside the legs
of the ladder.
Drilling Holes
When drilling holes into a wall or oor, observe the following safety precautions:
● Wear goggles and protective gloves when drilling holes.
● When drilling holes, protect the equipment from shavings. After drilling, clean
up any shavings that have accumulated inside or outside the equipment.
Moving Heavy Objects
● Be cautious to avoid injury when moving heavy objects.
● When moving the equipment by hand, wear protective gloves to prevent
injuries.
1.6 Commissioning
When the equipment is powered on for the rst time, ensure that professional
personnel set parameters correctly. Incorrect settings may result in inconsistency
with local certication and aect the normal operation of the equipment.
SUN600-(5KTL, 6KTL)-L0
User Manual 1 Safety Information
Issue 02 (2022-03-10) Copyright © Huawei Technologies Co., Ltd. 5

1.7 Maintenance and Replacement
D ANGER
High voltage generated by the equipment during operation may cause an electric
shock, which could result in death, serious injury, or serious property damage.
Prior to maintenance, power o the equipment and strictly comply with the safety
precautions in this document and relevant documents.
● Maintain the equipment with sucient knowledge of this document and
using proper tools and testing equipment.
● Before maintaining the equipment, power it o and follow the instructions on
the delayed discharge label to ensure that the equipment is powered o.
● Place temporary warning signs or erect fences to prevent unauthorized access
to the maintenance site.
● If the equipment is faulty, contact your dealer.
● The equipment can be powered on only after all faults are rectied. Failing to
do so may escalate faults or damage the equipment.
SUN600-(5KTL, 6KTL)-L0
User Manual 1 Safety Information
Issue 02 (2022-03-10) Copyright © Huawei Technologies Co., Ltd. 6

2 Product Introduction
2.1 Overview
Function
The Smart Solar Inverter-(2KTL-6KTL)-L0 is a single-phase grid-tied string inverter
that converts the DC power generated by PV strings into AC power and feeds the
electricity into the power grid.
Model
This document involves the following product models:
● Smart Solar Inverter-2KTL-L0
● Smart Solar Inverter-3KTL-L0
● Smart Solar Inverter-3.68KTL-L0
● Smart Solar Inverter-4KTL-L0
● Smart Solar Inverter-4.6KTL-L0
● Smart Solar Inverter-5KTL-L0
● Smart Solar Inverter-6KTL-L0
Figure 2-1 Model identier (using Smart Solar Inverter-5KTL-L0 as an example)
Table 2-1 Identier description
No. Meaning Value
1 Product family
name
Inverter: grid-tied solar inverter
SUN600-(5KTL, 6KTL)-L0
User Manual 2 Product Introduction
Issue 02 (2022-03-10) Copyright © Huawei Technologies Co., Ltd. 7

No. Meaning Value
2 Power level ● 2K: The power level is 2 kW.
● 3K: The power level is 3 kW.
● 3.68K: The power level is 3.68 kW.
● 4K: The power level is 4 kW.
● 4.6K: The power level is 4.6 kW.
● 5K: The power level is 5 kW.
● 6K: The power level is 6 kW.
3 Topology TL: transformerless
4 Design code L0: residential
Networking Application
The inverter applies to residential rooftop grid-tied systems. The system consists of
PV strings, grid-tied solar inverters, AC switches, and power distribution units
(PDUs).

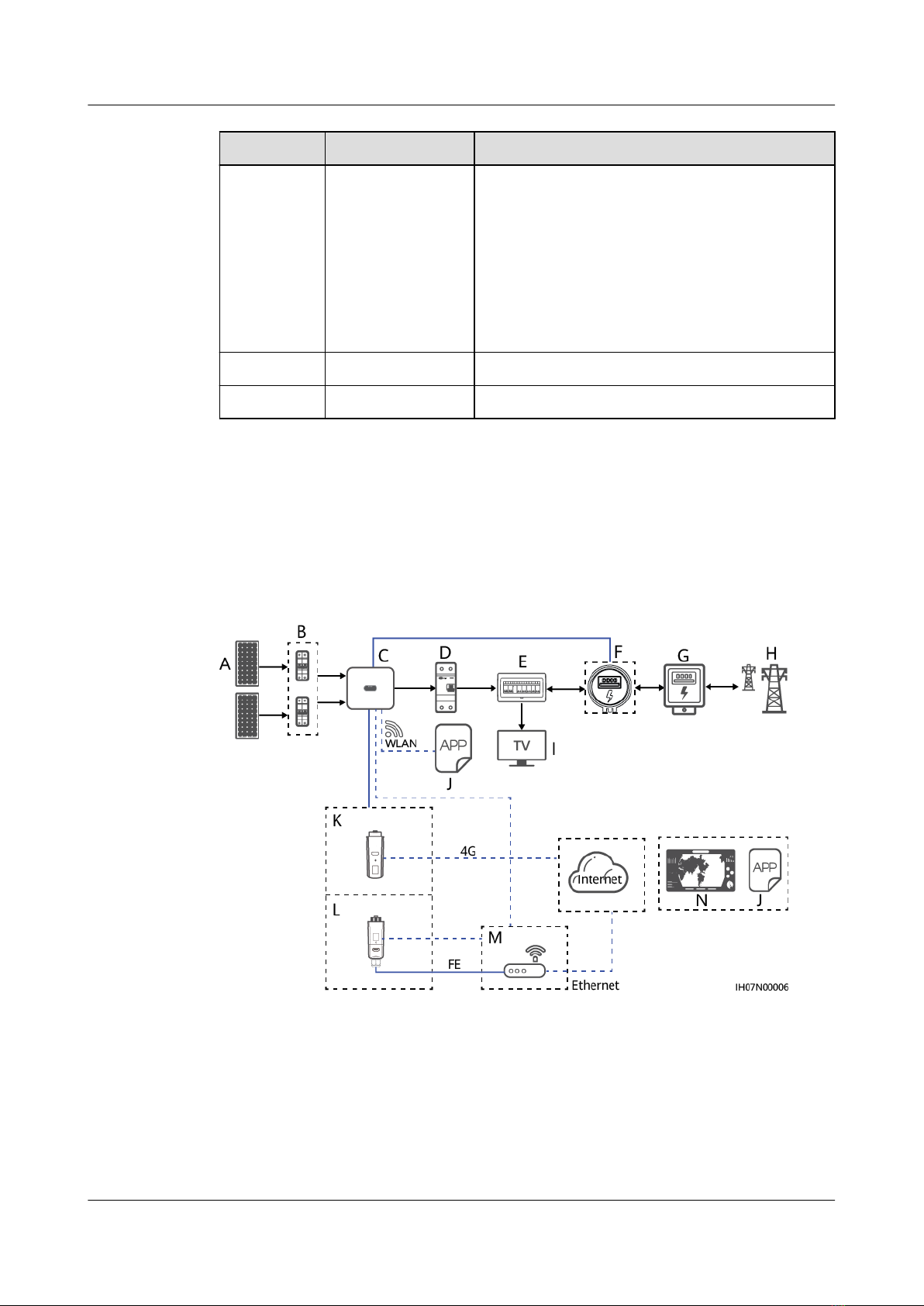

Figure 2-2 Single inverter scenario (dashed boxes indicate optional conguration)
SUN600-(5KTL, 6KTL)-L0
User Manual 2 Product Introduction
Issue 02 (2022-03-10) Copyright © Huawei Technologies Co., Ltd. 8

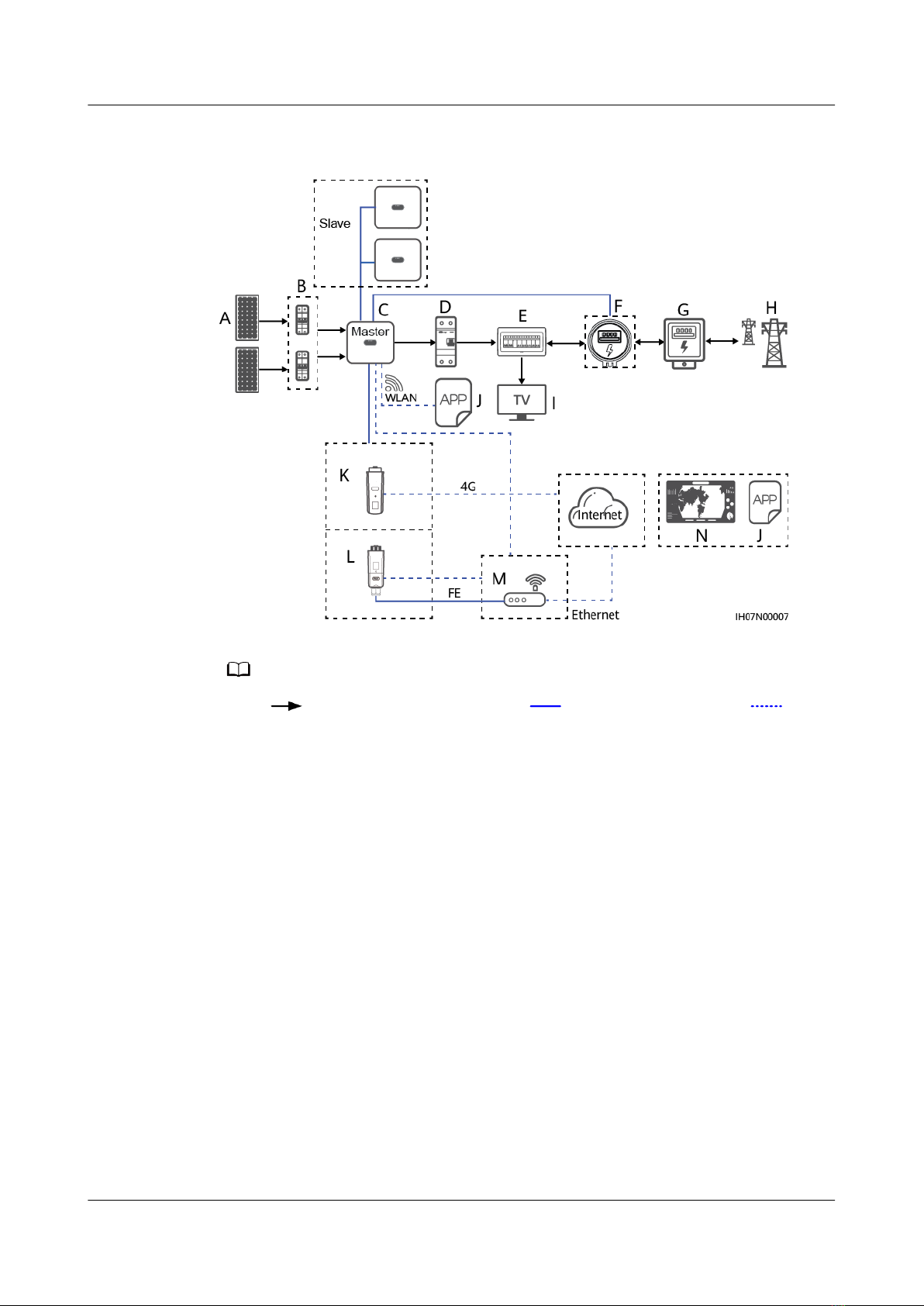

Figure 2-3 Inverter cascading scenario (dashed boxes indicate optional
conguration)
NO TE
● indicates the power ow direction, indicates the signal line, and
indicates the wireless communication.
● In the inverter cascading scenario, the master and slave solar inverters are both Smart
Solar Inverter-(2KTL-6KTL)-L0, and a maximum of three inverters can be cascaded.
● In the inverter cascading scenario, only one smart power sensor (G in the gure) can be
connected to the master inverter.
● In the inverter cascading scenario, the inverters connected to the power grid must meet
the local power grid requirements.
● Smart PV Inverter-(2KTL-6KTL)-L0 cannot connect to the SmartLogger, energy storage
systems, or optimizers.
● Smart PV Inverter-(2KTL-6KTL)-L0 does not support the o-grid mode.
(A) PV string (B) DC switch (C) Inverter
(D) AC switch (E) Residential PDU (F) Smart Power Sensor
(G) Residential
power meter
(H) Power grid (I) Household load
(J) FusionSolar app (K) 4G Smart Dongle (L) WLAN-FE Smart
Dongle
(M) Router (N) FusionSolar Smart PV
Management System
SUN600-(5KTL, 6KTL)-L0
User Manual 2 Product Introduction
Issue 02 (2022-03-10) Copyright © Huawei Technologies Co., Ltd. 9

Supported Power Grid Types
The inverter supports the following power grid types: TN-S, TN-C, TN-C-S, and TT.
In the TT power grid, the N-to-PE voltage must be less than 30 V.
Figure 2-4 Power grid types
2.2 Component Description
Appearance
Figure 2-5 Appearance
SUN600-(5KTL, 6KTL)-L0
User Manual 2 Product Introduction
Issue 02 (2022-03-10) Copyright © Huawei Technologies Co., Ltd. 10

(1) LED indicators (2) Front panel
(3) Hanging kit (4) Mounting bracket
(5) Heat sink (6) Ventilation valve
(7) DC switch locking screw holea(8) DC switchb (DC SWITCH)
(9) DC input terminals (PV1+/PV1–) (10) DC input terminals (PV2+/PV2–)
(11) Reserved (12) Smart Dongle port (4G/FE)
(13) Antenna port (ANT) (14) Communications port (COM)
(15) AC output port (AC) (16) Ground point
NO TE
● Note a: The DC switch locking screw is used to lock the DC switch to prevent accidental
startup. It is delivered with the inverter.
● Note b: DC input terminals PV1 and PV2 are controlled by the DC switch.
2.3 Label Description

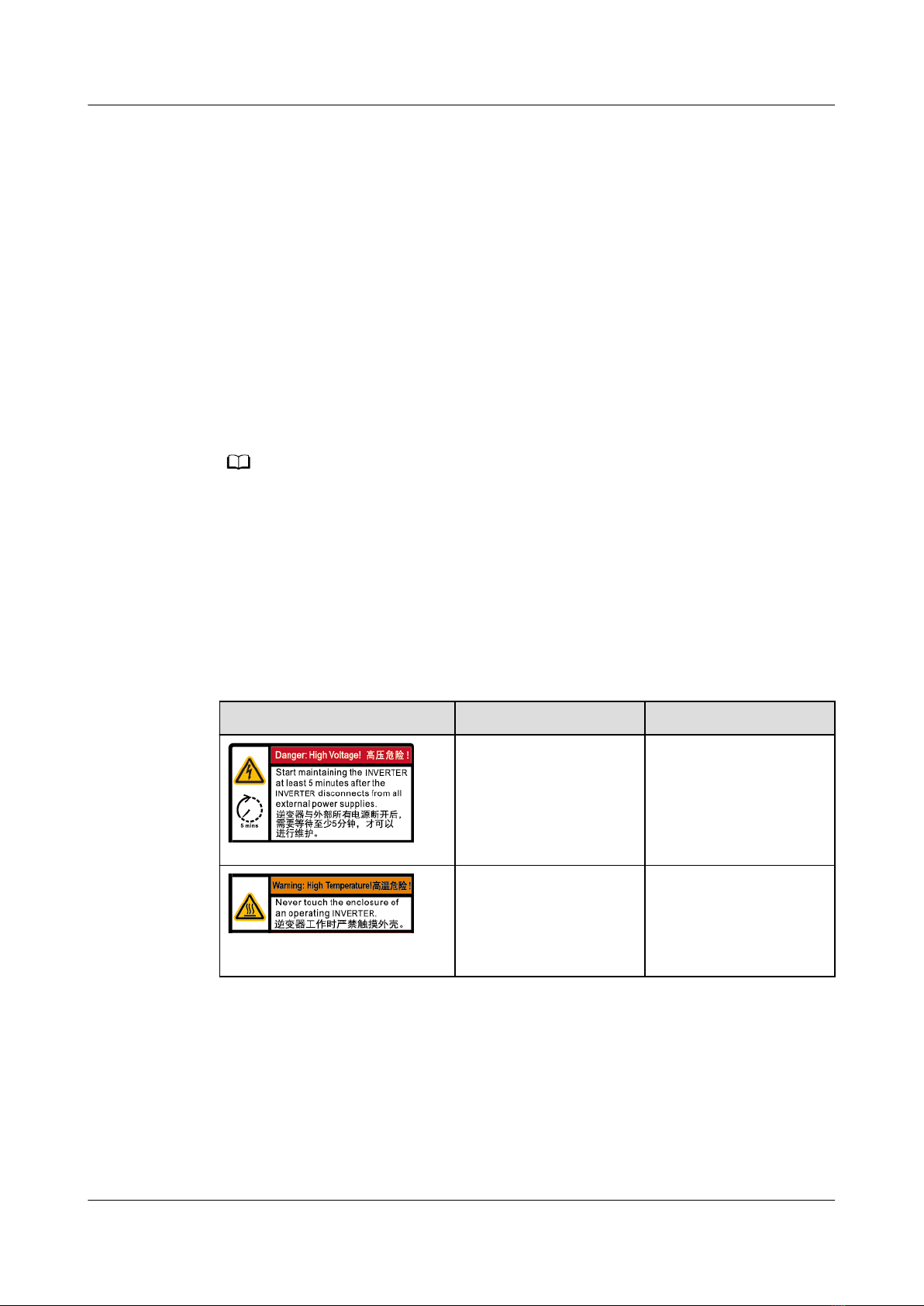

2.3.1 Enclosure Labels
Symbol Name Description
Delay discharge Residual voltage exists
after the inverter is
powered o. It takes 5
minutes for the
inverter to discharge to
the safe voltage.
Burn warning Do not touch a
running inverter
because it generates
high temperatures on
the shell.
SUN600-(5KTL, 6KTL)-L0
User Manual 2 Product Introduction
Issue 02 (2022-03-10) Copyright © Huawei Technologies Co., Ltd. 11

Symbol Name Description
Electric shock warning ● High voltage exists
after the inverter is
powered on. Only
qualied and
trained electrical
technicians are
allowed to perform
operations on the
inverter.
● High touch current
exists after the
inverter is powered
on. Before powering
on the inverter,
ensure that the
inverter is properly
grounded.
Refer to
documentation
Reminds operators to
refer to the documents
delivered with the
inverter.
Grounding label Indicates the position
for connecting the PE
cable.
Operation warning Do not remove the DC
input connector or AC
output connector
when the inverter is
running.
Grounding warning Ground the nverter
before powering it on.
Inverter serial number Indicates the serial
number.
Inverter MAC address Indicates the MAC
address.
SUN600-(5KTL, 6KTL)-L0
User Manual 2 Product Introduction
Issue 02 (2022-03-10) Copyright © Huawei Technologies Co., Ltd. 12

Symbol Name Description
Inverter Wi-Fi login QR
code
Scan the QR code to
connect to the Huawei
inverter Wi-Fi network.
2.3.2 Product Nameplate

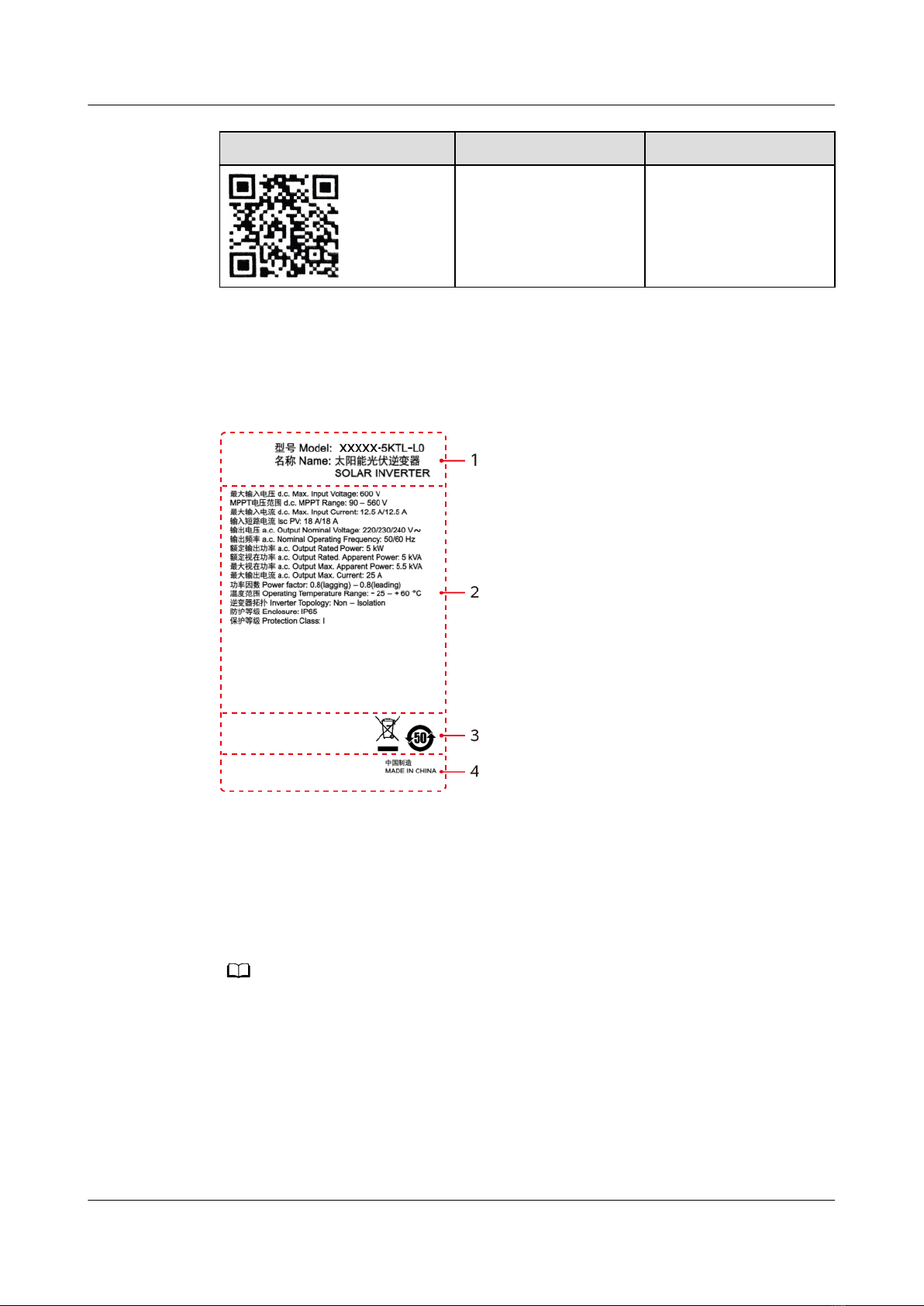

Figure 2-6 Nameplate (using Smart Solar Inverter-5KTL-L0 as an example)
(1) Trademark and product model (2) Key technical parameters
(3) Certication marks (4) Company name and country of
origin
NO TE
The nameplate gure is for reference only.
2.4 Working Principles
Schematic Diagram
The inverter receives inputs from up to two PV strings. Then the inputs are
grouped into two MPPT routes inside the inverter to track the maximum power
SUN600-(5KTL, 6KTL)-L0
User Manual 2 Product Introduction
Issue 02 (2022-03-10) Copyright © Huawei Technologies Co., Ltd. 13

point of the PV strings. The DC power is then converted into single-phase AC
power through an inverter circuit. Surge protection is supported on both the DC
and AC sides.
Figure 2-7 Schematic diagram
Working Mode
Figure 2-8 Working modes
Table 2-2 Working mode description
Working
mode
Description
Standby
mode
The inverter enters Standby mode when the external environment
does not meet the requirements for starting the inverter. In
Standby mode:
● The inverter continuously detects its operation status. Once the
operating conditions are met, the inverter enters Operating
mode.
● If the inverter detects a shutdown command or a fault after
startup, it enters Shutdown mode.
SUN600-(5KTL, 6KTL)-L0
User Manual 2 Product Introduction
Issue 02 (2022-03-10) Copyright © Huawei Technologies Co., Ltd. 14
