Huawei WiMAX Reference guide

Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd
Welcome to use Huawei WiMAX USB Modem!
Online Help
Issue 03
Date 2009-03-10
Part Number 00496193

Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd

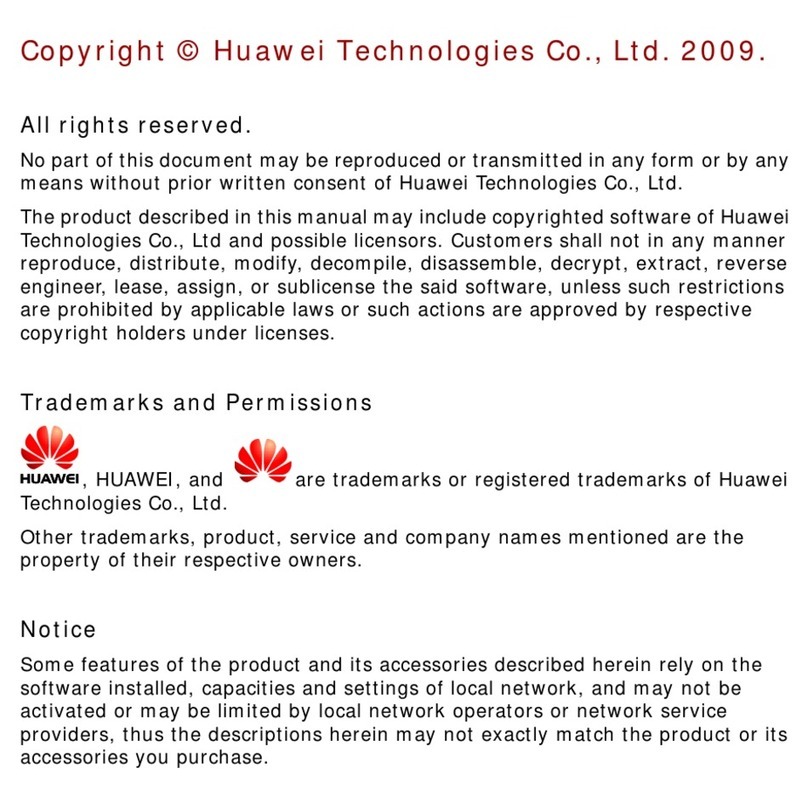

Copyright © Huawei Technologies Co., Ltd. 2009. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means
without prior written consent of Huawei Technologies Co., Ltd.
The product described in this manual may include copyrighted software of Huawei
Technologies Co., Ltd and possible licensors. Customers shall not in any manner
reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer,
lease, assign, or sublicense the said software, unless such restrictions are prohibited by
applicable laws or such actions are approved by respective copyright holders under
licenses.
Trademarks and Permissions
, HUAWEI, and are trademarks or registered trademarks of Huawei
Technologies Co., Ltd.
Other trademarks, product, service and company names mentioned are the property of
their respective owners.
Notice
Some features of the product and its accessories described herein rely on the software
installed, capacities and settings of local network, and may not be activated or may be
limited by local network operators or network service providers, thus the descriptions
herein may not exactly match the product or its accessories you purchase.
Huawei Technologies Co., Ltd reserves the right to change or modify any information or
specifications contained in this manual without prior notice or obligation.
NO WARRANTY
THE CONTENTS OF THIS MANUAL ARE PROVIDED "AS IS". EXCEPT AS
REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR
CONTENTS OF THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE
SHALL HUAWEI TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL,
INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS,
BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS.
Import and Export Regulations
Customers shall comply with all applicable export or import laws and regulations and will
obtain all necessary governmental permits and licenses in order to export, re-export or
import the product mentioned in this manual including the software and technical data
therein.

Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd
Safety Precautions
General Requirements:
zBefore you install and use the device, read these safety precautions carefully and
observe them during operation.
zKeep the device dry during storage, transportation, and operation of the device.
zPrevent collision of the device during storage, transportation, and operation of the
device.
zDo not attempt to dismantle the device by yourself. In case of any fault, contact the
appointed maintenance center for assistance or repair.
zWithout prior written consent, no organization or individual is permitted to make any
change to the structure or safety and performance design of the device.
zWhile using the device, observe all applicable laws, directives and regulations, and
respect the legal rights of other people.
Environmental Requirements:
zPlace the device in a well-ventilated place. Do not expose the device to direct sunlight.
zKeep the device clean, free of dust and stain.
zDo not place the device near a water source or in a damp area.
zDo not place any object on the top of the device.
zDo not place the device on or near inflammable materials such as foam.
zKeep the device away from heat source or fire, such as an electric heater or a candle.
zKeep the device far away from any household appliance with strong magnetic field or
electromagnetic field, such as a microwave oven, a refrigerator or a satellite dish
antenna.
Operating Requirements:
zDo not allow children to play with the device or accessories. Swallowing the
accessories may be fatal.
zUse the accessories provided or authorized only by the manufacturer.
zMake sure that the device does not get wet. If water gets into the device, switch off the
power supply immediately, and contact the appointed maintenance center.
zThe power supply of the device must meet the requirements of the input voltage of the
device.
zBefore plugging or unplugging any cable, shut down the device.
zWhile plugging or unplugging any cable, make sure that your hands are dry.
zDo not step on, pull, or bend any cable. Otherwise, the cable may be damaged, leading
to malfunction of the device.
zDo not use old or damaged cables. In any of the following cases, stop using the device,
disconnect it from the power supply and unplug the power plug immediately: there is
smoke emitted from the device, or there is some abnormal noise or smell. Contact the
specified maintenance center for repair.

Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd
zDo not scratch or abrade the shell of the device. This may lead to malfunctions of the
device, such as short circuit. The shed painting material may also lead to skin allergy.
zDo not use the device during lightning, and unplug it from the computer, to prevent
damage to the device and the computer.
zIf the device is not used for a long time, unplug the device from the computer.
Cleaning Requirements:
zBefore cleaning the device, stop using it and unplug it from the computer.
zDo not clean the device shell with any cleaning solution or cleanser spray. Use a piece
of soft cloth to clean the device shell.
Usage Requirements of Wireless Product
zKeep the device away from magnetic storage devices (e.g., a magnetic card or a floppy
disk), to prevent loss of the stored information.
zUnplug the device from the computer and turn off the computer in situations where a
wireless device is prohibited or using of a wireless device will lead to interference.
zUnplug the device from the computer and turn off the computer kept close to an
electronic high-precision controlled device, such as an audiphone, a pacemaker, fire
alarm or an automatic gate. Otherwise, this will lead to malfunction of the electronic
device.
zThe user who uses an electronic assistant medical-treatment device needs to confirm
with the service center regarding the effects of the radio wave on this device.
zDo not take the device to the operation theater, Intensive Care Unit (ICU) or the
Coronary Care Unit (CCU).
zWhen you are driving a car or traveling by plane, unplug the device from the computer
and turn off the computer, to avoid interference arising from radio signal of the device.
zWhen using the device maintain distance of 3 cm between your body and the antenna
of the device.
zIn the area with inflammable or explosive materials, turn off your wireless device, and
follow the relevant instructions given in the label, to prevent explosion or fire.
zProtect the wireless device and its accessories, and use it in a clean and dust-free
environment. Make sure that the wireless device does not come in contact with flame or
a cigarette that is lit.
zMake sure that the wireless device and its accessories are dry.
zDo not drop, throw or try to bend your wireless device.
zDo not place the wireless device and its accessories in high or low temperature areas.
zThis device uses radio signal for transmission. The network connection may not be
available in all the situations. In an emergency, you should not rely solely on this
wireless device for essential communications.

Online Help Contents
Issue 03 (2009-03-10) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd i
Contents
1 Getting to Know Your USB Modem..................................................................1-1
1.1 Functions and Features................................................................................................1-1
1.2 Connecting the External Antenna................................................................................1-1
1.3 Requirements on PC Configuration.............................................................................1-2
2 Installing the USB Modem .................................................................................2-1
2.1 Connecting the USB Modem.......................................................................................2-1
2.2 Removing the USB Modem ........................................................................................ 2-2
2.3 Installing the Cela.C.M ...............................................................................................2-2
2.4 Uninstalling the Cela.C.M...........................................................................................2-2
2.5 Introduction to the Icons..............................................................................................2-3
3 Maintaining the USB Modem............................................................................3-1
3.1 Connecting and Disconnecting Network.....................................................................3-1
3.2 Upgrading the USB Modem Software.........................................................................3-1
3.3 Managing the Configuration File ................................................................................3-2
3.4 Switching the Cela.C.M User......................................................................................3-2
3.5 Switching the Cela.C.M Language..............................................................................3-2
4 Viewing Information of the USB Modem........................................................4-1
4.1 Viewing the Device Information.................................................................................4-1
4.2 Viewing the Connection Information..........................................................................4-1
5 FAQ .........................................................................................................................5-1
6 Acronyms and Abbreviations.............................................................................6-1

Online Help 1 Getting to Know Your USB Modem
Issue 03 (2009-03-10) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd 1-1
1 Getting to Know Your USB Modem
1.1 Functions and Features
EchoLife WiMAX USB Modem (hereinafter referred to as the USB Modem) is
applicable to the Worldwide Interoperability for Microwave Access (WiMAX) network.
In areas covered by the network, you can enjoy the high-performance broadband
network services anywhere and anytime. You can wirelessly surf the Internet with brand
new experiences.
High Speed
zSupporting the IEEE802.16e-2005 WiMAX air interface.
zSupporting downlink throughput rate of up to 15 Mbit/s and uplink throughput rate
of up to 5 Mbit/s.
Portable and Fashionable Design
zProviding user-friendly user interface.
zSupporting upgrading of the device driver.
zSupporting plug and play.
zProviding fashionable and elegant appearance.
1.2 Connecting the External Antenna
If you need to connect the external antenna to your USB Modem, do as follows:
Step 1 Power off the USB Modem.
Step 2 Pull out the plastic plug on the side of the USB Modem and connect the external antenna
to the USB Modem.
Step 3 Put the external antenna in an open space without any surrounding obstacles, so that the
network signals are not affected.
----End

1 Getting to Know Your USB Modem Online Help
1-2 Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd Issue 03 (2009-03-10)
zDo not place the external antenna outdoors.
zIt is preferred to connect the external antenna to the antenna interface not close to the USB
port.
zDuring lightning weather, stop using the external antenna, and disconnect it from the USB
Modem.
1.3 Requirements on PC Configuration
Your PC must meet the following configuration requirements for using the USB Modem.
If the configuration of your PC cannot meet the requirements, the operating performance
of the USB Modem may be degraded.
Item Configuration
Memory 128 MB RAM or above
Free hard disk space 50 MB or above
Operating system zWindows XP (with Service Pack 2 or a patch of later
version)
zWindows Vista
USB interface USB 2.0 full speed
Display resolution 800 × 600 or above. 1024 × 768 is recommended.

Online Help 2 Installing the USB Modem
Issue 03 (2009-03-10) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd 2-1
2 Installing the USB Modem
2.1 Connecting the USB Modem
zEnsure that the PC is powered on when you connect the USB Modem to the PC.
Otherwise, the USB Modem cannot be used normally.
zUse the delivery-attached cable. A USB extension cable or an extra-long USB cable
may cause shortage of power supply, thus making the device unserviceable.
zDuring lightning weather, power off the USB modem and disconnect it from the
computer.
Figure 2-1 Connecting the USB Modem
To connect the USB Modem to the PC, do as follows:
Step 1 Power on the PC.
Step 2 Use a USB cable to connect the USB Modem to the PC. See Figure 2-1 for the
connection details.
If the USB Modem is used for the first time, the system prompts you to install the
Cela.C.M . For details, see section 2.3 "Installing the Cela.C.M." After the USB Modem
is connected to the PC, if the USB Modem accesses the network normally, it displays
on the system tray, indicating that network connection is established. If the USB
Modem cannot access the network normally, it displays on the system tray,
indicating that network connection is not established.
----End

2 Installing the USB Modem Online Help
2-2 Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd Issue 03 (2009-03-10)
You need to enable the function to show icon in notification area when connected in the Local
Area Connection Properties window.
2.2 Removing the USB Modem
Do as follows to remove the USB Modem from the PC. Otherwise, the operating system
of your PC may be damaged even in standby mode.
zIf is not displayed on the system tray, perform the following steps:
Step 1 Quit the Cela.C.M.
Step 2 Disconnect the USB Modem or the connector of the USB cable from the PC.
----End
zIf is displayed on the system tray, perform the following steps:
Step 1 Double-click on the system tray. The system prompts "Safely remove hardware."
Step 2 Stop running the corresponding hardware of the USB Modem on the device manager.
Step 3 Disconnect the USB Modem or the connector of the USB cable from the PC after the
system prompts that you can remove the hardware safely.
----End
2.3 Installing the Cela.C.M
The Cela.C.M is the program used to configure the USB Modem parameters. Take the
Windows XP operating system as an example, to install the Cela.C.M, do as follows:
Step 1 Power on the PC.
Step 2 Use a USB cable to connect the USB Modem to the PC.
Step 3 The system prompts that new hardware is found and prompts you to install the Cela.C.M.
Step 4 Install the Cela.C.M according to the prompts.
Step 5 When you finish installing the Cela.C.M, it displays on the system tray.
----End
2.4 Uninstalling the Cela.C.M
You can uninstall the Cela.C.M by two methods:

Online Help 2 Installing the USB Modem
Issue 03 (2009-03-10) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd 2-3
From the Program
Step 1 Quit the Cela.C.M.
Step 2 Choose Start > All programs.
Step 3 Find the Cela.C.M, select Uninstall.
Step 4 Uninstall the Cela.C.M according to the prompts.
----End
From the Control Panel
Step 1 Quit the Cela.C.M.
Step 2 Choose Start > Control Panel > Add/Remove Programs.
Step 3 Click Change/Remove Programs.
Step 4 Find the Cela.C.M, click Change/Remove.
Step 5 Uninstall the Cela.C.M according to the prompts.
----End
After the Cela.C.M is uninstalled, restart the PC to ensure complete removing of the Cela.C.M
from the PC.
2.5 Introduction to the Icons
Icon Description
Information such as the base station identifier (BSID), the
carrier-to-interference-and-noise ratio (CINR), the connecting time,
the data information, and the IP address information.
Enter the user name and password to connect the network for the
first time. Switch the Cela.C.M user.
Information such as the device name, the S/N, the MAC address, the
device software version, and the device state.
Importing and exporting the configuration file, and upgrading the
software.
Information about the Libyamax C.M information.
Indicating the network signal strength.

2 Installing the USB Modem Online Help
2-4 Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd Issue 03 (2009-03-10)
Icon Description
Indicating the network connection status. Connected to or
disconnected from the network.
Switching the Cela.C.M language.

Online Help 3 Maintaining the USB Modem
Issue 03 (2009-03-10) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd 3-1
3 Maintaining the USB Modem
3.1 Connecting and Disconnecting Network
Connecting Network
To connect the USB Modem to the WiMAX network, do as follows:
Step 1 Start the Cela.C.M and click Setting.
Step 2 Enter the user name and password provided by the carrier for the first time, Click Save.
Step 3 Click Connection tab and connect the network. The USB Modem requests network
connection automatically. The icons indicating successful network connection and the
signal strength are displayed at the bottom of the Cela.C.M interface when connecting
the network succeeded.
----End
Disconnecting Network
When you are not using the Internet, you can disconnect the network manually. After you
disconnect the network connection, you need to reconnect the network to access the
Internet.
Step 1 Start the Cela.C.M and click Connection.
Step 2 Click Disconnect.
----End
3.2 Upgrading the USB Modem Software
When you upgrade the USB Modem software, do not unplug and re-plug the USB
Modem and ensure power supply to the device.
Use the upgrade file delivered by the internet service provider (ISP) for local upgrade. To
perform the upgrade, do as follows:
Step 1 Start the Cela.C.M and click Device.
Step 2 Click Upgrade Software.

3 Maintaining the USB Modem Online Help
3-2 Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd Issue 03 (2009-03-10)
Step 3 Click Browse to choose an upgrade file on local.
Step 4 Click Upgrade Software to initiate local upgrade. The upgrade progress is displayed in
the progress bar.
In Version info, the device version number indicates the software version number before the
upgrade and the upgrade version number indicates the software version number after the
upgrade.
----End
3.3 Managing the Configuration File
The network authentication parameters of the USB Modem are saved in the network
configuration file. You can export the current configuration file or import a new
configuration file.
zIf you modify the configuration file, the USB Modem may not be used normally. For
nonprofessionals, use this function with caution.
zDo not change the filename extension of the configuration file at your own will.
To manage the configuration file, do as follows:
Step 1 Start the Cela.C.M and click Device.
Step 2 Click Import and choose a configuration file on local to import.
Step 3 Click Export to save the current configuration file on local.
----End
3.4 Switching the Cela.C.M User
When you use the advanced functions for Cela.C.M, you need log in as administrator.
You can click Setting, and click Advanced Setting to login. It is only used for the
professionals.
3.5 Switching the Cela.C.M Language
The USB Modem facilitates your choice and operation by providing multiple user
interface languages. The default user interface language is English.
When the Cela.C.M is running, click About, and click to choose the proper user
interface language.

Online Help 4 Viewing Information of the USB Modem
Issue 03 (2009-03-10) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd 4-1
4 Viewing Information of the USB Modem
4.1 Viewing the Device Information
The device information includes the device name, S/N, MAC address, device software
version, and device state.
Start the Cela.C.M and click Device to view the device information.
4.2 Viewing the Connection Information
The connection information includes the connection status, BSID information, CINR
information ,data information, and the connection duration.
The USB Modem has four types of connection status, including disconnect from the
network, searching, connecting to the network, and connected to the network. The four
types of working status are described as follows:
zDisconnect from the network: The device is disconnected from the network.
zSearching: The device is searching the frequency.
zConnecting to the network: The device is setting up a network connection.
zConnected to the network: The device has set up a network connection.
Start the Cela.C.M and click Connection to view the connection information.

Online Help 5 FAQ
Issue 03 (2009-03-10) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd 5-1
5 FAQ
When the USB Modem is connected to the PC for the first time, the system
does not prompt you to install the Cela.C.M.
zAfter the system recognizes the new hardware, you need to wait a few minutes for
the system to prepare the installation of the program.
zEnsure that the USB Modem is connected to the PC correctly and is displayed
on the system tray. Otherwise, unplug the USB Modem and connect it to the PC
again.
zCheck whether the disk icon Huawei EchoLife is displayed in the My Computer
window.
1. If yes, double-click the Huawei EchoLife icon; or access the Huawei EchoLife
directly and double-click Setup.exe.
2. If no, remove the USB Modem from the PC andrestart the PC. Then connect the
USB Modem to the PC again.
zLog in to the website designated by the ISP to download the installation program,
and then install the program.
zEnsure that the auto play function of the operating system is enabled.
The Cela.C.M cannot start automatically after the installation.
zCheck whether is displayed on the desktop. If yes, double-click the icon to start
the Cela.C.M.
zCheck whether is displayed on the system tray. If yes, double-click the icon to
start the Cela.C.M.
zEnsure that the USB Modem is correctly connected to the PC, and do as follows:
1. Uninstall the Cela.C.M
2. Remove the USB Modem from the PC after uninstalled, and then connect the
USB Modem to the PC again.
3. Install the Cela.C.M again according to the prompts.
zRemove the USB Modem safely and restart the PC. Then connect the USB Modem
to the PC again.
zEnsure that the auto play function of the operating system is enabled.

5 FAQ Online Help
5-2 Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd Issue 03 (2009-03-10)
The USB Modem cannot access the Internet.
zEnsure that you are in the service area.
zEnsure that the USB Modem is connected to the PC correctly and the Cela.C.M is
correctly installed.
zEnsure that you have subscribed the Internet access service. Contact your local ISP
for how to subscribe the service.
When you power on the PC after the USB Modem is connected, the
Windows operating system stays at the startup screen.
zCheck the settings of devices such as the USB interface and network adapter in the
Basic Input/Output System (BIOS) of the PC. It is recommended to enable devices
such as the USB interface and the network adapter.
zRemove the USB Modem safely and restart the PC. Then connect the USB Modem
to the PC again.
The indicator is off.
Ensure that the USB Modem is connected to the PC correctly and the Cela.C.M is
correctly installed.
The network signals cannot be searched out.
zEnsure that the network signals are not blocked by any obstacles around the USB
Modem.
zEnsure that the network frequency setting is effective.
The system prompts that the software is damaged.
The USB Modem can repair the software automatically. When the software is
damaged, the system prompts you to repair the software. You can repair the software
according to the prompts.
Contact your local ISP if the automatic repair of the software fails.
The device cannot be identified or dead halt suddenly occurs when the
Cela.C.M is running.
Use the delivery-attached cable. A USB extension cable or an extra-long USB cable
may cause shortage of power supply, thus making the device unserviceable.

Online Help 6 Acronyms and Abbreviations
Issue 03 (2009-03-10) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd 6-1
6 Acronyms and Abbreviations
BSID Base Station Identifier
CINR Carrier-to-Interference-and-Noise Ratio
DHCP Dynamic Host Configuration Protocol
DNS Domain Name Server
ISP Internet Service Provider
URL Universal Resource Locator
WiMAX Worldwide Interoperability for Microwave Access
