1 Device Introduction
Huawei OptiXstar V183 is a Master FTTR for the Huawei FTTR OptiXstar F30 Pro.
It uses GPON/XGS-PON technologies to implement ultra-broadband access for
users.
NO TE
The gures in this document may dier from the actual products. The actual products
prevail.
Huawei OptiXstar V183
Quick Start 1 Device Introduction
Issue 01 (2023-04-28) Copyright © Huawei Technologies Co., Ltd. 1

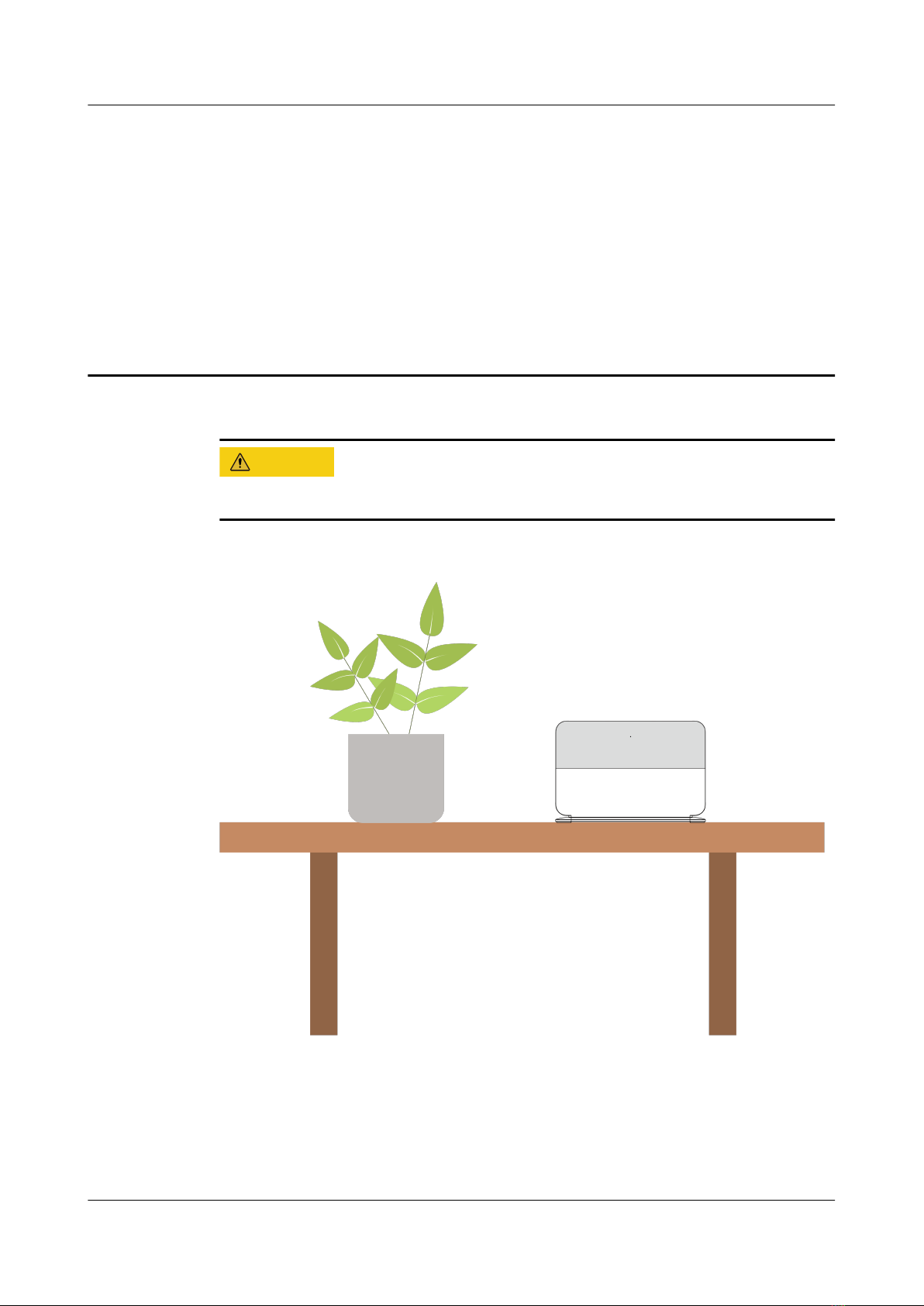

2 Placing the Device
CA UTION
Do not install the Master FTTR outdoors or in an outdoor cabinet.

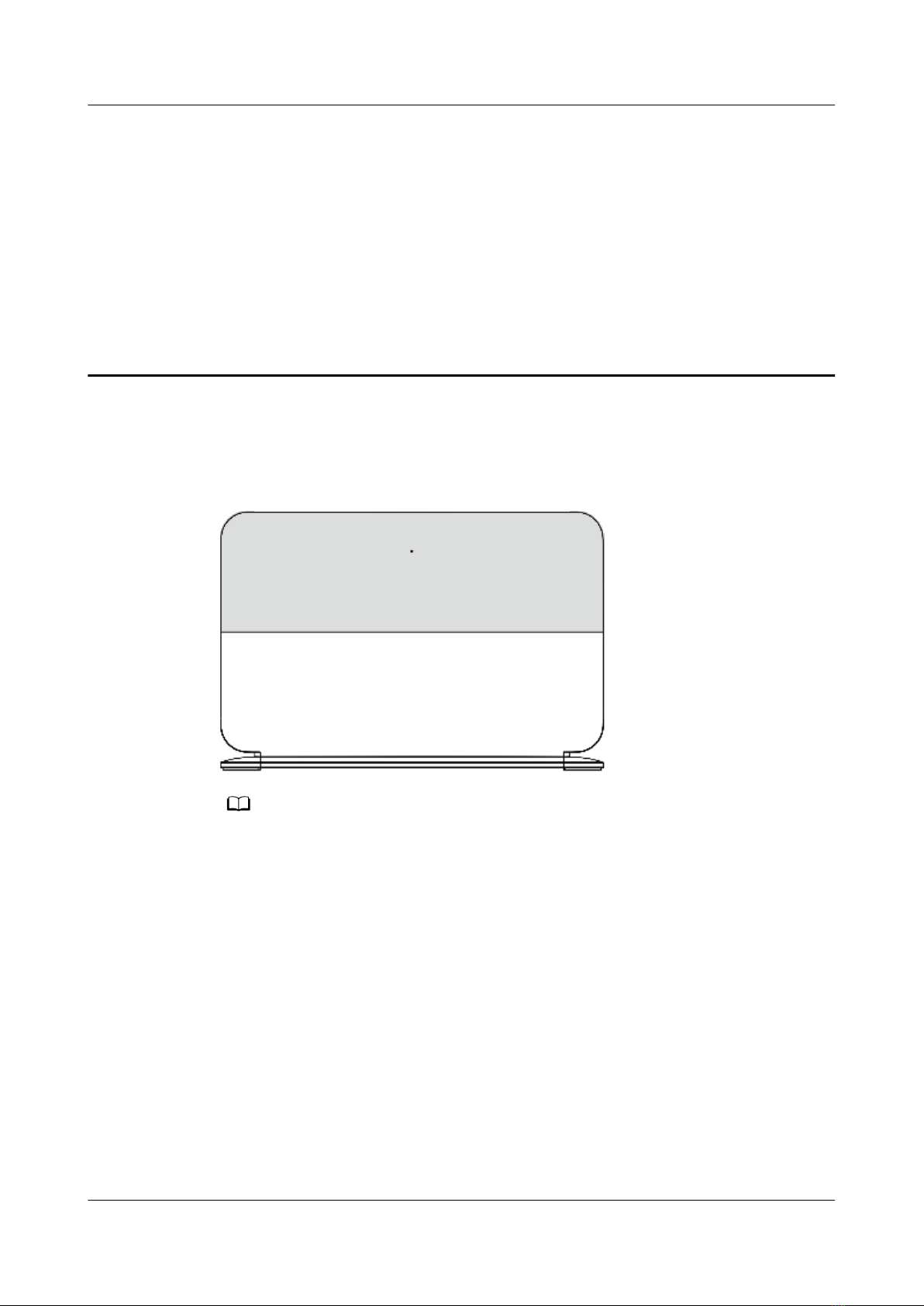

Vertically placed on a desk
Huawei OptiXstar V183
Quick Start 2 Placing the Device
Issue 01 (2023-04-28) Copyright © Huawei Technologies Co., Ltd. 2

3 Connecting Cables
NO TE
● To extend Wi-Fi coverage at home, ask professional technicians to connect the Slave
FTTR to the Master FTTR using optical network components. The Slave FTTR
automatically synchronize Wi-Fi parameters from the Master FTTR.

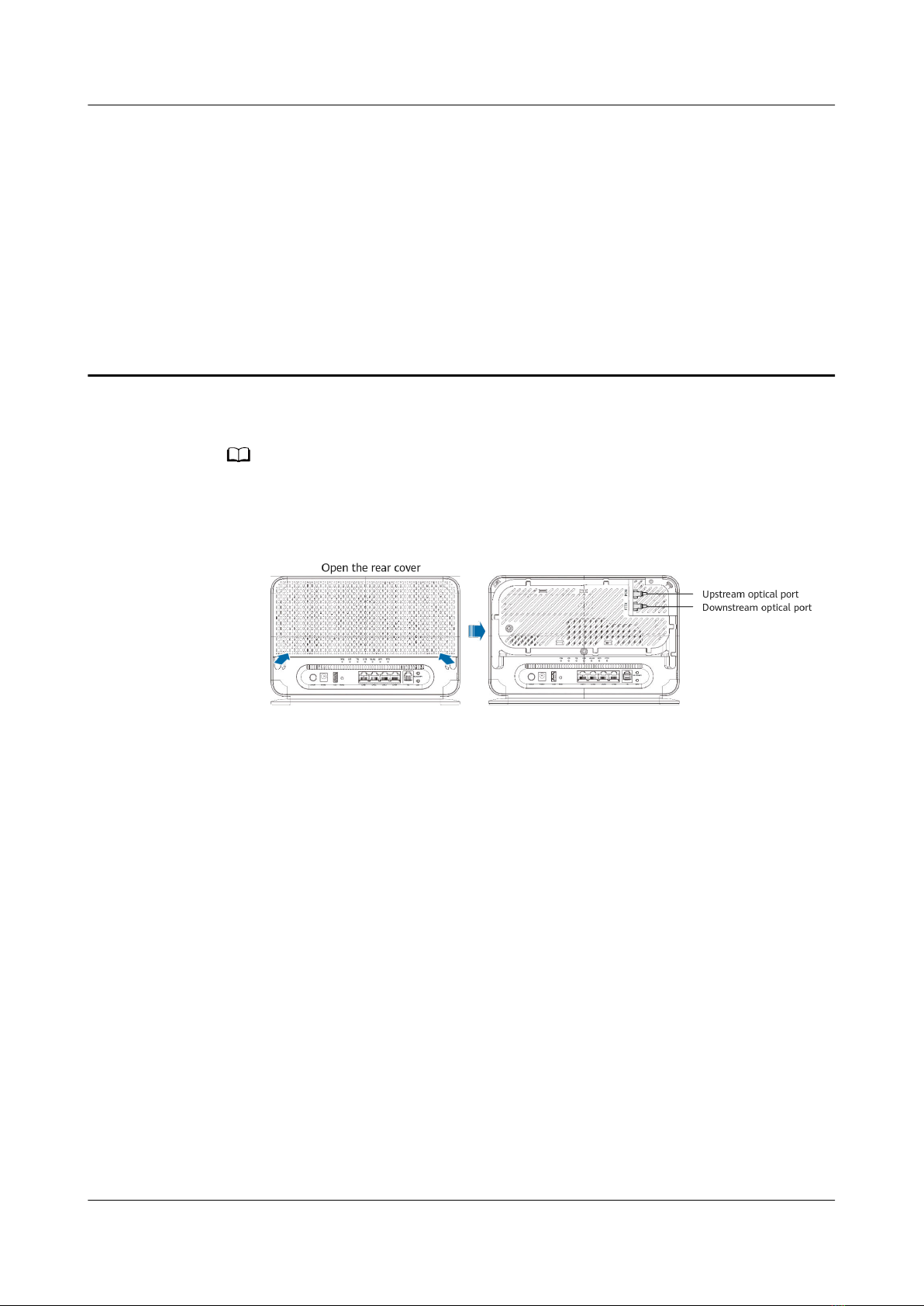

● Before connecting optical bers, open the rear cover of the Master FTTR.
Huawei OptiXstar V183
Quick Start 3 Connecting Cables
Issue 01 (2023-04-28) Copyright © Huawei Technologies Co., Ltd. 3

Huawei OptiXstar V183
Quick Start 3 Connecting Cables
Issue 01 (2023-04-28) Copyright © Huawei Technologies Co., Ltd. 4

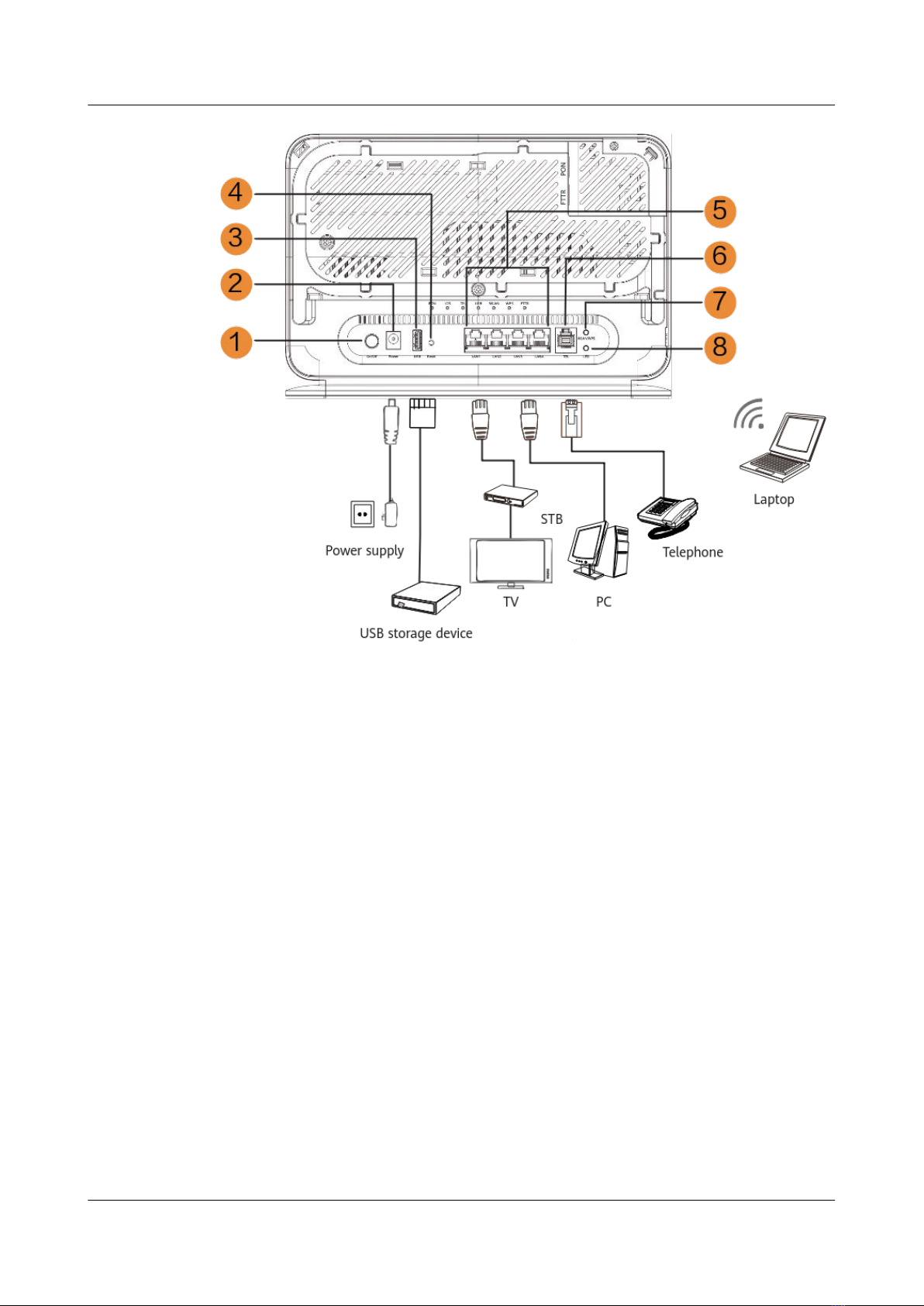

No. Port/Button Description
1On/O Turns on or o the device.
2 Power Connects to a power cable.
3 USB Connects to a USB device.
4 Reset Restarts the device.
When the device is started, use a needle-type object to
press this button to restart the device. Press and hold this
button for more than 10 seconds to restore factory
settings and restart the device.
5 LAN1 to
LAN4
Connects to a computer, IP STB, or router and supports
10/100/1000 Mbit/s auto-sensing.
6 TEL Connects to a telephone or fax machine.
Huawei OptiXstar V183
Quick Start 3 Connecting Cables
Issue 01 (2023-04-28) Copyright © Huawei Technologies Co., Ltd. 5

No. Port/Button Description
7 WLAN/WPS Integrates the function of WLAN and WPS.
● When the wireless function (WLAN) is enabled, press
the WLAN/WPS switch for 1s to 5s to start Wi-Fi
protected setup (WPS) negotiation.
● When the wireless function (WLAN) is enabled, press
and hold the button WLAN/WPS switch for more than
5s to turn o the wireless function (WLAN).
● When the wireless function (WLAN) is disabled, tap the
WLAN/WPS switch for more than 1s to turn on the
wireless function (WLAN).
8 LED Indicates the indicator switch.
● On: The indicator is working properly.
●O: All indicators are o.
NOTE
You are advised to turn on the indicator switch to detect
abnormal indicator status in a timely manner.
9 FTTR Indicates a P2MP optical port, which is connected to the
ber distribution unit.
10 PON Connects to drop cables and supports GPON or XGS-PON
upstream access.
Huawei OptiXstar V183
Quick Start 3 Connecting Cables
Issue 01 (2023-04-28) Copyright © Huawei Technologies Co., Ltd. 6

4 Indicator Description
Indicator Status Description
Indicator on
the front
panel
(above the
logo)
Steady on ● Steady red: The device is being powered on,
or the device has been started but is not
connected to the Internet.
● Steady white: The device is started and
connected to the Internet.
O The device is powered o.
PON/LOS See the following table.
LAN1-LAN4
(with LED
indicators)
Steady on The network port is connected, but no data is
being transmitted.
Blinking The network port is connected and data is
being transmitted.
O The network port is not connected.
TEL Steady on The telephone service is enabled.
Blinking The phone is being used.
O The telephone service is disabled.
USB Steady on The USB port is connected, but no data is
being transmitted.
Blinking Data is being transmitted over the USB port.
O The USB port is not connected.
WLAN Steady on The WLAN function is enabled.
Blinking Data is being transmitted.
O The WLAN function is disabled.
WPS Steady on WPS authentication is enabled.
Huawei OptiXstar V183
Quick Start 4 Indicator Description
Issue 01 (2023-04-28) Copyright © Huawei Technologies Co., Ltd. 7

Indicator Status Description
Blinking Terminals such as mobile phones are accessing
the network.
O WPS authentication is disabled.
FTTR Steady on Optical signals are detected on at least one
downstream Slave FTTR.
O No ber is connected or no optical signal is
received.
Status
No.
PON Status LOS Status Description
1 Blinking
rapidly
(twice per
second)
O The device is attempting to connect to
the upper-layer device.
2 Steady on O The device is connected to the upper-
layer device.
3O Blinking
slowly
(once every
two
seconds)
No ber is connected or no optical signal
is received.
4 Blinking
slowly
(once every
two
seconds)
Blinking
slowly
(once every
two
seconds)
Indicates a hardware fault.
Huawei OptiXstar V183
Quick Start 4 Indicator Description
Issue 01 (2023-04-28) Copyright © Huawei Technologies Co., Ltd. 8

NO TE
1. If the Master FTTR is not powered on or the power switch of the Master FTTR is turned
o, all indicators are in the O state.
2. What can I do if the indicator status is abnormal?
a. Check whether the corresponding optical, network, POTS, or USB port is properly
connected.
One end of the ber connector is located at the rear of a Master FTTR, and the other
end is located on the wall or in the weak-current box.
Note: Do not look into an optical port with naked eyes.
b. If the WLAN indicator is abnormal, press the WLAN/WPS button on the Master FTTR
to enable the WLAN function.
c. Restart the Master FTTR.
Press the On/O button to turn o the Master FTTR. After a few seconds, turn on the
Master FTTR.
d. If the fault persists, contact the operator's service hotline and turn to the installation
and maintenance personnel for help.
Huawei OptiXstar V183
Quick Start 4 Indicator Description
Issue 01 (2023-04-28) Copyright © Huawei Technologies Co., Ltd. 9

5 FAQs
NO TE
You are advised to use the latest browser to log in to the web conguration page. Chrome
58/Edge 14/Firefox 54/Safari 10/Opera 55 or later is recommended. If the browser of an
earlier version is used, compatibility issues may occur.
How do I log in to the Master FTTR web page?
● Wireless login
1. Connect your mobile phone, pad, or PC to the Wi-Fi network of the Master
FTTR.
2. Enter the IP address in the address box of a browser and press Enter. On the
displayed login page, enter the username and password. (For details about
the IP address, login username, and password, see the product nameplate.)
● Wired login
1. Use a network cable to connect a PC to the Master FTTR.
NO TE
The preceding cable connection diagram and login pages are only for reference, and
those of the actual product prevail.
2. Set the IP address of the PC in the same subnet as the web address of the
Master FTTR. For example, if the web address of the Master FTTR is
192.168.a.b (for the web address of the Master FTTR, see the product
nameplate), set the IP address of the PC to 192.168.a.c..
3. Log in to the web conguration page.
a. Open a browser. In the address box, enter the web address (printed on
the nameplate of the Master FTTR). Press Enter.
Huawei OptiXstar V183
Quick Start 5 FAQs
Issue 01 (2023-04-28) Copyright © Huawei Technologies Co., Ltd. 10

b. Enter the login user name and password (printed on the nameplate of
the Master FTTR). Click Log In.
NO TE
● If you do not perform any operations after logging in to the system within five
minutes, you will be logged out, and the system automatically returns to the login
interface.
● The system will be locked for one minute if you input incorrect user name and
password for three consecutive times.
● Change the initial password after logging in to the web page for the rst time.
How do I change the Wi-Fi password?
1. Log in to the Master FTTR web page using your mobile phone, pad, or PC. For
details, see "How do I log in to the Master FTTR web page?"

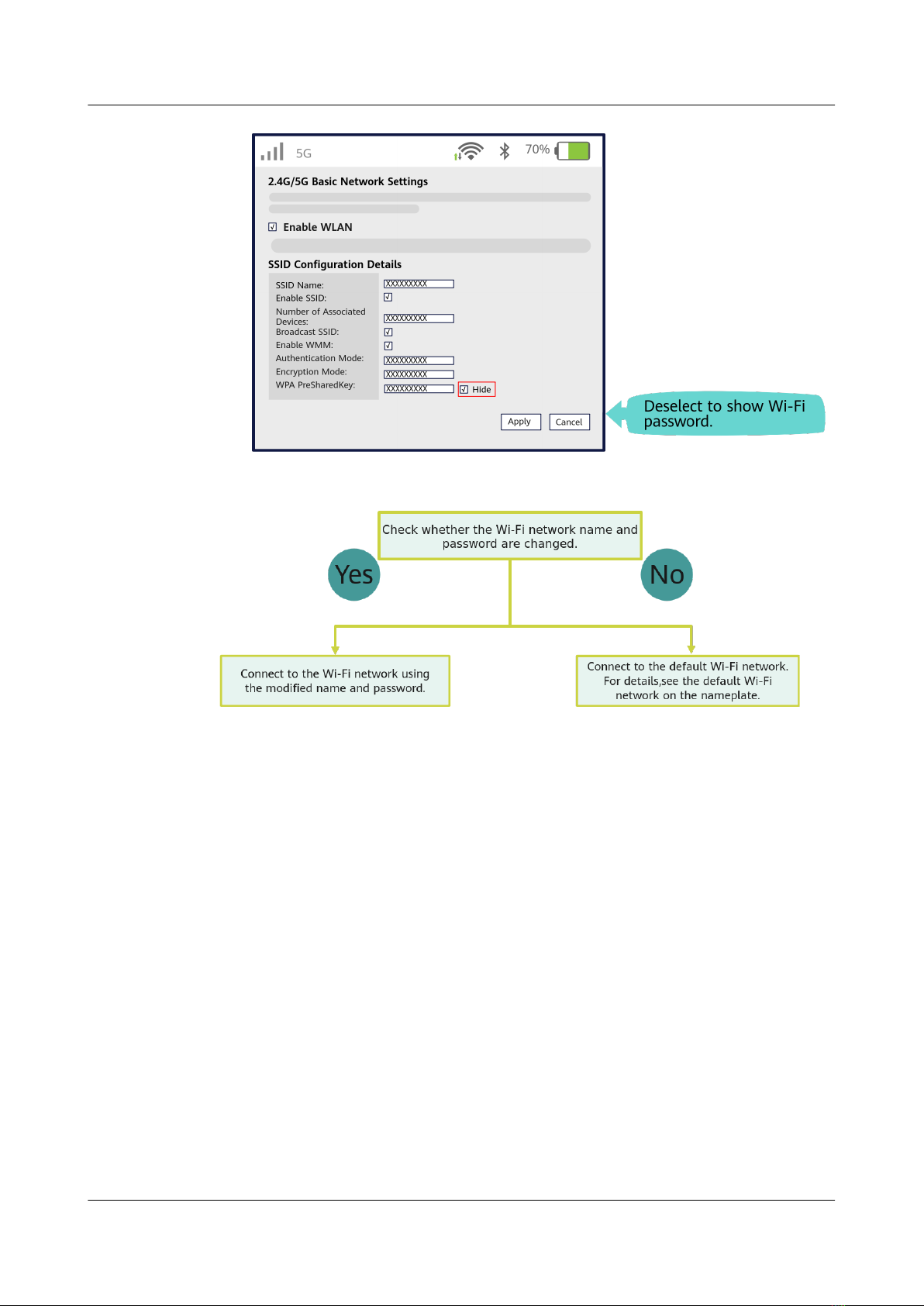

2. Choose the Advanced > WLAN tab and choose 2.4G Basic Network Settings.
(If you want to congure 5GHz Wi-Fi, choose 5G Basic Network Settings.)
What can I do if I forget the Wi-Fi password?
1. Log in to the Master FTTR web page using your PC by wired login. For details,
see "How do I log in to the Master FTTR web page?"
2. Choose the Advanced > WLAN tab and choose 2.4G Basic Network Settings.
(If you want to congure 5GHz Wi-Fi, choose 5G Basic Network Settings.)
Huawei OptiXstar V183
Quick Start 5 FAQs
Issue 01 (2023-04-28) Copyright © Huawei Technologies Co., Ltd. 11

What can I do if I cannot connect to the Wi-Fi network?
How to improve the Wi-Fi speed of a Master FTTR?
1. Wi-Fi speed relies on the bandwidth provided by the ISP, so the simplest way
is to upgrade to faster broadband.
2. Wi-Fi speed is aected by the Wi-Fi signal strength and quality.
2.1 Determine the deployment positions of Master FTTR based on house
structures, indoor obstacles, and electrical appliance-caused interferences. If
possible, put Master FTTR in the middle of a planned coverage area and
ensure that no obstacles exist and they are placed at high positions for better
coverage. In addition, ensure that the Master FTTR is far away from
interference sources such as TVs, refrigerators, cordless phones, and Bluetooth
devices.
2.2 Note that load-bearing walls, oors, and metal coated glass may block
Wi-Fi signals, avoid or reduce these obstacles between the Master FTTR and
Wi-Fi devices (such as pads, mobile phones, and laptops). For outdoor yards,
large balconies, and compound rooms, etc., it is recommended to add
repeaters to enhance the Wi-Fi coverage.
2.3 For common places where users access the Internet, such as a living room,
study room, or master room, pre-evaluate whether their signal strength is
strong enough. If the signal strength is insucient(Generally, lower than
-72dBm), it is recommended to adjust Master FTTR positions or add new
repeaters to enhance the Wi-Fi coverage.
Huawei OptiXstar V183
Quick Start 5 FAQs
Issue 01 (2023-04-28) Copyright © Huawei Technologies Co., Ltd. 12

3. Using the correct radio channel. Generally, the Master FTTR automatically
selects the optimal channel. If the network is slow or the quality turns poor
from time to time, you can use a Wi-Fi scanner such as Wi-Fi Stumbler or Wi-
Fi Analyzer to search for the optimal channel.
4. To prevent unauthorized network access, log in to the web interface of the
router and select MAC address ltering based on your requirements.
What can I do if the network speed is slow?
1. Check whether network cables are properly connected. Remove and then
insert the network cables. Then, check whether the network speed is normal.
2. Check whether downloading, network video watching, or other operations
occupy a large amount of bandwidth. Due to bandwidth restrictions, if some
network applications occupy a large amount of network bandwidth, the
network speed is slow.
3. Use another PC, mobile phone, or pad to check whether the network speed is
normal.
A phone does not ring upon an incoming call but communication is in
normal state when the phone is in o-hook state.
● The Master FTTR supports a maximum of 60 V AC ringing current voltage.
Check whether the ringing current voltage of the phone is higher than 60 V
AC. If it is higher than 60 V AC, replace the phone.
How do I restore the Master FTTR to factory setting?
Press Reset by using a needle-type object for longer than 10s to restore factory
defaults and reset the Master FTTR. If the indicator is o and then is lit, the
system restarts successfully.
NO TE
Exercise caution when restoring factory settings. This function may cause the loss of Master
FTTR conguration information and further cause an Internet access failure. If this problem
occurs, contact your service provider for help.
How can I download Master FTTR rmware or software?
Master FTTR is used with an OLT and NMS of a required version. If the versions
are not the required ones, the Master FTTR may not work.
If required, contact your internet service provider to obtain the correct Master
FTTR rmware or software.
Huawei OptiXstar V183
Quick Start 5 FAQs
Issue 01 (2023-04-28) Copyright © Huawei Technologies Co., Ltd. 13
