Huawei AR530 Series User manual

HUAWEI TECHNOLOGIES CO., LTD
Quick Start Guide
Issue: 04 (2018-10-26)
Part number: 31507897
AR530 Series Industrial Switching Routers

Thank you for purchasing a Huawei AR series router. This guide describes how to install AR530 series routers. It also
explains how to log in to your router for the first time.
For more information, see the Hardware Installation and Maintenance Guide for your router on the Huawei
support website.
The installation, connection, and login methods of AR530 series industrial switching routers are similar. This
document uses the AR531-F2C-H router as an example.
Figures in the document are for reference only and may be different from actual devices.
1 About This Guide
2 Packing List
3 Safety Guidelines
To ensure personal and equipment safety, observe all the safety precautions on the equipment and in this
document. WARNING and CAUTION items do not cover all the safety precautions and are only supplementary
to the safety precautions.
Follow all the safety precautions and instructions provided by Huawei. The safety precautions outlined in this
document are only requirements of Huawei and do not include general safety requirements. Huawei is not
liable for any consequence that results from violation of regulations pertaining to safe operations or safety
codes pertaining to design, production, and equipment use.
During installation and maintenance, take ESD protection measures, for example, wear ESD gloves or an ESD wrist strap.
During router transport and installation, prevent the router from colliding with objects like doors, walls, or shelves.
Do not place other objects on the router.
CAUTION
WARNING
AR530 series industrial switching routers are class B products. In a domestic environment, these products may cause radio
interference in which case the user may be required to take the adequate measures.
1
4 Site Environment
Do not place this product in an environment with flammable or explosive gases, or smoke.
The installation site must be free from leaking or dripping water or heavy dew. If the relative humidity is high,
use dehumidifiers or air conditioners with dehumidification features.
The installation site must be well ventilated, and the air vents of the router must not be blocked.
Do not place the router in a dusty environment.
Leave more than 100 mm clearance at two sides and the rear of the router for heat dissipation.
The numbers and types of items in the installation accessory package differ for different product models.
NOTE
- M4x20 screws
- M4x30 screws
- Hex bolts
- Lock nuts
Chassis (with the product model on the nameplate)
Installation accessory package:
- 4-pin AC input connector
- Console cable
- Quick Start Guide
- 8-pin input connector
- Mounting bracket
- Warranty card
- USB extension cable
- Cable outlet panel
- Stainless steel sheet
- Ground cable
- Plastic caps

2
5 Installing the Router
Scenario 1: Mounting the Router on a DIN Rail
Before the installation, ensure that the DIN rail has been secured in position.
The router is placed near the DIN rail for convenient movement.
Before You Start
Installation Procedure
Screw lock nuts on the hex bolts and fix the hex bolts on the mounting bracket.
Hang the mounting bracket on the DIN rail.
Use a combination wrench to screw the two hex bolts on the mounting bracket. When the DIN rail is fixed with
the raised hex bolts, tighten the lock nuts by rotating the wrench counterclockwise.
Align an M4x20 screw with the topmost tapped hole on the mounting bracket, and screw it about 5 mm into
the tapped hole with a Phillips screwdriver.
Use two M4x20 screws to fix the stainless steel sheet on the router.
Loosen the screws on the front top cover with the Phillips screwdriver, remove the front top cover, and keep it
in an appropriate place for later use.
Hang the router onto the topmost screw on the mounting bracket and adjust position of the router to align
the mounting holes on the router with those on the mounting bracket. Use two M4x30 screws to fix the router
onto the mounting bracket and tighten the topmost screw on the mounting bracket.
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
Step 7
1
Lock nut
3
5
AR530
Series
INFRARED
PWR
RUN/ALM
RS485-0
RS485-1
AR531-F2C-H
7
Scenario 2: Mounting the Router on a Wall
The panel with interfaces must face down to protect the interfaces from water.
Ensure that there are no flammable or explosive materials near the router and no sundries within 100 mm
around the router.
Before You Start
L1 L2 L3
FE5
FE4
FE3
FE2
N
A
RS485-0
BA
RS485-1 DI-0 DI-1
B
GE0
RX TX
GE1
MONITOR
Power Outage Survival
RX TX
FE6 FE7
CONSOLE
6

3
Installation Procedure
Align an M4x20 screw with the topmost tapped hole on the mounting bracket, and screw it about 5 mm
into the tapped hole with a Phillips screwdriver.
Use two M4x20 screws to fix the stainless steel sheet on the router.
Loosen the screws on the front top cover with the Phillips screwdriver, remove the front top cover, and
keep it in an appropriate place for later use.
Hang the router onto the topmost screw on the mounting bracket and adjust position of the router to
align the mounting holes on the router with those on the mounting bracket. Use two M4x30 screws to fix
the router onto the mounting bracket and tighten the topmost screw on the mounting bracket.
Step 3
Step 4
Step 5
Step 6
Attach the mounting bracket against the wall and adjust its position to keep the top and bottom edges
horizontal. Mark positions of the four mounting holes with a marker.
Secure the mounting bracket on the wall.
a. Adjust the position of the mounting bracket to align the mounting holes on it with the four marked
positions on the wall.
b. Use four M4 screws to secure the mounting bracket on the wall.
Step 1
Step 2
2
4
L1 L2 L3
FE5
FE4
FE3
FE2
N
A
RS485-0
BA
RS485-1 DI-0 DI-1
B
GE0
RX TX
GE1
MONITOR
Power Outage Survival
RX TX
FE6 FE7
CONSOLE
1
5
AR530
Series
INFRARED
PWR
RUN/ALM
RS485-0
RS485-1
AR531-F2C-H
6
Scenario 3: Mounting the Router in a Cabinet (Using a 530 Horizontal Rack-Mounting Kit)
There must be a clearance larger than or equal to the router's width at the left and right of the router after the
installation. The clearance above the router must be at least two times the router's height and the clearance
below the router must be greater than or equal to the router's height.
The 530 horizontal rack-mounting kit, floating nuts, M4 screws, and M6 screws are not included in the
installation accessory package and needs to be purchased separately.
Before You Start
Use two M4x20 screws to fix the stainless steel sheet on the router.Step 1
Installation Procedure
120 mm
130 mm
1

4
Loosen the screws on the front top cover with a Phillips screwdriver, remove the front top cover, and keep
it in an appropriate place for later use.
Step 2
1
L1 L2 L3
FE5
FE4
FE3
FE2
N
A
RS485-0
BA
RS485-1 DI-0 DI-1
B
GE0
RX TX
GE1
MONITOR
Power Outage Survival
RX TX
FE6 FE7
CONSOLE
2
Hang the router onto the topmost screw on the 530 horizontal rack-mounting kit and adjust position of
the router to align the mounting holes on the router with those on the rack-mounting kit. Use two M4x30
screws to fix the router onto the rack-mounting kit and tighten the top.
Install two floating nuts on each front mounting rail of the cabinet. Leave four mounting holes between
the two floating nuts on the same mounting rail.
Step 3
Step 4
1
2
3
The length of six adjacent mounting holes may not be 2 U. Observe the scale ticks on the mounting rails when installing floating
nuts.
You can use a flat-head screwdriver to install floating nuts.
NOTE
Use the Phillips screwdriver to install M6 screws on the two lower floating nuts, and leave 2 mm of the
screws out of the floating nuts.
Move the router into the cabinet with one hand supporting bottom of the router, and hook the brackets at
both sides of the mounting kit on the M6 screws.
Use the Phillips screwdriver to tighten the lower M6 screws and then the upper M6 screws.
Step 5
Step 6
Step 7
2m
m
6
75
×4
2U
4

5
6 Connecting the Router
Do not connect cables while the power is on.
Do not power on the router before you finish connecting and routing cables.
Invisible laser beams will cause eye damage. Do not look into bores of optical modules or connectors of
optical fibers without eye protection.
For details about pin assignments and cable connections, see the Hardware Description.
Before You Start
No.
1
2
3
4
5
6
7
8
Item Connect To Remarks No. Item Connect To Remarks
External power
supply system
M4 lug: to the
router
M6 lug: to the
protection ground
Terminals like
electric meters and
digital input devices
Up stream
network device
The combo interface
consists of an FE
optical interface and
an FE electrical
interface.The optical
fiber must be used
with an optical
module.
Switch or PC
Maintenance
terminal
(generally a PC)
USB flash drive
Connect to an electrical
interface to receive and
send data services.
M4 lug: the end with a
smaller hole
M6 lug: the end with a
larger hole
When the router is
powered on for the
first time, connect the
console interface to a
PC for onsite
configuration.
Ground cable
4-pin AC power
cables
Ethernet cable
RS485 and DI
cables Optical fiber
Ethernet cable
Console cable
USB extension
cable
Some industrial
switching router models
use DC power supply.
Connect 2-pin DC power
cables to these routers.
Ensure correct correction
of the positive and
negative cables.
—
—
CONSOLE
RESERVE FE0
RST
L1 L2 L3 N
A
RS485-0
BA
RS485-1DI-0DI-1
B
GE0
RX TX
GE1
MONITOR
RX TX
FE2 FE4
FE1 FE3 FE5
FE6
Power outage Survival
FE7
L1 L2 L3 N
1A 1B
2A 2B
4
7
5
6
23
18

AR530
Series
INFRARED
PWR
RUN/ALM
RS485-0
RS485-1
AR531-F2C-H
6
7 Logging In to the Router for the First Time
Before You Start
If your PC's operating system provides terminal simulation software (like HyperTerminal in Windows 2000), you
do not need to install additional terminal simulation software. If the PC runs on an operating system without
terminal simulation software (like Windows 7), install third-party terminal simulation software on the PC by
referring to user manual or online help.
A PC may have more than one serial port. Select the port connected to the console port. Generally, COM1 is
used. If you modify the serial port communication parameters on the router, modify the communication
parameters on the PC to ensure that they use the same communication parameters, and then set up the
connection again.
If the web page is displayed abnormally, the browser version may be too low. Upgrade the browser and log in
to the web platform using Mozilla Firefox 12.0 or later, Google Chrome 23 or later, or Internet Explorer 8.0 or
later.
The login page varies according to version.
PWR
RUN/ALM
RS485-0
RS485-1
Login Procedure
Step 1
Step 2
Step 3
Turn on the power switch on the external power supply and log in to the
router after the PWR indicator steady green (indicating that the system
power supply is normal) and RUN/ALM indicator slow blinking green
(indicating that the system is running properly).
Use a console cable to connect a PC to the console interface of the router.
Start the terminal simulation software, create a connection, specify the
connected port, and set communication parameters as follows:
Transmission rate: 9600
Data bit (B): 8
Parity bit: None
Stop bit (S): 1
Flow control mode: None
Step 4 Press Enter until a message is displayed asking you to enter the username and password. (The following
information is for reference only.)
Login authentication
Username:admin
Password:
<Huawei>
Info:The entered password is the same as the default. You are advised to
change it to ensure security.
After successful login, you can configure the router on the command line interface. For more information, see the
CLI-based Configuration.

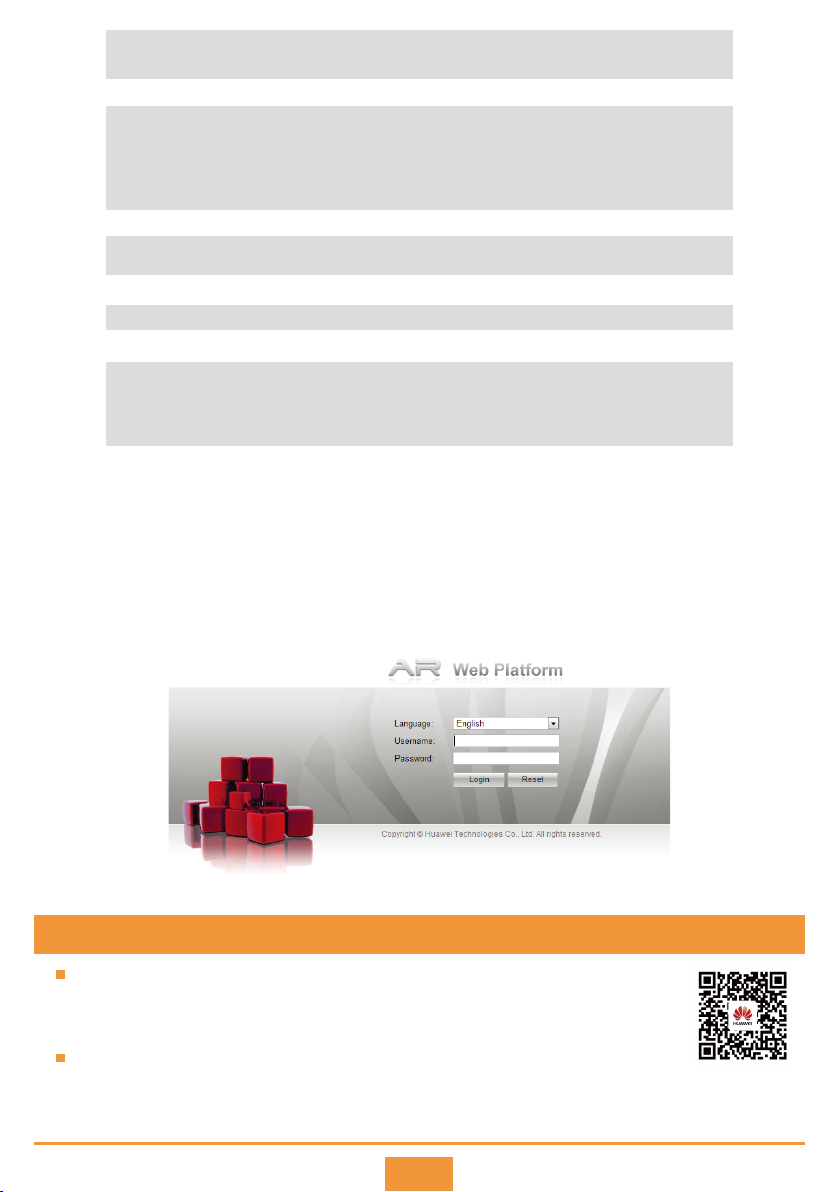

To configure the router using the web-based management system, perform the following steps.
Connect a PC to the management interface of the router using an Ethernet cable.
Configure a management IP address for the router.
For example, set the management IP address to 192.168.1.1/24 on GE0/0/0.
Step 5
Step 6
The default user name is admin and the default password is Admin@huawei.
If you forget the login password, restore the password according to the Troubleshooting.
NOTE

7
<Huawei> system-view
[Huawei] interface gigabitethernet 0/0/0
[Huawei-GigabitEthernet0/0/0] ip address 192.168.1.1 24
Configure an HTTP user. The HTTP user level is management level.Step 7
<Huawei> system-view
[Huawei] aaa
[Huawei-aaa] local-user admin password irreversible-cipher Admin@huawei
[Huawei-aaa] local-user admin privilege level 15
[Huawei-aaa] local-user admin service-type http
[Huawei-aaa] quit
[Huawei] quit
Configure a server SSL policy.Step 8
[Huawei] ssl policy userserver type server
[Huawei-ssl-policy-userserver] pki-realm default
Apply the SSL policy userserver to the HTTPS server.Step 9
[Huawei] http secure-server ssl-policy userserver
Enable the HTTPS server function on the router.Step 10
[Huawei] http secure-server enable
This operation will take several minutes, please
wait.........................................................
Info: Succeeded in starting the HTTPS server
[Huawei] quit
Configure an IP address for the PC. The IP address must be in the range of 192.168.1.2 to
192.168.1.254.
Start the browser, enter https://192.168.1.1 in the address box, and press Enter to display the login
page.
Enter the user name admin and password Admin@huawei (case sensitive).
Step 11
Step 12
Step 13
You can use the web-based management system to configure the router. For details, see Web-based
Configuration.
Log in to Huawei enterprise technical support website
(http://support.huawei.com/enterprise), and select a specific product model and version to
find its documentation.
Log in to Huawei enterprise support community (http://support.huawei.com/ecommunity)
and post your questions in the community.
8 Obtaining Product Documentation and Technical Support
Huawei Enterprise
Technical Support

8
In V200R005C20 and later versions, you can open the web login page of your router, and click Open Source
Software Notice at the lower right corner of the page to view details about the open source software notice.
9 Open Source Software Notice
Copyright © Huawei Technologies Co., Ltd. 2018. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by
any means without prior written consent of Huawei Technologies Co., Ltd.
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the
property of their respective holders.
Qualification Card
PASS
Qualification Card
11 Trademarks and Permissions
Unique Identifier: trade name: HUAWEI; product name: Router;
model number: AR530 series routers
Responsible Party- U.S. Contact Information
Huawei Technologies USA Inc.
5700 Tennyson Parkway, Suite 500
Plano, Texas 75024
Main: 214-919-6000 / TAC Hotline: [phone]
FCC Compliance Statement ( for products subject to Part 15)
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
10 Supplier’s Declaration of Conformity (SDoC)
