Introduction to OceanStor V3 Series
Before You Start
OceanStor 5300 V3 and 5500 V3
V300R006
Quick Installation Guide
Issue: 08
BOM: 31508456
Date: 2018-12-06
Huawei OceanStor V3 series storage systems are innovative offerings that are ready to meet your current and
future storage requirements. They are designed to provide medium- and large-scale enterprises with improved
storage performance, efficiency, security, scalability, and manageability.
This guide describes how to quickly install OceanStor 5300 V3 and 5500 V3. For more information, see the
OceanStor 2000, 5000, and 6000 V3 Series V300R006 Installation Guide.
You can obtain the product documentation from http://enterprise.huawei.com. You can also register for a
Huawei support account at this website to browse and download valuable information and sign up for product
updates.
5300 V3 5500 V3 5600 V3 5800 V3 6800 V3
Your feedback is important to us. If you have any comments about this document, go to
http://support.huawei.com/enterprise (Huawei enterprise technical support website) to submit your
feedback and suggestions.
The product models applicable to this document:
OceanStor 5300 V3 and 5500 V3

Arrange for at least three persons to carry and install an enclosure to avoid personal injury or device damage.
Before you handle devices, wear ESD clothes, wear a pair of ESD gloves or an ESD wrist strap, and remove
conductive objects such as ornaments and watches.
Do not operate devices or handle cables on a stormy day.
To avoid eye injuries, do not look into the optical outlets without eye protection.
To avoid electric shock, do not wear an ESD wrist strap during the power-on process.
Scenario 1 Wearing an ESD wrist strap whose
ground terminal is a plug Scenario 2 Wearing an ESD wrist strap whose
ground terminal is a metal clip
Installation Process
Safety Information
Initializing the Storage System
A generic view
of cable connections
(Optional) Connecting ground
cables
Connecting disk enclosures
Connecting the storage system
to the network
Connecting to the maintenance
terminal
Connecting power cables
Checking device installation
Checking cable connections
Switching on external
power supplies
Pressing the power button
on the controller enclosure
Checking status indicators
Installing front panels
Installation Preparations
Installing
Devices
Connecting Cables
Powering On the
Storage System
Checking
Hardware Installation
(Optional) Installing Host Software
2
Checking installation tools
Checking circuit breakers
Checking components
Planning device installation positions
Removing filler panels from device
installation positions
Determining device installation
positions using installation templates
Installing guide rails
Installing storage devices
into the cabinet
Installing a cable tray
(Optional) Installing disk modules
(Optional) Installing filler panels
CAUTION
Do not remove or insert controllers, disks, expansion modules, or cables during the power-on process to prevent
data loss.
NOTICE

1c Checking components
The following installation tools are required:
Phillips screwdriver (M3 to M6)
Flat-head screwdriver (M3 to M6)
Diagonal pliers
Floating nut mounting bar
A storage system power failure may cause devices connected
to the same circuit breaker to power off unexpectedly.
Therefore, ensure that the storage system power supplies
have functioning circuit breakers with the following amps:
AC power: not smaller than 10 A
DC power: not smaller than 30 A for controller enclosures,
not smaller than 18.5 A for disk enclosures
1 Installation Preparations
Only materials used in the installation process are listed here. The Packing List contains all materials required by the installation. The bag
containing the Packing List is attached to the outside of the carton.
Each controller of the OceanStor 5300 V3 is equipped with four GE electrical ports. Each controller enclosure of the OceanStor 5500 V3 is
equipped with four SmartIO ports that do not support IP Scale-out networking. The following sections describe the process for installing the
OceanStor 5500 V3. The process for installing the OceanStor 5300 V3 is similar.
3
Disk enclosure (2 U)
Controller enclosure (2 U)
Installation template
(for 2 U devices) Front panel of a
2 U device
High-density disk enclosure (4 U)
Adjustable guide rails Ball bearing guide rails
Disk enclosure (4 U)
Installation template (for
4 U devices) Front panel of a 4 U
device
Checking installation tools Checking circuit breakers1b1a
NOTICE
Cable tray
Floating nut and M6 screw
Ground cable
Multi-mode optical fiber
cable Network cable Serial cable
Mini SAS HD optical
cable
Mini SAS HD electrical
cable

Planning device installation positions
Removing filler panels from device installation positions
2 Installing Devices
2b
2a
Recommended installation positions
Total required cabinet space = 2 U + 2 U x (Number of 2 U disk enclosures) + 4 U x (Number of 4 U disk enclosures)
For example, if the OceanStor 5500 V3 is equipped with three 2 U disk enclosures and three 4 U disk enclosures,
the space required by a cabinet is calculated as follows:
20 U = 2 U + 2 U x 3 + 4 U x 3
Note: The height of the storage system is measured by the unit of U. 1 U equals 44.45 mm (1.75 inches).
Tips
Install devices from the
bottom up and from heavy
to light (The total power of
all the devices cannot
exceed the total power of
the cabinet).
4
Disk enclosure (4 U)
Install the controller
enclosure in the middle of
a cabinet between 19 U
and 20 U.
Disk enclosure (4 U)
Disk enclosure (4 U)
Disk enclosure (2 U)
Controller enclosure (2 U)
Disk enclosure (2 U)
Disk enclosure (2 U)

Determining device installation positions using installation templates
2c
Scenario 2
Installation position of a 4 U device
Scenario 1
Installation position of a 2 U device
Low base of
the guide rail
On the mounting bars, use a marker to mark the holes where screws will be installed to secure the storage devices.
Installation positions of 2 U device fixing screws
Installation positions of guide rail fixing screws
Installation positions of 4 U device fixing screws
Installation positions of guide rail fixing screws
5
NOTE
Low base of the guide rail

Installing guide rails
2d

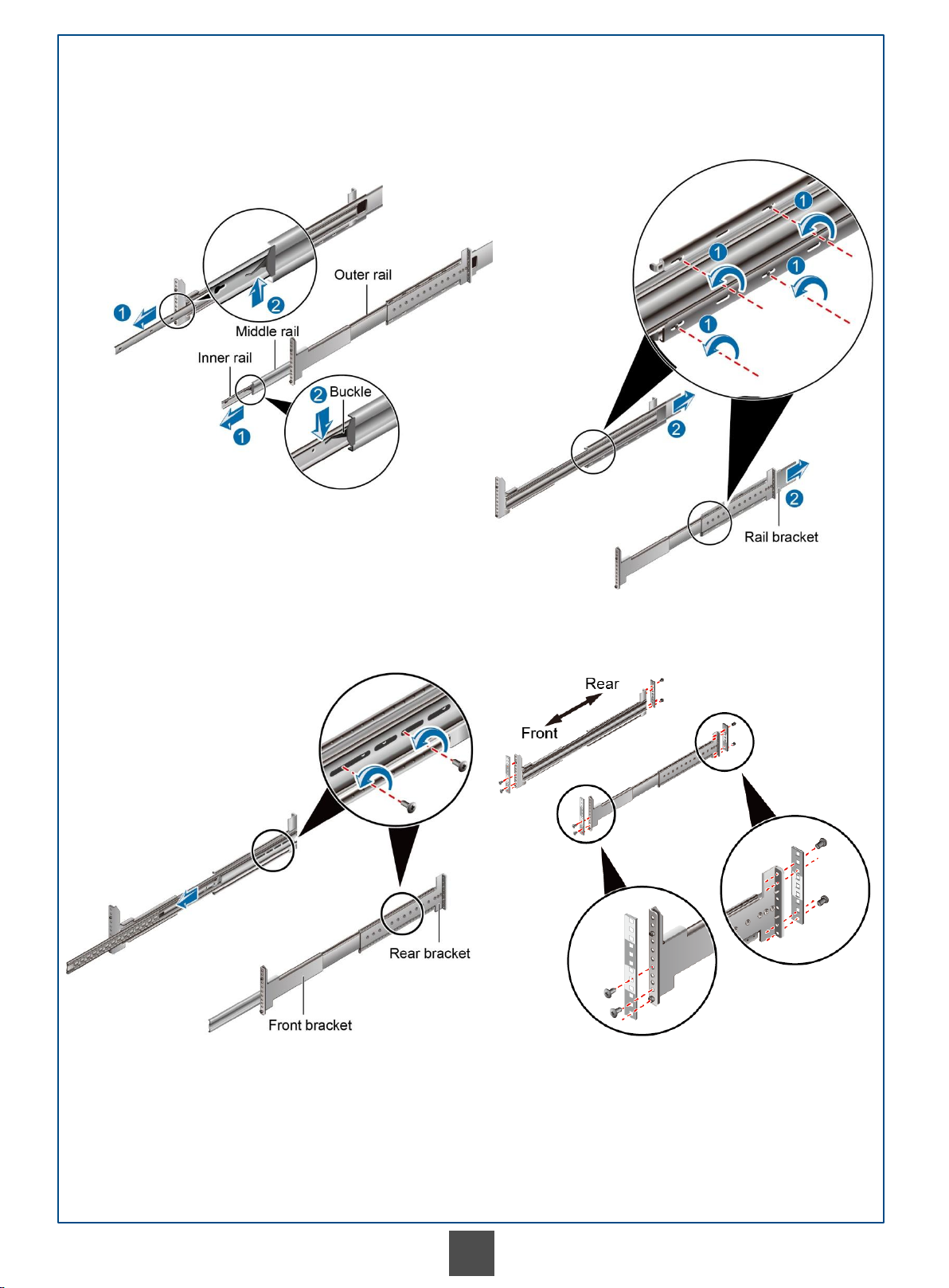

The adjustable guide rails are 600 mm (23.62 inches) to 900 mm (35.43 inches) long.
The adjustable guide rails are preconfigured with positioning pins before delivery.
Two paired adjustable guide rails must be positioned exactly parallel to one another.
Scenario 2

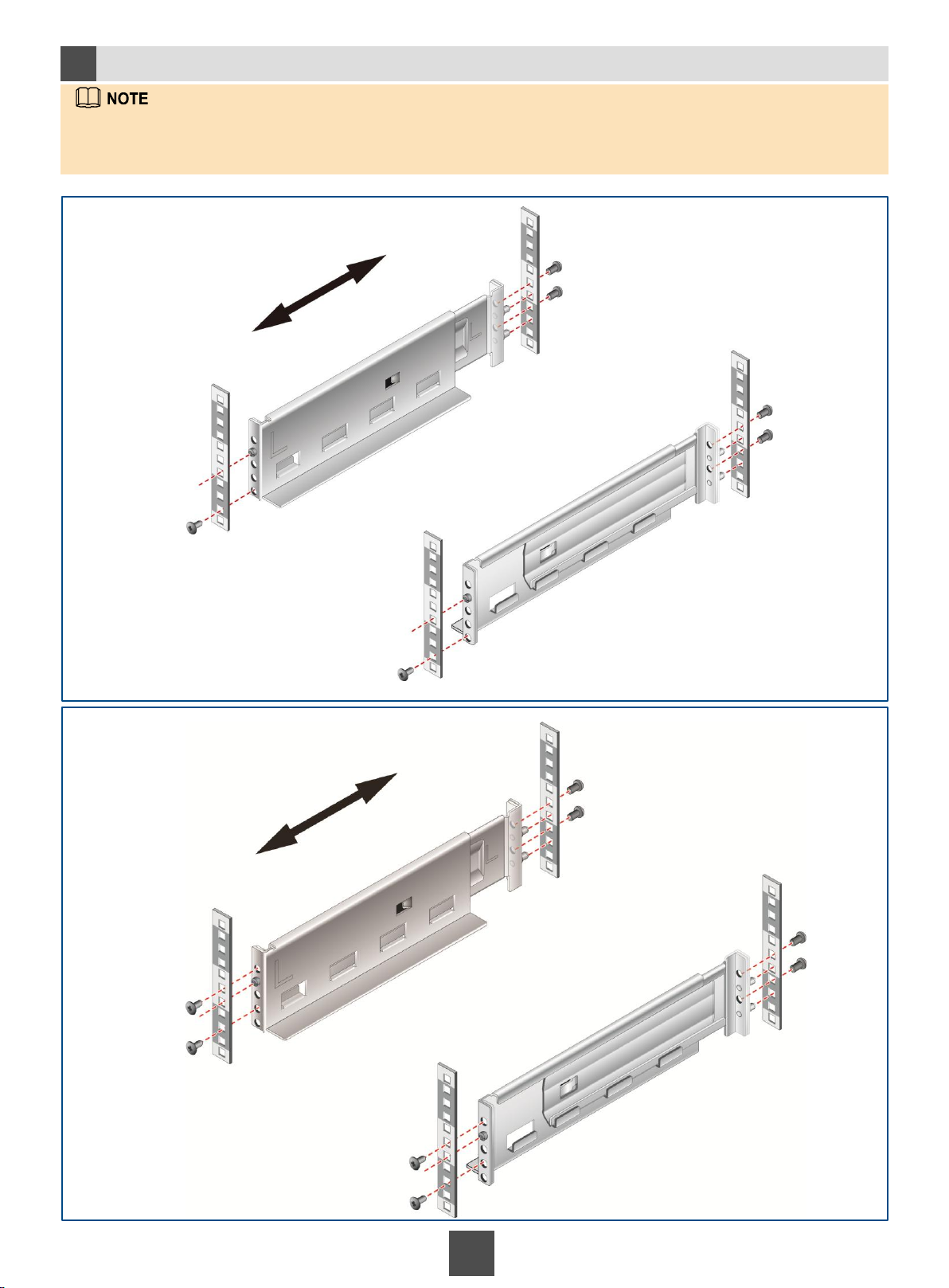

Installing adjustable guide rails for
a 4 U device
Scenario 1
Installing adjustable guide rails for a
2 U device
Front
Front
Rear
Rear
6

7
Scenario 3

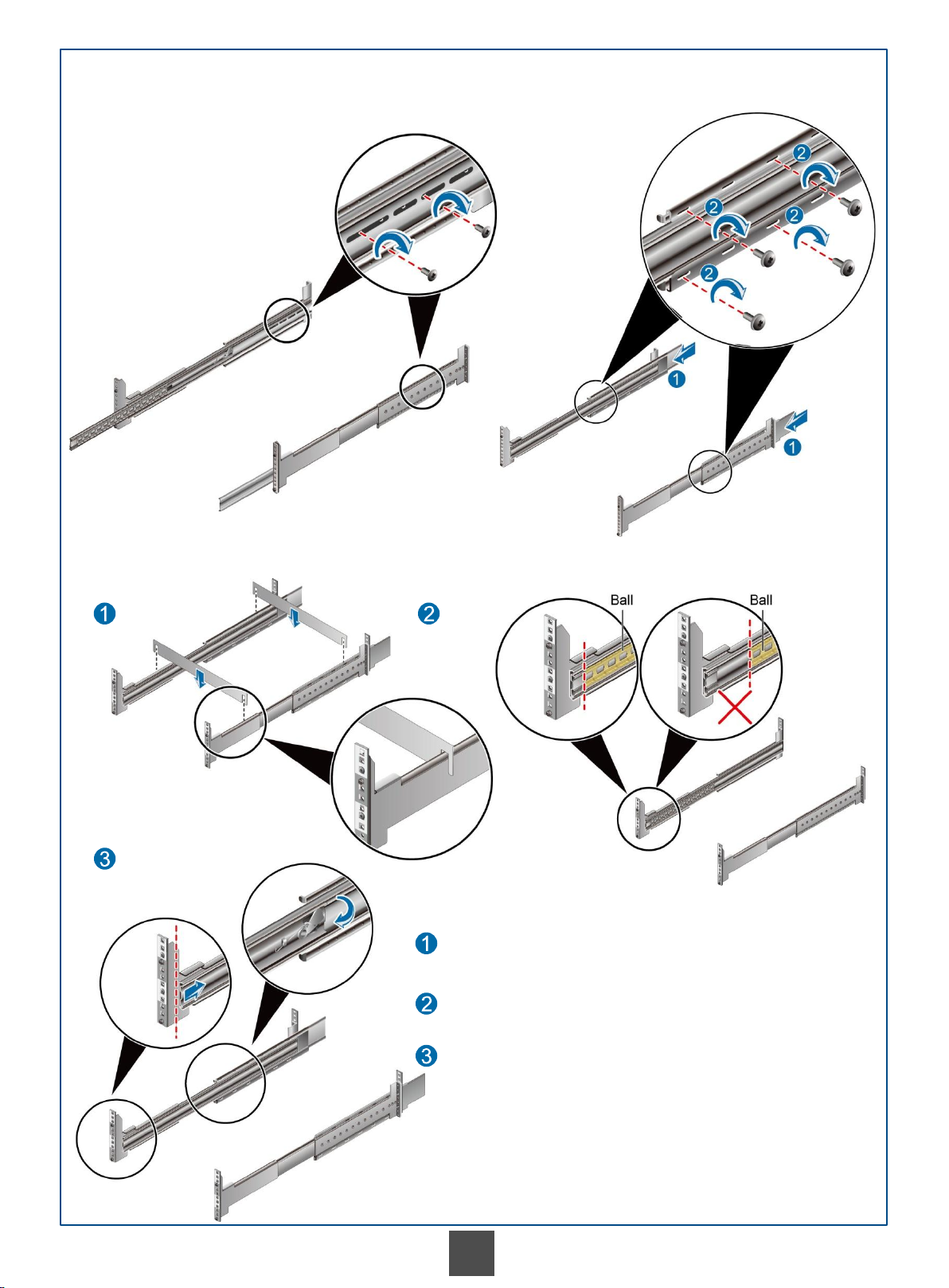

Installing ball bearing guide rails for a high-density disk enclosure
(2) Remove a rail support.(1) Pull out the inner rail of the ball bearing guide rails.
(3) Loosen the screws and adjust the length of the ball
bearing guide rail to be the same of the cabinet depth. (4) Install the ball bearing guide rails.
Left guide rail
Right guide rail

8
(6) Installing a ball bearing guide rail bracket.
(7) Check the installation of the ball bearing guide rails.ng Hardware Installation
Check the distance between the left and right guide rails, and
ensure that the two templates can align and slot into the ball
bearing guide rails.
Check that the ball of the ball bearing guide rail has been
placed at the most front end of the middle rail.
Check that the edges of the middle rail and external rail are
at the same vertical plane.
(5) Fasten screws.

9
Scenario 2 Installing a high-density disk enclosure
Scenario 1 Installing a controller enclosure and a disk enclosure
Install a disk enclosure onto the guide rails using the same method as installing the controller enclosure.
After the controller enclosure is installed, pull out the information plate from the controller enclosure, as
instructed in step 4 in the preceding figure. On the left part of the information plate, you can record the
device's management IP address. On the right of the information plate, you can use your cellphone to
scan the QR code to obtain more information.

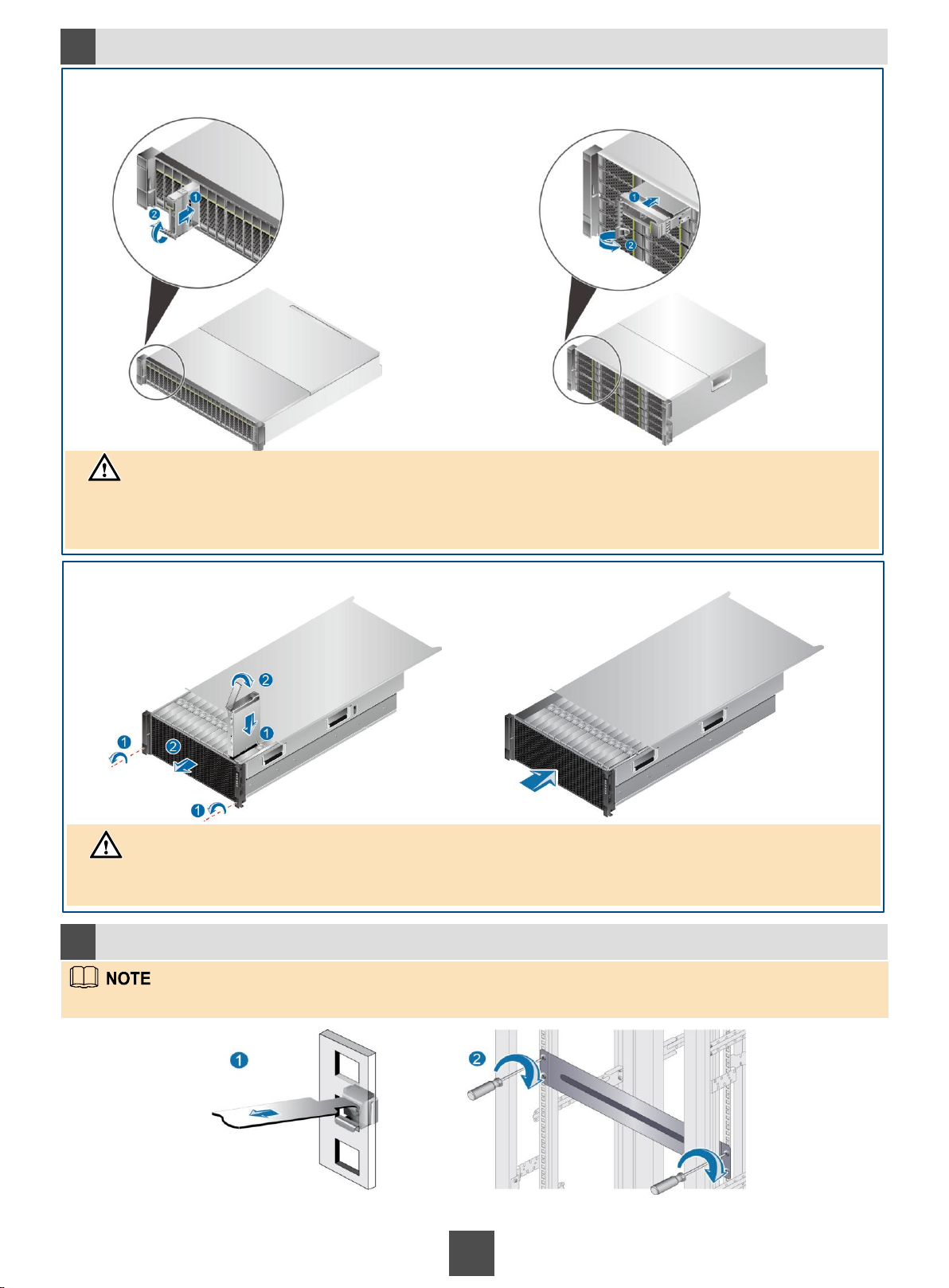

2e Installing storage devices into the cabinet
To avoid device damage, do not stack any components but install them onto guide rails.
If you remove controllers and disks for easily moving and installing enclosures, record the slots of these
controllers and disks in advance. This helps you insert controllers and disks back to their correct slots later. If a
controller is inserted into a different location, a system power-on failure may occur.
NOTICE
(1) Install the inner rail.
1. Install the inner rail onto the system enclosure.
2. Use two M4 screws to secure the inner rail.
(2) Remove the two M3 screws from the upper panel.

1010

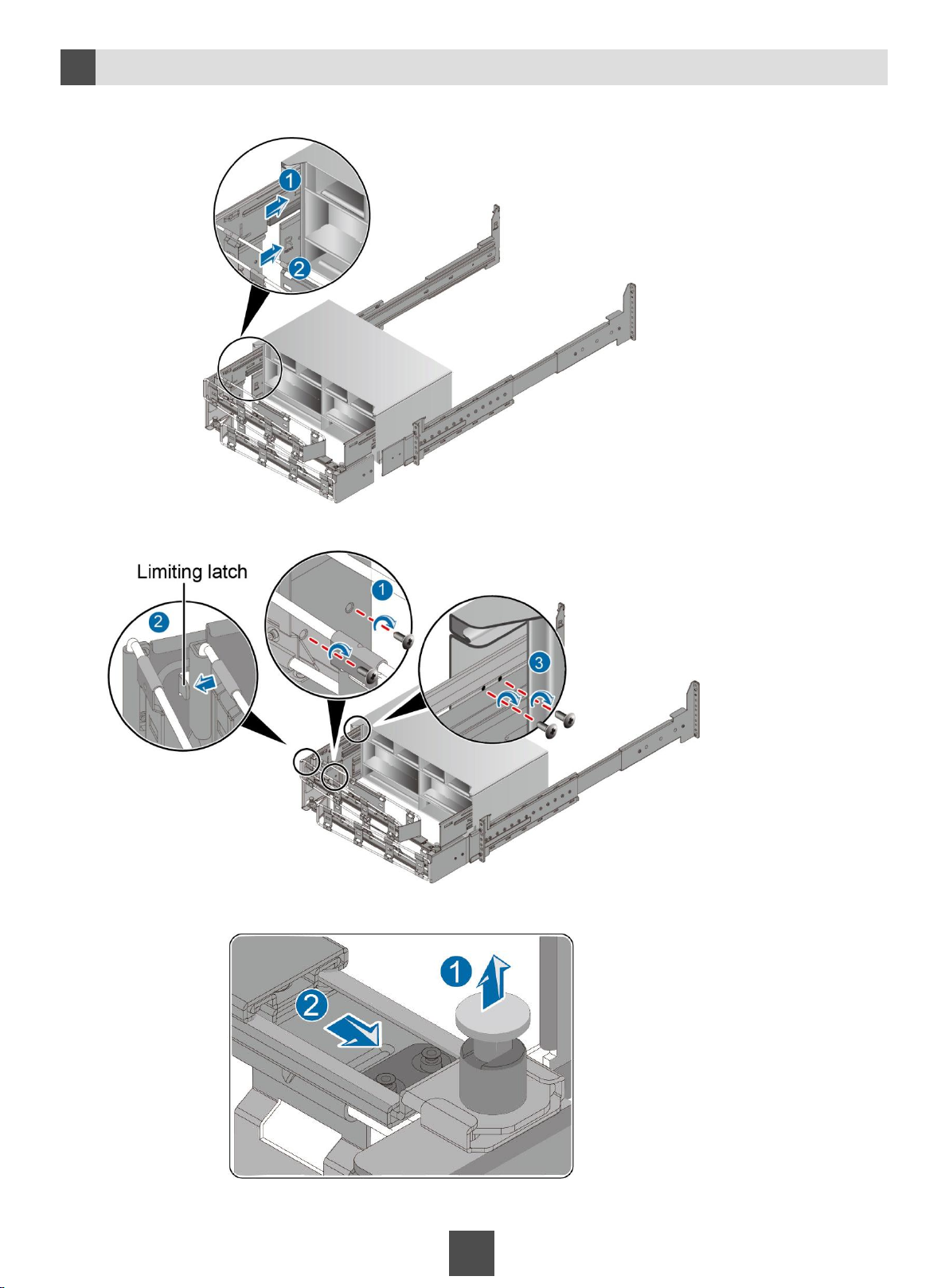

(3) Place the side step at the rear (excluding the inner rail) of the high-density disk enclosure onto the front
bracket of the ball bearing guide rails, and slide the disk enclosure into the cabinet along the ball bearing guide
rails (no manual alignment is required because the inner rail automatically connects to the middle rail).
Do not pull out the middle guide rails when sliding the high-density disk enclosure into the cabinet.
Otherwise, the guide rails may be warped.
Before you install disk modules, install the high-density disk enclosure into the cabinet.
(4) Install a cover.
1. Pull out the enclosure slowly.
2. Push the upper cover backward until the upper cover touches the mounting bars.
3. Fasten the two captive screws on the cover.

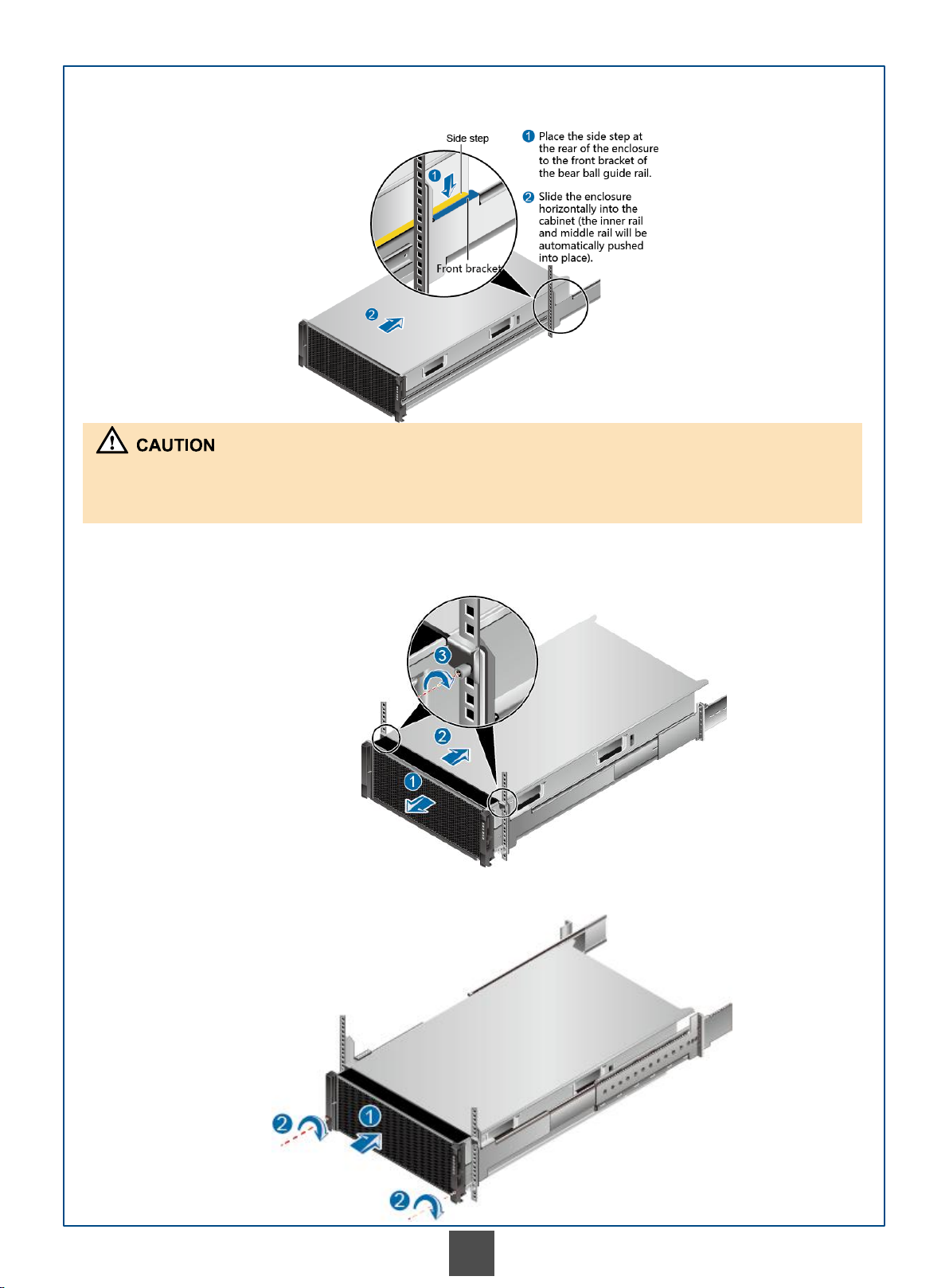

(5) Secure the high-density disk enclosure.
1. Slide the enclosure into the cabinet slowly along the ball bearing guide rails.
2. Fasten the two captive screws on the front panel.

11
2f Installing a cable tray
(1) Insert the cable tray into the ball bearing guide rails and the high-density disk enclosure.
(2) Use a Phillips screwdriver to fasten M3 screws to secure the cable tray.
(3) Install the spring pins to cable trays to secure the cable tray.

12
2g (Optional) Installing disk modules
(1) Installing disk modules into a 2 U disk enclosure
Scenario 1 Installing disk modules into a disk enclosure (2) Installing disk modules into a 4 U disk enclosure
(1) (2)
Scenario 2 Installing disk modules into a high-density disk enclosure
Install disk modules into controller enclosures in the same way.
To ensure well heat dissipation, insert disks in the sequence of disk slot IDs. If there is any vacant disk
slot, cover it with a filler panel.
NOTICE
To ensure well heat dissipation, insert coffer disks to slots of A0 to A3. Then insert disks from left to right
and from E0 to A14. If the disk module is not fully configured, cover filler panels over vacant disk slots.
NOTICE
2h (Optional) Installing filler panels
If the cabinet is equipped with filler panels, skip this procedure.

3a A generic view of cable connections on the controller enclosure
3 Connecting Cables
13
Application
server
Controller
enclosure
Disk
enclosure
Maintenance
terminal
External
power External power
When the storage system has two or more controller enclosures configured, connect cables following
instructions in the OceanStor 2000, 5000, and 6000 V3 Series V300R006 Installation Guide.

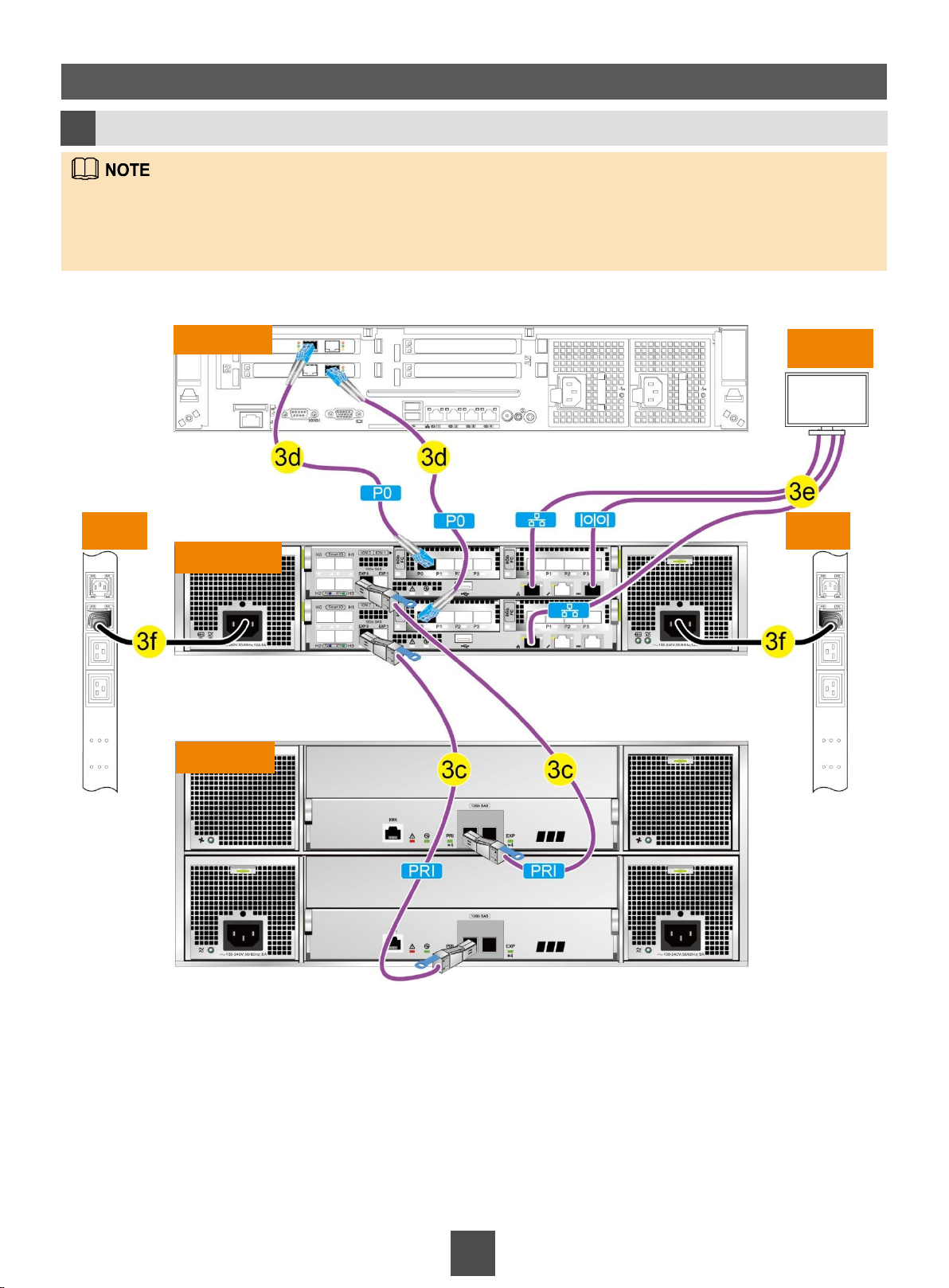

3c, 3d, 3e, and 3f in the following figure indicate the section numbers in this document.

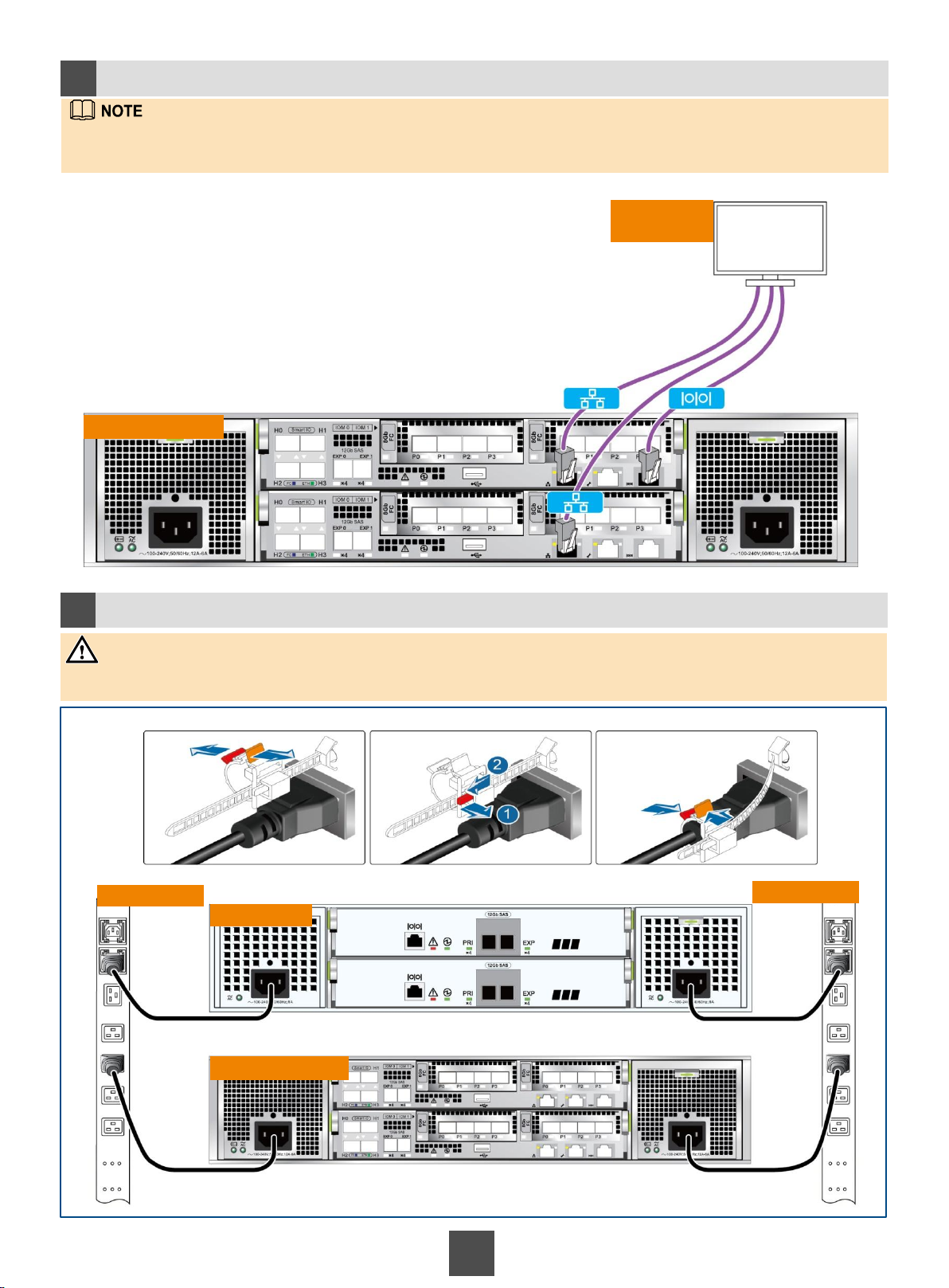

The following figure uses AC power modules as an example to describe cable connection.

14
3b (Optional) Connecting ground cables
Scenario 1

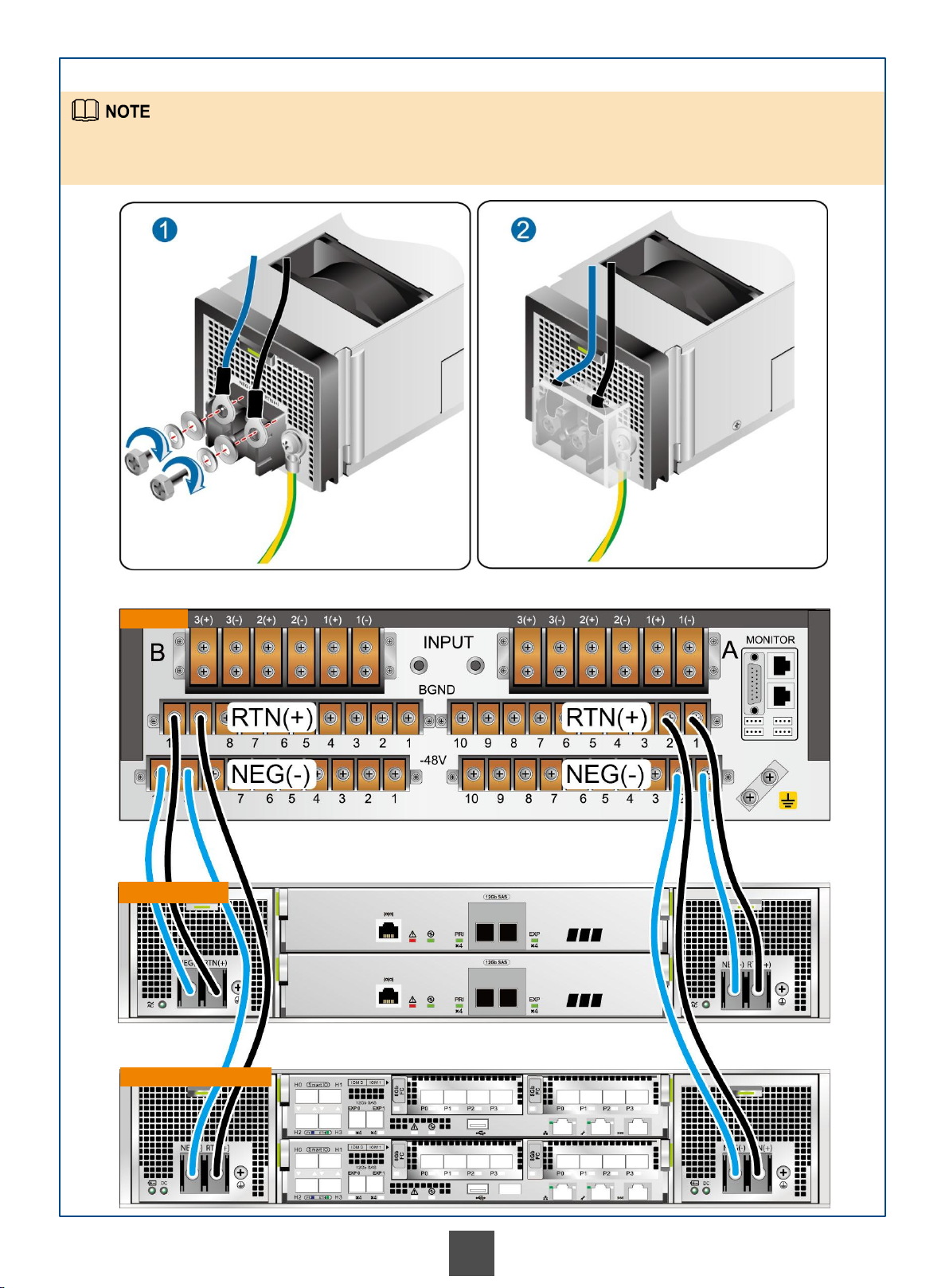

Connecting ground cables in a DC scenario
Scenario 2

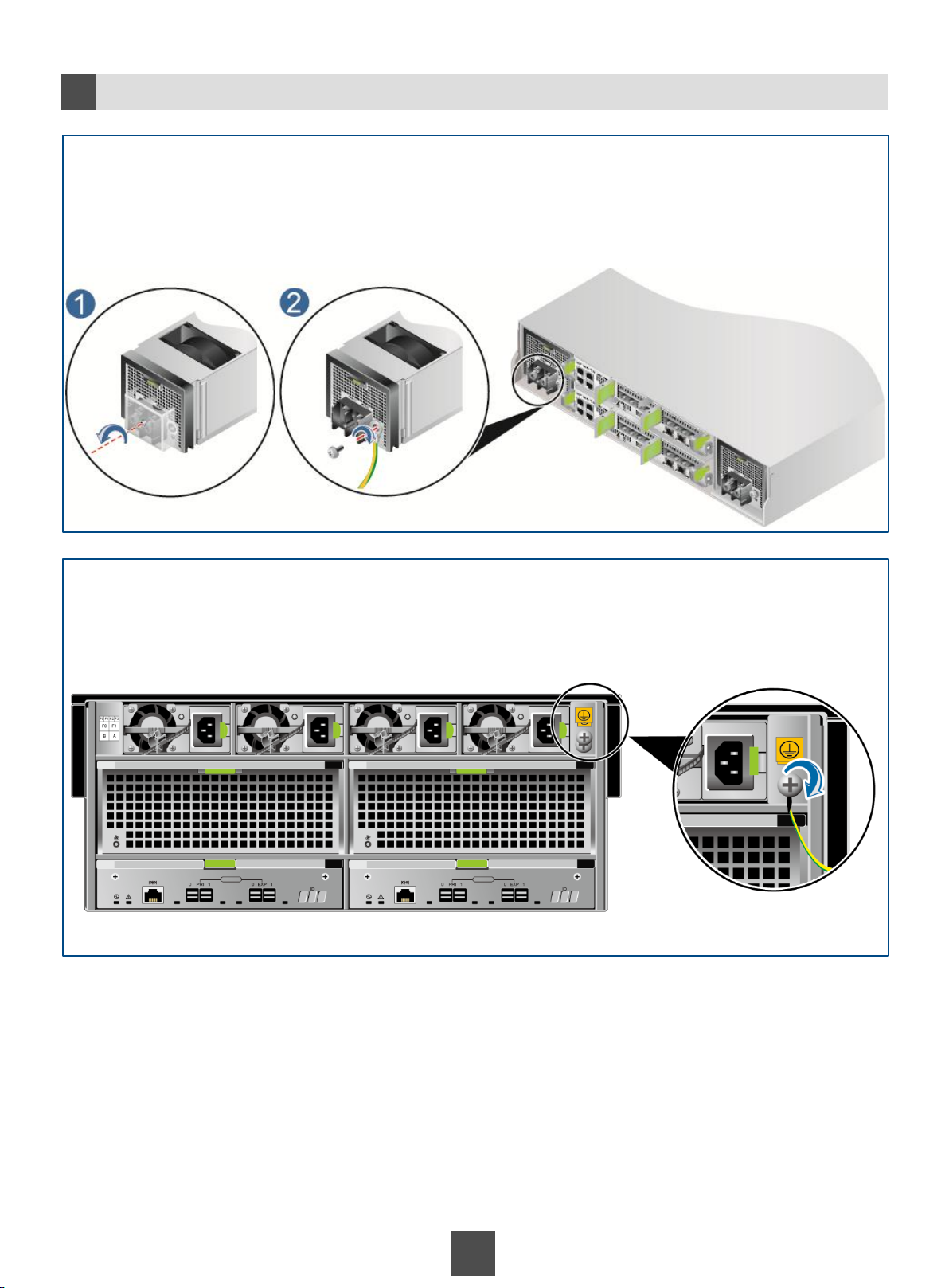

Connecting ground cables for a high-density disk enclosure in an AC scenario

3c Connecting enclosures
15
Connect disk enclosures according to the following rules:
SAS expansion cables must be naturally bent, and a minimum of 97 mm (3.82 inches) clearance must be
reserved in front of each enclosure for winding cables.
All the EXP ports on the storage system can connect only to the PRI ports. An incorrect connection will cause
a service interruption.
The number of disk enclosures connected to the expansion ports on the controller enclosure cannot exceed
the upper limit.
Connect the expansion interface module of controller A to expansion module A of a disk enclosure, and
connect the expansion interface module of controller B to expansion module B of a disk enclosure.
For a storage system with two or more disk enclosures, set up multiple loops and evenly allocate those disk
enclosures to the loops.
All disk enclosures in the same loop are connected by two independent links. To be more specific, the
forward and backward connection mode is used for optimal network reliability.

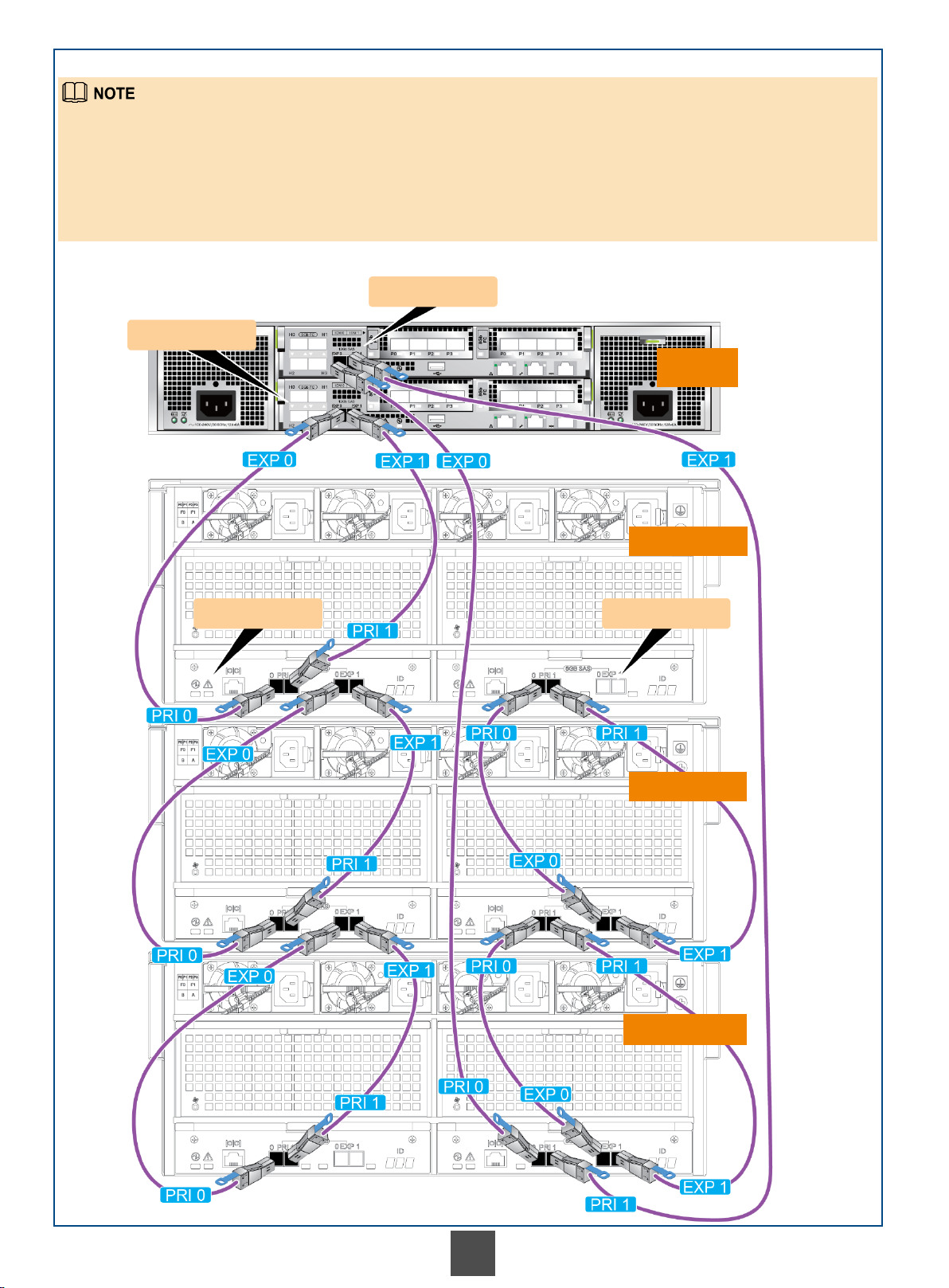

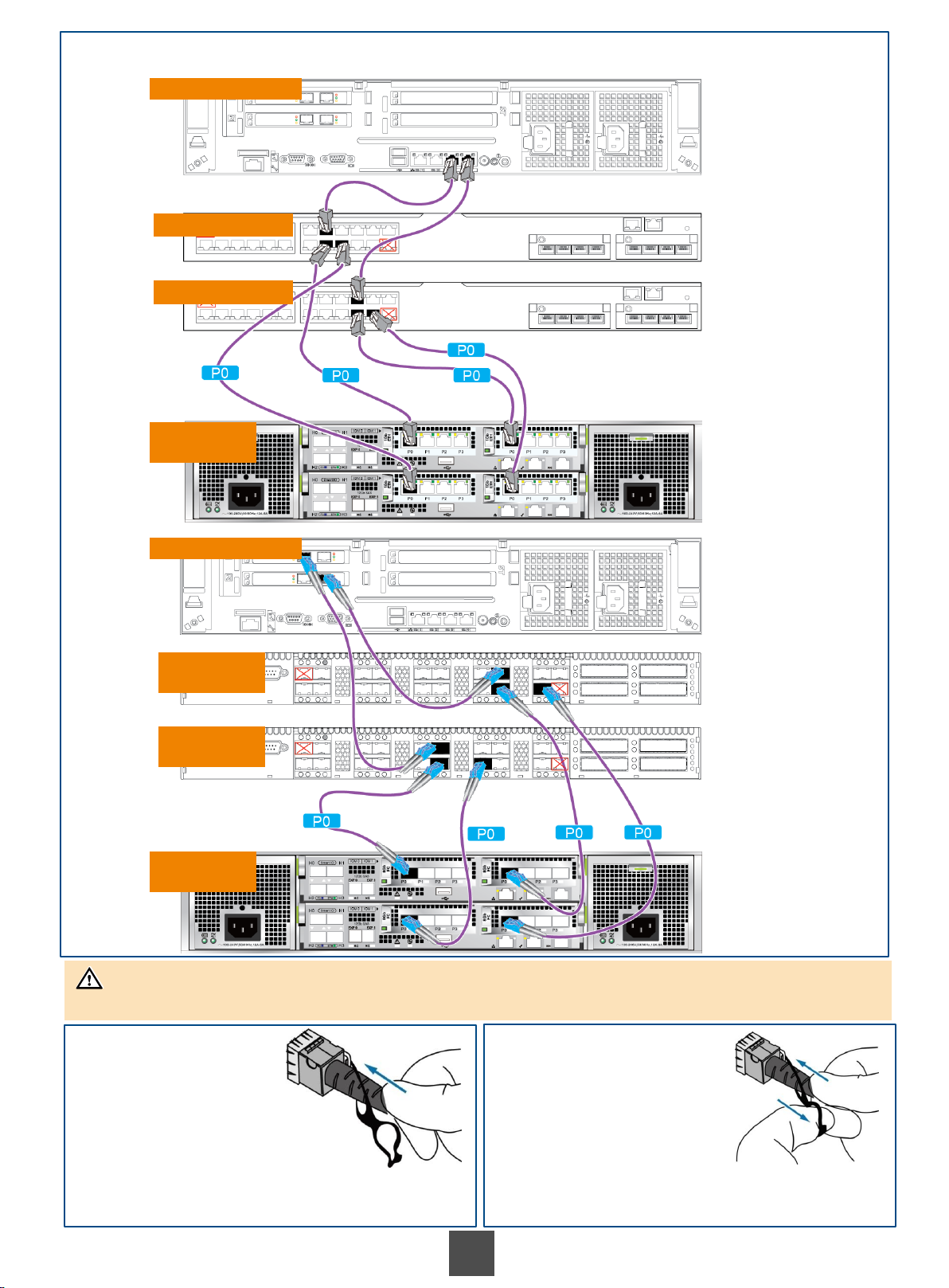

Scenario 1 Connecting disk enclosures
Disk
enclosure 2
Disk
enclosure 1
Controller enclosure
Controller A
Controller B
Expansion
module A
Expansion
module B
2 U controller enclosure connected to two disk enclosures

Scenario 2 Connecting high-density disk enclosures
16
Connect two high-density disk enclosures using mini SAS HD electrical cables. The cables must be naturally
bent, and a minimum of 97 mm (3.82 inches) clearance must be reserved in front of each enclosure for winding
cables.
Standard and high-density disk enclosures cannot be connected to one expansion loop.
Each expansion loop of high-density disk enclosures must be connected to two adjacent ports (excluding ports
P1 and P2) of the 12 Gbit/s SAS interface module on a controller enclosure, for example, ports P0 and P1 or ports
P2 and P3.
High-density
disk enclosure 3
Controller
enclosure
Expansion
module B Expansion
module A
High-density
disk enclosure 2
Controller A
Controller B
High-density
disk enclosure 1
2 U controller enclosure connected to three high-density disk enclosures

3d Connecting the storage system to the network
A controller enclosure can be connected to application servers using front-end ports (8 Gbit/s, or 16 Gbit/s
Fibre Channel, 10GE, 10 Gbit/s FCoE, GE electrical, 10GE electrical, or 56 Gbit/s InfiniBand).
10GE electrical interface modules support GE/10GE auto-sensing.
The following figures are an example of cable connections. The details like cable appearance and types of
interface modules may be different from those at your site.
The following figures show the connections by network cables and optical fibers. For details, see OceanStor
2000, 5000, and 6000 V3 Series V300R006 Installation Guide.
Scenario 1 Directly connecting front-end ports to the application server
Network cable connection
Optical fiber cable connection
17
Application server
Controller enclosure
Application server
Controller enclosure

Scenario 2 Connecting front-end ports to the application server through switches
Network cable connection
Optical fiber cable connection
18
Application server
Controller
enclosure
Fibre Channel
switch
Fibre Channel
switch
Ethernet switch
Ethernet switch
Application server
Controller
enclosure
Installing a high-speed cable Removing a high-speed cable
Insert the connector. After hearing a click, pull the
cable slightly. If the cable is not pulled out, the
connector is secured. Push the connector slightly and pull the buckle as
shown in the figure to remove the high-speed cable.
Connect and remove high-speed cables as shown in the following figures.
NOTICE

19
3e Connecting to the maintenance terminal
After connecting a serial port on the storage system to the maintenance terminal through a serial cable, you can then
manage and maintain the storage system using the maintenance terminal.
During the initial configuration, assign an IP address to the management network port through the serial port.
Maintenance
terminal
AC power modules enable the storage system to connect to two power supplies. To ensure high availability of
the storage system and avoid unexpected power failures, connect the storage system to two power supplies.
3f Connecting power cables
Controller enclosure
External power
Complete view of the AC power cables External power
Disk enclosure
Controller enclosure
NOTICE
Scenario 1 Connecting an AC power cable

Scenario 2 Connecting a DC power cable
Complete view of the DC power cables
When you connect DC power cables, ensure that the black cable leading from the anode of the DC power
source connects to the RTN (+) terminal and that the blue cable leading from the cathode of the DC power
source connects to the NEG (-) terminal.
Disk enclosure
Controller enclosure
DC PDU
20
