Huawei S5700-HI Series User manual

S5700-HI Series Gigabit Enterprise Switches

S5700-28C-HI
S5700-28C-HI-24S
The S5700-HI series (hereafter referred to as S5700-HI) are advanced gigabit Ethernet switches developed
by Huawei, providing flexible gigabit access and 10G/40G uplink ports. Based on next-generation, high-
performance hardware and Huawei Versatile Routing Platform (VRP), the S5700-HI provides excellent
NetStream function, flexible Ethernet networking, comprehensive VPN tunneling technologies, diversified
security mechanisms, mature IPv6 features, and are easy to manage and maintain. All these features
make the S5700-HI the best choice as an access switch on large and medium-sized campus networks or
data centers and aggregation switch on small campus networks.
Note: S5700-HI mentioned in this document refers to the whole S5700-HI series including S5710-HI, and
descriptions about S5710-HI are unique features of S5710-HI.
S5700-HI Series Gigabit Enterprise Switches
Product Overview

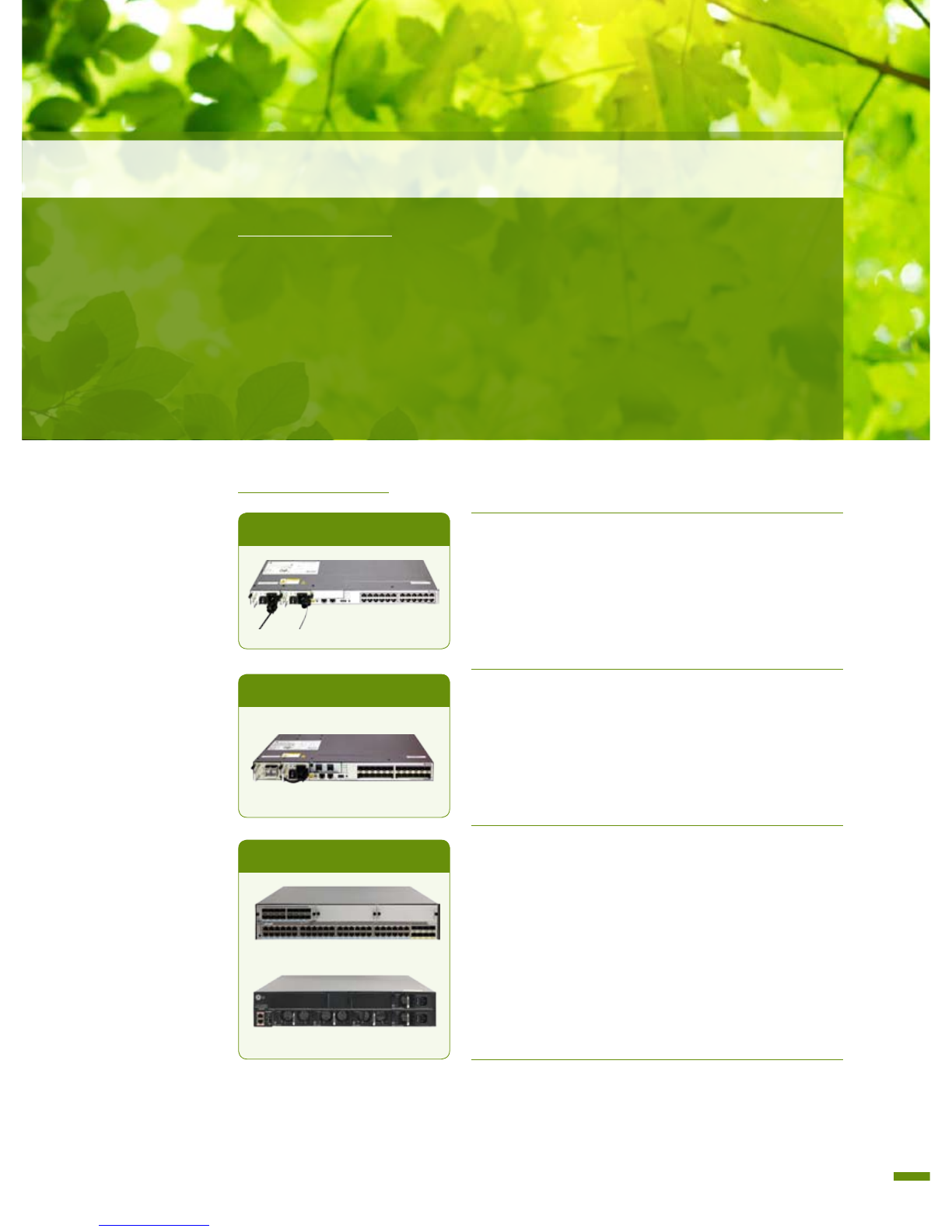

Product Appearance
24 10/100/1000Base-T ports•
Subcards supported: 4x1000Base-X SFP subcard, 2x10GE•
SFP+ subcard, and 4x10GE SFP+ subcard
Double swappable AC/DC power supplies•
Forwarding performance: 96 Mpps•
24 100/1000Base-X ports•
Subcards supported: 4x1000Base-X SFP subcard, 2x10GE•
SFP+ subcard, and 4x10GE SFP+ subcard
Double swappable AC/DC power supplies•
Forwarding performance: 96 Mpps•
S5710-108C-PWR-HI 48 10/100/1000BASE-T ports and 8 10GE SFP+ ports•
Three slots on the front panel: support 16x1000Base-X SFP and•
16x10/100/1000Base-T subcards
One slot at the real panel: supports 4x40GE QSFP+ and 4x10GE•
SFP+ subcards
Double swappable AC power supplies•
Forwarding performance: 504 Mpps•
front
back
1

Product Features and highlights
Various Combination of Ports
The S5710-HI has four subcard slots that can accommodate various extended subcards to provide high-•
density 10GE/40GE uplink ports. With its eight fixed 10GE SFP+ ports, the S5710-HI can have different
subcards installed to provide flexible combination of ports, including 48*GE+8*10GE, 96*GE+8*10GE,
96*GE+12*10GE, and 96*GE+8*10GE+4*40GE. In addition, the S5710-HI provides both optical and
electrical ports for flexible access and supports PoE+. The flexible port combinations meet different
bandwidth upgrading requirements and protect customers' investment.
Comprehensive VPN Technologies
The S5700-HI allows users in different VPNs to connect to the same switch and isolates users through•
multi-instance routing. The S5710-HI supports Multiprotocol Label Switching (MPLS) QoS, MPLS traffic
engineering (TE), virtual leased line (VLL), virtual private LAN service (VPLS), and Layer 3 virtual private
network (L3VPN). They can provide high-quality private line access services for enterprises and are cost-
effective case-shaped MPLS switches.
Flexible Ethernet Networking
In addition to traditional Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), and Multiple•
Spanning Tree Protocol (MSTP), the S5700-HI supports Huawei-developed Smart Ethernet Protection (SEP)
technology and the latest Ethernet Ring Protection Switching (ERPS) standard. SEP is a ring protection
protocol specific to the Ethernet link layer, and applies to various ring network topologies, such as
open ring topology, closed ring topology, and cascading ring topology. This protocol is reliable, easy
to maintain, and implements fast protection switching within 50 ms. ERPS is defined in ITU-T G.8032.
It implements millisecond-level protection switching based on traditional Ethernet MAC and bridging
functions.
The S5700-HI supports Smart Link and Virtual Router Redundancy Protocol (VRRP), which implement•
backup of uplinks. One S5700-HI switch can connect to multiple aggregation switches through multiple
links, significantly improving reliability of access devices. In addition, the S5700-HI provides multiple
connection fault detection mechanisms, including Ethernet OAM (IEEE 802.3ah/802.1ag /ITU Y.1731)
and Bidirectional Forwarding Detection (BFD). The S5700-HI (except S5710-HI)provides hardware-based
3.3 ms Ethernet OAM and 10 ms BFD.
Diversified Security Control
The S5700-HI supports MAC address authentication and 802.1X authentication and implements dynamic•
delivery of policies (VLAN, QoS, and ACL) to users.
2

The S5700-HI provides a series of mechanisms to defend against DoS attacks and user-targeted attacks.•
DoS attacks are targeted at switches and include SYN flood, Land, Smurf, and ICMP flood attacks. User-
targeted attacks include bogus DHCP server attacks, IP/MAC address spoofing, DHCP request flood, and
change of the DHCP CHADDR value. You can specify DHCP snooping trusted and untrusted ports to
ensure that users connect only to the authorized DHCP server.
The S5700-HI supports strict ARP learning. This feature prevents ARP spoofing attackers from exhausting•
ARP entries so that users can connect to the Internet normally.
Easy Operation
The S5700 supports EasyOperation, a solution that provides auto configuration, plug-and-play, USB-•
based deployment, and batch remote upgrade. The EasyOperation solution facilitates device deployment,
upgrade, service provisioning, and other management and maintenance operations, and also greatly
reduces costs of operation and maintenance.
The S5700 can be managed and maintained using Simple Network Management Protocol (SNMP) V1,•
V2, and V3, command line interface (CLI), web-based network management system, or Secure Shell
(SSH) V2.0. Additionally, it supports remote network monitoring (RMON), multiple log hosts, port traffic
statistics collection, and network quality analysis that help in network consolidation and reconstruction.
The S5700-HI can use the General VLAN Registration Protocol (GVRP) to implement dynamic distribution,•
registration, and propagation of VLAN attributes. GVRP reduces manual configuration workload and
ensures correct configuration. Besides, the S5700-HI supports the MUX VLAN function, which involves a
principal VLAN and multiple subordinate VLANs. Subordinate VLANs are classified into group VLANs and
separate VLANs. Ports in the principal VLAN can communicate with ports in subordinate VLANs. Ports in
a subordinate group VLAN can communicate with each other, whereas ports in a subordinate separate
VLAN can communicate only with ports in the principal VLAN.
Mature IPv6 Technologies
The S5700-HI uses the mature, stable Versatile Routing Platform (VRP) and supports IPv4/IPv6 dual stacks,•
IPv6 routing protocols (RIPng, OSPFv3, BGP4+, and IS-IS for IPv6), and IPv6 over IPv4 tunnels including
manual, 6-to-4, and Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) tunnels. With these IPv6
features, the S5710-HI can be deployed on a pure IPv4 network, a pure IPv6 network, or a shared IPv4/
IPv6 network, helping realize IPv4-to-IPv6 transition.
3

Product Specifications
Excellent Network Traffic Analysis
The S5700-HI provides the NetStream function and can function as a NetStream data exporter. It•
periodically collects data traffic statistics, encapsulates the statistics in standard V5, V8, or V9 packets,
and sends the packets to the NetStream data collector according to NetStream configuration. The
collected statistics are then processed to dynamically generate reports, analyze traffic attributes, and
generate alarms on abnormal traffic. The NetStream function helps you optimize network structure and
adjust resource deployment in a timely manner.
The S5700-HI supports the sFlow function. It uses a method defined in the sFlow standard to sample•
traffic passing through it and sends sampled traffic to the collector in real time. The collected traffic
statistics are used to generate statistical reports, helping enterprises maintain their networks.
Item S5700-28C-HI S5700-28C-HI-24S S5710-108C-PWR-HI
Fixed ports 24*10/100/1000Base-T 24*100/1000Base-X 48*10/100/1000BASE-T,
8*10GE SFP+
Extended slots Provided for uplink interface subcards Three front extended slots
and one rear extended slot
MAC address
table
IEEE 802.1d compliance
32K MAC address entries
MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
IEEE 802.1d compliance
456K MAC address entries
MAC address learning and
aging
Static, dynamic, and
blackhole MAC address
entries
Packet filtering based on
source MAC addresses
VLAN
4K VLANs
Guest VLAN and voice VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN Mapping
Reliability
RRPP ring topology and RRPP multi-instance
Smart Link tree topology and Smart Link multi-instance, providing the millisecond-
level protection switchover
SEP
ERPS(G.8032)
BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM
STP(IEEE 802.1d), RSTP(IEEE 802.1w), and MSTP(IEEE 802.1s)
BPDU protection, root protection, and loop protection
4

Item S5700-28C-HI S5700-28C-HI-24S S5710-108C-PWR-HI
MPLS features
MPLS L3VPN
MPLS L2VPN
MPLS-TE
MPLS QoS
VPLS Martini VPLS
IP routing Static routing, RIPv1, RIPv2, OSPF, IS-IS, BGP, and ECMP
IPv6 features
Neighbor Discovery (ND)
Path MTU (PMTU)
IPv6 ping, IPv6 tracert
6to4 tunnel, ISATAP tunnel, and manually configured tunnel
ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or
protocol type
MLD v1/v2 snooping
multicast
IGMP v1/v2/v3 snooping and IGMP fast leave
Multicast forwarding in a VLAN and multicast replication between VLANs
Multicast load balancing among member ports of a trunk
Controllable multicast
Port-based multicast traffic statistics
IGMP v1/v2/v3, PIM-SM, PIM-DM, and PIM-SSM
QoS/ACL
Rate limiting on packets sent and received by an interface
Packet redirection
Port-based traffic policing and two-rate three-color CAR
Eight queues on each port
WRR, DRR, PQ, WRR+PQ, and DRR+PQ queue scheduling algorithms
WRED
Re-marking of the 802.1p priority and DSCP priority
Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source
MAC address, destination MAC address, source IP address, destination IP address,
port number, protocol type, and VLAN ID
Rate limiting in each queue and traffic shaping on ports
Security
User privilege management and password protection
DoS attack defense, ARP attack defense, and ICMP attack defense
Binding of the IP address, MAC address, interface, and VLAN
Port isolation, port security, and sticky MAC
Blackhole MAC address entries
Limit on the number of learned MAC addresses
802.1x authentication and limit on the number of users on an interface
AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC
SSH v2.0
Hypertext Transfer Protocol Secure (HTTPS)
CPU defense
Blacklist and whitelist
5

Item S5700-28C-HI S5700-28C-HI-24S S5710-108C-PWR-HI
OAM
Hardware OAM:
EFM OAM
CFM OAM
Y.1731 performance test (hardware-level delay and jitter
detection)
BFD
Software OAM:
EFM OAM
CFM OAM
Y.1731 performance test
BFD
Management
and
maintenance
iStack (not supported by S5710-HI)
MAC Forced Forwarding (MFF)
Virtual cable test
SNMP v1/v2/v3
RMON
Web NMS
System logs and alarms of different levels
GVRP
MUX VLAN
802.3az EEE
sFlow
NetStream
Dying gasp（S5710-HI）
Operating
environment
Operating temperature: 0oC–50oC
Relative humidity: 5%–95% (non-condensing)
Input voltage
AC:
Rated voltage range: 100 V to 240 V AC, 50/60 Hz
Maximum voltage range: 90 V to 264 V AC, 50/60 Hz
DC:
Rated voltage range: –48 V to –60 V, DC
Maximum voltage range: –36 V to –72 V, DC
Dimensions
(W x D x H,
mm)
442x220 x43.6 442x470.0x87.2
Power
consumption < 76 W < 80 W< 1680 W
(PD Power:1440W)
6

On Large-sized Enterprise Networks
The S5700-HI can function as an access device on a large-sized enterprise network or an aggregation device
on a small-sized or medium-sized campus network. It supports link aggregation and dual-homing to improve
network reliability.
In Data Centers
The S5700-HI can be used in a data center. It connects to gigabit servers and aggregates traffic from the
servers to uplink devices through trunk links. If multiple servers are available, an S5700 stack can be used to
facilitate network maintenance and improve network reliability.
4*10GE
LAG
CSS
S5700-HI
S9700
Internet
M*10GE
LAG
WAN
NE Router
Applications
Internet
Internet
DMZ
Intranet
Web server,
Email server,
DNS server
S7700
S5700-HI
ISP WAN
Office Training center IT CenterFactory
7

For more information, visit http://enterprise.huawei.com or contact your local Huawei sales office.
Product Description
S5700-28C-HI-24S(24 Gig SFP,with 1 interface slot,without power module)
S5700-28C-HI(24 Ethernet 10/100/1000 ports,with 1 interface slot,without power module)
S5710-108C-PWR-HI(48 Ethernet 10/100/1000 PoE+ ports,8 10 Gig SFP+,with 4 interface slots,without power module)
2 10 Gig SFP+ interface card(used in S5700HI series)
4 10 Gig SFP+ interface card(used in S5700HI series)
4 Gig SFP interface card(used in S5700HI series)
16 Gig SFP Interface Card(used in S5710HI series)
16 Ethernet 10/100/1000 ports Interface Card(used in S5710HI series)
4 40 Gig QSFP+ Interface Card(used in S5710HI series)
4 10 Gig SFP+ Interface Card(used in S5710HI series)
170W DC Power Module(used in S5700HI series)
170W AC Power Module(used in S5700HI series)
350W AC Power Module(used in S5710HI series)
1150W AC PoE Power Module
Product List
8

9

Copyright © Huawei Technologies Co., Ltd. 2013. All rights reserved.
Trademark Notice
General Disclaimer
, HUAWEI, and are trademarks or registered trademarks of Huawei Technologies Co., Ltd.
Other trademarks, product, service and company names mentioned are the property of their respective owners.
The information in this document may contain predictive statements including,
without limitation, statements regarding the future financial and operating results,
future product portfolio, new technology, etc. There are a number of factors that
could cause actual results and developments to differ materially from those
expressed or implied in the predictive statements. Therefore, such information is
provided for reference purpose only and constitutes neither an offer nor an
acceptance. Huawei may change the information at any time without notice.
No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei
Technologies Co., Ltd.
