Hubsan spy hawk User manual

www.rcmax.ru
www.rcmax.ru
1
RCMAX

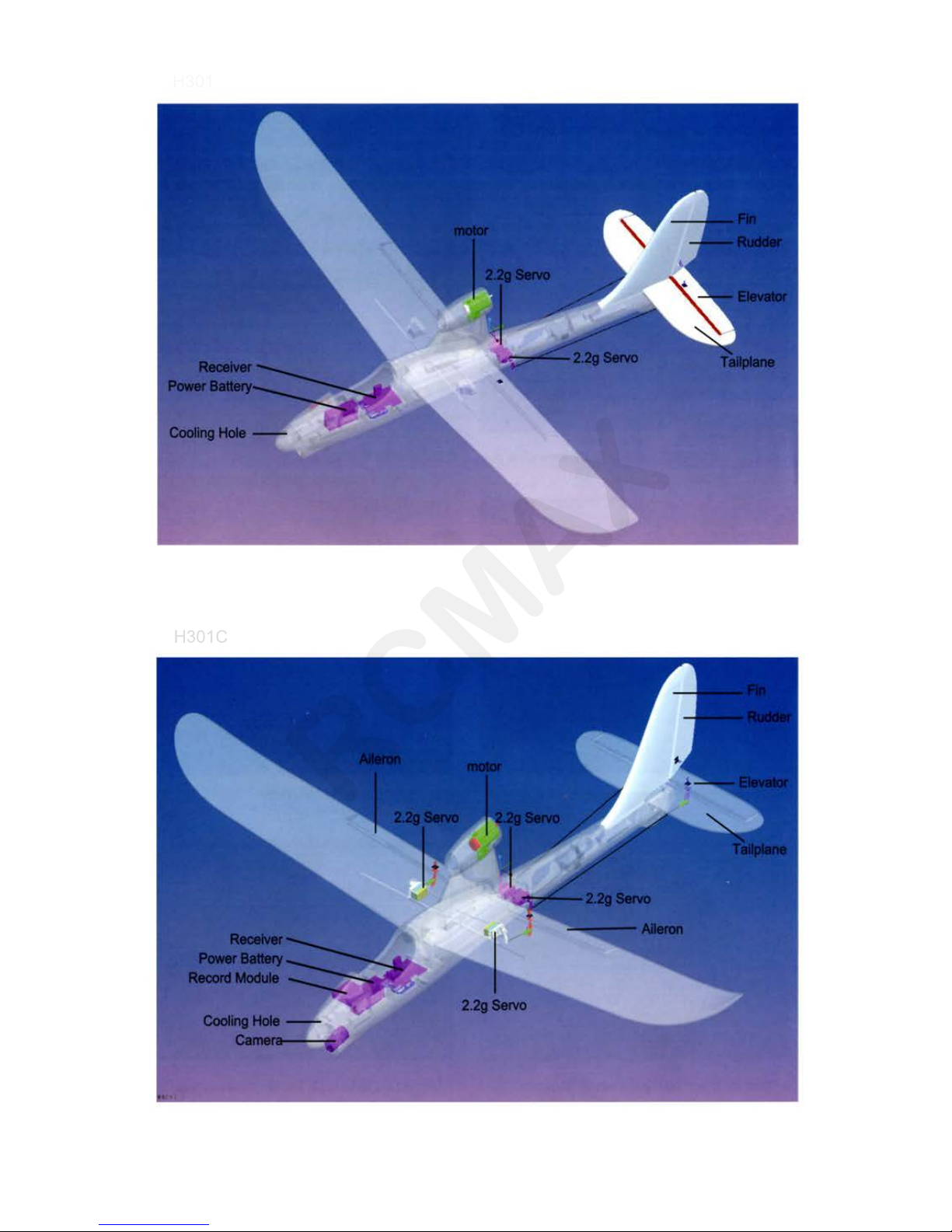

H301
H301C
www.rcmax.ru
www.rcmax.ru
2
RCMAX

1.Assembly Chart.
The airplane already pre-assembled almost 90% in factory and Little to do before flight.
Please refer to the following assembly steps if you need to check or repair your aeroplane.
1.At the tailpalne evenly coated with adhesive white glue 2. The tailpla ne bonding to the body firmly
3. At the bottom of the fin evenly coated with white glue 4.Bond in g the fin to the body firmly
5.Adjust the fin and tailplane in vertical 90 degree 6.Connect the servo
rod to the Elevator servo angle
www.rcmax.ru
www.rcmax.ru
3
RCMAX

7. Connect the servo rod to the Rudder servo horn
9. Connect another Aileron servo electrical wire.
(3CH exception)
/
11 . Install the propeller to the motor axis.please check
the positive and negative on propeller.
8.Connect Aileron servo electrical wire.(3CH exception)
1a.Ensure the wings to be mounted properly
12. fi x the propeller into the motor shaft
www.rcmax.ru
www.rcmax.ru
4
RCMAX

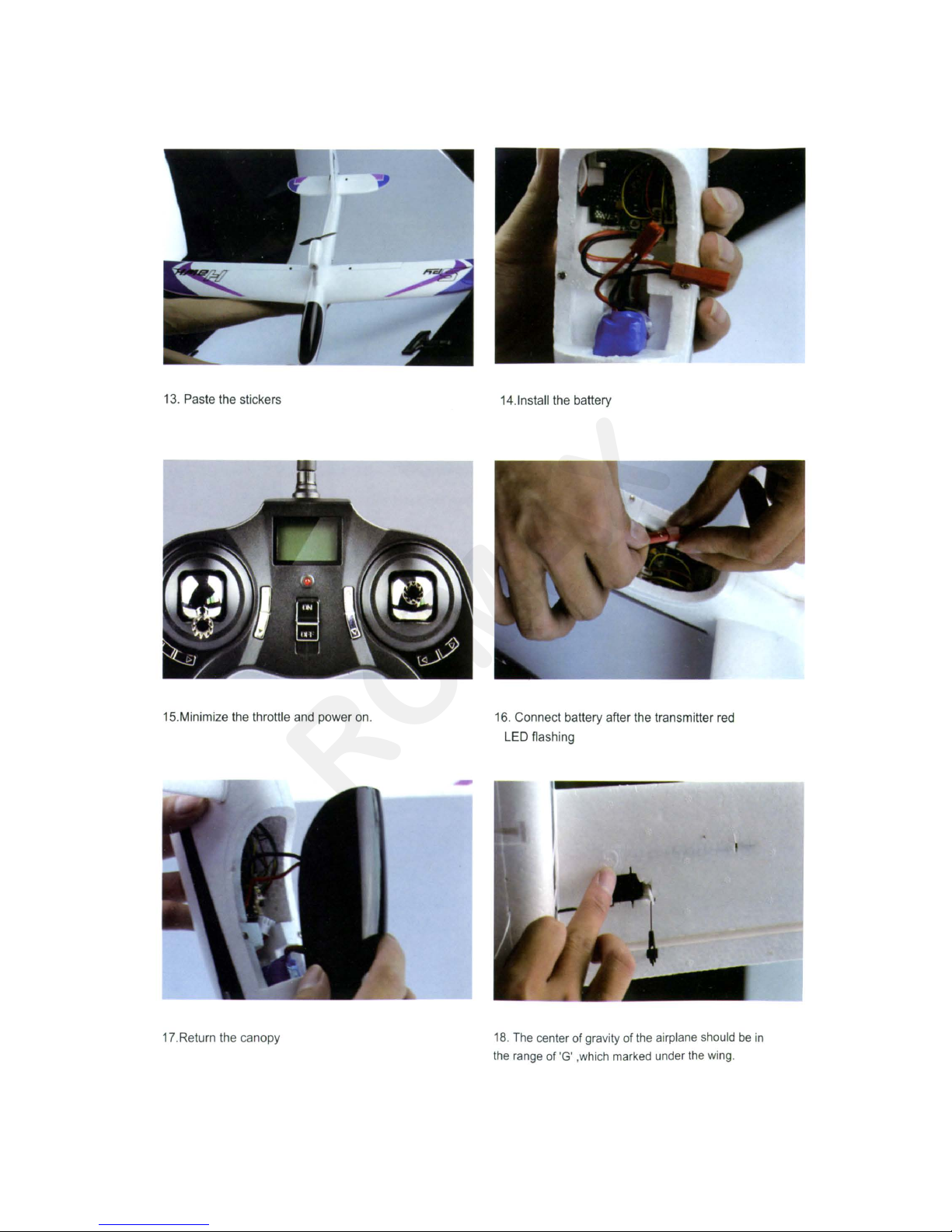

13. Paste the stickers
15.Minimize the throttle and power on.
17.Return the canopy
14.lnstall the battery
16. Connect battery after the transmitter red
LED flashing
18 . The center of gravity of the airplane should be in
the range of 'G' ,which marked under the wing.
www.rcmax.ru
www.rcmax.ru
5
RCMAX

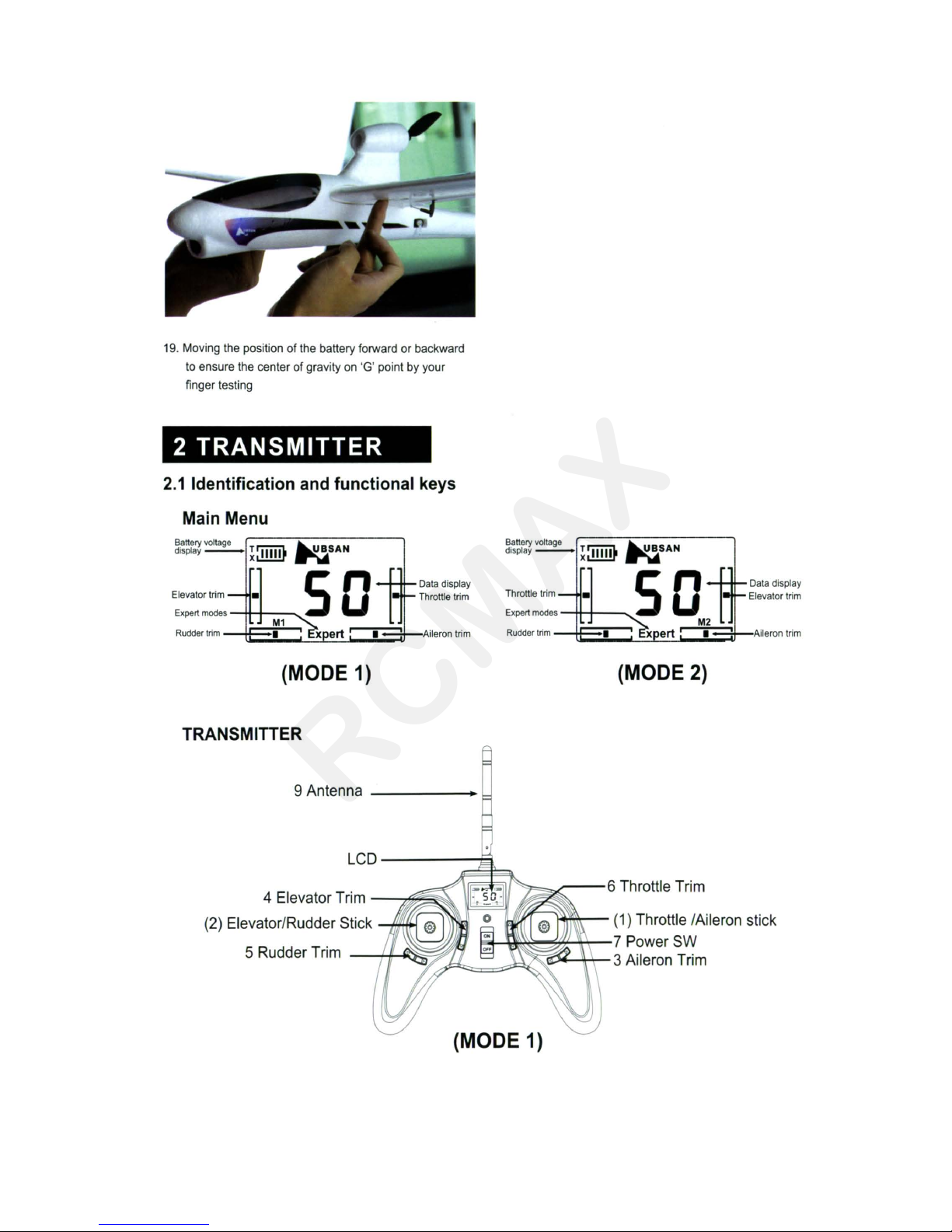

19. Moving the position of the battery forward or backward
to ensure the center of gravity on 'G' point by your
finger testing
2 TRANSMITTER
2.1 Identification and functional keys
Main Menu
Battery voltage ..... UBl
display - ~:Iilli) r:.SAN
E levator trim
(MODE 1)
TRANSMITIER
9 Antenna
Dat a display
Throttle trim
Aileron trim
4 Elevator Trim ----. ~
Battery voUage ..... UB~
display - ~ :Iffii) r:.sAN
(MODE 2)
6 Throttle Trim
(2) Elevator/Rudder Stick (1) Throttle /Aileron stick
~ ~...tiM- -7 Power SW
5 Rudder Trim --1-µ ~ ~!l "'" r;""""~-=~'3:"i ii'::M---.l/...l,...... 3 Aileron Trim
(MODE 1)
www.rcmax.ru
www.rcmax.ru
6
RCMAX

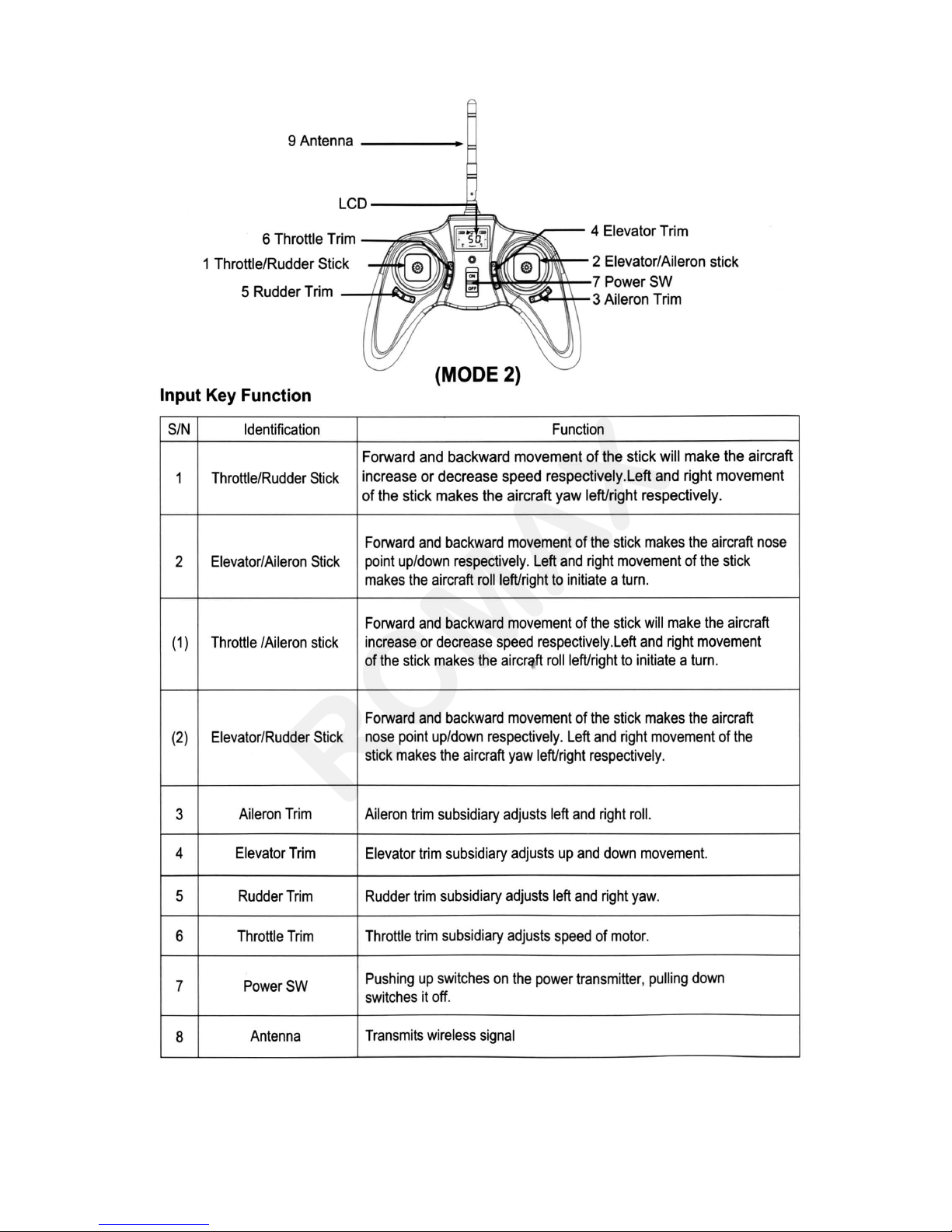

9 Antenna -----
6 Throttle Trim 4 Elevator Trim
1 Throttle/Rudder Stick 2 Elevator/Aileron stick
i=f--\J:\i~~~l"'"7PowerSW
5 Rudder Trim ---1-11'-4< ~ ~ -==~ l. ~ ~"-1--3 Aileron Trim
(MODE 2)
Input Key Function
S/N Identification Function
Forward and backward movement of the stick will make the aircraft
1
Throttle/Rudder Stick
increase or decrease speed respectively.Left and right movement
of the stick makes the aircraft yaw left/right respectively.
Forward and backward movement of the stick makes the aircraft nose
2
Elevator/Aileron Stick
point up/down respectively . Left and right movement of the stick
makes the aircraft roll left/right to initiate a tum.
Forward and backward movement of the stick will make the aircraft
(1)
Throttle /Aileron stick
increase or decrease speed respectively . Left and right movement
of the stick makes the aircr~ft roll left/right to initiate a turn .
Forward and backward movement of the stick makes the aircraft
(2) Elevator/Rudder Stick
nose point up/down respectively . Left and right movement of the
stick makes the aircraft yaw left/right respectively.
3
Aileron Trim Aileron trim subsidiary adjusts left and right roll.
4 Elevator Trim Elevator trim subsidiary adjusts up and down movement.
5 Rudder Trim
Rudder trim subsidiary adjusts left and right yaw .
6
Throttle Trim
Throttle trim subsidiary adjusts speed of motor .
7
Power SW
Pushing up sw i tches on the power transmitter , pulling down
switches it off .
8
Antenna
Transmits wireless signal
www.rcmax.ru
www.rcmax.ru
7
RCMAX

2.2 Reversing channel setup
2.2.1.ELEV REVERSE SET UP
Hold down the Elevator/Aileron or ( mode 1 : Elevator/Rudder) stick for 1 second to
enter the setting status.press Elevator Trim key up or down to choose reverse.and
then hold down the Elevator/Aileron stick for 1 second to confirm and exit.
,- -------- --- -----------------·-· --i
~SAN ~[!!ID
r·J M1 s E2 r·1-
•I I I I •!
lb . - - - - '- __ ______) - - - - - u
2.2.2. AILE REVERSE SET UP(3CH exception)
Hold down the Elevator/Aileron or (mode 1 : Elevator/Rudder) stick for 1 second to
enter the setting status,press Aileron Trim key left or right to choose reverse.and
then hold down the Elevator/Aileron or (mode 1 : Elevator/Rudder) stick for 1 second
to confirm and exit.
,- - - - - - - - - - - - - - -~ - - - --- - - - - - - · - · --i
i ~SAN ~[!!ID i
I [.] Sc [.] I
! M1 ~ ~M2 !
' '• I II ,,_
U..:. . . • . '. -- - ------' -----!)
2.2.3. RUDD REVERSE SET UP
Hold down the Elevator/Aileron or (mode 1 : Elevator/Rudder) stick for 1 second to
enter the setting status.press Rudder Trim key left or right to choose reverse.and
then hold down the Elevator/Aileron or (mode 1 : Elevator/Rudder) stick for 1 second
to confirm and exit.
,- ----------------------------- ----i
i ~SAN ~[!!ID
1r·J sc r·J
! M1 ~ ~M2 l.
' ' • I I I •!
~ - - - - _. _---------'- --- _v
www.rcmax.ru
www.rcmax.ru
8
RCMAX

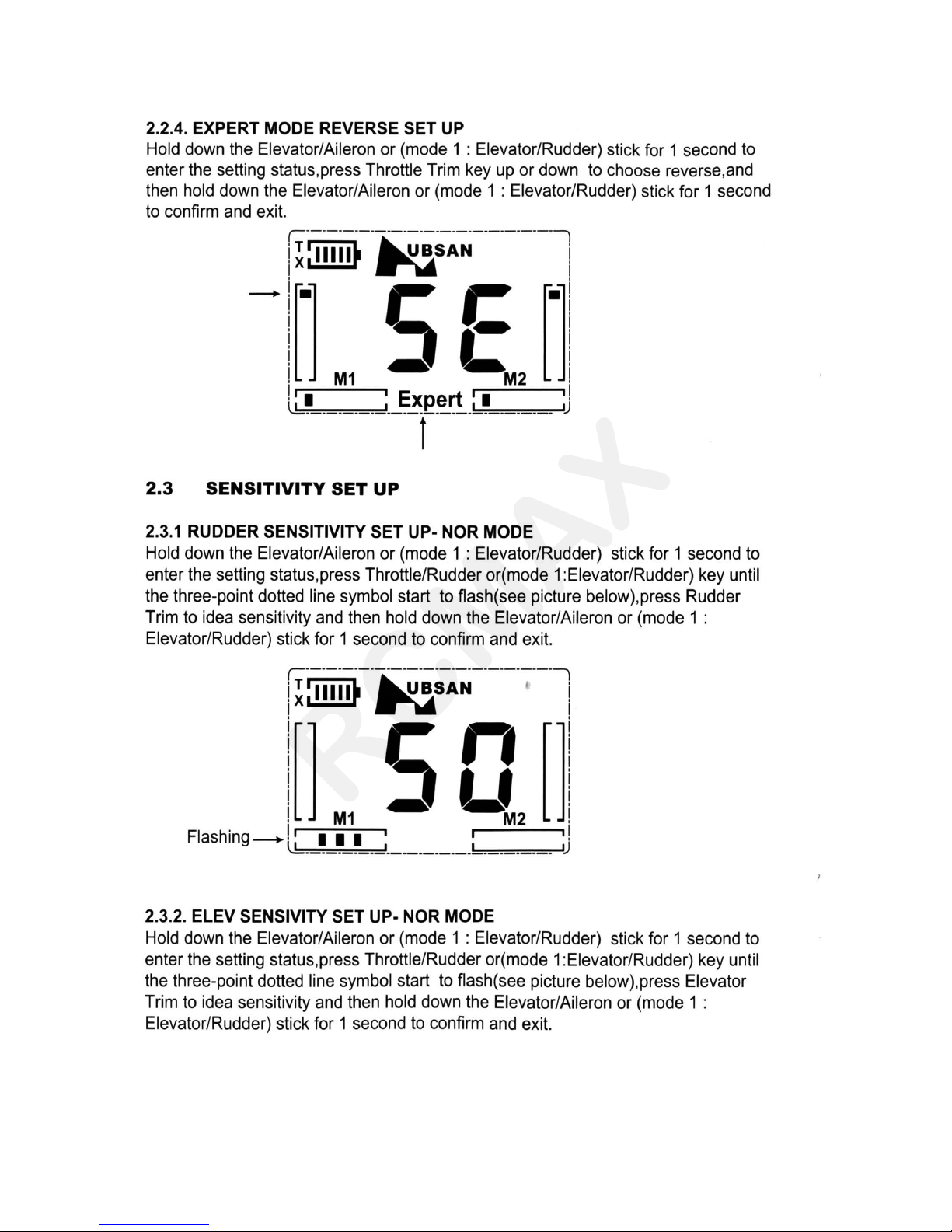

2.2.4. EXPERT MODE REVERSE SET UP
Hold down the Elevator/Aileron or (mode 1 : Elevator/Rudder) stick for 1 second to
enter the setting status.press Throttle Trim key up or down to choose reverse.and
then hold down the Elevator/Aileron or (mode 1 : Elevator/Rudder) stick for 1 second
to confirm and exit.
r=- ·------- --- -- --- --------------· --i
~m:TI!) ~SAN I
-[·J ~ ~ r·Ji
~ , .. !
M1 ~ ~M2 i
: I : Expert : I :!
~- . . . . . -- - --- -- - . . . . . tJ
f
2.3 SENSITIVITY SET UP
2.3.1 RUDDER SENSITIVITY SET UP- NOR MODE
Hold down the Elevator/Aileron or (mode 1 : Elevator/Rudder) stick for 1 second to
enter the setting status,press Throttle/Rudder or(mode 1:Elevator/Rudder) key until
the three-point dotted line symbol start to flash(see picture below),press Rudder
Trim to idea sensitivity and then hold down the Elevator/Aileron or (mode 1 :
Elevator/Rudder) stick for 1 second to confirm and exit.
r=- ·-------------------- --- - --- --· --i
~m:TI!) ~SAN
[] M1 s Ct[]
Flashing-~- ~ ~ ~ _ :__ ___ _ ______ __ __ _ ____ J
2.3.2. ELEV SENSIVITY SET UP- NOR MODE
Hold down the Elevator/Aileron or (mode 1 : Elevator/Rudder) stick for 1 second to
enter the setting status,press Throttle/Rudder or(mode 1:Elevator/Rudder) key until
the three-point dotted line symbol start to flash(see picture below),press Elevator
Trim to idea sensitivity and then hold down the Elevator/Aileron or (mode 1 :
Elevator/Rudder) stick for 1 second to confirm and exit.
www.rcmax.ru
www.rcmax.ru
9
RCMAX

,-- - - - - - - - - - - --- - - - - - - - - - - - - - - --- - ~

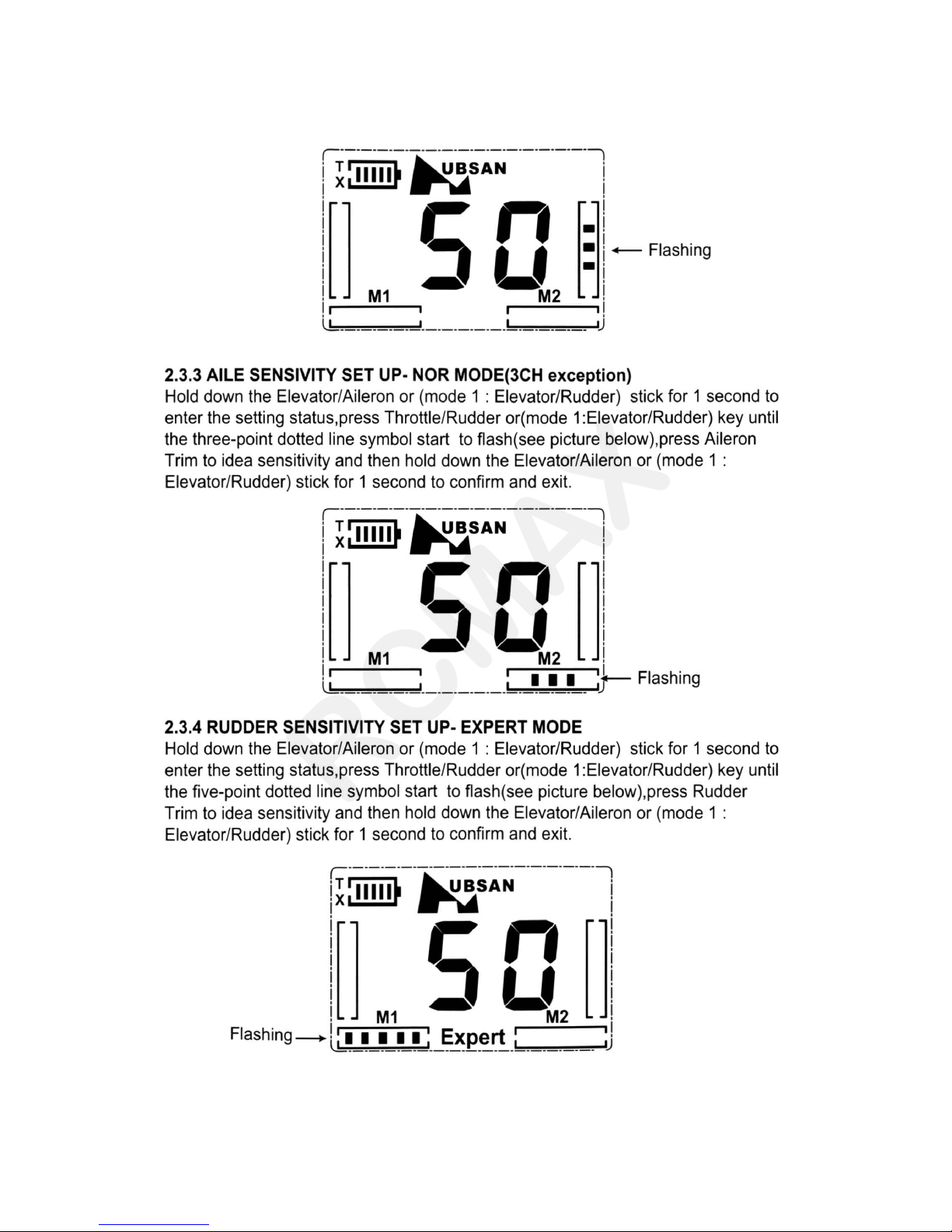

~~~SAN
[]
snf :l ~Flashing
M1 ~ -M2 r1!
____ ,
lb. ------ ----- -- - - - - - - 0
2.3.3 AILE SENSIVITY SET UP- NOR MODE(3CH exception)
Hold down the Elevator/Aileron or (mode 1 : Elevator/Rudder) stick for 1 second to
enter the setting status.press Throttle/Rudder or(mode 1:Elevator/Rudder) key until
the three-point dotted line symbol start to flash(see picture below),press Aileron
Trim to idea sensitivity and then hold down the Elevator/Aileron or (mode 1 :
Elevator/Rudder) stick for 1 second to confirm and exit.
r-·--- - --------- - --- - ----- - ------~
~~~SAN
[] M1 s QJ]
lb. --- _ _______
__ : _ ~ ~ ~ _ :;- Flashing
2.3.4 RUDDER SENSITIVITY SET UP- EXPERT MODE
Hold down the Elevator/Aileron or (mode 1 : Elevator/Rudder) stick for 1 second to
enter the setting status.press Throttle/Rudder or(mode 1:Elevator/Rudder) key until
the five-point dotted line symbol start to flash(see picture below),press Rudder
Trim to idea sensitivity and then hold down the Elevator/Aileron or (mode 1 :
Elevator/Rudder) stick for 1 second to confirm and exit.
r:-·- - - - - - --- - ----- - - - --- - - - --- - --~
j~~ ~SAN
[] M1 s Q2 [J
Flashing- : I I I I I: Expert !
~- - - - - ---------------------u
www.rcmax.ru
www.rcmax.ru
10
RCMAX

2.3.5. ELEV SENSIVITY SET UP- EXPERT MODE
Hold down the Elevator/Aileron or (mode 1 : Elevator/Rudder) stick for 1 second to
enter the setting status,press Throttle/Rudder or(mode 1:Elevator/Rudder) key until
the five-point dotted line symbol start to flash(see picture below),press Elevator
Trim to idea sensitivity and then hold down the Elevator/Aileron or (mode 1 :
Elevator/Rudder) stick for 1 second to confirm and exit.
r;: ·-- --- - -- -- ------ --- ----1
I ~~ ... UBSAN I
l[J So r~I- ""hiog
! M1 ~ M2 ~~!
I Expert I
l.i.. . . . . ---'. . . ti
2.3.6 AILE SENSIVITY SET UP- EXPERT MODE(3CH exception)
Hold down the Elevator/Aileron or (mode 1 : Elevator/Rudder) stick for 1 second to
enter the setting status,press Throttle/Rudder or(mode 1:Elevator/Rudder) key until
the five-point dotted line symbol start to flash(see picture below),press Aileron Trim
to idea sensitivity and then hold down the Elevator/Aileron or (mode 1 :
Elevator/Rudder) stick for 1 second to confirm and exit.
r:;:·--- --- ------ --------- --,
I~~ ... UBSAN I
'[] ~s n []'
I I
I I
I I ,I
iM1~IJM2i
l. ___ Expe~ __: ~ ~ ~ 1 ~ ;t- Flash i ng
2.4Battery Mounting
Notice:
>Do not mix old and new batteries
>Do not mix different types of batteries
>Do not charge non-rechargeable battery.
Release the screw Take out the cover According to the correct
polarities.install 4 x AAA battery
www.rcmax.ru
www.rcmax.ru
11
RCMAX

Return the cover
Fasten the screw
3 Equilibristat lnstuction
3.0 When controller and aeroplane checking signal code , please keep the
aeroplane in rest condition untill the receiver LED light from flashing to normally
on .
4 Li-Po Battery Charging
4.1 The helicopter is equipped with a LiPo battery:
7.4V 2 Cell 650mAh x 1unit
4.2 Connect battery to wall charger, the led light is red whilst charging and turns green
when charging is finished.
4.3.Please refer to 2.2. Safety Advisory Notice
Always partially charge your LiPo battery before storage . LiPo batteri es reta in a
charge over a reasonable period ; It is not normally necessary to recharge stored LiPo
batteries unless stored for periods longer than 3-6 months .
If your LiPo battery has been over-discharged, it will not be possible to recharge it
again .
www.rcmax.ru
www.rcmax.ru
12
RCMAX

5 Video Recording(only for item no.H301C)
5.1 Insert the SD card
5.2 Press the power switch until it turns light, then press the record switch to
start recording with the power indicator's flashing, the light will
be quitted
flashing when pressing the button once more, meanwhile.it pause recording.
r
power switch
(4.1)
6 Starting Instruction
6.1 push throttle to 90% and throw your airplane in horizontal
· ··· ·· ··· .. ),/
)\ •.
· ···· ··········· ...
www.rcmax.ru
www.rcmax.ru
13
RCMAX

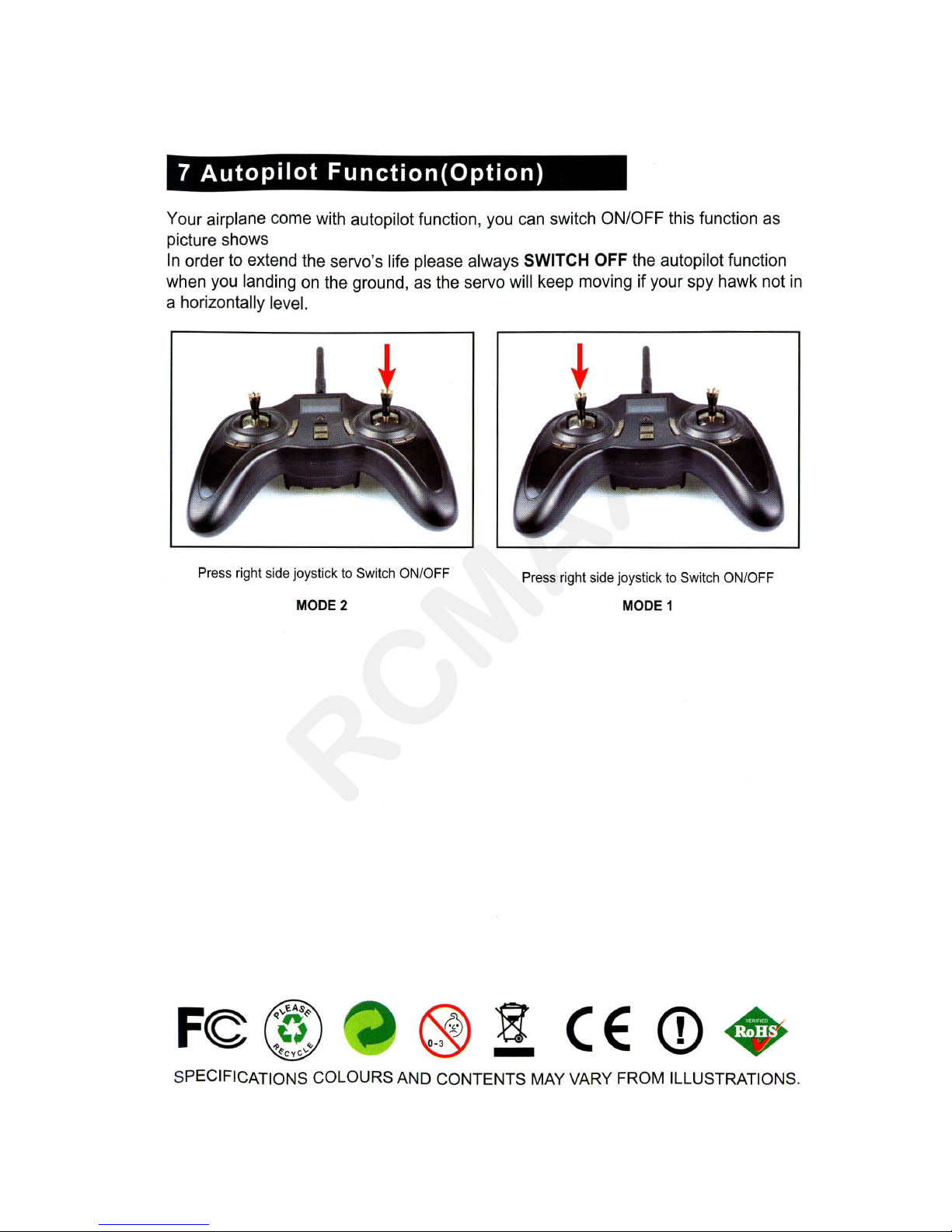

7 Autopilot Function(Option)
Your airplane come with autopilot function, you can switch ON/OFF this function as
picture shows
In order to extend the servo's life please always SWITCH OFF the autopilot function
when you landing on the ground, as the servo will keep moving if your spy hawk not
in
a horizontally level.
Press right side joystick to Switch ON / OFF
Press right side joystick to Switc h ON/OFF
MODE2
MODE 1
F~
~ !CE<D +
SPECIFICATIONS COLOURS AND CONTENTS MAY VARY FROM ILLUSTRATIONS.
www.rcmax.ru
www.rcmax.ru
14
RCMAX

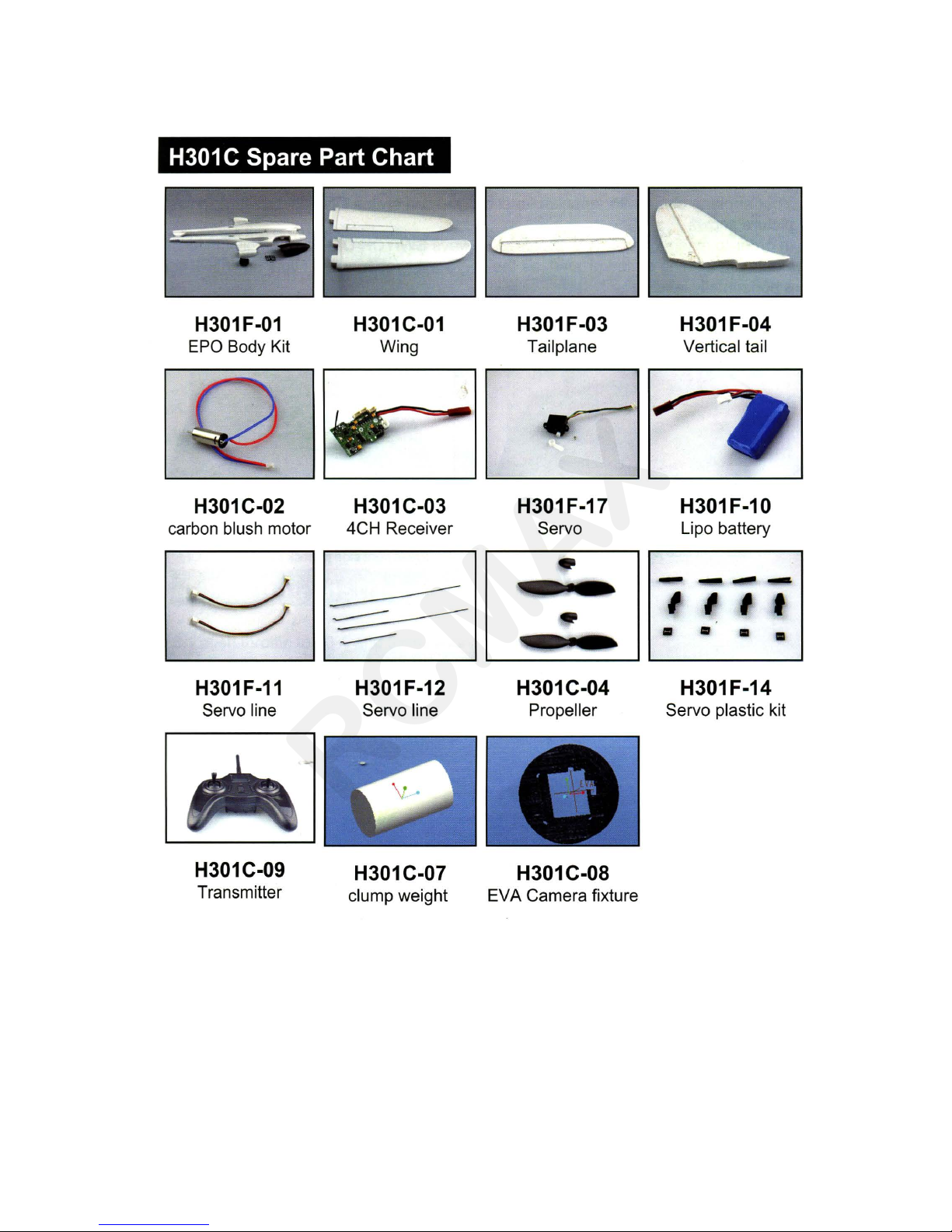

H301 C Spare Part Chart
H301F-01
EPO Body Kit
H301C-02
carbon blush motor
a
H301F-11
Servo line
H301C-09
Transmitter
H301C-01
Wing
H301C-03
4CH Receiver
-------
~
------
H301F-12
Servo line
H301C-07
clump weight
H301F-03
Tailplane
H301 F-17
Servo
H301C-04
Propeller
H301C-08
EVA Camera fixture
H301F-04
Vertical tail
H301F-10
Lipa battery
-
_.,,,,,. -
,' I '
• • • •
H301F-14
Servo plastic kit
