Kamvas RDS-220
Product Overview
Display Introduction
Thanks for choosing HUION Kamvas RDS-220 creative pen display. As a new generation of
professional pen display, Kamvas RDS-220 enables you to enjoy drawing and creating with
higher efficiency. With this pen display, you can freely write and draw, making lines varied in
width, painting pictures in different shades of colors, and gaining a pen-on-paper experience.
To better understand and use this product, please read this user manual carefully. It shows
how to use Kamvas RDS-220 when you connect it to a computer running Windows operating
system. It is also applicable to computers running Mac operating system unless a special note
is given out.Design and specifications are subject to change without notice.
Note: The pictures in the User Manual are for reference only.
Accessories
Product Overview
2 / 39

Kamvas RDS-220
Accessories
Pen Display*1
Battery-free Digital Pen*1
Pen Holder*1
Standard Pen Nib*5, Felt Pen Nib*5
Pen Nib Clip*1
Foldable Stand*1
3-in-2 Cable*1
USB Extension Cable*1
Full-featured USB-C To USB-C Cable*1
USB Power Cable*1
USB Power Adapter*1
Quick Start Guide*1
Cleaning Cloth*1
Stand Installation
An ergonomic adjustable stand is specially designed for KAMVAS Pro 16(2.5K). Adjust the angle
of your pen display according to your habits and you can have a more comfortable drawing
and writing experience.
3 / 39

Kamvas RDS-220
Connection
Kamvas Pro 16(2.5K) supports both computers and Android devices. The following are ways of
connection for reference.
Connect via a Three-in-two Cable
Connect the pen display to your computer via a three-in-two Cable.
1.Take out a three-in-two cable from the package and connect the pen display to a computer
through it.
2.Connect the power adapter to a power cable.
*The extended cable helps to connect the display to the power supply if the power cable is too
short. Any USB power adapter is usable as long as the output is 5V, 3A.
4 / 39

Kamvas RDS-220
Connect via a Full-featured USB-C to USB-C Cable
Connect the pen display to your computer or any Android device via a full-featured USB-C to
USB-C cable.
1.Take out the full-featured USB-C to USB-C cable and connect the display to a computer or
Android device through it.
2.Connect the power adapter to a power cable.
*Users can buy a full-featured USB-C to USB-C cable or a power cable separately, but make
sure the former supports at least USB3.1 GEN1 data transfer protocol & DP1.2 and the output
is at least 5V, 3A.
5 / 39

Kamvas RDS-220
Driver and Setting
Install Driver
1. Please choose the correct driver for your device from our website: Driver-Kamvas Pro
16(2.5K).
2. Click Driver-Kamvas Pro 16(2.5K) to download it.
3. Follow the instructions to complete the installation.
Note:
① Before installing the driver, please close all graphic software and antivirus programs. The
note (“HuionTabletCore.exe” failed to launch!) below appears only on devices with Windows
OS, indicating that the driver is blocked by antivirus programs or drawing apps.
② If you have installed a Driver 15 of Huion’s product, it’s unnecessary for you to install it
again. Because Kamvas Pro 16(2.5K) is compatible with any Driver 15.
③ Please make sure your computer operating system is Windows 7 or later/mac OS 10.12 or
later.
④ Open the driver and a picture of Kamvas Pro 16(2.5K) will appear, indicating that the pen
display is successfully connected to your computer. Now you can use your pen display.
6 / 39

Kamvas RDS-220
⑤ If the connection fails, please restart the driver or your computer.
Note: The pen display cannot work once the driver is uninstalled or deleted. In this case
please click Driver-Kamvas Pro 16(2.5K) to reinstall a driver and your pen display and digital
pen will restore to their default settings.
7 / 39

Kamvas RDS-220
How to Install and Uninstall the Drivers on Linux Devices
Notice:
1.Please remember to close the command window and reboot your Linux device after
installing the driver, or the driver will not be useful. After rebooting the device, you can access
the system main menu to find the Huion Tablet driver and then open it to finish some
settings.
2.If you are running Linux operating system on VMware, you must use the VMware
Workstation Pro version. And the Play version of VMware Workstation doesn’t support the
Huion Tablet driver.
3.Some versions of the Ubutun operating system don’t support using more than one monitor
simultaneously. And we recommend you upgrade your system to 20.04LTS or later if you want
to use a Huion painting device on multiple display screens simultaneously smoothly.
Huion Tablet Driver installation packages in 2 different formats are available for
Linux devices:
8 / 39

Kamvas RDS-220
· tar.xz (file format)
· deb (file format)
Here are the step-by-step instructions for installing the driver packages in
different file formats respectively:
1.Instructions for installing the driver package file in tar.xz format.
Linux operating systems supported:
Ubuntu
Steps to Install:
1.Extract the contents of the driver file, huiontablet_XXXX.tar.xz, into a folder.

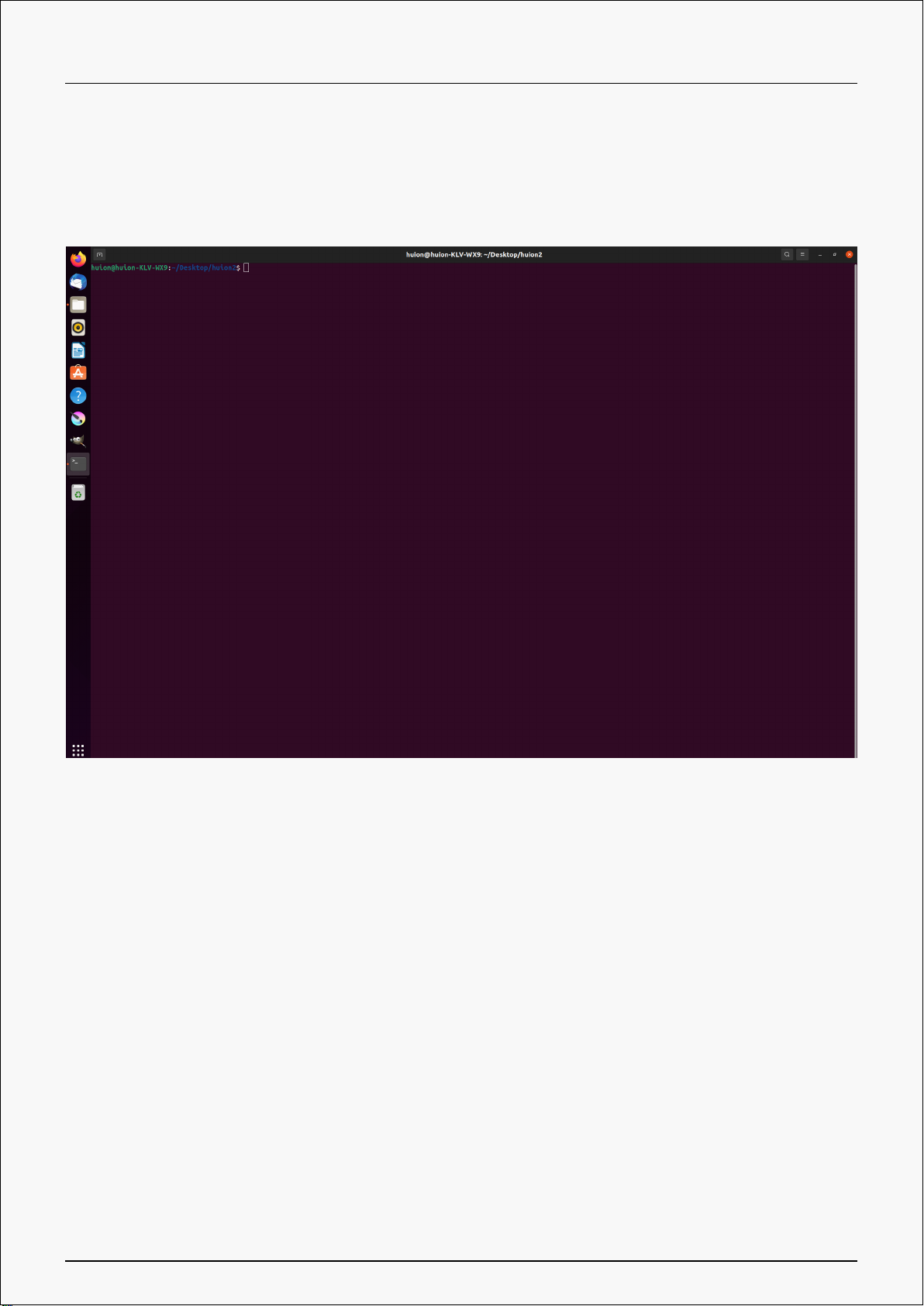

2.Open the command window in the folder.
3.Input the following command: “sudo sh install.sh”, and press the enter key on the keyboard
to make your Linux device execute it.
9 / 39

Kamvas RDS-220
4.Enter the user password to complete the installation.
10 / 39

Kamvas RDS-220

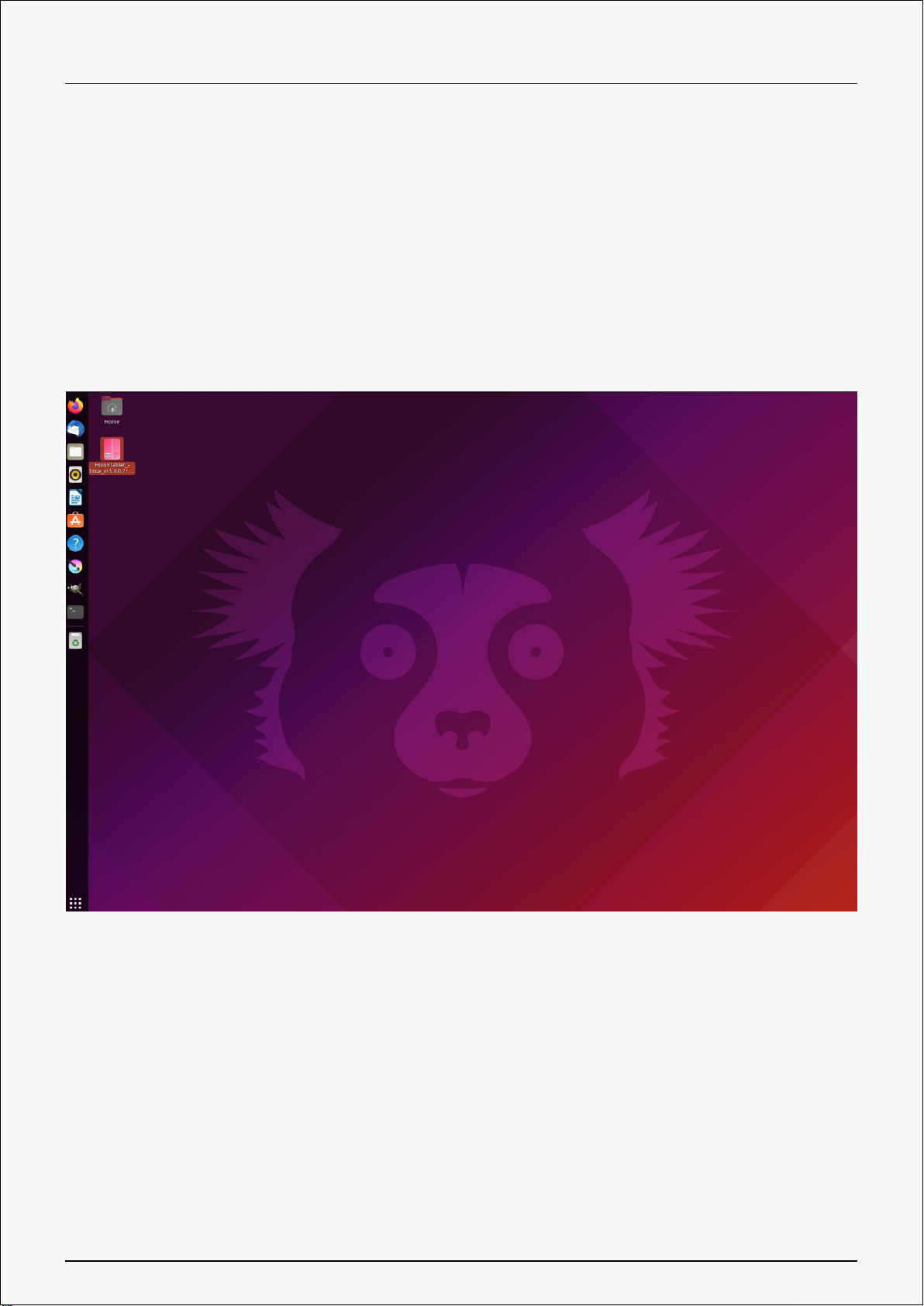

5.Please reboot your Linux device to run the driver, or the driver will not be useful.
11 / 39

Kamvas RDS-220

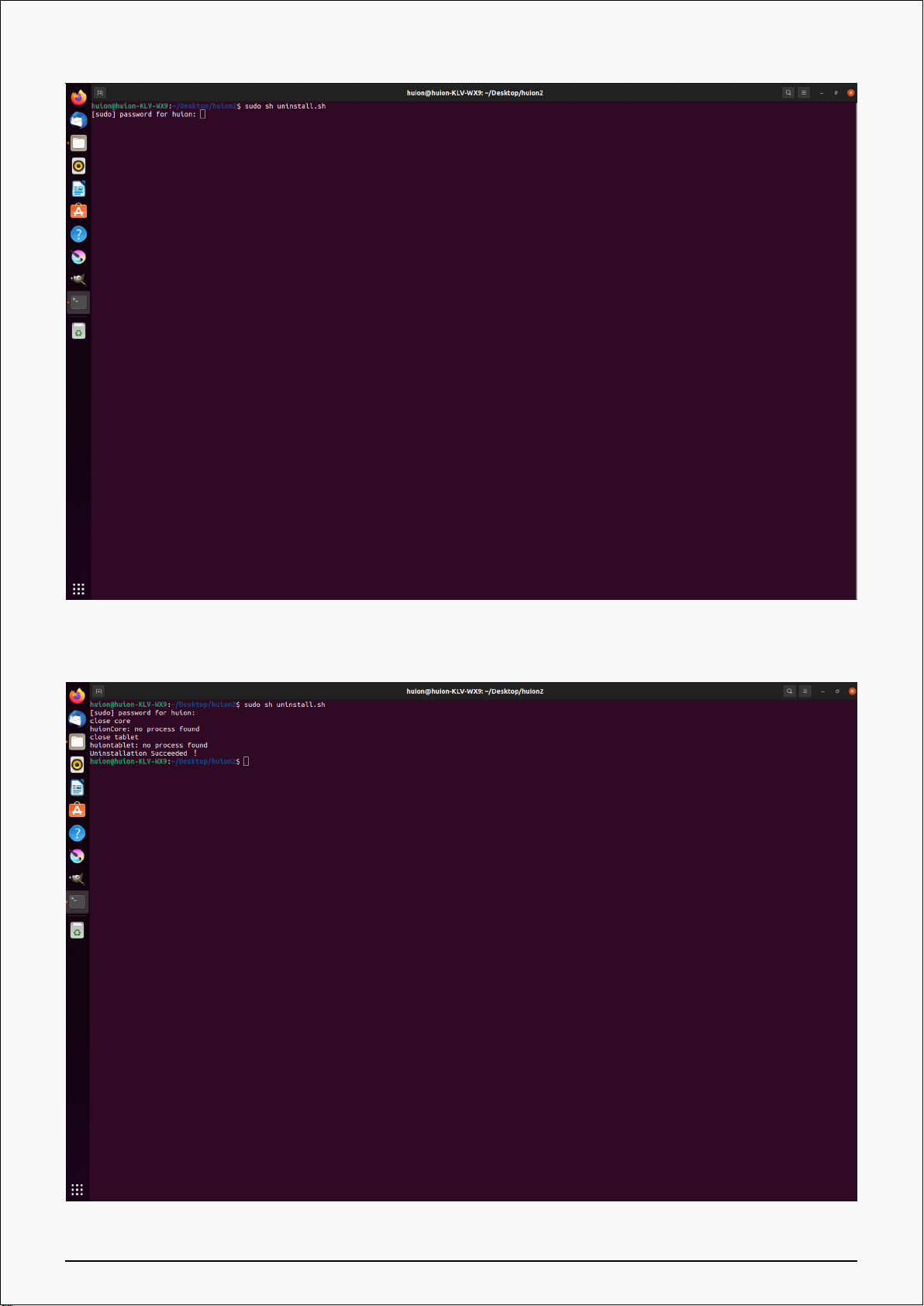

Steps to Uninstall:
1.Open the command window in the folder of the driver.
2.Input the following command in the command window: “sudo sh uninstall.sh”, and press the
enter key on the keyboard to make your Linux device execute it.
12 / 39

Kamvas RDS-220
3.Enter the user password to complete the uninstallation.
13 / 39

Kamvas RDS-220
2.Instructions for installing the driver package file in deb format.
Linux operating systems supported:
Ubuntu
Steps to Install:
1.Open the folder and double-click the driver file in deb format to enter the system default
interface of installing the driver on the application store, then click to install.
2.Enter the user password to complete the installation.
14 / 39

Kamvas RDS-220
3.Please reboot your Linux device to run the driver, or the driver will not be useful.
15 / 39

Kamvas RDS-220
Tips: Please ensure that your Linux device has been connected to the internet when installing
the driver, or the installation will fail when entering the application store interface.
Steps to Uninstall:
1.Enter the interface of the installed applications on the system’s built-in application store.
2.Find the driver and click to uninstall it.
16 / 39

Kamvas RDS-220
Tips: If you can't access the system’s built-in application store, you can search out the driver
file, huiontablet_xxx.deb, then double-click it to enter the installation interface, and click the
remove button to uninstall it.
Driver Interface Preview
17 / 39

Kamvas RDS-220
1. Pen Display
On the “Pen Display” interface, Users can set functions of the display, including Press Key and
Working Area Set.
See Section
2. Digital Pen
Users can set functions of the pen on this “Digital Pen” interface, including Press Key, Mode
selection, Pressure Sensitivity Adjustment, and Pressure Test.
See Section
3. Store
Huion Store is where you can get the latest information about the product such as its FAQ or
sales promotion. In addition, you can also purchase Huion’s other products or accessories
here.
18 / 39

Kamvas RDS-220
4. Add Programs
1. Some programs which have already been opened will appear for you to choose from after
clicking Add a Program on the screen. For more programs, click Browser and choose the item
that you want to get it added.
2. You can set different functions for different programs. Functions of the press keys change
automatically as you switch from one program to another.
3. When you select “All programs”, the functions of press keys that you set are valid for every
program. By clicking Add a Program from the drop-down list, you can set the functions for a
specific program and hence have unique settings for different programs. After that, when you
launch a specific program, the Driver will automatically recognize it and the setting features
will change to its corresponding ones.
5. Setting
Users can set the functions of a driver on this interface, including check out Device
information, Backup setting, General setting, and its version.
See Section
6. Common Problems
Click “?” and jump to Forum in our website https://www.huion.com/support.html to get a user
manual or feed back the problems to us.
7. Switch between Devices
The Driver is able to support two devices at most. Functions of them can be customized by
users respectively. When switch to one of them, functions change to its corresponding ones.
Pen Display Setting
Working Area
Select the Working Area tab to adjust the ratio of the distance of pen movement on the pen
display to that of the corresponding cursor movement on the monitor. By default, the entire
active area of the pen display maps to the whole monitor.
If more than one monitor is in use and they are in extended mode, users need to choose one
19 / 39

Kamvas RDS-220
that will be mapped to on the driver interface and the other one as the external display.
In mirror mode (All monitors display the same content), the pen display maps to the entire
screen on each monitor and cursors displayed on them move simultaneously.
1. Working Area Setting
Define the pen display area that will be mapped to the monitor. Three modes on the driver
can be chosen:
[1] Full Area: The entire active area of the pen display will be mapped to the monitor. It is the
default setting.
[2] Screen Ratio: The ratio of the active pen display area is the same as that of the monitor,
which as a general rule. For example, if you choose the screen ratio and draw a circle on the
pen display, then a circle appears on the monitor that has been connected to the pen display,
in this case some parts of the pen display may not work. But if you don’t choose the screen
ratio and draw a circle, then the circle may change into an oval on the monitor.
The ratio of the active pen display area depends on that of the display device, which as a
general rule. In Screen Ratio mode, these two ratios keep the same.
[3] Custom Area:
1> Enter coordinate values.
2> Users can adjust the working area of the pen display by changing the outlines of the
smaller rectangle (see picture 1). Users can also drag the two blue rectangles to select the
active areas of the digital pen on the screen and the pen tablet. (see picture 2 and 3).
20 / 39
