Owner’s Guide and Installation Manual
Vancouver
21321, 21328

2
42856-01 • 01/30/09 • Hunter Fan Company
Table Of Contents
1 • Getting Ready......................4
2 • Installing the Hanger Bracket .......5
3 • Assembling and Hanging the Fan ...6
4 • Wiring the Fan .....................7
5 • Installing the Motor Housing .......8
6 • Assembling the Blades..............9
7 • Completing Your Installation With or
Without a Bowl Light Fixture ......10
8 • Operating and Cleaning Your Ceiling
Fan ...............................14
9 • Troubleshooting....................15
© 2009 Hunter Fan Company
Your new Hunter® ceiling fan is an addition to your home or oce that
will provide comfort and performance for many years. is installation
and operation manual gives you complete instructions for installing
and operating your fan.
We are proud of our work. We appreciate the opportunity to supply
you with the best ceiling fan available anywhere in the world.
Before installing your fan, for your records and warranty assistance,
record information from the carton and Hunter nameplate label
(located on the top of the fan motor housing).
Cautions and Warnings
•READ THIS ENTIRE MANUAL CAREFULLY BEFORE BEGINNING
INSTALLATION. SAVE THESE INSTRUCTIONS.
• Use only Hunter replacement parts.
• To reduce the risk of personal injury, attach the fan directly to the
support structure of the building according to these instructions,
and use only the hardware supplied.
• To avoid possible electrical shock, before installing your fan,
disconnect the power by turning o the circuit breakers to the
outlet box and associated wall switch location. If you cannot lock
the circuit breakers in the o position, securely fasten a prominent
warning device, such as a tag, to the service panel.
• All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualied electrician.
• To reduce the risk of personal injury, do not bend the blade
attachment system when installing, balancing, or cleaning the fan.
Never insert foreign objects between rotating fan blades.
• To reduce the risk of re, electrical shock, or motor damage, do not
use a solid-state speed control with this fan. Use only Hunter speed
controls.
Welcome

3
42856-01 • 01/30/09 • Hunter Fan Company
Mounting and Optional Accessories
Understanding Mounting

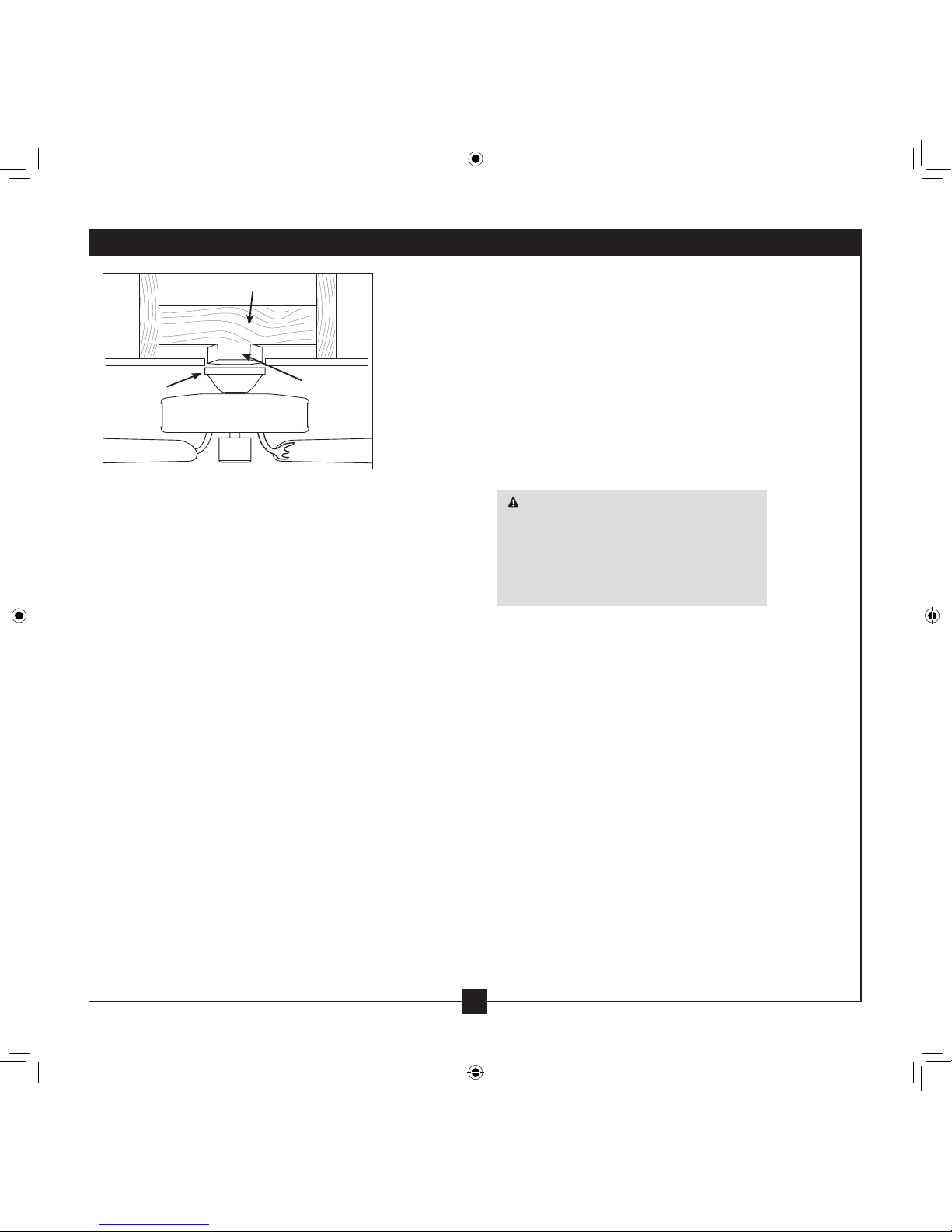

Hunter’s patented mounting system provides you maximum ease in
installing your fan. is fan was designed to be mounted only on at
ceilings and can be used on ceilings less than 8 feet high.
Considering Optional Accessories
Consider using Hunter’s optional accessories, including a wall-mounted
or remote speed control. To install and use the accessories, follow
the instructions included with each product. For quiet and optimum
performance of your Hunter fan, use only Hunter speed controls.
Low Profile Mounting ts close to the
ceiling, recommended for ceilings less
than 8 feet high
Support Brace
Low Prole
Mounting
Style
Ceiling
Outlet Box
CAUTION: To reduce the risk of
personal injury, attach the fan directly
to the support structure of the building
according to these instructions, and use
only the hardware supplied.

4
42856-01 • 01/30/09 • Hunter Fan Company
To install a ceiling fan, be sure you can do the following:
• Locate the ceiling joist or other suitable support in ceiling.
• Drill holes for and install wood screws.
• Identify and connect electrical wires.
• Lift 40 pounds.
If you need help installing the fan, your Hunter fan dealer can direct
you to a licensed installer or electrician.
Gathering the Tools
You will need the following tools for installing the fan:
• Electric drill with 9/64” bit
• Standard screwdriver (magnetic tip recommended)
• Phillips-head screwdriver (magnetic tip recommended)
• Wrench or pliers
• Ladder (height dependent upon installation site)
Checking Your Fan Parts
Carefully unpack your fan to avoid damage to the fan parts. Refer to
the included Parts Guide. Check for any shipping damage to the motor
or fan blades. If any parts are missing or damaged, contact your Hunter
dealer or call Hunter Technical Support Department at 888-830-1326.
Preparing the Fan Site
Before you begin installing the fan, follow all the instructions in
the pullout sheet called “Preparing the Fan Site.” Proper ceiling fan
location and attachment to the building structure are essential for
safety, reliable operation, maximum eciency, and energy savings.
Installing Multiple Fans?
If you are installing more than
one fan, keep the fan blades and
blade irons (if applicable) in sets,
as they were shipped.
1 • Getting Ready

5
42856-01 • 01/30/09 • Hunter Fan Company
Steps 2-4 – 2-6
CAUTION: To avoid possible electrical shock, before installing your fan,
disconnect the power by turning o the circuit breakers to the outlet box
and associated wall switch location. If you cannot lock the circuit breakers
in the o position, securely fasten a prominent warning device, such as a
tag, to the service panel.

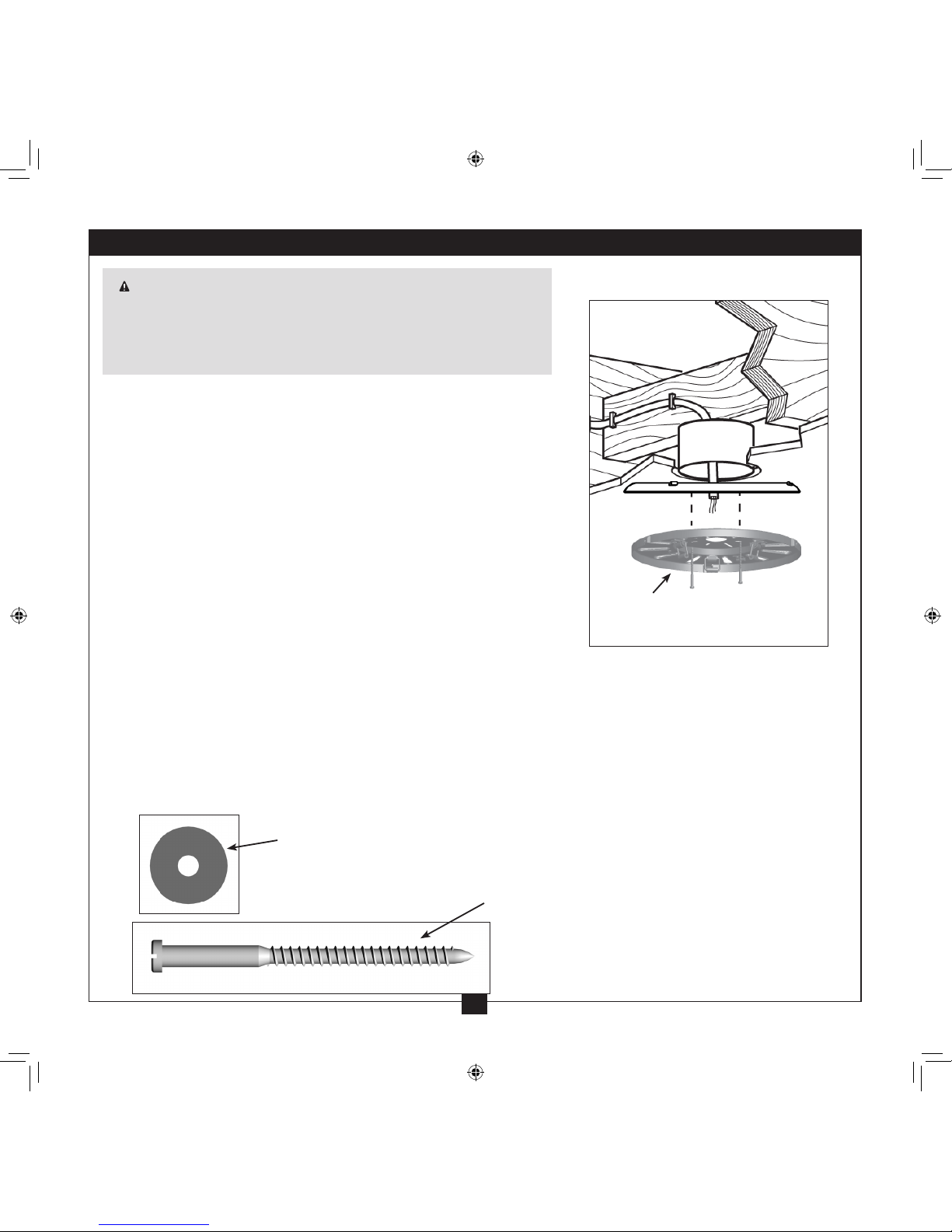

2-1. Drill two pilot holes into the wood support structure through the
outermost holes in the outlet box. e pilot holes should be 9/64”
in diameter.
2-2. Place the trim ring over the ceiling plate.
2-3. read the lead wires from the outlet box down through the hole
in the middle of the ceiling plate.
2-3. Align the slotted holes in the ceiling plate with the pilot holes you
drilled in the wood support structure.
2-4. Place a at washer on each of the two 3” wood screws and pass
the screws through the slotted holes in the ceiling plate into the
pilot holes you drilled.
Tighten the screws into the 9/64” pilot holes; do not use lubricants
on the screws. Do not over tighten.
Ceiling
Plate
Flat Washer
3” Wood Screw
2 • Installing the Hanger Bracket

6
42856-01 • 01/30/09 • Hunter Fan Company
WARNING: Fan may fall if not assembled as directed in these
installation instructions.
3-1. Lift the motor assembly and hook the three tabs over the handles,
one at a time.
Step 3-1 Handle
Tab
3 • Assembling and Hanging the Fan

7
42856-01 • 01/30/09 • Hunter Fan Company

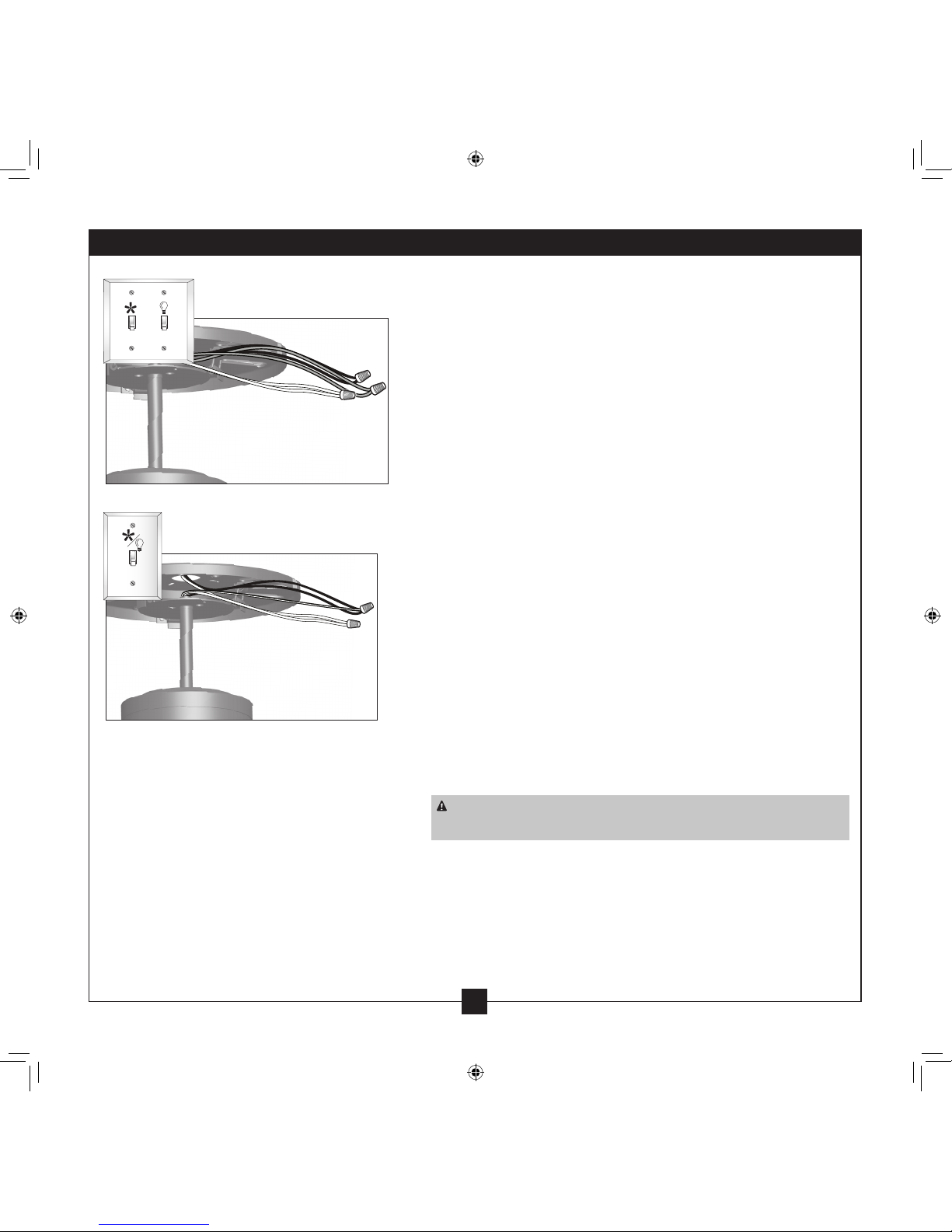

Dual Switch Wiring
Single Switch Wiring
All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualified electrician.
Wall switches are not included. Select an acceptable general-use switch
in accordance with national and local electrical codes.
4-1. Before attempting installation, make sure the power is still o.
4-2. To connect the wires, hold the bare metal leads together and place
a wire connector over them, then twist clockwise until tight. For
all these connections use the wire connectors provided.
4-3. Connect the bare or green ground wire (grounding) from the
ceiling to the green ground wire (grounding) from the ceiling plate
and the green ground wire (grounding) from the fan.
4-4. Connect the white wire (grounded) from the ceiling to the white
wire (grounded) from the fan.
4-5. Connect the remaining wires as follows:
Dual Switch Wiring:
• e black wire (ungrounded) from the ceiling to the black wire
(ungrounded) from the fan
• e black/white wire (ungrounded) from the fan to the wire
(ungrounded) for the wall switch
Single Switch Wiring:
• e black wire (ungrounded) from the ceiling to the black
(ungrounded) and the black/white wire (ungrounded) from
the fan
CAUTION: Be sure no bare wire or wire strands are visible after
making connections.
4-6. Turn the splices upward and push them carefully back through the
ceiling plate into the outlet box.
4-7. Spread the wires apart, with the grounded wires on one side of
the outlet box and the ungrounded wires on the other side of the
outlet box.
4 • Wiring the Fan

8
42856-01 • 01/30/09 • Hunter Fan Company
5-1. Place the fan housing over the motor.
5-2. Raise the trim ring to allow access to the holes on the
ceiling plate.
Note: Let the trim ring rest sitting diagonally on ceiling plate
to keep the trim ring out of the way while installing the
canopy screws.
5-3. Align the holes in the fan housing with the holes in the
ceiling plate.
5-4. Partially install each canopy screw into the holes in the
fan housing and into the ceiling plate until all holes are
aligned. Securely tighten all screws.
5-5. Lower the trim ring on the ceiling plate to cover the
canopy screws that were installed in the previous step.
Steps 5-1 – 5-3
Canopy Screw
Canopy
Screw
Ceiling Plate
Housing
5 • Installing the Motor Housing
Trim Ring
5 • Installing the Motor Housing

9
42856-01 • 01/30/09 • Hunter Fan Company
Hunter fans use several styles of fan blade irons (brackets that hold the
blade to the fan).

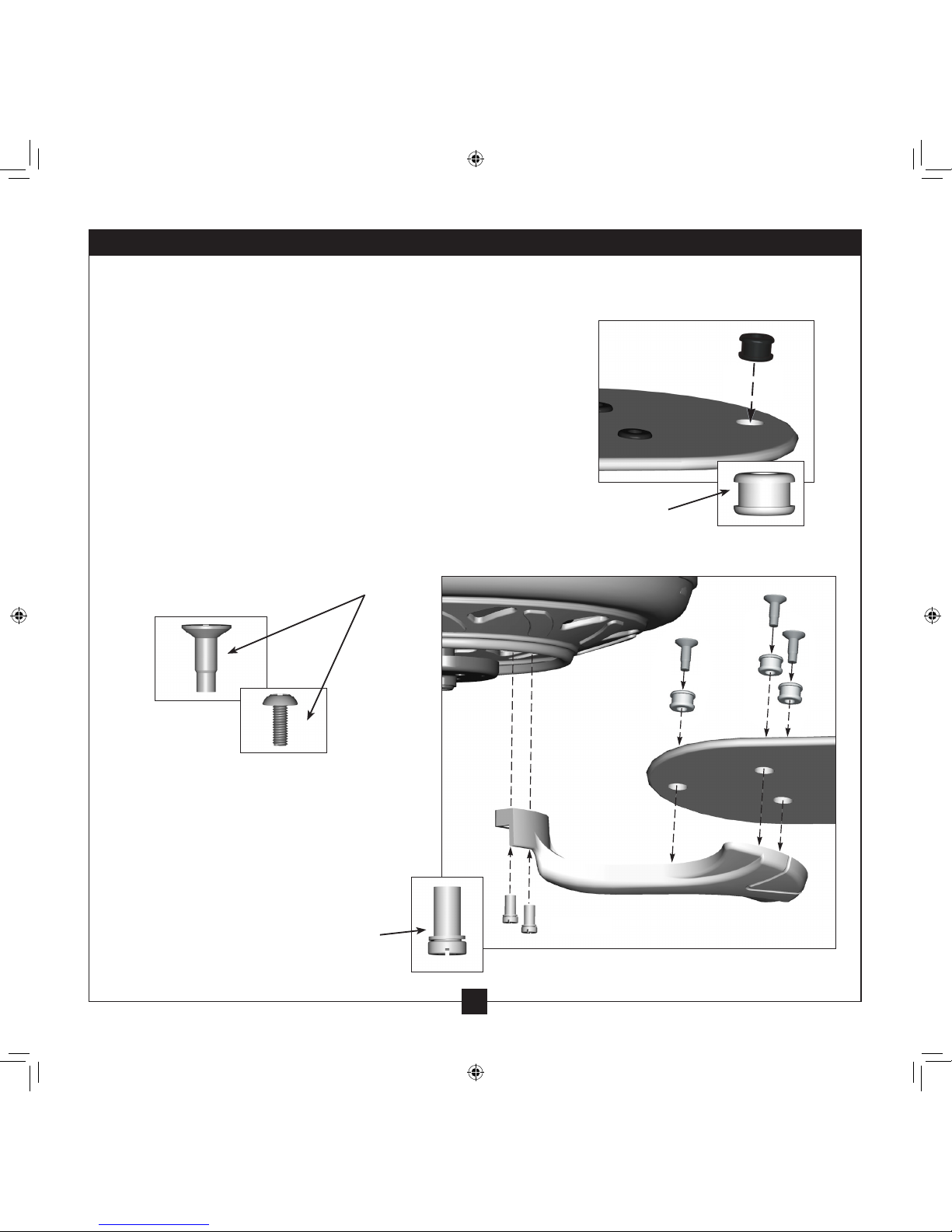

6-1. Your fan may include blade grommets. If your fan has grommets,
insert them by hand into the holes on the blades.
6-2. Attach each blade to a blade iron using three blade assembly
screws. If you used grommets, the blades may appear slightly loose
after screws are tightened. is is normal.
6-3. Remove the blade mounting screws and rubber shipping bumpers
from the motor. Note: Some blade mounting screws are installed
in the motor to secure shipping blocks.
6-4. For each blade, insert one blade mounting screw through the
blade iron, and attach lightly to the fan. Insert the second blade
mounting screw, then securely tighten both mounting screws.
Step 6-1 (Detail)
Blade Assembly
Screws
Use with grommet
Use without grommet
Grommet
Blade
Mounting
Screw
Steps 6-1 – 6-2
Step 6-4
6 • Assembling the Blades

10
42856-01 • 01/30/09 • Hunter Fan Company

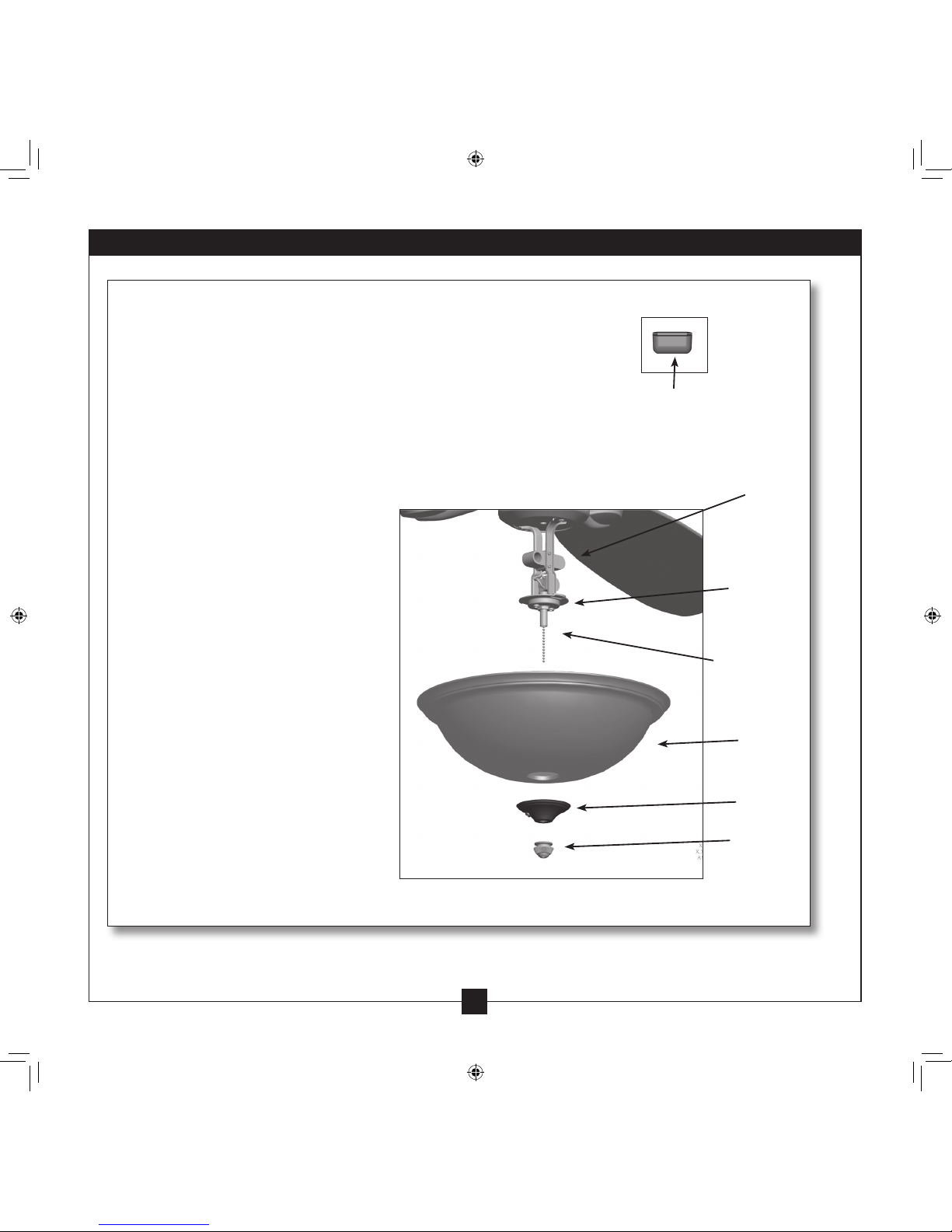

Your Hunter fan comes with an integrated light xture assembly and
an optional switch housing cap and plug button. is feature gives
you the option of installing the fan with OR without the included light
xture. e steps below direct you whether or not you are installing a
light xture.
WARNING: Use only the light xture supplied with this fan model.

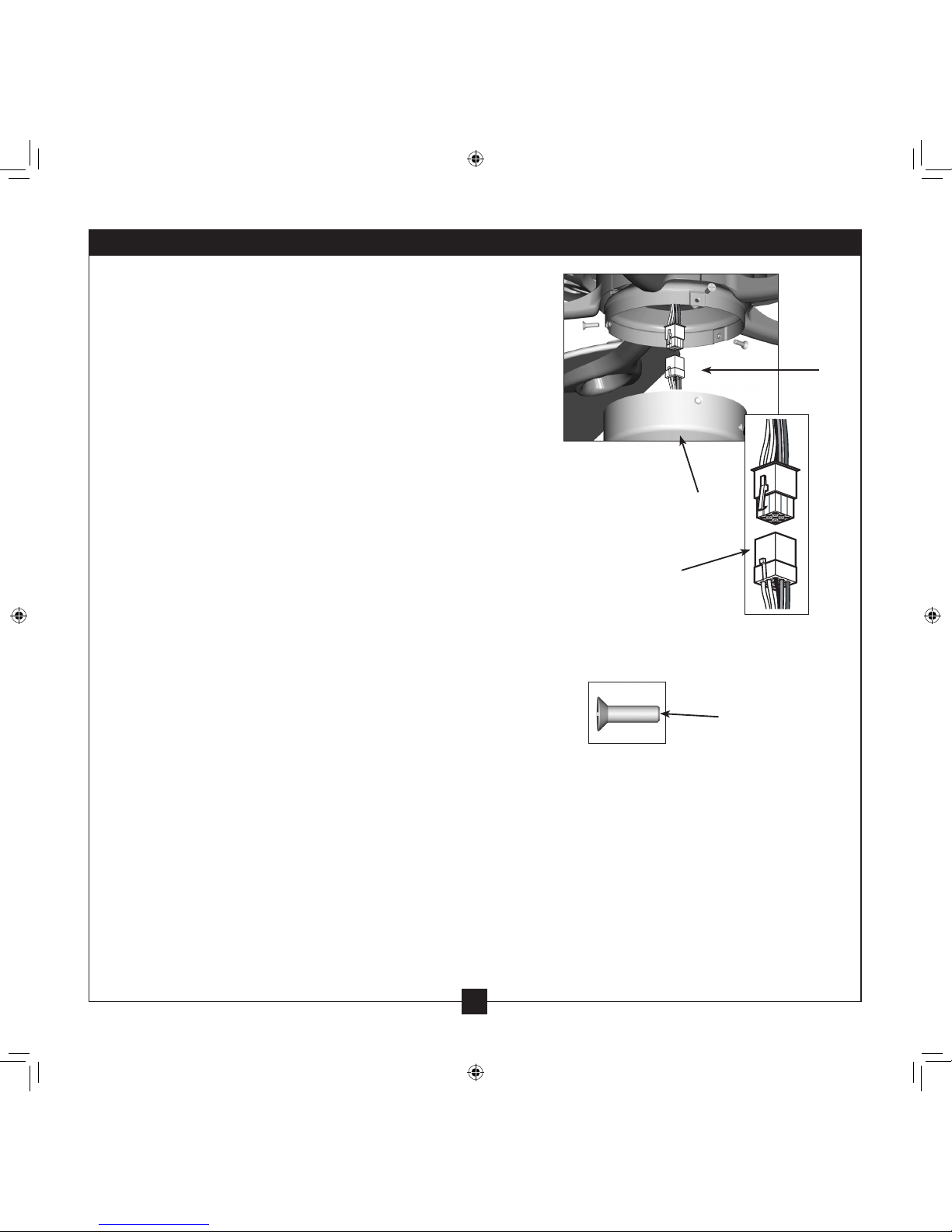

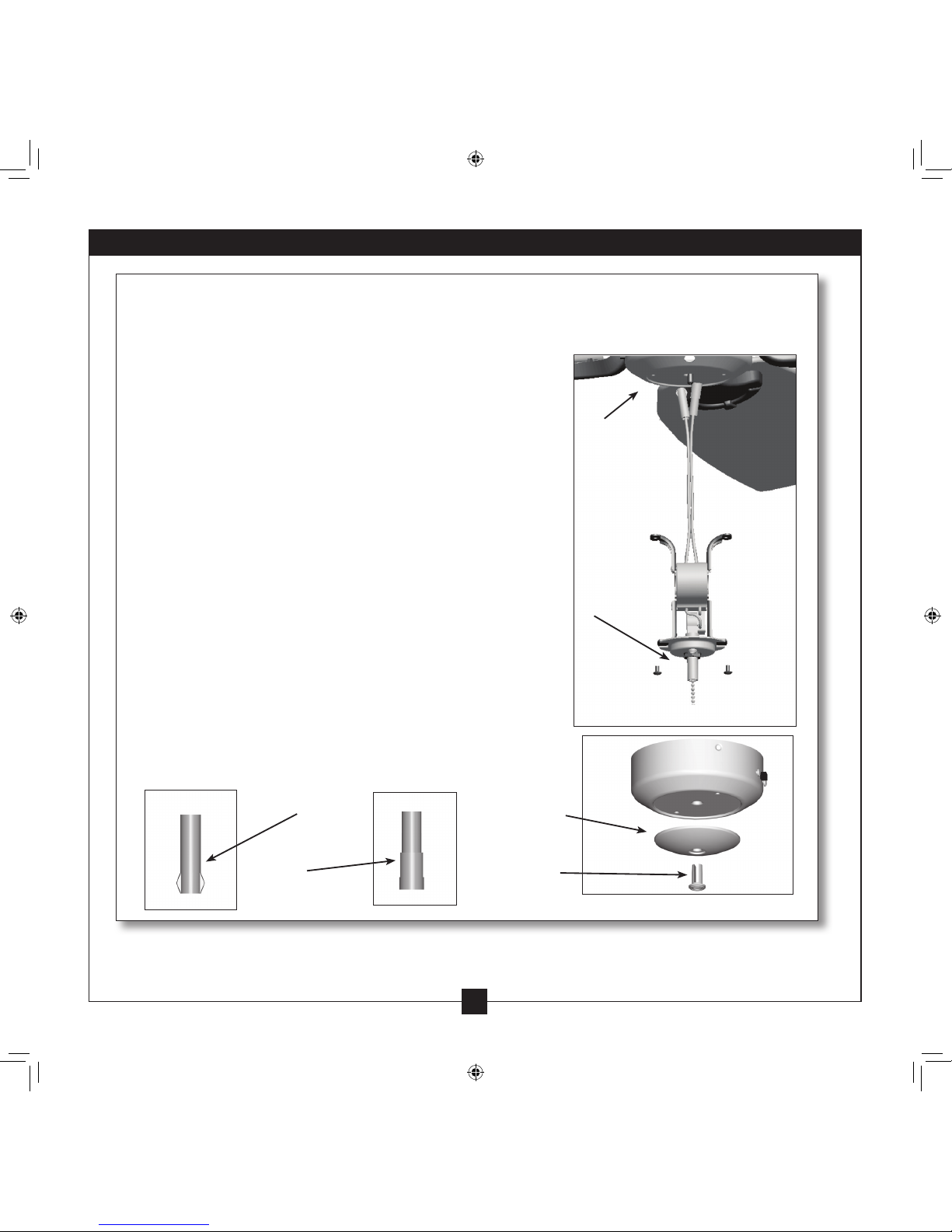

7-1. To attach the upper switch housing, partially install two housing
assembly screws into the switch housing mounting plate.
7-2. Feed the upper plug connector through the center opening of the
housing.
7-3. Align the keyhole slots in the housing with the housing assembly
screws.
7-4. Turn the housing counterclockwise until the housing assembly
screws are rmly situated in the narrow end of the keyhole slots.
Install the remaining screw into the housing. Tighten all three
screws rmly.
CAUTION: Make sure the upper switch housing is securely
attached to the switch housing mounting plate. Failure to properly
attach and tighten all three assembly screws could result in the
switch housing and light xture falling.
7-5. If you want to install the light fixture, proceed with step 7-6
now.
If you do not want to install the light fixture, you need to
uninstall it now. See “Uninstalling the Light Fixture” on step 7-17.
Once you have uninstalled the light xture, continue with step 7-6.
Steps 7-1 – 7-3
Housing
Assembly
Screw
Upper
Switch
Housing
7 • Completing Your Installation With or Without a Bowl Light Fixture

11
42856-01 • 01/30/09 • Hunter Fan Company
Lower Switch
Housing
Plug
Connector
Housing
Assembly Screw
Plug
Connector
Detail
Steps 7-6 – 7-7
7-6. To attach the lower switch housing, connect the upper plug
connector from the motor to the lower plug connector in the
lower switch housing assembly.
Note: Both plug connectors are polarized and will only t together
one way. Make sure the connectors are properly aligned before
connecting them. Incorrect connection could cause improper
operation and damage to the product.
7-7. Place the lower switch housing assembly over the upper switch
housing. Align the side screw holes in the upper and lower switch
housings. Attach the lower switch housing to the upper switch
housing with three housing assembly screws.
7 • Completing Your Installation With or Without a Bowl Light Fixture (Continued)

12
42856-01 • 01/30/09 • Hunter Fan Company
7 • Completing Your Installation With or Without a Bowl Light Fixture (Continued)
Installing the Glass Bowl
7-8. First install included B10 (60 Watts Maximum) bulbs into the
sockets.
7-9. If the fandangle is attached to the extra pull chain, remove it now.
7-10. Attach the extra pull chain (included) to the fan pull chain using
the plastic breakaway connector. (You may nd the plastic
breakaway connector on the end of the extra chain.)
7-11. read the fan pull chain through the hole in the metal disc. en,
thread the fan pull chain through the hole in the center of the glass
bowl.
7-12. read the light pull chain
through the hole in the center of
the glass bowl. en, read the
light pull chain through the hole
in the center of the cover plate.
7-13. read the fan pull chain through
the grommet hole in the side of
the cover plate.
7-14. Place the cover plate up against
the glass bowl. Align the holes in
the cover plate and glass bowl.
7-15. read the light pull chain
through the nial and screw the
nial onto the threaded rod end
until tight.
7-16. Reattach the fandangle to the
extra pull chain.
Breakaway
Connector
For Light Bulbs
Metal Rod
Metal Disk
Glass Bowl
Cover Plate
Finial

13
42856-01 • 01/30/09 • Hunter Fan Company
7 • Completing Your Installation With or Without a Bowl Light Fixture (Continued)
Uninstalling the Light Fixture
7-17. To uninstall the light xture, rst disconnect the plug connectors
between the black wire and the red wire.
7-18. Disconnect the plug connectors between the two white
wires.
7-19. Remove the two screws attaching the light kit to the lower
switch housing.
7-20. Remove the light xture from the lower switch housing,
pulling disconnected wires through the hole in the center of
the lower switch housing.
Note: When removing the wires, pull the thin plug
connector (male) through rst, and then pull the other plug
connector (female) through the hole.
7-21. Install the dummy terminals (included in the sack parts) on
the two disconnected wires in the lower switch housing.
7-22. Install the switch housing cap and plug button to the lower
switch housing.
7-23. Once you have uninstalled the light xture, continue
with step 7-6
Male Dummy
Terminal
Female Dummy
Terminal
Step 7-22
Cap
Plug Button
Lower Switch
Housing
readed Rod
Steps 7-17 – 7-20

14
42856-01 • 01/30/09 • Hunter Fan Company
In warm weather, use
downward air ow pattern
In cold weather, use upward
air ow pattern
8-1. Turn on electrical power to the fan.
8-2. e fan pull chain controls power to the fan. e pull chain has
four settings in sequence: High, Medium, Low and O.
• Pull the chain slowly to change settings.
• Release slowly to prevent the chain from recoiling into the
blades.
• e chain uses a breakaway connector that separates if the
chain is jerked. If this happens, simply reinsert the chain into
the connector.
8-3. e light pull chain controls the power to the light xture. e
chain has two settings: ON and OFF.
8-4. Ceiling fans work best by blowing air downward (counterclockwise
blade rotation) in warm weather to cool the room with a direct
breeze. In winter, having the fan draw air upward (clockwise blade
rotation) will distribute the warmer air trapped at the ceiling
around the room without causing a draft.
8-5. For cleaning nishes, use a soft brush or lint-free cloth to prevent
scratching. A vacuum cleaner brush nozzle can remove heavier
dust. Remove surface smudges or accumulated dirt and dust using
a mild detergent and a slightly dampened cloth. You may use
an artistic agent, but never abrasive cleaning agents as they will
damage the nish.
8-6. Clean wood nish blades with a furniture polishing cloth.
Occasionally, apply a light coat of furniture polish for added
protection and beauty. Clean painted and high-gloss blades in the
same manner as the fan nish.
To Change Airflow Direction
Turn the fan o and let it come to a complete
stop. Slide the reversing switch on the fan to the
opposite position. Restart fan.
Reversing
Switch
8 • Operating and Cleaning Your Ceiling Fan

15
42856-01 • 01/30/09 • Hunter Fan Company
Problem: Nothing happens; fan does not move.
1. Turn power on, replace fuse, or reset breaker.
2. Loosen canopy, check all connections according to the wiring the
fan section.
3. Check the plug connection in the switch housing.
4. Push motor reversing switch rmly left or right to ensure that the
switch is engaged.
5. Pull the pull chain to ensure it is on.
6. Remove the shipping bumpers.
Problem: Noisy operation.
1. Tighten the blade bracket screws until snug.
2. Tighten the blade screws until snug.
3. Check to see if the blade is cracked. If so, replace all the blades.
4. Change to an approved speed control.
5. Be sure that the glass is secure.
6. Check and tighten the screws in the switch housing mounting
plate and in the upper and lower switch housing.
Problem: Excessive wobbling.
1. If your fan wobbles when operating, use the enclosed balancing kit
and instructions to balance the fan.
2. Tighten all blade and/or blade iron screws.
Problem: Lights dim when turned on or do not turn on
1. Check to make sure wattage of light bulbs installed match the
specications on the light socket.
If you need parts or service assistance, please call
888-830-1326 or visit us at our Web site at
http://www.hunterfan.com.
Hunter Fan Company
7130 Goodlett Farms Pkwy.
Memphis, Tennessee 38016
9 • Troubleshooting
