Hunter ECO 14 User manual

PROJECT:
LOCATION:
SUBMITTED BY:
FAN MODEL
DOWNROD
WALL CONTROL
VARIABLE FREQUENCY DRIVE
I-BEAM MOUNTING HARDWARE
INSTALLATION
NOTES
Fan(s) will be located at the nearest location(s) as per building plans.
Wall control location(s) to be identified by owner at time of installation.
IF A TOUCHSCREEN IS SELECTED: Owner must provide 110V outlet within 6’ of touchscreen control location.
IF INSTALLATION IS TO BE PERFORMED BY OTHERS: Installation and site preparation to be performed by others at owner’s request.
IF GOLD LEVEL INSTALLATION: Basic mechanical installation includes: scissor lift rental (if necessary), mounting all fans and equipment, routing all
communication cables, connecting fans and controls (if applicable) to power supply, and factory authorized startup and commissioning.
*CUSTOMER IS RESPONSIBLE FOR PROVIDING POWER SUPPLY TO 15’ FROM EACH FAN LOCATION PRIOR TO FAN INSTALLATION*
IF PLATINUM LEVEL INSTALLATION: Full turnkey installation includes: routing all electrical wire and conduit from each fan location to electrical
panel, terminating electrical connections with NEMA rated receptacles, scissor lift rental (if necessary), mounting all fans and equipment, routing all
communication cables, connecting fans and control (if applicable) to power supply, routing low voltage fire relay cable from each fan location to security
panel (if fire relay tie-in is required – Customer’s fire/security company to land final connections), and factory authorized startup and commissioning.
DIAMETER
COMMENTS
ECO
P: 629.333.7100 | F: 615.232.3891 | TOLL: 1.844.591.FANS (3267) 180 THREET INDUSTRIAL ROAD, SMYRNA 37167 | HUNTERFAN.COM/INDUSTRIAL
24" Downrod Assembly36" Downrod Assembly48" Downrod Assembly60" Downrod Assembly72" Downrod Assembly84" Downrod Assembly96" Downrod Assembly108" Downrod Assembly120" Downrod Assembly
To Be Performed By OthersGold Level Installation (Basic Mechanical)Platinum Level Installation (Premium Turnkey)
8 '10 '12 '14 '16 '18 '20 '24 '
AC 1PH 200-240V 60HzAC 3PH 200-240V 60HzAC 3PH 380-480V 60Hz

POWER (hp)
BLDC Motor 5/8 HP
INPUT POWER OPTIONS
CURRENT AT MAX SPEED (Amp)
FAN DIAMETER
FAN WEIGHT
DOWNROD (A)
SAFETY FEATURES
MOUNTING OPTIONS
14 ft
128 lbs (58 kg)
I-beam |Glulam
Fan Retention System |Airfoil Retention System |Fire relay
Downrods available in 1 ft increments: 2 ft min., 10 ft max.
MAXIMUM SPEED (RPM)
AC 1PH 200-240V 50/60Hz |AC 3PH 200-240V 50/60Hz |AC 3PH 380-480V 50/60Hz
107 RPM
MAX AFFECTED AREA 70 ft Dia | 4,900 sqft
Pictured with 2 ft downrod
(A) MINIMUM 2 ft
5 INCH
( 127MM )

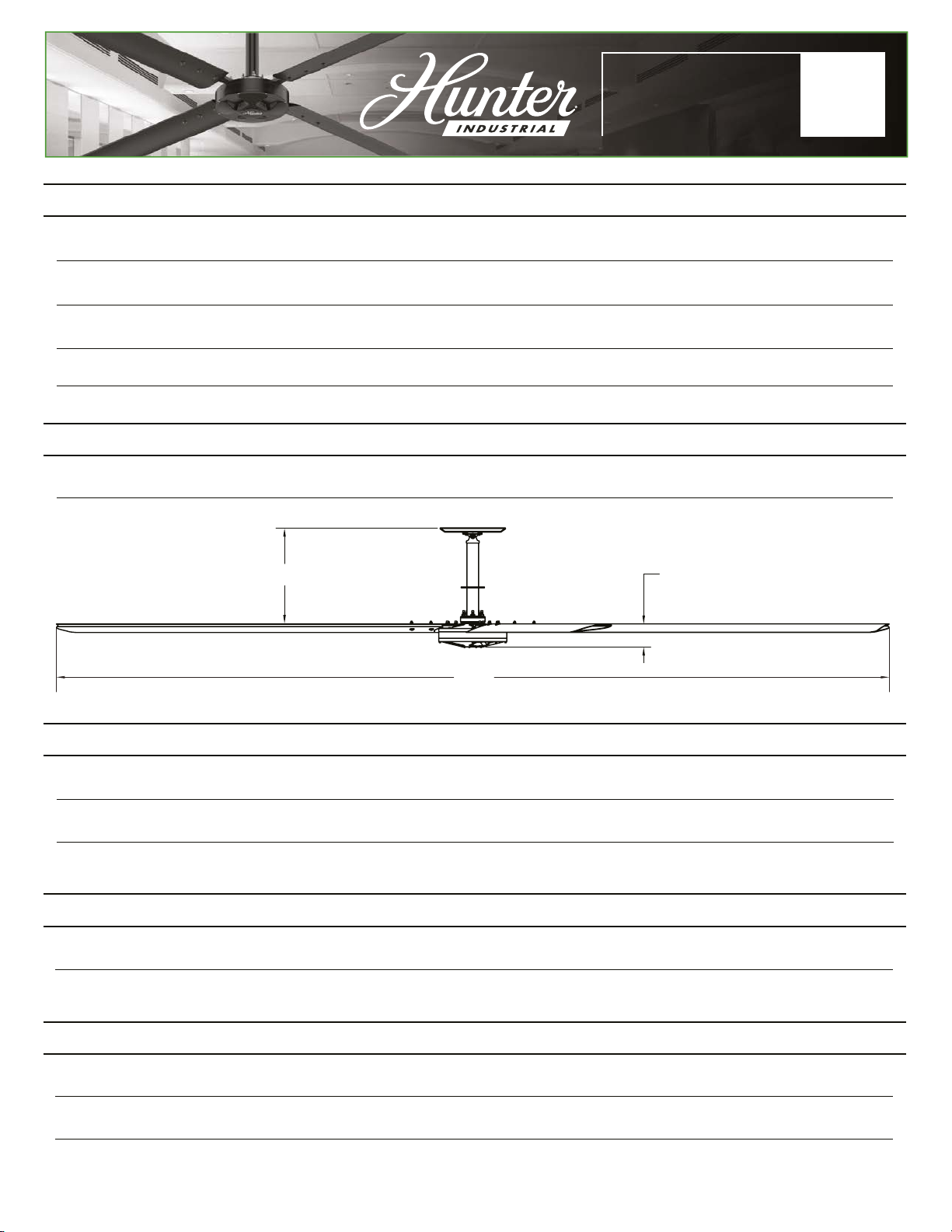

14 ft
DIMENSIONS & WEIGHT
POWER & EFFICIENCY
MOUNTING & SAFETY
ECO 14
4.5 - 3.9 A |2.4 - 2.1 A |2.0 - 1.6 A
Downrod length must be specified at time of order.
OPTIONAL
INCLUDED
CERTIFICATIONS ETL/Intertek-certified to ANSI/UL 507 and CSA
C22.2 No. 113 in North America
10-year, Non-Prorated Warranty
Fan I-beam mount with pre-wired downrod |Control panel | |Install manual
Mounting hardware kit || Communication Kit |Guy wire kit
Additional cable lengths | |
Glulam brackets
WARRANTY1
1See complete warranty for details.
IN THE BOX
WARRANTY & CERTIFICATIONS
r092619
350 Series Fan Controller
Wall Control
430 Series Fan Controller |700 Series Fan Controller |Environmental Control |Fire Relay
BMS Integration
180 THREET INDUSTRIAL ROAD | SMYRNA, TN 37167 | 1-844-591-FANS | HUNTERFAN.COM/INDUSTRIAL

SAFETY & PRECAUTIONS
3
READ THE ENTIRE MANUAL BEFORE OPERATING THE FAN
Read and understand this manual before installing or operating a fan unit. Installation, adjustment, repair, or maintenance must
be performed by qualified personnel.
Follow all safety practices and instructions during the installation, operation, and servicing of the fan. Failure to apply
these safety practices could result in death or serious injury. If you do not understand the instructions, please call our
Technical Department at 1-844-593-FANS (3267) for guidance.
All fan controls and incoming power should be installed only by qualified technicians familiar with the requirements of the National
Electrical Code and local codes. Failure to follow these guidelines will void the manufacturer’s warranty. All electrical controls are
configured at the factory and are ready to use. No user adjustments are available. Follow the included installation instructions
when installing this device to ensure proper operation. Do not make any changes to any part of the fan without first consulting
Hunter Industrial Fan. Installation is to be in accordance with the National Electrical Code, ANSI/NFPA 70-1999 and local codes.
The user is responsible for compliance with all international and National Electrical Code requirements with respect to grounding
of all equipment. Many of the parts of this unit operate at line voltage. DO NOT TOUCH any live conductors. Install all covers before
applying power or starting and stopping the unit. To reduce the risk of electric shock or injury, use this unit only in the manner
intended by the manufacturer. If you have questions, call our Technical Department at 1-844-593-FANS (3267).
Before servicing or cleaning the unit, switch power off at the service panel and lock the service disconnecting means to prevent
power from being switched on
accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning sign, such as a tag,
to the service panel. At all times, leave the power off at the service panel. To reduce the risk of electric shock or injury, use this
unit only in the manner intended by the manufacturer. If you have questions, call our Technical Department at 1-844-593-FANS
(3267).
DAMAGED EQUIPMENT
Do not operate or install any fans or fan accessories that appear to be damaged. Failure to follow this instruction can result in
death, serious injury, or equipment damage.
SERVICE
If the fan does not operate properly using the procedures in this manual, remove all power to the unit and contact our Technical
Department for further assistance at 1-844-593-FANS (3267). Keep all body parts clear of moving parts at all times. All electrical
troubleshooting and repair must be done by a qualified technician and meet all applicable codes.
WARNING! Be aware of electric shock hazard, explosion, or arc ash

SAFETY & PRECAUTIONS
4
KEY RETENTION SYSTEM COMPONENTS
Our fans are engineered with safety features that prevent pieces of the fan from falling in the unlikely event of a
catastrophic failure. Install the retention cable on EVERY fan. The retention cable, if installed per Hunter Industrial
Fan specifications, will provide comprehensive protection of people, equipment, and property in the unlikely event of
mounting system failure.
MARK THE FLOOR TO ALERT PERSONNEL
When mounting a fan in an area where materials may be elevated into its path, we recommend marking or painting the
floor with a large crosshatched circle to alert personnel of the overhead location of fans.
WEIGHT CONSIDERATIONS
We recommend that a building structure be capable of holding approximately twice the stated hanging weight of the fan.
The hanging weight of a 24’ fan with a standard 4’ downrod is 212 lbs., the maximum hanging weight of a 24’ fan with a
10’ downrod is 232 lbs.
If there is any uncertainty in the strength of the building structure, a professional structural engineer should perform a
thorough evaluation of the building prior to purchasing the fans. Hunter Industrial Fan provides guidelines for mounting
fans; however, it is the sole responsibility of the building owner and installer to ensure the safety of the mounting system,
that the building structure is sound, and that the installation complies with all federal, state, and local codes.
CHECK FEDERAL, STATE, AND LOCAL CODES
Code compliance is the responsibility of the installer.
Check all relevant codes to make sure that all product certifications, product listings, and building regulations are met.
WINDY CONDITIONS
Fans should not be operated or installed in locations where it is frequently windy.
CAUTION! The fan should never be run without a properly installed retention cable, which is supplied with every fan along with all required hardware.
If the retention cable is not installed, the warranty will be voided.

SPRINKLER SYSTEMS AND FAN PLACEMENT
In any installation where fire sprinklers are in place, the fan should not interfere with their correct operation. Fans
should be located no less than 3 feet below a sprinkler, and placed central to each sprinkler quadrant. Our industrial
control panel can be connected to a fire relay system, which, in an emergency, will stop fans in case of fire.
Prior to installing fans, review all codes applicable to sprinkler systems and fans to ensure code compliance and refer to
NFPA 13 Standard from the National Fire Prevention Association.
Please call our Technical Department for guidance at 1-844-593-FANS (3267). However, it is your sole responsibility to see
that the installation is completed to code and that it is correct.
OTHER INFORMATION ON PLACEMENT AND SPACING
If possible, avoid mounting fans directly below lights or skylights to avoid any strobe effect caused by moving airfoils.
Note, a large fan, 20 to 24 feet in diameter, performs best at 20 to 30 feet above the floor, but acceptable performance
has been demonstrated as low as 10 feet and as high as 50 feet.
If the building has a mezzanine, fans should be mounted so a person cannot reach a fan in any way from the upper
level/deck. Make certain that fans are positioned so that the airfoil tips are at least 3 feet away from any area where a
person may be able to extend outward to reach them.
Fans should not be located directly beneath any air discharge. This includes air conditioning units and evaporative
coolers. Such equipment can be used effectively in conjunction with HVLS fans but the discharge must be located
outside of the swept area of the fan.
FAN PLACEMENT
2 FT
Min
2 FT
Min
20-25% OF
FAN DIAMETER
MINIMUM CLEARANCE
5

GUY WIRE CHECK
Checking a fan’s guy wires for tension and inspecting for frayed sections could prevent a problem before it occurs. Fan
owners should confirm that the guy wires are not wrapped around any sharp edges. We recommend attaching guy
wires to the building with provided clamps to prevent fraying. Turnbuckles should be checked to ensure tightness. If
they are loose, the guy wire cables need to be re-tensioned.
AIRFOIL CLEANING
Depending on the commercial application of the fan, there can be quite a bit of dust or other particulates that cling
to the fan’s airfoils. We recommend fan owners keep airfoils clean by having a maintenance person or skilled trade
professional–who has experience using a lift–wipe the fan airfoils with a rag or sponge using hot water or regular
cleaning solutions. Please do not use chlorine or any chemicals containing chlorine.
RETENTION SYSTEM CHECK
Each fan is installed with a retention system. The retention cable is attached to the motor and wraps around the
building structure. The safety cable is an important part of the safety system and protects users from a catastrophic
event. It is critical for fan owners to ensure that it is intact and properly secured.
REPLACEMENT PARTS
Please call our Technical Department at 1-844-593-FANS (3267).
MAINTENANCE
6

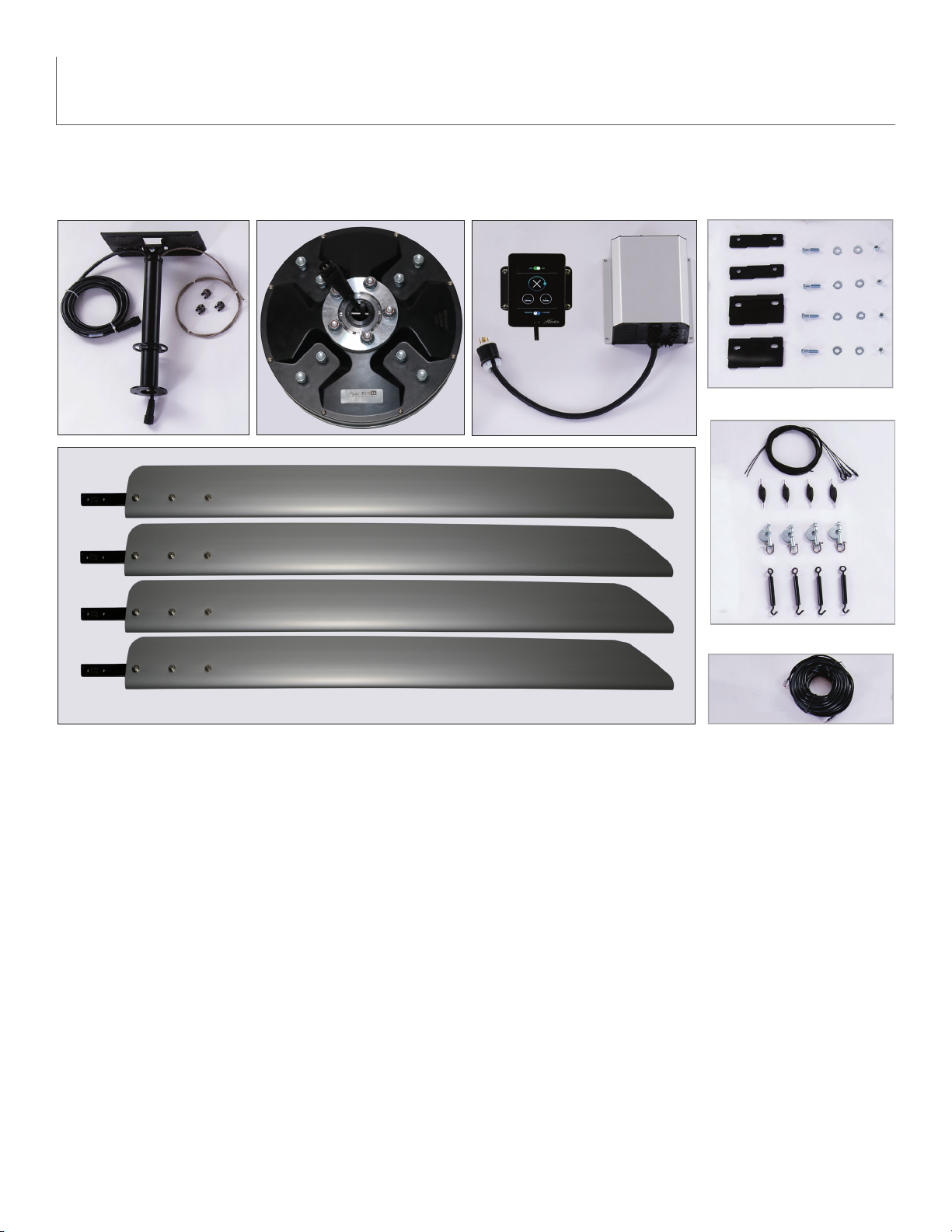

IN THE BOX
7
a)
c)
b)
a)
c)
b)
a)
e)
FAN COMPONENTS
c) d)
a) b)
COMMUNICATON KIT
a)) (1) 100ft Cat5 Cab
(Terminated)
a)a) (1) Gripple
b)b) (4) Beam Cl
c)c) ( urnbuckles
GUY WIRE KIT
a)a) (2) S
b)b) (2) Cl
c)c) (4) Bolts, Nuts,
Washers
MOUNTING HARDWARE KITFAN COMPONENTS
a)) (1) Downr
b)) (1) Motor & (4) Motor Nu
c)) (1) 350 Series Contr
d)) (1) Control Pan
e)) (4) Blad
a)) ECO Installation Manu
b)) HMI installation and user gui
MOUNTING HARDWARE KIT
GUY WIRE KIT
COMMUNICATON KIT
INSTALLATION MANUALS

8

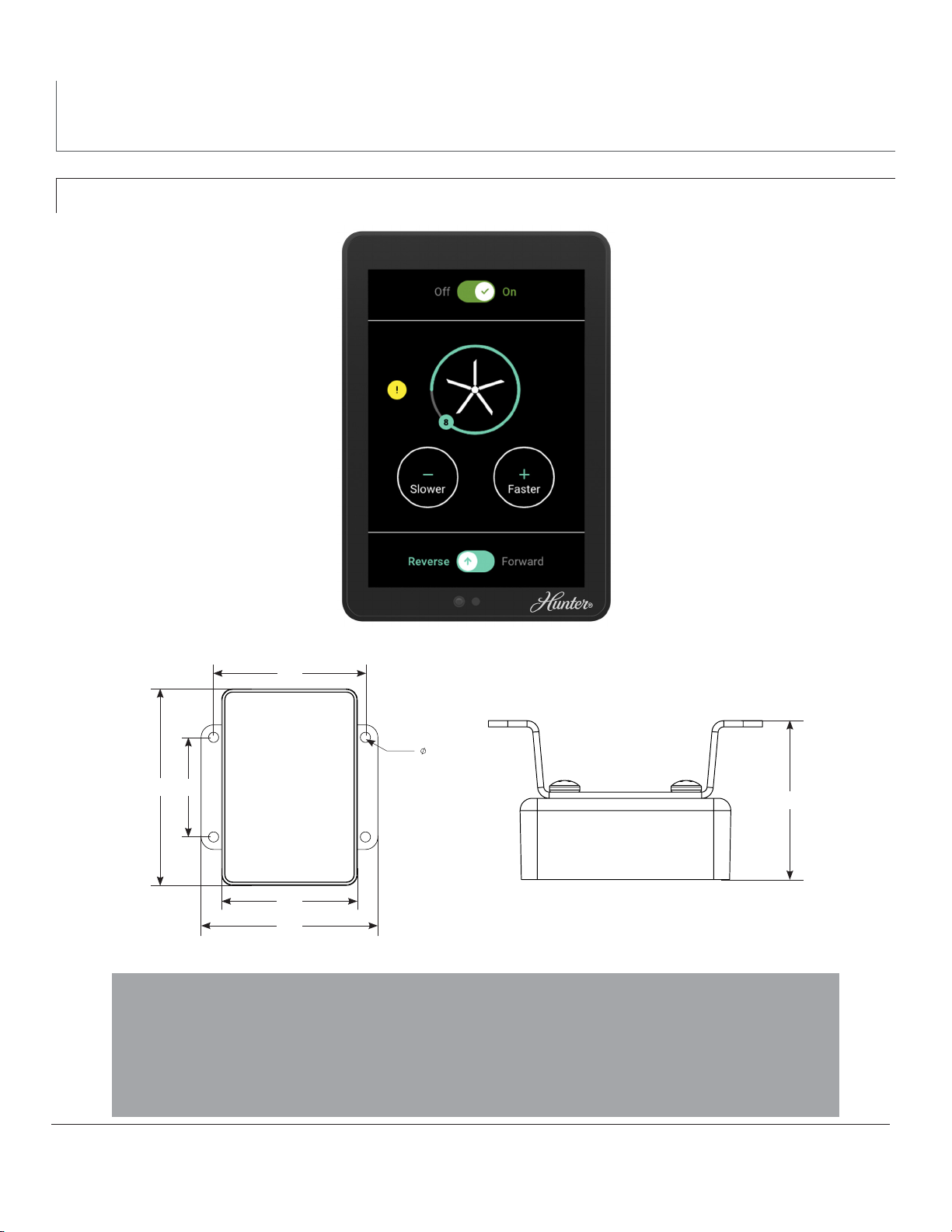

350 SERIES TOUCHSCREEN CONTROLLER
• Comes standard on XP and Eco Fans
• Simple control of speed and direction
• Can be daisy chained to control up to 5 fans
• 3.5” LCD Touchscreen
• Alert Readouts
• Plug-n-Play design
• Standard junction box
• Simple flush mounting
[2.73]
69.31
[2.00]
50.80
[3.95]
100.31
[3.05]
77.44
[3.55]
90.14
[0.203]
4 places
5.16
[2.06]
52.26
180 THREET INDUSTRIAL ROAD | SMYRNA, TN 37214 | 1-844-591-FANS (3267) | HUNTERFAN.COM/INDUSTRIAL
CONTROL

9
CONTROL
• Compatible with all Hunter Industrial Fans
• Simple intuitive user Interface
• Standard on Titan
• Password protection for scheduling,
grouping, and fan naming
• BMS Integration with optional gateway
• Fan diagnostics directly from screen
• Most cost effective network controller
NUMBER OF FANS CONTROLLED
ACTIVE DISPLAY AREA
RESOLUTION
DIMMING
PROTECTION CLASS
INPUT VOLTAGE
UP TO 10 FANS
4.3” DIAGONALLY
480 X 272 DIAGONAL
DIMMABLE TO 0%
IP66
100 VAC - 240 VAC
4.3”
TOUCHSCREEN
430 SERIES TOUCHSCREEN CONTROLLER
[4.30]
109.31
[5.88]
149.31
UP TO 10 FANS
[3.59]
91.20
180 THREET INDUSTRIAL ROAD | SMYRNA, TN 37214 | 1-844-591-FANS (3267) | HUNTERFAN.COM/INDUSTRIAL

10

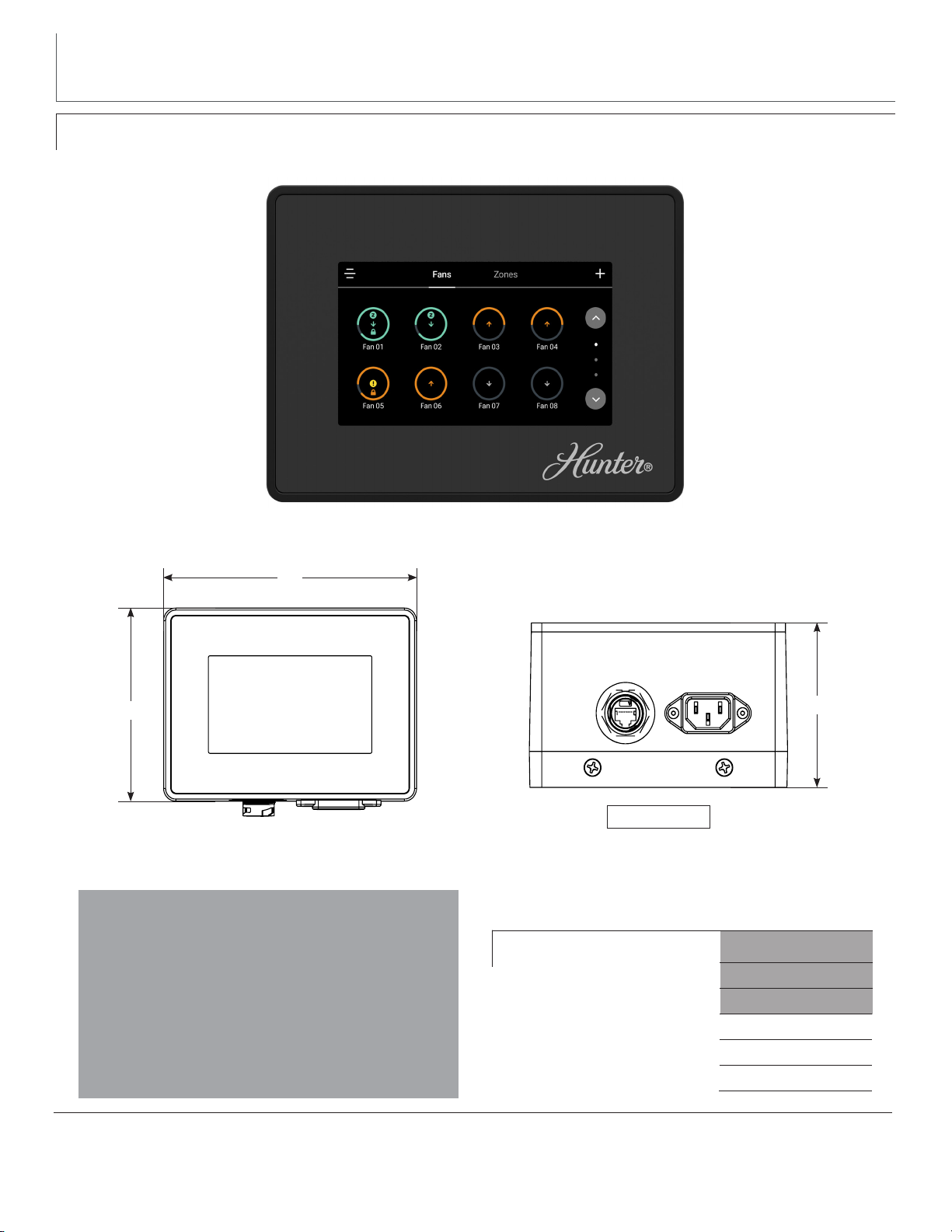

700 SERIES TOUCHSCREEN CONTROLLER
• Optional Environmental Control
• BMS Integration with optional gateway
• Control up to 30 fans with network solutions to
fit your needs
• Password protection for scheduling, grouping,
and fan naming
• Fan diagnostics directly from screen
NUMBER OF FANS CONTROLLED
ACTIVE DISPLAY AREA
RESOLUTION
DIMMING
PROTECTION CLASS
INPUT VOLTAGE
UP TO 30 FANS
7” DIAGONALLY
480 X 272 DIAGONAL
DIMMABLE TO 0%
IP66
100 VAC - 240 VAC
700
TOUCHSCREEN
[5.18]
131.60
[7.69]
195.20
[4.04]
102.70
CONTROL
180 THREET INDUSTRIAL ROAD | SMYRNA, TN 37214 | 1-844-591-FANS (3267) | HUNTERFAN.COM/INDUSTRIAL

OPTIONS FOR CONTROLS
11
BACNET GATEWAY
•
•
Simple approach to
interface fans to a Building
Management System
Enables remote monitoring,
control and visualization of a
fan network
• Supports BACnet MS/TP and
BACnet/IP
IP67
BTL | CE | FCC CLASS B&C PART 15 | UL 60950
IC CANADA | ROHS AND WEEE COMPLIANT | PTCRB AND CTIA
OPERATING ENVIRONMENT TEMPERATURE
OPERATING ENVIRONMENT HUMIDITY
INPUT VOLTAGE
ENCLOSURE RATING
CERTIFICATIONS
-20° TO 70°C/(-4° TO 158°F)
10-95% RH NON-CONDENSING
24VAC 125MA, 12-24VDC 250MA @ 12VDC
BACNET GATEWAY
180 THREET INDUSTRIAL ROAD | SMYRNA, TN 37214 | 1-844-591-FANS (3267) | HUNTERFAN.COM/INDUSTRIAL

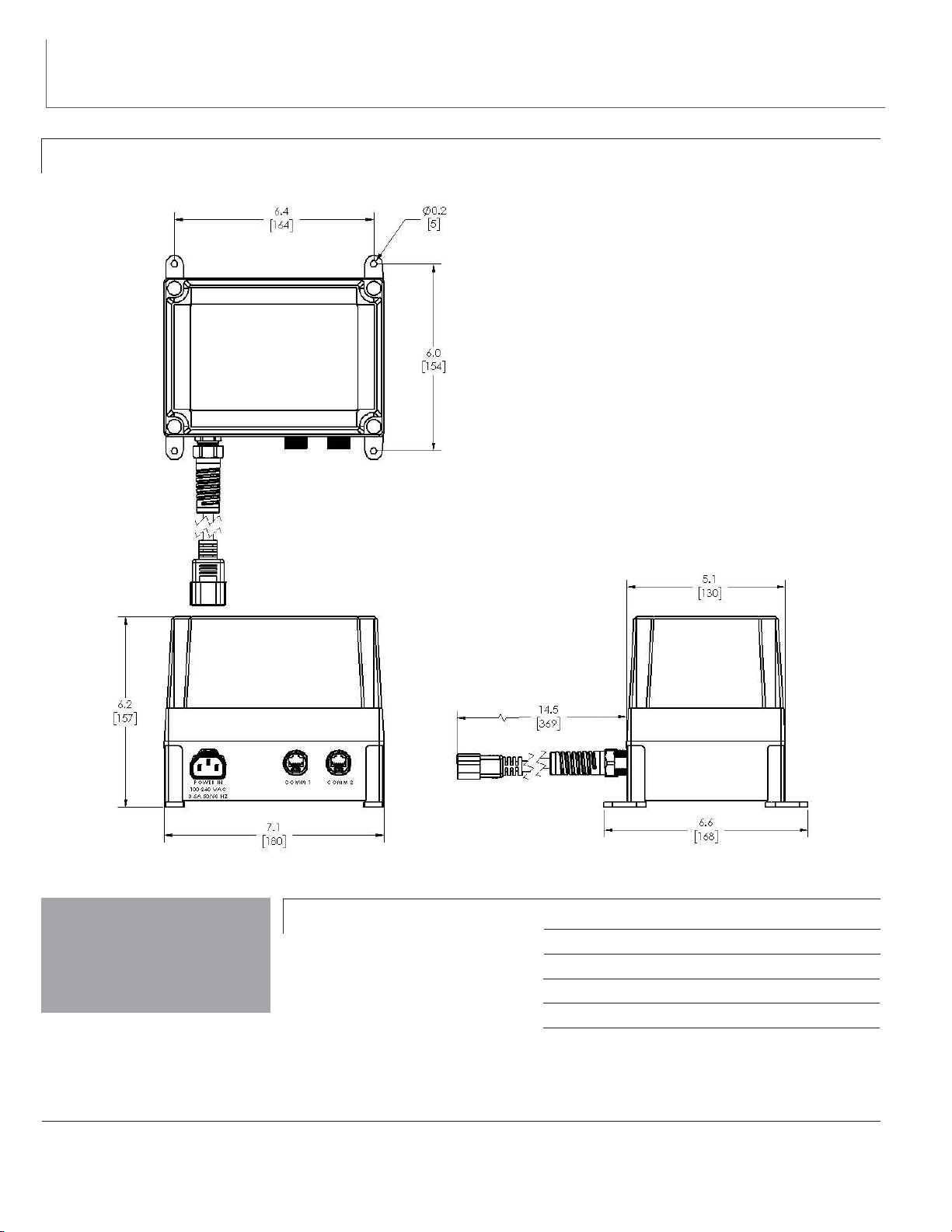

CONTROL CABLE REPEATER
•
•
Extend standard Cat 5e/Cat
6 Ethernet cable runs an
additional 100M without loss
of transfer speed
Port Speed: 10/100 Mbps
auto detect 3W
IP67
IEEE 802.3I, 802.3U, 802.3X FOR 10/100 ETHERNET
IEEE 802.3AB, 802.3X FOR GIGABIT ETHERNET
CE | CSA | EICC | UL E200031 | ROHS 2 COMPLIANT
OPERATING ENVIRONMENT TEMPERATURE
OPERATING ENVIRONMENT HUMIDITY
INPUT VOLTAGE
MAX POWER
ENCLOSURE RATING
CERTIFICATIONS
-40° TO 75°C (-40° TO 167°F)
10-95% RH NON-CONDENSING
CLASS 2 POWER SUPPLY: 12-48VDC, 18-30VAC 50/60HZ
BACNET GATEWAY
OPTIONS FOR CONTROLS
12
180 THREET INDUSTRIAL ROAD | SMYRNA, TN 37214 | 1-844-591-FANS (3267) | HUNTERFAN.COM/INDUSTRIAL

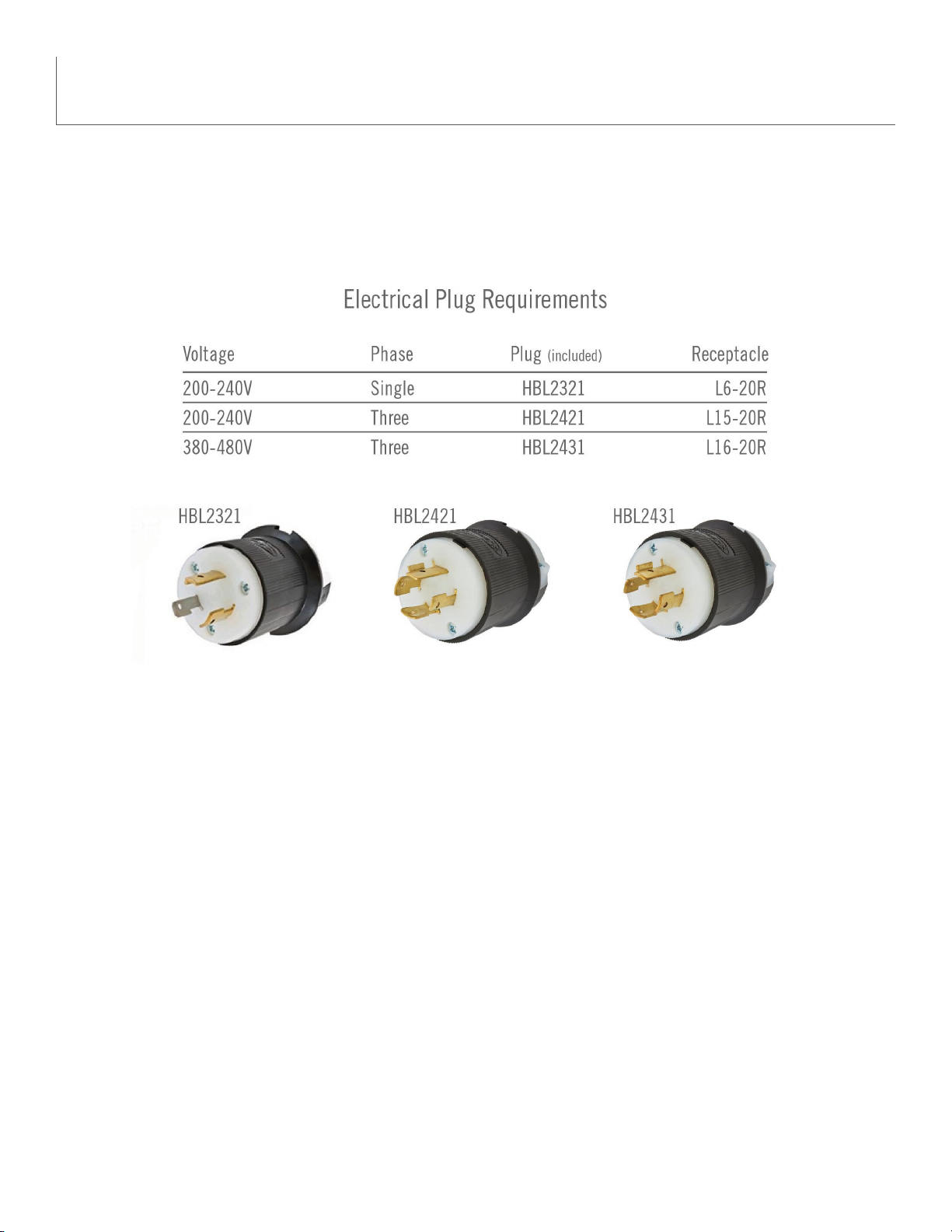

ELECTRICAL
13

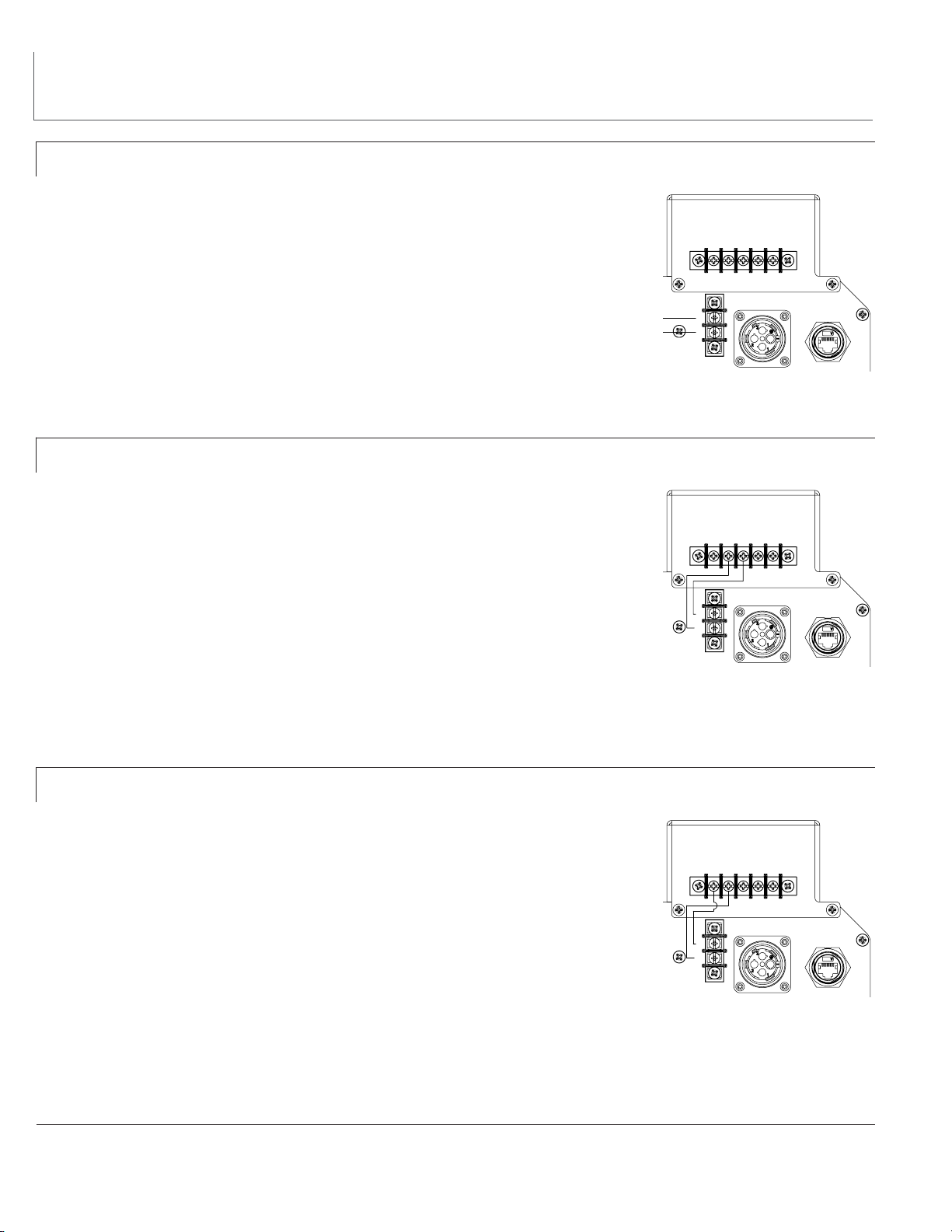

FIRE PANEL (FIELD WIRING)
14
DRY CONTACTS: NORMALLY CLOSED
S
C
C
SA
FIRE RELAY
SB
-
+
12 - 40VDC
•On the Terminal Strip mounted to the outside of the VFD enclosure a
Jumper will be in place on terminals “S” and “C”. Remove the Jumper from
terminals “S” and “C”.
•Connect the wires coming from the Fire Panel to terminals “S” and “C”.
NORMALLY UNENERGIZED
S
C
C
SA
FIRE RELAY
SB
-
+
12 - 40VDC
•On the Terminal Strip mounted to the outside of the VFD enclosure a
Jumper will be in place on terminals “S” and “C”. Remove the Jumper from
terminals “S” and “C”.
•Connect a wire from terminal “S” to “SB” on the Fire Relay Terminal Strip
•Connect a wire from terminal “C” to “C” on the Fire Relay Terminal Strip.
•Apply 12-40VDC from Fire Panel to Fire Relay Input. Relay has a 20mA
draw.
NORMALLY ENERGIZED
•On the Terminal Strip mounted to the outside of the VFD enclosure a
Jumper will be in place on terminals “S” and “C”. Remove the Jumper from
terminals “S” and “C”.
•Connect a wire from terminal “S” to “SA” on the Fire Relay Terminal Strip.
•Connect a wire from terminal “C” to “C” on the Fire Relay Terminal Strip.
•Apply 12-40VDC from Fire Panel to Fire Relay Input. Relay has a 20mA
draw.
S
C
C
SA
FIRE RELAY
SB
-
+
12 - 40VDC
180 THREET INDUSTRIAL ROAD | SMYRNA, TN 37214 | 1-844-591-FANS (3267) | HUNTERFAN.COM/INDUSTRIAL

FIRE PANEL (FIELD WIRING)
180 THREET INDUSTRIAL ROAD | SMYRNA, TN 37214 | 1-844-591-FANS (3267) | HUNTERFAN.COM/INDUSTRIAL

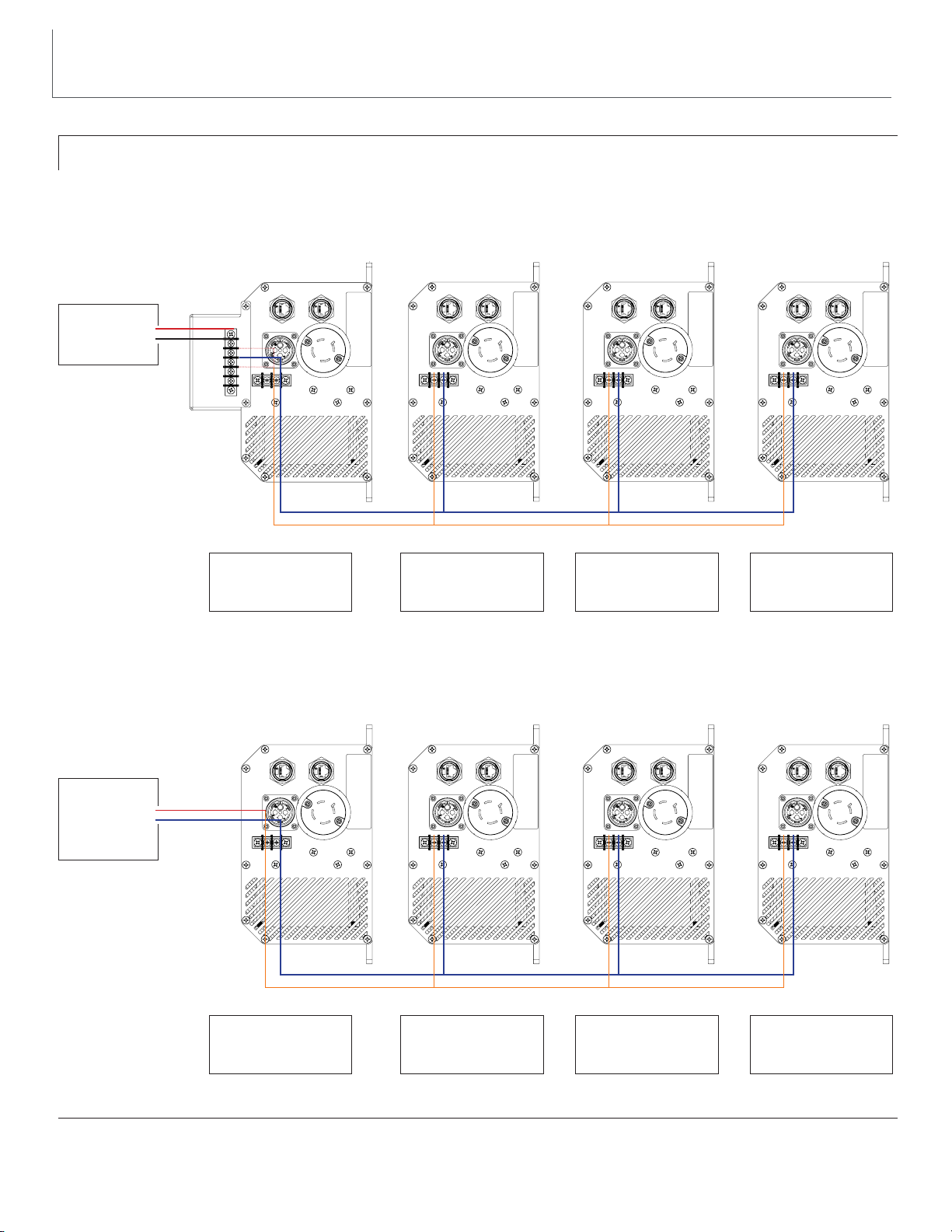

FIRE RELAY ARRANGEMENT FOR MULTIPLE FANS (30 FAN MAXIMUM)
Normally Energized/Unenergized
Dry Contacts
VFD Enclosure
without Fire Relay
VFD Enclosure
without Fire Relay
VFD Enclosure
without Fire Relay
VFD Enclosure
with Fire Relay
Fire Panel
10-40VDC
VFD Enclosure
without Fire Relay
VFD Enclosure
without Fire Relay
VFD Enclosure
without Fire Relay
VFD Enclosure
without Fire Relay
Fire Panel
Normally
Closed
15

16
ECO 14

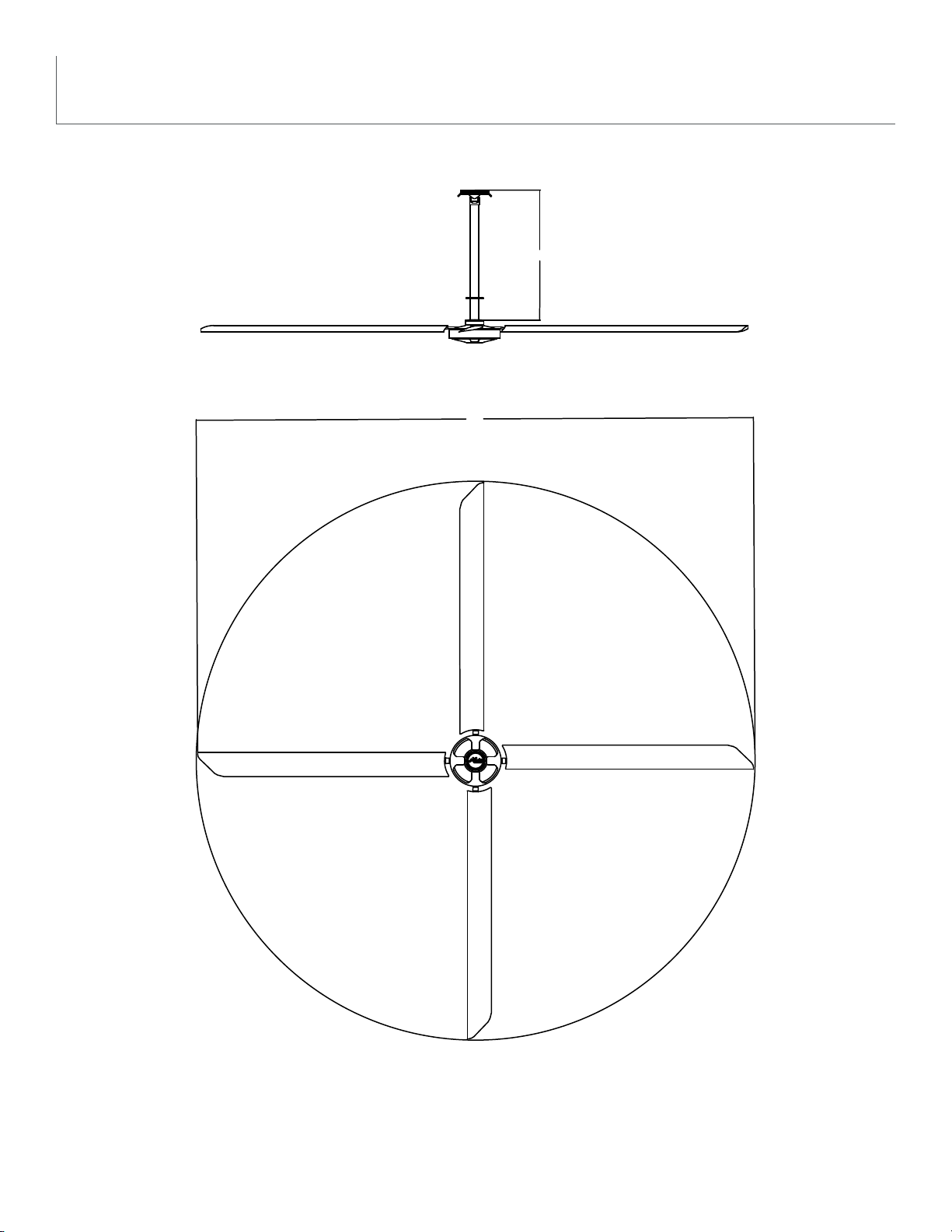

3'
14'
