Hunter 42863-01 Instruction manual

Type 5 ModelsType 5 ModelsType 5 Models
Form# 42863-01
20081114
©2008 Hunter Fan Co.
For Your Records and
Warranty Assistance
For reference, also attach your receipt or a copy
of your receipt to the manual.
__________________________________________
Model Name
__________________________________________
Model No.
__________________________________________
Date Purchased
__________________________________________
Where Purchased
Captiva
21318
English Español
Owner’s Guide and Installation Manual

2
42863-01 • 11/14/08 • Hunter Fan Company
© 2008 Hunter Fan Company
Your new Hunter® ceiling fan is an addition to your home or oce that
will provide comfort and performance for many years. is installation
and operation manual gives you complete instructions for installing
and operating your fan.
We are proud of our work. We appreciate the opportunity to supply
you with the best ceiling fan available anywhere in the world.
Before installing your fan, for your records and warranty assistance,
record information from the carton and Hunter nameplate label
(located on the top of the fan motor housing).
Cautions and Warnings
•READ THIS ENTIRE MANUAL CAREFULLY BEFORE BEGINNING
INSTALLATION. SAVE THESE INSTRUCTIONS.
• Use only Hunter replacement parts.
• To reduce the risk of personal injury, attach the fan directly to the
support structure of the building according to these instructions,
and use only the hardware supplied.
• To avoid possible electrical shock, before installing your fan,
disconnect the power by turning o the circuit breakers to the
outlet box and associated wall switch location. If you cannot lock
the circuit breakers in the o position, securely fasten a prominent
warning device, such as a tag, to the service panel.
• All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualied electrician.
• To reduce the risk of personal injury, do not bend the blade
attachment system when installing, balancing, or cleaning the fan.
Never insert foreign objects between rotating fan blades.
• To reduce the risk of re, electrical shock, or motor damage, do not
use a solid-state speed control with this fan. Use only Hunter speed
controls.
Welcome
Table Of Contents
1 • Getting Ready......................4
2 • Installing the Ceiling Plate . . . . . . . . . . 5
3 • Assembling and Hanging the Fan ...6
4 • Wiring the Fan .....................7
5 • Installing the Canopy...............8
6 • Assembling the Blades .............9
7 • Completing Your Installation .......10
8 • Operating and Cleaning Your Ceiling
Fan ...............................11
9 • Troubleshooting ...................12

3
42863-01 • 11/14/08 • Hunter Fan Company
Installer’s Choice and Optional Accessories
Understanding Mounting and Installer’s Choice®
Hunter’s patented 2-position mounting system provides you maximum
installation exibility and ease. You can install your Hunter fan in one
of two ways, depending on ceiling height and your preference: Standard
or Angled mounting. e steps in this manual include instructions for
both Installer’s Choice mounting methods.
Considering Optional Accessories
Consider using Hunter’s optional accessories, including a wall-mounted
or remote speed control. To install and use the accessories, follow
the instructions included with each product. For quiet and optimum
performance of your Hunter fan, use only Hunter speed controls.
For ceilings higher than 8 feet, you can purchase
Hunter extension downrods. All Hunter fans use
sturdy 3/4” diameter pipe to assure stability and
wobble-free performance.

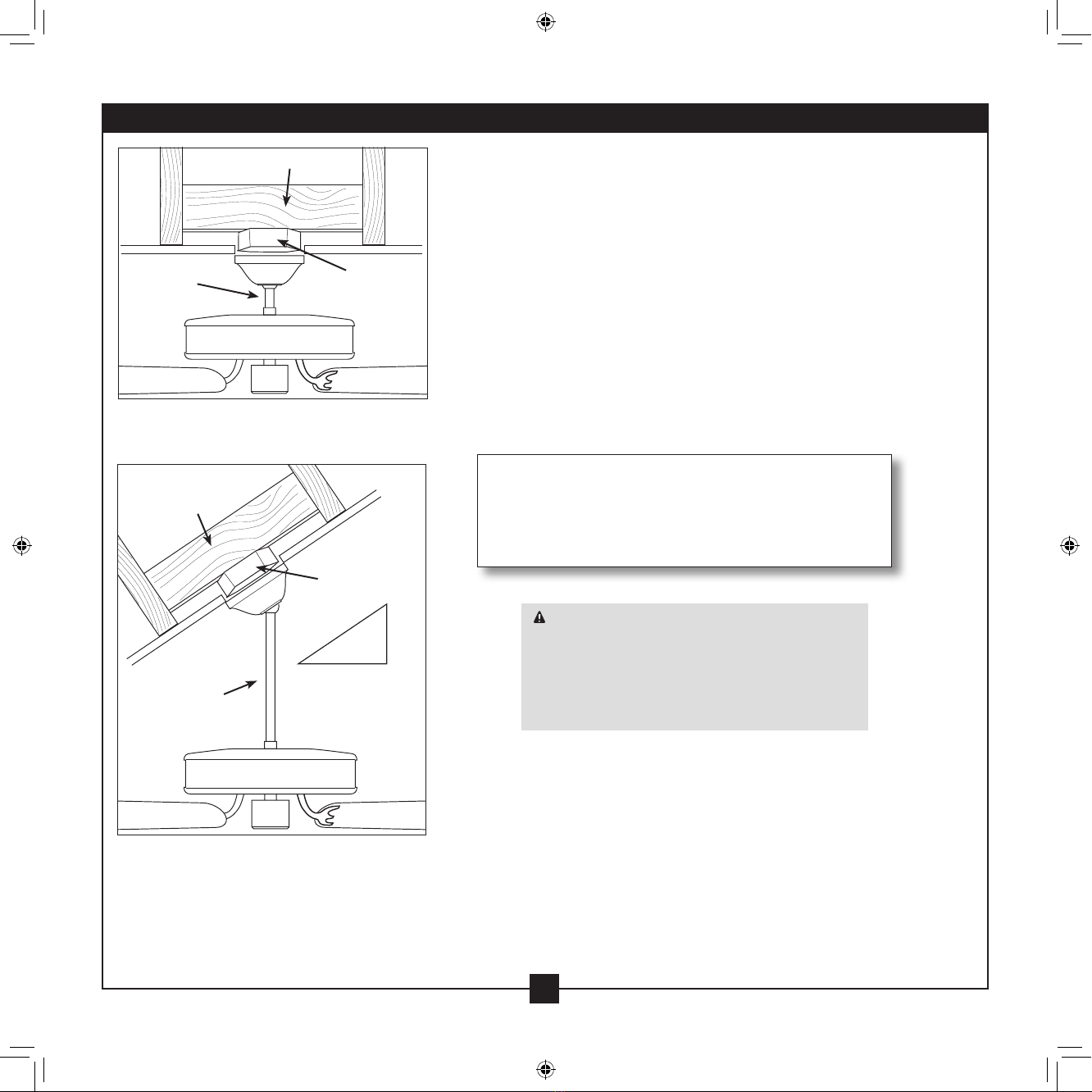

Standard Mounting hangs from the
ceiling by a downrod (included).
Angled Mounting recommended for a
vaulted or angled ceiling
Support Brace
Standard
Mounting
Style
Ceiling
Outlet Box
Support Brace
Ceiling
Outlet Box
Angled
Mounting
Style
8
12
CAUTION: To reduce the risk of personal
injury, attach the fan directly to the support
structure of the building according to these
instructions, and use only the hardware
supplied.

4
42863-01 • 11/14/08 • Hunter Fan Company
To install a ceiling fan, be sure you can do the following:
• Locate the ceiling joist or other suitable support in ceiling.
• Drill holes for and install wood screws.
• Identify and connect electrical wires.
• Lift 40 pounds.
If you need help installing the fan, your Hunter fan dealer can direct
you to a licensed installer or electrician.
Gathering the Tools
You will need the following tools for installing the fan:
• Electric drill with 9/64” bit
• Standard screwdriver (magnetic tip recommended)
• Phillips-head screwdriver (magnetic tip recommended)
• Wrench or pliers
• Ladder (height dependent upon installation site)
Checking Your Fan Parts
Carefully unpack your fan to avoid damage to the fan parts. Refer to
the included Parts Guide. Check for any shipping damage to the motor
or fan blades. If any parts are missing or damaged, contact your Hunter
dealer or call Hunter Technical Support Department at 888-830-1326.
Preparing the Fan Site
Before you begin installing the fan, follow all the instructions in
the pullout sheet called “Preparing the Fan Site.” Proper ceiling fan
location and attachment to the building structure are essential for
safety, reliable operation, maximum eciency, and energy savings.
Installing Multiple Fans?
If you are installing more than
one fan, keep the fan blades and
blade irons (if applicable) in sets,
as they were shipped.
1 • Getting Ready

5
42863-01 • 11/14/08 • Hunter Fan Company
CAUTION: To avoid possible electrical shock, before installing your fan,
disconnect the power by turning o the circuit breakers to the outlet box
and associated wall switch location. If you cannot lock the circuit breakers
in the o position, securely fasten a prominent warning device, such as a
tag, to the service panel.

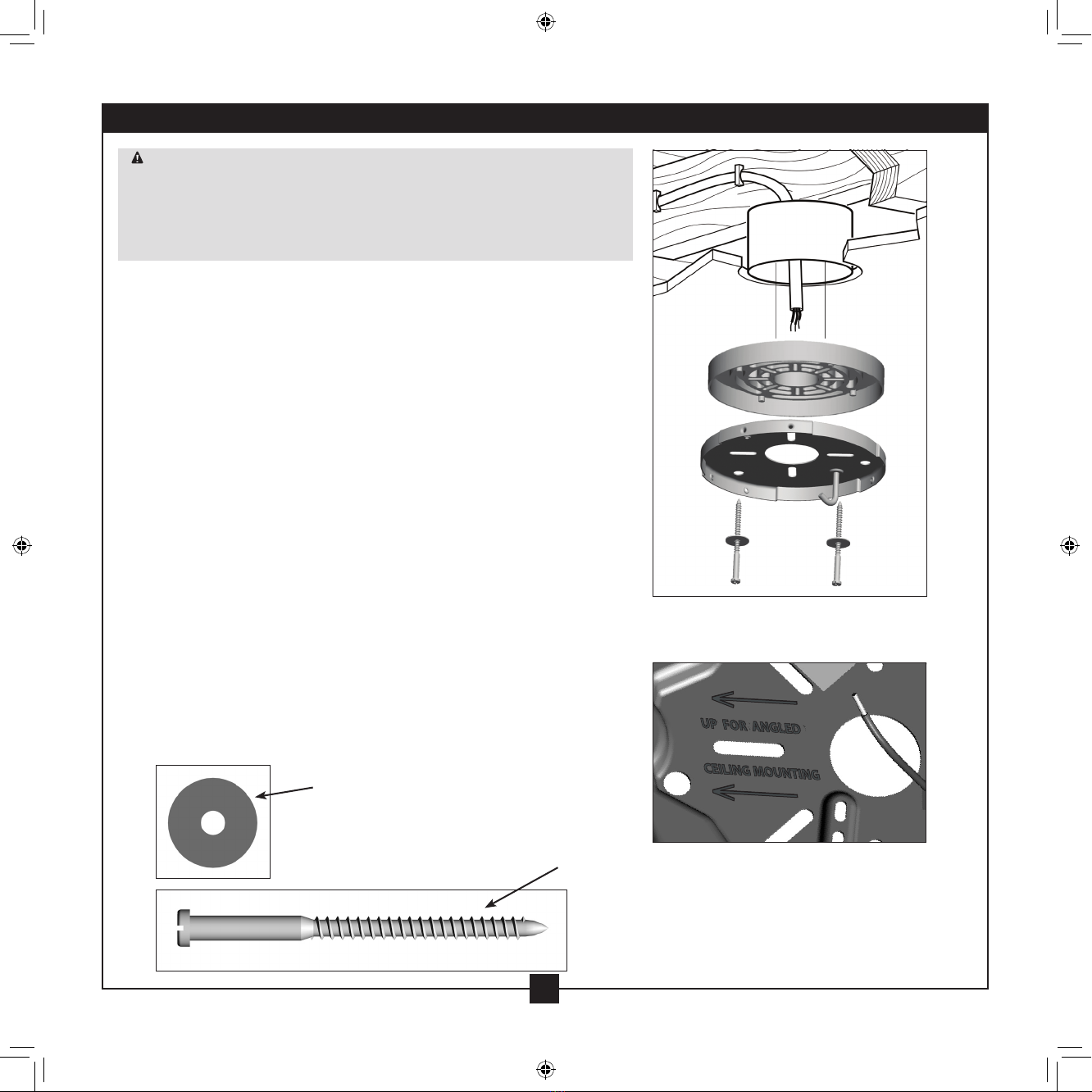

2-1. Drill two pilot holes into the wood support structure through the
outermost holes in the outlet box. e pilot holes should be 9/64”
in diameter.
2-2. Align the slotted holes in the ceiling plate with the pilot holes you
drilled in the wood support structure. For proper alignment use
slotted holes directly across from each other.
2-3. Place the ceiling gasket over the ceiling plate so that the slots and
the raised surfaces on the ceiling gasket align with the slots and
holes on the ceiling plate.
2-4. Use a 3” wood screw to pierce two holes in the ceiling gasket that
match the pilot holes you drilled in step 2-1.
2-5. read the lead wires from the outlet box down through the hole
in the middle of the ceiling gasket and ceiling plate. Note: e
ceiling gasket should be ush against the ceiling.
2-6. Place a at washer on each of the two 3” wood screws and pass the
screws through the slotted holes in the ceiling plate into thepilot
holes you drilled.
Tighten the screws into the 9/64” pilot holes; do not use lubricants
on the screws. Do not over tighten.
Flat Washer
3” Wood Screw
Steps 2-3 – 2-5
For Angled Ceilings: Be sure to
orient the ceiling plate so that the
arrows printed on the ceiling plate are
pointing toward the ceiling peak.
Steps 2-2
2 • Installing the Ceiling Plate

6
42863-01 • 11/14/08 • Hunter Fan Company
WARNING: Fan may fall if not assembled as directed in these
installation instructions.

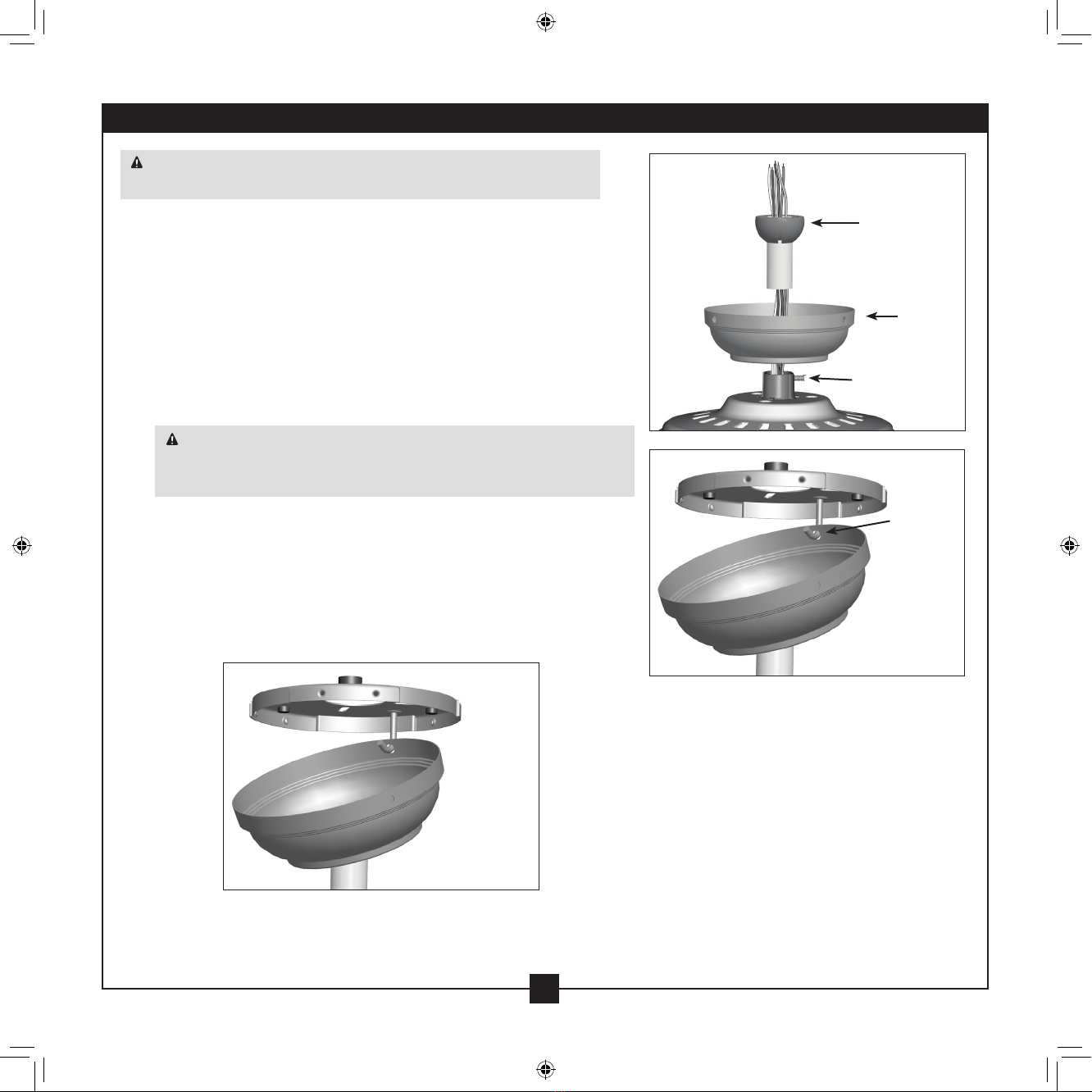

3-1. Unbundle the wires from the fan.
For Standard or Angled mounting:
3-2. To assemble fan to hang down from a at or angled ceiling, insert
the downrod through the canopy. Feed the wires from the fan
through the downrod.
3-3. Loosen the square head setscrew on the adapter to install the
downrod. Note: When the downrod is fully installed, 2-3 threads
on the pipe will still be visible; this is normal. Securely retighten
the setscrew with a wrench or pliers.
CAUTION: e adapter has a special coating on the threads. Do
not remove this coating; the coating prevents the downrod from
unscrewing. Once assembled, do not remove the downrod.
3-4. Raise the fan and place the hook on the ceiling plate through the
round hole in the rim.
Steps 3-1 – 3-2
Downrod
Canopy
Step 3-6
Round
Hole
Setscrew
3 • Assembling and Hanging the Fan

7
42863-01 • 11/14/08 • Hunter Fan Company

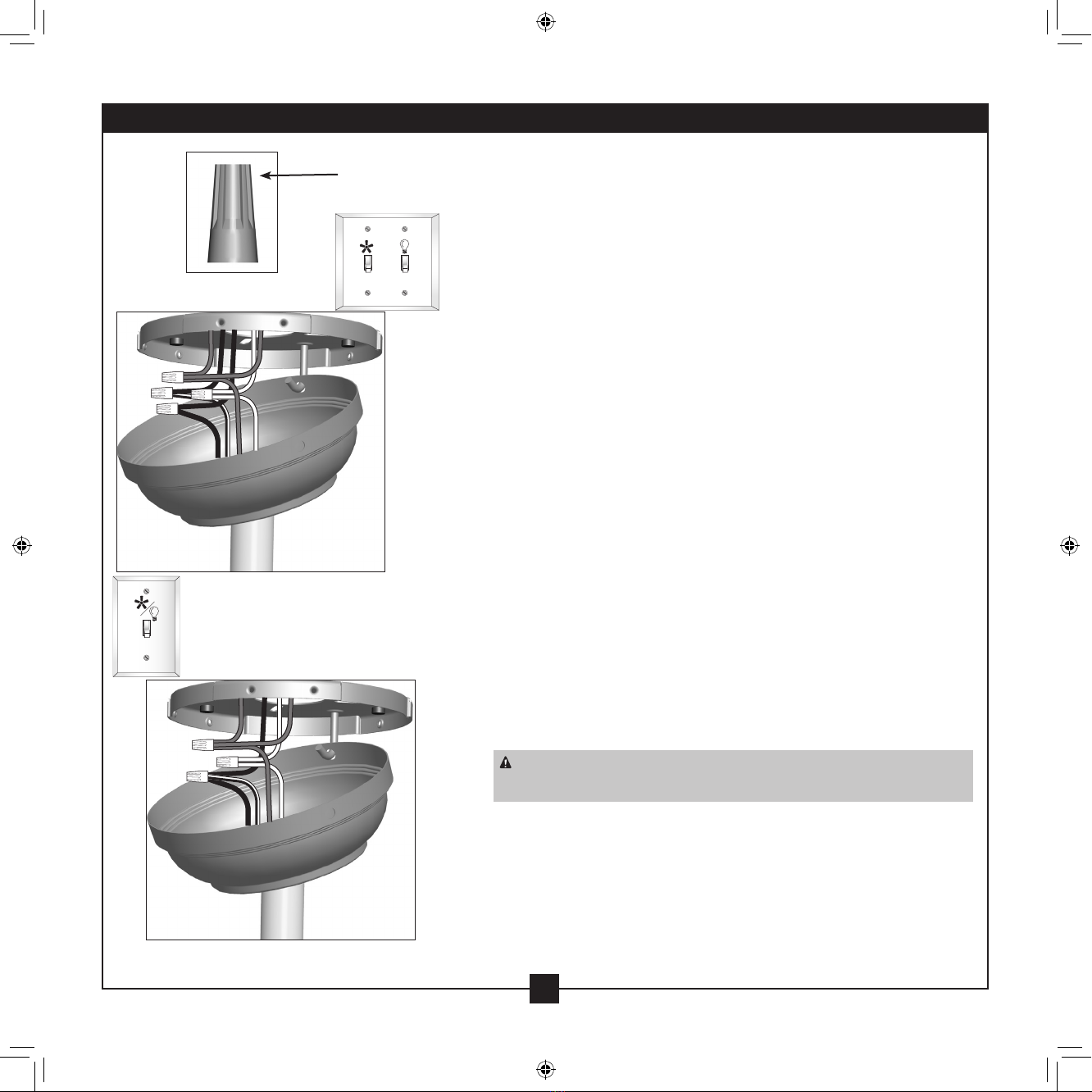

Dual Switch Wiring
All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualified electrician.
Wall switches are not included. Select an acceptable general-use switch
in accordance with national and local electrical codes.
4-1. Before attempting installation, make sure the power is still o.
4-2. To connect the wires, hold the bare metal leads together and place
a wire connector over them, then twist clockwise until tight. For
all these connections use the wire connectors provided.
4-3. Connect the bare or green ground wire (grounded) from the
ceiling to the green ground wire (grounded) from the ceiling plate
and the green ground wire from the fan.
4-4. Connect the white wire (ungrounded) from the ceiling to the
white wire (ungrounded) from the fan.
4-5. Connect the remaining wires as follows:
Dual Switch Wiring:
• e black wire (ungrounded) from the ceiling to the black wire
(ungrounded) from the fan
• e black/white wire (ungrounded) from the fan to the wire
(ungrounded) for the wall switch
Single Switch Wiring:
• e black wire (ungrounded) from the ceiling to the black
(ungrounded) and the black/white wire (ungrounded) from
the fan
CAUTION: Be sure no bare wire or wire strands are visible after
making connections.
4-6. Turn the splices upward and push them carefully back through the
ceiling plate into the outlet box.
4-7. Spread the wires apart, with the grounded wires on one side of
the outlet box and the ungrounded wires on the other side of the
outlet box.
Wire
Connector
4 • Wiring the Fan
Single Switch Wiring

8
42863-01 • 11/14/08 • Hunter Fan Company
5-1. Partially install two canopy screws (about 2 full turns) in the
hanger bracket.
5-2. Raise the canopy over the hanger bracket. Align partially installed
screws with key slots in canopy.
5-3. Twist canopy counterclockwise to secure.
5-4. Install third canopy screw in round hole on canopy. Securely
tighten all three screws.
Steps 5-4
Mounting Screw
Canopy
Steps 5-1– 5-3
5 • Installing the Canopy

9
42863-01 • 11/14/08 • Hunter Fan Company
Hunter fans use several styles of fan blade irons (brackets that hold the
blade to the fan).

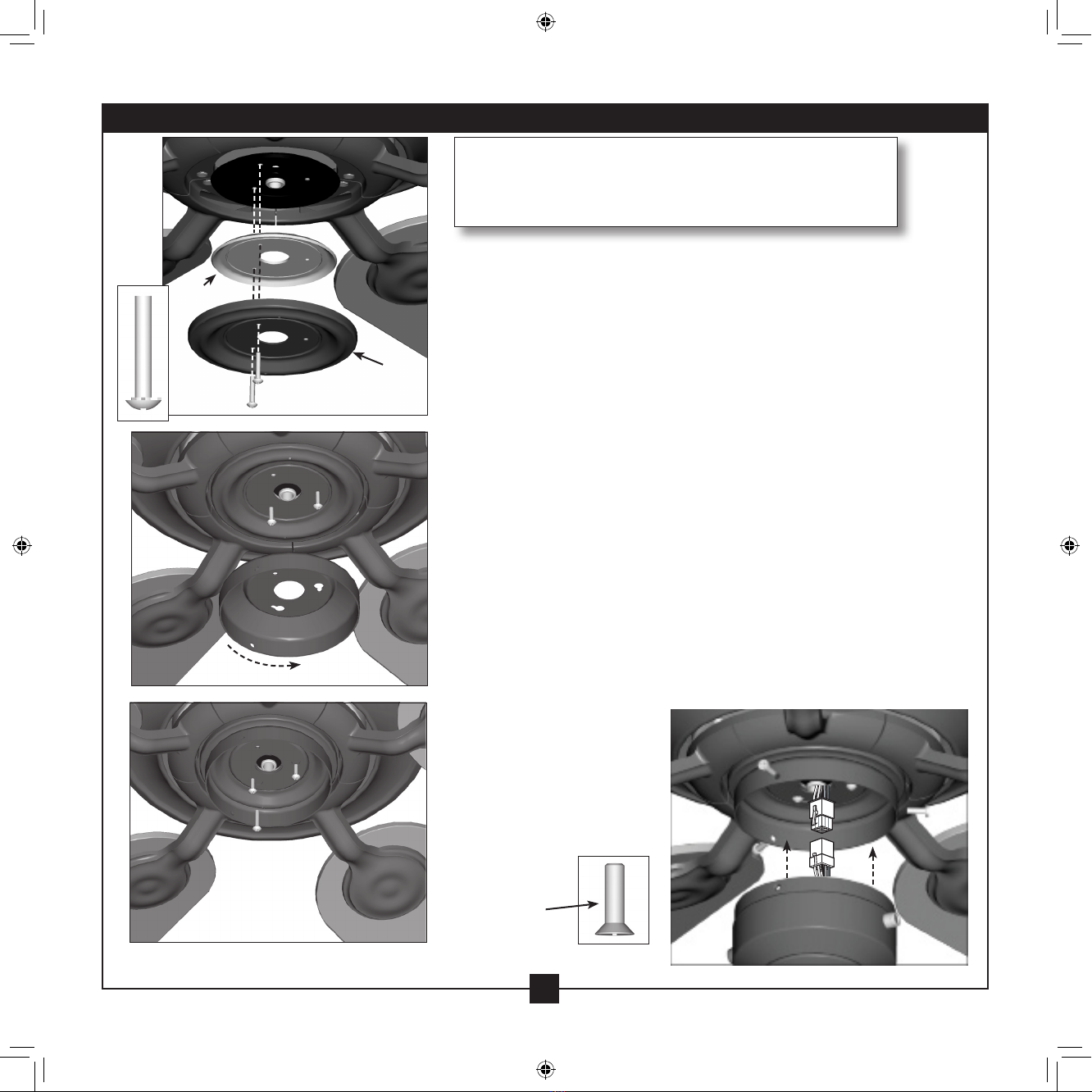

6-1. Your fan may include blade grommets. If your fan has grommets,
insert them by hand into the holes on the blades.
6-2. Attach each blade to a blade iron using three blade assembly
screws. If you used grommets, the blades may appear slightly loose
after screws are tightened. is is normal.
6-3. Remove the blade mounting screws and rubber shipping bumpers
from the motor. Note: Some blade mounting screws are installed
in the motor to secure shipping blocks.
6-4. For each blade, insert one blade mounting screw through the
blade iron, and attach lightly to the fan. Insert the second blade
mounting screw, then securely tighten both mounting screws.
Step 6-1 (Detail)
Blade Assembly
Screws
Use with grommet
Use without grommet
Grommet
Blade
Mounting
Screw
Steps 6-1 – 6-2
Step 6-4
6 • Assembling the Blades

10
42863-01 • 11/14/08 • Hunter Fan Company
7-1. Align the holes on the blade iron cover and gasket and stick two
screws through two of the holes.
7-2. read the plug connector from the mounting plate through
the gasket and cover. Partially install the gasket and cover to the
mounting plate with the two screws.
7-3. Place the upper switch housing over the two screws and turn
counterclockwise so that the screws t securely in the slots.
7-4. Partially install the third screw and then tighten all three screws
securely.
7-5. Connect the upper plug connector from the motor to the lower plug
connector in the switch housing assembly.
Note: Both plug connectors are polarized and will only t together
one way. Make sure the connectors are properly aligned before
connecting them. Incorrect connection could cause improper
operation and damage to the product.
7-6. To attach the lower switch housing, align the side screw holes in the
upper and lower switch housings. Attach the lower switch housing
to the upper switch housing with three housing assembly screws.
Note: You can customize
your Hunter fan with a
number of accessory light
kits.
Housing
Assembly
Screw
Steps 7-1 – 7-2
Step 7-3
Step 7-4
Blade
Iron Cover
Gasket
Note: If you are installing a light xture, do NOT install the
switch housing without rst referring to the instructions
included with the light xture.
Steps 7-5 – 7-6
7 • Completing Your Installation

11
42863-01 • 11/14/08 • Hunter Fan Company

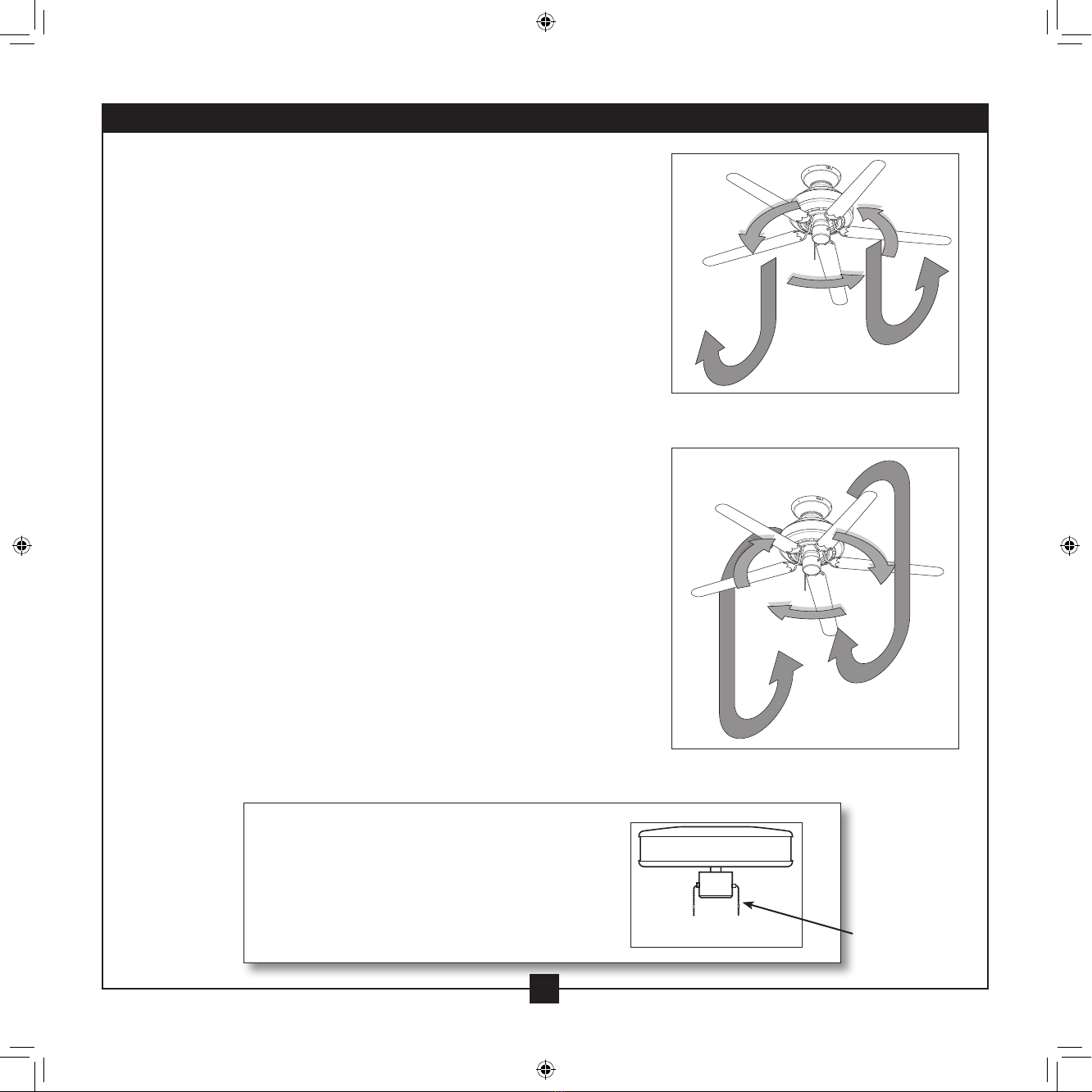

To Change Airflow Direction
Turn the fan o and let it come to a complete stop.
Pull the reversing switch pull chain. Restart fan.
In warm weather, use
downward air ow pattern
In cold weather, use upward
air ow pattern
8-1. Turn on electrical power to the fan.
8-2. e fan pull chain controls power to the fan. e pull chain has
four settings in sequence: High, Medium, Low and O.
• Pull the chain slowly to change settings.
• Release slowly to prevent the chain from recoiling into the
blades.
• e chain uses a breakaway connector that separates if the
chain is jerked. If this happens, simply reinsert the chain into
the connector.
8-3. Ceiling fans work best by blowing air downward (counterclockwise
blade rotation) in warm weather to cool the room with a direct
breeze. In winter, having the fan draw air upward (clockwise blade
rotation) will distribute the warmer air trapped at the ceiling
around the room without causing a draft.
8-4. For cleaning nishes, use a soft brush or lint-free cloth to prevent
scratching. A vacuum cleaner brush nozzle can remove heavier
dust. Remove surface smudges or accumulated dirt and dust using
a mild detergent and a slightly dampened cloth. You may use
an artistic agent, but never abrasive cleaning agents as they will
damage the nish.
8-5. Clean wood nish blades with a furniture polishing cloth.
Occasionally, apply a light coat of furniture polish for added
protection and beauty. Clean painted and high-gloss blades in the
same manner as the fan nish.
Reversing Chain
8 • Operating and Cleaning Your Ceiling Fan

12
42863-01 • 11/14/08 • Hunter Fan Company
Problem: Nothing happens; fan does not move.
1. Turn power on, replace fuse, or reset breaker.
2. Loosen canopy, check all connections according to the wiring the
fan section.
3. Check the plug connection in the switch housing.
4. Pull the pull chain to ensure it is on.
5. Remove the shipping bumpers.
Problem: Noisy operation.
1. Tighten the blade assembly screws and blade iron armature screws
until snug.
2. Check to see if the blade is cracked. If so, replace all the blades.
Problem: Excessive wobbling.
1. If your fan wobbles when operating, use the enclosed balancing kit
and instructions to balance the fan.
2. Tighten all blade iron screws.
3. Turn power o, support fan very carefully, and check that the
hanger ball is properly seated.
If you need parts or service assistance, please call
888-830-1326 or visit us at our Web site at
http://www.hunterfan.com.
Hunter Fan Company
2500 Frisco Avenue
Memphis, Tennessee 38114
9 • Troubleshooting
