Hunter 90600 User manual

English
Owner’s Guide
High PerformanceHigh Performance
Oscillating Fan
Owner’s Guide
Models
90600
90602
90603
90604
High Performance
61809-01
20211020

IMPORTANT SAFETY INFORMATION
WARNING
CAUTION
When using electrical appliances,
basic precautions should always
electric shock and personal injury:
1. Read all instructions before
using this fan.
2. Improper installation may
shock or personal injury.
3.
electric shock, DO NOT use
the unit near windows. Rain
and moisture may create an
electrical hazard.
4. The power plug must be
removed from the power
socket when not in use,
before cleaning, servicing,
maintenance and before
moving to another location.
5. DO NOT put fan in a damp
place or where humidity is
high-such as a bathroom.
6. The fan should be placed on a
to avoid overturning.
7. Use fan only for intended
use, as described in this
instruction manual.
8. To protect against electrical
shock, DO NOT immerse unit,
plug or cord in water or spray
with liquids.
9. Close supervision is necessary
when any appliance is used by
or near children.
11. Do not operate any fan with a
damaged cord or plug. Discard
fan or return to an authorized
service facility for examination
and/or repair.
12. To disconnect, grip plug and
pull from wall outlet. NEVER
yank on cord.
13. ALWAYS use on a dry surface.
14. This product is intended for
household use only and not for
commercial or industrial use.
15. DO NOT operate fan in the
presence of explosive and/or
16. DO NOT place fan or any parts
any other heating appliances.
17. DO NOT use near curtains,
plants, window treatments, etc.
18. This appliance has a grounded
three-prong plug and is suitable
for grounded receptacle use
only. An adapter is available
for connecting three-blade
grounding-type plugs to two-slot
receptacles. The adapter must
be properly grounded. DO NOT
attempt to defeat the purpose
of this safely feature.
19.
20.
The rubber feet on this product
may interact with wood and
cause damage to furniture. Do
Do not run cord under carpeting.
Do not cover cord with throw
rugs, runners, or similar
coverings. Do not route cord
under furniture or appliances.
Arrange cord away from traffic
area and where it will not be
tripped over.
shock, DO NOT use this fan with
any solid-state speed control device.
2
.01
or any other objects through the
grill when the fan is running.
READ & SAVE THESE INSTRUCTIONS!
61809-01 R20211020

Please attach your
receipt or a copy of
your receipt to this manual
for future reference.
WELCOME UNPACKING
As you unpack the fan, save the carton
and packing materials in case you want
to move or ship the unit in the future.
Carefully remove all items from the box.
NOTE: It is best to have someone hold
the box while you lift the fan and the
protective packaging out of the carton.
Make sure all shipping materials are
removed from fan before operating.
Thank you for choosing the Hunter
Table Fan. This manual gives you
complete instructions for using your fan.
Here are some of the features you will
enjoy with your fan:
An attractive design that
enhances any decor
A powerful Hunter motor for
Three speeds to adjust your
comfort level
Before installing your fan, record the
following information for your records
and for warranty assistance.
Model Name _________________
Date Code _________________
Date Purchased ______________
Where Purchased _____________
3 61809-01 R20211020

This appliance is for household
use only and may be plugged into
any 120-volt AC electrical outlet
(ordinary household current). DO
NOT use any other type of outlet.
This unit is suitable for grounded
receptacle use only.
The power cord has a grounded plug
as shown in Figure 1, and must be
used with an electrical outlet that
can accommodate the grounding pin.
If your electrical outlet cannot
accommodate the grounding pin,
then you must purchase an adapter
as shown in Figure 2.
NOTE: The adapters ARE NOT
supplied with this fan. Read, follow,
and save the instructions that are
included with the adapter you choose.
The green grounding lug extending
from the adapter must be connected
to a permanent ground such as a
property grounded outlet box. Do not
use an adapter if your electrical outlet
can accommodate the grounding pin.
GROUNDING
LINE CORD SAFETY TIPS
1. NEVER pull or yank on the
cord or the appliance.
2.
and guide it into the outlet.
3. To disconnect the appliance,
grasp the plug and remove it
from the outlet.
4. Before each use, inspect
the line cord for cuts and/or
abrasion marks. If any are
found, the appliance should
be serviced and the line cord
replaced. Please return it
to our Service Department
or to an authorized service
representative.
5. NEVER wrap the cord tightly
around the appliance, as this
could place undue stress on
the cord where it enters the
appliance and could cause it
to fray and break.
6. DO NOT operate appliance
if the line cord shows any
damage, if the appliance
works intermittently or stops
working entirely.
WARNING
4 61809-01 R20211020
Figure 1
Fi 1
Grounded
Plug
Grounding Pin Grounded Outlet
Box Cover
Figure 2
Fi
2
Grounded Outlet
Box Cover
Metal
Screw
Adapter
Grounding
Means

FUSED PLUG
5
Figure 3
Figure 4
Figure 5
Fuse Replacement:
1.
2. Slide the door on top of the plug
3. Carefully remove the fuse from
the clips holding it on the top and
Warning! Electrical Hazard! Only
replace with a fuse type and rating
matching what was removed from the
product. If the product fails a second time,
immediately unplug it and contact our
technical support at 1-888-880-3267.
4. Gently push the fuse back into
the pins that will hold it in place.
Note: If the fuse is not seated properly,
the unit will not function.
5.
box in the plug.
Grasp plug and remove from the
receptacle or other outlet device.
Do not unplug by pulling on cord.
Locate the door on top of the plug.
Figure 3.
bottom. Risk of fire. Replace fuse
only with 5 Amp, 125 Volt fuse.
Figure 5.
Slide the door back over the fuse
towards the blades. Figure 4.
61809-01 R20211020
This product uses overload protection
(fuse). A blown fuse indicates an overload
or short-circuit situation. If the fuse blows,
unplug the product from the outlet. Discard
product if the attachment plug is damaged.
To reduce the risk of fire, electric shock
and personal injury, DO NOT remove,
replace, repair or tamper with the originally
supplied plug. If the fan does not function
properly, it may be due to the safety
device incorporated in this plug.
If the fuse fails, it is generally due to a
short circuit or circuit overload. Replace
the fuse as per the instructions below
(follow product marking for proper fuse
rating) and check the product. If the
replacement fuse fails, a short-circuit
may be present and immediately
unplug the unit and contact our
technical support department for
assistance.
6. Plug the fan back in and resume
use.
Risk of fire. Do not replace attachment
plug. Contains a safety device (fuse) that
should not be removed. Discard product
if the attachment plug is damaged.

NOTE: It is best to have someone hold
the box while lifting the fan and protective
packaging out of the carton. Make sure all
shipping materials are removed from fan
before operating.
Note: One of the grill mounting screws
will have a star washer for grounding
purpose. The other 3 screws will not
have a washer.
UNPACKING
6
As you unpack the fan, save the carton
and packing materials in case you want to
move or ship the unit in the future.
Carefully remove all items from the box.
1. Remove the four rear grill mounting
screws from the motor housing. Figure 6.
2. Make sure the rear grill is positioned so
that four of the grill lines are completely
between the top tabs, Figure 7. Then
place the rear grill against the motor
housing, and line up the four tabs on the
back of the grill to the four screw holes
on the front of the motor.
3. To attach the rear grill to the motor
housing, partially install the four grill
mounting screws. Tighten all four
screws. Figure 8.
4. Loosen the screw on the back of the
blade assembly. Figure 9a. Slide the
blade assembly onto the motor shaft.
Figure 9.
5. Tighten the screw on the blade assembly
to secure it to the motor. Make sure that
the end of the screw is positioned within
the notch on the shaft. Figure 10.

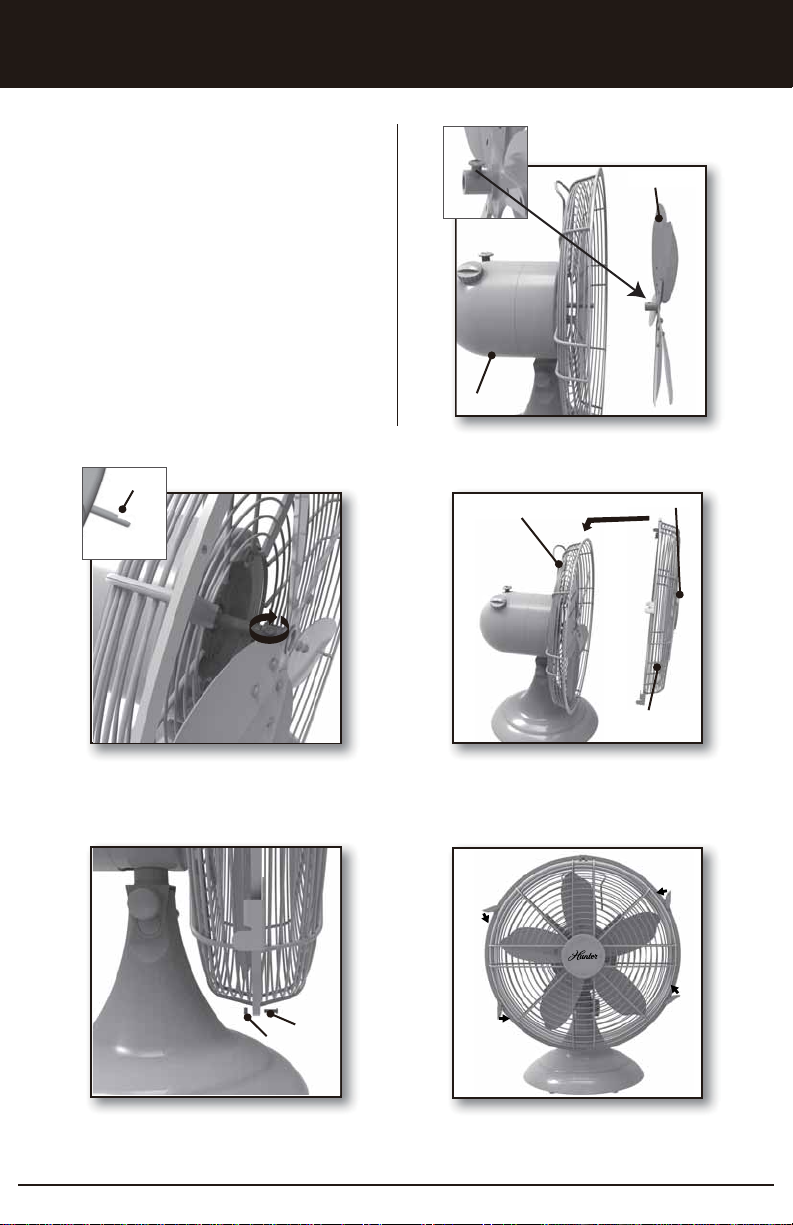

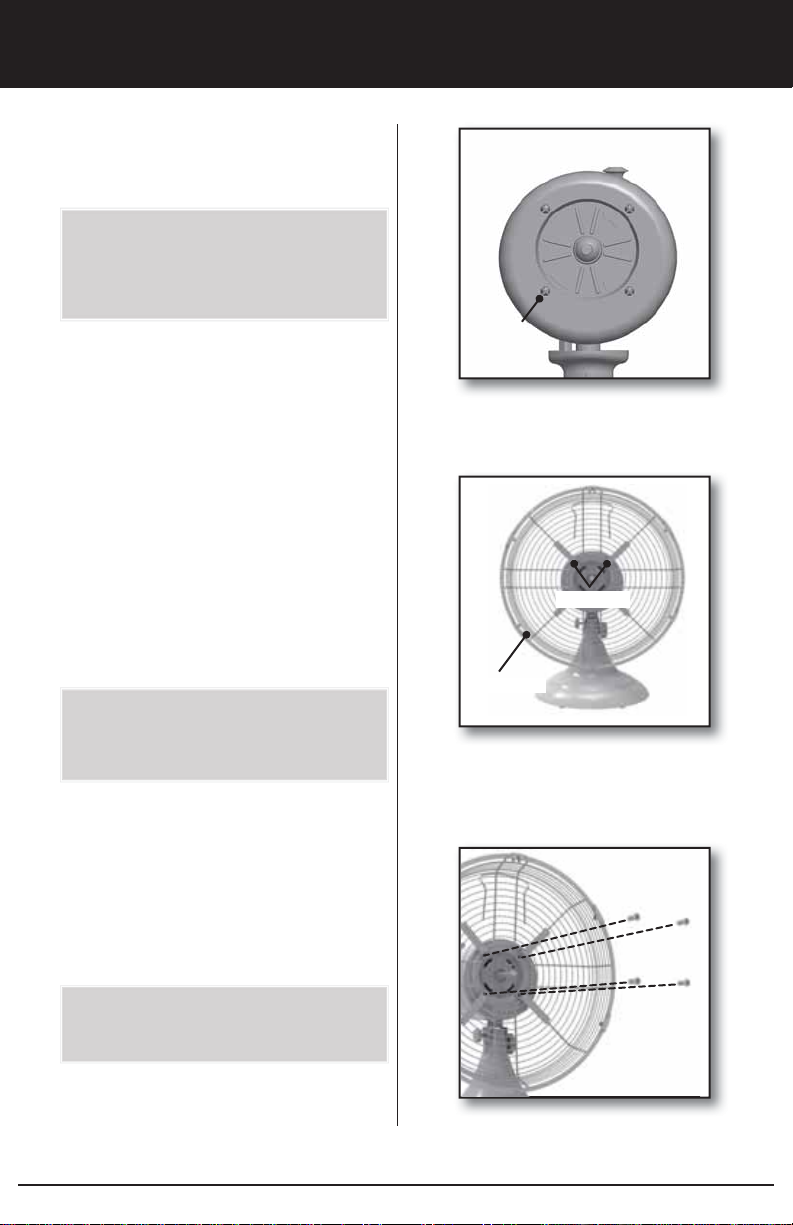

GRILL ASSEMBLY:
Figure 6
Grill
Mounting
Screw
Figure 7
Grill Lines
Top Tabs
1234
Figure 8
Caution: Be sure to tighten the screw on
the back of the fan blade to the flat part
of the motor shaft.
61809-01 R20211020

Figure 9
Motor
Fan Blade
Figure 11
Figure 10
Notch
Rear Grill
Front Grill
Hunter Logo
Figure 12 Figure 13
S
Nut crew
GRILL ASSEMBLY CONT.
7
6. Center the front grill by aligning the
Hunter logo on the grill hub so it is
horizontal and parallel to the floor.
Figure 11.
7. Mount the front grill to the rear grill,
tighten the grills using the grill locking
screw and nut at the bottom of the grill.
Figure 12.
8. Secure the grills completely together
by snapping the 4 grill clips into place.
Figure 13.
61809-01 R20211020
9a

OPERATION
This appliance is for household use only.
1.
surface where it cannot fall or
be pulled by the cord.
2. Plug the fan into a grounded
120-volt AC electrical outlet
(ordinary household current).
DO NOT use any other type of
outlet. Make sure that the rated
voltage of the fan is the same
as the power source before
plugging it into the power
source.
3. Turn the fan “ON” or “OFF”
by turning the Power/Speed
Control knob. The power
should always be OFF before
unplugging the fan.
4. To select the speed, turn the
Power/Speed Control knob
from OFF to the desired
speed setting: O (off), I (Low),
II (Medium), III (High).
5. To control the upward and
loosen the screw on the side of
the fan housing neck. Adjust to
the desired angle and tighten
the screw.
Handle
Oscillation Knob
Motor Housing
Up/Down
Adjustment Screw
Base
Power/Speed
Control Knob
8
6. To make the fan oscillate, push
knob up. The oscillation knob is
the oscillation knob down. To
located on the top of the fan
stop oscillating, pull the oscillation
housing, near the handle.
Figure 114
61809-01 R20211020

MAINTENANCE
This fan is permanently lubricated and
will not require additional lubrication (oil)
for the life of the fan.
This fan requires little maintenance
and contains no user serviceable parts.
TO CLEAN:
outlet. Wipe off excess dust
2. To ensure adequate air
circulation to the motor, keep
vents located at the rear of
the motor housing free from
dust accumulation. A vacuum
cleaner hose can be used to
clean these vents.
3. DO NOT immerse the fan in
water or any other liquid.
CLEANING GRILL AND BLADE:
1. Turn the fan off and unplug
from the electrical outlet.
2. Disassemble grills by carefully
removing the screw on the
3. Pull up the 4 clips from the rear
grill to remove the front grill.
4. Use a dry or slightly damp lint
free cloth to clean the fan.
5. Use a soft, slightly damp cloth
to wipe the remaining fan parts.
6. DO NOT allow water or any
other liquid to get into the motor
housing or base.
7. Reassemble the fan after
blades and grills have dried
completely. Align the grills,
replace the screw and clips.
8. DO NOT plug fan into an
electrical outlet until it has been
fully reassembled.
Front
Grill
Base
Clip
Screw
Power/Speed
Control Switch
Blade
Screw
Back
Grill Handle
Oscilation
Knob
Motor
Housing
Up/Down
Adjustment
Screw
9
Figure 15
is needed.
bottom of the grill. See Figure15.
1. Before cleaning, turn the fan
with a lintfree cloth.
off and unplug from electrical
61809-01 R20211020

STORAGE TROUBLESHOOTING
1. Disassemble and clean fan
before storing.
2. Keep the original packaging for
the purpose of storing the fan.
3. ALWAYS store the fan in a
dry place.
4. NEVER store the fan while it is
still plugged in.
5. NEVER wrap the cord tightly
around the fan.
6. DO NOT put any stress on the
cord where it enters the fan, as
it could cause the cord to break.
PROBLEM
Fan will not oscillate.
SOLUTION
housing to activate oscillation.
PROBLEM
SOLUTION
TECHNICAL SUPPORT
Loosen the screw on the side of the
fan neck. Adjust to the desired
angle and tighten the screw.
10
.nafehtfoelgnaehttsujdatonnaC
rotomfopotnobonkehtnwodhsuP
If you need any assistance with setup,
operation, or parts for your new Hunter
portable fan, please call us. Our technical
support staff is ready to help! We are
open 24 hours a day, 7 days a week.
www.HunterHomeComfort.com.
An electronic copy of this user manual
can also be obtained online at
www.HunterHomeComfort.com.
You may also reach us online at
USA: 1-888-880-3267 (FANS)
[email protected]
61809-01 R20211020

WARRANTY
following limited warranty to the user
or consumer purchaser of this Hunter
Portable fan:
fails at any time within ve years after
the date of sale to you due to a defect
in material or workmanship, labor
to repair the defect will be provided
free of charge at our nearest service
center or our Service Department
be responsible for labor costs after
limited warranty applies only to the
motor itself, and does not apply to
electronic controls such as remote
controls, remote control receivers or
transmitters used in conjunction with
the motor. These electronic control
items are included in the one year
If any part of your Hunter Portable
Fan other than the motor fails at any
sale to you due to a defect in material
or workmanship, we will repair or, at
our option, replace the defective part
free of charge for parts and labor
performed at our nearest service
center or at our Service Department
IF THE USER OR CONSUMER
PURCHASER CEASES TO OWN THE
FAN, THIS WARRANTY AND ANY
IMPLIED WARRANTY WHICH THEN
REMAINS IN EFFECT, INCLUDING
BUT NOT LIMITED TO ANY IMPLIED
WARRANTY OF MERCHANTABILITY
PURPOSE, ARE VOIDED. NO
WARRANTY, EXPRESSED OR IMPLIED,
INCLUDING ANY WARRANTY OF
MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE, IS MADE
IN RESPECT TO THE GLASS GLOBES
OR LIGHT BULBS OR THE FINISH
ON ANY METAL PORTION OF THE
FAN. THIS WARRANTY IS IN LIEU OF
ALL OTHER EXPRESS WARRANTIES.
THE DURATION OF ANY IMPLIED
WARRANTY, INCLUDING, BUT
WARRANTY OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR
PURPOSE, IN RESPECT TO ANY
HUNTER FAN MOTOR OR OTHER
FAN PART, IS EXPRESSLY LIMITED
TO THE PERIOD OF THE EXPRESS
WARRANTY SET FORTH ABOVE FOR
SUCH MOTORS AND OTHER PARTS.
This warranty is voided if your
Hunter Fan is not purchased and
used in the USA.
This warranty excludes and does
not cover defects, malfunctions or
failures of any Hunter Portable fan
which were caused by repairs by
persons not authorized by us, use of
parts or accessories not authorized
by us, mishandling, improper
installation, modications, or
damage to the Hunter Portable
fan while in your possession,
or unreasonable use, including
failure to provide reasonable and
necessary maintenance.
To obtain servicing, contact the
nearest Hunter authorized service
OR FITNESS FOR A PARTICULAR center or the Hunter Home Comfort
NOT LIMITED TO ANY IMPLIED
11
Hunter Home Comfort makes the
If your Hunter Portable Fan motor
time within one year after the date of
limited warranty below.
this ve-year period. The foregoing
in Kennesaw, Georgia.
in Kennesaw, Georgia. You will
61809-01 R20211020

FOR CONSEQUENTIAL OR
INCIDENTAL DAMAGES.
SOME STATES DO NOT ALLOW
LIMITATIONS ON HOW LONG
AN IMPLIED WARRANTY
LASTS OR THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES
SO THE ABOVE LIMITATION MAY
NOT APPLY TO YOU.
SPECIFIC LEGAL RIGHTS AND
YOU MAY ALSO HAVE OTHER
RIGHTS WHICH VARY FROM
STATE TO STATE.
IN NO EVENT SHALL HUNTER
Hunter is a trademark of the Hunter Fan Company and
is used under license to Hunter Home Comfort.
Printed in China
HOME COMFORT BE LIABLE
12
THIS WARRANTY GIVES YOU
980 Cobb Place Boulevard NW, Suite 100, Kennesaw, GA 30144
Service Department, 980 Cobb
Place Boulevard NW, Suite
100, Kennesaw, GA 30144.
Please contact us before shipping
your fan to us. If we authorize you
to ship it to us, you will be
responsible for all insurance
and freight or other transportation
charges to our factory service
center. We will return your Hunter
Fan freight prepaid. Your portable
fan should be properly packed
to avoid damage in transit since
we will not be responsible for any
such damage. Proof of purchase is
required when requesting warranty
service. The purchaser must present
sales receipt or other document that
establishes proof of purchase.
61809-01 R20211020
