Installation and Operation Manual
For Hunter Ceiling Fans
®
SINCE 1886
41557-01 3/12/2002

241557-01 3/12/2002
®

3
®
41557-01 3/12/2002
CONGRATULATIONS!
Your new Hunter ceiling fan is an
addition to your home or office that
will provide comfort and perfor-
mance for many years. This manual
gives you complete instructions for
installing and operating your fan.
We are proud of our work. We ap-
preciate the opportunity to supply
you with the best ceiling fan avail-
able anywhere in the world.
Before installing your fan, record the
following information for your
records and warranty assistance.
Please refer to the carton and the
Hunter nameplate (located on top
outside fan motor housing) for the
proper information.
© 2002 Hunter Fan Co.
3/12/2002
Model Name __________________
Catalog No. ___________________
Serial No. _____________________
Date Purchased ________________
Where Purchased ______________
_____________________________
Please attach your Part Guide to this
manual for future reference.
Attach Your Receipt
or a Copy of
Your Receipt Here

441557-01 3/12/2002
®
CONTENTS
CONGRATULATIONS!.......................................................................................................................................... 3
IMPORTANT INFORMATION ................................................................................................................................. 5
STEP 1 - GETTING READY ................................................................................................................................... 6
STEP 2 - INSTALLING THE CEILING PLATE............................................................................................................. 8
STEP 3 - ASSEMBLING PIPE/BALL ASSEMBLY ..................................................................................................... 10
STEP 4 - ASSEMBLING THE FAN ........................................................................................................................ 12
STEP 5 - WIRING THE FAN ................................................................................................................................. 13
STEP 6 - HANGING THE FAN ............................................................................................................................. 15
STEP 7 - ASSEMBLING FAN BLADES .................................................................................................................. 16
STEP 8 - ATTACHING THE SWITCH HOUSING .................................................................................................... 18
STEP 9 - REPLACING THE LIGHT BULB ............................................................................................................... 21
OPERATING YOUR HUNTER FAN ....................................................................................................................... 22
TROUBLESHOOTING ......................................................................................................................................... 24

5
®
41557-01 3/12/2002
IMPORTANT INFORMATION
not lock the circuit breakers in
the off position, securely fas-
ten a prominent warning de-
vice, such as a tag, to the ser-
vice panel.
• This fan is suitable for wet lo-
cations when installed in a
GFCI protected branch circuit.
All wiring must be in accor-
dance with national and local
electrical codes. If you are un-
familiar with wiring, you
should use a qualified electri-
cian.
• To reduce the risk of personal
injury, do not bend the blade
attachment system when in-
stalling, balancing, or cleaning
the fan. Never insert foreign
objects between rotating fan
blades.
DO YOU NEED HELP?
To install a ceiling fan, be sure you
can do the following:
• Locate ceiling joist or other suit-
able support in ceiling.
• Drill holes for and install wood
screws.
• Identify and connect electrical
wires.
• Lift 40 pounds.
If you need help installing the fan,
your Hunter fan dealer can direct you
to a licensed installer or electrician.
• To reduce the risk of fire, elec-
trical shock, or motor dam-
age, do not use a solid-state
speed control with this fan.
Use only Hunter speed con-
trols.
WARNINGS
• To avoid possible electrical
shock, before installing
your fan, disconnect the
power by turning off the
circuit breakers to the out-
let box and associated wall
switch location. If you can-
CAUTIONS
• Read entire booklet carefully
before beginning installation
and save these instructions.
• To reduce the risk of personal
injury, attach the fan directly
to the support structure of the
building according to these in-
structions, and use only the
hardware supplied.
WARNINGS

641557-01 3/12/2002
®
GATHERING THE TOOLS
You will need the following tools for
installing the fan:
• Electric drill with 9/64" bit
• Standard screwdriver
• Phillips-head screwdriver
• Wrench or pliers
STEP 1 - GETTING READY
PREPARING THE FAN SITE
The location of a ceiling fan and how
the fan is attached to the building
structure are essential for reliable
operation, maximum efficiency, and
energy savings. For this reason, we
have included a separate booklet —
“Guide to Choosing and Preparing
a Ceiling Fan Site” — to help you
select the best location for your fan.
The booklet also provides informa-
tion to ensure your fan support and
electric outlet box meet UL-approved
safety codes for ceiling fans.
The instructions in this installation
manual assume that you have used
“Guide to Choosing and Preparing
a Ceiling Fan Site” to pick the fan
location and make certain the proper
fan support and outlet box are in-
stalled.
CHECKING YOUR FAN PARTS
Carefully unpack your fan to avoid
damage to the fan parts. Check for
any shipping damage to the motor
or fan blades. If one of the fan blades
was damaged in shipment, return all
the blades for replacement.
Hint: If you are installing more than
one fan, keep the fan blades
in sets, as they were shipped.
The fan includes a separate diagram
of the screws and other small parts
needed for the fan. Keep this dia-
gram handy for identifying parts dur-
ing installation; the diagram indicates
the step in which each part is used.
If any parts are missing or damaged,
contact your Hunter dealer or call
Hunter Parts Department at
901-248-2222.

7
®
41557-01 3/12/2002
INSTALLATION METHOD
Standard Mounting (Figure 1) hangs
from the ceiling by a connector pipe
(included), for ceilings 8 feet or
higher. For ceilings higher than eight
feet, you can purchase Hunter exten-
sion rods. All Hunter fans use sturdy
3/4" diameter pipe to assure stabil-
ity and wobble-free performance.
Figure 1 - Standard Mounting
12"

841557-01 3/12/2002
®
STEP 2 - INSTALLING THE CEILING PLATE
1. Drill two pilot holes into the wood
support structure through the
outermost holes on the outlet
box. The pilot holes should be
9/64" in diameter.
2. Install two of the three #10-32 X
3/8" canopy screws halfway into
the mounting screw holes located
on the side of the ceiling plate.
See Figure 2a.
3. Place the ceiling gasket over the
ceiling plate so that the slots and
raised surfaces on the ceiling gas-
ket align with the slots and holes
on the ceiling plate.
4. Thread the lead wires from the
outlet box through the hole in the
middle of the ceiling plate/gasket
assembly.
Figure 2a - Installing ceiling plate and
gasket assembly
5. Align the slotted holes in the ceil-
ing plate with pilot holes in the
wood support structure. Note:
The ceiling gasket should be flush
against the ceiling.
Ceiling
Plate
Ceiling
Gasket
6. Pierce holes in the ceiling gasket
through the slots in the ceiling
plate at a spacing to match the
holes you drilled in sub-step 1.
7. Place a flat washer on each of the
two 3" screws and pass the
screws through the slotted holes
in the ceiling plate as shown in
Figure 2b.
8. Tighten the screws into the 9/64"
pilot holes; do not use lubricants
on the screws. Do not over-
tighten.

9
®
41557-01 3/12/2002
Figure 2b - Attaching Ceiling Plate to
2 x 4 Brace
2x4 Brace
Ceiling
Plate
Flat
Washer
3" Wood
Screw
Gasket

10 41557-01 3/12/2002
®
Included with the fan are two pipes:
one 4 1/2" long pipe/ball assembly
for standard mounting and one 2 1/2"
long pipe for flush mounting. See
Figure 3a.
If you are going to install the fan us-
ing the standard mounting, go to
"Step 4 - Assembling the Fan."
If you are going to install the fan us-
ing the flush mounting, complete
the steps below.
REMOVING BALL ASSEMBLY
For the following steps refer to
Figures 3b and 3c.
1. Locate the 4 1/2" pipe/ball as-
sembly.
2. Remove the positioning screw
from the top of the ball.
STEP 3 - ASSEMBLING PIPE/BALL ASSEMBLY
WARNINGS
Figure 3a - Pipes
Figure 3b - Removing ball assembly
NOTE: The ball will become
loose and should slide down the
pipe.
3. Remove the ball from the pipe.
4. Remove the pin from the pipe.
5. Carefully loosen and remove the
ground screw/leadwire assembly
from the pipe.
6. Locate the 2 1/2" pipe.
4 1/2"
Pipe/Ball
Assembly
2 1/2" Pipe
Pin
Positioning Screw
Leadwire
Assembly
Ball
Ground
Screw

11
®
41557-01 3/12/2002
Figure 3c - Flush mount pipe assembly
7. Insert and tighten the ground
screw/leadwire assembly into the
small screw hole on one end of
the 2 1/2" pipe.
CAUTION
Make sure that the leadwire as-
sembly is pointing straight up and
away from the pipe.
WARNING
To avoid possible electrical shock,
the ground screw must be tight-
ened securely.
WARNING
Failure to complete the steps
above properly could result in the
fan falling.
CAUTION
Do not overtighten the position-
ing screw as it may cause the ball
to seat improperly, resulting in fan
wobble and the fan hanging
crookedly.
8. Insert the pin into the two holes
in the 2 1/2" pipe so that the
pin is placed evenly in the hole.
9. Insert the threaded end of the
pipe into the flat side of the ball.
10. Align the cutouts in the ball with
the pin and the ground screw
assembly.
11. Slide the ball up the pipe until it
hits the pin.
12. Insert and tighten the position-
ing screw into the ball so that
the head of the screw is placed
on the end of the pipe.
NOTE: Make sure that the ball
is positioned so that it is level or
straight.

12 41557-01 3/12/2002
®

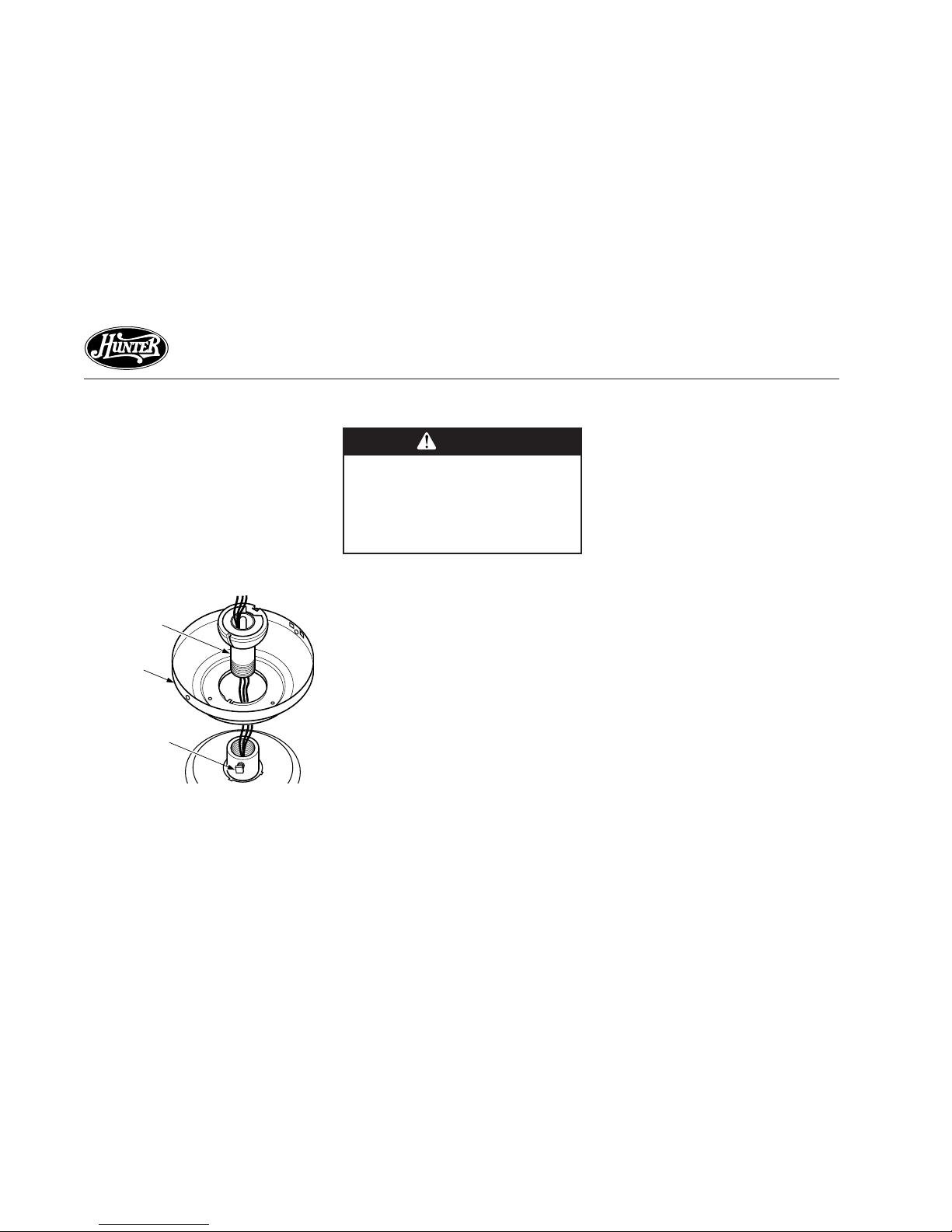

STEP 4 - ASSEMBLING THE FAN
1. Insert the pipe through the
canopy as shown in Figure 4. Feed
wires from the fan through the
pipe.
2. Screw pipe into fan assembly un-
til tight. IMPORTANT! Tighten
pipe setscrew as shown in Figure
4.
Figure 4 - Inserting Pipe through Canopy
CAUTION
The pipe has a special coating on
the threads. Do not remove this
coating; the coating prevents the
pipe from unscrewing. Once as-
sembled, do not remove the pipe.
Pipe
Canopy
Pipe
Setscrew

13
®
41557-01 3/12/2002

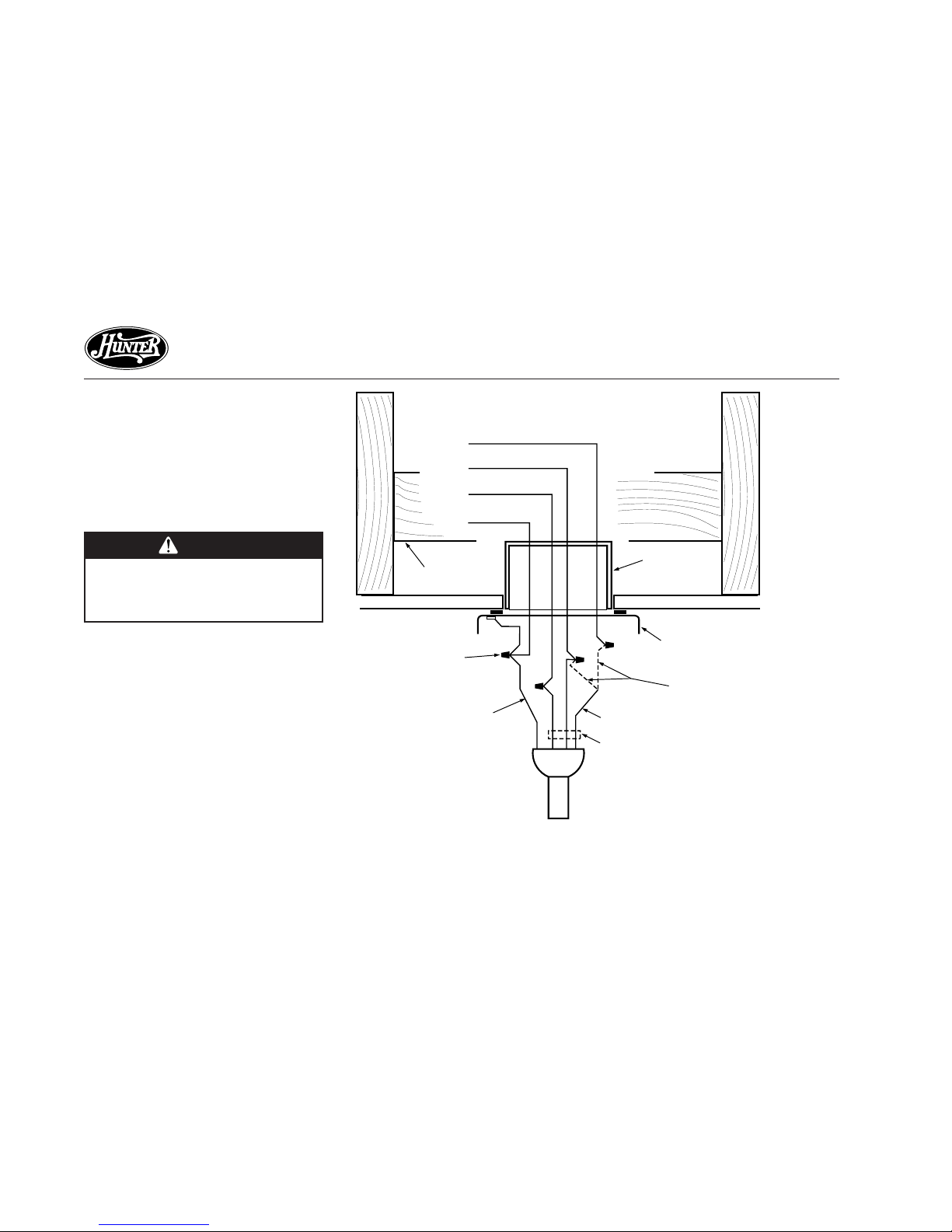

STEP 5 - WIRING THE FAN
1. Disconnect the power by turning
off the circuit breakers to the out-
let box and associated wall switch
location.
2. Being careful not to scratch the
canopy finish, tilt and hang the
assembled fan from the ceiling
plate hook using one of the two
(2) slots in the canopy. See Fig-
ure 5a.
3. You can use either one or two
wall switches to control the fan
and/or lights separately. Use con-
nection 1 on page 14 to:
• control the light with a wall
switch and the fan with a
chain pull (one wall switch re-
quired)
• control the light with a chain
pull and the fan with a wall
switch (one wall switch re-
quired)
• control the light with one wall
switch and the fan with an-
other (two wall switches re-
quired)
Use connection 2 on page 14 if
there is no separate wall switch
power wire for the light fixture.
Note: Wall switches not included.
Figure 5a - Assembled Fan Hanging from
Ceiling Plate Hook
continued
Ceiling
Plate
Ceiling
Plate
Hook

14 41557-01 3/12/2002
®
Bare or Green
Green
Approved
Connectors
Power
Wires
In 
Ceiling White
White
Black
Black/White
1
2Connections:

Black
Wall Switch Wire For 
Separate Control of Light Fixture
Ceiling
Plate
Outlet Box
2 x 4 Brace
Green Ground
Wire from Hanger
Pipe (not present 
with flush mounting
option)
3 Wires 
From Fan
(Note: Wall switch 
must be acceptable 
as a general-use
switch.)
Connect Blk/Wht Wire from fan

to Wall Switch Wire for separate
control of light fixture, or
Connect Blk/Wht Wire from fan

to Ceiling Black Wire if there 
is no separate Wall Switch Wire

for the light fixture.
1
2
4. Connect the wires as shown in
Figure 5b. To connect the wires,
twist the bare metal leads to-
gether. Place a wire nut over the
intertwined length of wire and
twist clockwise until tight as
shown.
Figure 5b - Wiring Diagram
5. Separate the connected wires by
placing the green and white wires
on one side of the outlet box and
the black and the black/white
wires on the other side of the
outlet box.
6. Turn the connectors upward. Push
the wires gently into the outlet
box.
CAUTION
Be sure no bare wire or wire
strands are visible after mak-
ing connections.

15
®
41557-01 3/12/2002
STEP 6 - HANGING THE FAN
Figure 6a - Attaching Canopy to Ceiling
Plate
Figure 6b - Canopy Tabs and Grooves in
Hanger Ball
1. Locate the two canopy screws
you partially installed in Step 2,
sub-step 2 on page 8.
2. Lift the fan from the ceiling plate
hook without breaking the wire
connections.
3. Align the mounting slots on the
canopy with the mounting screws
on the ceiling plate. Lift the
canopy into place so that the ceil-
ing gasket covers the top of the
canopy as shown in Figure 6a.
Rotate the canopy until it drops
into place on the mounting
screws.
4. Install and tighten the third
canopy mounting screw in the
remaining hole by lifting the edge
of the gasket cover. Tighten the
first two canopy mounting
screws.
5. Lift the fan housing towards the
ceiling and rotate the fan until
each canopy tab engages a
groove in the hanger ball as
shown in Figure 6b.
NOTE: If the tabs are already
engaged, do not rotate.
Mounting Hole
Ceiling Gasket
Ceiling Plate
(2) Canopy
MountingScrews
Canopy
(2) Mounting
Slots
WARNING
Failure to complete sub-steps
1 through 5 could cause fan to
fall.
Groove in
Hanger
Ball
Canopy
Tab
Groove in
Hanger Ball

16 41557-01 3/12/2002
®

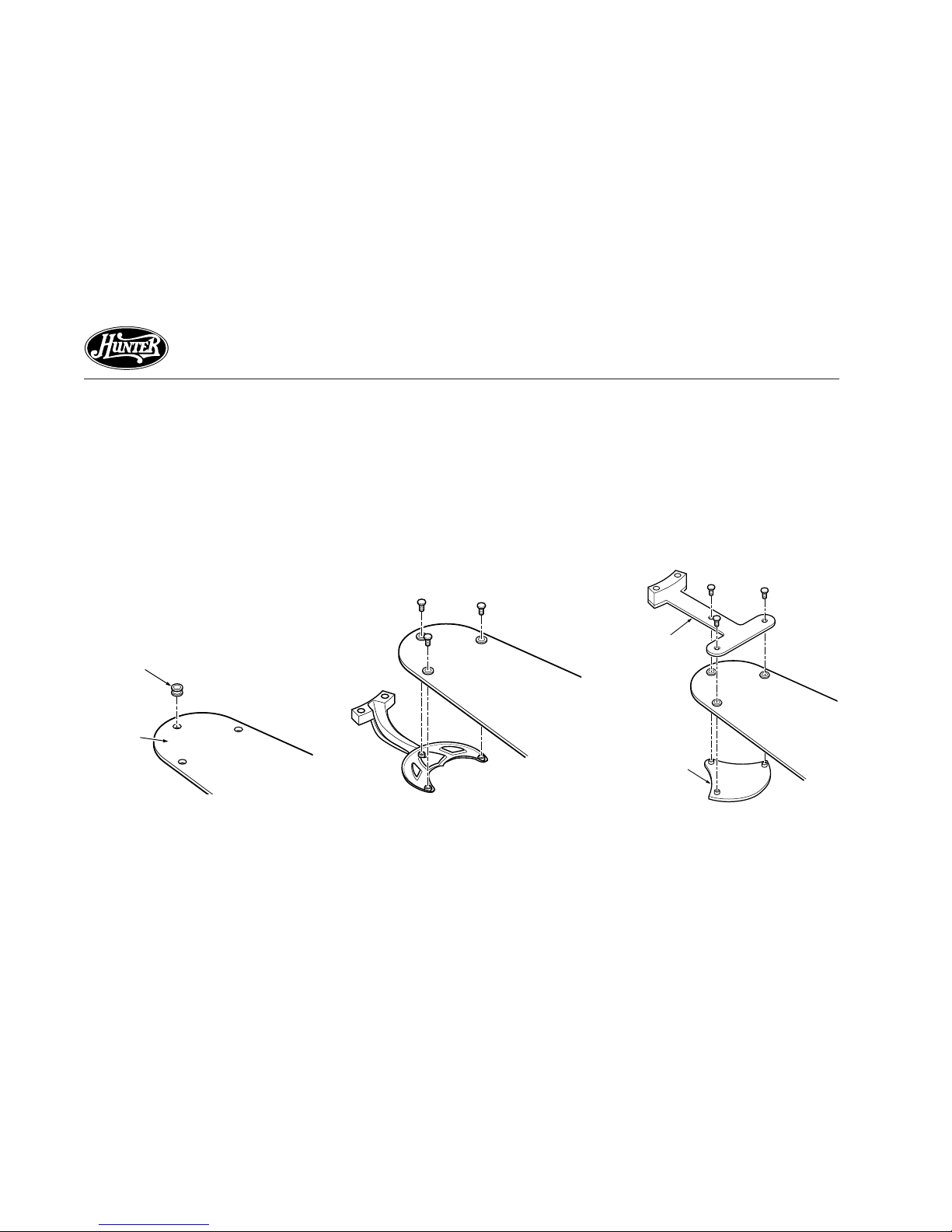

Figure 7a - Inserting Grommet into Fan
Blade
Figure 7b - Attaching Fan Blade to Blade
Iron
Figure 7c - Attaching Fan Blade to Blade
Iron using Decorative Medallion
feature a decorative medallion as
well as a blade iron. Insert the
assembly screws into the blade
iron, through the blade and into
the medallion, with the blade
sandwiched between the blade
iron and medallion as shown in
Figure 7c.
Hunter fans use several styles of fan
blade irons (brackets that hold the
blade to the fan).
1. Your fan may include blade grom-
mets (see Parts List). If your fan
has grommets, insert them by
hand into the holes as shown in
Figure 7a.
2. Attach each blade to blade iron
using three blade assembly screws
as shown in Figure 7b. Some fans
STEP 7 - ASSEMBLING FAN BLADES
If you used grommets, the blades
may appear slightly loose after
screws are tightened. This is nor-
mal.
3. Remove the blade mounting
screws and rubber shipping
bumpers from the motor.
Grommet
Fan 
Blade
Medallion
Blade 
Iron

17
®
41557-01 3/12/2002
4. For each blade, insert one blade
mounting screw through the
blade iron as shown in Figure 7d,
and attach lightly to the fan. In-
sert the second blade mounting
screw, then securely tighten both
mounting screws.
Figure 7d - Attaching Blade Irons to Hub
of Fan Assembly

18 41557-01 3/12/2002
®
STEP 8 - ATTACHING THE SWITCH HOUSING
The switch housing assembly is made
up of three sections: the switch
housing gasket, the upper switch
housing, and the lower switch
housing/light assembly.
ATTACHING THE SWITCH
HOUSING GASKET
1. Locate the switch housing mount-
ing plate, the switch housing
gasket and the upper plug con-
nector as shown in Figure 8a.
NOTE: Your fan may come with
the switch housing gasket
attached to the switch housing
mounting plate.
If the switch housing gasket is at-
tached to the switch housing mount-
ing plate, go to the section "Attach-
ing the Upper Switch Housing."
If the switch housing gasket is not
attached complete the steps below.
2. Identify the top side of the switch
housing gasket by looking for the
raised circular ridge on the gas-
ket. See Figure 8b.
3. With the top side of the switch
housing gasket facing up towards
the motor, align the holes in the
gasket with the spokes on the
switch housing mounting plate.
4. Feed the upper plug connector
through the center opening of the
upper switch housing. Push the
gasket up so that it is seated flush
with the mounting plate.
See Figure 8c.
Figure 8a - Mounting plate and upper
plug connector Figure 8b - Switch housing gasket
Mounting
Plate
Upper Plug
Connector
Gasket
Align Holes
with Spokes
Feed Upper Plug
Through Center

19
®
41557-01 3/12/2002
ATTACHING THE UPPER SWITCH
HOUSING
1. Locate the four #6-32 X 1/4"
switch housing mounting screws
in the sack parts.
2. Feed the upper plug connector
through the center hole in the
upper switch housing.
3. Align the holes in the upper
switch housing with the spokes
in the mounting plate.
4. Insert and tighten the four #6-32
X 1/4" screws into the outermost
holes in the upper switch hous-
ing.
Figure 8c - Attaching Upper Switch
Housing to Switch Housing Mounting
Plate
ATTACHING THE LOWER
SWITCH HOUSING/LIGHT AS-
SEMBLY
1. Locate the four #6-32 X 3/8"
housing screws.
NOTE: Depending upon your fan
model, these screws may be in-
stalled in the four spokes from
the switch housing mounting
plate, or they may be located in
the sack parts.
2. Install the screws halfway into the
four spokes from the switch hous-
ing mounting plate.
See Figure 8d.
NOTE: if these screws came in-
stalled, make sure that they are
installed halfway in order to
complete the following steps.
3. Connect the upper plug connec-
tor to the lower plug connector
CAUTION
Make sure the upper switch
housing is securely attached to
the switch housing mounting
plate. Failure to properly at-
tach and tighten all four hous-
ing assembly screws could re-
sult in water entry into live con-
nection area and/or the switch
housing and light fixture falling.

20 41557-01 3/12/2002
®
from the lower switch housing
assembly. See Figure 8d.
Note: Both plug connectors are
polarized and will only fit to-
gether one way. Make sure that
both connectors are properly
aligned before connecting them
together. Incorrect connection
could cause improper operation
and damage to the product.
4. Align the keyhole slots in the up-
per switch housing with the hous-
ing assembly screws installed in
sub-step 2.
5. Turn the lower switch housing
clockwise until the housing as-
sembly screws installed in sub-
steps 1 and 2 are firmly situated
in the narrow end of the keyhole
slots as shown in Figure 9e.
Tighten all four screws firmly.
6. Partially install two of the screws
into the lower switch housing to
mount the light kit.
Figure 8d - Attaching Lower Switch
Housing/Light Assembly
CAUTION
Make sure the lower switch
housing/light assembly is se-
curely attached to the switch
housing mounting plate.
Failure to properly attach and
tighten all four housing assem-
bly screws could result in the
switch housing and light
fixture falling.
Figure 8e - Light Assembly
7. Install one Max 100 Watt light
bulb.
8. Align the keyhole slots in the light
kit with the screws installed in the
lower switch housing. Refer to
Figure 8e.
9. Turn the light kit clockwise until
the screws installed are firmly situ-
ated in the narrow end of the
keyhole slots. Securely install the
third screw and tighten all screws.
