Hunter Key Biscayne User manual

www.HunterFan.com 1.888.830.1326
PAGE
7
PAGE
13
PAGE
10
PAGE
5
PAGE
6
30 inches
7 feet
PAGE
2
What to Expect with
Your Installation Ceiling Bracket
Ladder
PAGE
3
Tools Needed
Wiring Canopy
Maintenance
& Cleaning
Blades Troubleshooting
Downrod
Switch Housing
& Light Kit Globe
Motor Housing
Table of Contents
PAGE
11
PAGE
12
PAGE
4
Mounting Options
PAGE
17
PAGE
19
?
?
?
PAGE
20
Congratulations on purchasing
your new Hunter® ceiling fan! It will
provide comfort and performance
in your home or ofce for many
years. This installation and operation
manual contains complete
instructions for installing and
operating your fan.
We are proud of our work and
appreciate the opportunity to
supply you with the best ceiling fan
available anywhere in the world.
To register your fan, please visit:
www.HunterFan.com/register
Save your receipt for proof of purchase.
1
M3556-01 • 06/17/14 • © Hunter Fan Company

www.HunterFan.com 1.888.830.1326
M3556-01 • 06/17/14 • © Hunter Fan Company
1.888.830.13261.888.830.1326
What to Expect with Your Installation
Know your wiring
If you are unfamiliar
with wiring, use a
qualied electrician.
You may need a
friend to help you.
Check box to see
fan weight
Assess location
30 inches
from blade tip
to nearest wall
or obstruction 7 feet
from bottom
edge of blade
to the oor
Select a downrod length
w.1 - To reduce the risk of re, electrical shock, or
personal injury, mount fan directly from building
structure and/or an outlet box marked acceptable for
fan support of 70 lbs (31.8 kg) and use the mounting
screws provided with the outlet box.
w.2 - To avoid possible electrical shock, before installing
or servicing your fan, disconnect the power by turning
off the circuit breakers to the outlet box and associated
wall switch location. If you cannot lock the circuit
breakers in the off position, securely fasten a prominent
warning device, such as a tag, to the service panel.
w.3 - To reduce the risk of re, electrical shock, or motor
damage, use only Hunter Solid State Speed Controls.
w.4 - To reduce the risk of personal injury, do not bend the
blade brackets when installing the blade brackets, balancing
the blades, or cleaning the fan. Do not insert foreign objects
in between rotating fan blades.
c.1 - All wiring must be in accordance with national and
local electrical codes ANSI/NFPA 70. If you are unfamiliar
with wiring, use a qualied electrician.
c.2 - Use only Hunter replacement parts.
Assess ceiling angle
Read and Save These Instructions
This product conforms to UL Standard 507.
WARNINGS
CAUTIONS
Must be able to
secure the fan to
building structure or
fan-rated outlet box
1
2
3
Standard Downrod
for ceilings 8-10 feet high
Shorter Downrod
for fans installed close to ceiling
Longer Downrod
for ceilings 10 feet or higher
2
Ceiling angles greater
than 34° will require an
Angled Mounting Kit.
See page 4 for details.

www.HunterFan.com 1.888.830.1326
Tools Needed
Ladder
Power Drill
(optional)
9/64” Drill Bit
(optional)
Screwdrivers
Pliers Wire Strippers
If mounting to a support structure, you will also need these tools.
3
M3556-01 • 06/17/14 • © Hunter Fan Company

www.HunterFan.com 1.888.830.1326
4
M3556-01 • 06/17/14 • © Hunter Fan Company
1.866.268.1936

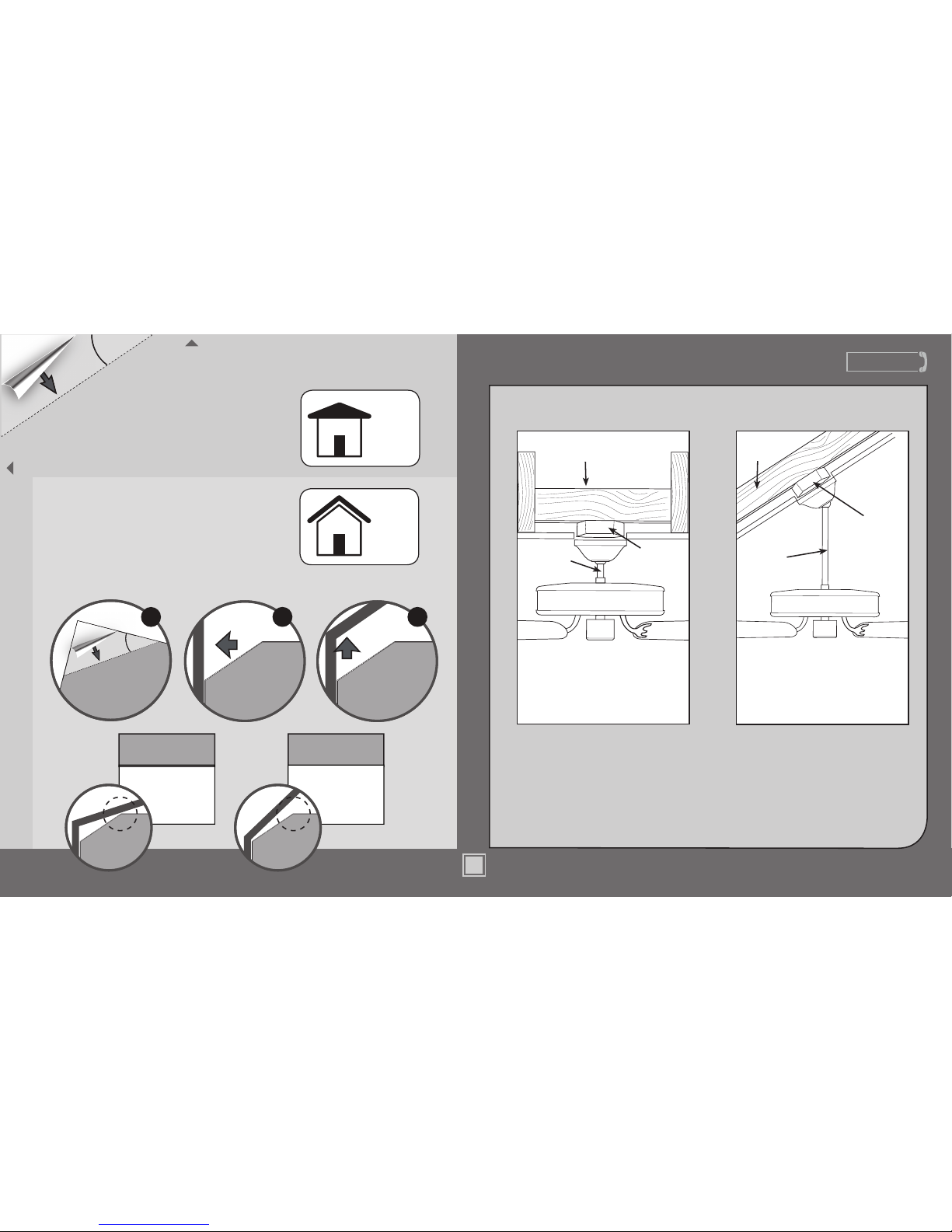

If you have an angled ceiling:
1. You will need a longer downrod (sold separately).
2. If your ceiling angle is greater than 34°, you will
also need an Angled Mounting Kit (sold separately).
Guide Touches
BOTH Ceiling & Wall
S
I
T
U
A
T
I
O
N
1
Guide Touches Wall
but NOT Ceiling
S
I
T
U
A
T
I
O
N
2
You need BOTH
a Longer
Downrod &
an Angled
Mounting Kit
You need ONLY
a Longer
Downrod
*most common
If you have a at ceiling:
Hang your fan by a standard downrod (included).
Mounting Options
Use Standard Mounting
or Low-Prole Mounting
to hang the fan from a at ceiling.
Use Angled Mounting
to hang the fan from a
vaulted or angled ceiling.
4
34OCEILING
WALL
OPTION
1
Standard
Mounting
OPTION 2
Angled
Mounting
2 3
SLIDE
toward ceiling
PLACE
against wall
1
FOLD
on dotted line
34°
Use the three steps below to determine if your ceiling angle is greater than 34°
Support
Structure
Ceiling
Outlet Box
(required)
Angled
Mounting
Style
Standard
Mounting
Style
Support
Structure
Ceiling
Outlet Box
(required)
M3556-01 • 06/17/14 • © Hunter Fan Company
www.HunterFan.com

www.HunterFan.com 1.888.830.1326

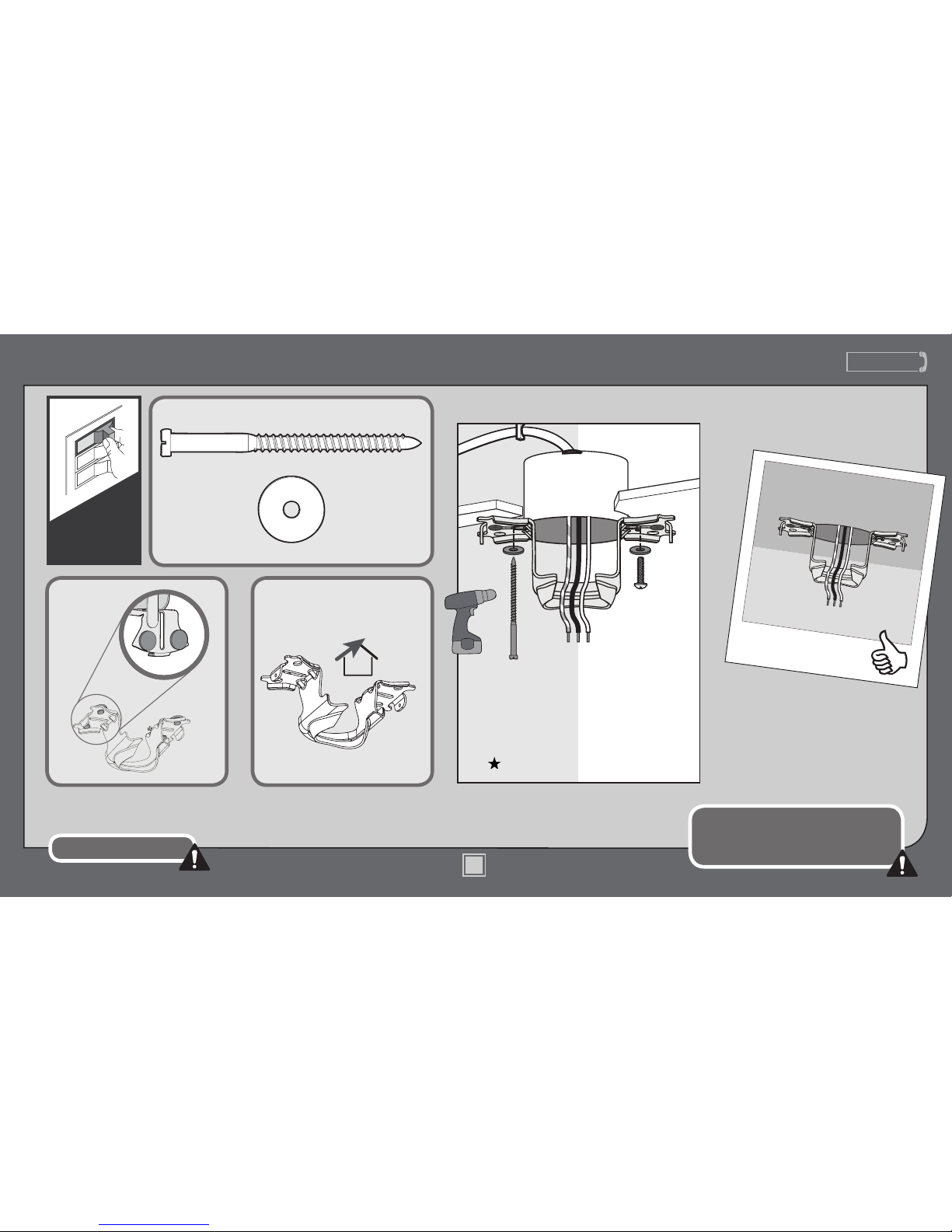

Ceiling Bracket
Refer to warning w.1 on pg. 2
To avoid possible electrical shock, before
installing your fan, disconnect the power by
turning off the circuit breakers to the outlet
box associated with the wall switch location.
For angled ceilings, point
opening toward peak.
If you are unable to do this,
call Technical Support at
1-888-830-1326.
Make sure all four bumpers are
still attached.
Use wood screws
(included) when securing
to support structure with
approved electrical outlet
box. Drill 9/64” pilot holes
in support structure to aid
in securing ceiling bracket
with hardware found in
the hardware bag.
Use machine screws
(provided with outlet
box) when securing to
existing ceiling fan-rated
outlet box. Make sure
it is securely installed
and is acceptable for fan
support of 31.8 kg (70 lbs)
or less.
OFF
Turn Power
5
M3556-01 • 06/17/14 • © Hunter Fan Company

www.HunterFan.com 1.888.830.1326

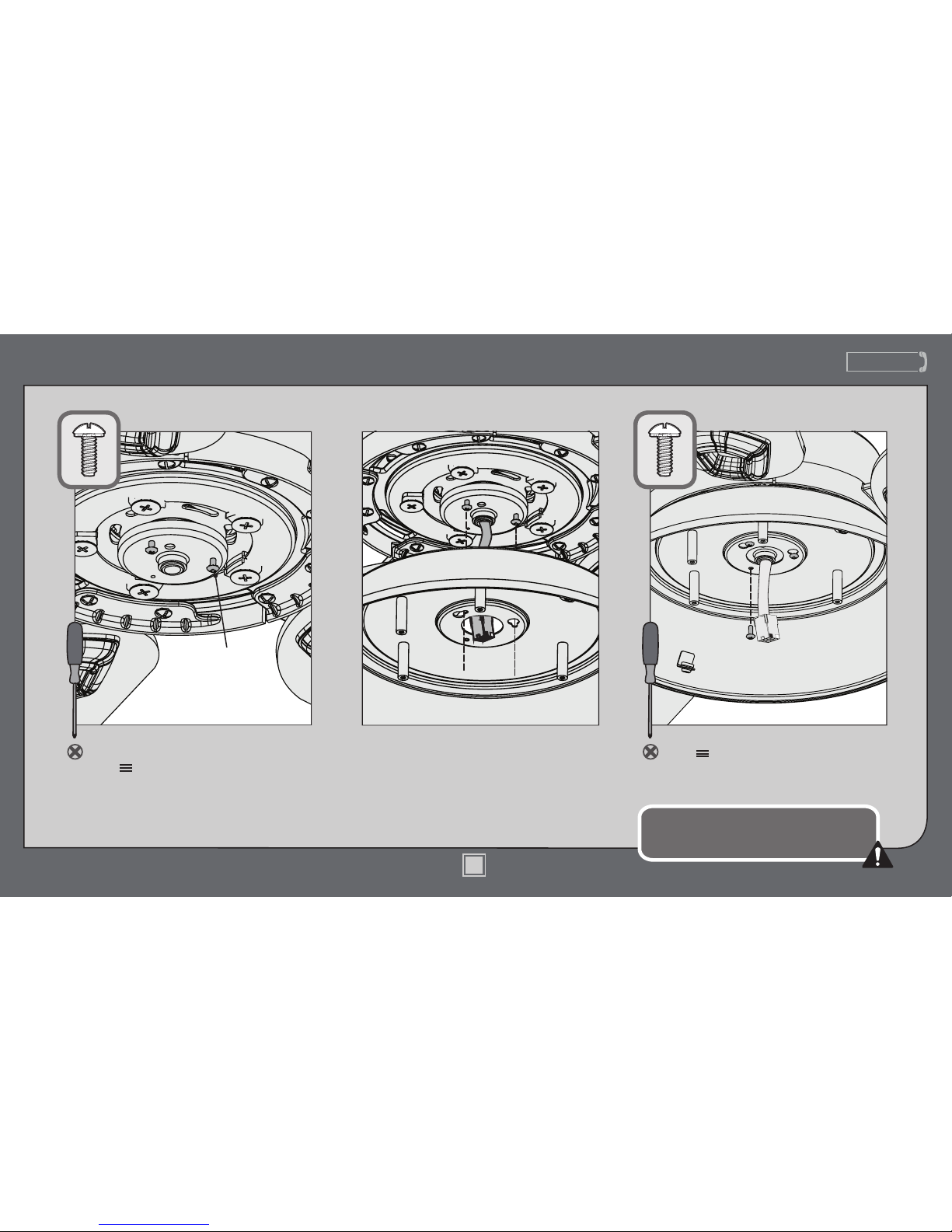

Motor Housing
Gently lower the motor housing so it rests
in place on the motor assembly.
Align the screw holes in the top of the motor
housing with the screw holes in the motor
assembly. Install the three motor housing
screws, found in the hardware bag.
6
M3556-01 • 06/17/14 • © Hunter Fan Company

www.HunterFan.com 1.888.830.1326
7
M3556-01 • 06/17/14 • © Hunter Fan Company

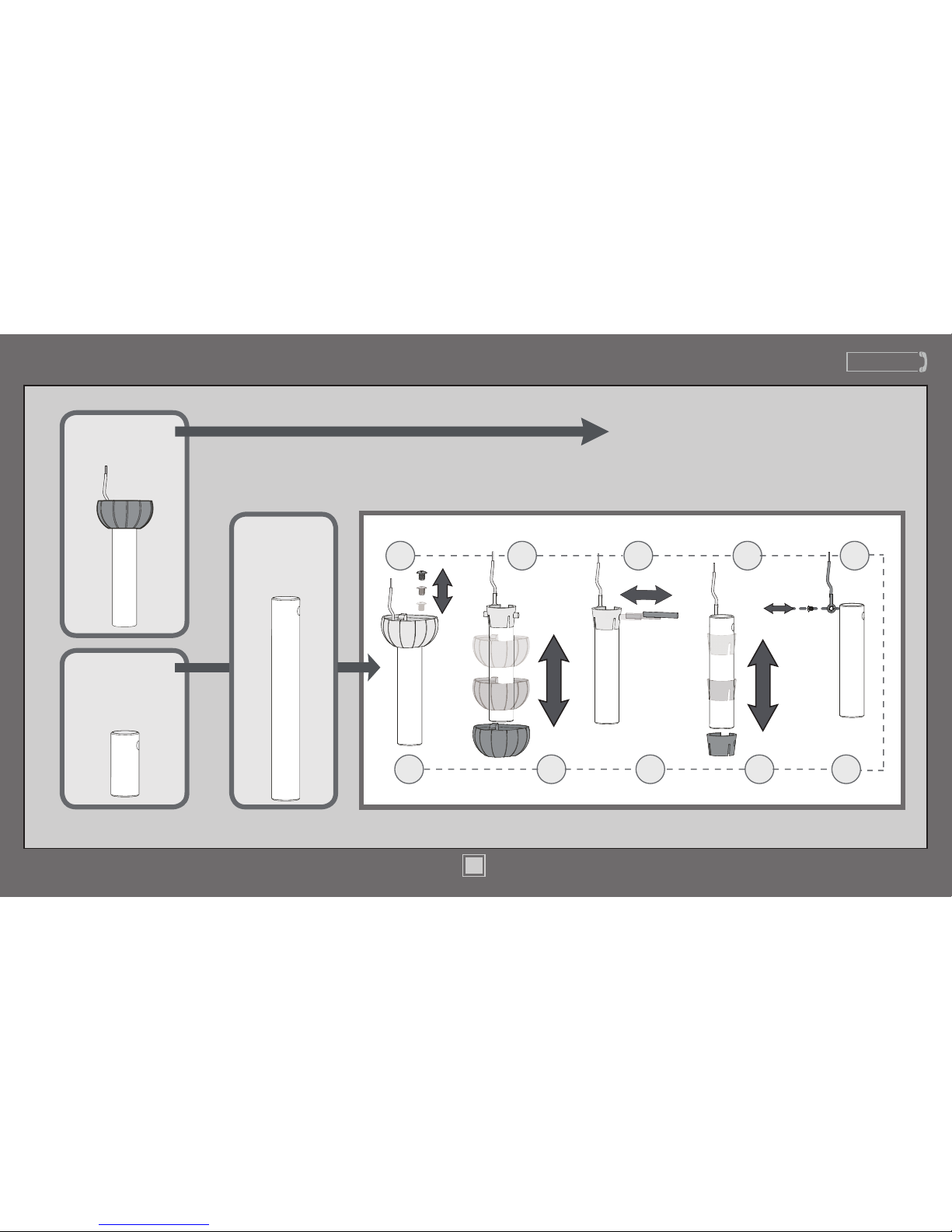

Downrod
Slide
Slide
1 2 3 4 5
678910
Sold Separately
Included
Longer
Downrod
for angled
ceilings or
ceilings 10’ or
higher
Shorter
Downrod
for fans installed
close to ceiling
Standard
Downrod
for ceilings 8-10’ high
Option 1Option 2
Option 3
skip to next page
If you need a different downrod length follow these steps:
Steps 1-5 to remove standard downrod pipe
Steps 6-10 to reassemble with new pipe
Included (pre-assembled)

www.HunterFan.com 1.888.830.1326
8
M3556-01 • 06/17/14 • © Hunter Fan Company
KEEP!
8”
3/8”
C
U
T
&
S
T
R
I
P
(not to scale)
Remove the pre-installed
setscrew so that the downrod
can be inserted.
Hand tighten the downrod (at
least 4-5 full turns) until it stops.
The wires can be cut, but
leave at least 8” extending
from the top of the downrod.
Downrod (continued)
8” 3/8”
Tighten the setscrew
with pliers. DO NOT
HAND TIGHTEN.
If the setscrew is not tightened
securely, the fan may fall.
K
E
E
P
!

www.HunterFan.com 1.888.830.1326

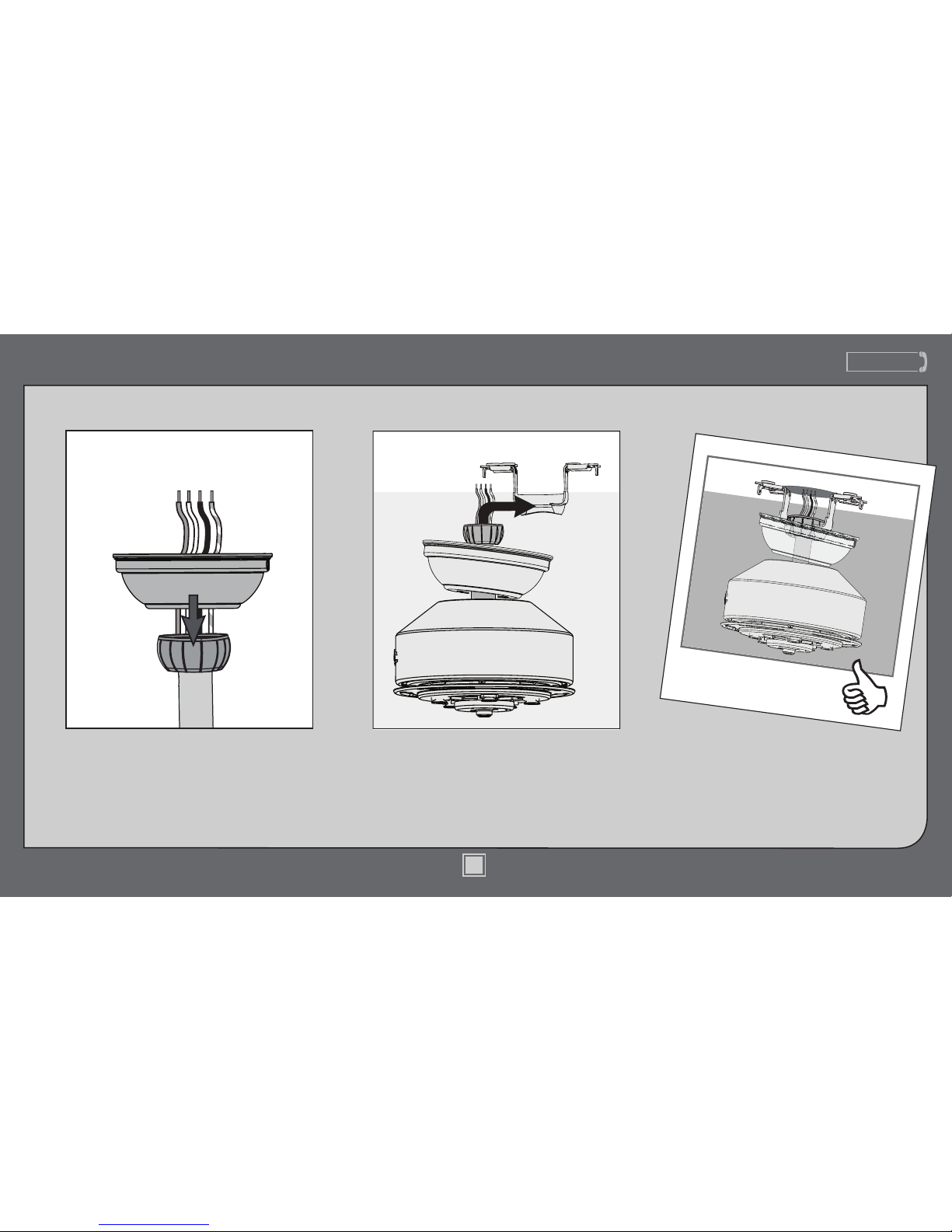

Downrod (continued)
DO NOT PICK THE FAN UP BY THE
CANOPY OR WIRES. Place the downrod
ball into the slot in the ceiling bracket.
Put the wires and downrod through the
canopy. Let the canopy sit loosely on top
of the fan.
9
M3556-01 • 06/17/14 • © Hunter Fan Company

www.HunterFan.com 1.888.830.1326
Wiring
F
R
O
M
F
A
N
F
R
O
M
C
E
I
L
I
N
G
B
R
A
C
K
E
T
F
R
O
M
F
A
N
Using an orange wire
connector from
the hardware bag,
connect the 3 grounding
wires (green, green/
yellow stripe, or bare
copper) coming from the
ceiling, downrod, and
hanging bracket.
(Grounding) Green/Yellow
Stripe
Green/Yellow
Stripe
White
Black
(Grounded)
Note: To connect the wires,
hold the bare metal leads
together and place a wire
connector over them, then twist
clockwise until tight.
Using the orange wire
connectors from
the hardware bag, connect
the black wire (ungrounded)
from the ceiling to the black
and the blue wires from the
fan. Connect the white wire
(grounded) from the ceiling to
the white wire from the fan.
Using the orange wire
connectors from
the hardware bag,
connect the white wire
(grounded) from the
ceiling to the white wire
from the fan.
Connect the black wire
(ungrounded) from the
ceiling to the black wire
from the fan. Connect the
second (ungrounded) wire
from the ceiling to the blue
wire from the fan.
F
R
O
M
F
A
N
White
(Ungrounded)
Black
Blue
(Grounded)
F
R
O
M
C
E
I
L
I
N
G
(Ungrounded)
Blue
For Dual Switches
For a Single Switch
F
R
O
M
C
E
I
L
I
N
G
F
R
O
M
C
E
I
L
I
N
G
Turn the splices upward and push them carefully back through the hanger bracket
into the outlet box. Spread the wires apart, with the grounded wires on one side of
the outlet box and the ungrounded wires on the other side of the outlet box.
Refer to CAUTION c.1 on pg. 2
10
M3556-01 • 06/17/14 • © Hunter Fan Company
(Ungrounded)

www.HunterFan.com 1.888.830.1326
Canopy
Lift the canopy into place so that
the screw holes are aligned.
Position the canopy so that, when
lifted into place, the canopy ts into
the hanging bracket as shown.
Screw
Holes
Insert the two canopy screws
found in the hardware bag.
Note: Fan style may vary.
11
M3556-01 • 06/17/14 • © Hunter Fan Company

www.HunterFan.com 1.888.830.1326
Blades
Lightly attach the blade irons to the
motor with screws found in
the hardware bag, then securely
tighten after both screws are attached.
Your blades are shielded with Dust Armor® which
is a nanotechnology coating that repels dust. For
cleaning the fan, use soft brushes or cloths to prevent
scratching. Cleaning agents may damage the nishes.
Place each blade between a blade iron
and medallion. Install three blade screws,
found in the hardware bag, to attach
the medallion to the blade iron.
12
M3556-01 • 06/17/14 • © Hunter Fan Company

www.HunterFan.com 1.888.830.1326

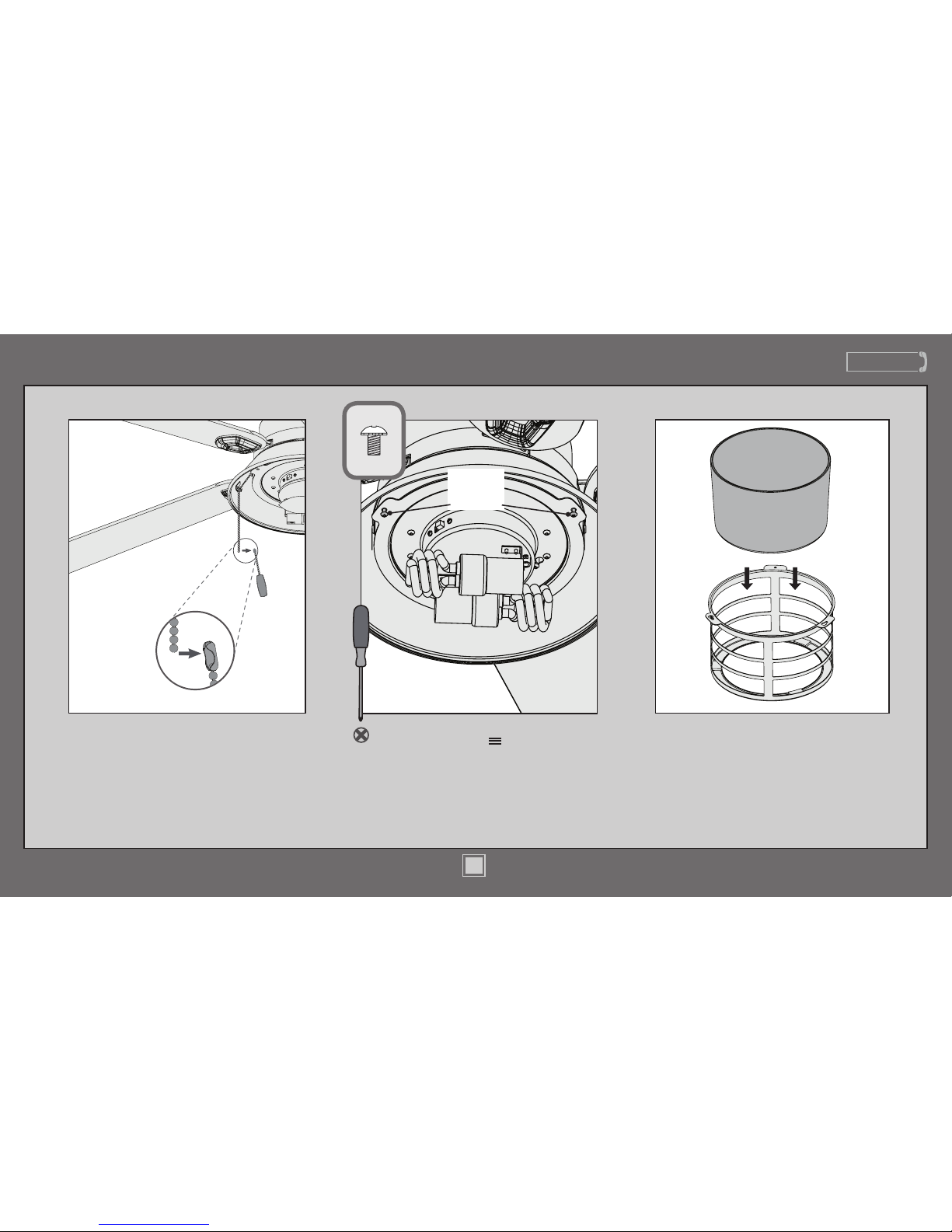

Remove and discard the plastic
connectors from the ends of the
two pull chains.
Remove the pre-installed light kit
assembly screw and red ag from the
light kit assembly. Save the screw. It will
be needed for light kit installation.
Note: The screw was installed for
shipping purposes only.
Carefully remove the light kit from the
upper switch housing and set the light
kit aside.
Switch Housing & Light Kit
Red Flag
13
M3556-01 • 06/17/14 • © Hunter Fan Company

www.HunterFan.com 1.888.830.1326
Feed the wire plug through the center
hole of the upper switch housing, then
wrap keyhole slots around the two screws
and twist counterclockwise to lock the
upper switch housing into place.
Partially install two switch housing
assembly screws ,found in
the hardware bag, into the motor
housing as shown. It does not matter
which two screw holes you choose.
Insert the third screw, found in
the hardware bag, into place and
then tighten all three screws.
Make sure the upper switch housing is securely
attached to the mounting plate. Failure to properly
secure all 3 assembly screws could result in the switch
housing xture falling.
Switch Housing & Light Kit (continued)
Switch
Housing
Assembly
Screw
14
M3556-01 • 06/17/14 • © Hunter Fan Company

www.HunterFan.com 1.888.830.1326
15
M3556-01 • 06/17/14 • © Hunter Fan Company
Switch Housing & Light Kit (continued)
Make sure the lower switch housing is securely attached to
the upper switch housing. Failure to properly secure all three
assembly screws could result in the light xture falling.
Partially install three light kit assembly
screws, found in the hardware bag,
into the posts as shown, leaving the
circled post empty.
Connect the plugs from the upper and lower
switch housings. Make sure to line up the
colored markings on the connectors.
Align the three keyhole slots in the
light kit with the three assembly screws
in the posts. Lift the light kit and twist
clockwise to lock it into place. Be sure
that both pull chains are hanging freely.
Light Kit
Assembly
Screw
Keyhole
Slot
Empty
Post
Use only the light kit supplied with
this fan model.

www.HunterFan.com 1.888.830.1326
Switch Housing & Light Kit (continued)
Install the fourth light kit assembly screw
and tighten all four screws securely.
Remember the screw you
kept after removing the
red ag (page 13)? You
need it for this step.
Install a bulb into each of the sockets.
When necessary, replace with bulbs of
the same wattage.
16
M3556-01 • 06/17/14 • © Hunter Fan Company

www.HunterFan.com 1.888.830.1326
17
M3556-01 • 06/17/14 • © Hunter Fan Company
Globe
Feed the pull chains from the fan switch
and the light switch down through the
holes in the upper switch housing as
shown. Attach the pull chain pendants
to the light and fan pull chains. The fan
pull chain controls the speed: from high
to off. The light pull chain controls
the light xture: on and off.
Partially install two globe assembly
screws, found in the hardware bag,
halfway into the light kit assembly as
shown. It does not matter which two
screw holes you choose.
Carefully lower the globe into the globe
retainer until it rests in place.
Globe
Assembly
Screws

www.HunterFan.com 1.888.830.1326
Globe (continued)
Align the keyhole slots in the globe
assembly with the partially installed
screws in the light kit assembly.
Lift the globe assembly and twist
counterclockwise to lock it into place.
Install the third globe assembly screw
and tighten all three screws securely.
CONGRATULATIONS!
YOU’RE DONE!
Make sure the globe assembly is securely attached to the
switch housing. Failure to properly secure all three assembly
screws could result in the light xture falling. 18
M3556-01 • 06/17/14 • © Hunter Fan Company

www.HunterFan.com 1.888.830.1326
Maintenance & Cleaning
ON
Turn Power
Changing the bulbs - carefully
remove the globe assembly.
Unscrew the bulbs and replace
with bulbs of the same wattage.
Reinstall the globe assembly.
Changing the direction of air
ow - move the reverse switch
to the opposite position.
Note: The reversing switch is
located on the switch housing.
It can only be accessed when
globe is removed.
Cleaning the fan - use soft
brushes or cloths to prevent
scratching. Cleaning products
may damage the nishes.
Reverse
Switch
19
M3556-01 • 06/17/14 • © Hunter Fan Company

www.HunterFan.com 1.888.830.1326
Troubleshooting
Excessive wobbling
• Tighten all of the blade and
blade iron screws until they
are snug.
• Turn the power off, support
the fan carefully, and check
that the hanger ball is
properly seated.
• Use the provided balancing
kit and instructions to balance
the fan.
Noisy Operation
• Tighten the blade and blade
iron screws until they are snug.
• Check to see if any of the
blades are cracked. If so, replace
all of the blades.
Fan doesn’t work
• Make sure power switch is on.
• Pull the pull chain to make sure
it is on.
• Push the motor reversing switch
rmly left or right to ensure that
it is engaged.
• Check the circuit breaker to
ensure the power is turned on.
• Make sure the blades spin freely.
• Turn off power from the circuit
breaker, then loosen the canopy
and check all the connections
according to the wiring diagram
on page 10.
• Check the plug connection in
the switch housing.
Lights dim when turned on or
do not turn on at all.
• Make sure the wattage of the
light bulbs installed matches
the specications on the light
sockets.
20
M3556-01 • 06/17/14 • © Hunter Fan Company
