Hupfer BPN-P User manual

91365304_A0
Operating Instructions
Platform dispenser for porcelain and lids
BPN-P | BPN-D

Section 1Introduction
Page 2 Appliance Information
Platform dispenser for porcelain and lids
BPN-P | BPN-D 91365304_A0
1 Introduction
1.1 Appliance Information
Appliance name Platform dispenser for porcelain and lids
Appliance type/s BPN-P | BPN-D
Manufacturer HUPFER® Metallwerke GmbH & Co. KG
Dieselstrasse 20
48653 Coesfeld
Germany
Postfach 1463
48634 Coesfeld
Germany
'[phone]
6+49 2541 805 111
www.hupfer.de
[e-mail]
Platform dispenser for porcelain and lids
BPN-P | BPN-D
Read these operating instructions carefully before using the appliance for the first time.
Ensure that operating staff have been briefed regarding sources of danger and possible incorrect handling.
Subject to modifications
The products covered by these operating instructions have been developed while taking into account market
requirements and the latest technology. HUPFER®reserves the right to modify the products and related
technical documentation in the interests of technical progress. The data and weights as well as the descrip-
tion of performance and functions assured in the order confirmation as binding are always decisive.
Manual edition
91365304_A0

Introduction Section 1
Table of Contents Page 3
Platform dispenser for porcelain and lids
91365304_A0 BPN-P | BPN-D
1.2 Table of Contents
1Introduction 2
1.1 Appliance Information 2
1.2 Table of Contents 3
1.3 List of Abbreviations 5
1.4 Definitions of Terms 6
1.5 Orientation of the Appliance 7
1.6 Notes on Using the Manual 8
1.6.1 Notes on the Manual Structure 8
1.6.2 Notes and their Representation used in all Sections 8
2Safety Instructions 9
2.1 Introduction 9
2.2 Warning Symbols Used 9
2.3 Safety Instructions for Appliance Safety 9
2.4 Safety Instructions for Transport 10
2.5 Safety Instructions for Cleaning and Care 10
2.6 Safety Instructions Regarding Fault Repair 10
3Description and Technical Data 11
3.1 Performance description 11
3.2 Proper Use 11
3.3 Improper Use 11
3.4 Appliance Description 12
3.4.1 Platform dispenser for porcelain 12
3.4.2 Platform dispenser for lids 12
3.4.3 Appliance Description 13
3.5 Technical Data 13
3.6 Rating Plate 14
4Transport, Initial Operation and Taking out of Service 15
4.1 Transport 15
4.2 Commissioning 15
4.3 Storage and Recycling 15
5Operation 16
5.1 Stacking platform adjustment 16
5.1.1 Spring adjustment 16
5.1.2 Examples of crockery stack arrangements 18
5.1.3 Calculating the capacity of the platform dispenser 18
5.2 Operation 19
6Troubleshooting and Repair 20
6.1 Safety Measures 20
6.2 Instructions regarding Fault Repair 20
6.3 Fault and Action Table 20

Section 1Introduction
Page 4 Table of Contents
Platform dispenser for porcelain and lids
BPN-P | BPN-D 91365304_A0
7Cleaning and care 21
7.1 Safety Measures 21
7.2 Hygiene measures 21
7.3 Cleaning and care 21
7.4 Special Care Instructions 21
8Spare parts and Accessories 23
9Appendix 24
9.1 EC Declaration of Conformity 24

Introduction Section 1
List of Abbreviations Page 5
Platform dispenser for porcelain and lids
91365304_A0 BPN-P | BPN-D
1.3 List of Abbreviations
Abbreviation Definition
CE Communauté Européene
European Community
DGUV German Statutory Accident Insurance (Deutsche Gesetzliche Unfallversicherung e.V.)
DIN German Institute for Standardisation, technical regulations and technical specifications
EC European Community
European Community
EN European Standard (Europäische Norm)
Harmonised standard for the EU market
E/V Spare or wearing part (Ersatz- bzw. Verschleißteil)
HACCP Hazard Analysis and Critical Control Points
Hazard analysis of critical control points
IP International Protection. The abbreviation IP and a further two-digit index specifythe
protection class of a housing.
The first digit: Protection against ingress of solid foreign objects The second digit: Protection against ingress of water
0 No protection against contact, no protec-
tion against ingress of solid foreign
bodies
0 No protection against ingress of water
1 Protection against contact with any large
surface of the body such as the hand,
protection against ingress of foreign
objects Æ>1.97'' (50 mm)
1 Protection against dripping water (verti-
callyfalling drops)
2 Protection against contact with the
fingers, protection against ingress of
foreign objects Æ> 0.5'' (12 mm)
2 Protection against dripping water (at any
angle up to 15° from the vertical)
3 Protection against contact with tools,
wires or similar objects with Æ >0.04''
(2.5 mm), protection against foreign
objects Æ>0.04'' (2.5 mm)
3 Protection against water drips at any
angle up to 60° from the vertical
4 Protection against contact with tools,
wires or similar objects with Æ>0.04''
(1 mm), protection against foreign
objects Æ>0.04'' (1 mm)
4 Protection against water splashing from
any direction
5 Protection against contact, protection
against dust deposits inside 5 Protection against water jets (projected by a nozzle) at any angle
6 Complete protection against contact,
protection against ingress of dust 6 Protection against rough sea or strong water jets (flood protection)
7 Protection against ingress of water
during temporary immersion
8 Protection against pressurised water
during continuous immersion
LED Light Emitting Diode
Light diode
LMHV Regulation on the hygiene of foodstuffs
RCD Residual Current Device
Residual current device (RCD)
STB Safety temperature limiter
VDE Association of Electrical Engineering, Electronics and Information Technology (Verband
der Elektrotechnik, Elektronik und Informationstechnik e.V.)

Section 1Introduction
Page 6 Definitions of Terms
Platform dispenser for porcelain and lids
BPN-P | BPN-D 91365304_A0
1.4 Definitions of Terms
Term Definition
Authorised specialist An authorised specialist is a specialist that has been trained by the manufacturer, an
authorised service dealer or a company assigned by the manufacturer.
Check, inspect Compare with certain conditions and/or characteristics such as damage, leaks, filling
levels and heat.
cleaning system-resistant The suitability of the appliance for cleaning in an automated cleaning system is lim-
ited. It is possible to achieve a flawless, reproducible cleaning and drying result, but it
cannot be guaranteed.
The exterior and interior housing are produced to standard specifications. Water
ingress into hollow spaces due to the appliance design can run off without hindrance.
Watercollection in hollow spaces is avoided. Installedelectricalcomponents and
electrical wiring are protected by appropriate sealing (for example, labyrinth edges,
sealing profiles, cable channels) against any form of penetration by water. Protection
class IPX6 (powerful pressurised water) to DIN EN 60529 (VDE 0470) is guaranteed.
It is possible that water remains and is carried over following the drying process.
Convection Physical properties or mass transfer (e.g. heat or cold) through currents in gases and
liquids.
Cook & Freeze kitchens "Cook and Freeze": Kitchens where hot food is flash frozen and not reheated until
shortly before consumption.
Cook&Chill Kitchens "Cook and Chill": Kitchens where warm food is chilled as quickly as possible after
being cooked.
Cook&Serve Kitchens "Cook and Serve": Kitchens where warm food is served immediately after being
cooked or kept warm until it is consumed.
Corrosion The chemical reaction of a metallic material with its surroundings, e.g. rust.
Cover A bell-shaped cover for keepingfood warm on plates and dishes.
Element formation Also: contact corrosion. Occurs when different noble metals are in close contact with
each other. This happens when a corrosive medium is between both metals, such as
water or even normal air moisture.
EM field Electrical, magnetic or electromagnetic field that is defined by its field intensity and
phase formation.
EN tray A European standard tray is a tray in a standard size.
EN 1/1 corresponds to 20.9x14.6'' (530×370 mm), EN 1/2 corresponds to 14.6x10.4''
(370×265 mm).
Gastronorm Gastronorm is a measurement system used worldwide in places such as food pro-
cessing plants or large-scale kitchens. The use of standardised sizes makes it possi-
ble to exchange food pans. The basic size of the Gastronorm (GN) 1/1 is 12.8 x 20.9''
(530 × 325 mm). Items are available in different depths.
GN tray A Gastronorm standard tray is a standard-size tray.
GN 1/1 corresponds to 20.9x12.8'' (530×325 mm), GN 1/2 corresponds to 12.8x10.4''
(325×265 mm).
H1 Hygienic standard (NSF/USDA) for lubricants that aresuitablefor incidental and
technically unavoidable contact with foodstuffs.
HACCP The HACCP concept is a preventive system that should ensure the safety of foods
and consumers.
Instructed person An instructed person is a person who has been instructed on the possible risks result-
ing from improper behaviour when carrying out an assigned task and regarding the
necessary protective equipment and protective measures, and who has been trained
for this task, if necessary.
Lift A movement, for example a vertical movement of the guide basket from bottom to top.
LMHV German Regulations on the Hygiene of Foodstuffs Regulations regarding hygiene
requirements for producing, handling and placing food on the market
Machine safety The term machine safety refers to all the measures used to avert injury to persons.
The basis for machine safety is directives and laws for protecting users of technical
devices and systems valid nationally and across the EC.

Introduction Section 1
Orientation of the Appliance Page 7
Platform dispenser for porcelain and lids
91365304_A0 BPN-P | BPN-D
Term Definition
Passive layer A non-metallic protective layer on a metallic material that prevents or slows down
material corrosion.
Porcelain Standard Porcelain Standard is a measurement system for porcelain plates devised by
HUPFER®.
The basic size of Porcelain Standard (PN) 1/1 is 8.7 x 6.3'' (220x160 mm) (1/2 PN
conforms to 4.3x6.3'' (110x160 mm), 1/4 PN conforms to 6.3x3.1'' (160x80 mm)). The
fitting lids have the following dimensions: 1/1 PN 9x6.6'' (228x168mm), 1/2 PN
4.4x6.3'' (111x161mm), 1/4 PN 4.4x3.2'' (111x81mm).
Protection class 0 ¯
I Protective measure with protective earth conductor
II Protective measure with protective insulation
III Protective measure with protective low voltage
Qualified person,
qualified personnel Qualified personnel are persons who due to their professional training, experience,
instruction and their knowledge of relevant standards, guidelines, accident prevention
regulations and operating conditions have been authorised by a person responsible
for system safety to carry out required activities and can recognise and prevent any
potential hazards (definition of specialists according to IEC 364).
Schuko® The abbreviation of the German term "Protective contact" indicates a system of do-
mestic plugs and sockets equipped with protective earthed contacts used in most of
Europe.
Specialist A specialist is a person who can assess work assigned and can recognise possible
hazards themselves based on their professional training, skills, experience and
knowledge of the respective guidelines.
suitable for washing devices The appliance is suitable for cleaning in an automated cleaning system without re-
strictions. Following agreement with the manufacturer the cleaning system must
achieve a hygienic, constant cleaning and drying result, which is to be approved by a
third party (client).
The exterior and interior housing are manufactured to astandard guaranteeing her-
metic sealing. It is not possible for water jets to ingress into hollow spaces in the
appliance. Installed electrical components and electrical wiring are protected by ap-
propriate sealing against any form of penetration by water. Protection class IPX6
(powerful pressurised water) to DIN EN 60529 (VDE 0470) is guaranteed. No water
remains or is carried over following the drying process.
Verify, test Comparewith certain values such as weight, torque, content or temperature.
VESKA standard Trays as per the VESKA standard are items used for distributing food in hospitals,
principally in Switzerland; they measure 530x375 mm.
1.5 Orientation of the Appliance
The front
The "front" refers to the side where the push handles are arranged. The operating staff stays at this side to
move the platform dispenser.
The rear
The "rear" refers to the opposite side to the front.
The right
The "right" refers to the right hand side when viewed from the front side (front).
The left
The "left" refers to the left hand side when viewed from the front side (front).

Section 1Introduction
Page 8 Notes on Using the Manual
Platform dispenser for porcelain and lids
BPN-P | BPN-D 91365304_A0
1.6 Notes on Using the Manual
1.6.1 Notes on the Manual Structure
This manual is divided into function- and task-focused sections.
1.6.2 Notes and their Representation used in all Sections
DANGER Brief description of hazard
There is an imminent threat to life and physical well-being for the user and / or
third parties if instructions are not followed precisely or the circumstances
described are not taken into account.
The type of hazard is indicated by a symbol and explained in more detail in
the accompanying text. The general hazard symbol is used in this example.
WARNING Brief description of hazard
There is an indirect threat to life and physical well-being for the user and / or
third parties if the instructions are not followed precisely or the circumstances
described are not taken into account.
The type of hazard is indicated by a symbol and explained in the accompany-
ing text in more detail. The general hazard symbol is used in this example.
CAUTION Brief description of hazard
There is a potential risk of injury or property damage if the instructions are not
followed precisely or the circumstances described are not taken into account.
The type of hazard is indicated by a general symbol and explained in the
accompanying text in more detail. The general hazard symbol is used in this
example.
NOTE Brief description of additional information
Attention is pointed to special conditions or additional important information on
the topic concerned.
INFO Short title
It contains additional information on work ease or recommendations on the
topic concerned.

Safety Instructions Section 2
Introduction Page 9
Platform dispenser for porcelain and lids
91365304_A0 BPN-P | BPN-D
2 Safety Instructions
2.1 Introduction
The section on safety instructions describes the risks associated with the appliance in terms of product liabil-
ity (according to the EU Directive).
The safety instructions are meant to warn of hazards and help to avoid damage to persons, the environment
and property. Please make sure that you have read and understood all the safety instructions given in this
section.
The valid national and international Safety at Work Regulations must be complied with. The manufacturer is
responsible for the valid regulations he/she has to provide. He/shemust acquaint himself/herself and the op-
erator with the new regulations.
In addition to these operating instructions, you must comply withthe Employers' Liability Insurance Associa-
tion's Health and Safety rules, especially those concerning the handling of hot items and the risks that this
entails.
2.2 Warning Symbols Used
Symbols are used in these operating instructions to indicate the dangers that may occur while operating or
cleaning the appliance. In both cases, the symbol provides information on the type and circumstances of
hazards.
The following symbols may be used:
General hazard area
Hazardous electrical voltage
Risk of hand injuries
2.3 Safety Instructions for Appliance Safety
The appliance is operated safely if it is used correctly and carefully. Negligent handling of the appliance can
lead to a threat to life and physical well-being for the user and / or third parties as well as hazards for the ap-
pliance itself and the operator's other property.
The following points are to be observed to ensure the appliance safety:
§The appliance may only be operated when it is in perfect condition with regards to technical stand-
ards.
§All operating and actuating elements must be in a perfect and fail-safe condition with regards to tech-
nical standards.
§Modifications or retrofits to the equipment are only permitted after consultation with the manufacturer
and upon receipt of their consent in writing.
§People must not sit or stand on the appliance under any circumstances. Transport of persons is not
permitted.
§The crockery dispensing height must be adjusted to the type of crockery used before loading.
§To avoid injuries to the hands, care should always be taken to ensure that the crockery dispensing
height does not fall below the upper rim of the housing.
§Never push the stacking platform down manually into the stacking compartment (e.g. for cleaning).
There is a risk of injury when the stacking platform is released.

Section 2Safety Instructions
Page 10 Safety Instructions for Transport
Platform dispenser for porcelain and lids
BPN-P | BPN-D 91365304_A0
§The appliance is designed for transport by hand only. It is not permitted to use a machine of any type
to move the appliance. Risk of injury and damage.
§Release both total locks before moving the appliance. Moving the appliance when the total locks are
engaged can damage the chassis.
§The appliance may only be transported over level floors. Moving the appliance over very uneven
floors can damagethe chassis.
§It is not permitted to transport the appliance over steep inclines or steps.
§When approaching walls and moving round obstacles, always be awarefor persons in your path. Risk
of injury.
§Always hold both handles with your hands when transporting the appliance. Never release the appli-
ance while moving it.
§Move no faster than at walking pace when transporting the appliance. Heavily laden platform dis-
pensers are difficult to brake and steer. If necessary, ask for assistance when transporting the appli-
ance.
§Never try to catch the platform dispenser with your hands if it tips over due to carelessness or exter-
nal circumstances. Risk of injury.
§Do not park the appliance on sloping floors.
§After stopping, the appliance should be secured against rolling away by means of both total locks be-
ing applied.
§The appliances have to be safely secured when transported off site inside a vehicle such as a truck.
The total locks are not suitable for securing the appliances when they are transported in a vehicle.
2.4 Safety Instructions for Transport
The following aspects are to be taken into account when transporting the platform dispenser:
§When loading, use only hoists and load lifting devices approved for the weight of the appliance to be
lifted.
§Only use transport vehicles that are approved to carry the weight of the appliance.
§Do not put a defective appliance into operation under any circumstances and inform the supplier im-
mediately in such a case.
2.5 Safety Instructions for Cleaning and Care
The following aspects must be taken into account when performing any cleaning and care tasks:
§Observe applicable hygiene regulations and guidelines.
§Cleaning instructions must be strictly observed for reasons of hygiene.
2.6 Safety Instructions Regarding Fault Repair
The following aspects must be taken into account when carrying out any troubleshooting work:
§The local Accident Prevention Regulations in force must be observed.
§Observe the valid product safety regulationsfor the product when handling oils, greases and other
chemical substances.
§Carry out all the checks and inspections of the appliance on a regular basis.
§Only use original spare parts to replace defective components.

Description and Technical Data Section 3
Performance description Page 11
Platform dispenser for porcelain and lids
91365304_A0 BPN-P | BPN-D
3 Description and Technical Data
3.1 Performance description
The platform dispensers BPN are intended to stack, transport and store rectangular
crockery items temporarily. The platform dispenser BPN-P is designed for porcelain plates while the platform
dispenser BPN-D holds lids.
An adjustable, spring-loaded stacking platform holds up crockery items. A continuously increasing weight of
the loaded crockery pushes downthe stacking platform.When dispensing the crockery, the stacking platform
moves up, so that the next crockery item is always available at the required dispensing height. Stacking plat-
form is moved down and guarantees the optimal storage and the high transport capacity for the angular
crockery items.
3.2 Proper Use
Platform dispenser are used exclusively to transport and store clean crockery ready for use.
Proper use includes observing specified procedures, compliance with the technical specifications and use of
supplied or optional original accessories.
Any other use of the appliances is considered as unintended use.
3.3 Improper Use
The following is considered as improper use of the platform dispenser:
It is not permitted to load the platform dispenser with other loads than specified.
Platform dispensers are not designed to transport the food.
People must not sit or stand on the appliance under any circumstances. Transport of persons is not permit-
ted.
No liability is assumed and no warranty claims can be submitted for damages caused by improper use.

Section 3Description and Technical Data
Page 12 Appliance Description
Platform dispenser for porcelain and lids
BPN-P | BPN-D 91365304_A0
3.4 Appliance Description
3.4.1 Platform dispenser for porcelain

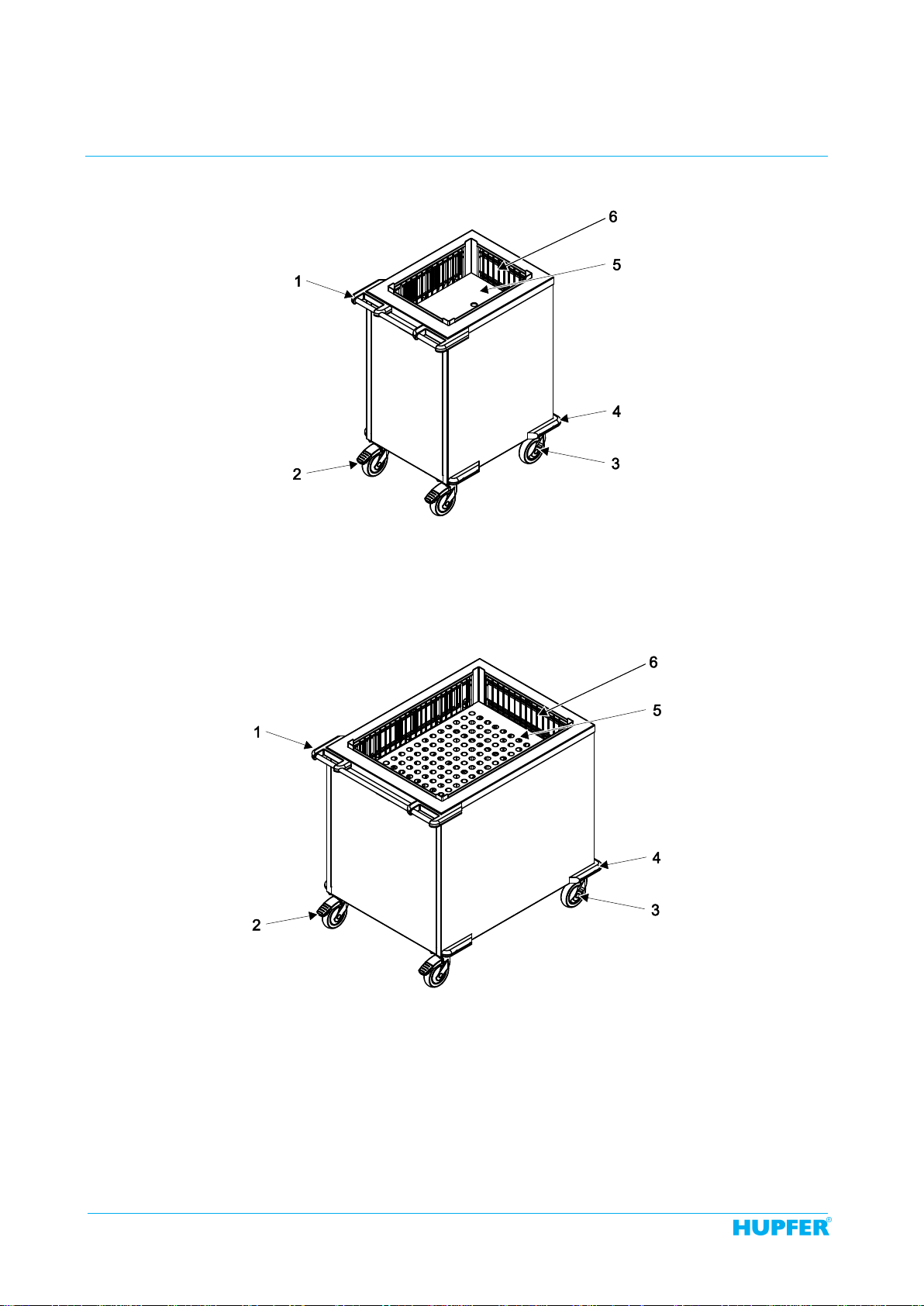

Figure 1 View of the appliance BPN-P
1 Push handles 4 Corner bumpers
2 Casters with total lock 5 Stacking platform
3 Casters without total lock 6 Protective grid
3.4.2 Platform dispenser for lids
Figure 2 View of the appliance BPN-D
1 Push handles 4 Corner bumpers
2 Casters with total lock 5 Stacking platform perforated plate
3 Casters without total lock 6 Protective grid

Description and Technical Data Section 3
Technical Data Page 13
Platform dispenser for porcelain and lids
91365304_A0 BPN-P | BPN-D
3.4.3 Appliance Description
Platform dispensers are built using a stainless steel, self-supporting structure.
They hold up the rectangular porcelain plates or porcelain lids in the removable spring-loaded stacking plat-
form. Special springs ensure crockery items are automatically moved up the entire lift to an unvarying dis-
pensing height on a continuous basis.
The stacking platform is removable, allowing users to adjust the springs and clean the appliance easily. The
protective grids of the stacking platform consist of steel conductor and are plastic-coated, so that any colour
change or any damages of porcelain can not occur during use.
The ergonomically formed push handles with integrated bumper protect the operating staff against damages
to the hands. Corner bumpers on the rear protect the appliance against damages when transporting it.

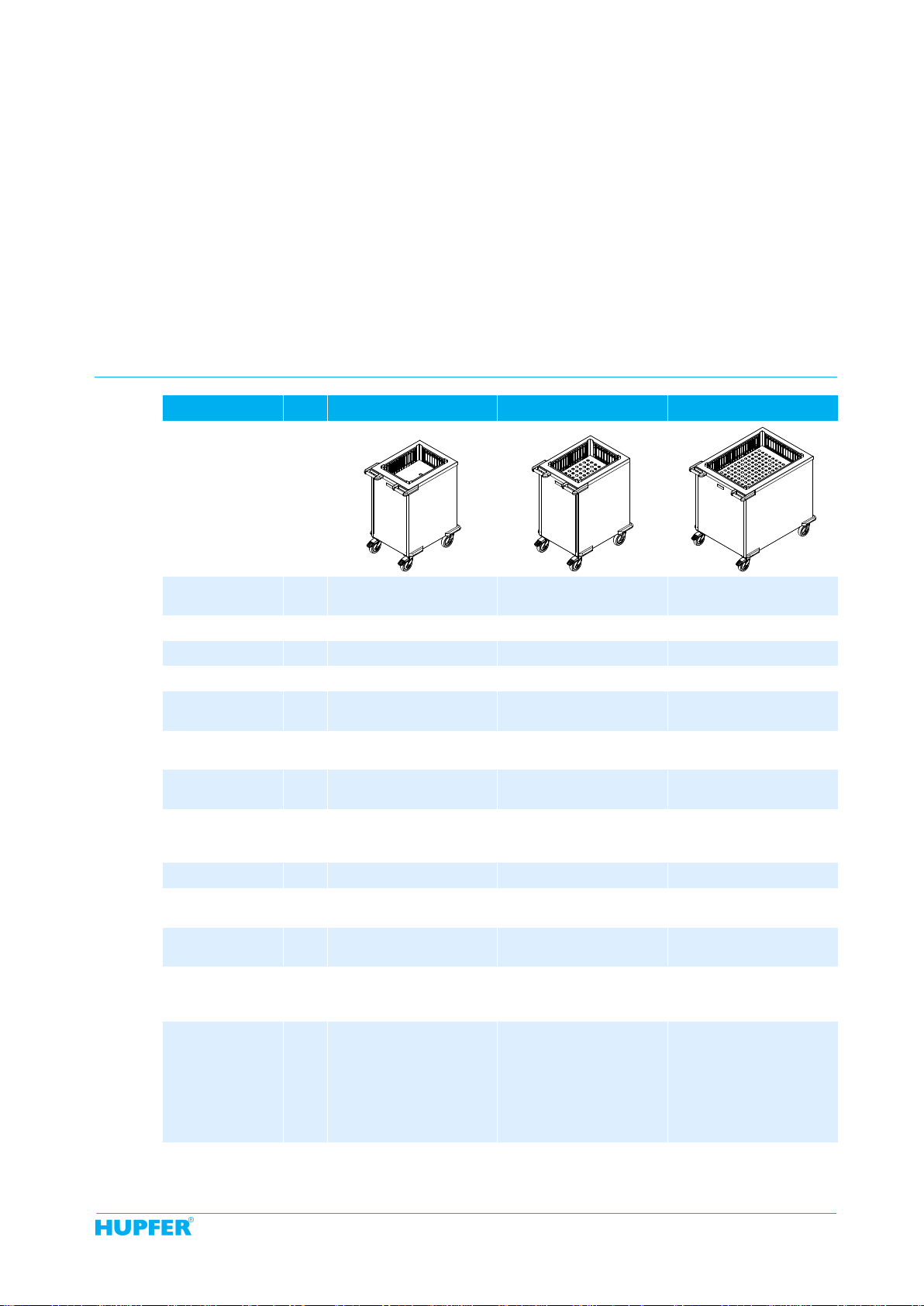

3.5 Technical Data
Dim. BPN 4-P BPN 4-D BPN 9-D
View of the appli-
ance
Platform dispenser for
porcelain, ambient Platform dispenser for lids, ambient Platform dispenser for lids, ambient
Width mm 710 740 1005
Depth mm 530 545 740
Height mm 925 925 925
Tare weight lbs
(kg) 38 35 48
Load capacity lbs
(kg) 160 50 100
Permitted
total weight lbs (kg) 198 85 148
Stacking platform mm 470 x 340
HPL laminate 510 x 365
Stainless steel perforated
plate
760 x 550
Stainless steel perforated
plate
Stack height mm 695 696 696
Inner compart-
ment panelling Vertical plastic-coated surround rods Vertical plastic-coated surround rods Vertical plastic-coated surround rods
Operating and
ambient conditions °F (˚C) 68 to 122 (-20 to +50) 68 to 122 (-20 to +50) 68 to 122 (-20 to +50)
Chassis mm 4 swivel casters,
2 with total locks,
Æ125
4 swivel casters,
2 with total locks,
Æ125
4 Lenkrollen,
2 with total locks,
Æ125
Crockery capacity 160 (PN-1/1 Plus)
108 (PN-1/1)
304 (PN-1/2)
608 (PN-1/4)
64 (active cover for ½ EN
system)
84 (lid for ½ EN system)
212 (lid PN-1/1)
592 (lid PN-1/2)
1008 (lid PN-1/4)
135 (active cover for ½ EN
system)
189 (lid for ½ European
standard system)
477 (lid PN-1/1)

Section 3Description and Technical Data
Page 14 Rating Plate
Platform dispenser for porcelain and lids
BPN-P | BPN-D 91365304_A0
3.6 Rating Plate
The rating plate is attached to the rear of the platform dispenser.

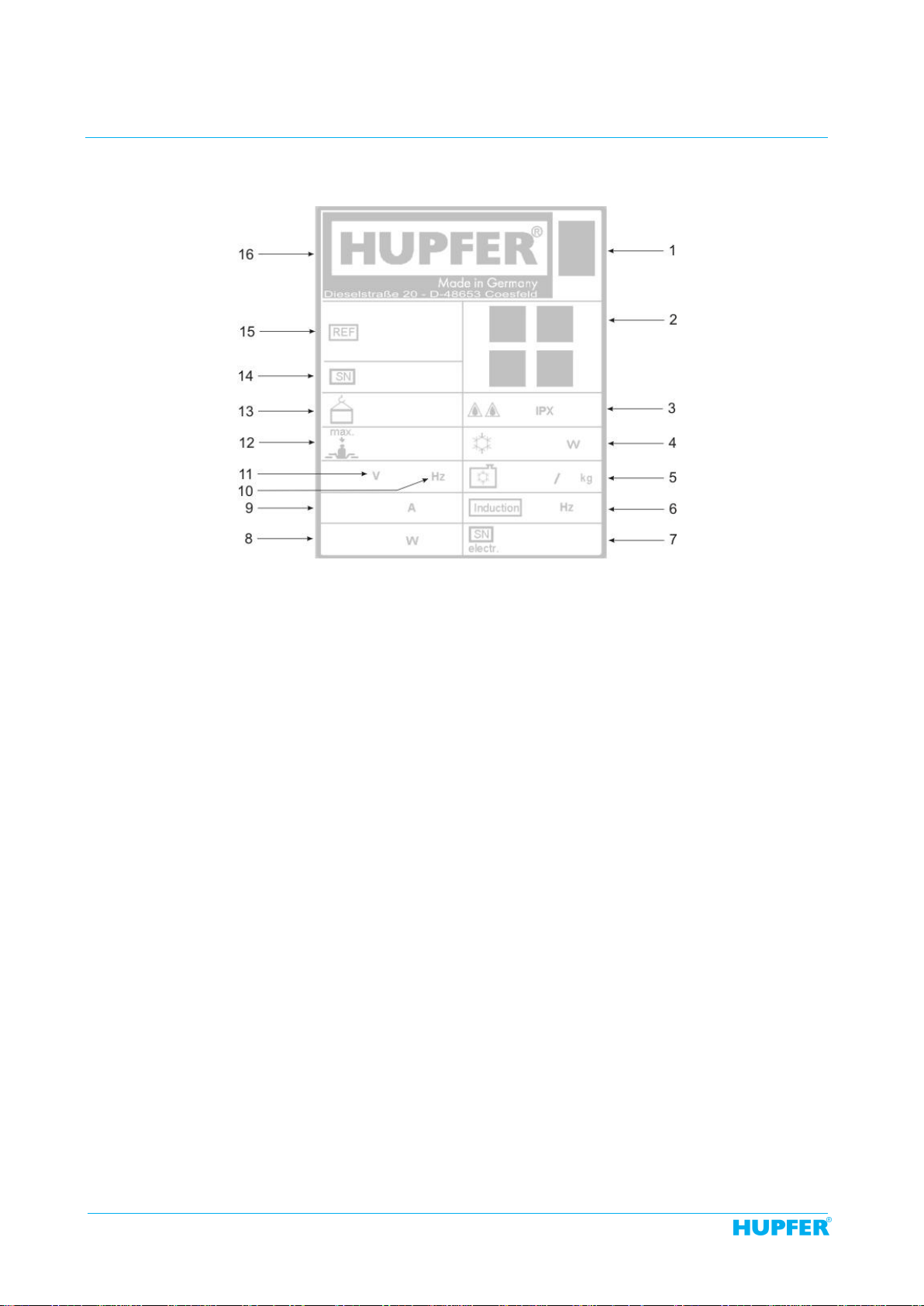

Figure 3 Rating plate
1 Disposal of old appliances 9 Nominal current
2 Certificates/label 10 Frequency
3 Protection class 11 Nominal voltage
4 Refrigeration capacity 12 Payload
5 Refrigerant 13 Tare weight
6 Induction frequency 14 Serial number/Order number
7 Electrical serial number 15 Item and brief description
8 Electric power 16 Manufacturer

Transport, Initial Operation and Taking out of Service Section 4
Transport Page 15
Platform dispenser for porcelain and lids
91365304_A0 BPN-P | BPN-D
4 Transport, Initial Operation and Taking out of Service
4.1 Transport
CAUTION Damage to appliances caused by improper transport
Appliances should be safely secured when transported off site inside a vehicle
such as a truck. The total locks are not suitable for securing the appliances
when they are transported in a vehicle.
If the appliances are not secured properly, there is a risk of property damage
and personal damage caused by squashing.
Secure each individual separate appliance using suitable transport securing
devices.
4.2 Commissioning
Remove the protective plastic film from the metal sheeting before using the appliance for the first time.
INFO Disposal of packing material
The packing consists of recyclable materials and can be disposed of accord-
ingly. The different materials should be separated and disposed of in an envi-
ronmentally friendly manner. The local agencies responsible for disposal must
be contacted regarding removal
Before putting the appliance into operation, it is necessary to check whether it functions correctly.
The following functions are to be checked separately:
§In all appliances: Correct functioning of total locks.
Ensure that the appliance is clean and dry before putting it into operation.
4.3 Storage and Recycling
Appliances must be kept in a dry, frost-free environment when placed in temporary storage. The platform
dispenser must be kept covered with a suitable covering material to be protected against dust ingress.
The platform dispenser kept in the storage location must be checked for damages and corrosion every 6
months.
NOTE Condensation
Ensure that there is sufficient ventilation and no major variations in tempera-
turein the storage location to prevent condensation from forming.
Before the appliance is taken back into operation, it must be clean and dry.
If the platform dispenser is to be recycled, any heating devices must be fully removed safely; recyclable ma-
terialsmust be separated properly and disposed of in an environmentallymanner according to the local
Waste Disposal Regulations. You must contact the local waste removal agency responsible for disposal.

Section 5Operation
Page 16 Stacking platform adjustment
Platform dispenserfor porcelain and lids
BPN-P | BPN-D 91365304_A0
5 Operation
CAUTION Personal and property damage due to improper adjustment
The springs are exposed if the stacking platform is pressed down by hand.
Reaching into the gaps of the exposed springs may cause hand injuries.
Never press the stacking platform down by hand.
Be careful when attaching and detaching the springs. Pay particular attention
to the ends of the tension springs when adjusting springs on sharp edges.
5.1 Stacking platform adjustment
The appliance must be adjusted if one or more of the following crockery parameters is changed: diameter,
edge length, height, stack height or weight.
5.1.1 Spring adjustment
CAUTION Personal and property damage due to improper adjustment
When the dispensing height is exceeded, there is a risk of accident or injury
due to tipping of the inserted stacks. If the level of the stack falls below the
dispensing height, fingers may be injured if caught when removing dishes.
Adjust appropriately the dispensing height by attaching or detaching the
springs. When adjusting springs on sharp edges, pay particular attention to
the ends of the tension springs. Proceed with care.
CAUTION Risk of injury
Be careful when attaching and detaching the springs.
Pay particular attention to the ends of the tension springs when adjusting
springs on sharp edges.
Before loading the appliance, the dispensing height must be adjusted to the type of crockery used. The dis-
pensing height is adjusted by attaching or replacing tension springs.
The dispensing height must be adjusted to ensure that the uppermost items of crockery are constantly
moved upwards over the entire lift to an unvarying dispensing height between 0.59'' (1.5 cm) and 2.36'' (6
cm) above the upper rim of the housing.
Step 1 - Checking the spring adjustment
§Load a stack of 15 to 20 items on to the stacking platform to test the dispensing height.
§Wait for the system to self-adjust.
If the dispensing height of the crockery stack is about 1.97'' (2 cm) abovethe upper edge of the appliance,
the spring system is adjusted correctly.
If the stack drops down only a little or not at all, the dispensing height must be altered by adjusting the
springs.

Operation Section 5
Stacking platform adjustment Page 17
Platform dispenser for porcelain and lids
91365304_A0 BPN-P | BPN-D
Step 2 - Changing the spring adjustment
The dispensing height is adjusted by attaching or detaching tension springs on two attachment bars.
NOTE Arrangement of the springs
The springs need to be in a symmetrical arrangement between the attach-
ment bars to ensure that the stacking platform is guided smoothly and steadi-
ly.
The strong base springs (1) should be placed outside the attachment bars,
the frail base springs (2) should be placed inside. A slightly asymmetrical
arrangement of springs within an attachment bar does not pose a problem.

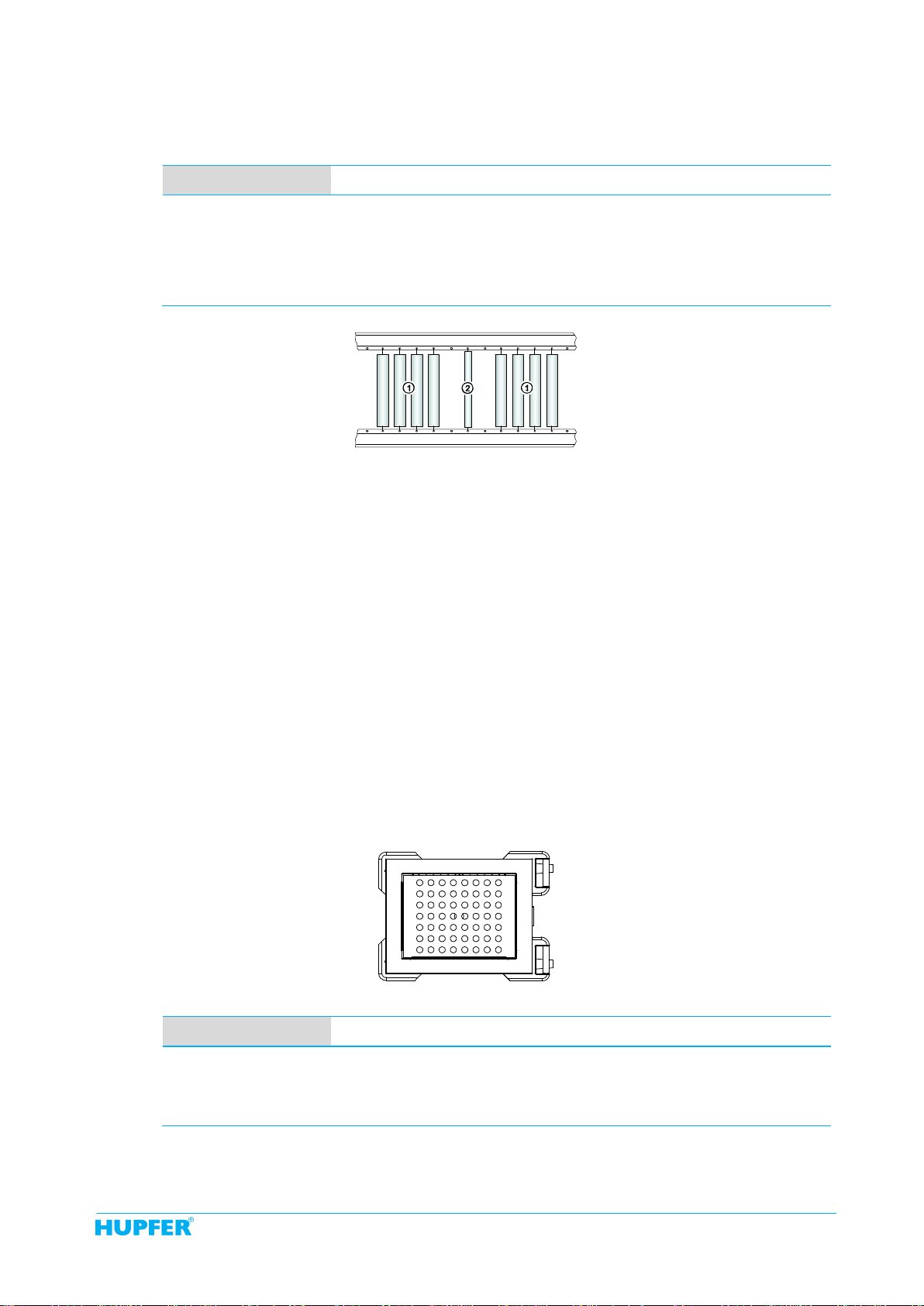

Figure 4 Attachment bar with tension springs (example)
If the dispensing height is too high, adjustable springs must be detached.
If the dispensing height is too low, adjustable springs must be added.
Procedure:
§Take out any crockery items from the appliance.
§Lift the stacking platform with your fingers in the grip holes, keeping it level, and place it down on the
appliance. Finally, take the stacking platform in both hands and put it down in a suitable place.
§Remove the protective grid.
§Attach or detach adjustable springs evenly in all groups of springs.
§It is best to detach the adjustable springs. Always leave the base springs inserted whenever possible.
Always detach the springs on the lower attachment bar.
§Reinsert the protective grid.
§Then reinsert the stacking platform using the grip holes.
Both steps must be repeated as often as necessary until the dispensing height is in therange between 0.6''
(1.5 cm) and 0.98'' (2.5 cm). The dispensing height only needs to be set once provided that the same type of
crockery is always used.
Figure 5 Grip holes on the stacking platform (BPN-D MM)
NOTE Maximum load-bearing capacity
The stacking platforms are set to hold a load-bearing capacity which is per-
fectly adequate for most common types of crockery.
In isolated cases, when using plates made of toughened glass, for example,
the existing springs are not strong enough and extra springs must be added.

Section 5Operation
Page 18 Stacking platform adjustment
Platform dispenser for porcelain and lids
BPN-P | BPN-D 91365304_A0
NOTE Suitable size of the crockery items
Due to small holes on the surface of the stacking platform and the inner com-
partment panelling made of plastic-coated rods, too small crockery items
cannot be guided and, therefore, should not be used.
5.1.2 Examples of crockery stack arrangements
Examples for thecrockery arrangement
Porcelain 1/1 PN Porcelain 1/2 PN Porcelain 1/4 PN
Lid 1/1 PN Lid 1/2 PN Lid 1/4 PN
5.1.3 Calculating the capacity of the platform dispenser
The total capacity of a platform dispenser depends on the kind of crockery loaded and the number of crock-
ery stacks.
All leading manufacturers provide the necessary data for calculating the intermediate stack height in the fol-
lowing way:
T
h
e
capacity per crockery stack can be calculated together with the stack height HSof the platform dispenser:
K = +1 K: Items per crockery stack
HS: Stack height of the platform dispenser
Figure 6Intermediate stack height Hzfor 11 crockery items
HZ=
HZ: Intermediate stack height
H1: Height of the first crockery item
Hn: Height of n crockery items
n: Number of crockery items
(Hn- H1)
n-1
(HS- H1)
HZ

Operation Section 5
Operation Page 19
Platform dispenser for porcelain and lids
91365304_A0 BPN-P | BPN-D
Example:
Therefore, 49 items can be stacked in one position.
5.2 Operation
Ensure that the appliance is clean and dry before putting it into operation.
Before starting work, you must always check that the platform dispenser to be used is set correctly for the
crockery that it is going to hold.
§The correct dispensing height must be ensured to prevent staff from sustaining injury or becoming
trapped and to prevent crockery from breaking.
§You must ensure that the crockery items are suitable and the stacks support each other.
Loading the appliance
NOTE Loading
Before the crockery items areinserted, the stack height must be set correctly.
Insert the items individually or in small safelymanageable stacks.
NOTE Payload
Make sure that the platform does not exceed the permitted payload.
§Fill the stacks alternately by the same amount.
§Place the first items on the centre of the stacking platform and move it down slowly.
§Position the further items precisely on top of the items already placed into the appliance.
Unloading crockery
§Remove the items evenly from each stack to avoid tilting of the stacking platform.
Moving the appliance
§Release both total locks.
§Take hold of the push handles on the appliance and move the appliance to its destination.
§Once at its destination, apply both total locks, so the appliance isn't moved by accident.
HZ= = 11,2 mm
K = +1 = 49 items
H1= 5.5'' (28 mm): Height of the first crockery item
H11= 5.5'' (140 mm): Height of 11 crockery items
t= 11: Number of crockery items
HS= 24.6'' (565 mm): Stack height
(140 – 28)
10
(565 - 28)
11.2

Section 6Troubleshooting and Repair
Page 20 Safety Measures
Platform dispenser for porcelain and lids
BPN-P | BPN-D 91365304_A0
6 Troubleshooting and Repair
6.1 Safety Measures
CAUTION Exposed springs
The springs are exposed if the stacking platform is pressed down by hand.
Reaching into the gaps of the exposed springs may cause hand injuries.
Never press the stacking platform down by hand.
Be careful when attaching and detaching the springs. Pay particular attention
to the ends of the tension springs when adjusting springs on sharp edges.
6.2 Instructions regarding Fault Repair
Regular inspection and maintenance of the appliance prevent disruptions and ensure safety.
Inspection and maintenance intervals depend on the use of the appliance. Consult your dealer's after-sales
service department.
You need to indicate the information given on the rating plate if you contact the after-sales service or order
spare parts.
Only use original spare parts to replace defective components.
6.3 Fault and Action Table
Fault Possible cause Remedy
Stacking platform does not move
plates upwards to the dispensing
height even with a low load.
Spring broken Replace defective springs with new
ones
Total locks no longer brake Total locks have worn down Either replace the total locks or re-
place the defective casters
