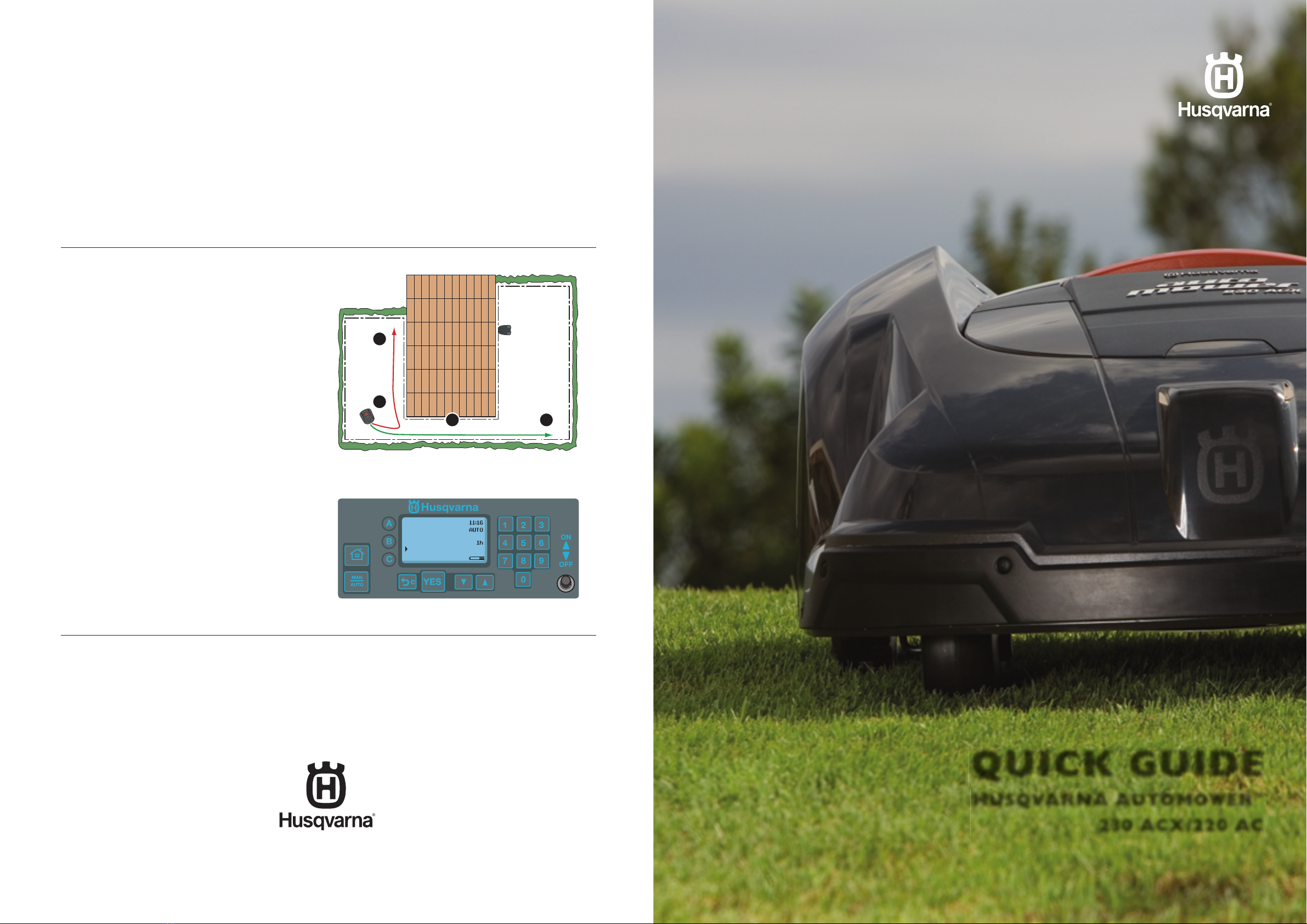

Husqvarna AUTOMOWER 230 ACX User manual

HUSQVARNA AUTOMOWER™
230 ACX/220 AC
QUICK GUIDE
www.automower.com
115 13 05-26
5
Main menu
Commands
Timer
Garden
Settings
Garden - Follow loop - Test IN
4b
14a
ADJUST THE MOWER TO SUIT THE SIZE OF YOUR LAWN
The mowing results depend on mowing time. Adjust the
mowing time to suit your garden using the Timer function.
If the mower works too often: The lawn will appear trampled
down.
If the mower works too seldom: The lawn will not be properly
cut.
TIMER
ADJUST THE MOWER FOR NARROW PASSAGES
Narrow passages in the garden make it difficult for the
mower to find the charging station. Test to see if the mower
finds its way home using the Test IN function.
1. Look for the narrowest passage in the garden (between the
boundary loops).
2. Place the mower beyond the passage, with its front facing
the boundary loop.
3. Activate the Test IN function (Garden - Follow loop - Test IN) and
start the mower.
4. Ensure that the mower follows the boundary loop through
the passage.
a. If the mover travels through: The test is complete.
a. If the mover does not travel through: Lower the value of
the Corridor width, boundary by 1 unit. Restart the test
from point 2.
GUIDE WIRE
See chapter 3.8 Installation of the guide wire in the
Operator’s Manual.
If you have a complicated garden or it has narrow passages
(less than 2 m / 7 ft), we recommend installing a guide wire.
The guide wire is an extra wire that is run from the charging
station, out towards a remote part of the work area or through
a narrow passage. The mower can follow the guide wire to and
from the charging station.
ADJUST THE MOWER TO SUIT YOUR GARDEN
See chapters 6.4 and 6.5 in the Operator’s Manual.
Here you will find a few tips about important settings for your Automower™.
All settings for Automower™ are made using the menu functions.
You decide what times of the day and days of the week the mower is to work.
Automower™ cuts around 125 m² / 1300 ft² per hour and day (75m² / 800 ft² for
220 AC).
If your garden consists of 1000 m² / 0.25 acre gr ass, the mower should work on
average 14 hours per day.
4B
2
14A
CORRIDOR WIDTH, BOUNDARY
SettingsCorridor width, boundary (Garden– Follow loop – Corridor width – Corridor
width, bound.) defines the distance between the mower’s path to the boundary
wire or the guide wire when following these to/from the charging station.
The higher the stated Corridor width, the further from the loop the mover can
travel. This produces less wheel tracks than if the mover were to travel close to
the loop.
AUTOMOWER™ is a trademark owned by Husqvarna AB. Copyright © 2008 HUSQVARNA. All rights reserved.
EN_QG_2009_220AC & 230ACX (kopia1 1 08-11-14 11.27.09

30 cm / 12” 35 cm / 14”
10 cm / 4”
0 cm / 0”
Main menu
Commands
Timer
Garden
Settings
GETTING STARTED WITH
HUSQVARNA AUTOMOWER™
31. Lift off the cover on the charging station and push in the
ends of the boundary wire in the lower holes of the
charging station and catch them in the upper holes:
• Right wire end in right hole.
• Left cable end in left hole.
2. Open the connector and run the wire ends in the recesses
on each connector.
3. Press the connector together using a pair of pliers.
4. Cut off any surplus boundary wire.
Cut 1-2 cm / 0.5” above the connector.
5. Press the connector onto the contact pin,
marked A, on the charging station.
Refit the cover on the charging station.
1
2
4STARTING AND STOPPING AUTOMOWER™
See chapters 3.7, 4.3 and 4.4 in the Operator’s Manual.
PLACEMENT AND CONNECTING THE CHARGING STATION
See chapter 3.2 in the Operator’s Manual
CHARGING THE BATTERY AND PLACING THE
BOUNDARY WIRE
See chapters 3.3 and 3.4 in the Operator’s Manual.
1. Place the charging station centrally in the work area,
leaving a lot of free space in front of the charging station
and on a relatively horizontal surface.
2. Connect the low voltage cable to the charging station and
transformer.
3. Connect the transformer’s power cord to a mains wall
socket. The 120V transformer (USA) is for indoor use only.
1. Place Automower™ in the charging station to
charge the battery while you are laying the
boundary wire. Set the main switch to
the OFF position.
2. Run the boundary wire ensuring it
forms a loop around the work area.
STARTING
1. Open the control panel cover by pressing the STOP button.
2. Set the main switch to ON position. When you do this for
the first time, a start up sequence starts where you select a
four digit PIN code among other things. The mower must
be in the charging station when you select a PIN code.
3. Close the cover.
STOPPING
Press the STOP button.
Charging station Transformer Low voltage cablel Boundary wire and
coupler
Clinchers Connector Measurement gauge
CONNECTING THE BOUNDARY WIRE
See chapter 3.5 in the Operator’s Manual
2 2 1
4 5
32
32
3
1. Charging strip
2. Catch button to open the cutting
height adjustment cover
3. STOP button
4. LED for performance inspection
of boundary wire
5. Contact strips
6. Keypad
7. Display
1
2
3
4
5
6 7
EN_QG_2009_220AC & 230ACX (kopia2 2 08-11-14 11.27.17
