Husqvarna PP 492 User manual

PP 492
EN Operator's manual 2-21
DE Bedienungsanweisung 22-42
FR Manuel d'utilisation 43-62
NL Gebruiksaanwijzing 63-82

Contents
Introduction..................................................................... 2
Safety..............................................................................4
Assembly........................................................................ 7
Operation........................................................................ 9
Maintenance................................................................. 15
Troubleshooting............................................................ 15
Transportation and storage...........................................17
Technical data.............................................................. 17
Service..........................................................................19
EC Declaration of Conformity....................................... 20
Introduction
Product description
The product is a power pack unit and a remote control.
The product is used together with many Husqvarna
electrical power tools:
• The remote control is used to control the connected
power tools.
• The remote control has a 3.5 in. digital color display.
• The product is kept cool with water. The remote
control controls the electric water valve.
• Connect the product to a 400/480 V power supply
system with a 32/30 A fuse.
Intended use
This product is used to operate applicable Husqvarna
electrical power tools with a high frequency motor. All
other use is incorrect.
The product is kept cool with water. Always use the
product with water.
The product is used in industrial operations by operators
with experience.
Model PP 492 has a new PRIME connector. If your
PRIME tool does not have this new PRIME connector,
you must use an adapter cable. An approved servicing
dealer can upgrade the PRIME tool with the new PRIME
connector.
2967 - 002 - 11.06.2021

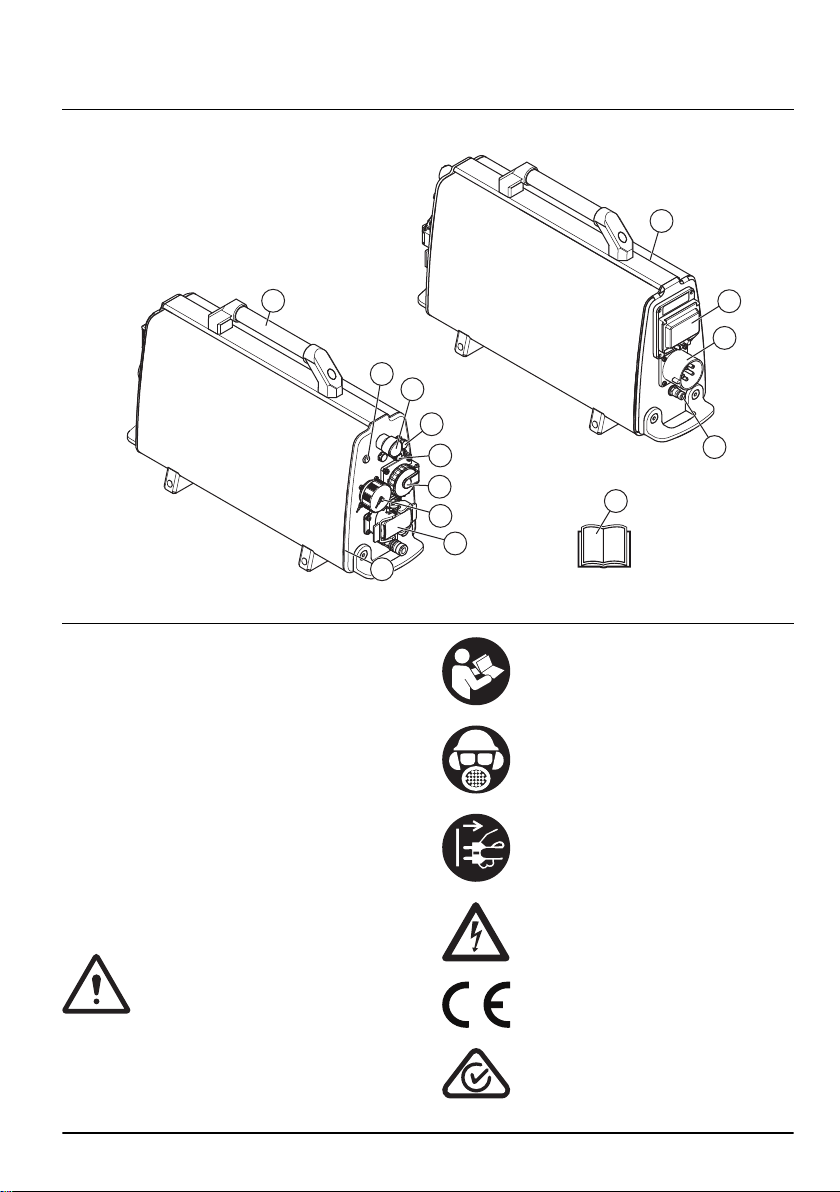

Product overview
1
4
6
2
7
5
3
8
9
10
11
12
13
14
1. Power pack unit
2. Residual-current device
3. Electrical socket
4. Water connector inlet
5. Handle
6. Power indicator
7. Machine stop button
8. CAN bus connector
9. Automatic fuse, 16A (only on 5-pin products)
10. 1 phase socket (only 5-pin products)
11. PRIME connector
12. Wall saw connector
13. Water connector outlet
14. Operator's manual
Symbols on the product
WARNING: Not careful or incorrect use
can result in injury or death to the operator
or others.
Read the manual carefully and make sure
that you understand the instructions
before you use the product.
Always put on hearing protection, eye
protection and breathing protection.
Inspection and/or maintenance must be
done with the motor stopped and the
power plug disconnected.
Energized parts.
This product is in compliance with
applicable EC directives.
The product agrees with the applicable
Australia and New Zealand
electromagnetic compatibility directives.
967 - 002 - 11.06.2021 3

China RoHS Environment-Friendly Use
Period (EUFP) symbol.
The product or package of the product is
not domestic waste. Recycle it at a
recycling station for electrical and
electronic equipment.
Note: Other symbols/decals on the product refer to
special certification requirements for some markets.

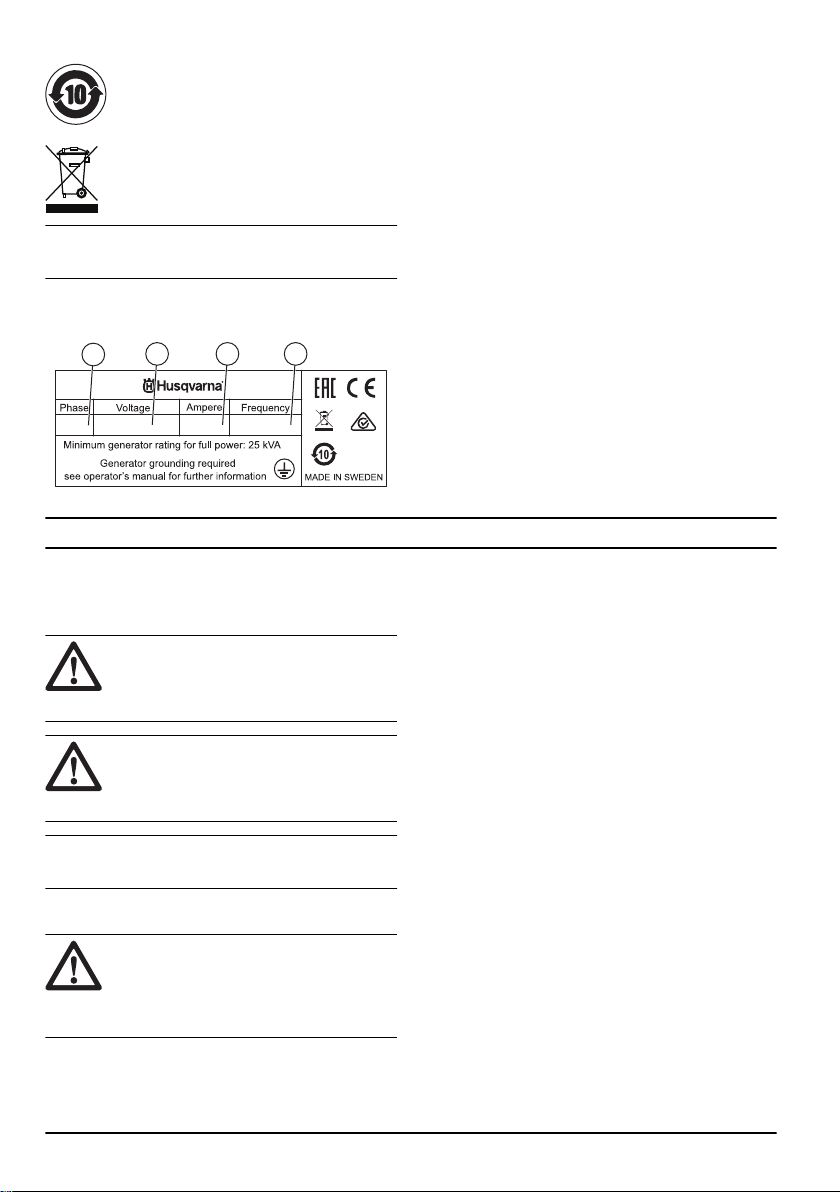

Rating plate
12 3 4
1. Phase
2. Voltage
3. Ampere
4. Frequency
Product liability
As referred to in the product liability laws, we are not
liable for damages that our product causes if:
• the product is incorrectly repaired.
• the product is repaired with parts that are not from
the manufacturer or not approved by the
manufacturer.
• the product has an accessory that is not from the
manufacturer or not approved by the manufacturer.
• the product is not repaired at an approved service
center or by an approved authority.
Safety
Safety definitions
Warnings, cautions and notes are used to point out
specially important parts of the manual.
WARNING: Used if there is a risk of
injury or death for the operator or bystanders
if the instructions in the manual are not
obeyed.
CAUTION: Used if there is a risk of
damage to the product, other materials or
the adjacent area if the instructions in the
manual are not obeyed.
Note: Used to give more information that is necessary
in a given situation.
General power tool safety warnings
WARNING: Read all safety warnings,
instructions, illustrations and specifications
provided with this power tool. Failure to
follow all instructions listed below may result
in electric shock, fire and/or serious injury.
•Save all warnings and instructions for future
reference. The term "power tool" in the warnings
refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
Work area safety
•Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
•Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
•Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose
control.
Electrical safety
•Power tool plugs must match the outlet. Never
modify the plug in any way. Unmodified plugs and
matching outlets will reduce risk of electric shock.
•Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
•Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
•Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk
of electric shock.
4967 - 002 - 11.06.2021

•When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of
electric shock.
•If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of a RCD reduces the risk of
electric shock.
Personal safety
•Stay alert, watch what you are doing and use
common sense when operating a power tool. Do not
use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result
in serious personal injury.
•Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat or hearing
protection used for appropriate conditions will reduce
personal injuries.
•Prevent unintentional starting. Ensure the switch is in
the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch
or energising power tools that have the switch on
invites accidents.
•Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to
a rotating part of the power tool may result in
personal injury.
•Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
•Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair
can be caught in moving parts.
•If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
•Do not let familiarity gained from frequent use of
tools allow you to become complacent and ignore
tool safety principles. A careless action can cause
severe injury within a fraction of a second.
Power tool use and care
•Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it
was designed.
•Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be
repaired.
•Disconnect the plug from the power source and/or
remove the battery pack, if detachable, from the
power tool before making any adjustments, changing
accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the
power tool accidentally.
•Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
•Maintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the
power tool´s operation. If damaged, have the power
tool repaired before use. Many accidents are caused
by poorly maintained power tools.
•Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
•Use the power tool, accessories and tool bits etc. in
accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations
different from those intended could result in a
hazardous situation.
•Keep handles and grasping surfaces dry, clean and
free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
control of the tool in unexpected situations.
Service
•Have your power tool serviced by a qualified repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is
maintained.
General safety instructions
WARNING: Read the warning
instructions that follow before you use the
product.
• This product is a dangerous tool if you are not
careful or if you use the product incorrectly. This
product can cause serious injury or death to the
operator or others. Before you use the product, you
must read and understand the contents of this
operator’s manual.
• Save all warnings and instructions.
• Comply with all applicable laws and regulations.
• The operator and the employer of the operator must
know and prevent the risks during operation of the
product.
• Do not let a person operate the product unless they
read and understand the contents of the operator's
manual.
• Do not operate the product unless you receive
training before use. Make sure that all operators
receive training.
• Do not let a child operate the product.
• Only let approved persons operate the product.
967 - 002 - 11.06.2021 5

• The operator is responsible for accidents that occur
to other persons or their property.
• Do not use the product if you are tired, ill, or under
the influence of alcohol, drugs or medicine.
• Always be careful and use your common sense.
• This product produces an electromagnetic field
during operation. This field can under some
circumstances interfere with active or passive
medical implants. To decrease the risk of serious
injury or death, we recommend persons with medical
implants to speak to their physician and the medical
implant manufacturer before operating this product.
• Keep the product clean. Make sure that you can
clearly read signs and decals.
• Do not use the product if it is defective.
• Do not do modifications to this product.
• Do not operate the product if it is possible that other
persons have done modifications to the product.
Safety instructions for operation
WARNING: Read the warning
instructions that follow before you use the
product.
• Read the operator's manual for the connected power
tool carefully. Make sure that you understand the
instructions.
• There is always a risk of shocks from electrical
products. Do not use the product in bad weather
conditions. Prevent that your body touches lightning
conductors and metal objects. Always follow the
instructions in the operator’s manual to prevent
damage.
• Connect the product to grounded outlets only.
• Make sure that the mains voltage are the same as
the voltage shown on the rating plate of the product.
• Make sure that the power cord and extension cable
are not damaged and in good condition.
• Do not use the product if the product or the power
cord is damaged. Let an approved service agent
repair the product or replace the power cord.
• To prevent overheating, do not use the extension
cable while it is folded.
• Do not let children use the product.
• Do not go away from the product when the motor is
on.
• Always disconnect the power supply to the product
for longer work breaks.
• Do not operate the product unless you can get aid if
an accident occurs.
• Make sure that the product stays on a stable
surface.
• Always disconnect the power plug before the product
is moved.
• Do not disconnect the power cord unless the motor
is off and fully stopped.
• Always keep fire protection equipment near.
Personal protective equipment
WARNING: Read the warning
instructions that follow before you use the
product.
• Always use approved personal protective equipment
when you operate the product. Personal protective
equipment cannot fully prevent injury but it
decreases the degree of injury if an accident does
occur. Let your dealer help you select the correct
personal protective equipment.
• Regularly do a check of the condition of the personal
protective equipment.
• Use an approved protective helmet.
• Use approved hearing protection.
• Use approved respiratory protection.
• Use approved eye protection with side protection.
• Use protective gloves.
• Use boots with steel toe-cap and non-slip sole.
• Use approved work clothing or equivalent close-
fitting clothing that has long sleeves and long legs.
Safety devices on the product
WARNING: Read the warning
instructions that follow before you use the
product.
• Do not use a product with defective safety devices.
• Do a check of the safety devices regularly. If the
safety devices are defective, speak to your
Husqvarna service agent.
Machine stop buttons
The machine stop buttons on the product and on the
remote control decrease the speed of the connected
power tool. The machine stop buttons also disconnect
the power tool from the power supply.

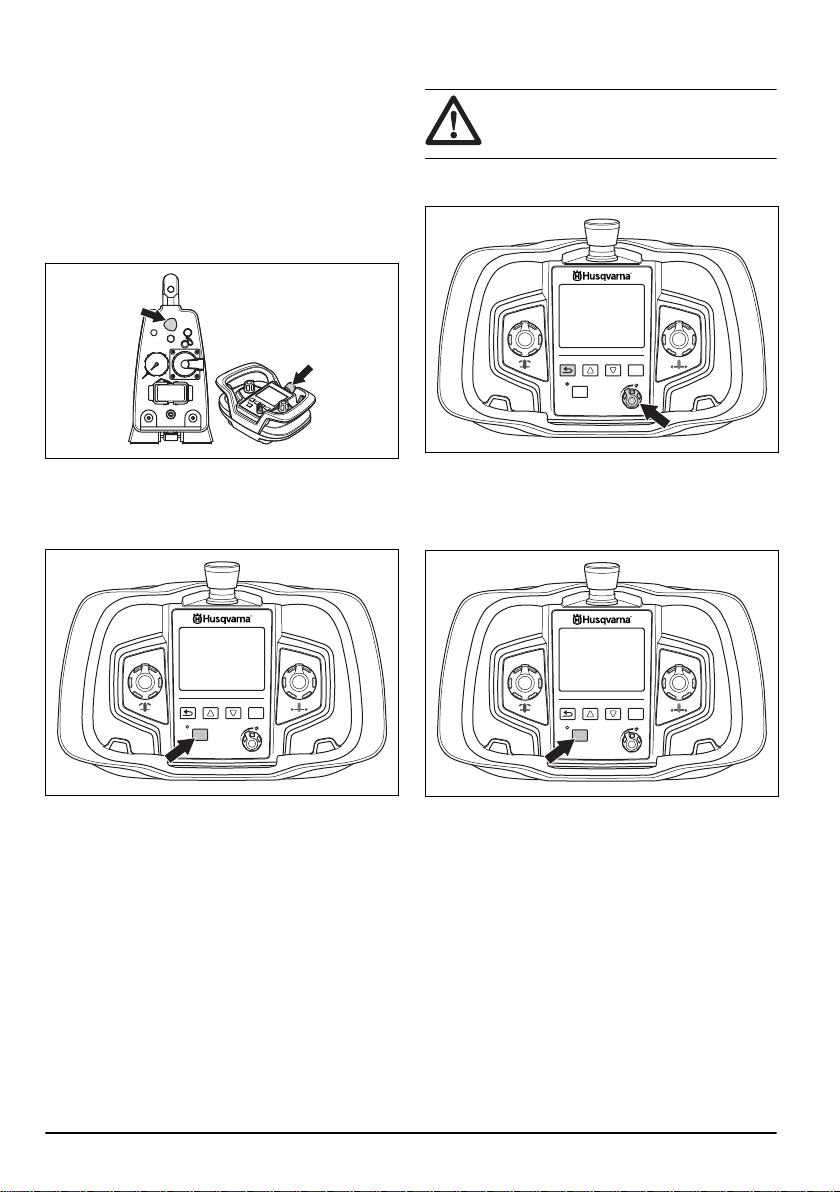

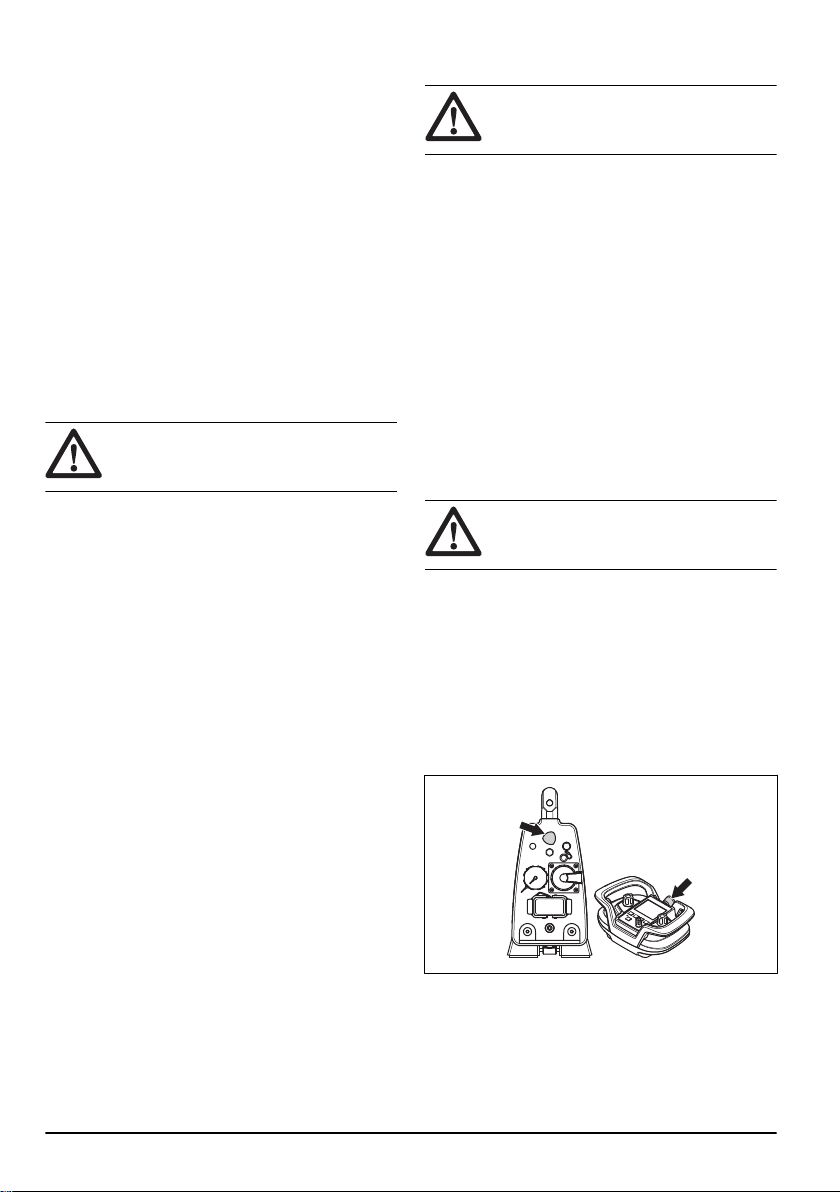

To do a check of the machine stop buttons
1. Turn the machine stop button on the product
clockwise to make sure that is released.
2. Push the ON/OFF button on the remote control.
6967 - 002 - 11.06.2021

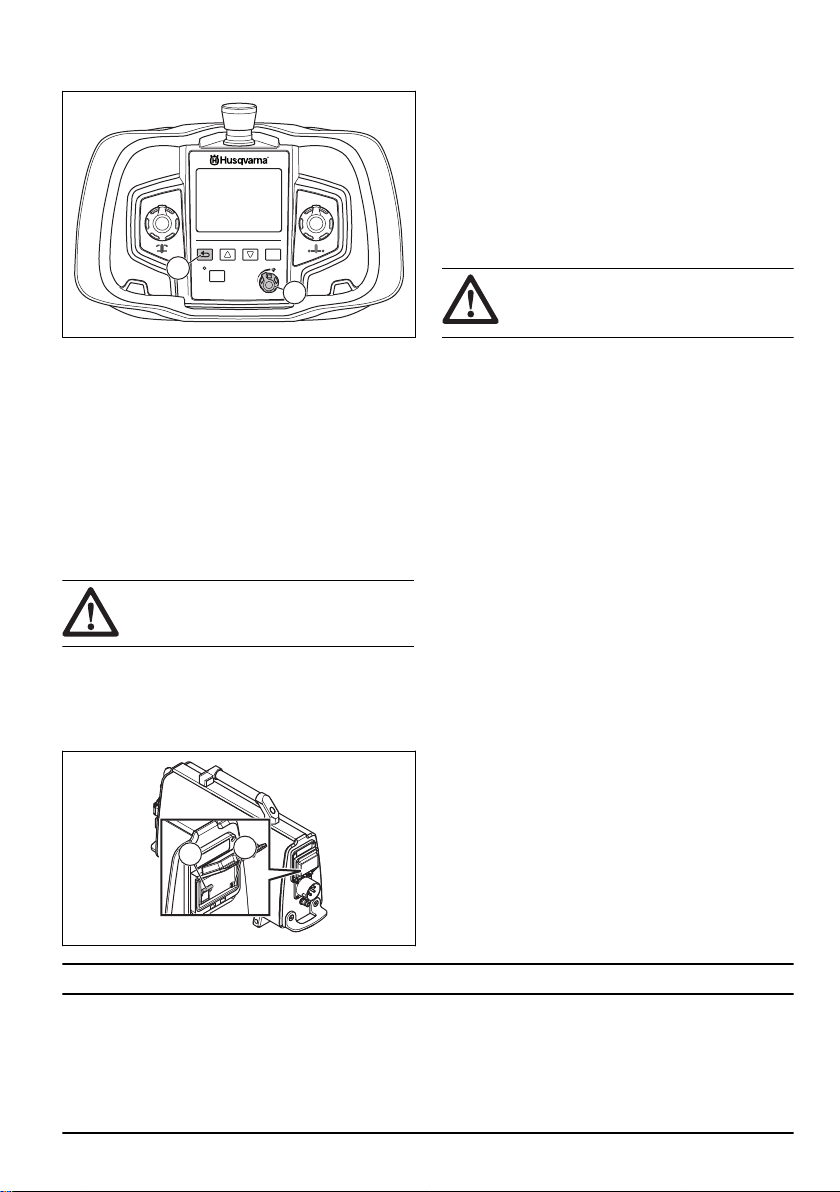

3. Push and hold the "RETURN" button (A) and turn
the dial (B) clockwise to rotate the blade or wire.
OK
ON/OFF
0
A
B
4. Push the machine stop button on the product to stop
the blade or wire.
5. Make sure that the power indicator on the product
goes out.
6. Do the same procedure to do a check of the
machine stop button on the remote control.
RCD
The product has an integrated RCD. The RCD is a
protection for the operator if an electrical fault occur.
To do a check of the residual-current device
WARNING: Always do a test of the
residual-current device before use.
1. Connect the product to a grounded 3-phase outlet
socket.
2. Open the cover of the residual-current device to get
access to the power switch (A) and the test button
(B).
AB
3. Push the power switch of the residual-current device
to 1.
4. Push the test button. The residual-current device
must release to disconnect the unit from the power
supply.
5. Reset the residual-current device. Push the power
switch of the residual-current device to 0 and then to
1.
6. Close the cover.
Safety instructions for maintenance
WARNING: Read the warning
instructions that follow before you do
maintenance on the product.
• Not approved changes and/or accessories can
cause serious injury or death to the operator or
others.
• Only Husqvarna service centers must open the
enclosure and do service to the product.
• Do the daily maintenance to make sure that the
product operates correctly. Refer to
Maintenance on
page 15
.
• Do the inspection and/or maintenance with the motor
stopped and the power plug disconnected.
• Clean the product with water. Do not use high
pressure washer. Do not point the water at electrical
components or bearings.
• Only let an approved service person do service on
the product. Use only Husqvarna or equivalent
replacement parts.
Assembly
Power source for the product
To use full power output, the product must be connected
to a 32 A fuse. With a 16 A or a 25 A fuse the available
power output is lower. It is necessary to select an
applicable fuse in the remote control menu system.
At a lower voltage the available power output decreases
in a linear fall down to 80%. Refer to
Technical data on
page 17 for more information.
967 - 002 - 11.06.2021 7

Gasoline generator as a power source
CAUTION: A generator that supplies
more input voltage than specified in the
voltage range can cause damage to the
product.
A generator that operates on gasoline can be used as a
power source if it can supply sufficient power. Refer to
Technical data on page 17 for typical generator
operation conditions. The generator must be grounded
to prevent damage to the product.
To connect a power source to the product
CAUTION: Do not connect the product
to a power source without an applicable
fuse.

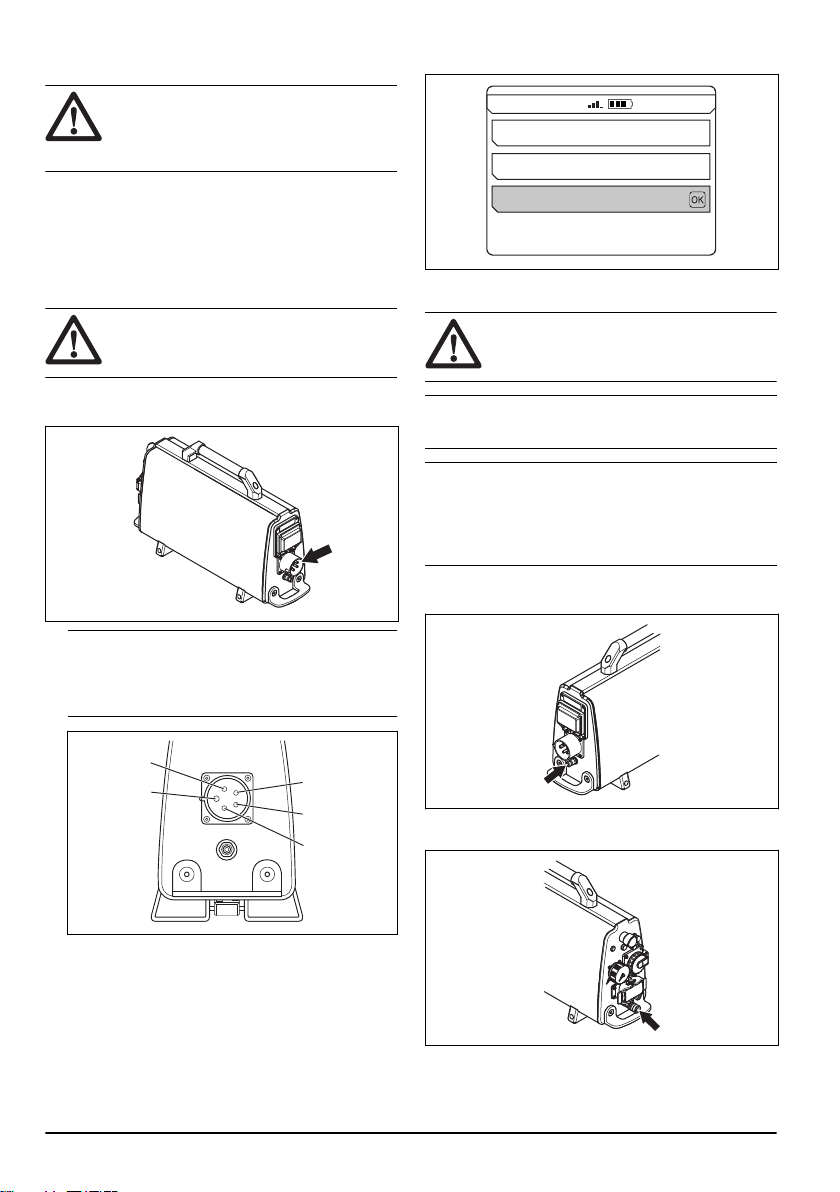

1. Connect the power cord from the power source to
the electric socket on the product.
Note: A 5-pin product with a 1 phase socket (230
V), must have a neutral wire (N) for the electric
socket to operate. The product can be operated
without a neutral wire.
N
L3
L2
L1
PE
2. Use the remote control to select the correct fuse. In
the menu system, select "DRIVE CHOICES" and
then "SET FUSE".
3. Select the correct fuse.
>>>SET FUSE 20 DEC 20:55
25A
32A
16A
To connect the water supply
CAUTION: Use only clean water to
prevent that dirt causes a blockage in the
water system.
Note: The water coolant does not stop during a power
failure.
Note: The product has an electric water valve, which
is closed when the product starts. When the product is
disconnected from the current, the water valve opens to
drain the water coolant. This is to prevent the water
inside the product to freeze.
1. Connect the water hose to the water connector inlet
on the product.
2. Connect the water connector outlet on the product to
the power tool.
3. To adjust the flow of water coolant to the power tool,
refer to the operator's manual for the power tool.
8967 - 002 - 11.06.2021

4. Refer to Technical data on page 17 for water
pressure.
To connect power tools
1. Use the upper connector (A) for the PRIME
products.
A
B
2. Use the lower connector (B) to connect to wall saws.
3. For more information, refer to Technical data on
page 17 .
Operation
Introduction
WARNING: Before you operate the
product, you must read and understand the
safety chapter.
Before you operate the product
1. Read the operator's manual carefully and make sure
that you understand the instructions.
2. Do daily maintenance. Refer to
Daily maintenance
on page 15
.
3. Make sure that only approved persons are in the
work area, because there is a risk of serious injury.
4. Use personal protective equipment. Refer to
Personal protective equipment on page 6 .
The remote control
Use the "RETURN" button (A) to go back in the menu.
Use the arrow buttons (B) to move up and down in the
menus and the "OK" button (C) to do the selection.
OK
ON/OFF
0
OK
ON/OFF
0
B CA
967 - 002 - 11.06.2021 9

Menu system overview
>MENU 20 DEC 20:55
DRIVE CHOICES
CALIBRATE ARM
SET GEAR
[-]
SET DRIVE MODE
[-]
SET ROT. DIR.
[STANDARD]
SET FUSE
[-]
SET WATER VALVE
[-]
>>DRIVE CHOICES 20 DEC 20:55
20 DEC 20:55
CHANGE NUMBER WITH
STEP FORWARD WITH OK
09317 OK
>>SETTINGS
RUN TIME
TIME & DATE
[20:51 2010-01-12]
LANGUAGE
[ENGLISH]
SET UNITS
[METRIC]
RADIO CHANNEL
[0]
20 DEC 20:55
PAIR RADIO
SETTINGS
SERVICE
PRODUCT INFO
SET BLADE DIAM.
[800 mm]
9
10
11
12
13
14
4
5
6
7
8
1
15
16
2
3
10 967 - 002 - 11.06.2021

Main menu Submenu Adjustment
1. "DRIVE
CHOICES"
4. "SET GEAR" The connected wall saw has 2 mechanical gears:
1. (600-900 rpm)
2. (800-1200 rpm)
5. "SET DRIVE
MODE"
Set the necessary "DRIVE MODE" for the product:
• "BLADE MAN" for wall sawing
• "BLADE STD" for wall sawing
• "WIRE" for wire cutting
• "CHAIN" for chain sawing
6. "SET ROT. DIR." Stop the product before change of direction of the blade. Select be-
tween:
• "STANDARD"
• "REVERSE"
7. "SET FUSE" To use full power output, the product must be connected to a 32 A fuse.
With a fuse that is lower rated, the power output must be lower to not
overload the fuse. Select the applicable fuse rated value that is related to
the connected product:
• 16A
• 25A
• 32A
8. "SET WATER
VALVE"
The water flow is adjusted with the ball valve at the water connector inlet.
Select correct water regulation:
• "ON" - The water valve is always open.
• "AUTO" - The water valve opens when the dial is turned from its
closed position.
967 - 002 - 11.06.2021 11

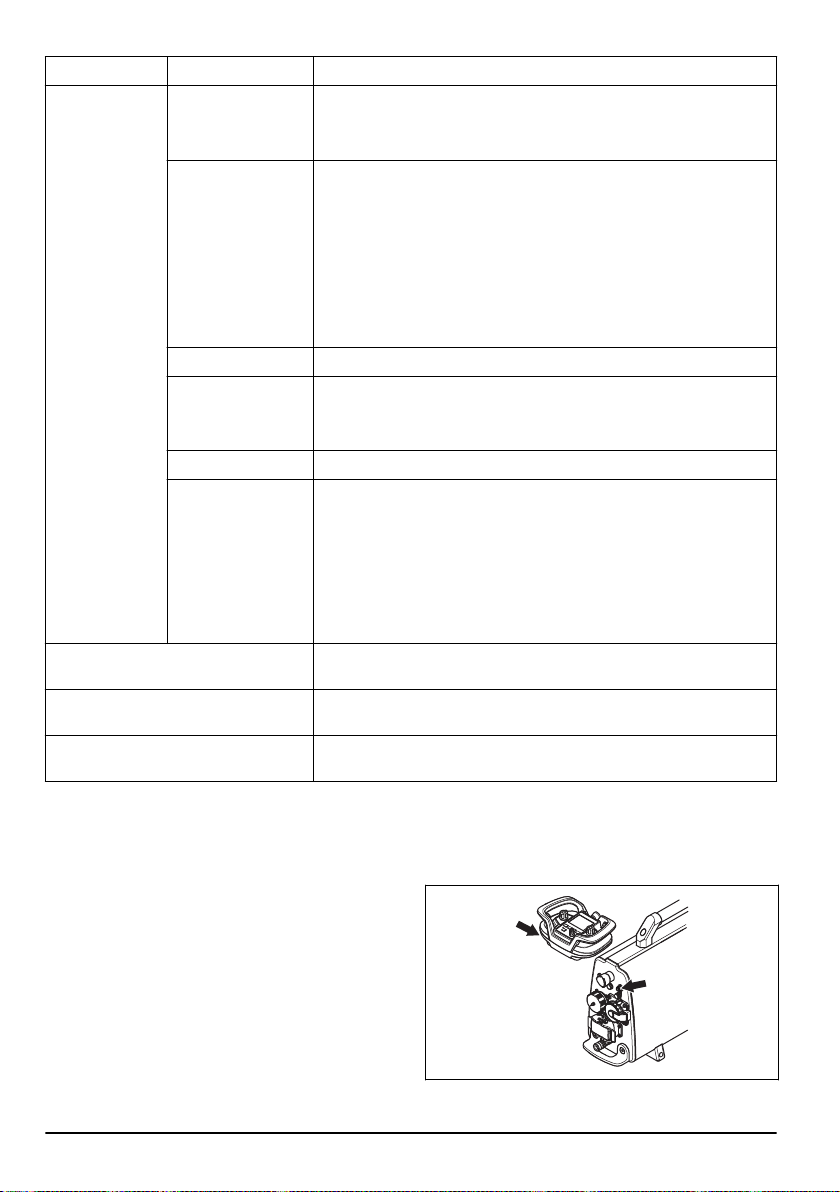

Main menu Submenu Adjustment
2. "SETTINGS"
9. "RUN TIME" • "TIME COUNTER" - A stop monitor counts the time that the blade or
the wire rotates during the operation when minimum 1 supply is on.
• "CLEAR RUNTIME" - Releases the stop monitor.
• "CURRENT RUNTIME" - Shows the current run time.
10. "TIME & DATE" • "SET TIME" - Set the current time.
• "SET DATE" - Set the current date.
• "TIME FORMAT" - Select time format:
• 12h
• 24h
• "DATE FORMAT" - Select date format:
• "YYYY-MM-DD"
• "YYYY/DD/MM"
• "DD/MM/YYYY"
11. "LANGUAGE" Select display language.
12. "SET UNITS" Select unit for the remote control:
• "AMERICAN"
• "METRIC"
13. "PAIR RADIO" Connect the remote control with the product.
14. "RADIO CHAN-
NEL"
If there is interference or loss of signal, the radio channel for the remote
control and the product must be changed. To set up the radio channel,
the remote control must be connected to the product with a CAN bus ca-
ble. Select the correct radio channel:
• 0 (2.410 GHz)
• 1 (2.415 GHz)
• ...
• 11 (2.465 GHz)
3. "SERVICE" The "SERVICE" menu is locked by password. Only servicing personnel
have access to do the adjustment in the "SERVICE" menu.
15. "CALIBRATE ARM" The calibrate menu is used to calibrate the position of the pivot arm. Use
the position of the pivot arm to calculate the current depth of the blade.
16. "SET BLADE DIAMETER" The blade diameter adjustment is used to calculate the depth of the
blade.
Radio communication system
Before you can operate the connected power tool, you
must do a pairing operation between the remote control
and the product.
The remote control can only control the connected
product.
If the supplied remote control is replaced, you must do a
pairing operation between the remote control and the
product again.
If it is necessary to interchange the remote controls
between 2 power pack units, you must do a pairing
operation between the interchanged remote control and
the product.
To do a pairing operation between the remote
control and the product
1. Connect the remote control to the product with the
supplied CAN bus cable.
2. Tighten the cable connector screws by hand.
12 967 - 002 - 11.06.2021

3. Wait until the remote control starts and the main
menu is shown on the display.
4. Push the "OK" button to get access to the main
menu.
OK
ON/OFF
0
5. Find the "SETTINGS" menu with the arrow buttons
and then push the "OK" button.
>MENU 20 DEC 20:55
DRIVE CHOICES
CALIBRATE ARM
SET BLADE DIAM.
SETTINGS
[800 mm]
6. Find "PAIR RADIO" with the arrow buttons and then
push the "OK" button.
LANGUAGE
[ENGLISH]
SET UNITS
[METRIC]
PAIR RADIO
>>SETTINGS 20 DEC 20:55
TIME & DATE
[20:51 2010-01-12]
Note: A message on the display tells if the pairing
operation was done or not. If you cannot do a pairing
operation between the remote control and the
product, refer to
Troubleshooting - wall saw on page
15 .
Remote control battery
Note: You must charge the remote control battery
before you use the remote control for the first time.
The remote control battery is a Li-ion battery. Use only
original batteries for this product. Refer to an approved
dealer for more information.
A fully charged remote control battery can operate
maximum 8-10 hours. Cold weather decreases the
capacity and the operation time of the remote control
battery. The operation time of the remote control battery
also decreases if the display is on.
Dispose a damaged remote control battery at your
nearest service center or recycle it at an applicable
location.
Remove and install the remote control battery from the
rear side of the remote control.
To charge the remote control battery
CAUTION: Keep the charger of the
remote control battery dry and in protection
against temperature variation.
1. Connect the charger to a socket outlet.
2. Attach the remote control battery to the charger.
Make sure that the lamp on the charger comes on
and is orange.
3. Charge the remote control battery for approximately
2-3 hours to make it fully charged.
4. Remove the charger when the remote control battery
is fully charged and the lamp shows green.
Other software adjustments
Do the adjustments that follow before you operate the
product:
Note: Refer to
Menu system overview on page 10 for
more information.
967 - 002 - 11.06.2021 13

• Set time and date. Select the "SETTINGS" menu
and then the "TIME & DATE".
• Set the correct display language. Select the
"SETTINGS" menu and then "LANGUAGE".
• Set the necessary measurement units. Select the
"SETTINGS" menu and then "SET UNITS".
To start the product
1. Open the water supply to the product.
2. Turn the machine stop button on the product and on
the remote control clockwise to disengage.
3. Push the ON/OFF button to start the remote control.
This also starts the connected wall saw, information
is shown on the display. Refer to the operator's
manual for the connected wall saw for more
information.
OK
ON/OFF
0
4. If a PRIME tool is connected to the product, push the
ON/OFF button to stop the remote control. The
PRIME tool starts. Refer to the operator's manual for
the connected PRIME tool for more information.
To operate the product
• To operate the product, refer to the operator's
manual for the power tool.
To stop the product
WARNING: Always close the water
supply to the product when it is not
connected to the power supply.
1. To stop the blade, turn the dial that controls the
speed counterclockwise to its 0 position.
OK
ON/OFF
0
2. Close the water supply to the product. If the water
coolant is set to "AUTO", the water supply will stop
automatically.
3. Stop the remote control unit, push the "ON/OFF"
button.
OK
ON/OFF
0
4. Push the emergency stop button to stop the product.
14 967 - 002 - 11.06.2021

Maintenance
Introduction
WARNING: Read and understand the
safety chapter before you do maintenance
on the product.
Daily maintenance
WARNING: Disconnect the product
from the power supply and wait minimum 5
minutes before you start the maintenance.
CAUTION: Do not use a high-pressure
washer to clean the product. The high
pressure can cause damage to the seals
and cause water and dirt to come into the
product.
• Do a check of the safety equipment. Make sure that
it is not damaged. Refer to Safety devices on the
product on page 6
.
• Make sure that the power cord and the extension
cable are in good condition and not damaged.
• Make sure that the water hose and water couplings
are in good condition and not damaged.
• Always clean the product at the end of the work day.
Use a heavy duty handheld brush or a large paint
brush.
• Keep the connectors and pins clean. Clean with a
cloth or brush.
• Clean the filter in the water connector inlet. Use a 16
mm wrench to loosen the coupling and use
compressed air to remove dirt from the filter.
• Make sure that the water system is not damaged.
Troubleshooting
Error messages - wall saw
If there are errors, an error code (A) and an error
message (B) are shown on the display of the remote
control.
MENU OK
OK OK
Please check and/or adjust:
(1) Diamond tool for wear
(2) Feed speed and straightness of cut
(3) Saw carriage
F08 TRAVEL MOTOR
OVERLOADED
AB
Do the procedure shown on the display or speak to an
approved Husqvarna dealer. Push the "OK" button to
delete the error message.
If you close the error message and it does not show on
the display again, you can continue to operate the
product.
If the error message shows again, refer to
Troubleshooting - wall saw on page 15 or speak with
an approved Husqvarna dealer. If necessary, do an
update of the software of the product.
Troubleshooting - wall saw
Error code Error message Possible fault Possible solution
F01 "MOTOR OVER-
HEATED"
There is not sufficient water
coolant flow to the saw mo-
tor.
Make sure that the water coolant flows to the saw
motor. The temperature must be maximum 25 °C
and the water flow must be minimum 3.5 l/minute.
F02 "POWER PACK
OVERHEATED"
There is not sufficient water
coolant flow to the product.
Make sure that the water coolant flows to the prod-
uct. The temperature must be maximum 25°C and
the water flow must be minimum 3.5 l/minute. If the
message shows up when the connected product is
started, go to the operations menu ”Water coolant”
and select ”ON”. Let the water coolant supply the
product for a minute before you start the product
again.
967 - 002 - 11.06.2021 15

Error code Error message Possible fault Possible solution
F03 "LOW VOLTAGE"
There is low voltage supply
to the product.
Examine the voltage during operation. Make sure
that all 3 phases are energized. Make sure that the
products supply cables have sufficient cable area.
F04 "HIGH VOLTAGE"
There is high voltage sup-
ply to the product.
Examine the voltage during operation. This mes-
sage usually shows when the product is supplied
by a generator.
F05 "OVER CUR-
RENT"
There is current overload to
the saw motor.
Make sure that the power cord is installed correctly
and that it is not damaged.
F06 "NO HALL-SEN-
SOR LENGTH"
There is fault on the HALL-
sensor board for travel
movement.
Speak to your servicing dealer.
F07 "NO HALL-SEN-
SOR ARM"
There is fault on the HALL-
sensor card for depth
movement.
Speak to your servicing dealer.
F08 "TRAVEL MOTOR
OVERLOADED"
There is current overload
on the travel motor.
Turn the dial to the 0 position to reset the product.
If the error message occurs again, the diamond
tool is not sharp or the saw carriage is not adjusted
correctly. Clean the rails and lubricate the gears. If
the error message stays, speak to your servicing
dealer.
F09 "DEPTH MOTOR
OVERLOADED"
There is current overload in
the depth motor.
Turn the dial to the 0 position to reset the product.
If the error message occurs again, the diamond
tool is not sharp. If the error message stays, speak
to your servicing dealer.
F10 "BLADE JAM" The blade can not rotate. Remove the blade from the cut and start the prod-
uct again.
F11 "GROUND FAULT
OR NO SAW
HEAD"
There is incorrect ground of
the product/saw or there is
no saw unit connected to
the product.
Do a check of the electrical connection to the prod-
uct. Make sure that the saw unit is connected to
the product. If the error message stays, speak to
your servicing dealer.
F12 "NON-COMPATI-
BLE SAW UNIT"
The incorrect saw unit is
connected to the product.
Connect a compatible saw unit to the product.
F13 "NO CONTACT
CHECK CAN-CA-
BLE"
There is no connection sig-
nal between the product
and the remote control.
Replace the CAN bus cable.
F14 "NO RADIO CON-
TACT"
There is no radio signal be-
tween the remote control
and the product.
Make sure that the product is in operation and that
the green light is on. If the error message stays,
speak to your servicing dealer. The product can be
used with the CAN bus cable connected between
the product and the remote control.
F15 "NO DSP RE-
SPONSE"
There is internal error in
the power unit.
Speak to your servicing dealer.
Troubleshooting - PRIME tools
Error code Error message Possible faults Possible procedure
F0101 There is current over-
load.
There is current overload to the
tool in operation.
Speak to your servicing dealer.
16 967 - 002 - 11.06.2021

Error code Error message Possible faults Possible procedure
FXX08*1There is high motor tem-
perature.
The motor temperature is too
high.
Increase the flow of water coolant. Use
clean water to prevent blockage in the
water channels. Refer to Technical da-
ta on page 17 for specifications for
water flow, temperature and pressure.
F0112 There is low input volt-
age.
The input voltage is too low. Refer to the minimum voltage input in
the manual.
F0113 There is high input volt-
age.
The input voltage is too high. Refer to the maximum voltage input in
the manual.
FXX14* Error in the tool temper-
ature sensor.
Stop or short circuit in the tem-
perature sensor.
Speak to your servicing dealer.
F0118 There is a hardware
fault.
N/A. Speak to your servicing dealer.
F0119 The temperature in the
product is too high.
The product is too hot. Increase the flow of water coolant. Use
clean water to prevent a blockage in
the water channels. Refer to Technical
data on page 17 for specifications for
water flow, temperature and pressure.
F0130 There is a general error. The blade does not move freely. Stop the product and release the
blade.
Transportation and storage
Transportation of the product
• Make sure that the product is safely attached during
transportation to prevent transport damage and
accidents.
• Always stop the product and disconnect the power
cord before you move the product.
• Always disconnect the power tool and the power tool
cord before transportation.
Storage of the product
• Keep the product in a locked area to prevent access
for children or persons that are not approved.
• Keep the product in a dry area.
• Make sure that the temperature is not lower than
-25°C (-77°F) and not higher than 50°C (122°F).
• If there is a risk that the water will freeze, the product
must be drained of all remaining water coolant. Tilt
the product to drain the water coolant from the water
connector outlet.
Technical data
Technical data
Rated voltage 380-480
Max. output, kVA 20
Rated current, A 16/25/32
1XX: different numbers on different tool that is connected to the power unit.
967 - 002 - 11.06.2021 17

Input voltage, V/Hz 380-480/50-60
Output voltage, V/Hz 340/0-500
Secondary output voltage, V/Hz 24/0-500
Power supply 3P+PE+N
1- phase outlet, V 230
Recommended cable area, 32A
Length, m/ft Cable area, mm2/AWG
0-30/0-100 6/10
30-60/100-200 10/8
60-100/200-300 16/6
Effect power generator
kVA min (400V/16A) 12
kVA min (400V/25A) 20
kVA min (400V/32A) 25
Weight
Power pack unit, kg/lb 25.8/56
Water coolant
Max. water coolant temperature at 3,5 l/min, °C/ 0.92 Gallon/min, °F 25/77
Max. water coolant pressure, bar/psi 7/102
Control system
Control type Remote control
Signal transmission Wireless/cable
Frequency bands for the tool, GHz 2.400-2.480
Maximum radio frequency power transmitted, dBm/mW 4/2.5
18 967 - 002 - 11.06.2021

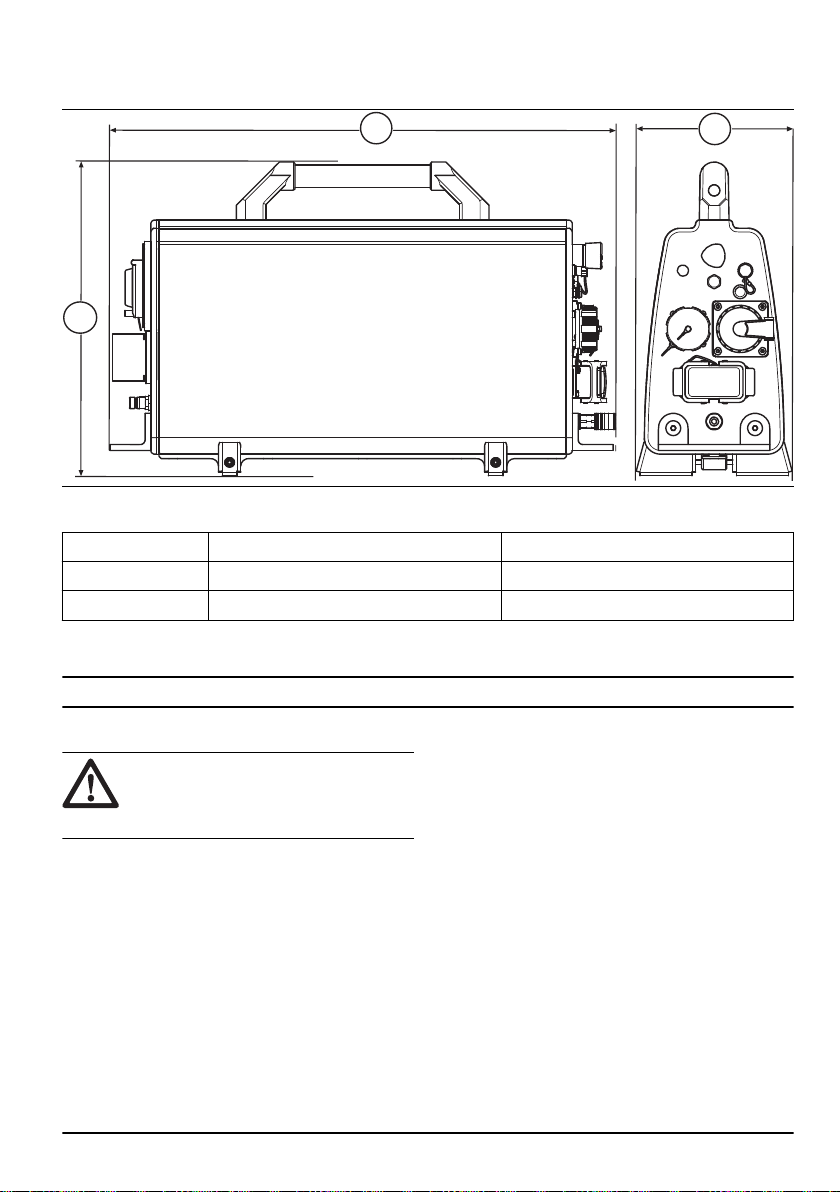

Product dimensions
B
A
C
A Height, mm/in. 422/16.6
B Length, mm/in. 680/26.8
C Width, mm/in. 205/8.1
Service
Introduction
WARNING: Only approved service
center can do repairs on the product. This is
to prevent that accidents occur to the
operators.
Approved service center
To find your nearest Husqvarna Construction Products
approved service center, go to the web site
www.husqvarnacp.com.
967 - 002 - 11.06.2021 19

EC Declaration of Conformity
EC Declaration of Conformity
We, Husqvarna AB, SE-561 82 Huskvarna, SWEDEN,
tel: [phone] declare on our sole responsibility that
the product:
Description Power pack
Brand Husqvarna
Type/Model PP 492
Identification Serial numbers dating from 2021 and onwards
complies fully with the following EU directives and
regulations:
Directive/Regulation Description
2014/53/EU "relating to radio equipment"
2011/65EU "relating to restriction of hazardous substances"
and that the following harmonized standards and/or
technical specifications are applied;
• EN ISO 12100:2010
• EN 61000-6-4:2007+A1:2011
• EN 61000-6-2:2005/C1:2005
• EN 60204-1:2018
• ETSI EN 301 489-1 V2.1.1
• ETSI EN 301 489-17 V3.1.1
• ETSI EN 300 328 V2.1.1
Partille, 2021-06-10
Erik Silfverberg
R&D Director, Concrete Sawing & Drilling Equipment
Husqvarna AB, Construction Division
Responsibe for technical documentation
20 967 - 002 - 11.06.2021
