Hussmann refrigerated merchandisers configured for sale for use in the United States
meet or surpass the requirements of the DOE 2017 energy efficiency standards.
14

3
Case Descripon:
Description: Refrigerated Service Meat Merchandiser
Shipping Damage: All equipment should be thoroughly examined for shipping damage before and
during unloading. This equipment has been carefully inspected at our factory and the carrier has
assumed responsibility for safe arrival. If damaged, either apparent or concealed, claim must be
made to the carrier Immediately.
Apparent Loss or Damage: If there is an obvious loss or damage, it must be noted on the freight bill
or express receipt and signed by the carrier’s agent; otherwise, carrier may refuse claim. The carrier
will supply necessary claim forms.
Concealed Loss or Damage: When loss or damage is not apparent until after all equipment is
uncrated, a claim for concealed damage is made. Make request in writing to carrier for inspection
within 15 days, and retain all packaging. The carrier will supply inspection report and required claim
forms.
Shortages: Check your shipment for any possible shortages of material (See Parts List page 11). If
a shortage should exist and is found to be the responsibility of Hussmann Chino, notify Hussmann
Chino. If such a shortage involves the carrier, notify the carrier immediately, and request an
inspection. Hussmann Chino will acknowledge shortages within ten days from receipt of equipment.
Hussmann Chino Product Control: The serial number and shipping date of all equipment have been
recordedinHussmann’slesforwarrantyandreplacementpartpurposes.Allcorrespondence
pertaining to warranty or parts ordering must include the serial number of each piece of equipment
involved, in order to provide the customer with the correct parts.
Location/Store Conditions: The VR3HV-M/F-EP refrigerated merchandiser has been designed for use
only in air conditioned stores where temperature and humidity are maintained at or below 75°F Dry
bulb and 55% relative humidity. DO NOT allow air conditioning, electric fans, ovens, open doors or
windows (etc.) to create air currents around the merchandiser, as this will impair its correct operation.
This equipment is to be installed
to comply with the applicable
NEC, Federal, State , and Local
Plumbing and Construction
Code having jurisdiction.
AT TENTION
INSTALLER
/CHINO
A publication of HUSSMANN®Chino
13770 Ramona Avenue • Chino, California 91710
[phone] FAX
[phone]
[phone]
Keep this booklet with the case at all times for future reference.
General Information

Case Sections
4

5
Installation
NOTICE
Do NOT remove Foam Blocks from shelves
and glass until the merchandisers are
positioned for installation. Shelves or
merchandising glass may be damaged.
Loose
Items
Warning
Labels
Foam Blocks
in place Boards fastened

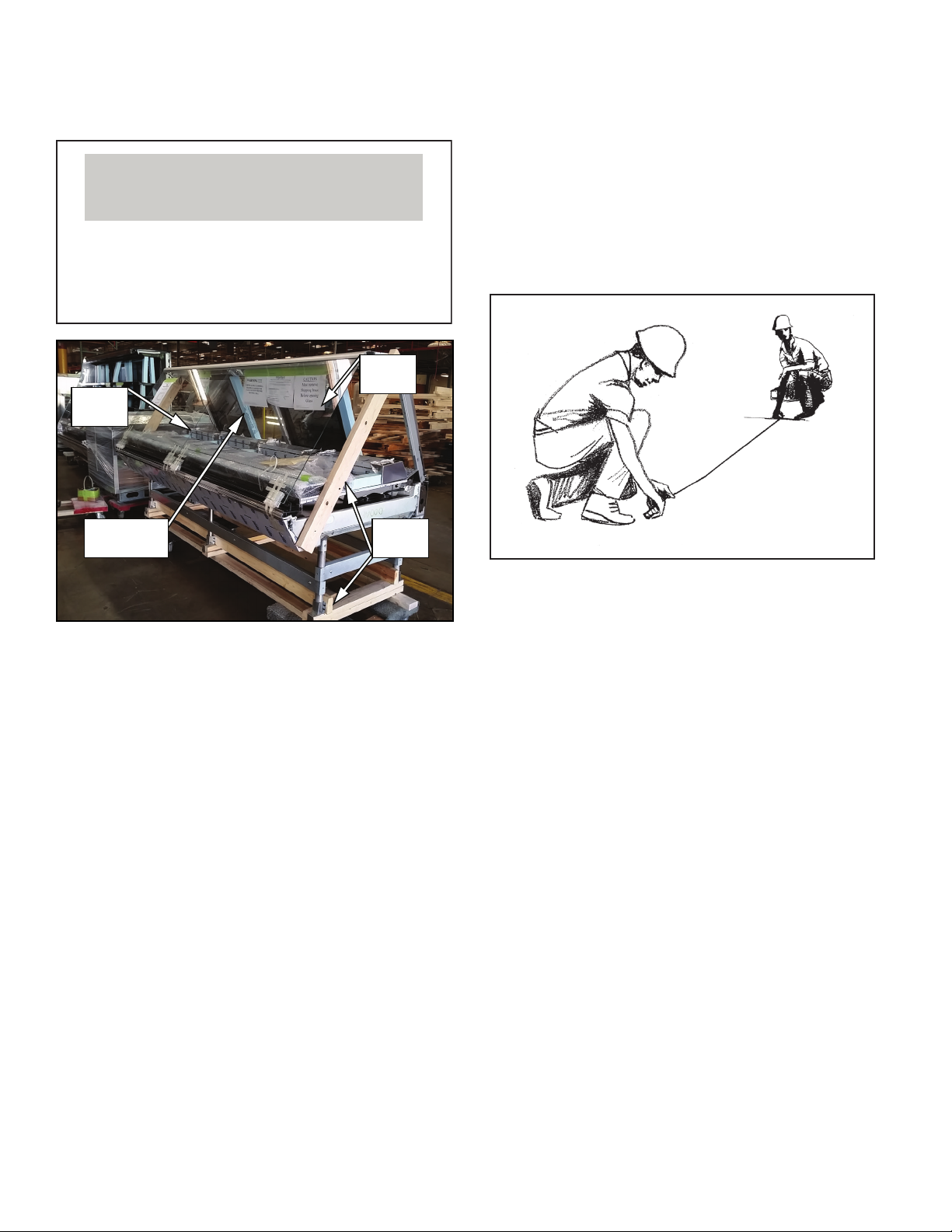

Case is to arrive at store as was shipped form
factory. See reference above for proper shipment
referencing. (Not actual case)
Receiving Case
Upon receiving your new Hussmann Case all
equipment should be thoroughly examined for
shipping damage before and during unloading.
This equipment has been carefully inspected at
our factory. Any claim for loss or damage must
be made to the carrier. The carrier will provide
any necessary inspection reports/ or claim form.
If there is obvious loss or damage, it must be
noted on the freight bill or express receipt and
signed by the carrier’s agent; otherwise carrier
may refuse claim.
Snapping Chalk Lines
Preparepermanentpositioningbymarkingoors
with Chalk snap lines where cases are to be
located. Chalk lines are to run along the base or
legs of cases.

6
Placement
Important: See lifting instructions to properly lift
case when being placed on dollies or permanent
location. (See page 7 for Lifting Instructions.)
Leaveallhardwareandttingsinplaceuntil
case is located at or near its preferred location.
Using a J-Bar lift the case from the 2x4 boards
and placing dollies underneath each Base Leg,
proceed to moving the case to its designated
location if not done so already.
IF APPLICABLE
(NOT ALL CASES CONTAIN LEG BRACES)
The Illustration Below demonstrates perfect
placement of a dollie per 1 side for both Base
Legs of the merchandiser.
IF APPLICABLE
(NOT ALL CASES
CARRY LEG BRACES)
Installation (cont’d)
Movethextureascloseaspossibletoitsper-
manent location and then remove all packag-
ing and prepare to remove off Skid. Remove all
separately packed accessories such as kits, and
panels. Check for damage before discarding
packaging.

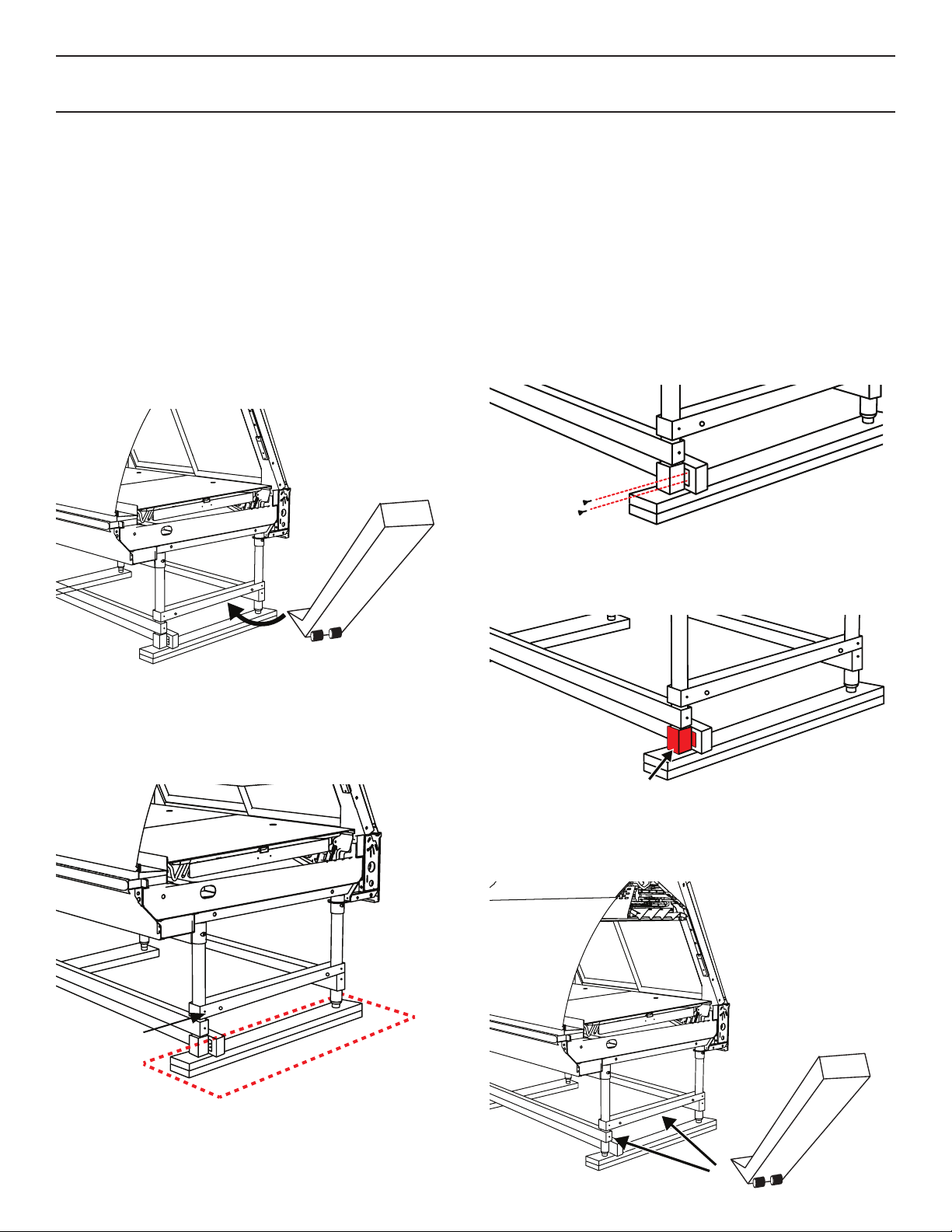

Remove screws as well as fastened plates
bolted to each 2x4 board at each base leg.
Remove fastened plates only upper Brace Legs
are to remain fastened onto case.
Fastened plate
Once the fastened plates are removed a J-Bar
can be used to lift at each end of the Leg Braces
to remove the below 2x4 boards.

7
VR3HV-M/F Lifting and Transport
Instructions

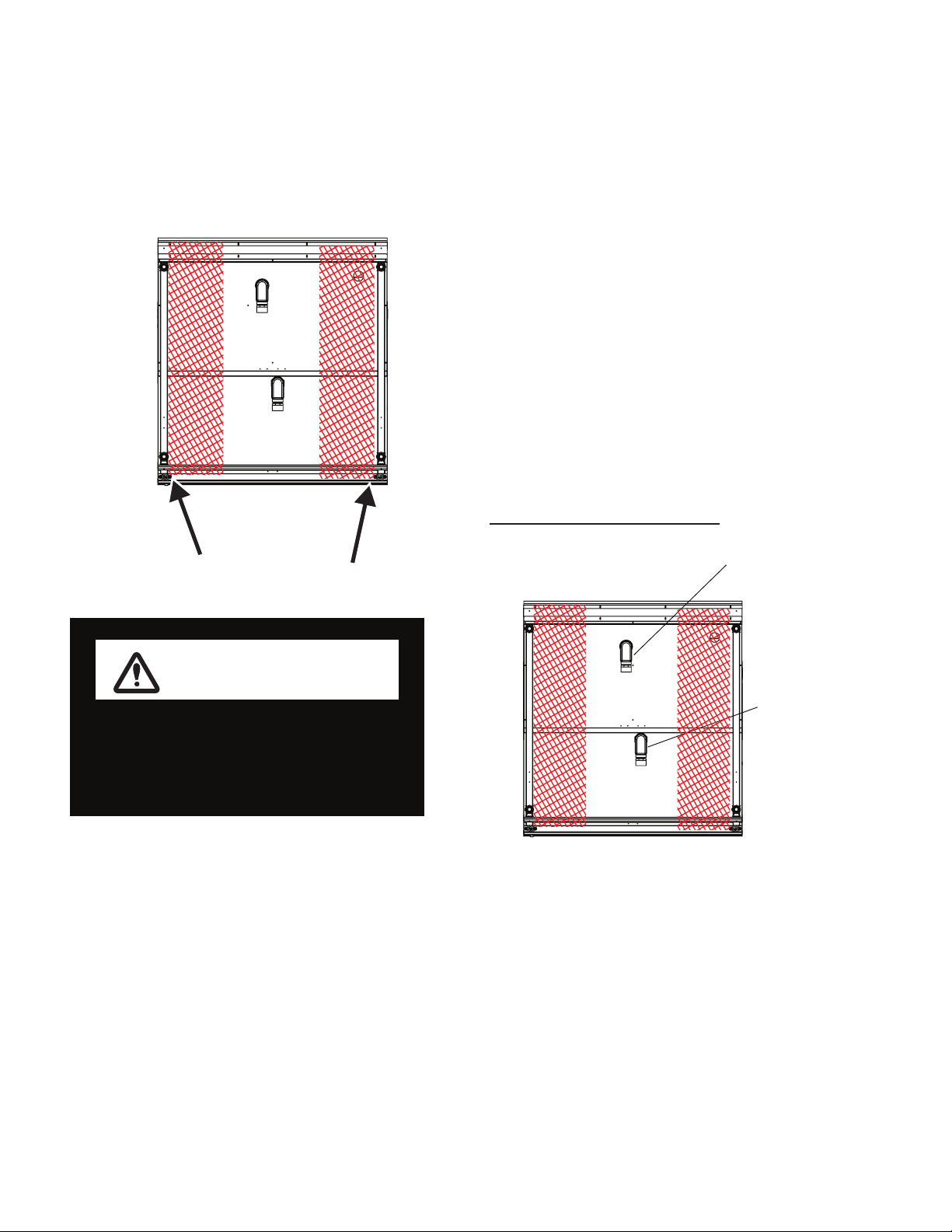

1. The VR3HV-M/F can be lifted by a forklift at
typical lifting points.
Forklift Points
(Underneath Deck)
WARNING
Improper placement of forks may damage
drainage piping. Use a spotter when placing
forks. Make sure that piping will not be dam-
aged. Use J-Bars or Jacks if forks cannot be
used safely
2. Ensure lower body panels are removed be-
fore lifting with a forklift. Serious damage will
occur if the body panels are not removed.
3. Make sure that fork spacing and width will not
damage drain or come in contact with piping,
or electrical lines
4. Be sure that the forks are long enough to
support beyond the center of the case but not
damage near components. Check for proper
balance before moving. A minimum fork
length of 36” is recommended for 68” wide
cases
Installation (cont’d)

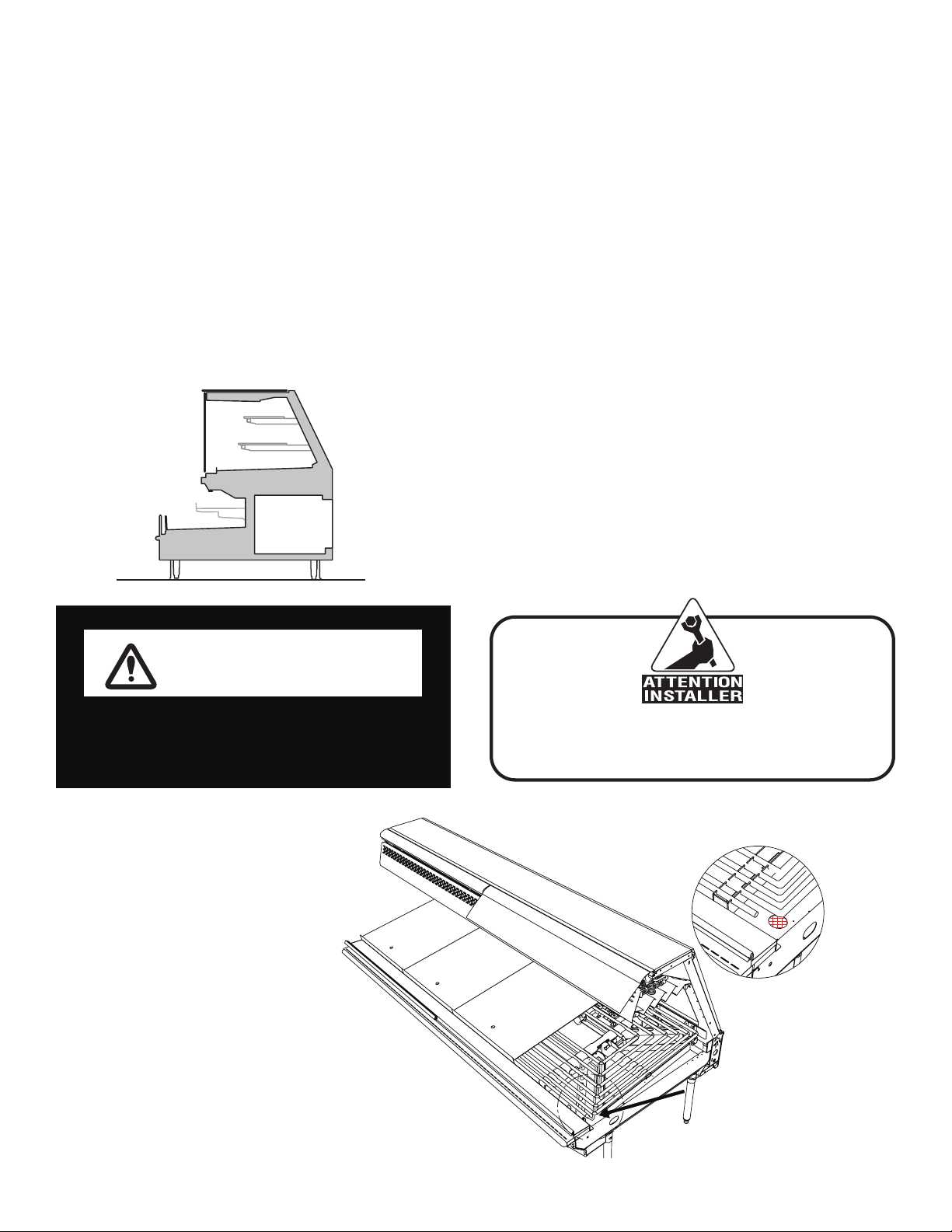

5. The VR3HV-M/F merchandiser can be raised
at one end underneath the deck with a forklift
to allow the placement of rollers or dollies.
6. Evenly support the entire base structure on
rollers or dollies before attempting to move.
Each Base Leg must have its own dollie to
properly support the case.
Lifting Points are typical and dependent upon
size of case and refrigeration application, drain-
agecongurationswillcallforaltercationsin
Lifting Zones.
Belowarethefollowingdrainagecongurations
and lifting should be altered to the expected
model.
VR3HV M/F Drain Location
Service Drain
Bottom Drain

8
Installation (cont’d)
Leveler Adjustment

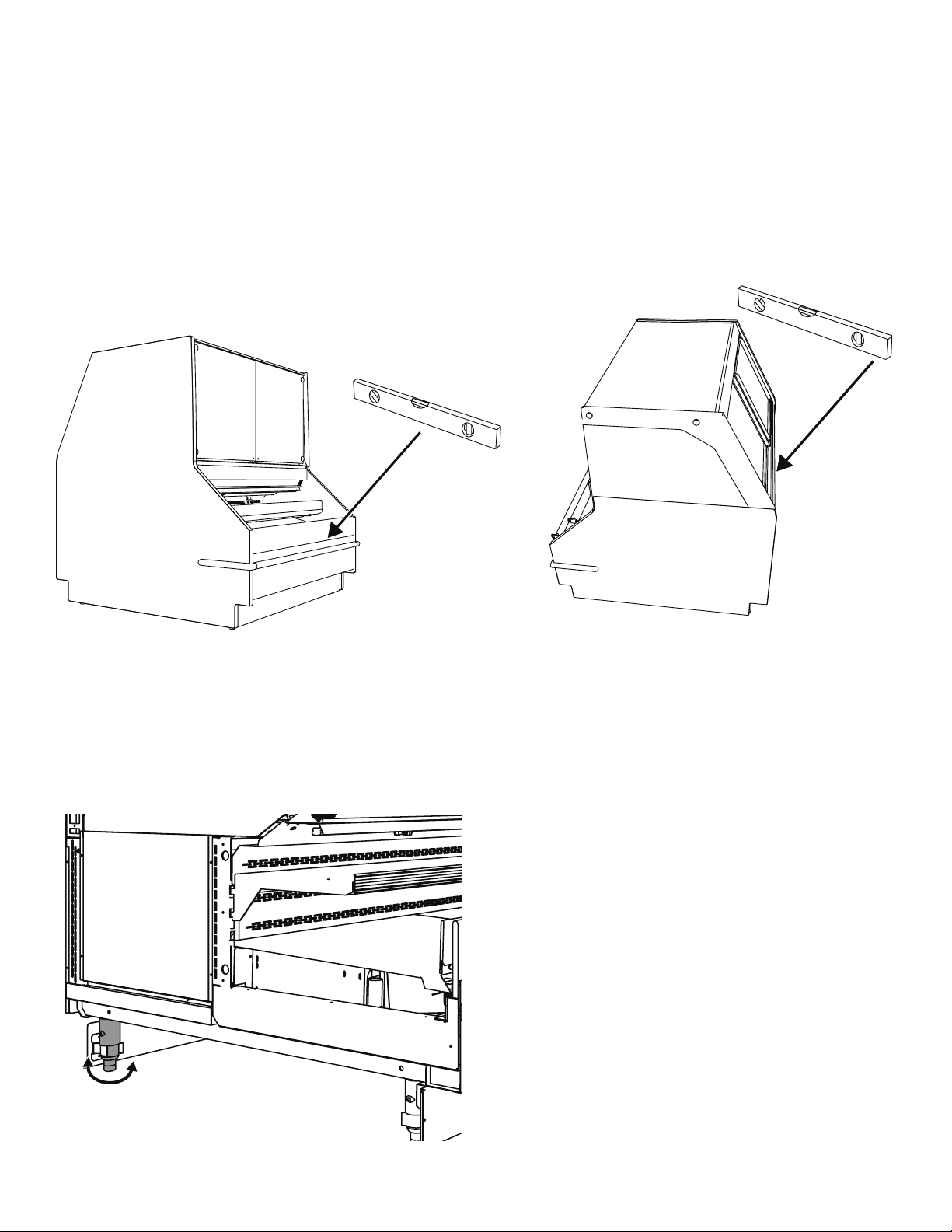

Position the case at the highest point. Set a long
magnetized level (4ft [1220 mm] or more) on
either underneath the deck or on top of the case.
Ensure to level case from front to back and side
to side.
Level
(4 ft[1220mm])
Leg Adjustment
Adjust the legs at each corner of the case to
level out any discrepancies in order to optimize
case performance and proper drainage.
Note:Toavoidremovingconcreteooring,begin
line up levelling from the Highest point of the
storeoor.
A wrench or pliers may be used to adjust each
base leg.
• Turning the base of each leg clockwise will
raise the height of the case.
• Turning the base of each leg
counterclockwise will lower the height of the
case.
Level
(4 ft[1220mm])

9
Installation (cont’d)
Setting and Joining
The sectional construction of these models en-
able them to be joined in line to give the effect of
one continuous display.
An Alignment pin kit is supplied with every case
and must be used in alignment.
Leveling
IMPORTANT! IT IS IMPERATIVE THAT CASES
BE LEVELED FROM FRONT TO BACK AND
SIDE TO SIDE PRIOR TO JOINING. A LEVEL
CASE IS NECESSARY TO INSURE PROPER
OPERATION, WATER DRAINAGE, GLASS
ALIGNMENT AND OPERATION OF THE HING-
ES SUPPORTING THE GLASS. LEVELING
THE CASE CORRECTLY WILL SOLVE MOST
HINGE OPERATION PROBLEMS.
1. Using case blueprints, measure off and mark
ontheoortheexactdimensionsofwherethe
cases will sit. Snap chalk line for front and back
positions of base rail or pedestal. Mark the loca-
tion of each joint front and back. Find the high-
est point throughout the lineup. FLOORS ARE
NORMALLY NOT LEVEL! Determine the highest
pointoftheoor;caseswillbesetoffthispoint.
All cases in the entire lineup must be brought up
to the highest level of the case sitting at the high-
est point in the lineup.
2.Setrstcaseoverthehighestpartoftheoor
and adjust legs so that case is level.
ALIGNMENT PINS
CASE BOLTING
LOCATION
SILICONE
SEALANT AREA

10
Installation (cont’d)

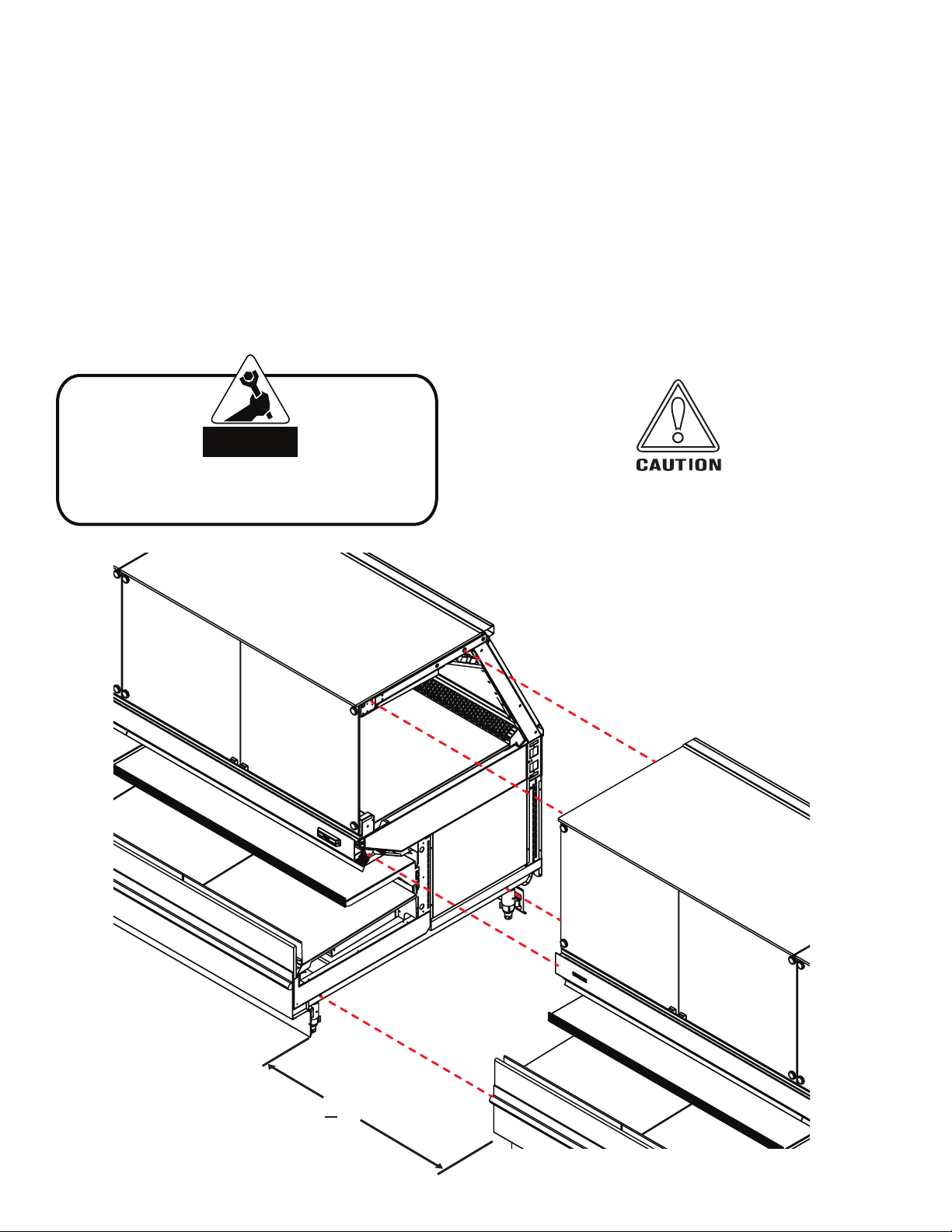

3.Setsecondcasewithinonefoot(1’)oftherst
case. Keep the supports along the length of the
caseandfarendofcase.Levelcasetotherst
using the instructions in step one.
4. Apply liberal bead of case joint sealant (bu-
tyl)torstcase.Sealantareaisshownusinga
dotted line in illustration. Apply heavy amount to
cover entire shaded area.
It is the contractor’s responsibility to install
case(s) according to local construction and
health codes.
ATTENTION
INSTALLER
5. Apply liberal bead of case joint sealant (bu-
tyl)torstcase.Sealantareaisshownusinga
striped line in illustration in page 16. Apply heavy
amount to cover entire shaded area.
6.Slidesecondcaseuptorstcasesnugly.
Thenlevelsecondcasetotherstcasesoglass
front,bumperandtopareush.
Do not use bolts to pull cases together.
< 1’

11
Installation (cont’d)
7. To compress butyl at joint, use two Jurgenson
wood clamps. Make sure case is level from front
to back and side to side on inside bulkheads at
joint.

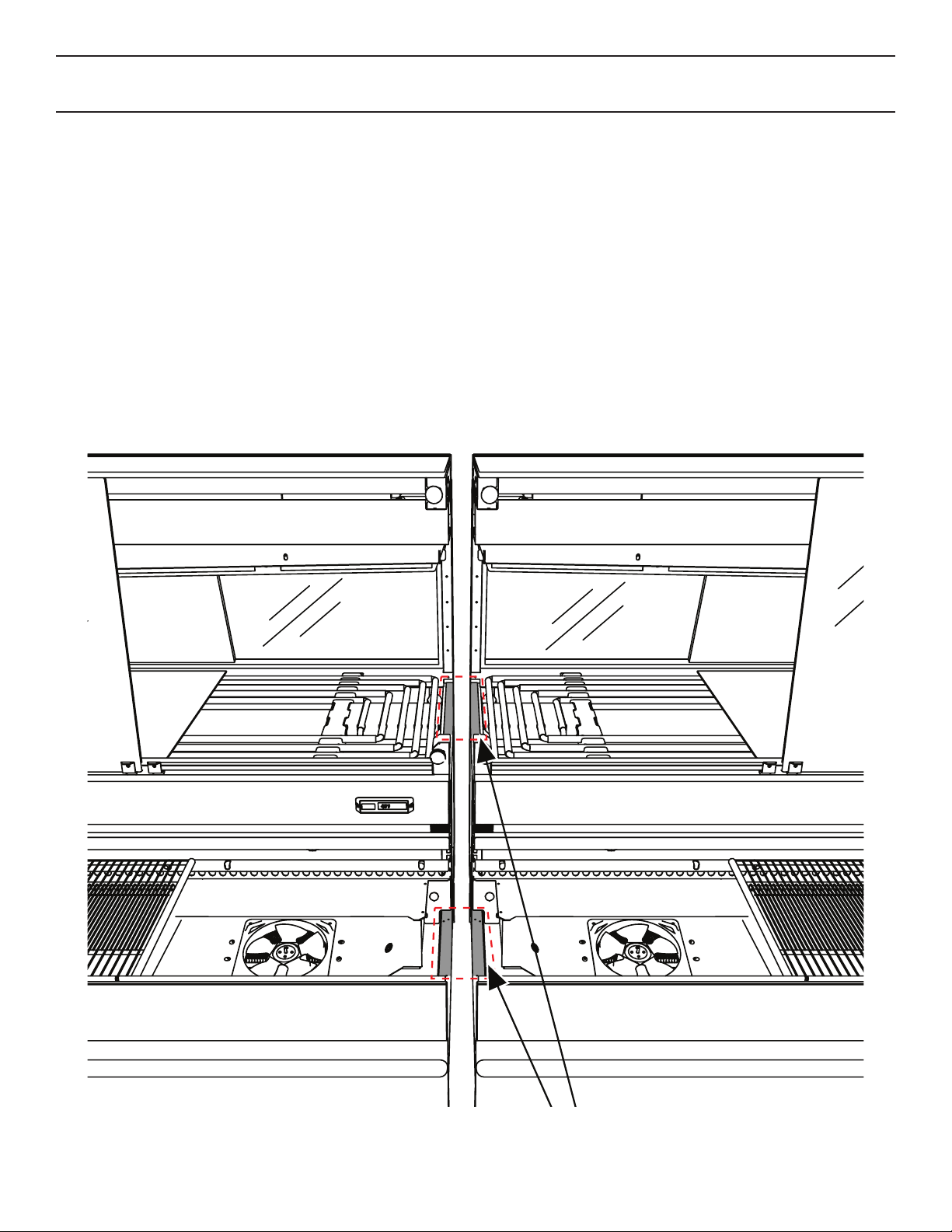

8. Attach sections together via the bolts pictured
in the illustration below.
9. Apply bead of butyl to top of bulk heads and
slip on stainless steel bulkhead cap under the
refrigeration piping as pictured below . Also apply
silicone to seam between joints.
BULK HEAD
JOINT CAPS

12

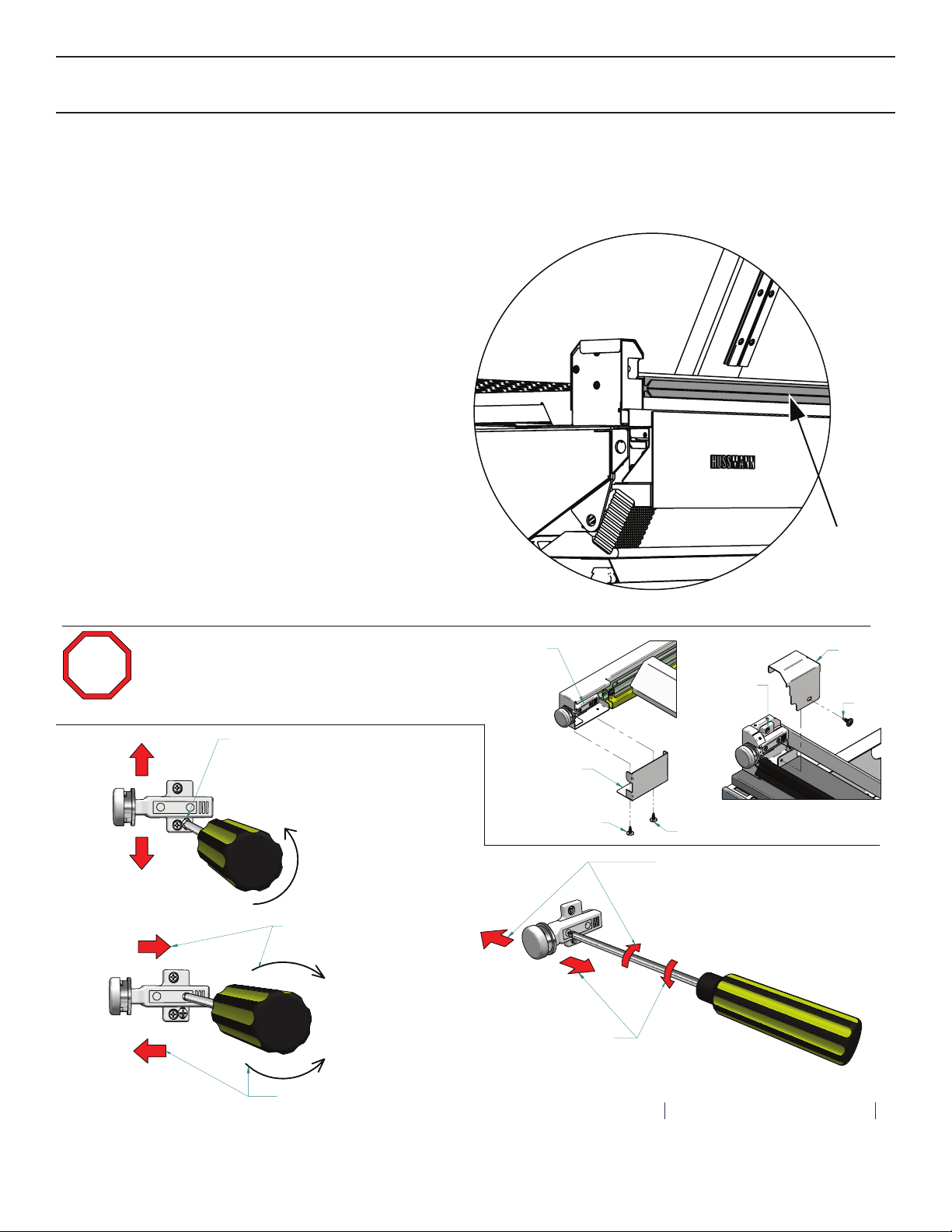

STEP 3. Loosen lock bolt.
STEP 4. With bolt loose, set arms to required
level and support. Insert shims in locations
indicated in the diagram.
Note: All arms must be adjusted and set level
simultaneously
STEP 5. Tighten lock bolt
STEP 6. Replace air grill, deck pans, and rear
raceway cover.
IMPORTANT! Preload the canopy Arm to
minimize sag from product.
IMPORTANT! ATTEMPTING TO COMPEN-
SATE FOR POOR INSTALLATION PRACTIC-
ES BY MANIPULATING THE CANOPY HARD-
WARE WILL RESULT IN UNSATISFACTORY
WORKMANSHIP AND POSSIBLY CAUSE
HARDWARE FAILURE AND/OR INJURY.
VR3 (non HV) Arm Adjustment
STEP 1. Ensure case is level to the ground.
Check level at the bulkhead.

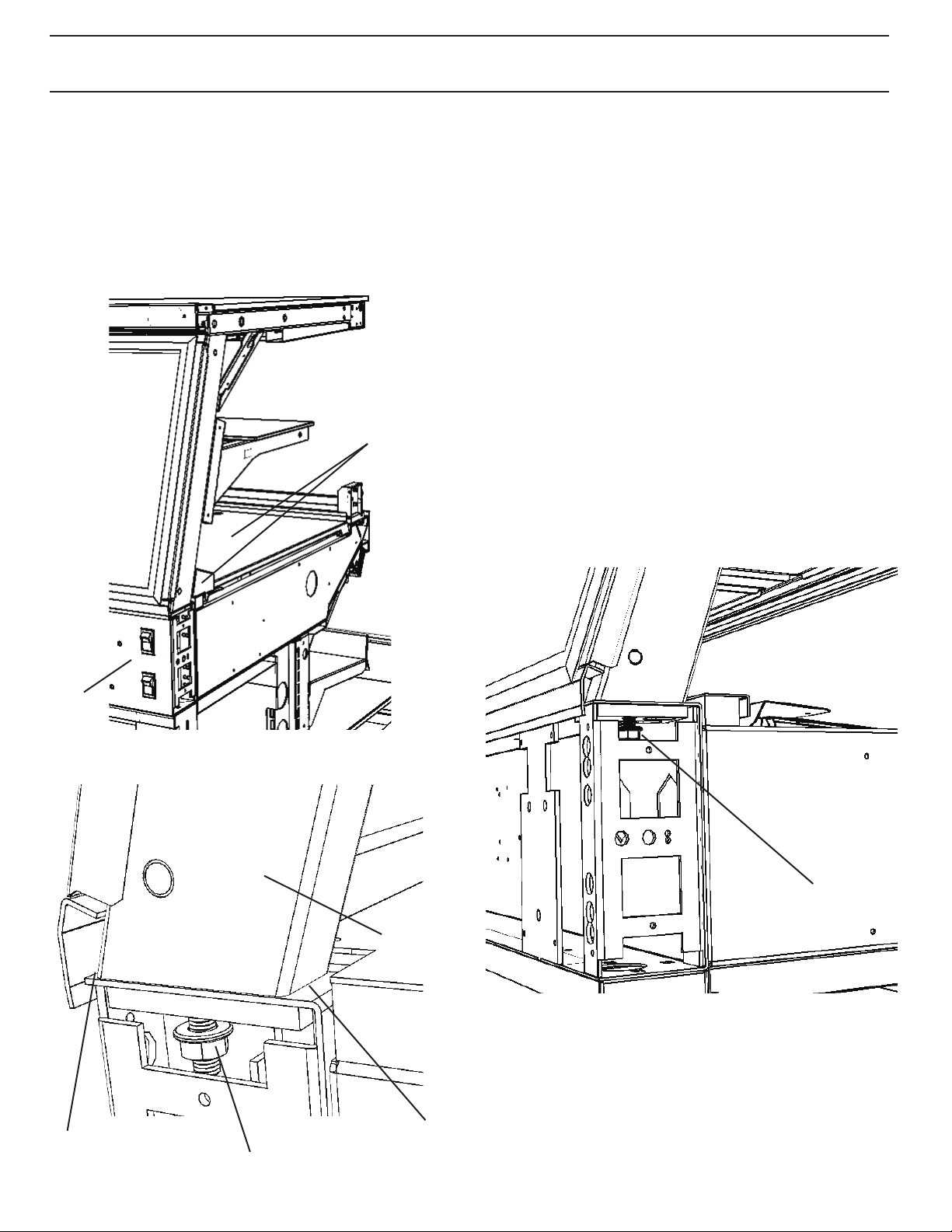

STEP 2. Remove service section deck pans
and air grill. Remove entire rear raceway
cover
2.
ARM ADJUSTMENT (NON HV-D)
STEP 2
STEP 2
STEP 3
ARM
STEP 4 SHIM
LOCATION
STEP 4 SHIM
LOCATION STEP 5

13
ALIGN GLASS
WITH“V” SEAL
Installation(cont’d)
VR3HV Glass Adjustment
Follow these steps accordingly to properly and
safelyadjustthepositionofthefrontglass.
BEFORE ADJUSTING GLASS
• SET, LEVEL, AND BOLT TOGETHER ALL
CASES.
• DOUBLE CHECK LEVELING FOR ALL
CASES.
• DO NOT MOVE LINEUP DURING ADJUST-
MENT.
Glassmustbeparalleltoledgewhenviewedfrom
front.Glassheightshouldbecenteredon“V”
glasssealasdemonstratedbelow.
STOP
Before adjusting glass
Set, Level, and Bolt together all cases
Double check leveling for all cases
Do not move lineup during adjustment
LEFT & RIGHT
IN & OUT
UP & DOWN
UPPER & LOWER HINGE
ACCESS
HINGE
ASSEMBLY
(GLASS NOT
SHOW HINGE
ASSEMBLY
(GLASS NOT
SHOW
TURNING THE SCREWDRIVER
CLOCKWISE WILL CAUSE THE
HINGE TO ADJUST LEFT
TURNING THE SCREWDRIVER
COUNTER- CLOCKWISE WILL CAUSE
THE HINGE TO ADJUST RIGHT
TURNING THE SCREWDRIVER
COUNTER- CLOCKWISE WILL CAUSE
THE HINGE TO ADJUST OUTWARD
TURNING THE SCREWDRIVER
CLOCKWISE WILL CAUSE THE
HINGE TO ADJUST INWARD
1. GENTLY LOOSEN SCREW SHOWN
2. PHYSICALLY MOVE HINGE/GLASS UP OR DOWN
3. TIGHTEN SCREW AFTER FINAL POSITIONING
NOTE:
PERFORM STEP 1 ON ALL HINGES BEFORE LEVELING
CANOPY
UPPER
HINGE
COVER
LOWER
HINGE
COVER
SCREW
SCREW
SCREW

14
Installation (cont’d)
Fasten Rear Body Panel Install
(1) Align clips of rear panel to Base Legs of case
(2) Secure top and bottom clips of rear panel to
Base Les as shown below.
Front Body Panel Install
No tools will be needed to
install body panels.
To begin Bottom panel assembly place the front
panel along in front of the case and align the base
legs just underneath the lower sections of the
case. Snap in spring clips to the base legs of the
case.
BASE LEG
SPRING CLIP

15
CHK ITEM PART # QTY GRAPHIC
□
□
FRONT BODY PANEL TRIM
2H20345(STAINLESS)
2H20345 (EXT COLOR) 1A
□
□
TOE KICK TRIM
TBD (EXT COLOR)
TBD (STAINLESS) 1B
□
SELF SERVICE BULKHEAD CAP 2H20347 (STAINLESS) 1 C
□
SERVICE BULKHEAD CAP 2H20348 (STAINLESS) 1 D
□
REAR ARM TRIM 2H20346 (STAINLESS) 1 E
□
REAR TOE KICK TRIM 2H22014 (STAINLESS) 1 F
□
UPPER FRONT BODY PANEL TRIM
2H20344 (EXT COLOR)
2H20344 (STAINLESS)
1G
□
REAR UPPER RACEWAY TRIM 2H20350(STAINLESS) 1 H
□
REAR LOWER RACEWAY TRIM 2H20351(STAINLESS) 1 I
□
WASHER , 3/8"
300-03-1320
5J
□
BOLT, 3/8 - 16 X 8
300-03-0902
2K
□
GASKET SEAL TAPE
225-01-0628
16 FT L
□
SEALANT, BUTYL, TUBE
100-01-0121
1M
□
ALIGNMENT PIN
0376408
3N
□
SPLINE H CHAN POLY 4 1/2
200-02-3022
1O
□
JOINING NYLON WASHER
2H04205800
1P
□
BOLT, 3/8 - 16 X 1.5
300-03-0850
3Q
□
NUT,3/8-16
300-03-1370
5R
2H21696 (EXT COLOR)
2H21696 (STAINLESS)
□ □
□
SEALANT, SILICONE, TUBE
100-01-0051 (CLEAR)
100-01-0063 (SILVER)
100-01-0065 (BLACK)
1-
□
SCREW, SELF TAP #8 X 1/2
300-03-0037
12 -
□
VHB DOUBLE-SIDED TAPE
175-01-0562
16 FT -
□
COUPLING, 2" PVC
225-01-0090
1- 1
TRIM JOINT FRONT PLEX 6IN
□S
REV E 01/21/2016

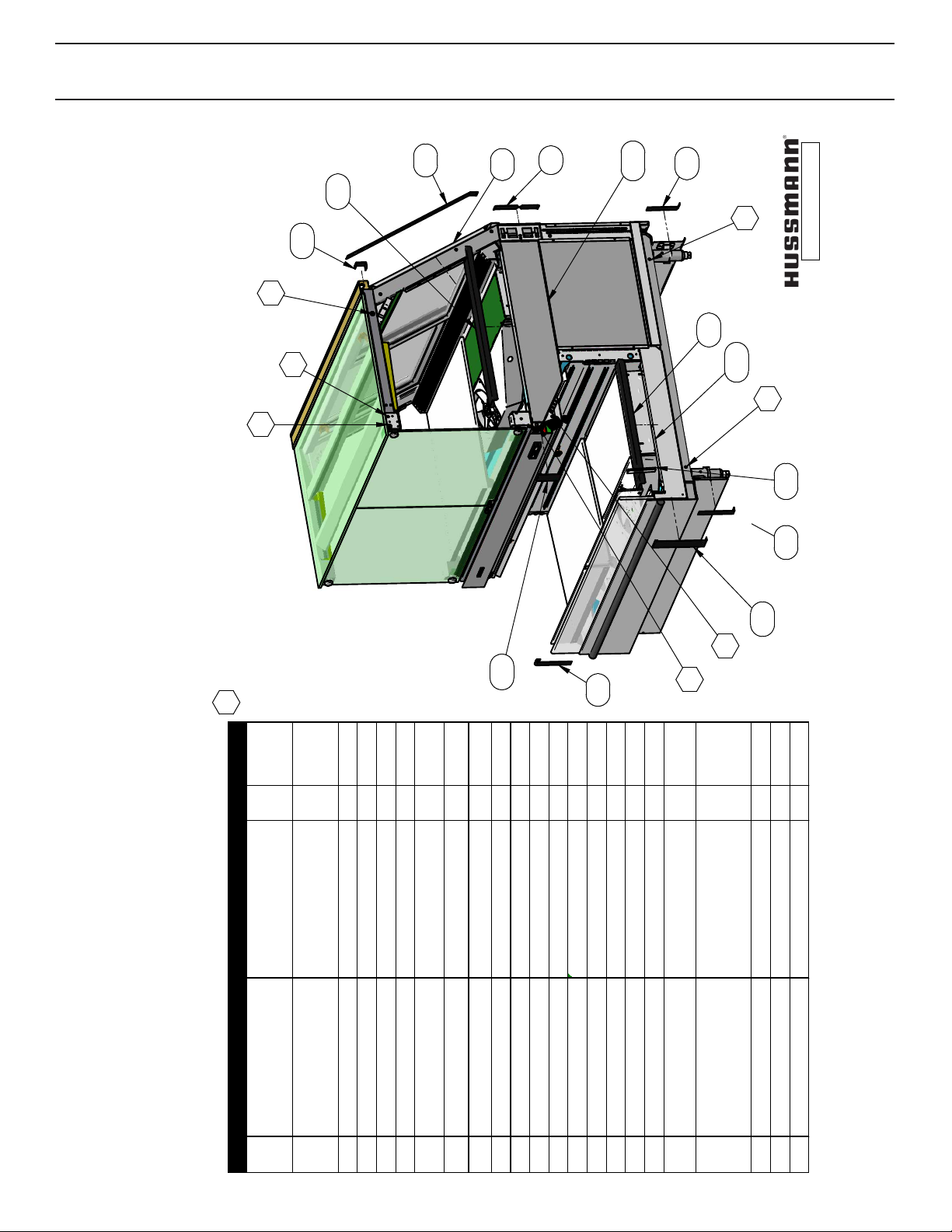

VR3HV/VR3/ JOINT CHECKSHEET
INSPECTOR _________________ SALES ORDER # _____________ EXT COLOR _________________ INT FINISH __SS__/__BLACK___
B
C
A JK*
JK*
D
E
F
G
JQR*
JQRP*
L
M
JQR*
N
N
H
I
M
O
*SEE INSTALLATION GUIDE INDICATES CASE BOLTING/ALIGNMENT POINT
S
JOINT TRIM 

16
Refrigeration
Refrigerant
The correct type of refrigerant will be stamped on
each merchandiser’s serial plate. The case re-
frigeration piping is pressurized with a nitro-
gen holding charge, leak tested and factory
sealed. Before making refrigeration hookups,
depress universal line valve (Shraeder Valve)
to ensure that coils have maintained pressure
during shipment. In the case pressure was not
maintained contact your Hussmann Service Tech
for further assistance.
CAUTION
Refrigeration lines are under pressure.
Refrigerant must be recovered before
attempting to make any connections.
Refrigerant piping
The refrigerant line connections are at the right
hand end of the case (as viewed from the front)
beneath the display pans. The merchandiser will
beforehand ensure an earlier cut hole through
the pod to exit the merchandiser for the refrigera-
tion lines. After connections have been made,
make certain to seal this outlet thoroughly if not
sealed at factory already. Seal both the inside
and outside. We recommend using an expanding
polyurethane foam insulation.
Line Sizing
Refrigerant should be sized as shown on the
refrigeration legend that is furnished for the store
or according to the ASHRAE guidelines
Oil Traps
P-traps (oil traps) must be installed at the base
of all suction line vertical risers.
It is the contractor's responsibility to install
case(s) according to local construction and
health codes.
DETAIL A
Piping drop
located underneath
serpentine coil

17
HUSSMANN_GDF_2.1 SHEET SIZE D
THIRD
ANGLE
PROJECTION
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS .XX
u
.03, .XXX
u
.010
ANGLES
u
2
v
SHEET 1 OF 1
DIAGRAM-R3-M/F-EP
REVISION HISTORY
REV ECN DATE REVISION DESCRIPTION REV BY CHKD BY APPR BY
A ECN-CAP-0000673 10/5/15 INITIAL RELEASE GR GR
P000021 A
MODEL BY / DWG BY- G. ROUMAYAH
DATE DRAWN - 10/05/15
MATERIAL- NA
CHECKED BY- G. ROUMAYAH
APPROVED BY- G. ROUMAYAH
ECN-CAP-0000673
REF-
GRAVITY COILGRAVITY COILGRAVITY COIL
DECK SPIRAL COIL
NOTE: 1
. SENSOR IS LOCATED AT APPROXIMATELY 15" -20" FROM LEFT HAND SIDE END OF
COIL AND APPROXIMAETLY 0.5" TO 1.0" BELOW BOTTOM OF COIL
2.
SENSOR AND CLAMP SCREW SHOULD BE MOUNTED BELOW COIL TUBE TOP SURFACE
3. SENSOR LOCATED 2" FROM TOP OF RSS AND 4' FROM END WALL NEAREST T-STAT
DIGITAL T-STAT CNTL
DIGITAL T-STAT CNTL
TXV
TXV
SUCTION SOLENOID
FLTR DRYR
( OPTIONAL )
LIQUID LINE
HAND VALVE
(OPTIONAL)
SHRADER VALVE
CHARGE PORT
SHRADER VALVE
CHARGE PORT
SUCTION
SOLENOID
TXV TXV
3.0" 3.0" 3.0"
FAN COIL
FAN COIL
FAN COIL
SUCTION LINE
LIQUID LINE
BOHN COIL
SHRADER VALVE
CHARGE PORT
DIGITAL T-STAT CNTL
LIQUID LINE
SOLENOID
BOHN COIL
SHRADER VALVE
CHARGE PORT
TXV TXV
TXV TXV
TXV
NOTE 1
HEAT EXCHANGER ( OPTIONAL )
FIELD
CONNECTION
NOTE 3
STRAINER
STRAINER
1
2
34
15" -20" APPROX "
REFIG. REAR STORAGE (RSS) ( OPTIONAL )
NOTE 2
1ST COIL FOR 4', 5', 6' CASES
2ND COIL FOR 8', 10', 12' CASES
1ST COIL FOR 4', 5' CASES
2ND COIL FOR 6', 8', 10', CASES
3RD COIL FOR 12', CASE
1ST COIL FOR 4', 5' CASES
2ND COIL FOR 6', 8', 10', CASES
3RD COIL FOR 12', CASE
Refrigeration (cont’d)

18
See demonstrations below for detailed overview of the VR3HV-M/F C/S-EP Piping schematic.
Note:Refrigerationcomponentshavebeenttedwithacomponenttrayforeaseinuseofcleaning
and maintenance under the deck pans.
SOLENOID HAND VALVE
FILTER DRIER
TXV
TXV
Refrigeration (cont’d)

19
Piping schematic for Serpentine Coil and Gravity Coil.
Refrigeration (cont’d)

VERTICAL MEAT SERVICE - SELF SERVICE REVISION DATE 10/03/17
HUSSMANN - VR3M/F-EP SH, +2H, & +4H OPTIONS (CHINO)
REFRIGERATION DATA:
GPM
PSI
GPM
PSI
GPM
PSI
NSF 7
AHRI
NSF 7
AHRI 1200
4'
1.8
0.7
1.7
0.4
0.3
0.2
0.0
4',6',8',10',12'
230/530
230/530
26/26
26/26
6'
2.6
1.0
3.9
0.5
1.4
0.2
0.2
REAR STORAGE
90
90
26
26
8'
3.5
1.4
1.8
0.7
0.4
0.3
0.5
10'
4.1
1.7
3.1
1.0
1.5
0.4
0.7
**FRONT DISCHARGE AIR MEASURED INSIDE AIR CURTAIN HONEYCOMB
12'
5.2
2.0
3.7
1.0
1.4
0.4
0.9
***REFRIGERATION NOTES:
1) BTU'S DO NOT INCLUDE LIGHTS
2) ADD 10 BTU'S PER FOOT/PER SHELF FOR OPTIONAL LED SHELF LIGHTS
3) 2H OPTION; ADD 45 BTU/HR/FT FOR THE FRONT, ADD 5 BTU/HR/FT FOR THE REAR STORAGE.
4) 4H OPTION; ADD 80 BTU/HR/FT FOR THE FRONT, ADD 10 BTU/HR/FT FOR THE REAR STORAGE.
4) SUBTRACT 75 BTU/HR/FT FROM TOP SECTION FOR ICE PAN APPLICATIONS
6) AHRI 1200 RATING POINT FOR ENERGY CONSUMPTION COMPARISON ONLY
7) USE DEW POINT FOR HIGH GLIDE REFRIGERANTS. CARE SHOULD BE TAKEN TO USE THE DEW POINT IN P/T TABLES
FOR MEASURING AND ADJUSTING SUPERHEAT. ADJUST EVAPORATOR PRESSURE AS NEEDED TO MAINTAIN THE
DISCHARGE AIR TEMPERATURE SHOWN.
8) THE PRINCIPAL COOLING EFFECT IN FISH CASES IS ACCOMPLISHED WITH A TRADITIONAL ICE BED. THE REFRIGERATION
PRESERVES THE ICE AND MAINTAINS A COLD PROTECTIVE LAYER OVER THE PRODUCT.
9) RATING CONDITION IS NSF TYPE I, 75°F/55% RH
REFRIGERATION DATA CONTINUED:
TOP GRAVITY 34 33 N/A 1 1.125
TOP DECK 29 28 N/A 1 1.125
FRONT 28 26 N/A 2 1.125
REAR STORAGE 37 36 N/A
ELECTRICAL DATA:
STANDARD FANS, HEATERS, LED LIGHTS (115 VOLT)
4'
2
6.7
15
0.2
16
0.2
28
0.1
10
0.3
39
0.9
100
1
115
15
6'
4
6.7
15
0.5
32
0.4
44
0.1
15
0.5
59
1.3
150
1
115
15
8'
4
6.7
15
0.5
32
0.5
57
0.2
21
0.7
77
1.7
200
1
115
15
10'
4
6.7
15
0.5
32
0.5
62
0.2
26
0.8
88
2.2
250
1
115
15
12'
6
6.7
15
0.7
48
0.7
85
0.3
31
1.0
116
2.6
300
2
115
30
OPTIONAL HIGH OUTPUT LED LIGHTS (115 VOLT)
AMPS
WATTS
AMPS WATTS AMPS WATTS
4'
0.4
43
0.2
26
0.6
69
1
6.70
30
0.3
8.8
6'
0.5
54
0.4
41
0.8
96
1
6.70
30
0.3
8.8
8'
0.8
87
0.4
51
1.2
138
1
6.70
30
0.3
8.8
10'
N/A
N/A
N/A
N/A
N/A
N/A
1
6.70
30
0.3
8.8
12'
1.1
130
0.7
77
1.8
207
1
6.70
30
0.3
8.8
USAGE
CUT IN
(ºF)
CUT
OUT
(ºF)
OFF TIME 30 4
45
48 2.8
45 0.2
45 0.6
CASE LENGTHS CASE USAGE
CAPACITY TOP/FRONT
*** (BTU/HR/FT)
TEMPERATURE (ºF)
CASE
LENGTH
RATING CONDITION EVAPORATOR
TOP/FRONT
DISCHARGE
AIR TOP/FRONT
**
VELOCITY
TOP/FRONT
(FT/MIN)
NSF 7
NSF 7
TOTAL EVAPORATOR FANS
ANTI-SWEAT
HEATERS (ON
FAN CIRCUIT)
AMPS
WATTS
AMPS WATTS
EST.
REFG.
CHRG.
404A
(LBS)
MEAT/FISH
33~36/32~36
50~100/150~200
END PANEL WIDTH KEY
# OF END
PNLS
END PNL
WIDTH
(IN.)
TOTAL ADDED
LENGTH (IN.)
MEAT/FISH
32~34
600~725
ELEC. THERMOSTAT / AIR
SENSOR SETTINGS DEFROST
TYPE
TIME
(MIN)
DEFROST
FREQUENCY
(#/DAY)
TERM. TEMP
(°F) COIL
ONLY
DRIP
TIME
DEFROST
WATER
(LBS/DAY/FT)
CASE LENGTH
AMPS WATTS
CONVENIENCE
OUTLETS (OPTIONAL)
# OF
EVAP
FANS
BLADE
DIA.
(IN.)
BLADE PITCH
FRONT (°)
AMPS
WATTS
AMPS
WATTS
AMPS WATTS
REFRIGERATED REAR STORAGE
(OPTIONAL) EVAP. FANS
CANOPY LIGHTS
LED TOP AND
FRONT
OPTIONAL LED
SHELF LIGHTS
TOP AND FRONT
MAX. LED LOAD
(W/ ALL
OPTIONS)
BLADE
PITCH
(°)
CASE LENGTH
CANOPY
LIGHTS
H.O. LED
OPTIONAL SHELF MAX. H.O. LED
LOAD
# OF
EVAP
FANS
BLADE
DIA. (IN.)
20°F GLYCOL
6° RISE
FRONT TOP
REAR
STORAGE
AMPS
#
OUTLETS
VOLTS
1.125
2.25
1.125
Refrigeration Spec Sheets
20
