Hydrel Placer User manual

Installation Guide 1
Placer/Taylor
Placertwin/Taylortwin
Installation Manual
NOTE: HYDREL RESERVES THE RIGHT TO MODIFY SPECIFICATION WITHOUT NOTICE.
Any dimension on this sheet is to be assumed as a reference dimension:
“Used for information purposes only. It does not govern manufacturing or inspection requirements.” (ANSI Y14.5-1973)
Placer/Taylor Placertwin/Taylortwin| 9/21/20| REV -
©2019 Hydrel Rev. | One Lithonia Way, Conyers, GA 30012 Phone:
1800.705.SERV (7378) | www.hydrel.com
READ AND FOLLOW ALL SAFETY INSTRUCTIONS!
SAVE THESE INSTRUCTIONS AND DELIVER TO OWNER AFTER
INSTALLATION
•To reduce the risk of death, personal injury or property damage from fire, electric shock, falling parts, cuts/abrasions, and other
hazards please read all warnings and instructions included with and on the fixture box and all fixture labels.
•Before installing, servicing, or performing routine maintenance upon this equipment, follow these general precautions.
•Installation and service of luminaires should be performed by a qualified licensed electrician.
•Maintenance of the luminaires should be performed by person(s) familiar with the luminaires’ construction and operation and
any hazards involved. Regular fixture maintenance programs are recommended.
•It will occasionally be necessary to clean the outside of the refractor/lens. Frequency of cleaning will depend on ambient dirt
level and minimum light output which is acceptable to user. Refractor/lens should be washed in a solution of warm water and
any mild, non-abrasive household detergent, rinsed with clean water and wiped dry. Should optical assembly become dirty on
the inside, wipe refractor/lens and clean in above manner, replacing damaged gaskets as necessary.
•DO NOT INSTALL DAMAGED PRODUCT! This luminaire has been properly packed so that no parts should have been damaged
during transit. Inspect to confirm. Any part damaged or broken during or after assembly should be replaced.
•Recycle: For information on how to recycle LED electronic products, please visit www.epa.gov.
•These instructions do not purport to cover all details or variations in equipment nor to provide every possible contingency to
meet in connection with installation, operation, or maintenance. Should further information be desired or should particular
problems arise which are not covered sufficiently for the purchaser’s or owner’s purposes, this matter should be referred to
Acuity Brands Lighting, Inc.
WARNING
RISK OF ELECTRIC
!
•Disconnect or turn off power before installation or servicing.
•Verify that supply voltage is correct by comparing it with the
luminaire label information.
•Make all electrical and grounded connections in accordance
with the National Electrical Code (NEC) and any applicable
local code requirements.
• All wiring connections should be capped with UL approved
recognized wire connectors.
WARNING
RISK OF BURN
!
CAUTION
!
•Wear gloves and safety glasses at all times when removing
luminaire from carton, installing, servicing or performing
maintenance.
•Avoid direct eye exposure to the light source while it is on.
•Disconnect or turn off power before installation or servicing.
•Verify that supply voltage is correct by comparing it with the
luminaire label information.
•Make all electrical and grounded connections in accordance
with the National Electrical Code (NEC) and any applicable
local code requirements.
• All wiring connections should be capped with UL approved
recognized wire connectors.
•Keep combustible and other materials that can burn, away
from lamp/lens.
•Do not operate in close proximity to persons, combustible
materials or substances affected by heat or drying.
!
CAUTION

Installation Guide 2
Placer/Taylor
Placertwin/Taylortwin
Installation Manual
NOTE: HYDREL RESERVES THE RIGHT TO MODIFY SPECIFICATION WITHOUT NOTICE.
Any dimension on this sheet is to be assumed as a reference dimension:
“Used for information purposes only. It does not govern manufacturing or inspection requirements.” (ANSI Y14.5-1973)
Placer/Taylor Placertwin/Taylortwin | 9/21/20| REV -
©2019 Hydrel Rev. | One Lithonia Way, Conyers, GA 30012
Phone: [phone].SERV (7378) | www.hydrel.com
CAUTION:
RISK OF PRODUCT
!
•Never connect components under load.
•Do not mount or support these fixtures in a manner that can cut the outer jacket or damage wire insulation.
•Unless individual product specifications deem otherwise: Never connect an LED product directly to a dimmer packs, occupancy sensors,
timing devices, or other related control devices. LED fixtures must be powered directly off a switched circuit.
•Unless individual product specifications deem otherwise: Do not restrict fixture ventilation. Allow for some volume of airspace around
fixture. Avoid covering LED fixtures with insulation, foam, or other material that will prevent convection or conduction cooling.
•Unless individual product specifications deem otherwise: Do not exceed fixtures maximum ambient temperature.
•Only use fixture in its intended location.
•LED products are Polarity Sensitive. Ensure proper Polarity before installation.
•Electrostatic Discharge (ESD): ESD can damage LED fixtures. Personal grounding equipment must be worn during all installation or
servicing of the unit.
•Do not touch individual electrical components as this can cause ESD, shorten lamp life, or alter performance.
•Some components inside the fixture may not be serviceable. In the unlikely event your unit may require
•service, stop using the unit immediately and contact an ABL representative for assistance.
•Always read the fixtures complete installation instructions prior to installation for any additional fixture specific warnings.
Please see product specific installation instructions for additional warnings or any applicable FCC or
other regulatory statements.
Failure to follow any of these instructions could void product warranties. For a complete listing of
product Terms and Conditions, please visit www.acuitybrands.com.
Indoor/Outdoor
Indoor Lighting
Outdoor Lighting
Controls
Lithonia Lighting
Gotham
American Electric Lighting
Dark to Light
Carandini
Mark Architectural Lighting
Antique Street Lamps
Lighting Control & Design
Holophane
Peerless
Hydrel
ROAM
RELOC
Renaissance Lighting
Tersen
Sensor Switch
Winona Lighting
Synergy
Acuity Brands Lighting, Inc. assumes no responsibility for claims arising out of improper or careless
installation or handling of its products.
ABL LED General Warnings, Form No. 503.203
© 2019 Acuity Brands Lighting, Inc. All rights reserved. 07/31/19

Installation Guide 3
Placer/Taylor
Placertwin/Taylortwin
Installation Manual
NOTE: HYDREL RESERVES THE RIGHT TO MODIFY SPECIFICATION WITHOUT NOTICE.
Any dimension on this sheet is to be assumed as a reference dimension:
“Used for information purposes only. It does not govern manufacturing or inspection requirements.” (ANSI Y14.5-1973)
Placer/Taylor Placertwin/Taylortwin | 9/21/20| REV -
©2019 Hydrel Rev. | One Lithonia Way, Conyers, GA 30012
Phone: [phone].SERV (7378) | www.hydrel.com
1. INTRODUCTION
LED Luminaire Models:
Taylor – 12V
Placer – 12V / 120V
1.1 Product Description
LED Accent Luminaires listed to applicable U.S. &
Canadian safety standards by Canadian Standards
Association (CSA). These luminaires are suitable for
wall mounting, as well as for wet location installations.
These devices comply with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
Device may not cause harmful interference, and (2)
Device must accept any interference received, including
interference that may cause undesired operation.
1.2 Technical Information Sources
If additional questions arise relative to these luminaires
that this document or your supplier cannot answer,
please refer then to:
Architectural Technical Support – Hydrel [phone],
Press #5 for Hydrel

Installation Guide 4
Placer/Taylor
Placertwin/Taylortwin
Installation Manual
NOTE: HYDREL RESERVES THE RIGHT TO MODIFY SPECIFICATION WITHOUT NOTICE.
Any dimension on this sheet is to be assumed as a reference dimension:
“Used for information purposes only. It does not govern manufacturing or inspection requirements.” (ANSI Y14.5-1973)
Placer/Taylor Placertwin/Taylortwin | 9/21/20| REV -
©2019 Hydrel Rev. | One Lithonia Way, Conyers, GA 30012
Phone: [phone].SERV (7378) | www.hydrel.com
2. INSTALLATION
TheseLuminaires (Fixtures) may be mounted directly
onto a UL approved wall junction box or optional wall
mounts.
2.1 Mounting
Warning: Turn Off supply power prior to making any
electrical connections.

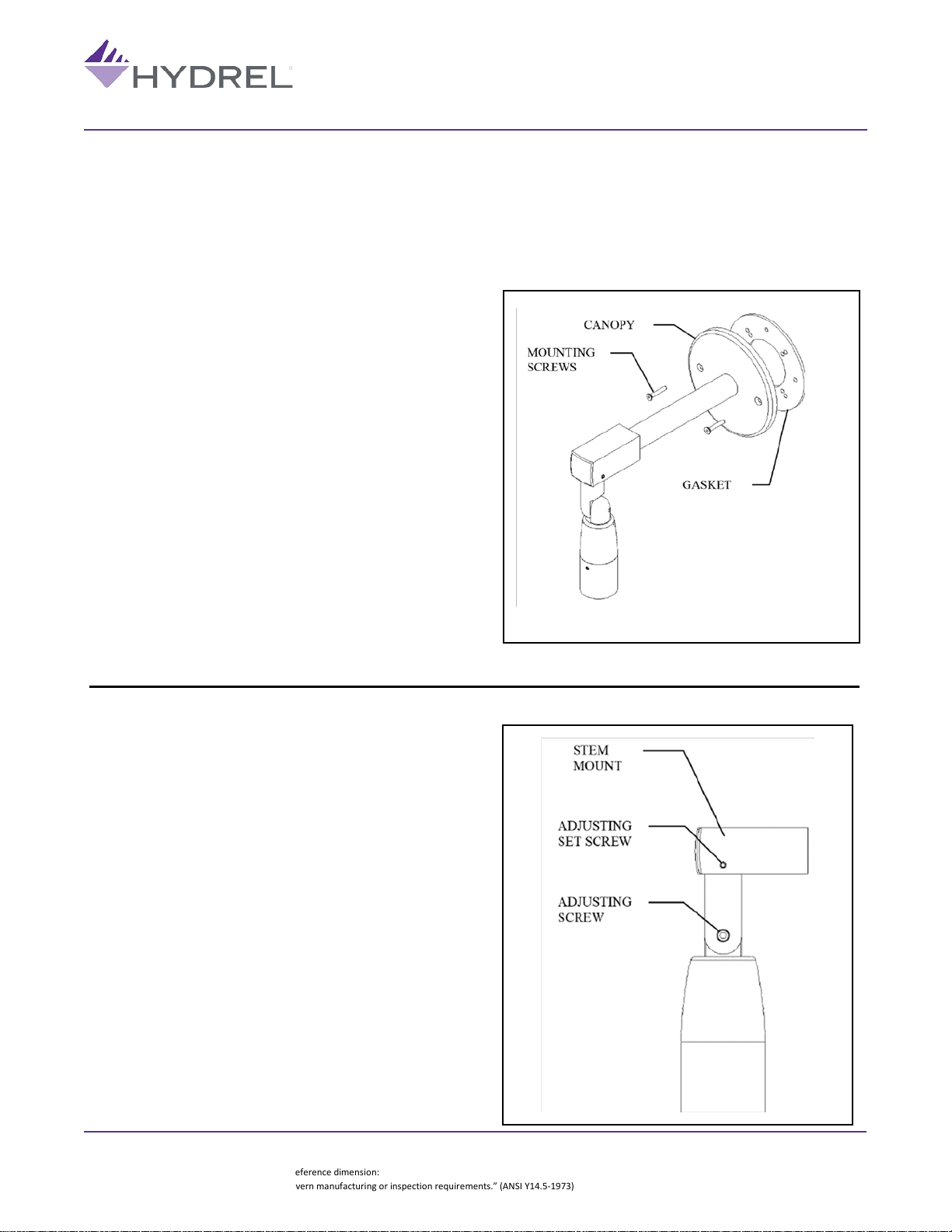

1. Place gasket over leads on mount place
2. Make wire connections:Connect luminaire
leads to junction box wires using watertight
connectors.
3. Attach canopy to junction box using gasket and
screws provided.
CAUTION: Ensure the junction box can support
the luminaire’s weight.
2.2 Tilt & Rotational Adjustment
Tilt Adjustment:
1. Loosen adjusting screw with 5/32” Allen
Wrench. Do not remove adjusting screw
completely.
2. Tilt luminaire to desired angle.
3. Tighten adjusting screw – Careful not to over
tighten.
Rotational Adjustment:
1. Loosen adjusting set screw on end of stem
mount.
2. Rotate to desired position.
3. Tighten adjusting set screw – Careful not to
over tighten.

Installation Guide 5
Placer/Taylor
Placertwin/Taylortwin
Installation Manual
NOTE: HYDREL RESERVES THE RIGHT TO MODIFY SPECIFICATION WITHOUT NOTICE.
Any dimension on this sheet is to be assumed as a reference dimension:
“Used for information purposes only. It does not govern manufacturing or inspection requirements.” (ANSI Y14.5-1973)
Placer/Taylor Placertwin/Taylortwin | 9/21/20| REV -
©2019 Hydrel Rev. | One Lithonia Way, Conyers, GA 30012
Phone: [phone].SERV (7378) | www.hydrel.com

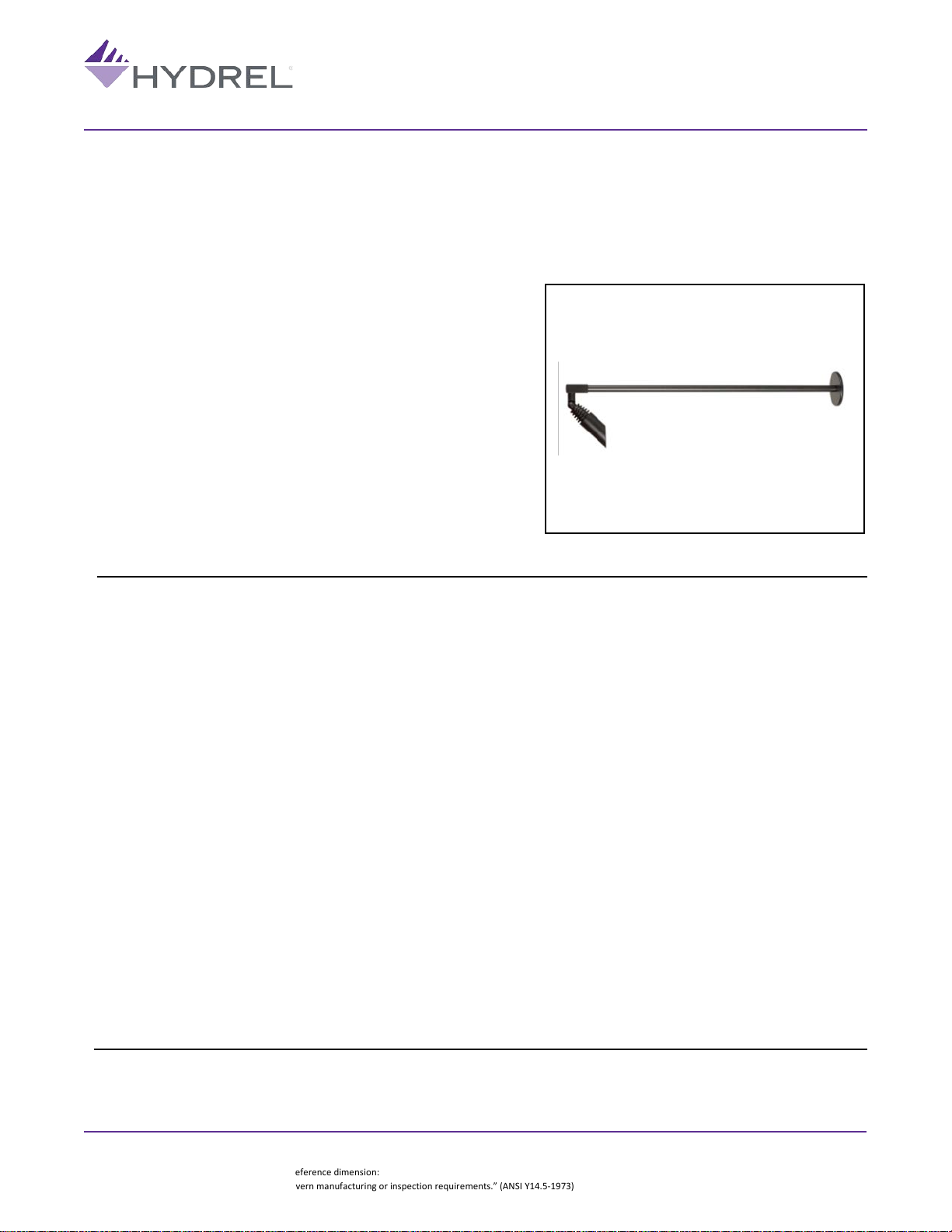

2.6 Electrical Connections
Warning: Turn Off supply power prior to making any
electrical connections.
12V Luminaires:
These luminaires are designed for use with a remote
transformer (landscape lighting type) with electrical
ratings not to exceed 15V, 25A, 300W.
Wire – Use only cable rated for low voltage. If cable is
to be buried, max depth is 6 inches, unless using direct
burial cable. Use the chart below to determine proper
wire gauge, wattage & length of run.
WireConnectors – Use silicone filled, waterproof wire
nuts to make electrical connections.
Luminaire Voltage Test – Test luminaire with a digital
voltage meter at luminaire’s input wire leads. Voltage
at the wire leads must not exceed 15 Volts or drop
below 10.5 Volts or luminaire warranty will be voided.
3. MAINTENANCE
Cleaning of Luminaire - Use a soft clean cloth with
mild detergent and water to clean and remove debris
from the exterior portions of the luminaire’s housing and
lens.
Caution – Do not use abrasive or organic cleaners
such as acetone or ammonia on luminaire’s housing or
lens.Their use may damage painted surfaces or affect
optical performance.
Chart based on magnetic transformers with
12V output
