HydroLogic stealthRO150 User manual

USER MANUAL

2
DESCRIPTION
The is a customized Reverse Osmosis water lter that is capable of reducing
up to 99% of most contaminants. This system is designed and built for use with hydroponic
or horticultural applications. This system is built to give the maximum amount of ow from the
membrane while sending less wastewater to the drain, compared to similar RO lters. Please
read the following setup and maintenance guide to get the maximum results from your lter.
TABLE OF CONTENTS
Description, Table of Contents, Precautions..........................................................p 2–3
Filter Replacement Schedule/Upgrade Filters Replacement Schedule ......................p 4–5
Stealth-RO150 Includes.........................................................................................p 6
Flow Restrictor Setup ........................................................................................p 7–8

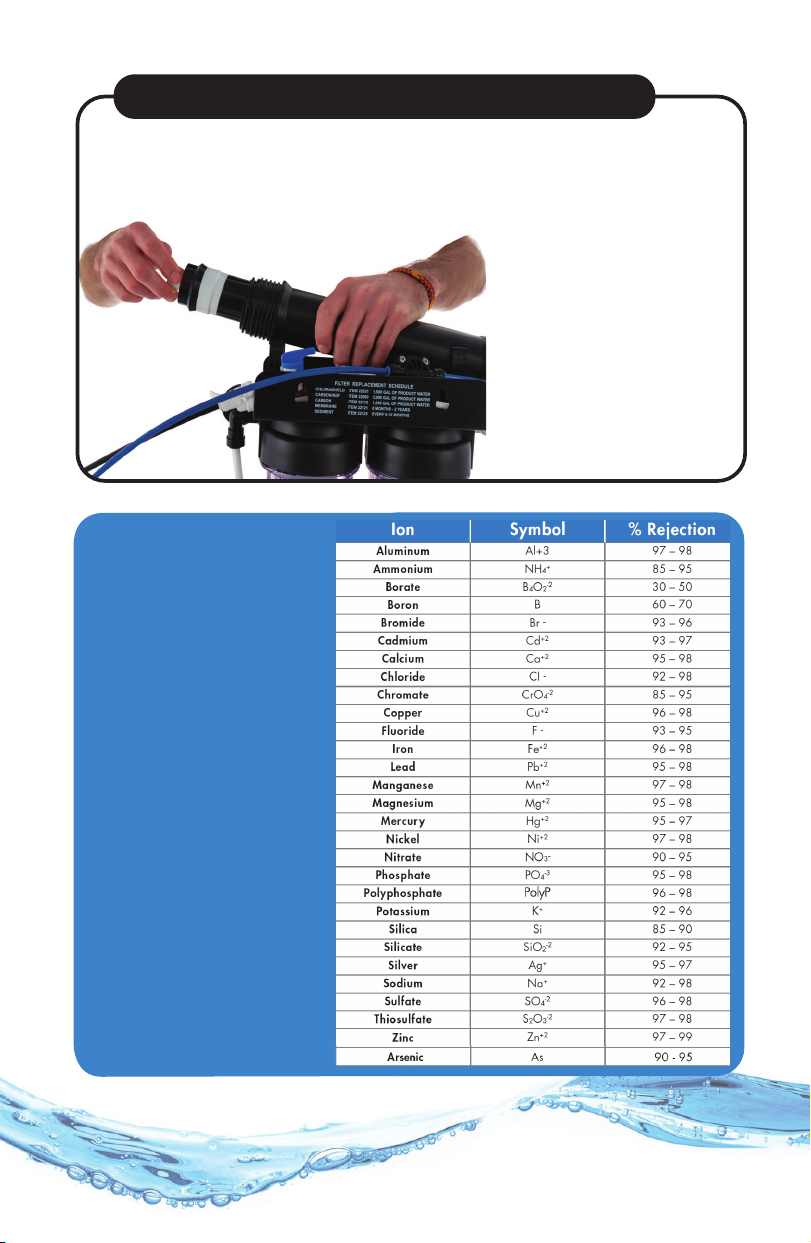

Setup, Changing the RO Membrane, TFC Membrane Rejection Chart ..................p 7–14
Accessories .................................................................................................p 15–16
Component Specs ........................................................................................p 17–18
Performance ......................................................................................................p 19
Warranty and Support........................................................................................p 20
Troubleshooting ........................................................................................... p 21–22
Contact Info .....................................................................................................p 23

3
PRECAUTIONS

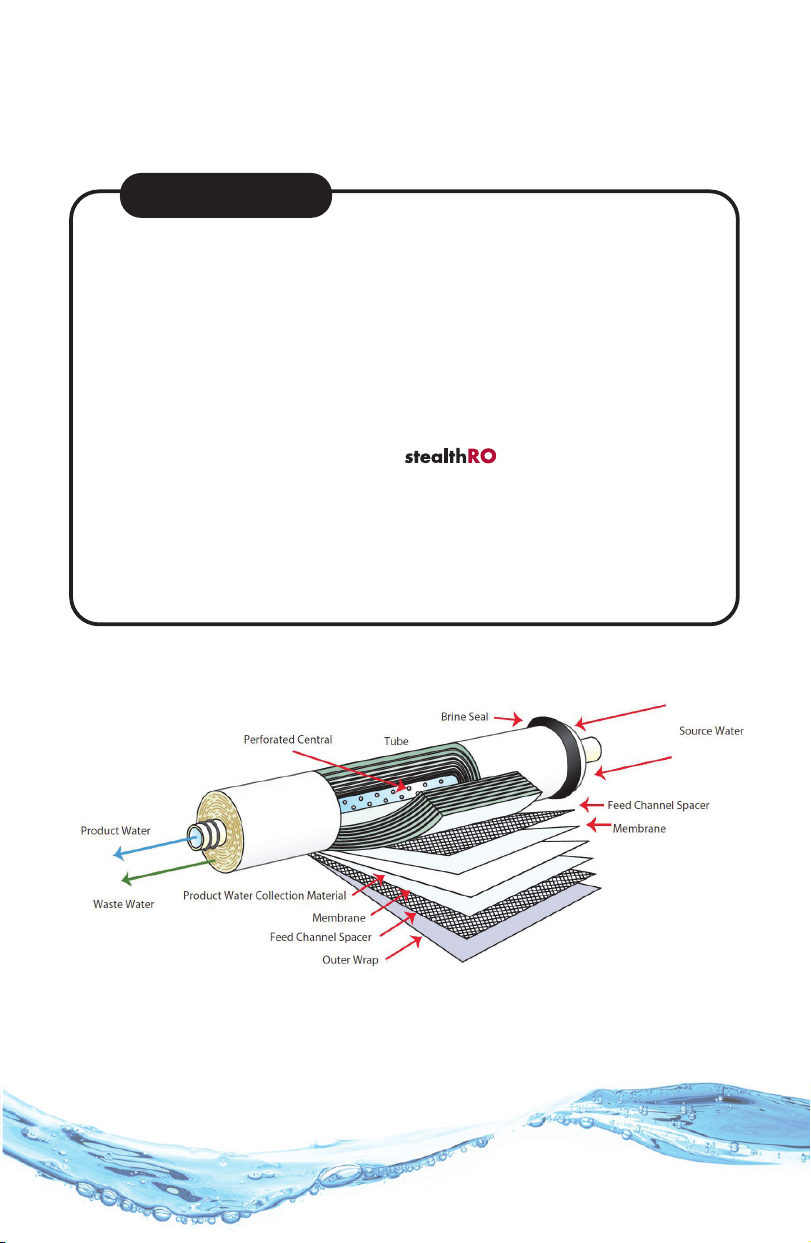

REVERSE OSMOSIS MEMBRANE DIAGRAM
• Do not install the unit where the source/inlet pressure may be more than 80 psi or
there are excessive water hammer/spike problems. If your inlet pressure is more than
80 psi, install a 3/8" pressure regulator (HL 10071 see pg. 15), available at your
dealer or through HydroLogic.
• Keep out of direct sunlight or high intensity lights, which degrade the housing and
ttings over time. For added protection use the Algae Block Sleeve (HL 26009 see
pg. 15) to protect from sun or lights.
• When replacing lter cartridges, use the lter wrench to remove housings. Do not use
the wrench to tighten the housings. Hand-tighten the housings only. Take care not to
over-tighten.
• Do not install where leakage or failure may cause damage to property.
• If you are going to store or not use your for an extended period of time
(2 weeks+), remove your membranes, seal them in plastic and put in refrigerator.
• Protect unit against freezing to prevent cracking of the lter housings and water
leakage.
• Replace both clear pre-lter housings every three years: HL 23165 from your local
dealer or from HydroLogic.
• Do not drop or place heavy objects on top of unit.

4
HL 22121HL 22110HL 22125
Filter HydroLogic Part # Replacement
Schedule
Sediment lter—Pleated HL 22125 clean regularly,
change bi-annually
Green Coconut Carbon lter HL 22110 1,250 gallons of
puried water
KDF85/Catalytic Carbon
Upgrade Filter HL 22060 2,000 gallons of puried water
Membrane Element—150 GPD HL 22121 6 months–2 years
HL 22060
BE SURE TO CHANGE YOUR PRE-FILTERS BASED ON THE FILTER
REPLACEMENT SCHEDULE!
The Flowmaster lter capacity monitor is a great way to keep track of your lter changes.
(HL 19014 See pg. 15)
FILTER REPLACEMENT SCHEDULE

5
ChloraShield®
Protect your roots! Many cities are switching to chloramines
as their primary method of disinfection. Chloramines are
most commonly formed when ammonia is added to chlorine
to treat drinking water, making it harder to remove. While
our Green Coconut Carbon lters work great for chlorine,
the smaller molecule size of chloramines requires additional
ltration to ensure your root-supporting microbes are happy
and healthy.
• Specialty Carbon Filter for 100% Chloramines Removal
• Meets NSF/ANSI component certication standards
• Meets Prop 65 standards
• 1,500 Gallon Capacity
• 100% USA Made
Filter HydroLogic Part # Replacement
Schedule
HL 22021 1,500 gallons of puried
water
Note: Chloramines are a disinfecting agent that is being added by some
cities to the water supply in place of, or in addition to, chlorine. They are
a much more stable form of chlorine and do not dissipate from letting
the water be exposed to air or bubble out with an airstone. They cause
the same damage to all living things as does chlorine. Manufacturers
of carbon block lters, such as the one that comes standard with the
smallBoy, do not make specic claims for chloramines removal. If you are
sure your water supply contains chloramines, you can completely remove
them by upgrading the standard carbon lter to our
carbon lter.
OPTIONAL FILTER
HL 22021

6

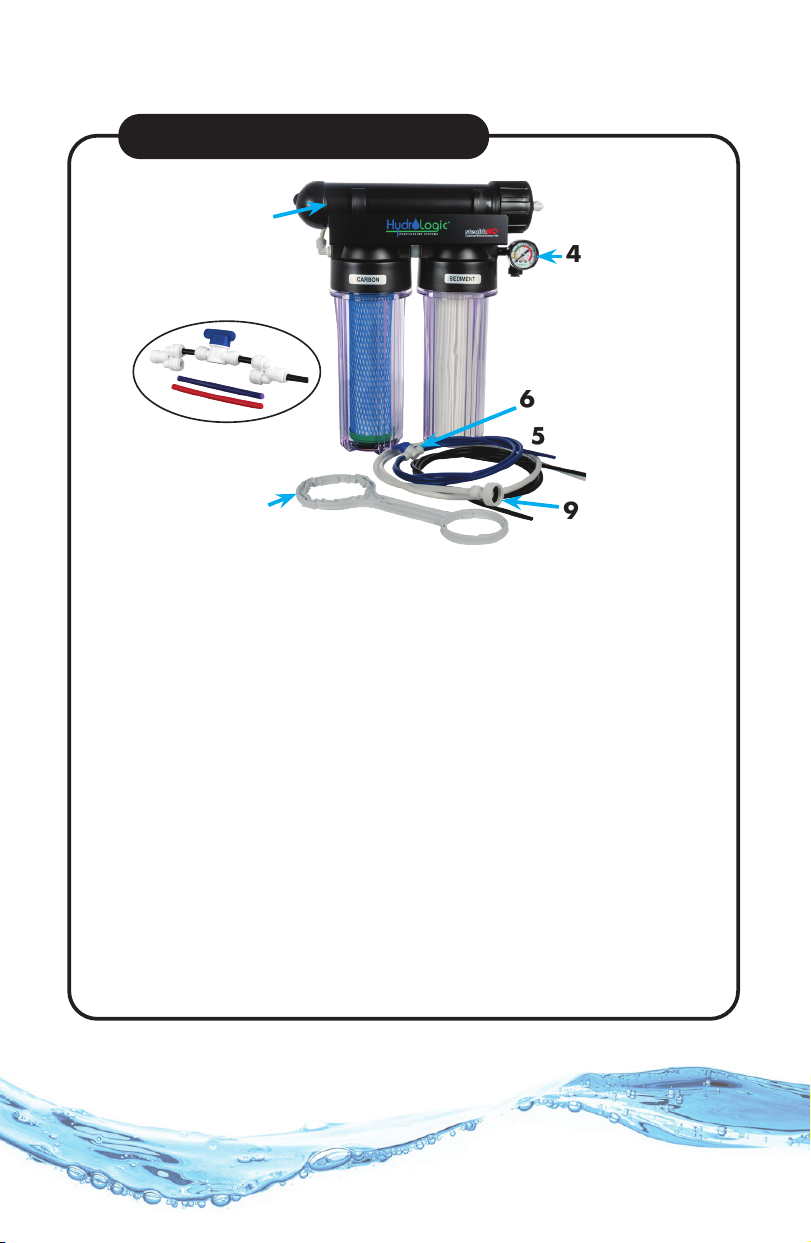

1. Stage 1—Pleated, Cleanable Sediment lter
Reduces dirt, sediment, silt, rust, etc.
2. Stage 2—Green Coconut Carbon or KDF85/Catalytic Carbon upgraded lter
Reduces chlorine and other toxins
3. Stage 3—150 GPD Reverse Osmosis Membrane
Reduces PPMs of Total Dissolved Solids
4. Inlet Pressure Gauge with safe zones
Shows dynamic line pressure and optimal operating zones
5. 5' white inlet tubing, 8' blue product tubing, 8' black wastewater tubing
Food grade LLDPE (linear low density polyethylene) tubing
6. Inline Shut-Off Valve Turns system on/off manually
7. Double-Ended Filter Housing Wrench
Large end for lter housing, small end for membrane housing cap
8. Flow Restrictor/Flush Kit Assembly with 1:1 and 2:1 Flow Restrictors
Determines waste to puried water ratio
9. Garden Hose Connector
3
8
9
6
5
7
4
STEALTH-RO150 INCLUDES
2 1

7
A: The system comes with 1:1 red and 2:1 purple Flow Restrictors which determine the
wastewater to puried water ratios. The 2:1 (purple tubing) Flow Restrictor will give you the
best trade-off between membrane life and wastewater. If you have relatively low Parts Per Million
(PPM) source water or desire less wastewater you can choose to use the included 1:1 (red
tubing) Flow Restrictor.
Warning: The red 1:1 Flow Restrictor reduces wastewater and can lead to reduction in the
membrane life. The higher the source water’s PPM, the shorter your membrane life will be.
USE AT YOUR OWN RISK if the source water is above 300 PPM.
B. Once you have chosen the Flow Restrictor, install it into the Flow Restrictor/Flush Kit Assembly
(push both ends of the Flow Restrictor all the way into the open quick connect ttings). Note: The
Flow Restrictor tubing can be installed in either direction.
A
B
FLOW RESTRICTOR/FLUSH KIT SETUP

8

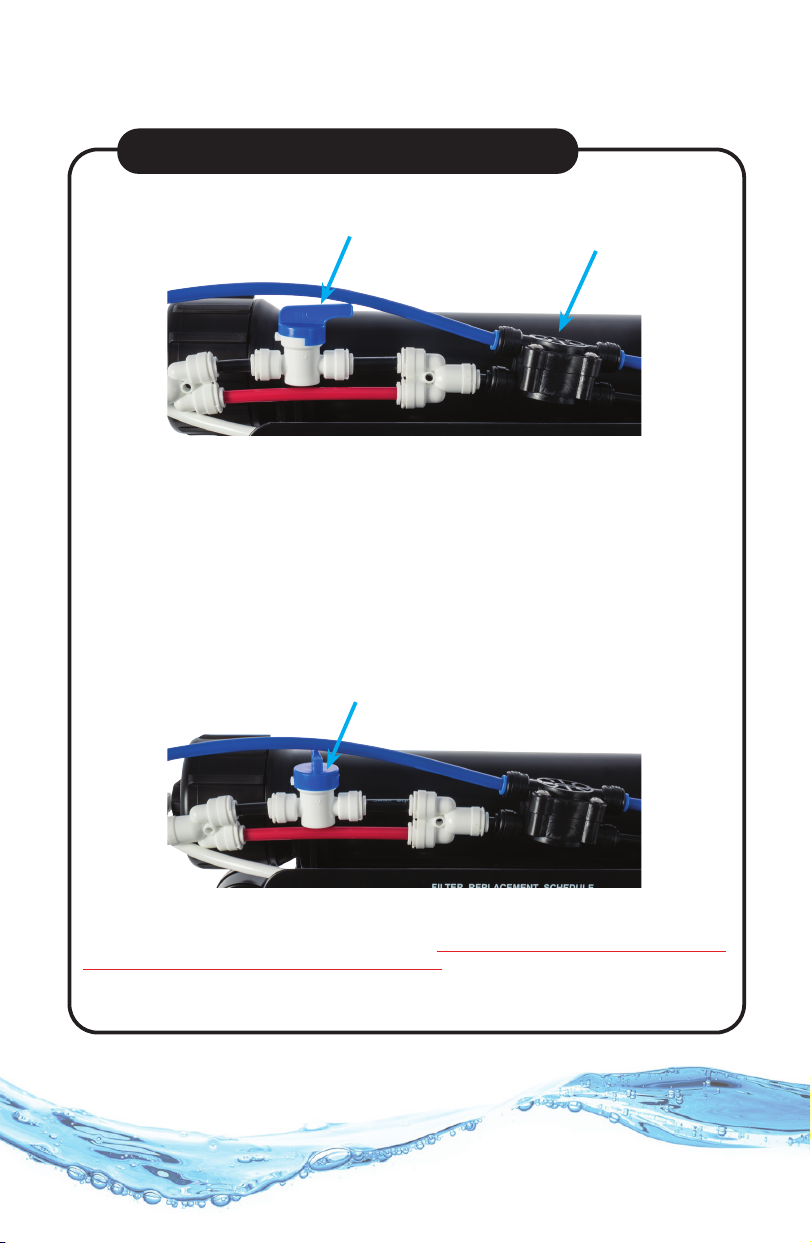

C: Next take the Flow Restrictor/Flush Kit Assembly and install it on the system by pushing the short
piece of pre-installed black tubing on the Flow Restrictor/Flush Kit Assembly into the open black
quick connect tting on the ASOV.
Note: When starting up the system for the rst time, make sure that the blue valve an the Flow
Restrictor/Flush Kit Assembly is in the open position (parallel with tubing). In order to ush the carbon
pre-lter properly, run for 2–3 minutes and discard all water. It is recommended to power ush the
system once a week for 5 minutes. This will help remove scale build up on the membrane.
D:Once the initial ush is complete turn the blue valve on the Flow Restrictor/Flush Kit Assembly
to the closed position (perpendicular to the tubing). THE BLUE VALVE SHOULD BE IN THE
CLOSED POSITION FOR NORMAL OPERATION.
C
D
Open ASOV
FLOW RESTRICTOR/FLUSH KIT ASSEMBLY, CONT.
Closed For Normal Operation

9
1. lnlet Tubing (White)
2. Automatic Shut-off Valve (ASOV)
3. Product Tubing (Blue)
4. Waste Tubing (Black)
5. Flow Restrictor/Flush Kit Assembly
Main Unit Setup:
There are 3 long lengths of tubing included with the system. Push the 3 /8" white inlet tubing into
the 3
/8" QC pressure gauge tting. Connect the ¼" blue product water tubing to the blue outlet of
the ASOV. Connect the ¼" black wastewater tubing to the outlet of the Flow Restrictor/Flush Kit
Assembly. You are now ready to connect the included garden hose adapter to your source water
and the other end of the 3
/8" white inlet tubing. There are a variety of feed valve options available to
connect to any existing plumbing. Inquire at your dealer, or through HydroLogic.
5
4
2
3
1
STEALTH-RO150 SETUP

10
Be sure the Flow Restrictor/Flush Kit Assembly’s blue valve is open (handle is parallel with tubing,
see gure E). Next, slowly turn the source water on until both the Carbon and Sediment lters have
water in the housings. Once both pre-lter housings are full, open source water up all the way (do
not exceed 80 psi). Power ush the system for 2–3 minutes when the system is new and/or when you
replace your carbon lter. Next, close the blue valve and continue to ush the membrane for 30–45
minutes. This will ush out the food grade preservative in the membrane.
After the initial 30–45 minute ush, turn the inline shut-off valve (pre-installed on the blue puried
water line) to the off position (perpendicular to the tubing). This will shut the water off on both the blue
and black lines, and pressurize the system. This is a good way to make sure that all the ttings and
connections are secured properly and that there are no leaks. It is also a good way to make sure that
the ASOV is working properly, meaning the black drain line is also shutting off shortly after the blue
line shuts off. If there are problems of any kind please contact HydroLogic directly at 888-426-5644
Note: It may take up to 24 hours of running the system for the PPM of the puried
water to stabilize at the lowest rejectiion reading.
WARNING: USING NON-ORIGINAL
REPLACEMENT FILTERS OR MEMBRANES
WILL VOID THE WARRANTY
STEALTH-RO150 SETUP, CONT.
EThis is only open during a new lter ush, and
always closed during normal operations
ASOV

11

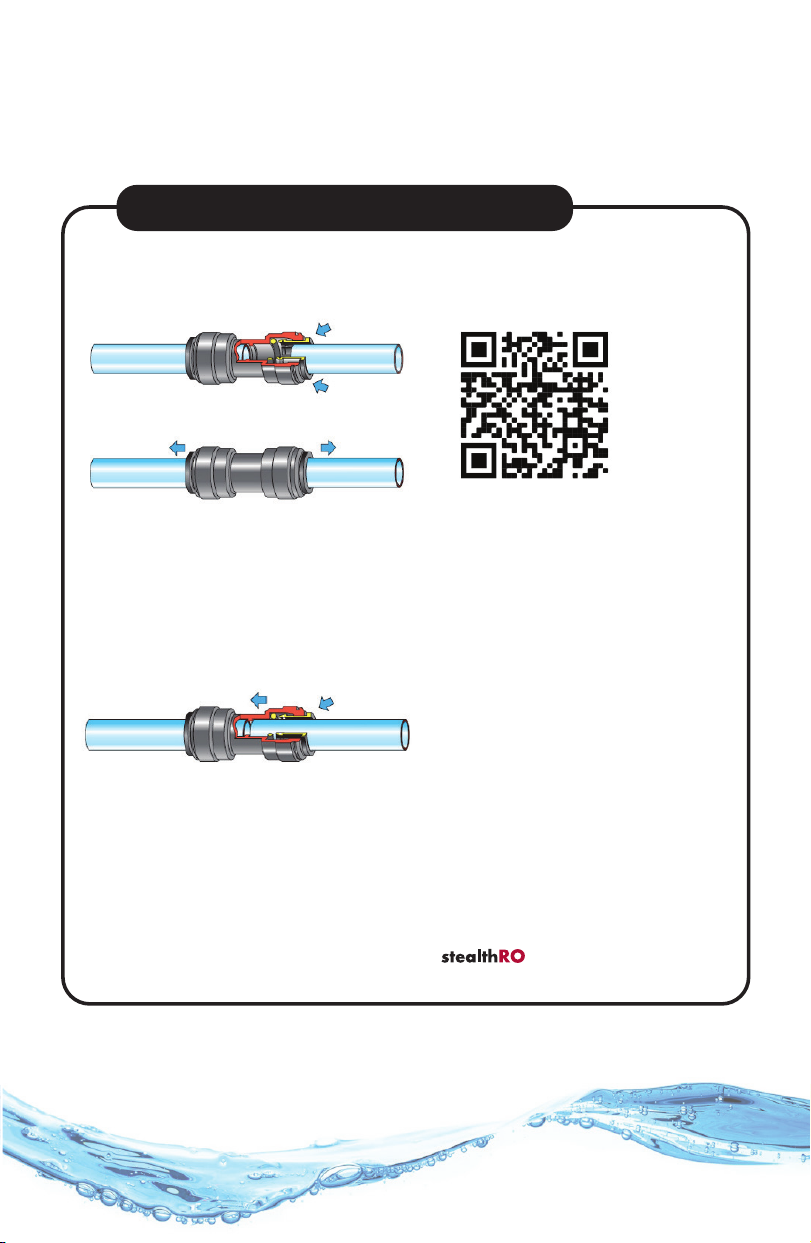

Connecting QC Fittings:
Push tubing rmly into the tting, all the way until the tube stops. The collet (gripper) has stainless steel teeth
which hold the tube rmly in position while the O-ring provides a leak proof seal. Pull tubing to check for
security. If some tube pulls out, then push it all the way in again until it stops. It is good practice to test the
system prior to leaving site and/or before use.
Disconnecting QC Fittings:
Ensure system is depressurized before removing ttings then push in the collet evenly against the face of
the tting. With the collet held in this position the tube can be removed by simply pulling. You can use a
collet release tool (HL 24010, available from your dealer). The tting can then be re-used. If the tubing
has been removed several times you may see score marks on the ends, and this can lead to leaks. It is
best to cut the end off of the tubing with a sharp blade, being careful to cut straight across. Any angle to
the cut can cause a leak.
Please visit www.hydrologicsystems.com/resources for
tutorial videos on the .
Scan To View Instruction Video
QUICK CONNECT FITTINGS (QC)

12
It is essential that you change your pre-lters regularly. The Green Coconut Carbon lter has a
rated life of approximately 1,250 gallons*of puried water produced. The Sediment lter can be
cleaned at your faucet or with a garden hose as often as you like. You should change the Sediment
lter at least every 6 months.
*2,000 gallon lter life with KDF85/Catalytic Carbon upgraded lter
Dirt can become embedded in your pre-lters and cause slower ow rates. To rinse the pre-lters,
use the included lter wrench to loosen the clear pre-lter housings. Be careful not to over-tighten
when reinstalling. It is preferable to hand-tighten lter housings.
The Reverse Osmosis membrane has a useful lifespan of 6 months to 2 years depending on how
high your source water PPM is, if there are high levels of certain contaminants (such as iron &
silica), how much water you produce and regular pre-lter maintenance. If your water is highly
contaminated, then you may need to change the membrane more often. If your water is relatively
clean and you keep up with your pre-lter changes, they may last 2 years+.
There are two indications as to when to change your membrane:
1. PPM rejection %: Test the RO product and source/inlet water to see what % of the inlet
water’s PPM the is ltering out (rejection %). You should see approximately 98%
of the inlet PPM being removed when the membrane is new. If the rejection % falls under an
acceptable level (typically 90%), it’s time to change the membrane.
2. The ow rate of the product water slows down signicantly. This can also happen if your
pre-lters are clogged. If you change your pre-lters and the product water still ows slowly,
this is an indication you need a new membrane. When in doubt, contact HydroLogic at
888.426.5644 or email us at [email protected].
STEP 1:
1. Remove the white ¼"
tubing from the membrane
housing.
2. Next, pull that same end
of the membrane housing
straight up to release it from
the clip.
FILTER CHANGES / MAINTENANCE
CHANGING THE RO MEMBRANE
2

13
STEP 3:
You can now remove the membrane with either a strong set of needle nose pliers or something
similar. Hold onto the membrane housing body and pull straight out until it releases the
membrane. It may seem tight, but with even pressure it will come out.
STEP 2:
Firmly grip the membrane housing and
twist the membrane cap counter clockwise
using the provided lter wrench.
CHANGING THE RO MEMBRANE, CONT.

14
TFC Membrane
Rejection Chart
The TFC membrane rejection chart
can be very helpful as a general
guideline, but is not a guarantee.
Every water source has a different
chemistry, temperature and TDS,
and it is best to test your water
thoroughly to determine your
unique water prole.
A good place to start is EWG.
org, just type in your zip-code to
determine what contaminants (if
any) you may be dealing with.
STEP 5:
Run the system for 30–45 minutes,
discarding all puried and
wastewater before using.
STEP 4:
Push the new membrane back into the housing with the end that has the two black O-rings going
in rst. Push rmly until it bottoms out and can’t go in further. Then thread the cap back on tightly
and reconnect the white ¼" tubing. Be sure the O-ring in the cap is in place.
CHANGING THE RO MEMBRANE, CONT.

15
Carbon Filter
HL 22021
Specialty Carbon Filter for 100% Chloramines Removal.
Meets NSF/ANSI component certication standards.
100% USA Made
Booster Pump with High
Pressure Switch
HL 29020
Boosts pressure to 65+ psi for
increased ow rate of puried
water. For low pressure situations
(below 40 psi) or those wanting
higher ow rates.
Float Valve
HL 27015
Fill any tank or reservoir
unattended. Can be Installed in
lid or sidewall of tank. Never
ood your garden again!
KDF85/Catalytic Carbon
Upgraded Filter
HL 22060
Reduces chlorine, iron, sulfur and
heavy metals, Recommended for
well water.
Algae Block Sleeve
HL 26009
Neoprene sleeve that covers all
standard clear housings. Blocks
light so no algae can grow.
Easily removed to check status
of lters.
Pressure Regulator
HL 10071
For high inlet pressure. Limits
pressure to below 85 psi. Simply
connects onto the source/inlet line.
Flowmaster for
HL 19014
Gallonage & lter capacity monitor.
Alerts you when It’s time to change
your lters and measures total
number of gallons of puried water
produced.
TDS Monitor
HL 19006
Measures source/inlet water’s
PPM going into the RO system and
puried water’s PPM coming out.
Monitors the performance of your
RO system. Instantly displays values
and allows you to switch back and
forth between dirty and clean water
TDS readings.
ACCESSORIES

16
ACCESSORIES, CONT.
UV Sterilizer Kit
HL 35015
Kills 100% of all bacteria and viruses. Ensures
the safest water.
to
Upgrade Kit
HL 33016
Convert your into a
with this kit. Double
your RO capacity!
Drinking Water Upgrade Kit
HL 26016
The drinking water add-on kit is for
the horticulture enthusiast who also wants to use
their system for home drinking water.
Fittings
see website
Various ttings are available to customize your
setup. Visit www.hydrologicsystems.com
Leak Detector & Shut Off Valve
HL 19023
Installs on source/inlet line. If there is a leak
anywhere in the system and water reaches the
pad on the bottom of the leak protector the valve
shuts off all incoming water, preventing further
damage from the leak.
De-lonization Kit
HL 33005
DI post lters are a necessity for reducing TDS to
absolute zero. The color-changing DI resin will
remove any leftover contaminants giving you the
purest H2O possible.
Tubing
see website
Extra tubing is available to customize your
setup. Visit www.hydrologicsystems.com.

17
Green Coconut Carbon Filter—(Earth Friendly)
HL 22110
HydroLogic is proud to introduce the rst Carbon Block to use NSF61 listed green carbon. This
high performance coconut shell carbon is manufactured using a patented process that signicantly
reduces harmful greenhouse gas emissions.
These carbon blocks are made using coconut shell green carbon which has more micropores than
other types of carbon and a unique binder system, delivering a product with superior absorption
capacity and kinetic dynamics.
This combination of high performance carbon, unique binders, and proprietary manufacturing
processes delivers exceptionally low pressure drop, high dirt holding capacity, and excellent
contaminant reduction.
Pleated, Cleanable Sediment Filter—HL 22125
COMPONENT SPECIFICATIONS
• Exceptionally low pressure drop
• Industry leading performance
• Improved system performance
• Superior quality and cost savings
• No release of carbon nes
• Exceptionally low pressure drop
• Meets NSF61 standards
• Meets WQA standards of performance
• Meets NSF material safety standards
• Industry leading performance
• Made in the USA
KDF85/Catalytic Carbon upgraded lter
HL 22060
HydroLogic only uses the highest grade materials to make our KDF85/Catalytic
Carbon upgraded lter.
• KDF: 0.5 lb copper/zinc media
• Reduces Iron, sulfur and heavy metals.
• Carbon has enhanced catalytic capability
• KDF neutralizes chlorine
• Bacteriostatic qualities do not allow microbes to breed in lter
• Made in the USA
RO Membrane: HL 22121
HydroLogic Membranes are recognized as one of the industry’s most reliable and
highest performing membrane elements that deliver consistent performance and quality. Advanced
membrane technology and manufacturing processes allow these elements to deliver consistent
results.
• DOW at sheet material
• 98% PPM Rejection
• Improved system performance
• Hand-rolled
• Superior quality and cost savings
• Individually tested and sanitized
• Made in the USA

18
Membrane Operating Limits: Very Important
• MEMBRANE TYPE: Thin Film Composite
• MAXIMUM OPERATING TEMPERATURE: 113° F (45° C)
• MAXIMUM OPERATING PRESSURE: 100 psi
• MAXIMUM FEED FLOW RATE: 2 GPM
• MAXIMUM TDS: <1000 PPM
• MAXIMUM HARDNESS: <10 Grains Per Gallon (170 PPM)
• PH RANGE, CONTINUOUS
• OPERATION: 2–11
• MAXIMUM FEED WATER TURBIDITY: 1 NTU
• MAXIMUM FEED SILT DENSITY INDEX (SDI): 5 SDI
• CHLORINE TOLERANCE: 0 PPM
• CHLORAMINE TOLERANCE: 0 PPM
• MANGANESE TOLERANCE: 0 PPM
• IRON TOLERANCE: <1 PPM
• SILICA TOLERANCE: <10 PPM
NOTE: Operating your membranes outside of the parameters voids the warranty. Use only with
microbiologically safe water. Do not use with water of any unknown origin or water quality.
When in doubt contact HydroLogic to order a water analysis kit.
Carbon Filter: HL 22021
Protect your roots! Many cities are switching to chloramines as their primary method of
disinfection. Chloramines are most commonly formed when ammonia is added to chlorine to treat
drinking water, making it harder to remove. While our Green Coconut Carbon lters work great
for chlorine, the smaller molecule size of chloramines requires additional ltration to ensure your
root-supporting microbes are happy and healthy.
COMPONENT SPECIFICATIONS, CONT.
• Specialty Carbon Filter for 100% Chloramines Removal
• Meets NSF/ANSI component certication standards
• Meets Prop 65 standards
• 1,500 Gallon Capacity
• 100% USA Made

19
Important Information & Performance Parameters
Reverse Osmosis is the most efcient and cost-effective way to remove the majority of all
contaminants from your water. The key component of the system are the RO membranes composed
of tightly wrapped sheets of a semi-permeable material. Under pressure, the membrane allows
pure water to pass through it and rejects, or ushes away, most impurities down the drain. That is
why all RO systems have a certain amount of wastewater. The ratio of wastewater is determined
by the Flow Restrictor installed in the Flow Restrictor/Flush Kit Assembly. The system comes with
a choice of 1:1 and 2:1 Flow Restrictors. Refer to pg. 7.
The ow of puried water is determined by the GPD rating of the membrane, inlet pressure
and inlet temperature. The has the capacity to produce 150 gallons per day
(approx. 6.25 gallons/hour when your inlet water is at 77°F, 60 psi, 500 PPM). If your inlet
pressure is less than 60 psi, you may experience less than the rated 150 GPD ow rate. A
minimum of 40 psi is required to operate the system. The higher the inlet pressure, the better the
ow. A booster pump is available as an option in case of low pressure and is necessary if your
pressure is below 40 psi (HL 29020 see pg. 15).
You will notice that in colder areas or in the winter, when water temperatures
are lower, the ow rate will be slower.
Inlet water that is very high in total PPM or very hard with calcium or magnesium, or high
in certain contaminants such as iron or silica, may shorten the life of the membranes and/
or cause slower ow rates. The RO membranes can handle inlet water up to 1,000 PPM and
with a hardness up 10 grains per gallon (170 PPM). Note that this is considered both very
contaminated and very hard water and may result in a shorter membrane lifespan. At these
levels of contamination and hardness, and especially beyond, you may consider pre-treatment
in the form of a water softener or other equipment. Softened water can be run through your
system for optimal performance. The membrane in the is capable
of removing 99% of salts that are introduced by the softener. Contact HydroLogic for more info
at 888-426-5644.
All RO systems exhibit “TDS creep. ” The rst few ounces of RO water produced
are higher in PPM than after the system has run for a few minutes. Take any
PPM readings a full ve minutes after turning the system on to ensure accuracy.
PERFORMANCE

20
A one year warranty against manufacturer’s defects comes with each unit.
This does not include clogged or damaged pre-lters or RO membranes due to
lack of regular maintenance or excessive sediment, chlorine, chloramines, iron,
silica, manganese, sulfur or PPM in the source water. This warranty also excludes
damage caused by using the unit outside of the specied operating parameters listed on page 18.
Do not operate unit if incoming pressure exceeds 80 psi or there is problem with water hammer
or pressure spikes.
Change both clear pre-lter housings every three years, available through your
local dealer or HydroLogic. HL 23165
Do not bring unit back to the dealer without contacting HydroLogic rst.
Contact HydroLogic directly for questions and warranty issues.
The manufacturer believes the information and data contained herein to be accurate and useful.
The information and data are offered in good faith, but without guarantee, as conditions and
methods of use of products are beyond the manufacturer’s control. The manufacturer assumes
no liability for results obtained or damages incurred through the application of the presented
information and data. It is the user’s responsibility to determine the suitability of the products for
the user’s specic end uses.
Tech Support Contact:
[email protected]
1-888-426-5644
Visit us on the web at: www.hydrologicsystems.com There are a variety of
videos under the resources tab
WARNING: USING NON-ORIGINAL
REPLACEMENT FILTERS OR MEMBRANES
WILL VOID THE WARRANTY
WARRANTY AND SUPPORT
