PD68X UL913 DIGITAL PORTABLE RADIO
USER MANUAL

Welcome to the world of Hytera and thank you for purchasing this product. This manual
includes a description of the functions and step-by-step procedures for use. It also includes
a troubleshooting guide. To avoid bodily injury or property loss caused by incorrect
operation, please carefully read the Safety Information Booklet before use.
This manual is applicable to the following product:
PD68X UL913 Digital Portable Radio (X may represent 2, 5, 6 or 8)

Copyright Information
Hytera is the trademark or registered trademark of Hytera Communications
Corporation Limited (the Company) in the People's Republic of China (PRC)
and/or other countries or areas. The Company retains the ownership of its
trademarks and product names. All other trademarks and/or product names
that may be used in this manual are properties of their respective owners.
The product described in this manual may include the Company's computer
programs stored in memory or other media. Laws in PRC and/or other
countries or areas protect the exclusive rights of the Company with respect
to its computer programs. The purchase of this product shall not be deemed
to grant, either directly or by implication, any rights to the purchaser
regarding the Company's computer programs. The Company's computer
programs may not be copied, modified, distributed, decompiled, or reverse-
engineered in any manner without the prior written consent of the Company.
Disclaimer
The Company endeavors to achieve the accuracy and completeness of this
manual, but no warranty of accuracy or reliability is given. All the
specifications and designs are subject to change without notice due to
continuous technological development. No part of this manual may be
copied, modified, translated, or distributed in any manner without the prior
written consent of the Company.
We do not guarantee, for any particular purpose, the accuracy, validity,
timeliness, legitimacy or completeness of the third- party products and
contents involved in this manual.
If you have any suggestions or would like to receive more information,
please visit our website at: http://www.hytera.com.
FCC Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates and can radiate radio
frequency energy. If not installed and used in accordance with the
instructions, it may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. Verification of harmful interference by this
equipment to radio or television reception can be determined by turning it
off and then on. The user is encouraged to try to correct the interference by
one or more of the following measures:
lReorient or relocate the receiving antenna. Increase the separation
between the equipment and receiver.
lConnect the equipment into an outlet on a different circuit to that of the
receiver's outlet.
lConsult the dealer or an experienced radio/TV technician for help.

Operation is subject to the following two conditions:
lThis device may not cause harmful interference.
lThis device must accept any interference received, including
interference that may cause undesired operation.
Note: Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user's authority to operate
the equipment.
Compliance with RF Exposure Standards
The radio complies with the following RF energy exposure standards and
guidelines:
lUnited States Federal Communications Commission, Code of Federal
Regulations; 47 CFR § 1.1307, 1.1310 and 2.1093
lAmerican National Standards Institute (ANSI)/Institute of Electrical and
Electronic Engineers (IEEE) C95. 1:2005; Canada RSS102 Issue 5
March 2015
lInstitute of Electrical and Electronic Engineers (IEEE) C95.1:2005
Edition
RF Exposure Compliance and Control
Guidelines and Operating Instructions
To control your exposure and ensure compliance with the
occupational/controlled environmental exposure limits, always adhere to the
following procedures.
Guidelines:
lDo not remove the RF Exposure Label from the device.
lUser awareness instructions should accompany device when
transferred to other users.
lDo not use this device if the operational requirements described herein
are not met.
Operating Instructions:
lTransmit no more than the rated duty factor of 50% of the time. To
transmit (talk), press the Push-to-Talk (PTT) key. To receive calls,
release the PTT key. Transmitting 50% of the time, or less, is important
because the radio generates measurable RF energy only when
transmitting (in terms of measuring for standards compliance).
lKeep the radio unit at least 2.5 cm away from the face. Keeping the
radio at the proper distance is important as RF exposure decreases with
distance from the antenna. The antenna should be kept away from the
face and eyes.
lWhen worn on the body, always place the radio in an approved holder,
holster, case, or body harness or by use of the correct clip for this
product. Use of non-approved accessories may result in exposure levels

which exceed the FCC's occupational/controlled environmental RF
exposure limits.
lUse of non-approved antennas, batteries, and accessories causes the
radio to exceed the FCC RF exposure guidelines.
lContact your local dealer for the product's optional accessories.
IC Statement
The device has been tested and complies with SAR limits, users can obtain
Canadian information on RF exposure and compliance.
Après examen de ce matériel aux conformité aux limites DAS et/ou aux
limites d’intensité de champ RF, les utilisateurs peuvent sur l’exposition aux
radiofréquences et la conformité and compliance d’acquérir les
informations correspondantes
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
lThis device may not cause harmful interference.
lThis device must accept any interference received, including
interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables
aux appareils radio exempts de licence. L'exploitation est autorisée aux
deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage,
et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement
EU Regulatory Conformance
As certified by the qualified laboratory, the product is in compliance with
the essential requirements and other relevant provisions of 2014/53/EU,
2012/19/EU, 2006/66/EC, and 2011/65/EU.
Please note that the above information is applicable to EU countries only.

Contents
Intrinsically Safe Radio Information (Exi) 4
Product Marking 4
No Misoperations 4
Safety Instructions 4
Specifications 5
Compliance Standards 5
Informations sur la Radio intrinsèquement sûre (EXi) 6
Marquage de l’équipement 6
Mauvaises utilisations à éviter 6
Instructions de sécurité 6
Spécifications 7
Normes de conformité 7
Documentation Conventions 8
Packing List 9
Product Overview 10
Product Controls 10
Programmable Keys 10
Before Use 11
Charging the Battery 11

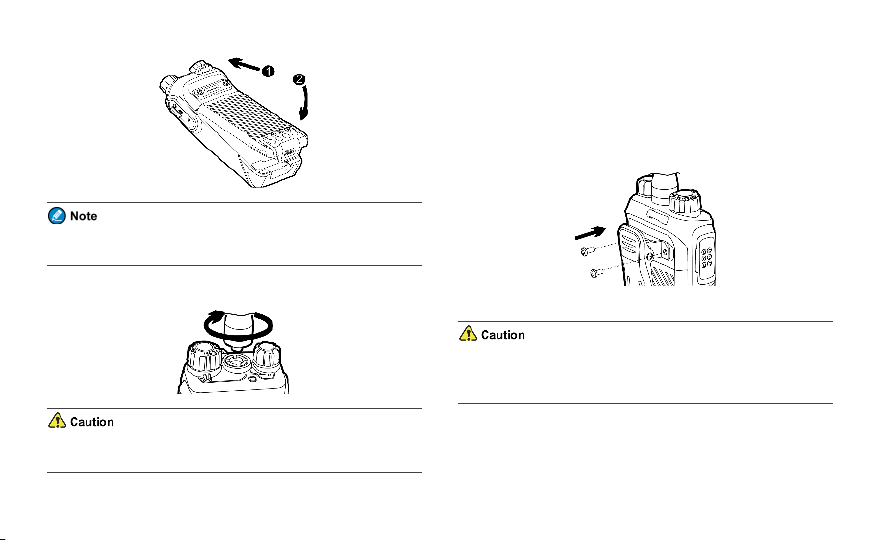

Attaching the Battery 12
Attaching the Antenna 12

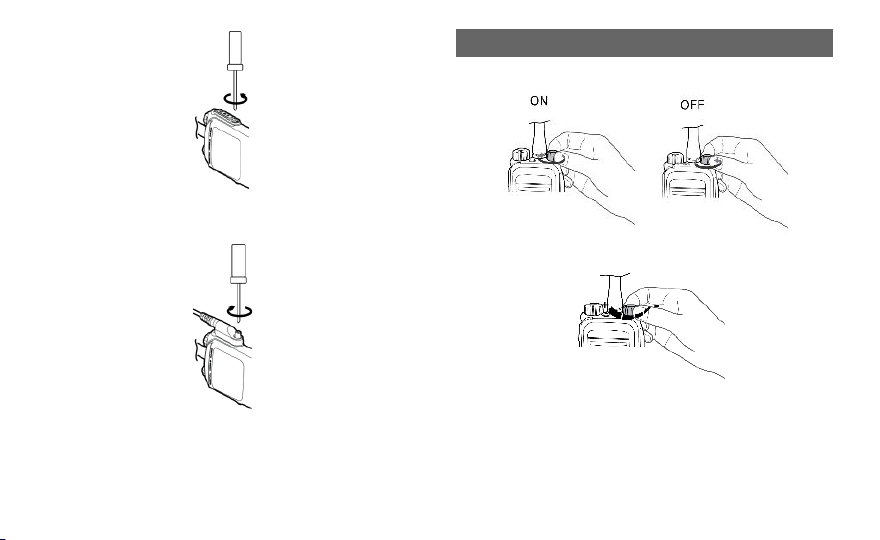

Attaching the Belt Clip 12
Attaching the Audio Accessory 12
Basic Operations 13
Turning the Radio On or Off 13
Adjusting the Volume 13
Checking the Battery Power 13
Locking or Unlocking the Keypad 14
Using the Keypad 14
Switching the Operation Mode 14
Selecting a Zone and Channel 15
Status Indications 15
LCD Icons 15
Checking LED Indications 17
Call Services 18
1

Group Call 18
Private Call 20
Phone Call 22
All Call 24
Broadcast Call (Trunking Only) 26
Include Call (Trunking Only) 27
Call on Analog Channel (Conventional Only) 27
Message Services 28
Viewing Messages 28
Sending a Message 28
Deleting a Message 28
Supplementary Features 29
Basic Settings 30
Contact Management 32
Audio Optimization 32
MIC & SPK 34
One Touch Call/Menu 34
Scan 35
Hunt 36
Roam 37
Talk Around 37
Time-out Timer 37
VOX 38
Call Divert 38
Call Priority 38
DGNA 38
GPS 39
Work Order 40
Data Query 40
Control Services 41
Analog Services 42
Personal Safety Services 43
Communication Security Services 44
Troubleshooting 46
Care and Cleaning 48
Product Care 48
2

Product Cleaning 48
Optional Accessories 48
Abbreviations 49
3

Intrinsically Safe Radio Information
(Exi)
Product Marking
SGS
I.S Class I, II, III, Division 1, Group C, D, E, F, G, T4
NI Class I, Division 2, Group A, B, C, D
-30°C to +55°C
Certificate Number
SGSNA/17/SUW/00279
No Misoperations
Stop operating the product and leave the blasting area immediately when the
intrinsic safety or integrity of the product is endangered, and deliver it to
your local dealer for examination.
The safety or reliability of the product may be endangered when:
lThe product is stored improperly.
lThe product is faulty.
lThe product works with overload.
lThe product operates beyond the tolerance or threshold.
lThe product is damaged during transportation.
lThe product's housing is obviously damaged or cracked.
lThe logo or characters on the product are hard to be recognized.
Safety Instructions
To protect you against any property loss, bodily injury or even death,
be sure to observe the following safety instructions.
lUse only the Ex-battery BL2020-Ex specified by the Company. The use
of other batteries may result in Ex-protection (intrinsic safety) failure.
lCharge the battery in a non-hazardous area only with the designated
charger.
lDo not remove the battery from the radio in a hazardous area.
lDo not carry any standby battery into a hazardous area.
lUse only the Hytera-specified accessories. Do not replace the
accessories in a hazardous area.
lDo not use a damaged antenna. Moving a damaged antenna towards
your skin may cause a minor burn.
lDo not expose the radio to direct sunlight for a long time, nor place it
close to a heating source.
lHold the radio upright and keep its microphone 2.5 to 5 centimeters
away from your mouth during use.
4

lIf you wear a radio on your body, ensure its antenna is at least 2.5
centimeters away from your body during transmission.
lDo not attempt to repair and service the radio, batteries and its
accessories. Please contact your dealer for repair and servicing.
lDo not dissemble or redo the radio. Unauthorized modification of the
radio may result in termination of Ex-protection (intrinsic safety) of the
radio.
lImproper usage of the product other than it is intended to be used for
will impair safety of the product, yourself and surrounding environment.
lDo not carry the radio into Zone 0 and 20. Please do not use the radio
out of the operating temperature range specification of this product.
Specifications
Item Specifications
Rated Operating Voltage DC 7.4 V
Max. Operating Voltage DC 8.4 V
Max. Operating Current 2.8 A
Sensitivity 0.3 μV
Rated Audio Power Output 0.5 W
Audio Distortion ≤ 3%
Operating Temperature -30°C to +55°C
Item Specifications
Storage Temperature -40°C to +85°C
Charging Temperature 0°C to +40°C
Battery Ex-battery BL2020-Ex (2000
mAh)
Charging Time About 4 hours
Compliance Standards
lUL 913, 5th Ed. February 21,1997
lANSI/TIA-4950-A, Rev. May 13, 2014
lCAN/CSA C22.2 No. 157-92 (R2016) +Upd1 +Upd2
5

Informations sur la Radio
intrinsèquement sûre (EXi)
Marquage de l’équipement
SGS
I.S Classe I, II, III, Division 1, Groupe C,D,E,F,G ,T4
NI Classe I, Division 2, Groupe A,B,C,D
-30°C à +55°C
Numéro de certificate
SGSNA/17/SUW/00279
Mauvaises utilisations à éviter
Arrêtez d’utiliser ce produit et quittez l’atmosphère explosive
immédiatement si la sécurité ou l’intégrité du produit sont compromises, puis
retournez-le à votre revendeur local pour vérification.
Voici la liste des éléments susceptibles de compromettre la sécurité ou
l’intégrité du produit:
lLa radio n’est pas stockée correctement.
lLa radio est défaillante.
lLa radio fonctionne en surcharge.
lLa valeur de seuil ou d’erreur de fonctionnement de la radio se trouve
en dehors de la plage autorisée.
lLa radio est endommagée au cours du transport.
lLe boîtier de la radio est visiblement endommagé ou fendillé.
lLe logo ou le modèle de la radio sont difficilement reconnaissables.
Instructions de sécurité
Pour vous protéger contre la perte de biens, les blessures corporelles
ou même les risques mortels, assurez-vous de suivre les instructions de
sécurité suivantes.
lN’utilisez que la batterie BL2020-Ex spécifiée par l’Entreprise.
L’utilisation d’autres batteries peut entraîner une défaillance de la
protection Ex (sûreté intrinsèque).
lChargez uniquement la batterie dans une zone ne présentant aucun
risque, à l’aide du chargeur prévu à cet effet.
lNe retirez pas la batterie de la radio dans une zone à risques.
lNe transportez pas de batterie de rechange dans une zone à risques.
lUtilisez uniquement les accessoires spécifiés par l’Entreprise. Ne
remplacez pas les accessoires dans une zone à risques.
lN’utilisez pas une antenne endommagée. Si une antenne endommagée
entre en contact avec votre peau, vous risquez des brûlures
superficielles.
6

lN’exposez pas la radio à la lumière directe du soleil pendant une
période prolongée. Ne la placez pas à proximité d’une source de
chaleur.
lTenez la radio en position verticale et gardez le micro à une distance de
2,5 à 5 cm de votre bouche pendant son utilisation.
lSi vous transportez une radio, assurez-vous que son antenne se trouve à
une distance minimale de 2,5 cm de votre corps au cours de la
transmission.
lN’essayez pas de réparer et d’entretenir la radio, les batteries et les
accessoires. Veuillez contacter votre revendeur pour la réparation et
l’entretien.
lNe démontez pas la radio, ne la modifiez pas. Toute modification non
autorisée de la radio peut compromettre la protection Ex (sûreté
intrinsèque) de la radio.
lUne utilisation incorrecte du produit, autre que dans le cadre de
l’utilisation prévue, peut compromettre la sécurité du produit, votre
sécurité et celle de votre environnement.
lNe transportez pas la radio dans des zones 0 et 20. Veuillez ne pas
utiliser la radio en dehors des plages de température de fonctionnement
spécifiées pour ce produit.
Spécifications
Élément Spécifications
Tension nominale de fonctionnement 7,4 V CC
Tension maximum de fonctionnement 8,4 V CC
Intensité maximum de fonctionnement 2.8 A
Sensibilité 0.3 μV
Puissance nominale de sortie audio 0.5 W
Distorsion audio ≤ 3 %
Température ambiante -30°C à +55°C
Température de stockage -40°C à +85°C
Température de charge 0°C à +40°C
Batterie Batterie Ex BL2020-Ex (Li-
ion 2000 mAh)
Durée de chargement Environ 4 heures
Normes de conformité
lUL 913 5e éd. 21 février 1997
lANSI/TIA-4950-A, Rev. May 13, 2014
lCAN/CSA C22.2 No. 157-92 (R2016) +Upd1 +Upd2
7

Documentation Conventions
Icon Conventions
Icon Description
Indicates references that can further describe the related
topics.
Indicates situations that could cause data loss or equipment
damage.
Notation Conventions
Item Description Example
Boldface
Denotes menus, tabs,
parameter names,
window names,
dialogue names, and
hardware buttons.
To save the configuration, click Apply.
The Log Level Settings dialogue
appears.
Press the PTT key.
" "
Denotes messages,
directories, file
names, folder names,
and parameter
values.
The screen displays "Invalid Battery!".
Open "PDT_PSS.exe".
Go to "D:/opt/local".
In the Port text box, enter "22".
Item Description Example
>Directs you to access
a multi-level menu. Go to File >New.
Italic Denotes document
titles.
For details about using the DWS, refer to
Dispatch Workstation User Guide.
Courier
New
Denotes commands
and their execution
results.
To set the IP address, run the following
command:
vos-cmd - m name IP
8

Packing List
Please unpack carefully and check that you have received the following items. If any item is missing or damaged, please contact your dealer.
Item Quantity (PCS) Item Quantity (PCS)
Radio 1 Antenna 1
Battery 1 Belt Clip 1
Charger 1 Strap 1
Power Adapter 1 User Manual 1
Check whether the frequency band marked on the antenna label matches that on the radio label. If not, please contact your dealer.
9

Product Overview
Product Controls
Programmable Keys
You can request your dealer to program the following keys as shortcuts to assignable radio features:
lConventional mode: SK1,P1 key, P2 key, Up key, and Down key.
lTrunking mode: SK1,Up key, and Down key.
10

Before Use
Charging the Battery
lRead the Safety Information Booklet before charging.
lUse the approved charger to charge the battery.
lThe remaining lithium-ion battery power is limited to 30% pursuant
to the new lithium battery shipment regulation approved by
International Air Transport Association (IATA).
Before initial use, fully charge the battery to ensure optimum performance.
To charge the battery, do as follows:
1. Insert the output connector of the power adapter into the port on the
back of the charger.
2. Plug the power adapter into a power outlet.
3. Place the battery into the charger.
To determine the charging status, check the light-emitting diode (LED)
indicator on the charger according to the following table:
LED Indicator Description
Glows red The battery is charging.
LED Indicator Description
Glows orange The battery is charged to 90% or above.
Glows green The battery is fully charged.
Flashes red slowly
The battery fails to make proper contact with the
charger. In this case, take the battery out of the
charger, and then place it into the charger for proper
contact.
Flashes red rapidly
The battery fails to be charged. In this case, please
contact your dealer to check whether the battery or
power adapter is damaged.
You can also charge the radio with battery attached. It is
recommended that your radio be turned off during charging.
11

Attaching the Battery
To remove the battery, make sure that the radio is turned off, and then
slide the battery latch upwards to unlock the battery.
Attaching the Antenna
Do not hold the radio by the antenna, because it might reduce the radio
performance and life span of the antenna.
Attaching the Belt Clip
1. Use a Phillips screwdriver to turn the screws counter-clockwise on the
back of the radio and remove them.
2. Align the screw holes on the belt clip with those on the back of the
radio.
3. Put the screws back in places as shown below, and use the screwdriver
to turn them clockwise until hand tight.
Attaching the Audio Accessory
For optimal waterproof and dustproof performance, do close the
accessory connector cover and fasten the screw when no accessory is
attached.
1. Loosen the screw fixing the accessory connector cover as shown
below, and open the cover.
12

2. Align the accessory plug with the accessory connector, and then tighten
the screw on the accessory plug as shown below.
Basic Operations
Turning the Radio On or Off
Adjusting the Volume
Checking the Battery Power
To check the battery power, press and hold the preprogrammed Battery
Power Indicator key. The following table lists the battery power
13

indications. More bars indicate more battery power. The icon indicates
that the battery runs low. In this case, please recharge or replace the
battery.
Icon LED Indication/Tone
The LED indicator glows green.
The LED indicator glows orange.
The LED indicator glows red.
The LED indicator glows red and an alert tone sounds.
Locking or Unlocking the Keypad
When the keypad is not in use, you can lock it to avoid unintended
operations.
To lock or unlock the keypad manually, do one of the following from the
home screen:
lPress the preprogrammed Keypad Lock key.
lPress the OK/Menu key and then press .
To allow the keypad to be locked automatically, do as follows:
1. Go to Menu >Settings >Radio Set >Keypad Lock.
2. Select Enable, and then set Delay Time by pressing the Up or Down
key.
In addition, you can go to Menu >Settings >Radio Set >Optional Key to
set whether the corresponding keys and knobs still work when the keypad is
locked.
Using the Keypad
You can use the keypad to enter user aliases or IDs and text messages.
lTo switch the input method between alphabetic mode and numeric
mode, press .
lTo enter special characters, press in alphabetic mode or in
numeric mode.
lTo enter a space, press in alphabetic mode.
Switching the Operation Mode
The radio can operate in conventional or trunking mode. In conventional
mode, you can receive and transmit voice and data after selecting the
required channel. In trunking mode, you can receive and transmit voice and
data after the radio registers successfully.
To manually switch the operation mode, do one of the following:
lGo to Menu >Mode >Manual Switch, select the required mode, and
then press the OK/Menu key.
lPress the preprogrammed Operation Mode Switch key.
14

To allow the radio to automatically switch to conventional mode when the
signal drops below the preset level in trunking mode, go to Menu >Mode >
Auto Switch, and then select Enable.
Selecting a Zone and Channel
In conventional mode, the radio receives and transmits data and voice on
the selected channel. A zone is a group of channels within the same
operational area. To select a zone and then a channel contained in it, do as
follows:
1 . Select a zone in one of the following ways:
lGo to Menu >Zone, and then select the required zone.
lPress the preprogrammed Zone Up or Zone Down key.
2 . Select a channel in one of the following ways:
lRotate the Channel Selector knob.
lPress the preprogrammed Channel Up or Channel Down key.
Status Indications
LCD Icons
The following tables list icons that may appear on the radio's liquid-crystal
display (LCD).
Operation Mode Icons
Icon Radio Status
DM Direct Mode: The radio transmits and receives directly.
RM Repeater Mode: The radio transmits and receives through a
repeater.
TDMA TDMA Direct Mode: If one time slot is occupied, the radio
can transmit and receive through the other time slot.
TM-DW Trunking Mode - Digital Wide: The radio operates under
multiple interconnected BSs.
TM-DL Trunking Mode - Digital Local: The radio operates under a
single BS.
The Mode Automatic Switch feature is enabled.
Basic Status Icons
Icon Radio Status
The Dual-Tone Multi-Frequency (DTMF) keypad is enabled.
The number of bars indicates the charge left in the battery.
15
