Hytera TF-312 User manual

Preface
Welcome to the world of Hytera and thank you for purchasing this product. This manual includes a description of
the functions and step-by-step procedures for use. To avoid bodily injury or property loss caused by incorrect
operation, please carefully read the Safety Information Booklet before use.
This manual is applicable to the following product:
TF-31X Portable Radio (X may represent 2 or 5).

Copyright Information
Hytera is the trademark or registered trademark of Hytera Communications Corporation Limited (the Company)
in the People's Republic of China (PRC) and/or other countries or areas. The Company retains the ownership of its
trademarks and product names. All other trademarks and/or product names that may be used in this manual are
properties of their respective owners.
The product described in this manual may include the Company's computer programs stored in memory or other
media. Laws in PRC and/or other countries or areas protect the exclusive rights of the Company with respect to its
computer programs. The purchase of this product shall not be deemed to grant, either directly or by implication,
any rights to the purchaser regarding the Company's computer programs. The Company's computer programs may
not be copied, modified, distributed, decompiled, or reverse-engineered in any manner without the prior written
consent of the Company.
Disclaimer
The Company endeavors to achieve the accuracy and completeness of this manual, but no warranty of accuracy or
reliability is given. All the specifications and designs are subject to change without notice due to continuous
technological development. No part of this manual may be copied, modified, translated, or distributed in any
manner without the prior written consent of the Company.
We do not guarantee, for any particular purpose, the accuracy, validity, timeliness, legitimacy or completeness of
the third-party products and contents involved in this manual.
If you have any suggestions or would like to receive more information, please visit our website at:
http://www.hytera.com.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates and can radiate radio frequency energy. If not installed and used
in accordance with the instructions, it may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. Verification of harmful interference by
this equipment to radio or television reception can be determined by turning it off and then on. The user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a different circuit to that of the receiver's outlet.
Consult the dealer or an experienced radio/TV technician for help.

Operation is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause undesired
operation.
Note: Changes or modifications to this unit not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
Compliance with RF Exposure Standards
Hytera's radio complies with the following RF energy exposure standards and guidelines:
United States Federal Communications Commission, Code of Federal Regulations; 47 CFR § 1.1307, 1.1310
and 2.1093
American National Standards Institute (ANSI) / Institute of Electrical and Electronic Engineers (IEEE) C95.
1:2005; Canada RSS102 Issue 5 March 2015
Institute of Electrical and Electronic Engineers (IEEE) C95.1:2005 Edition
RF Exposure Compliance and Control Guidelines and
Operating Instructions
To control your exposure and ensure compliance with the occupational/controlled environmental exposure limits,
always adhere to the following procedures.
Guidelines:
Do not remove the RF Exposure Label from the device.
User awareness instructions should accompany device when transferred to other users.
Do not use this device if the operational requirements described herein are not met.
Operating Instructions:
Transmit no more than the rated duty factor of 50% of the time. To transmit (talk), push the Push-To-Talk
(PTT) key. To receive calls, release the PTT key. Transmitting 50% of the time, or less, is important because
the radio generates measurable RF energy only when transmitting (in terms of measuring for standards
compliance).
Keep the radio unit at least 2.5 cm away from the face. Keeping the radio at the proper distance is important
as RF exposure decreases with distance from the antenna. The antenna should be kept away from the face
and eyes.

When worn on the body, always place the radio in a Hytera-approved holder, holster, case, or body harness or
by use of the correct clip for this product. Use of non-approved accessories may result in exposure levels
which exceed the FCC's occupational/controlled environmental RF exposure limits.
Use of non-approved antennas, batteries, and accessories causes the radio to exceed the FCC RF exposure
guidelines.
Contact your local dealer for the optional accessories of the product.
IC Statement
The device has been tested and complies with SAR limits, users can obtain Canadian information on RF exposure
and compliance.
Après examen de ce matériel aux conformité aux limites DAS et/ou aux limites d’intensité de champ RF, les
utilisateurs peuvent sur l’exposition aux radiofréquences et la conformité and compliance d’acquérir les
informations correspondantes
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following
two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause undesired
operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible
d'en compromettre le fonctionnement
EU Regulatory Conformance
As certified by the qualified laboratory, the product is in compliance with the essential requirements and other
relevant provisions of the following directives: 1999/5/EC or 2014/53/EU, 2006/66/EC, 2011/65/EU, and
2012/19/EU.
Please note that the above information is applicable to EU countries only.

Contents
1. Packing List.......................................................................................................................................................... 1
2. Product Controls.................................................................................................................................................2
3. Getting Started.....................................................................................................................................................3
3.1 Inserting Batteries........................................................................................................................................... 3
3.2 Attaching the Belt Clip....................................................................................................................................3
3.3 Turning the Radio On/Off...............................................................................................................................3
3.4 Adjusting the Volume..................................................................................................................................... 3
3.5 Selecting a Channel........................................................................................................................................3
4. LCD ICONS............................................................................................................................................................4
5. Call Services.........................................................................................................................................................5
5.1 Initiating a Call................................................................................................................................................. 5
5.2 Receiving a Call.............................................................................................................................................. 5
6. Supplementary Features...................................................................................................................................6
6.1 Keypad Lock.................................................................................................................................................... 6
6.2 Scan.................................................................................................................................................................. 6
6.3 Monitor.............................................................................................................................................................. 6
6.4 Call Tone.......................................................................................................................................................... 6
6.5 Talk End Tone................................................................................................................................................. 7
6.6 Battery Save.....................................................................................................................................................7
6.7 Low Battery Alert.............................................................................................................................................7
6.8 TOT....................................................................................................................................................................7
6.9 Auto Squelch....................................................................................................................................................7
7. Optional Accessories.........................................................................................................................................8
8. Troubleshooting.................................................................................................................................................. 9
Channels and Frequencies.................................................................................................................................11

1
1. Packing List
Please unpack carefully and check if all items listed below are received. If any item is missing or damaged, please
contact your dealer.
Item
Quantity (PCS)
Item
Quantity (PCS)
Radio
2
Lanyard
2
Belt Clip
2
Documentation Kit
1

2

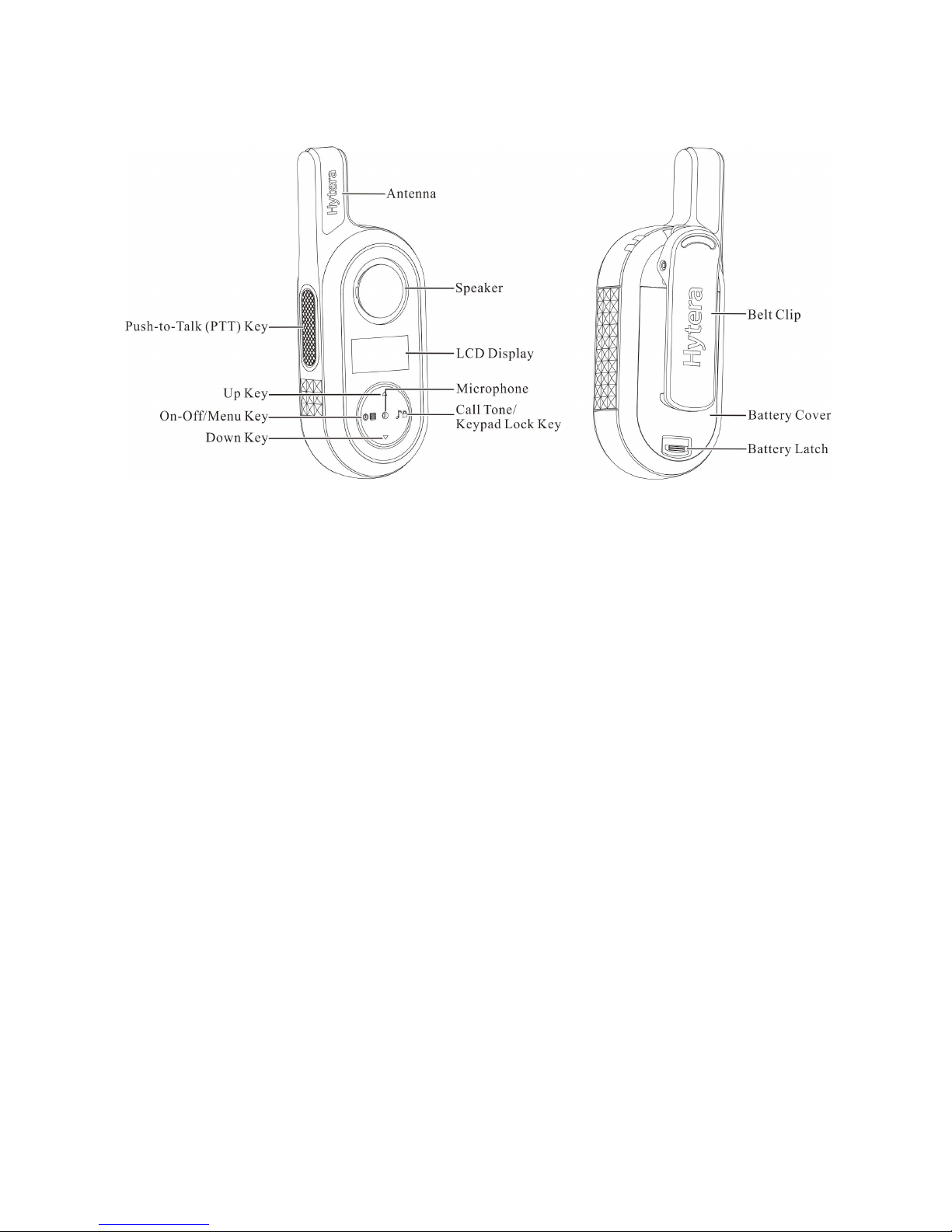

2. Product Controls

3
3. Getting Started
3.1 Inserting Batteries
You need to prepare three AAA alkaline batteries (not included).
To attach batteries, do as follows:
1. Lift the battery latch, and then remove the battery cover.
2. Insert three AAA alkaline batteries following the polarity indicated in the battery compartment.
3. Place the battery cover back in place.
3.2 Attaching the Belt Clip
To attach the belt clip, do as follows:
1. Align the rails on the belt clip with the groove on the back of the radio.
2. Press the belt clip downwards into place.
3.3 Turning the Radio On/Off
Press and hold the On-Off/Menu key to turn the radio on or off.
3.4 Adjusting the Volume
On the home screen, press the Up key or Down key to increase or decrease the volume.
3.5 Selecting a Channel
To communicate with other users through these radios, you need to select the same channel as others.
To select a channel, do as follows:
1. Press the On-Off/Menu key.
The channel number flashes.
2. Press the Up key or Down key to select a channel.
3. Press the PTT key to confirm your selection.

4
4. LCD ICONS
Icon
Description
Icon
Description
Battery
Scan
Volume Indicator
Transmit
Lock
Receive

5
5. Call Services
5.1 Initiating a Call
To initiate a call, do as follows:
1. Select a channel.
2. Hold the radio vertically 2.5 to 5 cm from your mouth.
3. Press and hold the PTT key, and then speak into the microphone.
When transmitting, the radio displays .
4. When you finish talking, release the PTT key.
5.2 Receiving a Call
When receiving a call, you can listen to the call without any operation. If you need to speak, wait until the person
who is speaking release his/her PTT key, and then press and hold your PTT key to speak into the microphone.

6
6. Supplementary Features
6.1 Keypad Lock
The Keypad Lock feature allows you to lock the keypad to avoid accidental operations when the radio is not in
use. In the keypad lock mode, you can initiate calls and turn the radio on or off.
To lock or unlock the keypad, press and hold the Call Tone/Keypad Lock key until appears or disappears on
the screen.
6.2 Scan
The Scan feature allows you to find someone in your team who has accidentally changed the channel, and can
quickly find unused channels for your own use.
To turn on this feature, press the On-Off/Menu key for two consecutive times, and then press the Call
Tone/Keypad Lock key. The radio displays and begins to scan channels. When detecting activities on a
channel, the radio stays on the channel to receive signals. Two seconds after the signal disappears, the radio
continues to scan channels.
To turn off this feature, press the On-Off/Menu key again.
6.3 Monitor
The Monitor feature allows the radio to receive weak signals on the current channel.
To turn on this feature, do as follows:
1. Press the On-Off/Menu key for three consecutive times.
The icon flashes.
2. Press the Call Tone/Keypad Lock key.
The radio begins to monitor the channel and receive signals.
To turn off this feature, press the On-Off/Menu key.
6.4 Call Tone
The Call Tone feature allows you to send a call tone to notify others that you want to talk.
To transmit the call tone, press the Call Tone/Keypad Lock key.

7
6.5 Talk End Tone
The Talk End Tone feature allows you to send a talk end tone when you release the PTT key. This tone notifies
others that you have finished your talk.
To turn on this feature, do as follows:
1. Turn off the radio.
2. Press and hold the On-Off/Menu key and the PTT key at the same time to turn on the radio.
To disable this feature, do as follows:
1. Turn off the radio.
2. Press and hold the On-Off/Menu key to turn on the radio.
6.6 Battery Save
The Battery Save feature reduces power consumption of the radio. When the radio does not detect any activity or
operation for three seconds, it enters the battery save mode.
6.7 Low Battery Alert
When the radio displays , the battery icon flashes to alert that the battery is low. Replace the battery to exit
the low battery alert mode.
6.8 TOT
The purpose of TOT is to prevent any user from occupying a channel for more than 60 seconds. After 60 seconds,
the radio stops transmitting and keeps beeping. To stop beeping, release the PTT key.
6.9 Auto Squelch
The Auto Squelch feature allows the radio to automatically remove background noise to improve voice clarity
during the call.

8
7. Optional Accessories
Contact your local point of purchase for the optional accessories used with the product.
Use the approved accessories only. We will not be liable for any loss or damage arising out of the use of
any unauthorised accessories.

9
8. Troubleshooting
Phenomena
Analysis
Solution
The radio cannot be
turned on.
The batteries may be installed
improperly.
Remove and reattach the batteries.
The battery power may run out.
Replace the batteries.
The batteries may suffer from poor
contact caused by dirtied or
damaged battery contacts.
Clean the battery contacts or replace the batteries.
During receiving, the
voice is weak,
discontinuous or
totally inactive.
The battery voltage may be low.
Replace the batteries.
The volume level may be low.
Increase the volume.
The speaker may be blocked.
Clean the surface of the speaker.
You cannot
communicate with
other members.
The channel may be inconsistent
with that of other members.
Set your channel to the same as those of other
members.
You may be too far away from
other members.
Move towards other members.
You hear unknown
voices or noise.
You may be interrupted by radios
using the same channel.
Change the channel code.
You are unable to
hear anyone because
of too much noise and
hiss.
You may be too far away from
other members.
Move towards other members.
You may locate in an unfavorable
position. For example, your
communication may be blocked by
high buildings or frustrated in the
underground areas.
Move to an open and flat area, restart the radio, and
try contacting again.
It could be the result of external
disturbance (such as
electromagnetic interference).
Stay away from equipment that may cause
interference.

10
Phenomena
Analysis
Solution
You cannot use the
keys.
The keypad may fail to function
temporarily.
Restart the radio.
The LCD does not
display any
information.
The LCD may fail to function
temporarily.
Restart the radio.
If the above solutions cannot fix your problems, or you may have some other queries, please contact us or your
local point of purchase for more technical support.

11
Channels and Frequencies
TF-312
Channel No.
Frequency (MHz)
Channel No.
Frequency (MHz)
1
462.5625
12
467.6625
2
462.5875
13
467.6875
3
462.6125
14
467.7125
4
462.6375
15
462.5500
5
462.6625
16
462.5750
6
462.6875
17
462.6000
7
462.7125
18
462.6250
8
467.5625
19
462.6500
9
467.5875
20
462.6750
10
467.6125
21
462.7000
11
467.6375
22
462.7250
TF-315
Channel No.
Frequency (MHz)
Channel No.
Frequency (MHz)
1
446.00625
5
446.05625
2
446.01875
6
446.06875
3
446.03125
7
446.08125
4
446.04375
8
446.09375
