Hytera PD792i-Ex User manual

Z17714 L07157
OWNER'S MANUAL
PD79
2i-
Ex DIGITAL PORTABLE RADIO
811PD79001200
is the trademark or registered trademark of Hytera Communications
Corporation Limited.
2017 Hytera Communications Corporation Limited. All Rights Reserved.
Address: Hytera Tower, Hi-Tech Industrial Park North,
9108# Beihuan Road, Nanshan District, Shenzhen,
People's Republic of China
Postcode: 518057
http:// www.hytera.com

Welcome to the world of Hytera and thank you for purchasing this product. This manual includes a description of the functions and step-
by-step procedures for use. It also includes a troubleshooting guide. To avoid bodily injury or property loss caused by incorrect operation,
please carefully read the Safety Information Booklet before use.
This manual is applicable to the following product:
PD792i-Ex Digital Portable Radio

Copyright Information
Hytera is the trademark or registered trademark of
Hytera Communications Corporation Limited (the
Company) in the People's Republic of China (PRC) and/or
other countries or areas. The Company retains the
ownership of its trademarks and product names. All other
trademarks and/or product names that may be used in this
manual are properties of their respective owners.
The product described in this manual may include the
Company's computer programs stored in memory or other
media. Laws in PRC and/or other countries or areas
protect the exclusive rights of the Company with respect
to its computer programs. The purchase of this product
shall not be deemed to grant, either directly or by
implication, any rights to the purchaser regarding the
Company's computer programs. The Company's computer
programs may not be copied, modified, distributed,
decompiled, or reverse- engineered in any manner
without the prior written consent of the Company.
Disclaimer
The Company endeavors to achieve the accuracy and
completeness of this manual, but no warranty of accuracy
or reliability is given. All the specifications and designs
are subject to change without notice due to continuous
technological development. No part of this manual may
be copied, modified, translated, or distributed in any
manner without the prior written consent of the Company.
We do not guarantee, for any particular purpose, the
accuracy, validity, timeliness, legitimacy or completeness
of the third-party products and contents involved in this
manual.
If you have any suggestions or would like to receive more
information, please visit our website at:
http://www.hytera.com.
FCC Statement
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15
of FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates and can
radiate radio frequency energy. If not installed and used
in accordance with the instructions, it may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a
particular installation. Verification of harmful
interference by this equipment to radio or television
reception can be determined by turning it off and then on.
The user is encouraged to try to correct the interference
by one or more of the following measures:
lReorient or relocate the receiving antenna. Increase
the separation between the equipment and receiver.
lConnect the equipment into an outlet on a different
circuit to that of the receiver's outlet.
lConsult the dealer or an experienced radio/TV
technician for help.
Operation is subject to the following two conditions:
lThis device may not cause harmful interference.
lThis device must accept any interference received,
including interference that may cause undesired
operation.
Note: Changes or modifications to this unit not expressly
approved by the party responsible for compliance could
void the user's authority to operate the equipment.
Compliance with RF Exposure
Standards
The radio complies with the following RF energy
exposure standards and guidelines:
lUnited States Federal Communications Commission,
Code of Federal Regulations; 47 CFR § 1.1307,
1.1310 and 2.1093
lAmerican National Standards Institute
(ANSI)/Institute of Electrical and Electronic
Engineers (IEEE) C95. 1:2005; Canada RSS102 Issue
5 March 2015
lInstitute of Electrical and Electronic Engineers
(IEEE) C95.1:2005 Edition
RF Exposure Compliance and
Control Guidelines and Operating
Instructions
To control your exposure and ensure compliance with the
occupational/controlled environmental exposure limits,
always adhere to the following procedures.
Guidelines:
lDo not remove the RF Exposure Label from the
device.
lUser awareness instructions should accompany
device when transferred to other users.
lDo not use this device if the operational requirements
described herein are not met.
Operating Instructions:

lTransmit no more than the rated duty factor of 50%
of the time. To transmit (talk), press the Push- To-
Talk (PTT) key. To receive calls, release the PTT
key. Transmitting 50% of the time, or less, is
important because the radio generates measurable RF
energy only when transmitting (in terms of measuring
for standards compliance).
lKeep the radio unit at least 2.5 cm away from the
face. Keeping the radio at the proper distance is
important as RF exposure decreases with distance
from the antenna. The antenna should be kept away
from the face and eyes.
lWhen worn on the body, always place the radio in an
approved holder, holster, case, or body harness or by
use of the correct clip for this product. Use of non-
approved accessories may result in exposure levels
which exceed the FCC's occupational/controlled
environmental RF exposure limits.
lUse of non- approved antennas, batteries, and
accessories causes the radio to exceed the FCC RF
exposure guidelines.
lContact your local dealer for the product's optional
accessories.
IC Statement
The device has been tested and complies with SAR limits,
users can obtain Canadian information on RF exposure
and compliance.
Après examen de ce matériel aux conformité aux limites
DAS et/ou aux limites d’intensité de champ RF, les
utilisateurs peuvent sur l’exposition aux radiofréquences
et la conformité and compliance d’acquérir les
informations correspondantes
This device complies with Industry Canada license-
exempt RSS standard (s). Operation is subject to the
following two conditions:
lThis device may not cause harmful interference.
lThis device must accept any interference received,
including interference that may cause undesired
operation.
Le présent appareil est conforme aux CNR d'Industrie
Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions
suivantes: (1) l'appareil ne doit pas produire de brouillage,
et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement
EU Regulatory Conformance
As certified by the qualified laboratory, the product is in
compliance with the essential requirements and other
relevant provisions of 2014/53/EU, 2006/66/EC,
2011/65/EU, and 2012/19/EU.
Please note that the above information is applicable to EU
countries only.

Contents
Documentation Conventions 2
Intrinsically Safe Radio Information 2
Equipment Marking 2
No Misoperations 2
Safety Instructions 2
Specifications 3
Compliance Standards 3
Packing List 4
Product Overview 5
Product Layout 5
Programmable Keys 5
Before Use 5
Charging the Battery 5
Attaching the Battery 6
Attaching the Antenna 6
Attaching the Belt Clip 6
Attaching the Audio Accessory 6
Basic Operations 7
Turning the Radio On or Off 7
Adjusting the Volume 7
Checking the Battery Power 7
Locking or Unlocking the Keypad 7
Using the Keypad 7
Switching the Operation Mode 7
Selecting a Zone and Channel 7
Status Indications 8

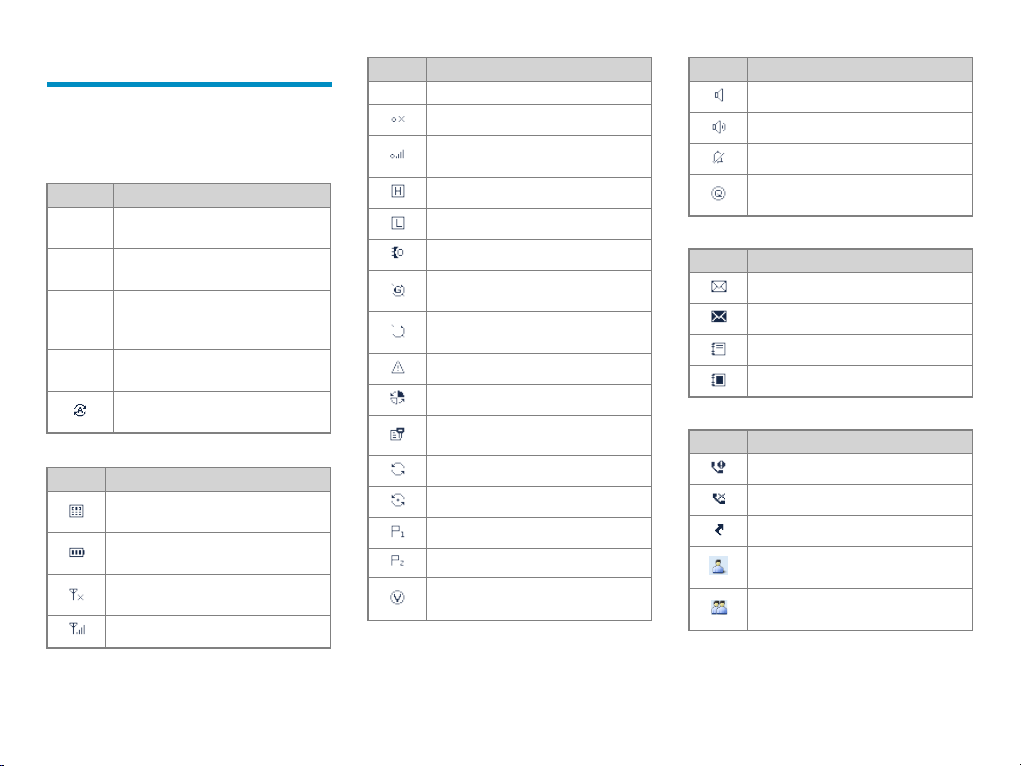

LCD Icons 8
LED Indications 9
Call Services 9
Group Call 9
Private Call 10
Phone Call 12
All Call 13
Broadcast Call (Trunking Only) 14
Include Call (Trunking Only) 14
Call on Analog Channel (Conventional
Only) 14
Message Services 15
Viewing Messages 15
Sending a Message 15
Deleting a Message 15
Feature Description 16
Basic Settings 16
Contact Management 17
Audio Optimization 18
MIC & SPK 18
One Touch Call/Menu 19
Scan 19
Hunt 20
Roam 20
Talk Around 20
Time-out Timer 20
VOX 21
Call Divert 21
Call Priority 21
DGNA 21
GPS 21
Work Order 22
Data Query 22
Control Services 23
Analog Services 23
Personal Safety Services 24
Communication Security Services 25
Troubleshooting 26
Care and Cleaning 28
Product Care 28
Product Cleaning 28
Optional Accessories 28
Abbreviations 28
1

Documentation Conventions
Icon Conventions
Icon Description
Indicates references that can further
describe the related topics.
Indicates situations that could cause data
loss or equipment damage.
Notation Conventions
Item Description Example
Boldface
Denotes menus,
tabs, parameter
names, window
names, dialogue
names, and
hardware
buttons.
To save the configuration,
click Apply.
The Log Level Settings
dialogue appears.
Press the PTT key.
" "
Denotes
messages,
directories, file
names, folder
names, and
parameter
values.
The screen displays
"Invalid Battery!".
Open "PDT_PSS.exe".
Go to "D:/opt/local".
In the Port text box, enter
"22".
>
Directs you to
access a multi-
level menu.
Go to File >New.
Item Description Example
Italic Denotes
document titles.
For details about using the
DWS, refer to Dispatch
Workstation User Guide.
Courier
New
Denotes
commands and
their execution
results.
To set the IP address, run
the following command:
vos-cmd - m name
IP
Intrinsically Safe Radio
Information
Equipment Marking
FM/CAN
Class I, Zone 1 AEx/Ex ib IIC T4 Gb
Class II, III Div 1, Group E, F, G T120℃
ATEX
II 2G Ex ib IIC T4
II 2D Ex ib IIIC T120℃IP5X
I M2 Ex ib
IECEx
Ex ib IIC T4
Ex ib IIIC T120℃IP5X
Ex ib I
Certificate Number
FM13ATEX0023X
FMG 13.0010X
CSA
lCLI, Div 2, Gr-A-D T4 –20°C < Ta < +50°C
lCLII, III, Div 2, Gr E, F, G T120°C –20°C < Ta <
+50°C
lCLI, Zn 1, Ex ib IIC T4 Gb –20°C < Ta < +50°C
lZn 21 Ex ib IIIC T120°C Db –20°C < Ta < +50°C
lIP5X
Certificate Number
CSA 17.70108168
No Misoperations
Stop operating this product and leave the explosive
atmosphere immediately when the safety or integrity of
the product is endangered, and deliver it to your local
dealer for examination.
These items may endanger the product’s safety or
integrity:
lThe radio is stored improperly.
lThe radio is faulty.
lThe radio works with overload.
lThe radio’s operational error or threshold value is out
of allowed range.
lThe radio is damaged during transportation.
lThe radio’s housing is obviously damaged or cracked.
lThe radio logo or model is hard to be recognized.
Safety Instructions
To protect you against any property loss, bodily
injury or even death, be sure to observe the
following safety instructions.
2

lUse only the Ex-battery BL1807-Ex specified by the
Company. The use of other batteries may result in
Ex-protection (intrinsic safety) failure.
lCharge the battery in a non-hazardous area only with
the designated charger.
lDo not remove the battery from the radio in a
hazardous area.
lDo not carry any standby battery into a hazardous
area.
lUse the accessories specified by the Company only.
Do not replace the accessories in a hazardous area.
lDo not use a damaged antenna. If a damaged antenna
comes into contact with your skin, a minor burn may
result.
lDo not expose the radio to direct sunlight for a long
time, nor place it close to a heating source.
lHold the radio upright and keep its microphone 2.5 to
5 centimeters away from your mouth during use.
lIf you wear a radio on your body, ensure its antenna
is at least 2.5 centimeters away from your body
during transmission.
lDo not carry the radio into Zone 0 and 20. Please do
not use the radio out of the operating temperature
range specification of this product.
lDo not attempt to repair and service the radio,
batteries and its accessories. Please contact your
dealer for repair and servicing.
lDo not dissemble or redo the radio. Unauthorized
modification of the radio may result in termination of
Ex-protection (intrinsic safety) of the radio.
lImproper usage of the product other than it is
intended to be used for will impair safety of the
product, yourself and surrounding environment.
Specifications
Item Specifications
Frequency Range
136–174 MHz; 350–400 MHz;
400–470 MHz
Channel Spacing 12.5 kHz; 20 kHz; 25 kHz
Operating Voltage 7.4 V DC
Weight (with standard
antenna & battery) About 495 g
Sensitivity 0.3 μV
RF Power Output 1 W
Rated Audio Power
Output 0.5 W
Audio Distortion 3%
Operating Temperature –20°C to +50°C
Storage Temperature –40°C to +85°C
Charging Temperature 0°C to +40°C
Battery
Ex-battery BL1807-Ex (1800
mAh)
Battery Life
About 14 to 17 hours (5-5-90
duty cycle)
Charging Time About 4 hours
Maximum Charging
Voltage 12 V DC
Compliance Standards
Standard
Issue
Date
FM
Standard
Issue
Date
FM Class 3600 2011
FM Class 3611 2004
FM Class 3810 2005
ANSI/IEC-60529(Ed. 4.0) 2004
ANSI/ISA-60079-0(12.00.01) 2009
ANSI/ISA-60079-11(12.02.01) 2012
ANSI/ISA-60079-31(12.10.03) 2009
ANSI/ISA-61010-1(82.02.01) 2004
CAN
CAN/CSA-C22.2 No.0-M91 2006
CAN/CSA-C22.2 No.142-M1987 2009
CAN/CSA-C22.2 No.213-M1987 2008
CAN/CSA-C22.2 No.60079-0 (Ed. 5.0) 2011
CAN/CSA-C22.2 No.60079-11 (Ed. 5.0) 2011
CAN/CSA-C22.2 No.60079-31 (Ed.1.0) 2012
CAN/CSA-C22.2 No.60529 (Ed. 5.0) 2005
CAN/CSA-C22.2 No.61010-1 (Ed. 2.0) 2009
ATEX
EN 60079-0 (Ed. 5.0) 2009
EN 60079-11 (Ed. 6.0) 2012
EN 60079-31 (Ed. 1.0) 2009
EN 60529+A1 (Ed. 2.0) 1992
IECEx
IEC-60079-0 (Ed. 6.0) 2011
3

Standard
Issue
Date
IEC-60079-11 (Ed. 6.0) 2011
IEC-60079-31 (Ed. 1.0) 2008
Packing List
Please unpack carefully and check that you have
received the following items. If any item is missing or
damaged, please contact your dealer.
Item
Quantity
(PCS) Item
Quantity
(PCS)
Radio 1 Antenna 1
Battery 1 Belt Clip 1
Charger 1 Strap 1
Power
Adapter 1
Documentation
Kit 1
Check whether the frequency band marked on the
antenna label matches that on the radio label. If not,
please contact your dealer.
4

Product Overview
Product Layout
No. Part Name No. Part Name
1 Side Key 1 (SK1) 12 LED Indicator
2 Push-to-Talk (PTT) Key 13 Antenna
3 Side Key 2 (SK2) 14 On-Off/Volume Control Knob
4 Top Key (TK) 15 Accessory Connector
No. Part Name No. Part Name
5 Channel/Group Selector Knob 16 Back/Subgroup Key
6 Microphone 17 P2/End Key
7 LCD Display 18 Up Key
8 OK/Menu Key 19 Down Key
9 P1/Answer Key 20 Battery Latch
10 Speaker 21 Belt Clip
11 Numeric Keypad 22 Battery
Programmable Keys
You can request your dealer to program the following programmable keys as shortcuts to
assignable radio features: SK1,SK2,TK,P1 key, P2 key, Up key, and Down key.
Before Use
Charging the Battery
lUse the approved charger to charge the battery.
lRead the Safety Information Booklet before charging.
Before initial use, fully charge the battery to ensure optimum performance.
To charge the battery, do as follows:
1. Insert the output connector of the power adapter into the port on the back of the
charger.
2. Plug the power adapter into a power outlet.
3. Place the battery into the charger.
To determine the charging status, check the light-emitting diode (LED) indicator on the
charger according to the following table:
5

LED Indicator Description
Glows red The battery is charging.
Glows orange The battery is charged to 90% or
above.
Glows green The battery is fully charged.
Flashes red slowly
The battery fails to make proper
contact with the charger. In this
case, take the battery out of the
charger, and then place it into the
charger for proper contact.
Flashes red rapidly
The battery fails to be charged. In
this case, please contact your
dealer to check whether the battery
or power adapter is damaged.
You can also charge the radio with battery attached.
It is recommended that your radio be turned off
during charging.
Attaching the Battery
1. Align the battery slots with the guide rails on the radio,
and then push the battery until the metal lock reaches the
bottom of the radio.
2. Open the battery latch and exert force on it to retract
the metal lock into the battery housing completely.
3. Push the battery until it is fully fitted into the slot, and
then release the battery latch.
Attaching the Antenna
Do not hold the radio by the antenna, because it
might reduce the radio performance and life span of
the antenna.
Attaching the Belt Clip
1. Use a Phillips screwdriver to turn the screws counter-
clockwise on the back of the radio and remove them.
2. Align the screw holes on the belt clip with those on
the back of the radio.
3. Put the screws back in places as shown below, and
use the Phillips screwdriver to turn them clockwise
until hand tight.
Attaching the Audio Accessory
For optimal waterproof and dustproof performance,
do close the accessory connector cover and fasten
the screw when no accessory is attached.
1. Open the accessory connector cover.
2. Plug the accessory into the accessory connector.
3. Rotate the screw on the accessory plug clockwise
until hand tight.
6

Basic Operations
Turning the Radio On or Off
Adjusting the Volume
Checking the Battery Power
To check the battery power, press and hold the
preprogrammed Battery Power Indicator key. The
following table lists the battery power indications. More
bars indicate more battery power. The icon indicates
that the battery runs low. In this case, please recharge or
replace the battery.
LED Indicator Alert Tone Battery Power
Glows green Three beeps High
Glows orange Two beeps Medium
Glows red One beep Low
LED Indicator Alert Tone Battery Power
Flashes red Low battery
tone
Under the low battery
threshold. Please
recharge or replace
the battery.
Locking or Unlocking the Keypad
When the keypad is not in use, you can lock it to avoid
unintended operations.
To lock or unlock the keypad manually, do one of the
following from the home screen:
lPress the preprogrammed Keypad Lock key.
lPress the OK/Menu key and then press .
To allow the keypad to be locked automatically, do as
follows:
1. Go to Menu >Settings >Radio Set >Keypad Lock..
2. Select Enable, and then set Delay Time by pressing
the Up or Down key.
In addition, you can go to Menu >Settings >Radio Set >
Optional Key to set whether the corresponding keys and
knobs still work when the keypad is locked.
Using the Keypad
You can use the keypad to enter user aliases or IDs and
text messages.
lTo switch the input method between alphabetic mode
and numeric mode, press .
lTo enter special characters, press in alphabetic
mode or in numeric mode.
lTo enter a space, press in alphabetic mode.
Switching the Operation Mode
The radio can operate in conventional mode or trunking
mode. In conventional mode, you can receive and
transmit voice and data after selecting the required
channel. In trunking mode, you can receive and transmit
voice and data after the radio registers successfully.
To switch the operation mode, do one of the following:
lGo to Menu >Mode >Manual Switch, select the
required mode, and then press the OK/Menu key.
lPress the preprogrammed Operation Mode Switch
key.
To allow the radio to automatically switch to conventional
mode when the signal drops below the preset level in
trunking mode, go to Menu >Mode >Auto Switch, and
then select Enable.
Selecting a Zone and Channel
In conventional mode, the radio receives and transmits
data and voice on the selected channel. A zone is a group
of channels within the same operational area. To select a
zone and then a channel contained in it, do as follows:
1 . Select a zone in one of the following ways:
lGo to Menu >Zone, and then select the required
zone.
lPress the preprogrammed Zone Up or Zone
Down key.
2 . Select a channel in one of the following ways:
lRotate the Channel Selector knob.
lPress the preprogrammed Channel Up or
Channel Down key.
7

Status Indications
LCD Icons
The following tables list icons that may appear on the
radio's liquid-crystal display (LCD).
Operation Mode Icons
Icon Radio Status
DM Direct Mode: The radio transmits and
receives directly.
RM Repeater Mode: The radio transmits and
receives through a repeater.
TM-DW
Trunking Mode - Digital Wide: The radio
operates under multiple interconnected
BSs.
TM-DL Trunking Mode - Digital Local: The radio
operates under a single BS.
The Mode Automatic Switch feature is
enabled.
Basic Status Icons
Icon Radio Status
The Dual-Tone Multi-Frequency (DTMF)
keypad is enabled.
The number of bars indicates the charge left
in the battery.
There is no signal in conventional or TM-
DW mode.
The number of bars indicates the signal
Icon Radio Status
strength in conventional or TM-DW mode.
There is no signal in TM-DL mode.
The number of bars indicates the signal
strength in TM-DL mode.
The radio operates in high power mode.
The radio operates in low power mode.
An accessory is connected.
The Global Positioning System (GPS) feature
is enabled, and the radio receives GPS data.
The GPS feature is enabled, but the radio
receives no GPS data.
The radio is in emergency mode.
The radio is roaming.
The Scrambler or Encrypt feature is
enabled.
The radio is scanning or hunting.
The radio stays on a non-priority channel.
The radio stays on priority channel 1.
The radio stays on priority channel 2.
The Voice Operated Transmit (VOX)
feature is enabled.
Icon Radio Status
The Monitor feature is enabled.
The speaker is turned on.
The radio operates in silent mode.
The Loudness and Quality Optimizer (LQO)
feature is enabled.
Short Data Icons
Icon Radio Status
There is/are unread short message(s).
The Inbox is full.
There is/are unread work order(s).
The work order list is full.
Call Icons
Icon Radio Status
There is/are alert call(s).
There is/are missed call(s).
The Call Divert feature is enabled.
A private call is in progress or a private
contact is on the contact list.
A group call is in progress or a group
contact is on the contact list.
8

Icon Radio Status
An all call is in progress or an all call
contact is on the contact list.
An include call is in progress.
LED Indications
To determine the radio status, check the LED indicator on
the radio according to the following table:
LED Indicator Radio Status
Flashes green Being turned on.
Flashes green slowly Standby in trunking mode.
Glows green Receiving.
Glows red Transmitting.
Flashes red
Establishing a call in trunking
mode. This indication is
applicable only to the calling
radio.
Flashes orange slowly Scanning, hunting, or roaming.
Flashes orange rapidly
lConventional mode:
Working in emergency
mode.
lTrunking mode:
Establishing a Full Off Air
Call Set- Up (FOACSU)
call. This indication is
applicable only to the
called radio.
Glows orange Call hang time: No voice is
LED Indicator Radio Status
being transmitted or received
on the channel during a call.
Within such a period, you can
press and hold the PTT key
and speak.
Call Services
You can initiate various types of calls in different
manners.
When initiating a call in Manual Dial manner in trunking
mode, you need to enter a number complying with the dial
rule. For the detailed dial rule, please consult your dealer.
When you are speaking during a call, keep the
microphone about 2.5 to 5 cm away from your mouth.
This ensures optimal voice quality on the receiving radio.
Group Call
A group call is a call from an individual user in a group to
all the other members in the group.
Initiating a Group Call
The following table describes how to initiate a group call
in conventional mode and trunking mode.
Mode Manner Operation
Conventional
Preset Contact
1. Rotate the Channel
Selector knob to
select the channel
associated with the
required group
contact.
2. Press and hold the
PTT key.
Contact
List/Favorites
1. Go to Menu >
Contact >Contact
List/Favorites.
2. Select the required
group contact.
3. Press and hold the
PTT key.
Manual Dial
1. Go to Menu >
Contact >Manual
Dial.
2. Press to switch
the input mode to
Group ID.
3. Enter the required
group ID.
4. Press and hold the
PTT key.
Trunking Preset Contact
1. Rotate the Group
Selector knob to
select the required
9

Mode Manner Operation
group contact.
2. Press and hold the
PTT key.
Favorites
1. Go to Menu >
Contact >
Favorites.
2. Select the required
group contact.
3. Press or press
and hold the PTT
key.
Subgroup
1. Press the
preprogrammed
Subgroup key or go
to Menu >
Subgroup.
2. Select the required
subgroup, and then
select Member.
3. Select the required
group contact.
4. Press or press
and hold the PTT
key.
Manual Dial
1. Go to Menu >
Settings >Radio
Set >Keypad
Mode, and then
select Enable.
2. From the home
screen, enter the
group call number.
Mode Manner Operation
3. Press or or
press and hold the
PTT key.
ReDial/BackDial
Call Log
1. From the home
screen, press or
(if
preprogrammed as
the ReDial or
BackDial key).
2. Select the required
group contact from
the list.
3. Press or press
and hold the PTT
key.
Call Log
1. Go to Menu >Call
Logs >
Outgoing/Incoming
>Outgoing
List/Incoming List.
2. Select the required
group contact.
3. Press or press
and hold the PTT
key.
Receiving a Group Call
When you receive a group call in conventional mode, the
radio displays . The call is established automatically.
In trunking mode, the radio displays after the call is
established successfully.
Ending a Group Call
In conventional mode and trunking mode, a group call
automatically ends when the call hang time expires.
In trunking mode, a group call also ends in any of the
following cases:
lThe calling party ends the call by pressing the End
key or preprogrammed Clear Down key.
lThe call duration preset by your dealer expires.
lA preemptive or emergency call interrupts the call.
lThe base station signal is lost.
Private Call
A private call is a call from an individual user to another
individual user.
Initiating a Private Call
The following table describes how to initiate a private call
in conventional mode and trunking mode.
Mode Manner Operation
Conventional
Preset Contact
1. Rotate the Channel
Selector knob to
select the channel
associated with the
required private
contact.
2. Press and hold the
PTT key.
Contact
List/Favorites
1. Go to Menu >
Contact >Contact
List/Favorites.
2. Select the required
private contact.
10

Mode Manner Operation
3. Press and hold the
PTT key.
Manual Dial
1. Go to Menu >
Contact >Manual
Dial.
2. Press to switch
the input mode to
Private ID.
3. Enter the required
private ID.
4. Press and hold the
PTT key.
Trunking
Preset Contact
1. Rotate the Group
Selector knob to
select the required
private contact.
2. Press and hold the
PTT key to initiate
the call.
Favorites/Private
Contact
1. Go to Menu >
Contact >
Favorites/Private
Contact.
2. Select the required
private contact.
3. Press or press
and hold the PTT
key.
Manual Dial
1. Go to Menu >
Settings >Radio
Set >Keypad
Mode, and then
Mode Manner Operation
select Enable.
2. From the home
screen, enter the
private call
number.
3. Press or or
press and hold the
PTT key.
ReDial/BackDial
Call Log
1. From the home
screen, press or
(if
preprogrammed as
the ReDial or
BackDial key).
2. Select the required
private contact
from the list.
3. Press or press
and hold the PTT
key.
Conventional/
Trunking Call Log
1. Go to Menu >Call
Logs >
Outgoing
/Incoming/Missed
>Outgoing
List/Incoming
List/Missed List.
2. Select the required
private contact.
3. Press or press
and hold the PTT
key.
Receiving a Private Call
Conventional Mode
When you receive a private call, the radio displays .
The call is established automatically.
Trunking Mode
Depending on the system settings, you can answer a
private call in one of the following ways:
lFOACSU
When you receive a private call, the radio rings and
vibrates, and displays . Press or press and hold
the PTT key within the preset period to answer the
call. After the call is established successfully, the
radio displays .
lOff Air Call Set-Up (OACSU)
When you receive a private call, the radio displays
. The call is established automatically.
Ending a Private Call
In conventional mode and trunking mode, a private call
automatically ends when the call hang time expires.
In trunking mode, a private call also ends in any of the
following cases:
lThe calling or called party ends the call by pressing
the End key or preprogrammed Clear Down key.
lThe call duration preset by your dealer expires.
lA preemptive or emergency call interrupts the call.
lThe base station signal is lost.
11

Phone Call
In conventional mode, you can initiate a call to or receive
a call from a Public Switched Telephone Network
(PSTN) terminal.
In trunking mode, you can initiate or receive a call to or
from a PSTN or Private Automatic Branch eXchange
(PABX) terminal.
Initiating a Phone Call
The following table describes how to initiate a phone call
in conventional mode and trunking mode.
Mode Manner Operation
Conventional Manual Dial
1. Go to Menu >
Phone >DTMF
Keypad, and then
select Enable.
2. Access the phone
system in one of the
following manner:
lIf the One-Key
Connect feature
is enabled, press
to transmit the
connect code.
lIf the One-Key
Connect feature
is not enabled,
enter the
preprogrammed
connect code
from the home
screen, and then
Mode Manner Operation
press and hold
the PTT key.
After accessing the
phone system
successfully, the
radio enters the
DTMF Dial mode.
3. From the home
screen, enter the
phone number.
4. Press and hold the
PTT key.
Contact List
1. Enable the DTMF
keypad and access
the phone system as
described in the first
two steps above.
2. Go to Menu >
Phone >Phone
Contact, and then
select the required
phone contact.
3. Press and hold the
PTT key.
Trunking
Preset Contact
1. Rotate the Group
Selector knob to
select the required
phone contact.
2. Press and hold the
PTT key.
Favorites/Private
Contact 1. Go to Menu >
Mode Manner Operation
Contact >
Favorites/Private
Contact.
2. Select the required
phone contact.
3. Press or press
and hold the PTT
key.
Manual Dial
1. Go to Menu >
Settings >Radio
Set >Keypad
Mode, and then
select Enable.
2. From the home
screen, enter the
phone number.
3. Press or or
press and hold the
PTT key.
Call Log
1. Go to Menu >Call
Logs >
Outgoing
/Incoming/Missed >
Outgoing
List/Incoming
List/Missed List.
2. Select the required
phone contact.
3. Press or press
and hold the PTT
key.
ReDial/BackDial 1. From the home
12

Mode Manner Operation
Call Log
screen, press or
(if
preprogrammed as
the ReDial or
BackDial key).
2. Select the required
phone contact from
the list.
3. Press or press
and hold the PTT
key.
Receiving a Phone Call
Conventional Mode
When receiving a phone call, you need to transmit the
preprogrammed connect code to access the telephone
system as described in Initiating a Phone Call.
After the radio accesses the telephone system
successfully, the call is established automatically.
Trunking Mode
When you receive a phone call, the radio displays .
To answer the call, press or press and hold the PTT
key within the preset period. After the call is established
successfully, the radio displays .
Ending a Phone Call
In conventional mode, a phone call ends in any of the
following cases:
lYou transmit the preprogrammed disconnect code in
the same way as the connect code.
lThe phone user hangs up.
In trunking mode, a phone call ends in any of the
following cases:
lThe calling or called party ends the call.
lThe call duration exceeds the period preset by your
dealer.
lA preemptive or emergency call interrupts the call.
lThe base station signal is lost.
All Call
Conventional Mode
An all call is a call from an individual user to all other
users on the current channel.
Trunking Mode
An all call is a call from an individual user to all other
users in a specific BS, area, or system.
According to whether the called party can respond, an all
call is classified into the following two types:
lBroadcast All Call: The called party cannot respond
to the call.
lGeneral All Call: The called party can respond to the
call.
To set the type, go to Menu >Settings >Radio Set >All
Call, and then select Broadcast Call or General Call.
Initiating an All Call
Your radio can initiate an all call only after being
authorized by your dealer.
The following table describes how to initiate an all call in
conventional mode and trunking mode.
Mode Manner Operation
Conventional
Preset
Contact
1. Rotate the Channel
Selector knob to select
the channel associated
with the all call contact.
2. Press and hold the PTT
key.
Contact List
1. Go to Menu >Contact
>Contact List.
2. Select the all call
contact.
3. Press and hold the PPT
key.
Trunking
Manual
Dial
1. Go to Menu >Settings >
Radio Set >Keypad
Mode, and then select
Enable.
2. From the home screen,
enter the all call number.
3. Press or or press
and hold the PTT key.
ReDial Call
Log
1. From the home screen,
press (if
preprogrammed as the
ReDial key).
2. Select the all call log
from the list.
3. Press or press and
hold the PTT key.
Receiving an All Call
When you receive an all call, the radio displays , and
the call is established automatically.
13

Ending an All Call
In conventional mode and trunking mode, an all call ends
when the Time-out Timer (TOT) expires.
In trunking mode, an all call also ends in any of the
following cases:
lThe calling party ends the call.
lThe call duration exceeds the period preset by your
dealer.
lThe base station signal is lost.
Broadcast Call (Trunking Only)
A broadcast call is a special group call to which the
called party cannot respond. Your radio can initiate a
broadcast call only after being authorized by your dealer.
Initiating a Broadcast Call
The following table describes how to initiate a broadcast
call.
Manner Operation
Favorites
1. Go to Menu >Contact >
Favorites.
2. Select the required group contact,
and then press the OK/Menu key.
3. Select Call Type, and then select
Broadcast Call.
4. Press or press and hold the
PTT key.
Subgroup
1. Press the preprogrammed
Subgroup key or go to Menu >
Subgroup.
2. Select the required subgroup, and
then select Member.
Manner Operation
3. Select the required group contact,
and then press the OK/Menu key.
4. Select Call Type, and then select
Broadcast Call.
5. Press or press and hold the
PTT key.
Manual Dial
1. Go to Menu >Settings >Radio
Set >Keypad Mode, and then
select Enable.
2. From the home screen, enter the
broadcast call number.
3. Press or or press and hold
the PTT key.
Call Log
1. Go to Menu >Call Logs >
Outgoing/Incoming >Outgoing
List/Incoming List.
2. Select the required group contact,
and then press the OK/Menu key.
3. Select Call Type, and then select
Broadcast Call.
4. Press or press and hold the
PTT key.
ReDial/BackDial
Call Log
1. From the home screen, press
or (if preprogrammed as the
ReDial or BackDial key).
2. Select the target group contact
from the list, and then press the
OK/Menu key.
3. Select Call Type, and then select
Broadcast Call.
4. Press or press and hold the
PTT key.
Receiving a Broadcast Call
In conventional mode, when you receive a broadcast call,
the radio displays . The call is established
automatically. In trunking mode, the radio displays
after the call is established successfully.
Ending a Broadcast Call
A broadcast call ends in any of the following cases:
lThe calling party ends the call.
lThe call duration exceeds the period preset by your
dealer.
lA preemptive or emergency call interrupts the call.
lThe base station signal is lost.
Include Call (Trunking Only)
An include call is a special group call initiated to another
group in call hang time of an ongoing group call, so that
the group joins the ongoing call. Your radio can initiate an
include call only after being authorized by your dealer.
For operations of the include call, see "Group Call" on
page9.
Call on Analog Channel
(Conventional Only)
You can initiate or receive a call on an analog channel
with or without signaling.
Call Without Signaling
A call without signaling is a call initiated to all the other
users on an analog channel without signaling.
To initiate a call without signaling, do as follows:
14

1. Rotate the Channel Selector knob to select the
required channel.
2. Press and hold the PTT key, and speak into the
microphone.
Call With Signaling
On an analog channel with signaling, you can initiate a
call to a specific contact on the channel. Do as follows:
1. Rotate the Channel Selector knob to select the
required channel.
2. Press the OK/Menu key, and go to Contact >
Contact List.
3. Select the required contact.
4. Press and hold the PTT key, and speak into the
microphone.
Message Services
The Message feature allows you to send and receive the
following types of messages in trunking mode or on a
digital channel in conventional mode:
lNew messages: messages created using the keypad.
lQuick text messages: frequently used messages
predefined by your dealer but editable.
lStatus messages (trunking only): frequently used
messages predefined by your dealer and not editable.
Viewing Messages
To view a newly received message, directly press the
OK/Menu key.
To view a message from the Inbox, a sent message, or a
saved message , go to Menu >Message >
Inbox/Outbox/Drafts >Inbox List /Out box List /Drafts
List, and then select the required message.
Sending a Message
Sending a New Message
1. Go to Menu >Message >New Msg, and then type
the text.
2. Press the OK/Menu key, and then select Send.
3. Select the required contact, and then press the
OK/Menu key.
Instead of directly sending the new message, you
can also select Save in conventional mode or select
Save to Drafts or Save to QuickText in trunking
mode to save the new message, and send it later.
Sending a Quick Text Message
1. Go to Menu >Message >Quick Text, and then
select the required quick text message.
2. (Optional) Edit the message, and then press the
OK/Menu key.
3. Select Send, and then select the required contact.
4. Press the OK/Menu key.
Sending a Status Message
1. Go to Menu >Message >Status Msg, and then
select the required status message.
2. Press the OK/Menu key, and then select the required
contact.
3. Press the OK/Menu key.
Deleting a Message
To delete a message from the InBox, OutBox, or Drafts,
do as follows:
1. Go to Menu >Message >InBox/OutBox/Drafts >
Inbox List/Outbox List/Drafts List.
2. Select the required message, and then press the
OK/Menu key.
3. Select Delete, and then press the OK/Menu key.
To delete all messages from the InBox, OutBox, or
Drafts, do as follows:
1. Go to Menu >Message >InBox/OutBox/Drafts.
2. Select Delete All, and then press the OK/Menu key.
15

Feature Description
The features supported by the radio vary with the
operation mode. For details, see the following table.
Feature
Conventional
TrunkingDigital Analog
Basic Settings √ √ √
Contact Management √ √ √
Mic Automatic Gain
Control (AGC) √ √ √
Treble Boost √ √ √
3-Band Equalizer √ √ √
LQO √ √ √
Audio Feedback
Suppression √ × √
MIC & SPK √ √ √
One Touch Call/Menu √ √ √
Scan √ √ ×
Hunt × × √
Roam √ × √
Talk Around √ √ ×
Time-out Timer √ √ √
VOX √ √ √
Call Divert × × √
Call Priority × × √
Dynamic Group
Number Assignment × × √
Feature
Conventional
TrunkingDigital Analog
(DGNA)
GPS √ √ √
Work Order √ × √
Data Query × × √
Control Services √ × ×
Analog Services × √ ×
Personal Security
Services √ √ √
Encrypt √ × √
Scrambler × √ ×
Erasing Data in
Emergency √ √ √
Stun × √ √
Kill √ × √
Basic Settings
You can go to Menu >Settings >Radio Set and then do
the following operations:
If you want to... Then...
Set the language Select Language, and then select
the required language.
Turn the power-on
password on or off
1. Go to Password >On/Off,
and then select On or Off.
2. Enter the password
(88888888 by default), and
then press the OK/Menu key.
If you want to... Then...
Change the password
1. Go to Password >Password
Set.
2. Enter the old password
(88888888 by default), and
then press the OK/Menu key.
3. Enter the new password
under Input Password and
Checkout, and then press the
OK/Menu key.
Set the backlight
Select Backlight , and select one
of the following as required:
lOff : The backlight remains
off.
lOn: The backlight remains on.
lTimed : The backlight will
automatically be off if no
operation or activity is
performed within the preset
period.
Adjust the brightness
of the backlight
Select Brightness, and then press
the Up or Down key.
Set the LCD mode Select Day/Night, and then select
Day Mode or Night Mode.
Turn the LED
indication on or off
Select LED, and then select
Enable or Disable.
Turn the silent mode
on or off
Go to Tone >Radio Silent, and
then select Silent On or Silent
Off.
Turn a specific tone
on or off
1. Select Tone, and then select
the required tone.
16
Table of contents
Other Hytera Portable Radio manuals

Hytera
Hytera PD562i UL913 User manual

Hytera
Hytera PD56X R5.6 User manual

Hytera
Hytera X1ei User manual

Hytera
Hytera PT580H Plus F4 User manual

Hytera
Hytera PD36X User manual

Hytera
Hytera PD682 Um User manual

Hytera
Hytera PD502 User manual

Hytera
Hytera HP78X User manual

Hytera
Hytera PD792Ex User manual

Hytera
Hytera BD612i User manual

Hytera
Hytera PD602 User manual

Hytera
Hytera TF-515 User manual

Hytera
Hytera PD40X User manual

Hytera
Hytera TC-508 User manual

Hytera
Hytera PD40Xi User manual

Hytera
Hytera TC-780 User manual

Hytera
Hytera HP56 Series User manual

Hytera
Hytera PD79XIS FM IIB User manual

Hytera
Hytera PD46 Series User manual

Hytera
Hytera PD985/G User manual
