Hytera X1ei User manual

81100X1101200
H05658 L07157
DIGITAL PORTABLE RADIO
OWNER’S MANUAL
DIGITAL TRUNKING PORTABLE RADIO
2015
 9108
Hytera Communications Corporation Limited.
Hytera Communications Corporation Limited.

2015 。 !"
#$%&'
()*+,-
()./*+,-

Preface
Thanks for your favor in our product. This manual is helpful for you to quickly know how to use the
product. For detailed features and operations, please refer to the Feature Description and Operation
Manual along with the product.
To avoid body injury or property loss caused by misoperation, please read theSafetyInformation
Booklet carefully before use.
This manual is applicable to the following product:
X1eiDigital Portable Radio
English

Icon Conventions
Indicates functions that are available on
digital channel only.
Indicates functions that are available on
analog channel only.
Functions marked with no icon are available on both
analog and digital channels.
Disclaimer
Hytera Communications Corporation Limited (the
Company) endeavors to achieve the accuracy and
completeness of this manual, but no warranty of
accuracy or reliability is given. All the specications
and designs are subject to change without notice due
to continuous technology development. No part of
this manual may be copied, modied, translated, or
distributed in any manner without the express written
permission of us.
We do not guarantee, for any particular purpose,
the accuracy, validity, timeliness, legitimacy or
completeness of the Third Party products and
contents involved in this manual.
If you have any suggestions or would like to learn
more details, please visit our website at: http://www.
hytera.com.
RF Radiation Information
This product must be restricted to operations in an
occupational/controlled RF exposure environment.
Users must be fully aware of the hazards of the
exposure and able to exercise control over their RF
exposure to qualify for the higher exposure limits.
RF Radiation Prole
Radio Frequency (RF) is a frequency of
electromagnetic radiation in the range at which radio
signals are transmitted. RF technology is widely used
in communication, medicine, food processing and
other elds. It may generate radiation during use.
RF Radiation Safety
In order to ensure user health, experts from relevant
industries including science, engineering, medicine
and health work with international organizations to
develop standards for safe exposure to RF radiation.
These standards consist of:
●United States Federal Communications
Commission, Code of Federal Regulations;
47CFR part 2 sub-part J;
●American National Standards Institute (ANSI)/
Institute of Electrical and Electronic Engineers
(IEEE) C95. 1-1992;
●Institute of Electrical and Electronic Engineers
(IEEE) C95.1-1999;
●International Commission on Non-Ionizing
Radiation Protection (ICNIRP) 1998;
FCC Regulations
Federal Communication Commission (FCC) requires
that all radio communication products should meet
the requirements set forth in the above standards
before they can be marketed in the U.S, and the
manufacturer shall post a RF label on the product
to inform users of operational instructions, so as to
enhance their occupational health against exposure
to RF energy.
Operational Instructions and Training
Guidelines
To ensure optimal performance and compliance
with the occupational/controlled environment RF
energy exposure limits in the above standards and
guidelines, users should transmit not more than
50% of the time and always adhere to the following
procedures:
RF energy will be generated only when the radio is
transmitting.
EU Regulatory Conformance
As certified by the qualified laboratory, the product
is in compliance with the essential requirements and
other relevant provisions of the Directive 1999/5/EC.
Please note that the above information is applicable
to EU countries only.

Contents
Items in the Package---------------------------------------------------------------------1
Product Overview -------------------------------------------------------------------------1
Product Controls-----------------------------------------------------------------------1
Programmable Keys------------------------------------------------------------------ 1
LED Indicator---------------------------------------------------------------------------1
Before Use-----------------------------------------------------------------------------------2
Attaching the Battery -----------------------------------------------------------------2
Attaching the Antenna --------------------------------------------------------------- 2
Attaching the Accessories ---------------------------------------------------------- 2
Charging the Battery -----------------------------------------------------------------2
Checking the Battery Power-------------------------------------------------------- 2
Basic Operation----------------------------------------------------------------------------3
Turning the Radio On/Off ----------------------------------------------------------- 3
Adjusting the Volume-----------------------------------------------------------------3
Selecting a Zone ----------------------------------------------------------------------3
Selecting a Channel -----------------------------------------------------------------3
Call Services--------------------------------------------------------------------------------3
Private Call -----------------------------------------------------------------------3
Group Call ------------------------------------------------------------------------3
Call on Analog Channel (Without Signaling) -----------------------------3
Emergency Alarm ---------------------------------------------------------------------3
Troubleshooting ---------------------------------------------------------------------------4
Available Features ------------------------------------------------------------------------5
Care and Cleaning ------------------------------------------------------------------------5
Optional Accessories--------------------------------------------------------------------6

1
Radio Unit Battery Antenna Strap
Charger Power Adapter Documentation kit
OWNER'S MANUAL
Items in the Package
Please unpack carefully and check if all items
listed below are received. If any item is missing or
damaged, please contact your dealer.
Note: The frequency band is marked on
the label of antenna; if not, please refer to
the label on the radio for frequency band
information.
Product Overview
Product Controls
No. Part Name No. Part Name
1 Accessory Connector 7 Speaker
2Power On/Off/Volume
Control Knob 8 Antenna
3 LED Indicator 9 TK (Top Key)
4 Channel Selector Knob 10 Microphone
5 SK1 (Side Key 1) 11 Battery
6 PTT (Push-to-Talk) Key / /
Programmable Keys
For enhanced convenience, you may request your
dealer to program the TK ( ) and SK1 as shortcuts
to certain functions. Please refer to the Feature
Description and Operation Manual along with the
product for more details.
Caution: The TK key is programmed with
emergency feature by default (short press:
Emergency On; long press: Emergency Off).
It is programmable by your dealer.
LED Indicator
LED Indication Radio Status
The LED indicator ashes
green. Powering on
The LED indicator glows
green. Receiving
The LED indicator glows
red. Transmitting
The LED indicator ashes
orange slowly. Scanning or Roaming
The LED indicator ashes
orange rapidly. Emergency
The LED indicator glows
orange.
Call hung period. No
voice is being transmitted
or received on the trafc
channel during a call.
Within such period, you
can hold down the PTT
key to talk to the other
party.
The LED indicator
glows blue and then
ashes once every three
seconds.
LED indicator glowing
blue indicates the BT
feature is being started;
LED indicator ashing
blue once every three
seconds indicates the
BT feature is enabled,
but no wireless device is
connected.
The LED indicator ashes
once every two seconds.
A wireless device is
connected.

2
2
1
"click"
Before Use
Attaching the Battery

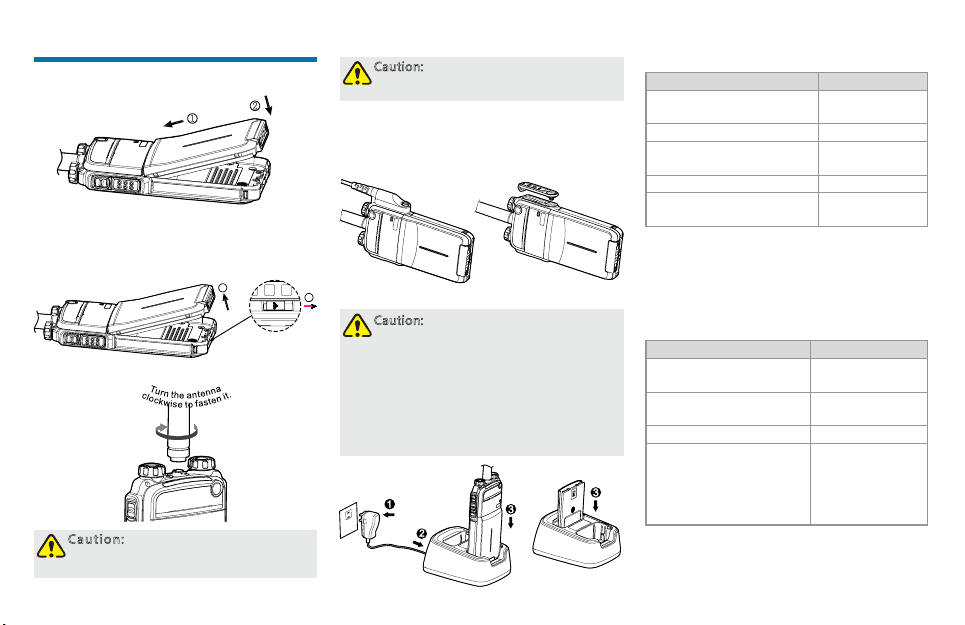

To remove the battery, turn off the radio rst. Slide
the battery latch in direction as arrow ①shows to
unlock the battery, and then remove the battery as
arrow ②shows.
1
2
Attaching the Antenna
Caution: Do not hold the radio by its
antenna, otherwise the performance and
lifespan of the antenna will be reduced.
Attaching the Accessories
Caution: Please attach the accessory
properly; otherwise, waterproof
performance of the radio may get affected.
1. Loosen the screw on the accessory connector
cover to uncover the connector.
2. Align the accessory plug with the connector.
3. Tighten the screw on the accessory plug.
Charging the Battery
Caution:
●Use the charger specified by the
Company to charge the battery.
●Make sure the radio is powered off before
charging. Read the Safety Information
Booklet in advance to get necessary
safety information.
●Charge a new battery for at least
3.5 hours before initial use for best
performance.
Charge the radio (with
battery attached)
Charge the battery
Charging Status Indication (on charger):
LED Indication Charging Status
The LED Indicator ashes red
slowly.
Standby (no load)
The LED Indicator glows red. Charging
The LED indicator glows
orange.
90% charged
The LED indicator glows green. Fully charged
The LED Indicator ashes red
rapidly.
Charging failed
Checking the Battery Power
You can check the current battery power by holding
down the programmed Battery Power Indicator key
preset by your dealer. And release the key to exit.
Battery power indications and alert tone are listed
below:
LED Indication/Tone Battery Power
The LED Indicator glows
green.
High
The LED Indicator glows
orange.
Medium
The LED Indicator glows red. Low
The LED Indicator glows red
and an alert tone sounds.
The battery runs low.
Please recharge or
replace the battery
for proper radio
operation

3
“Click” “Click”
ON OFF
Basic Operation
Turning the Radio On/Off
Adjusting the Volume
You can adjust the volume of output voice, alert tone
and channel notication tone by rotating the Volume
Control Knob. For other tones, the volume will be
congured by the dealer.
Selecting a Zone
A zone is a group of channels with the same property,
which can facilitate convenient management over
the channels. The radio supports 3 zones, each of
which consists of up to 16 channels. Your dealer
can program the zone for your specic needs. You
can switch to the appropriate zone by pressing the
programmed Zone Up or Zone Down key preset by
your dealer.
Selecting a Channel
Note:If the Channel Notify feature is
enabled by your dealer, the radio will
announce the channel number upon
channel switching.
Call Services
After the radio is powered on, you can make and
receive calls. To ensure optimal volume of the
receiving radio, keep the microphone about 2.5 to 5
centimeters away from your mouth when transmitting.
Private Call
Initiating a Private Call
In the home screen, hold down the PTT key to initiate
a private call to the private contact preset for the
current channel.
You may request your dealer to preset a regular
private contact, group contact or all call contact for
each digital channel.
Receiving and Responding to a Private
Call
When you receive a private call, you can listen to it
without any operation and hold down the PTT key to
call back within the preset time.
Group Call
Initiating a Group Call
In the standby mode, hold down the PTT key to
initiate a group call to the group contact preset for the
current channel.
Receiving and Responding to a Group Call
When you receive a group call, you can listen to it
without any operation and hold down the PTT key to
call back within the preset time.
Call on Analog Channel (Without
Signaling)
To transmit on an analog channel, hold down the PTT
and speak into the microphone. To receive, release
the PTT key.
Please refer to the Feature Description and Operation
Manual along with the product for operation
description on how to make and receive calls on the
analog channel with signaling.
Emergency Alarm
In case of emergency, you can use Emergency Call
to ask for help from your companion or the control
center.
Emergency Call needs to be configured and
enabled by your dealer. Please refer to the Feature
Description and Operation Manual along with the
product for details.
2.5~5.0CM

4
Troubleshooting
Phenomena Analysis Solution
The radio cannot be powered
on.
The battery may be improperly installed. Remove the battery and then reattach it.
The battery power may run out. Recharge or replace the battery.
The battery may suffer from poor contact caused by dirtied or
damaged battery contacts. Clean the battery contacts.
During receiving, the voice is
weak, discontinuous or totally
inactive.
The battery voltage may be low. Recharge or replace the battery.
The volume level may be low. Increase the volume by rotating the Volume Control Knob.
The antenna may get loose or may be improperly installed. Turn off the radio and reattach the antenna.
The speaker may be blocked or damaged. Clean the surface of the speaker.
You cannot communicate with
other members.
The frequency or signaling may be inconsistent with that of
other members. Set your TX/RX frequency and signaling to the same as that of other members.
The channel type (digital and analog) may be set inconsistently. Make sure all members are on the same digital or analog channel.
You may be too far away from the group members. Move towards other members.
Irrelevant communication or
noise is heard on the channel.
You may be interrupted by radios using the same frequency. Change the frequency, or adjust the squelch level.
The radio may be set without signaling. Set signaling for all member radios to avoid interference at the same
frequency.
The noise is too loud.
You may be too far away from other members. Move towards other members.
You may locate in an unfavorable position. For example, your
communication may be blocked by high buildings or frustrated
in the underground areas. Move to an open and at area, and restart the radio to try again.
You may suffer from external disturbance (such as
electromagnetic interference). Stay away from equipment that may cause interference.
The GPS cannot locate your
position. GPS signals may not be received due to unfavorable position. Move to an open and at area to try again.
Wireless devices cannot be
paired.
The battery power of wireless devices may be low. Recharge the wireless devices.
Wireless device may be too far away from the radio. Move the wireless device towards the radio.
If the above solutions cannot x your problems, or you may have some other queries, please contact us or your local dealer for more technical support.

5
Available Features
Available features of this radio are listed below. Please refer to the Feature Description and Operation Manual
for detailed feature descriptions.
Feature Type Detailed Feature
Basic Setting
●Indication: LED, Tone, Vibration
●Audio: Mic AGC, Treble Boost, LQO, Audio Feedback Suppression
●Scanning: Scan On, Scan Off, Scan List
●Other Features: Power Level, VOX, One Touch Call/Menu, Renting,
Programming, Covert Mode
Digital Features
●Voice Services: Group Call, Private Call, All Call
●Control Services: Alert Call, Radio Check, Remote Monitor, Radio Enable,
Radio Disable, Priority Interrupt, Receiving Vibration, Time-out Timer (TOT)
●Personal Security Services: Emergency Alarm, Man Down, Lone Worker
●Encrypt
●Network: Talk Around, Roam
●Other Features: Pseudo Trunking, Morse Code
Analog Features
●Voice Services: Call without Signaling, Call with Signaling
●Control Services: Compandor, Time-out Timer (TOT), Receiving Vibration,
Monitor, Squelch Off, Squelch Level Adjustment, CTCSS/CDCSS
●Personal Security Services: Emergency Alarm, Man Down, Lone Worker
●Scrambler
●Talk Around
●Morse Code
Accessory-related
Features ●BT
API Features
●GPS Report
●Radio Registration Service
●Telemetry
Care and Cleaning
To guarantee optimal performance as well as a long
service life of the product, please follow the tips
below.
Product Care
●Do not pierce or scrape the product.
●Keep the product far away from substances that
can corrode the circuit.
●Do not hold the product by its antenna or
earpiece cable directly.
●Attach the accessory connector cover when the
accessory is not in use.
Product Cleaning
Caution: Turn off the product and remove
the battery before cleaning.
●Clean up the dust and fine particles on the
product surface and charging piece with a clean
and dry lint-free cloth or a brush regularly.
●Use neutral cleanser and a non-woven fabric
to clean the keys, control knobs and front
case after long-time use. Do not use chemical
preparations such as stain removers, alcohol,
sprays or oil preparations, so as to avoid surface
case damage.
●Make sure the product is completely dry before
use.

6
Optional Accessories
The following items are the main optional accessories for the product, and please consult your local dealer for
more other accessories.
Caution: Use the accessories specified by the Company only. If not, the Company shall not be liable
for any losses or damages arising out of use of unauthorized accessories.
Type Model Name
Power Supply
BL1103 Li-ion battery (1100 mAh)
BL1809 Li-ion battery (1800 mAh)
CH04L01 Portable Charger
CHV09 Vehicle Adapter for Charger
MCA05-X Battery Optimizing System
MCA10 MCU Multi-unit Rapid-rate Charger
POA53 Li-ion Battery Adapter for X1eiSeries
POA58 Multi-unit Charger Battery Adapter for X1ei
Audio
Accessories
EAN19 3-wire Surveillance Earpiece with Transparent Acoustic Tube (Beige)
EAN21 3-wire Surveillance Earpiece with Transparent Acoustic Tube (Beige)
EAN22 Detachable Earpiece with Transparent Acoustic Tube
EAN24 2-wire Surveillance Earpiece with Transparent Acoustic Tube (Black)
EHN20 Swivel Earset
EHN21 C-Earset
EHW02 Wireless Earpiece
ESN14 Earbud
EWN07 Digital Wireless Covert Earpiece With in-Line Controller (Neckloop Sensor)
EWN08 Digital Wireless Covert Earpiece (Flatpack Sensor)
POA47 Wireless Ring PTT
Cable PC45 Programming Cable (USB port)
Carrying
Accessories
NCN009 Covert Shoulder Harness
PCN005 Belt Clip
NCN009-C Covert Radio Zip Up Vest (White)

致用户
非常感谢您对我们产品的青睐！本手册旨在让您快速掌握本产品的使用，如需了解产品详细功能和操
作，请参阅本产品配套的《功能与操作手册》。
为了避免因不当操作而给您带来身体伤害或财产损失，请于使用本产品前详细阅读《安全信息手册》。
本手册适用于以下机型：
X1ei数字手持终端
中文

图标说明
表示数字信道独有的功能，只能在数字信道上
使用。
表示模拟信道独有的功能，只能在模拟信道上
使用。
未用图标区分的功能在数字信道和模拟信道上都可使
用。
免责声明
本手册在编制过程中力求内容的准确性与完整性，但
对于可能出现的错误或疏漏，我司不承担任何责任。
由于技术的不断发展，我司保留不予通知而更改产品
设计与规格的权利。未经我司事先书面授权，不得以
任何形式对本手册进行复制、修改、翻译和散发。
本手册中涉及的第三方产品和内容归第三方所有，我
司对其准确性、有效性、及时性、合法性或完整性均
不提供保证。
如需更多信息或对本手册有任何建议，欢迎访问我们
的网站：http://www.hytera.com，或拨打我司服务热线：
400-830-7020。
射频辐射信息
本产品仅限于能够满足射频能量辐射要求的职业应用。
使用者必须清楚了解射频辐射危害并可采取相应措施，
满足射频辐射限定要求。
射频辐射常识
射频指可以辐射到空间的电磁频率，是通讯、医疗、
食品加工等领域广泛使用的一种技术，在使用过程中
会产生一定的射频辐射。
射频辐射安全
为了确保用户的身心健康，来自科学、工程、医药、
健康和工业的专家们与相关组织共同研究制定了射频
辐射标准和准则，如下所示：
●美国联邦通信委员会联邦政府法规汇编第 47 卷第
2部分 J子部分。
●美国国家标准协会 (ANSI)/ 电气和电子工程师协会
(IEEE) 标准 C95.1-1992 版。
●电气和电子工程师协会标准 C95.1-1999 版。
●国际非电离辐射防护委员会 (ICNIRP) 于1998 年
颁布的标准。
美国联邦通信委员会监管要求
按照美国联邦通信委员会的监管要求，本产品必须符
合美国联邦通信委员会射频辐射限制规定，否则不能
在美国市场上销售。并要求制造商可通过在产品上张
贴标签的方式，告知用户应注意的事项，提高用户的
防辐射意识。
射频辐射控制及操作说明
为了使产品发挥最佳性能及确保符合上述标准中有关
职业或受控环境中的辐射限制要求，发送时间不得超
过额定因数的 50%（最高 50% 的时间发射），且需
遵照下列说明：
仅在发射（讲话）时产生射频能量辐射，接收（收听）
和待机时均不会产生。
欧盟指令符合性声明
本产品经独立第三方机构认证，符合欧盟指令“1999/5/
EC”中的相关要求。
请注意，本声明仅适合欧盟国家。

包装清单---------------------------------------------------------------------------------------1
熟悉产品---------------------------------------------------------------------------------------1
部件介绍---------------------------------------------------------------------------------1
可编程键---------------------------------------------------------------------------------1
LED 指示灯 -----------------------------------------------------------------------------1
用前准备---------------------------------------------------------------------------------------1
安装电池---------------------------------------------------------------------------------1
安装天线---------------------------------------------------------------------------------2
安装附件---------------------------------------------------------------------------------2
充电---------------------------------------------------------------------------------------2
查看电量---------------------------------------------------------------------------------2
基本操作---------------------------------------------------------------------------------------2
开机与关机------------------------------------------------------------------------------2
调节音量---------------------------------------------------------------------------------2
选择区域---------------------------------------------------------------------------------2
选择信道---------------------------------------------------------------------------------3
呼叫---------------------------------------------------------------------------------------------3
个呼 ---------------------------------------------------------------------------------3
组呼 ---------------------------------------------------------------------------------3
模拟信道呼叫（无信令） -----------------------------------------------------3
紧急报警---------------------------------------------------------------------------------3
故障处理---------------------------------------------------------------------------------------4
功能说明---------------------------------------------------------------------------------------4
保养与清洁------------------------------------------------------------------------------------5
选购配件---------------------------------------------------------------------------------------5
保修范围与期限------------------------------------------------------------------------------5
目录

1
主机 电池 天线 吊绳
充电座 电源适配器 资料套件
使用说明书

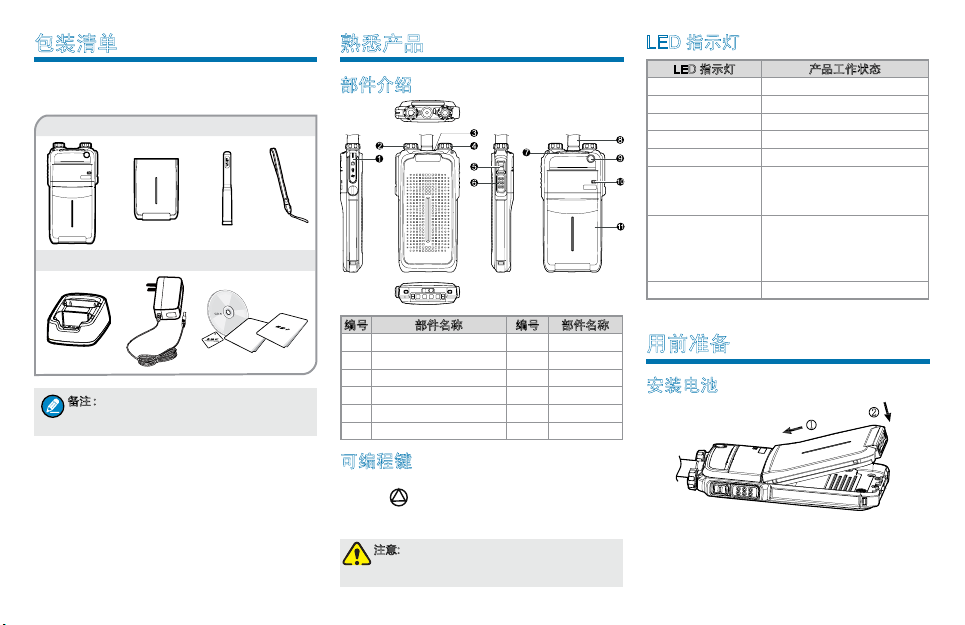

包装清单
包装盒内含有以下物品。如有任何物品丢失或损坏，
请与您所购产品的经销商联系。
备 注：天线频段请参考天线底部色环标签内容。
若标签未注明频段，则参考主机标签上的具体频
段。
熟悉产品
部件介绍
编号 部件名称 编号 部件名称
1附件接口 7扬声器
2电源开关 /音量控制旋钮 8天线
3 LED 指示灯 9 TK（顶部键）
4信道选择旋钮 10 麦克风
5 SK1（侧键） 11 电池
6 PTT 键（发射键） / /
可编程键
为提升操作便利性，本产品提供 2个可编程功能快捷
键：TK（ ）和 SK1。具体功能请咨询您的经销商，
功能的详细介绍可参阅本产品配套的《功能与操作手
册》。
注 意：出厂时，短按【TK】键已设置为“紧急报警开启”
功能，长按【TK】键已设置为“紧急报警关闭”功能。
您可通过经销商设置为其他功能快捷键。
LED 指示灯
LED 指示灯 产品工作状态
绿灯闪烁 正在开机
绿灯长亮 正在接收
红灯长亮 正在发送
橙灯慢闪 正在扫描或者漫游
橙灯快闪 紧急状态
橙灯长亮
呼叫建立成功，在橙灯长亮期
间您可以按住【PTT】键进行
回呼
蓝灯长亮后每 3秒闪
烁一次
蓝灯长亮表示正在开启蓝牙功
能，蓝灯每 3秒闪烁一次表示
已成功开启蓝牙功能，但未连
接蓝牙设备
蓝灯每 2秒闪烁一次 已连接蓝牙设备
用前准备
安装电池
如需卸下电池，请先关机。按下图①的箭头方向拨动
卡扣以松开电池推钮，按下图②将底部电池推钮往上
提起并取出电池。
2
1
"咔嗒 "

2
ON OFF
“咔嗒” “咔嗒”
1
2
安装天线
注 意：请勿手持天线顶端甩动本产品，否则会降
低本产品天线的工作性能和使用寿命。
安装附件
注 意：请正确安装附件，否则本产品的防水性能可
能会受到影响。
1. 松开附件接口上的螺钉，打开附件接口。
2. 将附件插头对准附件接口。
3. 将附件插头上的螺钉拧紧。
充电
注 意：
●请使用我司指定的充电座充电。
●为整机充电时，建议关机并提前参阅《安全信息
手册》，以获取必要的电池安全信息。
●为获得最佳电池性能，首次充电时，请至少充电
3.5 小时。
整机充电 电池充电
观察充电座 LED 指示灯可了解当前充电状态：
LED 指示灯 当前充电状态
红色慢闪 待机（空载）
红色长亮 正在充电
橙色长亮 已充电 90%
绿色长亮 已充满
红色快闪 充电故障
查看电量
如果经销商为本产品设置了【电池电量提示】快捷键，
那么您可以按住该快捷键通过 LED 指示灯和提示音查看
电池剩余电量，松开该快捷键取消查看电池剩余电量。
LED 指示灯 /提示音 电池电量
LED 指示灯亮绿灯 电量高
LED 指示灯亮橙灯 电量中
LED 指示灯亮红灯 电量低
LED 指示灯亮红灯，同时
伴有低电提示音
电量不足，请尽快充电或
者更换电池
基本操作
开机与关机
调节音量
您可以调节输出语音、呼叫提醒提示音和信道播报的
音量，其他提示音的音量由经销商设置。
选择区域
区域是一个信道组，您可以将具有相同属性的信道列
入一个区域中，便于您对现有信道进行有效管理。本
产品支持 3个区域，每个区域最多包含 16 个信道。若
经销商为您设置了【区域上调】/【区域下调】快捷键，
您可通过按此快捷键可切换至所需区域。

3

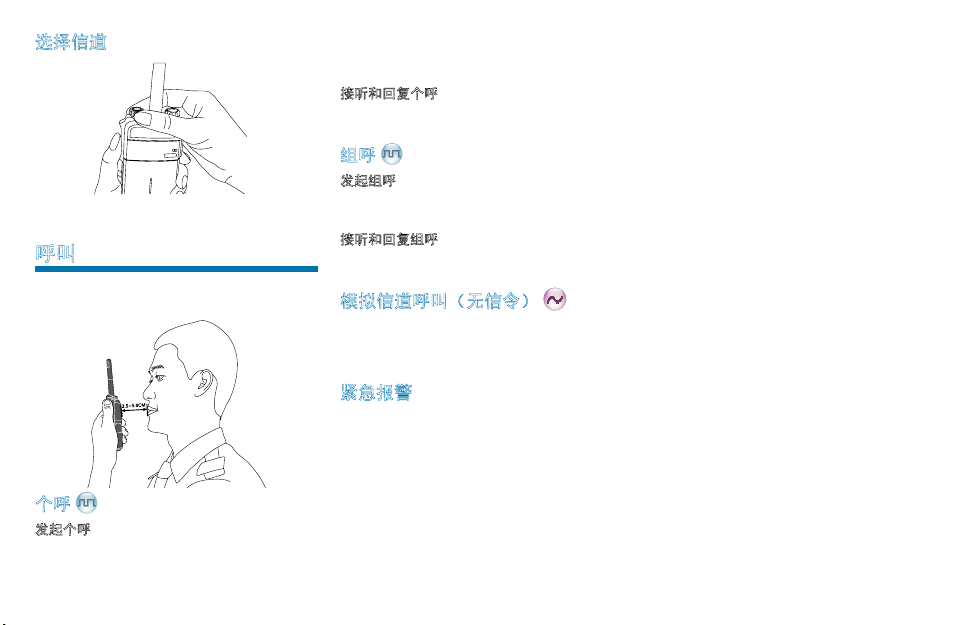

选择信道
如果经销商为本产品开启了信道播报功能，此处切换
信道时本产品将播报信道号。
呼叫
开机成功后，您可以进行各种呼叫操作。为保证最佳
接收音量，发射时请保持麦麦克风与嘴的距离为 2.5
～5厘米。
2.5~5.0CM
个呼
发起个呼
在待机界面下，按住【PTT】键即可对当前数字信道
上预设的个呼联系人直接发起呼叫。
您可通过经销商为每个数字信道预设一个“发射联系
人”，该联系人可以是个呼联系人，也可以是组呼或
全呼联系人。
接听和回复个呼
接收到个呼后，您无需任何操作即可接听，在预设时
间内按住【PTT】键可发起回呼。
组呼
发起组呼
在待机状态下，按住【PTT】键即可对当前数字信道
上预设的组呼联系人发起组呼。
接听和回复组呼
接收到组呼后，您无需任何操作即可接听，在预设时
间内按住【PTT】键可发起回呼。
模拟信道呼叫（无信令）
在模拟信道上，如需发射，请按住【PTT】键并对着
麦克风讲话。如需接收，请松开【PTT】键。
使用信令发起呼叫的操作方法请参阅本产品配套的《功
能与操作手册》。
紧急报警
遇到紧急情况时，您可通过此功能来向同伴或控制中
心寻求帮助。
紧急报警功能需由经销商为您配置和开启，详情请参
阅本产品配套的《功能与操作手册》。

4
故障处理
故障描述 原因分析 解决方法
无法开机
电池可能未正确安装 取出电池并重新装入
电池电量可能已经耗尽 充电或更换电池
电池触点污浊或受损而导致接触不良 清洁电池触点
接收信号时声音
小、断续或无声
电池电压过低 充电或更换电池
音量较小 通过【音量控制】旋钮调大音量
天线松动或安装不到位 关机后重新安装天线
扬声器堵塞或受损 进行简单的外部清洁
无法与组内其他
成员通话
所用频率或信令设置与组内其他成员不同 设置与组内其他成员相同的频率和信令
数字、模拟信道设置不当 设置相同的数字信道或模拟信道
距离组内其他成员太远 尽量靠近其他成员，确认位于有效通讯范围
信道中出现其他
通话声或杂音
受到同频用户的干扰 更改为新的频点，或调整静噪级别
未设置信令 对组内所有对讲机进行信令设置，以防止同频干扰。
但必须同时更改组内所有手持终端的信令设置
噪声较大
与其他成员之间的通讯距离过远 靠近其他成员
所处位置不佳，如受高大建筑物阻挡，或
位于地下室等 移至开阔平坦地后，开机重试
受外界环境或电磁干扰 避开可能引起干扰的设备
GPS 无法定位 所处位置不佳，以致接收不到 GPS 信号 移至开阔平坦地后重试
蓝牙设备无法配
对
蓝牙设备电量不足 为蓝牙设备充电
蓝牙设备与本产品距离太远 将蓝牙设备移近本产品
如上述方法仍未解决您的问题，或您遇到一些其他的故障，请联系当地经销商或我司以获取更多的技术支持。
功能说明
本机型所支持的功能如下表所示，相关功能详细描述
请参考《功能与操作手册》。
功能分类 具体功能
基本设置
●提示设置：指示灯，提示音，振动
●音频设置：麦克风自动增益，无条件高
音增强，音质音量优化器，声反馈抑制
●扫描设置：开启扫描，关闭扫描，设置
扫描列表
●其他：功率级别，声控，一键呼叫，租
赁，编程，隐蔽模式
数字功能
●语音业务：组呼，个呼，全呼
●补充业务：呼叫提示，对讲机检查，远
程监听，对讲机激活，对讲机遥毙，优
先打断，接收振动，超时禁发
●个人安全：紧急报警，倒放，单独工作
●加密
●网络：脱网，漫游
●其他：虚拟集群，发射莫尔斯码
模拟功能
●语音业务：无信令呼叫，有信令呼叫
●补充业务：压扩，超时禁发，接收振动，
监听，静噪打开，静噪级别调整，亚音
频/亚音数码
●个人安全：紧急报警，倒放，单独工作
●扰频
●脱网
●发射莫尔斯码
附件扩展
●蓝牙
API
●GPS 上传
●对讲机注册服务
●遥测

5
保养与清洁
为了保证本产品发挥其良好性能，以及延长其使用寿
命，请熟悉以下内容，以便更好地对本产品进行日常
保养与清洁。
保养
●请勿用硬物穿刺或刮花本产品。
●请勿将本产品存放于含有腐蚀电子电路物质的环
境。
●携带或使用本产品过程中，请勿用手提天线或耳机
线。
●当不使用附件时，请盖好附件接口盖。
清洁
注 意：清洁之前，请关机并取出电池。
●请定期使用洁净干燥的无绒布或毛刷拭去本产品
表面及充电极片附着的粉尘。
●本产品的按键、控制旋钮和机壳极易变脏。可用中
性洗涤剂和无纺布对其进行清洁，请勿用去污剂、
酒精、喷雾剂或石油制剂等化学药剂进行清洁，以
避免产品表面和外壳受损。
●清洁之后，务必保证本产品彻底干燥，否则请勿使
用。
选购配件
本产品主要的选购附件已包含在如下列表中，如需更
多附件信息，请咨询您当地的经销商或拨打我司服务
热线 400-830-7020。
注 意：请使用我司指定的配件。若擅自使用未经
许可的配件，则由此所导致的一切后果，由用户自
行负责。
配件类型 配件型号 配件名称
电源类
BL1103 锂离子电池（1100mAh）
BL1809 锂离子电池（1800mAh）
CH04L01 携带式充电器
CHV09 座充车载电源适配器
MCA05-X 电池分析仪
MCA10 X1ei 排充
POA53 锂电适配器
POA58 X1ei 系列排充电池充电兜
音频类
EAN19 三线透明管双 PTT 线控耳机
（米色）
EAN21 三线透明管监控耳机（米色）
EAN22 分体式透明管耳机
EAN24 二线透明管监控耳机（黑色）
EHN20 分体可调节耳挂式耳机
EHN21 分体 C型耳挂式耳机
EHW02 无线耳机
ESN14 分体耳塞式耳机
EWN07 无线线控数字隐形耳机（项
圈式感应器）
EWN08 无线数字隐形耳机（扁平式
感应器）
POA47 无线指环 PTT
配件类型 配件型号 配件名称
线材类 PC45 编程连接线（USB 接口）
携带类
NCN009 隐藏式背心
PCN005 携带夹
NCN009-C 携带背心（白色）
保修范围与期限
我司承诺，凡我司生产的产品，自购买之日起，在正
常使用、操作与维护条件下，出现材料或制造工艺方
面的缺陷，可享受以下规定的保修服务。
主机 24 个月
标配附件（包括电池、充电座） 12 个月

Preface
Thanks for your favor in our product. This manual is helpful for you to quickly know how to use the
product. For detailed features and operations, please refer to the Feature Description and Operation
Manual along with the product.
To avoid body injury or property loss caused by misoperation, please read theSafety Information
Booklet carefully before use.
This manual is applicable to the following product:
X1eiDigital Trunking Portable Radio
Trunking English

Disclaimer
Hytera Communications Corporation Limited (the
Company) endeavors to achieve the accuracy and
completeness of this manual, but no warranty of
accuracy or reliability is given. All the specications
and designs are subject to change without notice due
to continuous technology development. No part of
this manual may be copied, modied, translated, or
distributed in any manner without the express written
permission of us.
We do not guarantee, for any particular purpose,
the accuracy, validity, timeliness, legitimacy or
completeness of the Third Party products and
contents involved in this manual.
If you have any suggestions or would like to learn
more details, please visit our website at: http://www.
hytera.com.
RF Radiation Information
This product must be restricted to operations in an
occupational/controlled RF exposure environment.
Users must be fully aware of the hazards of the
exposure and able to exercise control over their RF
exposure to qualify for the higher exposure limits.
RF Radiation Prole
Radio Frequency (RF) is a frequency of
electromagnetic radiation in the range at which radio
signals are transmitted. RF technology is widely used
in communication, medicine, food processing and
other elds. It may generate radiation during use.
RF Radiation Safety
In order to ensure user health, experts from relevant
industries including science, engineering, medicine
and health work with international organizations to
develop standards for safe exposure to RF radiation.
These standards consist of:
●United States Federal Communications
Commission, Code of Federal Regulations;
47CFR part 2 sub-part J;
●American National Standards Institute (ANSI)/
Institute of Electrical and Electronic Engineers
(IEEE) C95. 1-1992;
●Institute of Electrical and Electronic Engineers
(IEEE) C95.1-1999;
●International Commission on Non-Ionizing
Radiation Protection (ICNIRP) 1998;
FCC Regulations
Federal Communication Commission (FCC) requires
that all radio communication products should meet
the requirements set forth in the above standards
before they can be marketed in the U.S, and the
manufacturer shall post a RF label on the product
to inform users of operational instructions, so as to
enhance their occupational health against exposure
to RF energy.
Operational Instructions and Training
Guidelines
To ensure optimal performance and compliance
with the occupational/controlled environment RF
energy exposure limits in the above standards and
guidelines, users should transmit not more than
50% of the time and always adhere to the following
procedures:
RF energy will be generated only when the radio is
transmitting.
EU Regulatory Conformance
As certified by the qualified laboratory, the product
is in compliance with the essential requirements and
other relevant provisions of the Directive 1999/5/EC.
Please note that the above information is applicable
to EU countries only.
