Hyundai HY2524 User manual

CONTENTS
TITLE
PAGE No
1. SAFETY
3/4
2. PARTS
5/6
3. APPLICATION
7
4. INSTALLATION INSTRUCTIONS
7
5. ADDITIONAL SAFETY
7/9
6. INSTALLATION & COMISSIONING
10/11
7. TECHNICAL DATA
12
8. CLEANING & MAINTENANCE
12/13
9. DISPOSAL & RECYCLING
14
10. TROUBLESHOOTING
14
11. GENPOWER CONTACT DETAILS
15
12. DECLARATIONS of CONFORMITY
15
Page 2
Rev 2

1. SAFETY.
1.1. The operator of the machine;
1.1.1. Is responsible for and has a duty of care in making sure that the compressor is
operated safely and in accordance with the instructions in this user manual.
1.1.2. Should never leave it in a condition which would allow an untrained or unauthorised
person/s to operate this compressor.
1.1.2.1. Should take care and show due diligence for the safety of and with regard to
those around whilst using the machine, to include but not limited to;
1.1.2.1.1. Elderly, children, pets, livestock and property.
1.2. Some or all of the following PPE, Warning Signs and symbols may appear throughout this
manual and you must adhere to their warning/s. Failure to do so may result in personal
injury.
Personal Protective clothing (PPE)
Warning Signs and Symbols –FOLLOW safety messages to avoid or reduce risk of injury or death.
DANGER - indicates a
hazard which if not
avoided could result in
serious injury or death.
WARNING - indicates a
hazard which if not
avoided could result in
serious injury or death.
CAUTION - indicates a
hazard which if not
avoided might result
in minor or moderate
injury.
NOTE - indicates a
situation that could
easily result in
equipmentdamage.
READ MANUAL
GOGGLES
DO NOT OPEN
WHEN IN USE
RISK OF ACCIDENTAL
START-UP
Page 3
Rev 2

1.3. Electrical Safety.
1.3.1. Electricity can kill - never work on LIVE/ENERGISED equipment.
1.3.2. Identify electrical isolation method and always isolate all electrical supplies,
prior to carrying out any maintenance work.
1.3.3. Prior to use and with all electrical supplies isolated check all electrical cables,
plugs and connections for the following.
1.3.3.1. Are intact and have no signs of damage, to include but not limited to
bare wires, chaffing, cuts and loose wiring. If there are any signs of damage,
the damaged item should be taken out of service until the damage has been
repaired by an electrically competent person.
1.3.4. All trailing cables should be routed so as not to cause any kind of trip hazard.
1.5. Never work on or near electricity with wet hands, wet clothing, and wet
gloves.
Page 4
Rev 2

2. PARTS.
Picture 1.
Picture 2.
Picture 3.
1. Inlet air filter.
2. Compressor.
3. Oil level indicator.
4. Air tank.
5. Foot.
6. Handle.
7. ON- OFF switch
8. Pressure gauge
9. Pressure relief valve
10. Quick relase outlet.
11. Pressure regulator.
12. Tank drain valve
Page 5
Rev 2

2. PARTS Continued.

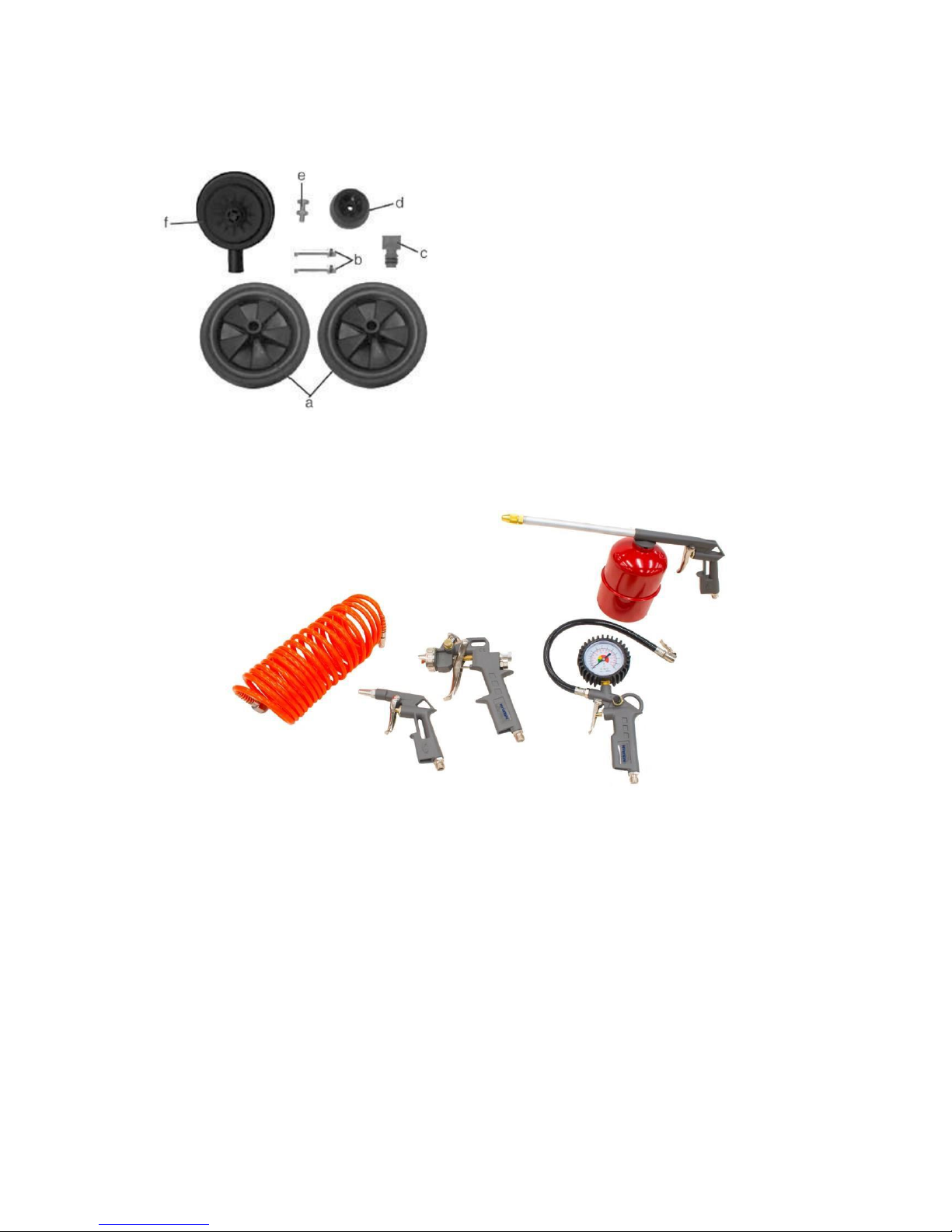

Accessory kit
a.
Wheels
x 2
b.
Wheel bolts
x 2
c.
Oil filler cap
x 1
d.
Rubber foot
x 1
e.
Nut/Bolt for foot
x 1
f.
Air filter
x 1
Page 6
Rev 2

3. APPLICATION.
This compressor is used to produce compressed air for pneumatic tools.
4. INSTALLATION INSTRUCTIONS.
4.1 Check the unit when it is delivered. Any damage should be immediately reported to the
company.
4.2 Check the oil level before starting up.
4.3 Turn the machine on only if you are close to it.
4.4 Long air lines and long supply lines (extension) should be avoided.
4.5 Make sure that the air-intake is dry and has no dust.
4.6 Do not install the compressor in the damp or wet room.
4.7 The compressor is only allowed to work in suitable well ventilated areas. The working
temperature is 5 ℃to 40 ℃) .
4.7.1 The room must be free of dust, acids, and fumes, explosive or flammable gas.
4.8 The compressor is suitable for use in dry rooms.
5. ADDITONAL SAFETY.
5.1 Safety notes
5.1.1 When using this compressor, you must prevent the electric shock, injury or fire. The
following safety measures must be followed. Read and follow these instructions before
using the machine.
5.1.2 Keep your work area clean, Cluttered areas and benches can cause accidents.
5.1.3 Check your work as follows.
5.1.3.1 Place the compressor where it will not get wet i.e. outside in the rain.
5.1.3.2 Do not use the compressor in the damp or wet conditions.
5.1.3.3 Provide and use adequate lighting.
5.1.3.4 Always use the compressor far away from the flammable liquids or
gases.
5.1.3.4 Avoid body contact with metal objects such as pipes, radiators etc.
5.1.4 Keep children, ill and infirm persons away from the working area.
5.1.5 Do not allow other people to touch the compressor or cable, keep them away from
your work area.
5.1.6 Keep your compressor safe, when not being used the compressor should be kept in
a dry and locked room and it must be out of reach of children.
5.1.7 Do not overload your compressor.
5.1.7.1 At normal load, the compressor works better and safely.
5.1.8 Wear the appropriate work clothes.
5.1.8.21 Do not wear the loose clothes or jewellery. Otherwise, you may get
entangled by the moving parts.
5.1.8.2 When working outdoors, rubber gloves and sturdy shoes are
recommended. If you have long hair, wear a hair net.
5.1.9 DO NOT mis-use the electrical supply cable.
5.1.9.1 When you have finished working disconnect the compressor by switching
it off at the supply socket, then unplug the compressor from the power source.
5.1.9.2 Keep the electrical supply cable of the compressor away from heat, oil and
sharp edges.
Page 7
Rev 2

5.1.10 Maintain your compressor with care.
5.1.10.1 Keep your compressor clean.
5.1.10.2 Follow the maintenance instructions.
5.1.10.3 Regularly check the plug and electrical supply lead.
5.1.10.4 Any damaged parts should be dealt with by a qualified person.
5.1.10.5 Inspect extension supply leads periodically and replace them if
they are found damaged.
5.1.11 Avoid accidental starting.
5.1.11.1 Make sure that the switch is off when it is disconnected from the main
supply.
5.1.12 Use of extension of leads outdoors.
5.1.12.1 When used outdoors (in dry conditions), the extension lead must be
approved and marked. It must also be protected by the use of an RCD.
5.1.13 Stay alert.
5.1.13.1 Concentrate on your work.
5.1.13.2 Use common sense.
5.1.13.3 DO NOT use the compressor when you are distracted.
5.1.14 Check your compressor before use to prevent damage.
5.1.14.1 Before using, double check the compressor’s parts, and make sure all
functions of the compressor are in good order and function correctly.
5.1.14.2 Check that all the functional parts are fine; make sure no part is damaged.
5.1.14.3 All parts must be installed correctly and the device must be checked and
be in good working condition.
5.1.14.4 Any broken/missing parts should be properly repaired/replaced by
a qualified person.
5.1.14.5 If the main supply switch or on/off switches are broken they MUST be
immediately replaced.
5.1.44.6 DO NOT use the compressor if it cannot be switched off.
5.1.15 Accessories and attachments.
5.1.15.1 For your own safety, use only the accessories and attachments that are
specified in the manual or recommended by the manufacturer. Use of other
accessories and attachments that are not recommended in the manual can cause
you personal injury.
5.1.16 Electrical repairs should only be carried out by a qualified electrician. Repairs done
by a non-qualified person may lead to accident or injury. If the electrical supply cable is
damaged, it must be replaced by the manufacturer or a qualified electrician in order to
avoid a hazard.
5.1.17 Noise.
5.1.17.1 When using the compressor hearing protection MUST be worn.
Page 8
Rev 2

There will be a risk of inhaling noxious fumes, mists and vapours.
5.2 Safety instructions for the operation of the compressed air and blow guns.
5.2.1 The compressor reaches a high temperature during operation. Touching it when
hot can lead to burns.
5.2.2 The compressor must not be allowed to take in impurities in the air; otherwise it
will lead to fire or explosion.
5.2.3 When loosening the hose coupling, it should be held by both hands to avoid
injury.
5.2.4 When operating the blow gun, safety glasses MUST be worn. The flying foreign
objects and parts can lead to injury.
5.2.5 Any person in operating the blow gun should wear the protective clothing.
5.3 Safety when spraying paint.
5.3.1 Do not use paints or solvents with a flash point less than 21 ℃.
5.3.2 Paints and solvents must not be heated.
5.3.3 To avoid inhaling harmful liquid vapours you MUST wear face mask protection.
You should adhere to the information provided by the manufacturers of these devices
for additional measures.
5.3.4 DO NOT smoke in the working area and whilst using the compressor.
5.3.5 DO NOT allow any sources of ignition such as matches, lighters, naked flames and
any other sources of ignition such as sparks from grinding etc.
5.3.6 DO NOT eat or drink the work area.
5.3.7 Paint fumes are harmful. The work area must be greater than 30 m2 and it is
necessary to ensure the sufficient air exchange during spraying and drying. Do not spray
against the wind. Always pay attention when spraying on the flammable or dangerous
goods, spraying must be carried out with regard to all safety regulations..
5.3.8 DO NOT allow PVC hoses to come into contact with white spirit, butyl alcohol and
methylene chloride, it will cause a reduced lifetime.
5.4 Pressure tank.
5.4.1 The tank should be kept in good conditions. Monitor any damage. Any necessary
maintenance and repair work must be done without delay and necessary safety
measures to prevent use until repairs take place should be taken.
5.4.2 DO NOT use the tank if it is damaged or has any defects.
5.4.3 The tank should be regularly checked for damage or corrosion. When any damage
or corrosion is found you MUST stop using machine until repair/s have been carried out.
Page 9
Rev 2

6. INSTALLATION & COMISSIONING.
Before commissioning, all parts should be completely installed.
6.1 Installation of the wheels and foot.
6.1.1 Select parts as shown in image below (1).
6.1.2 Assemble as shown in (1)(2) by taking bolt (a) and pushing it through the centre hole
of wheel (b), then put washer over protruding bolt (a). Then pass bolt through wheel frame (g),
next put washers (d) and (e) over bolt, finally secure the bolt using nut (f). DO NOT overtighten the
bolt, the wheel must be left free to spin on the bolt (axle).
6.1.3 Using parts provided (shown in image (3)) below.
6.1.4. Assemble as shown in (3) take bolt (a) and pushing it through the centre hole of foot
(b), push protruding bolt through frame (d) then finally secure the bolt using nut (c). Make sure
that the nut and bolt are tightened to prevent the foot coming loose. DO NOT Overtighten.
Page 10
Rev 2

6.2 Installation (replacing) of the air filter.

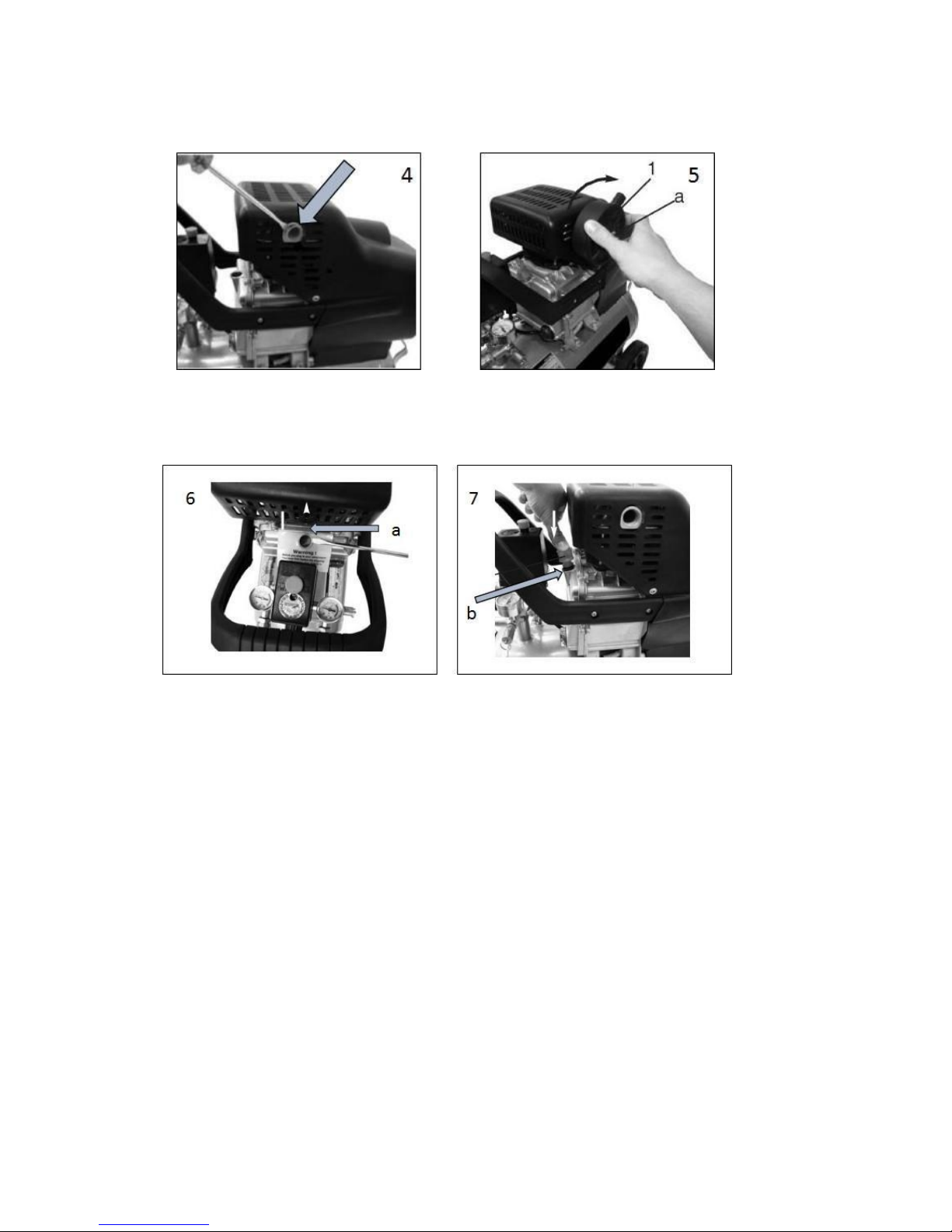

6.2.1 .1 Remove the shipping plug (Picture 4) with a screwdriver or a similar tool. Unscrew
the air filter (1) with the wing nut (a) attached to the machine (Picture 5).
6.3 Filling with oil.
6.3.1 Use a screwdriver to remove the oil filler cap (Picture 6 (a)) and fill with oil into
machine as shown (b) in the oil filler (Picture 7).
6.4 Electrical connections..
6.4.1 The compressor is supplied with a power lead to three pin earthed plug. This can be
connected to any power socket 230V ~ 50Hz, which is protected by a 16A electrical supply.
6.4.2 Before running the machine for the first time, please make sure that long supply cable,
extension cables, etc, are sufficient to supply the compressor without voltage drop which can
prevent the motor from starting.
6.4.3 We do not guarantee the performance and motor running at temperatures be low
temperature of 5 ℃.
6.5 Turning the compressor ON/OFF.
6.5.1 By pulling the red button (page 5 item 7) the compressor will be turned
ON.
6.5.2 To switch it OFF , push the red button (page 5 item 7).
6.6 Quick release coupling.
6.6.1 Connecting - Pull the hose connection sleeve back then push the air hose coupling into
the quick release coupling sleeve. Once the sleeve is released it will automatically back to lock the
coupler in place.
6.6.2 Dis-connecting - Pull the hose connection sleeve back then pull the air hose coupling
from the quick release coupling sleeve. Once the sleeve is released it will automatically return to its
normal position.
Page 11
Rev 2

7. TECHNICAL DATA.
7.1 Technical data for HY2524.
Model
HY2524
Voltage - V
230
Number of phases
1
Frequency –Hz
50
Connection method/Cable length m
3 pin plug - BS1363A/1.3
Motor power hp/kw
2.5/1.865
Rated Speed (motor) –RPM
2800
Cubic Foot per Minute @ 6.2 Bar
N/A
Maximum Pressure - PSi/Bar
145/10
Cut-out Pressure - PSi/Bar
128/8.8
Cut-in Pressure - PSi/Bar
87/6
Tank Capacity - L
24
Free air delivery - CFM - L/min
5.19/147
Displacement - CFM/L/min
7.42/210
Air Outlet
Machine - Male 3/8" tapered quick release euro/Hose - Male 3/8" euro coupling
Output pressure regulation type
Adjustable
Drive type
Direct
Overall Unit Dimensions L x W x H mm
650 x 280 x 580
Net Weight - kg
28
Tank material
Rolled steel
8. CLEANING & MAINTENANCE.
Before any cleaning or maintenance work, the compressor should be disconnected from the
mains supply.
To prevent the risk of burning, wait until the compressor is completely cool.
8.1 Cleaning.
8.1.2 Keep the compressor clean/clear of as much dust and dirt as possible.
8.2.3 Wipe the equipment with a clean cloth or blow it with the air compressor at a low
pressure.
8.3.4 We recommend that you clean the device immediately after each use.
8.4.6 Clean regularly with a damp cloth and some soft soap.
8.5.7 Do not use detergents or solvents to clean the device. They may damage the
plastic parts of the device.
8.6.8 Make sure that no water gets inside the unit. If water does get inside you MUST
make sure that unit is completely dry before applying power.
Page 12
Rev 2

8.2 Condensation.
Condensation inside the tank may contain the oil residues. Dispose of the condensation in an
environmentally friendly way. DO NOT put it down the drain or onto the ground.
8.2.1 You MUST remove condensed water is daily.
8.2.2 This can be achieved by opening the condensation drain plug at the bottom of the
compressor.
8.3 Safety valve.
8.3.1 The safety valve has been factory set to the maximum pressure of the tank. DO NOT
attempt to adjust or remove. If there is a problem you must get it checked - contact your dealer
for advice.
8.4 Oil Level.
9.4.1 The oil level (6) must be visible between the red oil level and the top edge of the oil
level indicator. Recommended oil: SAE 15W/40 or its equivalent.
9.4.2 The initial oil level should be checked after 100 hours of operation.
9.4.3 After every 500 hours of operation you MUST drain the oil and refill with new oil.
8.5 Oil change.
9.5.1 Turn off the compressor and disconnect from the electrical supply.
9.5.2 Release all air pressure from the air tank.
9.5.3 Place a suitable container underneath the compressor to catch the oil.
9.5.4 Unscrew the oil drain bolt on the compressor pump so that the oil runs out.
9.5.5 If the oil does not completely run out, we recommend the compressor is leant over in
the direction of the drain plug.
9.5.6 Once all of the old oil has been drained, you can replace the oil drain bolt.
9.5.7 Pour new oil into the oil filler hole (page 11 picture 6), until the oil level in the visible
glass (6) has reached the red point. Once the correct level of oil has been put in replace
the oil plug.
9.5.8 DO NOT put unused oil down any drain or onto the ground.
8.6 Cleaning the air filter.
9.6.1 The filter prevents dust and dirt from getting into the machine.
9.6.2 It is necessary to clean these filters at least every 300 hours.
9.6.3 Blocked air filter significantly reduces the output of the compressor. 9.6.4 Remove
the filter from the compressor by following 6.2.
9.6.5 Clean air filter by blowing it clean with the air compressor at a low pressure (3
bars).
8.7 Storage.
Disconnect the compressor from the electrical supply by switching off and unplugging the supply
plug.
9.7.1 Purge compressor of all compressed air.
9.7.2 Store compressor in a secure location away from children and vulnerable persons.
9.7.3 Keep compressor in a clean and dry location. It must be kept upright.
Page 13
Rev 2

9. DISPOSAL & RECYLING.
9.1 Do not dispose of electric equipment together with household waste material! In observance
of European Directive 2012/19/EC on waste electrical and electronic equipment and its
implementation in accordance with national law, electric equipment that have reached the end of
their life must be collected separately and returned to an environmentally compatible recycling
facility. If electrical appliances are disposed of in landfills or dumps hazardous substances can leak
into the groundwater and get into the food chain, damaging your health and well-being.
19.2 For further information on the disposal of this product, please contact your dealer or your
nearest domestic waste collection service.
9.3 Reduce –Reuse - Recycle unwanted materials instead of disposing of them as
waste. All tools, accessories and packaging should be sorted, taken to a recycling
centre and disposed of in a manner which is compatible with the environment.
9.4 When the product is no longer required, it must be disposed of in a manner
which is compatible with the environment.
10. TROUBLESHOOTING.
Problems
Reasons
Solutions
Compressor does not run.
1. Voltage cuts off.
2. The main voltage is too low.
3. External temperature is too low.
4. Motor overheats.
1. Check cable, plug, fuse and
outlet.
2. Avoid the long extension
cords. Use the cable with the
sufficient wire cross section.
3. Not operate below 5 ℃
4. Cooling down the motor
may eliminate the failure.
Compressor runs but has
no pressure.
1. The valve (18) leaks
2. The seal is broken.
3. The condensation drain plug
(4) has become loose.
1. Replace check valve.
2. Get broken seal
replaced by a specialist.
3. Tighten the screw by hands.
Check the seals on the screw
and replace it if necessary.
Compressor is running,
pressure is displayed on
the gauge, but tools do
not run.
1. Hose connections leak.
2. Quick release coupling leak.
3. The pressure is set too low
1. Check the compressed air
hose and tool, replace them if
necessary.
2. Check the quick release
connections
and replace them if necessary.
3. Increase the pressure
regulator adjustment knob.
Check for hose leak between
regulator and tool.
Page 14
Rev 2

11. . GENPOWER CONTACT DETAILS.
11.1 1 Postal address;
Genpower Limited, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK.
11.2 2 Telephone and Fax contact
numbers; Office +44 (0) 1646
687880.
Fax [phone].
11.3 3 Email contact;
Techinical - [e-mail]
11.4 4 Web site;
www.hyundaipowerequipment.co.uk

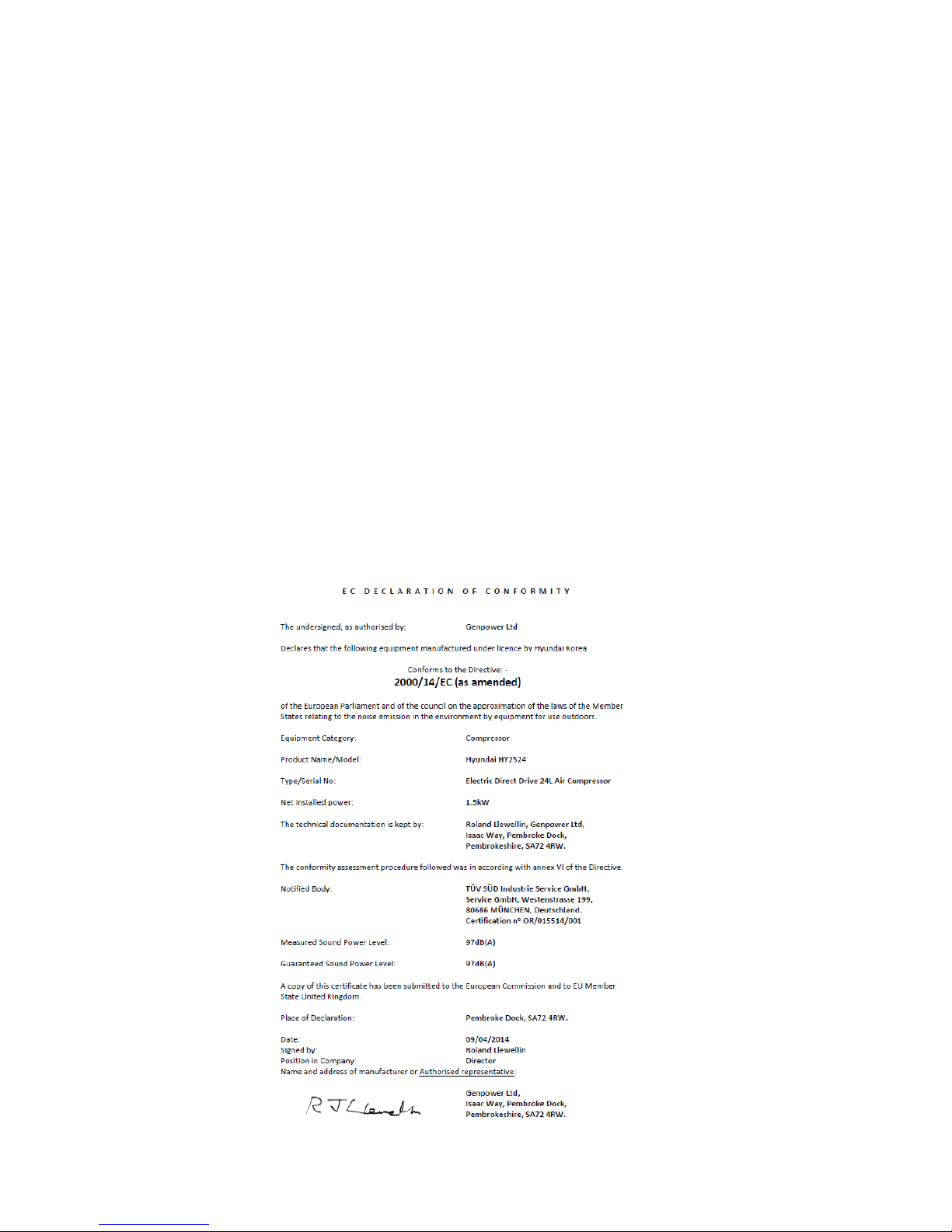

12. DECLARATIONS of CONFORMITY.
12.1 Genpower Ltd confirms that this Hyundai product conform to the following CE
directives.
2002/95/EC Restriction of Hazardous Substances
2004/108/EC EMC Directive
2006/42/EC Machinery Directive
2006/95/EC Low Voltage Directive
2009/105/EC Simple Pressure Directive
2000/14/EC Outdoor Noise Directive
Page 15
Rev 2

www.hyundaipowerequipment.co.uk
GENPOWER LTD
Isaac Way, London Road
Pembroke Dock, UNITED KINGDOM, SA72 4RW
T: [phone] F: [phone]
[e-mail]
