Hyundai MTXW1000S User manual

CAR MULTIMEDIA SYSTEM (Model: MTXW100OS)
USER’S MANUAL
KONA
Please read this manual carefully before operating your set and retain it for future reference. Designs and specifica-
tions are subject to change without prior notice.
The screens shown in this manual may differ from the actual screens of the product.
The design and specification of this product may change without prior notification for product improvement.
When transferring the vehicle to another individual, include this user’s manual so that the next driver can continue its use.
Rev.2.0
ENGLISH
TIẾNG VIỆT

iPod®
iPod® is a registered trademark of Apple Inc.
Bluetooth®
The Bluetooth Wireless Technology word mark and logos are registered
trademarks owned by Bluetooth Wireless Technology SIG, Inc.
Cortex
Cortex is the name of the ARM Processor Architecture used in the AV System.
Windows Embedded Compact 7
Windows Embedded Compact 7 is an operating system used in the AV
System.
DC Symbol
DC 12V
Speaker 4Ω
Pulse 10A
-Minus Ground
DC Symbol
DC 12V
Speaker 4Ω
Fuse 10A
-Minus Ground

3
Table of Contents
ENGLISH

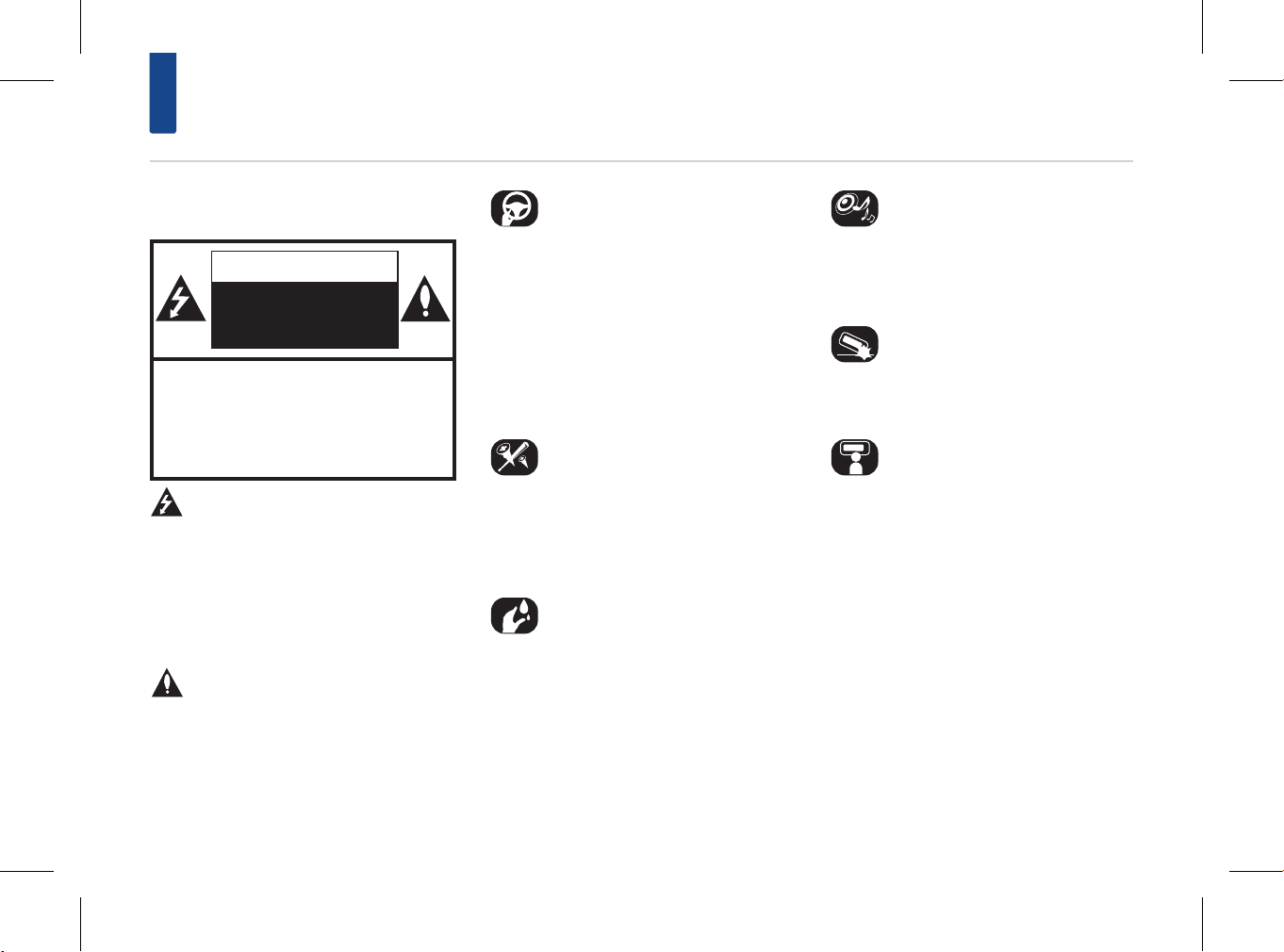

Precautions for safety
Safety notes

6
Key Product Features
Key Product Features

8
Component Names and Functions
Head Unit

9

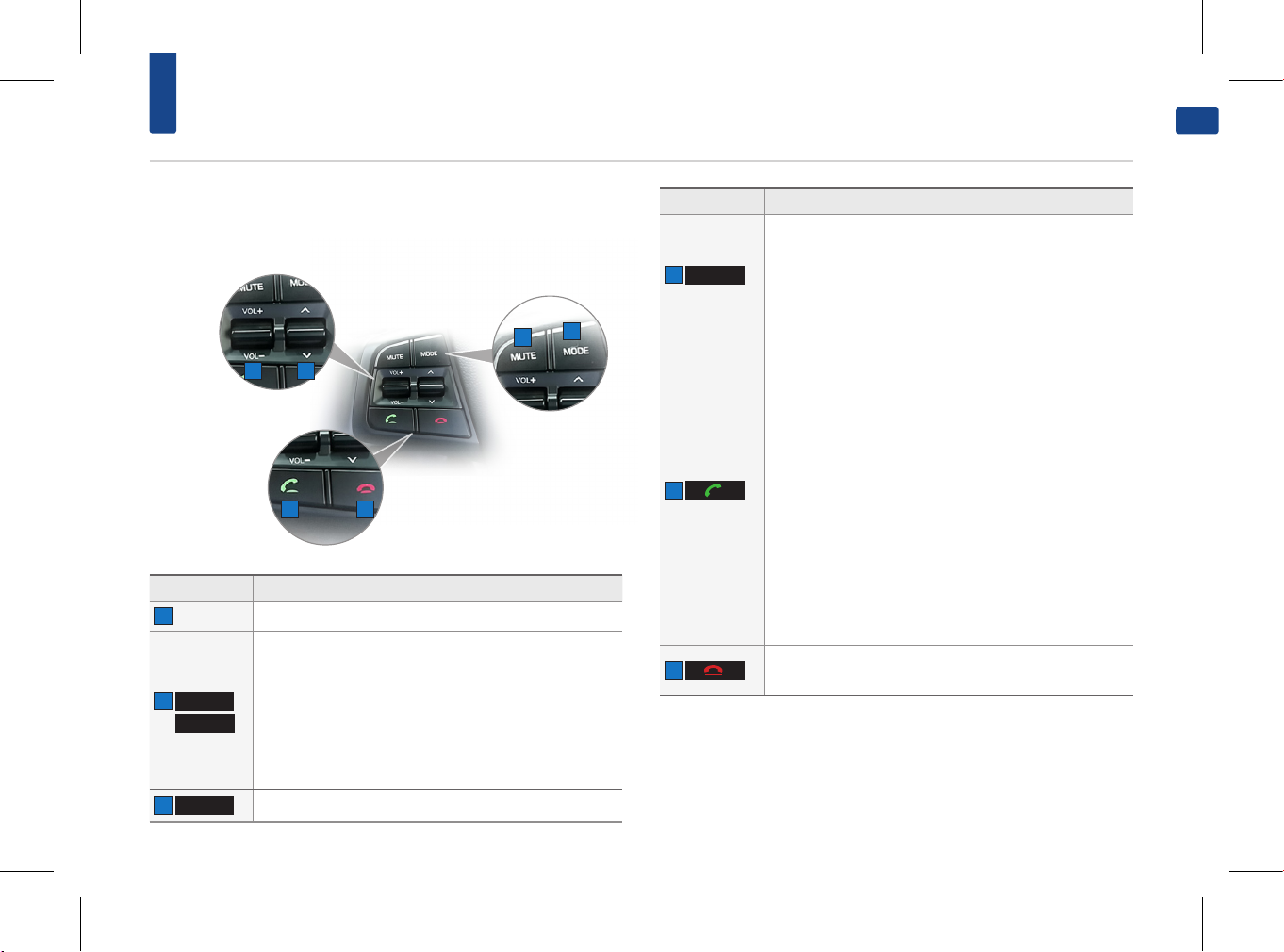

Steering Wheel

11

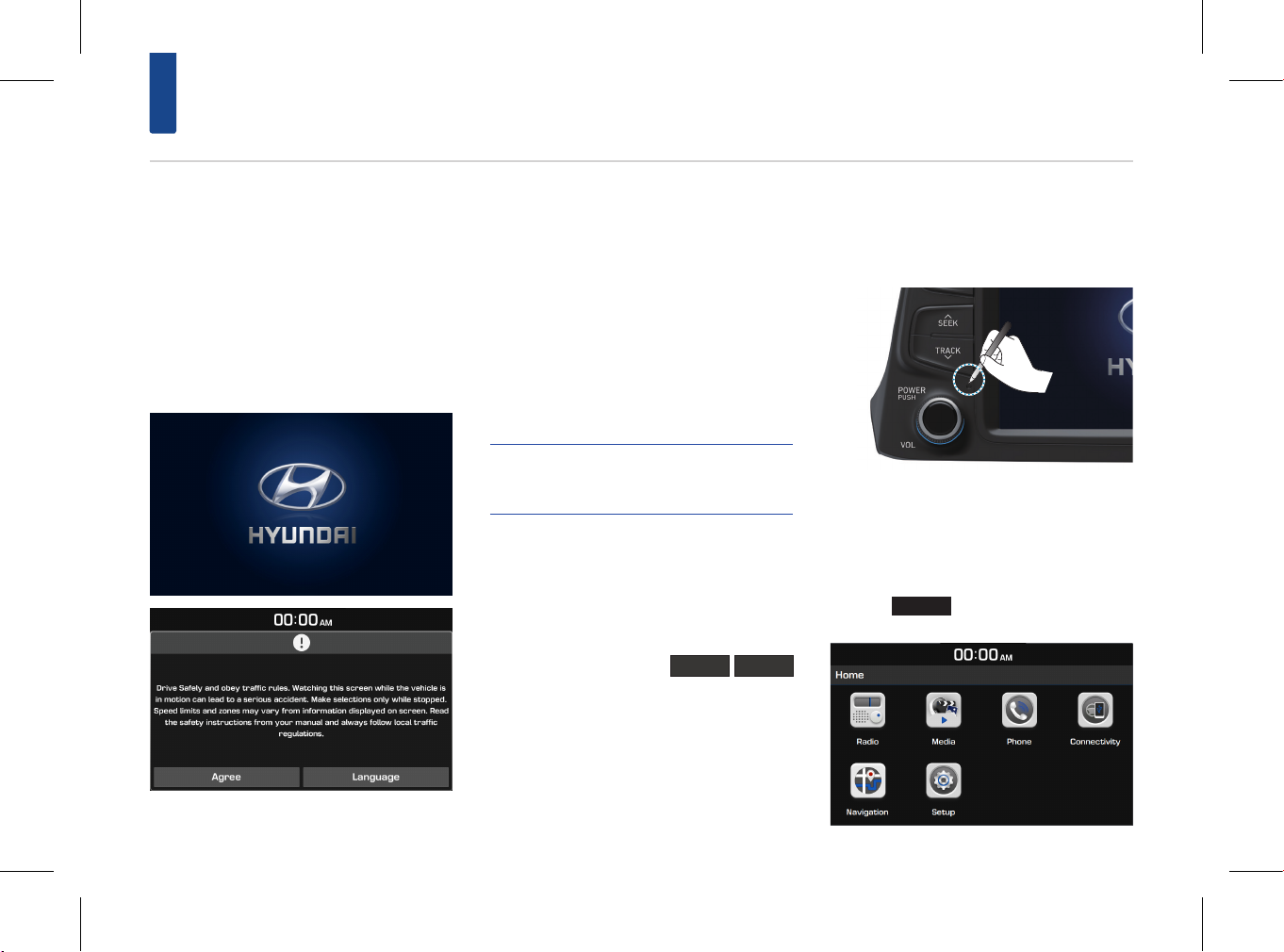

Using the System for the First Time
Turning the System On/Off

12
Turning the System ON

12
Turning the System Off

12
AV ON/OFF

12
Resetting the System

12
Home Screen

12
FM/AM
Basic Screen

13

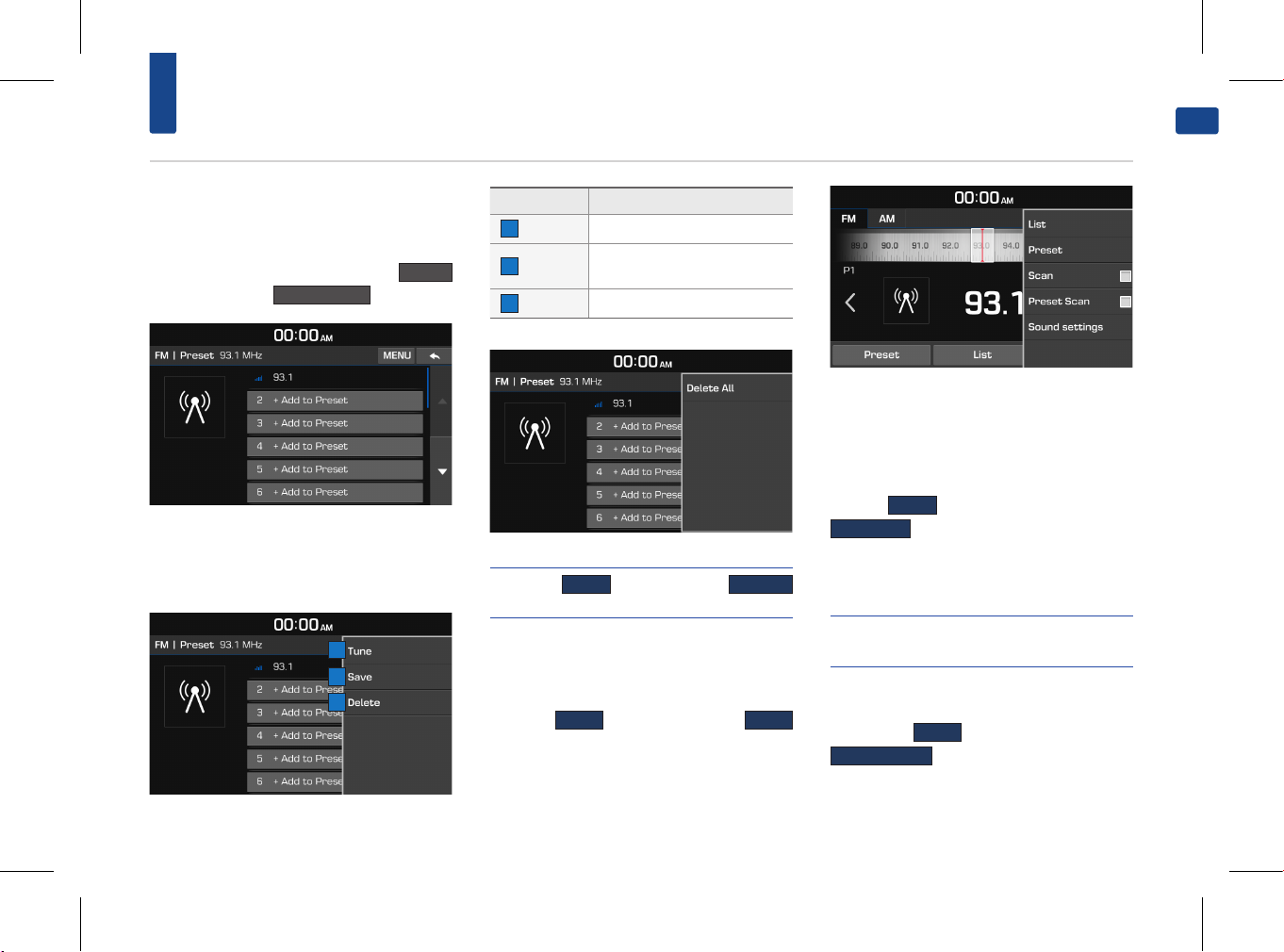

Listening to FM/AM radio

14
Auto tuning

14
Manual tuning

14
Selecting Presets

14
Selecting Lists

14
Auto Preset

14
Saving Radio Frequency

15
Saving Manually

15
Using Preset Menu

15
Scan

15
Scanning Radio Frequency

15
Scanning Preset frequency

15
Sound settings

15
USB
About USB

16
USB Music

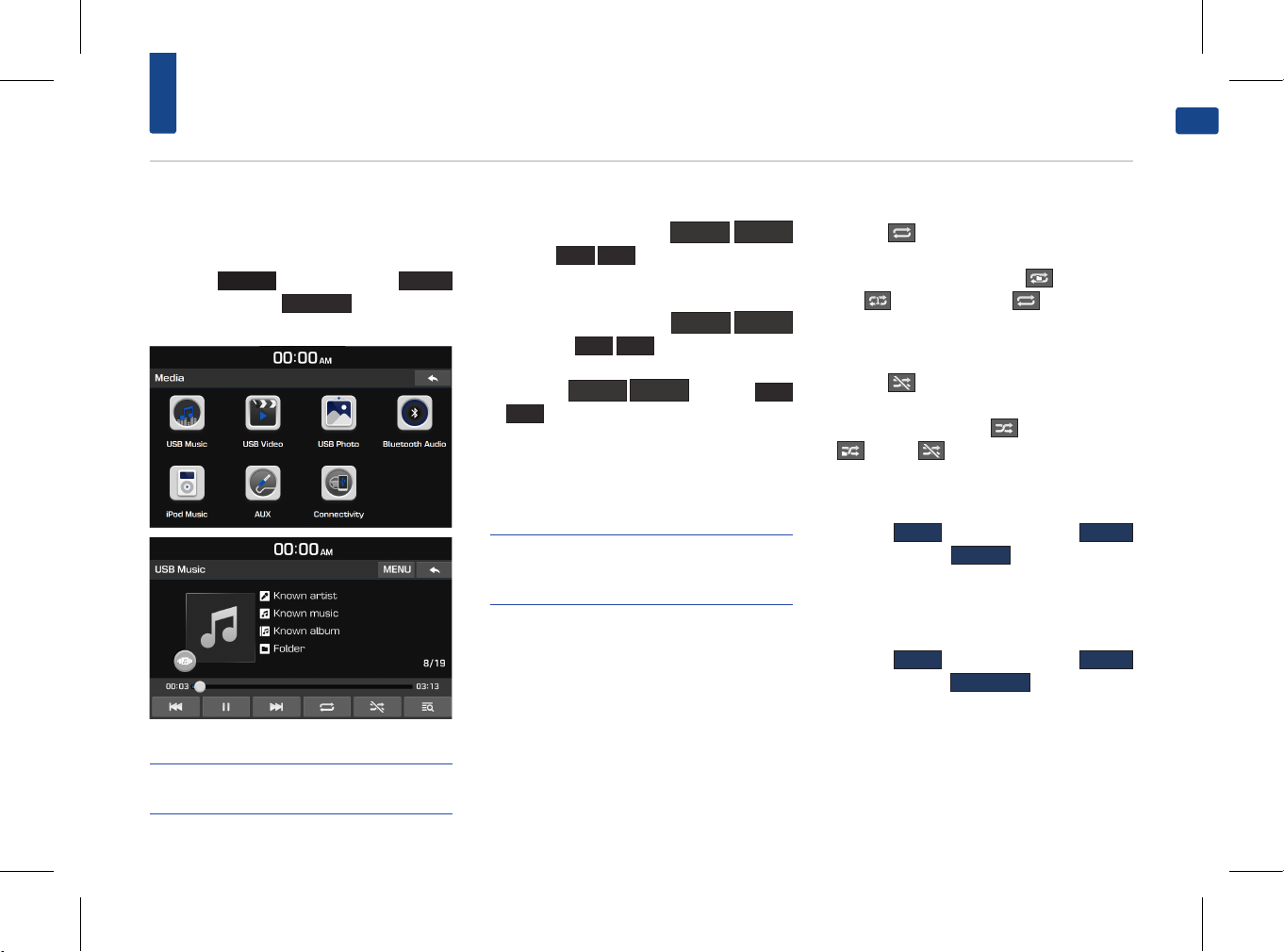

Playing USB Music

17
Searching USB Music Files

17
Repeat

17
Shuffle

17
Scan All

17
Scan Folder

17

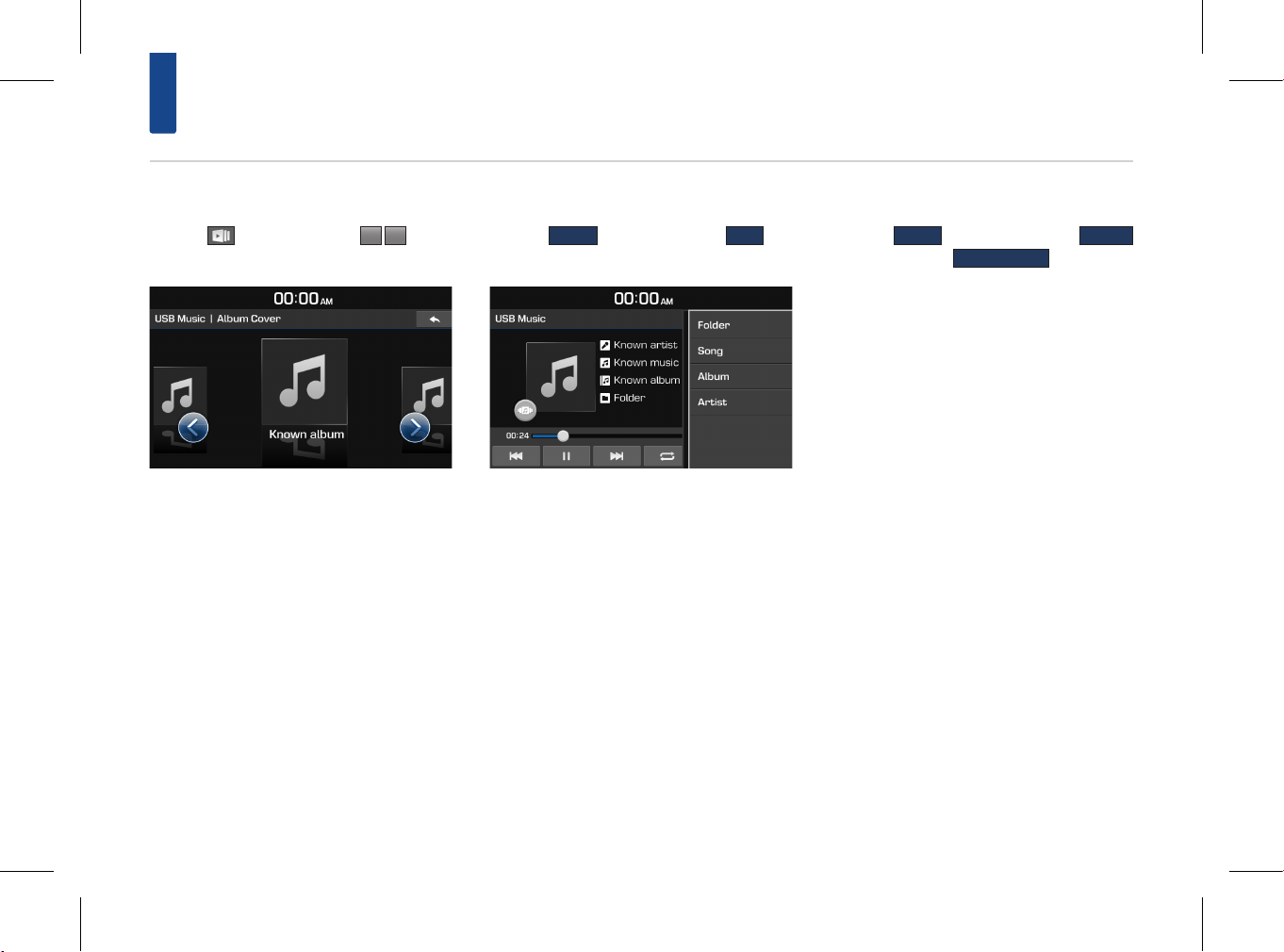

Album Cover view

18
List

18
Sound settings

18

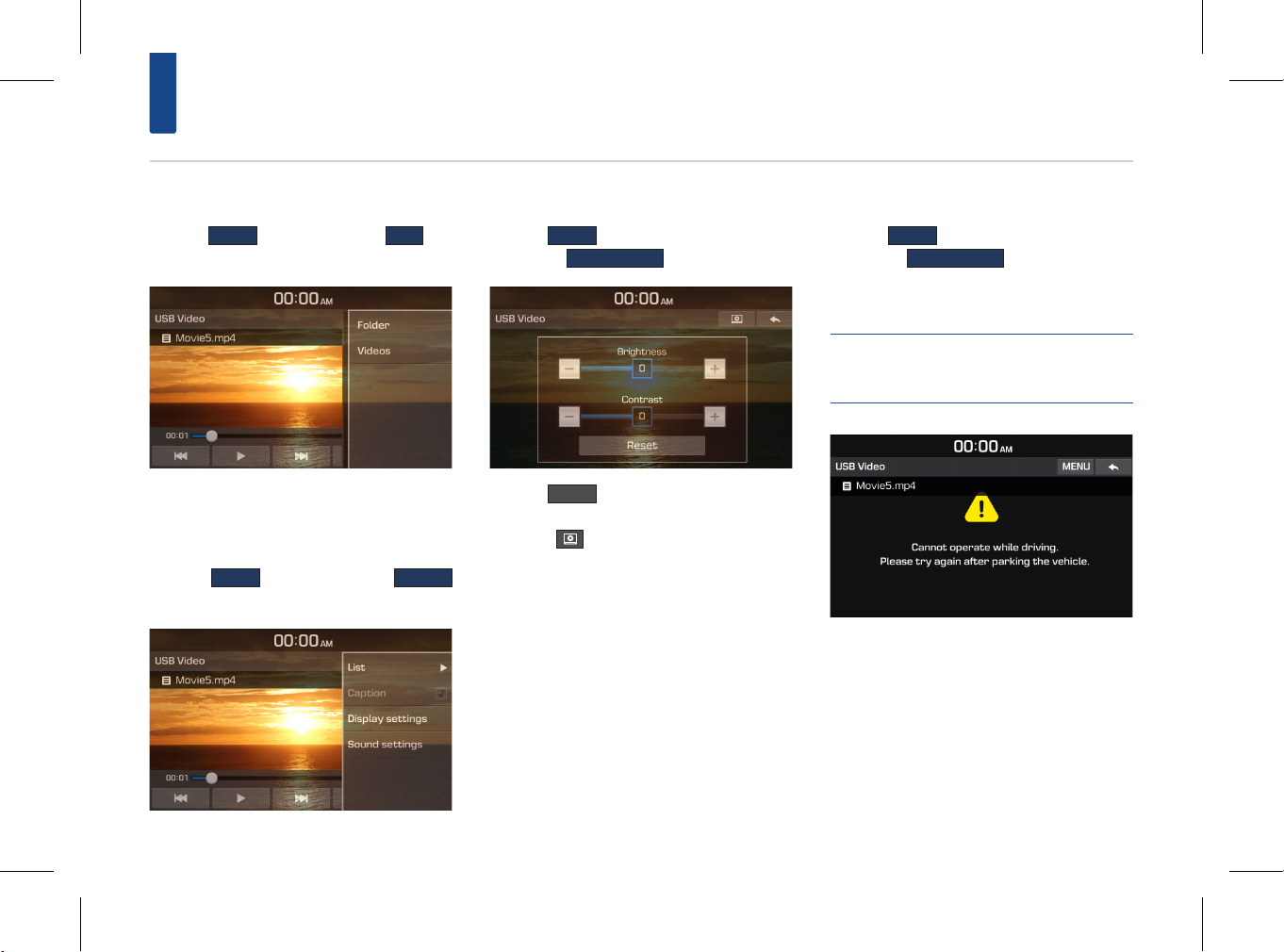

USB Video

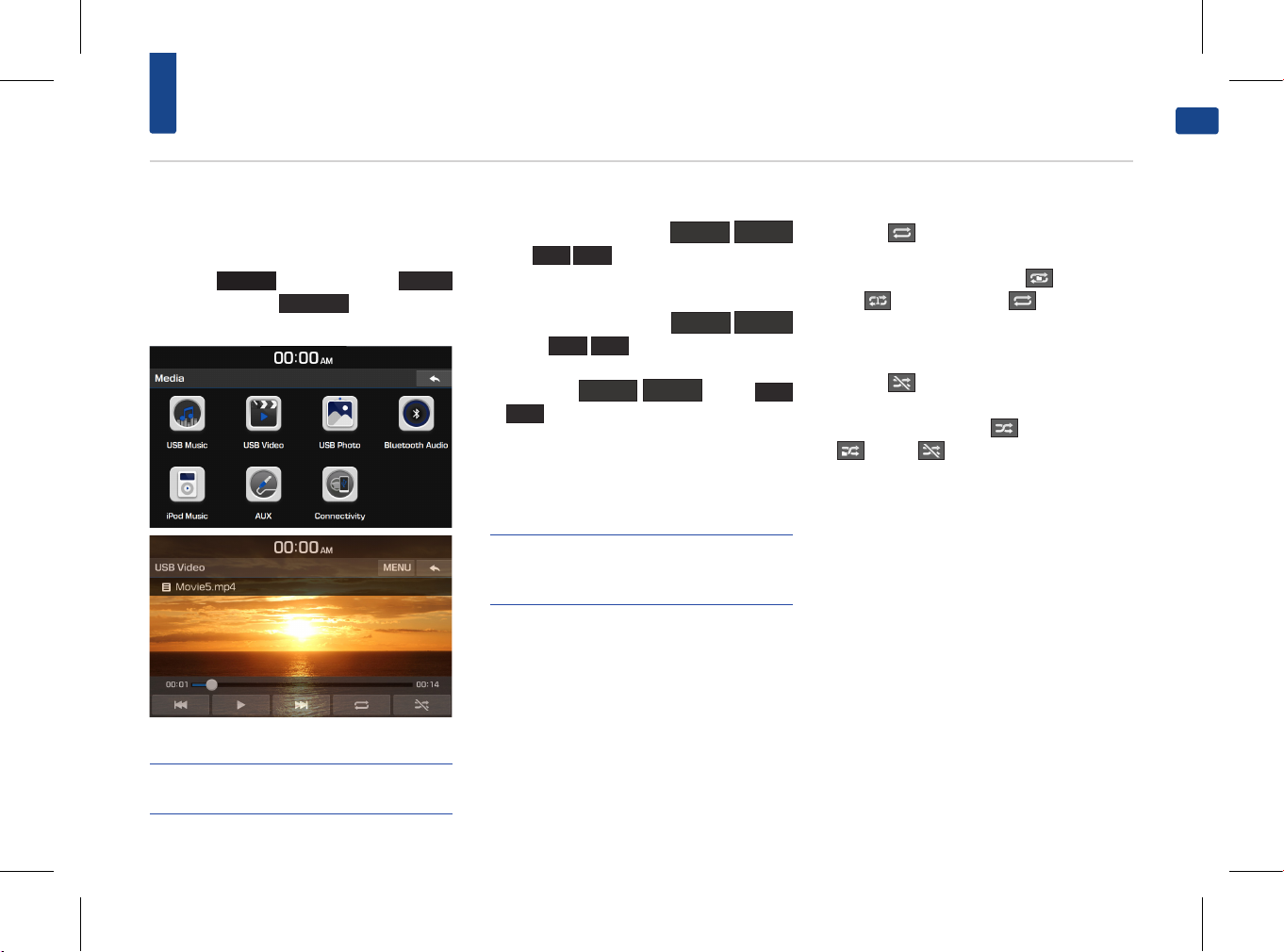

Playing USB Video

19
Searching USB Video Files

19
Repeat

19
Shuffle

19
List

20
Caption

20
Display settings
 
20
Sound settings

20
USB Photo
Viewing USB Photo

21
Switching to menu screen or full screen

21
Searching USB Image Files

21
Rotating / Slide show

21
Using the Menu Buttons

22
Slideshow interval

22
Display settings

22
iPod® Music
About iPod®

23

4
Table of Contents
Playing iPod® Music

24
Searching iPod® Music Files

24
Using the Menu Buttons

24
Setting audiobook playback speed

24
Sound settings

24
AUX
Playing an AUX source

25
Using the Menu Buttons

25
Bluetooth® Audio
Before playing the Bluetooth® audio

26
Playing Bluetooth® audio

26
Searching Bluetooth® audio Files
 
26
Using the Menu Buttons

26
Getting started with navigation
Precautions for safe driving

27
What is GNSS?

27
About satellite signals

27
Acquiring satellite signals

27
Bluetooth® Wireless Technology
Before Using the Bluetooth® Handsfree

28
What is Bluetooth® Wireless Technology?

28
Precautions for Safe Driving

28
Cautions upon Connecting
Bluetooth® Phone

28
Bluetooth® Connection
When no Phones Have Been Paired

29
Pairing from the Bluetooth® Device

29
When a Phone is Already Paired

30
When your phone is connected

30
Bluetooth® Phone
Making/Answering Calls

31
Calling by Dialing a Number

31
Calling through Redial

31
Answering a Call

31
Rejecting a Call

31
Operating Menus during a Call

32
Ending a Call

32
Switching Call to Bluetooth® Phone

32
Making 3 way call

32
Using the Menu Buttons

33
Contacts

33
Updating Mobile Phone Contacts

33
Making a call from contacts
 
33
Searching for contacts

33
Calling list

34
Viewing Calling lists

34
Favourites

34
Calling Favourites

34
Saving to Favourite

34
Deleting Favourites

35
Changing the Favourites name

35
Bluetooth® settings

35
Apple CarPlay
About Apple CarPlay

36
Precautions

36
What you need?

36
Before starting Apple CarPlay

36
Setting Siri on the iPhone

36
Setting the system

36
Starting mode

37
Home Screen

37
Speak to Siri

38

5
Table of Contents
ENGLISH
Open an app

38
Return to the CarPlay Home screen

38
Return to your car’s screen

38
View additional apps

38
Return to a phone call or to turn-by-turn
directions

38
View and control the current audio source

38
Setup
Starting mode

39
Sound

39
Position

39
Tone

39
Arkamys

40
Volume setting

40
Beep

40
Display

41
Brightness

41
Dimming mode

41
Bluetooth® settings

42
Bluetooth® connection

42
Ringtone

42
Change passkey

43
Changing device name

43
Auto Connection Priority

43
System

44
Language

44
Clock

44
Factory settings

44
Connectivity

45
Specification
USB MP3 Specification

46
Video and Image Specification

46
TFT-LCD

47
Radio

47
Bluetooth® Wireless Technology

47
Common

47
Before thinking there is a product
defect
Before thinking there is a product defect

48
Trouble shooting
Trouble shooting

49
FCC Warning
FCC Warning

52

6
Precautions for safety
Safety notes
CAUTION
RISK OF ELECTRIC
SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE THE
COVER (OR BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The lightning flash with the arrowhead symbol
within an equilateral triangle is intended
to alert the user about the presence of uninsu-
lated dangerous voltage within the product’s
enclosure that may be of sufficient magnitude to
constitute a risk of electric shock.
The exclamation point within an equilateral tri-
angle is intended to alert the user to
the presence of important operating and main-
tenance (servicing) instructions in the literature
accompanying the appliance.
Always operate the vehicle in a safe manner. Do
not become distracted by the vehicle while driv-
ing and always be fully aware of all driving condi-
tions. Do not change settings or any functions.
Pull over in a safe and legal manner before
attempting such operations.
To promote safety, certain functions are disabled
unless the hand brake is on.
To reduce the risk of electric shock, do not
remove the cover or back of this product. There
are no user-serviceable parts inside.
Refer servicing to qualified service personnel.
To reduce the risk of fire or electric shock, do not
expose this product to dripping or splashing
water, rain, or moisture.
When driving your vehicle, be sure to keep the
volume of the unit low enough to allow you to
hear sounds coming from the outside.
Do not drop it and avoid heavy impacts at any-
time.
The driver should not watch the monitor while
driving. If the driver watches the monitor while
driving, it may lead to carelessness and cause an
accident.

7
Precautions for safety
ENGLISH
WARNING:
••Do not stare at the screen while driving. Staring
at the screen for prolonged periods of time
could lead to traffic accidents.
••Do not disassemble, assemble, or modify the
navigation system. Such acts could result in
accidents, fire, or electric shock.
••Using phone features while driving may dis-
tract drivers from paying attention to traffic
conditions and result in traffic accidents.
Use phone features only after the vehicle has
been parked.
••Heed caution not to spill water or introduce
foreign objects into the device. Such acts could
lead to smoke, fire, or product malfunction.
••Please refrain from use if the screen is blank
or no sound can be heard as these signs may
indicate product malfunction. Continued use in
such conditions could lead to accidents (fires,
electric shock) or product malfunctions.
••Do not touch the antenna during thunder or
lightening as such acts may lead to lightning
induced electric shock.
••Do not stop or park in parking-restricted areas
to operate the product. Such acts could lead to
traffic accidents.
••The video screen will not operate when the
vehicle is in motion. For your safety, first park
the vehicle to watch or view the screen.
••Some Non-video features may also not operate
when the vehicle is in motion. These features
will operate only when the vehicle has been
parked.
CAUTION:
•
•Do not keep the navigation system running
with the engine stopped. Doing so may dis-
charge the vehicle battery. When you use the
navigation system, always keep the engine
running.
•
•When the driver wants to operate the navi-
gation system, first park the vehicle in a safe
location and set the parking brake.
Operating the system while driving can dis-
tract the driver and may result in a serious
accident.
•
•Do not disassemble or modify this system. If
you do, it may result in accidents, fire, or elec-
trical shock.
•
•Some states/provinces may have laws limiting
the use of video screens while driving. Use the
system only where it is legal to do so.
•
•Do not use your phone in private mode when
you are driving. You must stop at a safe loca-
tion to use it.

8
Key Product Features
Key Product Features
Button Description
Display Wide IPS Display
Provides high quality video through a Wide IPS Display using an LED Back Light.
Radio Digital Tuner Feature
Digital Tuner using PPL method that supports memory of 20 broadcast stations for each AM and FM modes.
Multimedia
Player
Support for various Media Formats
Support for various media formats, including Radio, MP3, USB, iPod®, AUX and Bluetooth® Audio Streaming modes.
Miscellaneous
Bluetooth® Wireless Technology
Convenient use of Bluetooth® Handsfree by using buttons within the steering wheel remote controller.
Digital Screen Control Features
Easy control of features through touch screen options.
Steering Wheel Remote Controller
Control over audio features and Bluetooth® through the steering wheel remote controller for maximum convenience.
Apple CarPlay
CarPlay puts key iPhone apps - the ones you want to use while driving - on your car’s built-in display. With CarPlay, you can get turn-by-turn direc-
tions, make phone calls, exchange text messages, listen to music, and more.

9
Component Names and Functions
ENGLISH

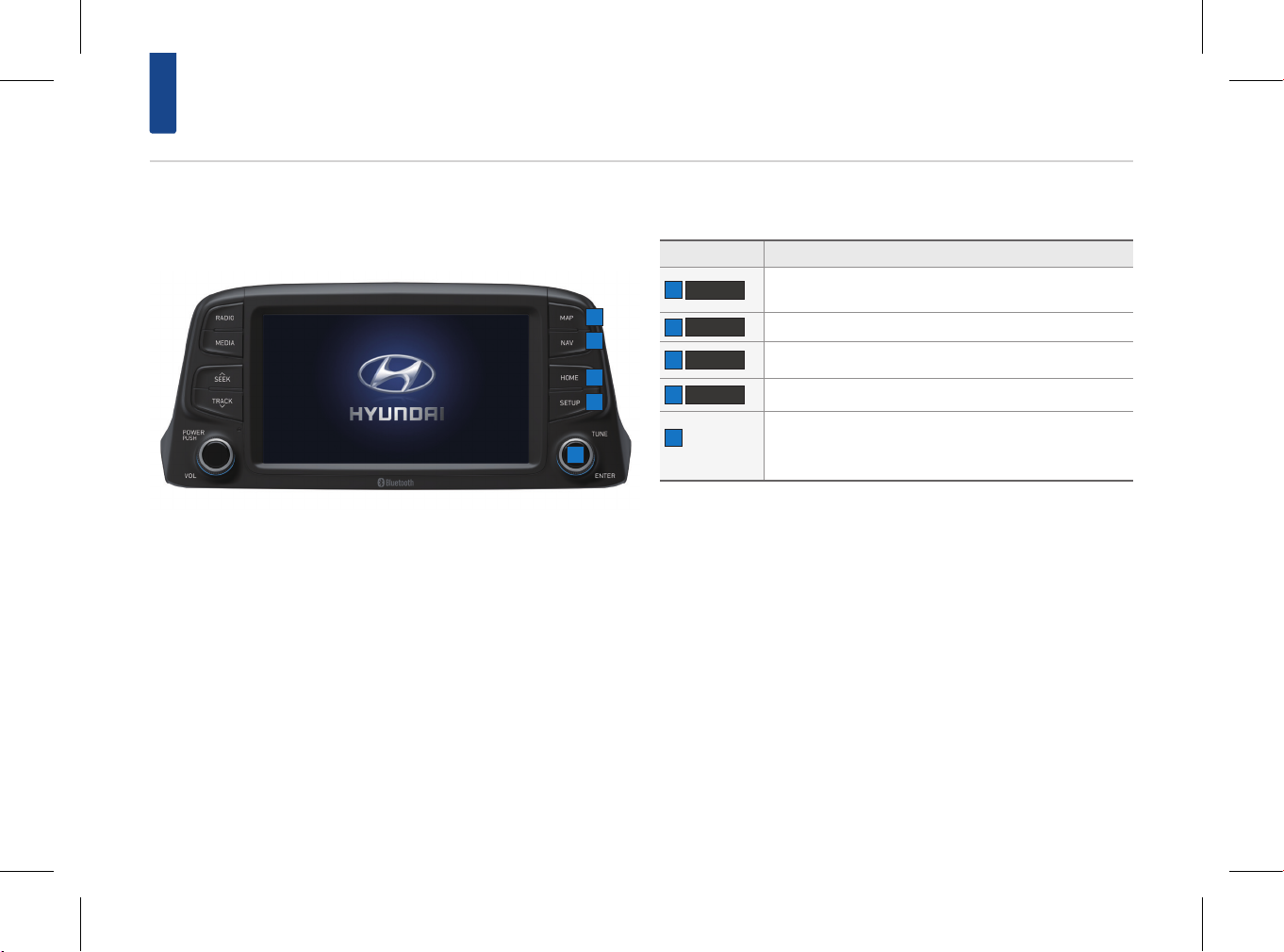

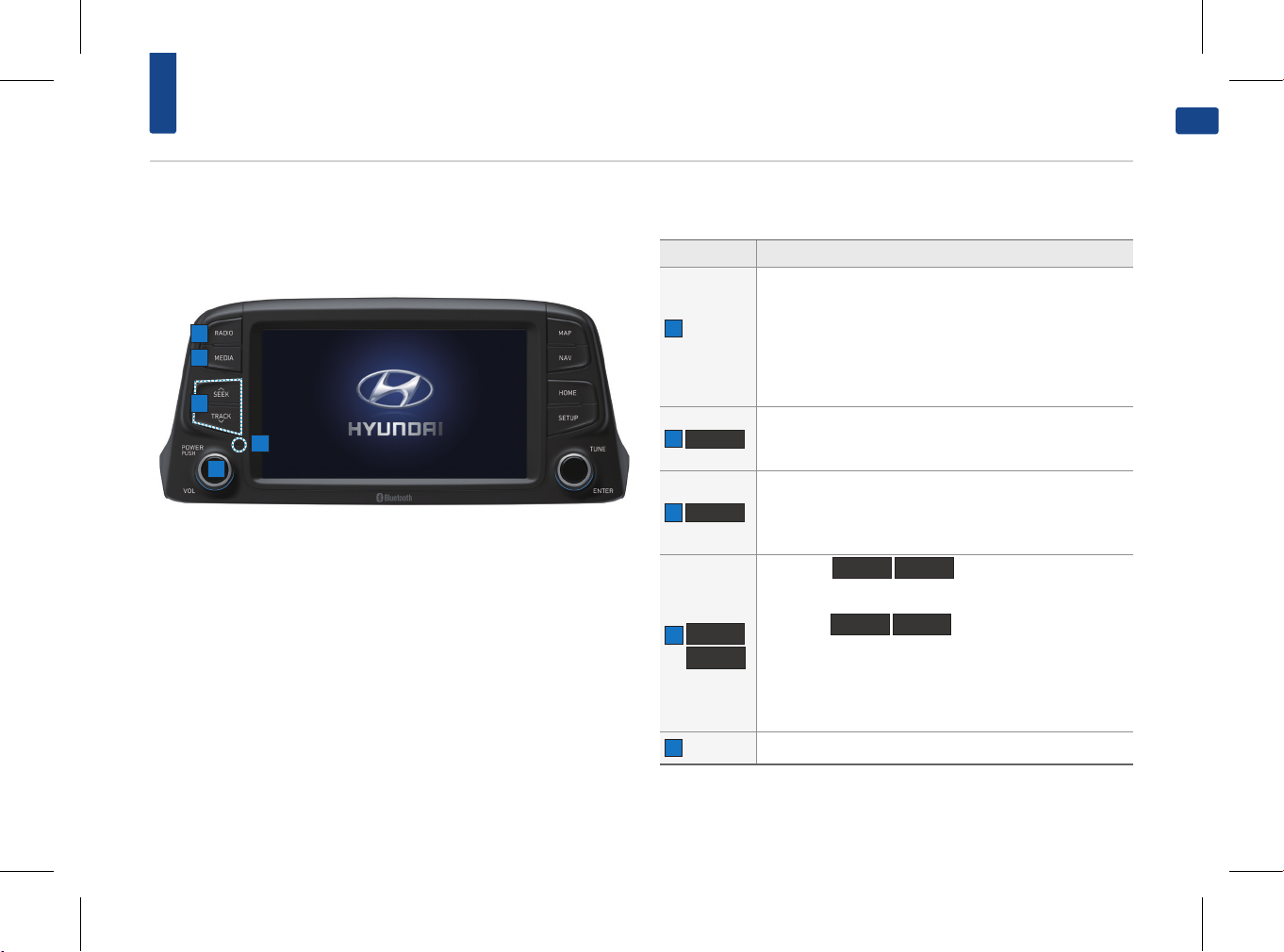

Head Unit
Button Description
1POWER /
VOL Knob
••Power on
When power is off, press to turn power on.
••Power off
When power is on, press and hold to turn power off.
••Audio off
When power is on, press to turn Audio off.
••Turn left/right to control volume.
2
RADIO
••Operates FM/AM mode.
••Each time the key is pressed, mode is changed in order of
FM ▶AM ▶FM.
3
MEDIA
••Operates available media (USB, iPod®, Bluetooth® Audio,
AUX).
••If the media is not connected, corresponding modes will
be disabled.
4
∧
SEEK
TRACK
∨
When the
∧
SEEK
TRACK
∨
keys are pressed shortly.
••In FM/AM mode, searches broadcast frequencies.
••In Media modes, changes the track, file or chapter.
When the
∧
SEEK
TRACK
∨
keys are pressed and held.
••FM/AM mode : automatically searches broadcast frequen-
cies and channels. Once released, searches and begins
playing the next broadcast frequency.
••Media mode: rewinds or fast forwards the track or file
(except AUX).
5Reset Resets the system.
5
1
2
3
4

10
Component Names and Functions
Head Unit
Name Description
6
MAP
Press to display the map screen of the current location
when in a different mode.
7
NAV
Press to move to the navigation menu screen.
8
HOME
Press to move to the home menu screen.
9
SETUP
Displays the Setup mode.
10 TUNE /
ENTER knob
•
•FM/AM mode : changes the frequency.
•
•Media mode : changes the track, file or title (except AUX).
6
8
7
9
10

11
Component Names and Functions
ENGLISH
Steering Wheel
Button Description
1+ VOL - Controls the volume.
2
∧
∨
When keys are pressed shortly.
••FM/AM mode: plays previous/next preset channel if it is
saved.
••Media mode: changes the track, file or chapter.
When keys are pressed and held.
••In FM/AM mode: changes frequencies while pressed.
Upon release, scans and receives the next frequency.
••Media mode: rewinds or fast forwards the track or file.
3
MUTE
Mutes the sound.
Button Description
4
MODE
••Operates FM ▶AM ▶Available Media (USB Music/USB
Video/iPod®/Bluetooth® Audio/AUX/Apple CarPlay).
••If the media is not connected, corresponding modes will
be disabled.
••Press and hold the key to turn the Audio system on/off.
••When power is off, press the key to turn power back on.
5
When pressed shortly.
••When pressed in the phone screen, displays the last call.
••When pressed in the dial screen, makes a call.
••When pressed in the incoming call screen, answers the
call.
••When pressed during single call, switches call back to
mobile phone (Private).
••When pressed during 3way call, swap call.
••When pressed twice, redials the last call.
When pressed and held.
••When pressed during a Bluetooth® Handsfree call,
switches call back to mobile phone (Private).
••When pressed while calling on the mobile phone,
switches call back to Bluetooth® Handsfree (Operates
only when Bluetooth® Handsfree is connected).
••When pressed, redials the last call.
6•
•When pressed during a call, ends the phone call.
•
•When pressed in the incoming call screen, rejects the call.
1 2
34
5 6

12
Using the System for the First Time
Turning the System On/Off
Turning the System ON
Press the engine start button. If the brakes are
not pressed, then the ACC and system will turn
on. If the brakes are pressed, then the IGN and
system will turn on and the ignition will start. In
both instances, the following safety warning will
be displayed.
Pressing the PWR key on the head unit will dis-
play the safety warning page.
Press the Agree button to display the most
recent mode.
Turning the System Off
Press the engine start button again or press and
hold the power key on the head unit to turn the
system off.
NOTE
• If the system is turned off while the Handsfree is
being used, then the call will automatically switch
back to the mobile phone.
AV ON/OFF
Press the PWR key on the head unit when the AV
is on. Press the PWR key or press the menu key
to turn on AV.
While AV is turned off, the
∧
SEEK
TRACK
∨
key and the TUNE / ENTER knob will be disabled.
Resetting the System
This feature is used to reset the system in the
occurrence of an unforeseen error or problem.
Press and hold the RESET key for about 1 second.
(The use of a clip or pin is recommended when
resetting the system.)
Home Screen
Press the
HOME
key ▶Press the menu icon
you want to use.

13
FM/AM
ENGLISH

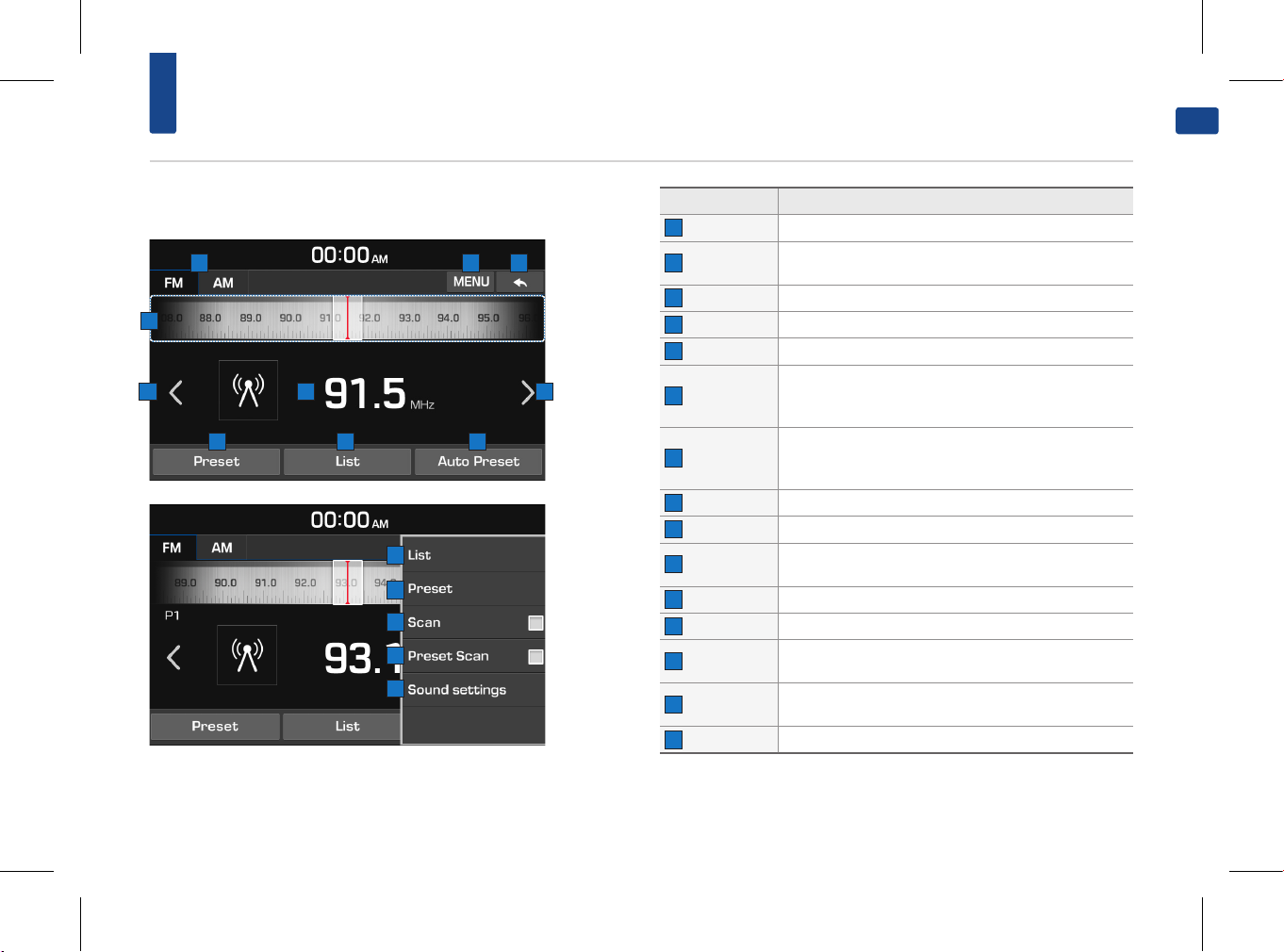

Basic Screen
Button Description
1Mode tab Press the tab to change between FM and AM mode.
2MENU button Displays List, Preset, Scan, Preset scan and Sound settings
menus.
3Back button Moves to the previous screen.
4Frequency bar Use the tap to move to the desired frequency.
5Frequency Displays the current frequency.
6Tune down
Single tap : tune down.
Long tap: tune down until the button is released and
plays the current frequency.
7Tune up
Single tap : tune up.
Long tap: tune up until the button is released and plays
the current frequency.
8Preset Displays the Preset List.
9List Displays automatically updated lists.
10 Auto Preset Searches for currently available broadcasts and saves
automatically to presets.
11 List Displays automatically updated lists.
12 Preset Displays saved presets for user selection.
13 Scan Plays frequencies with superior reception for 3 seconds
each.
14 Preset Scan Plays frequencies saved to presets for 3 seconds and
moves to the next saved frequency.
15 Sound settings Sets sound related settings.
2 31
4
5
108 9
76
11
12
13
14
15

14
FM/AM

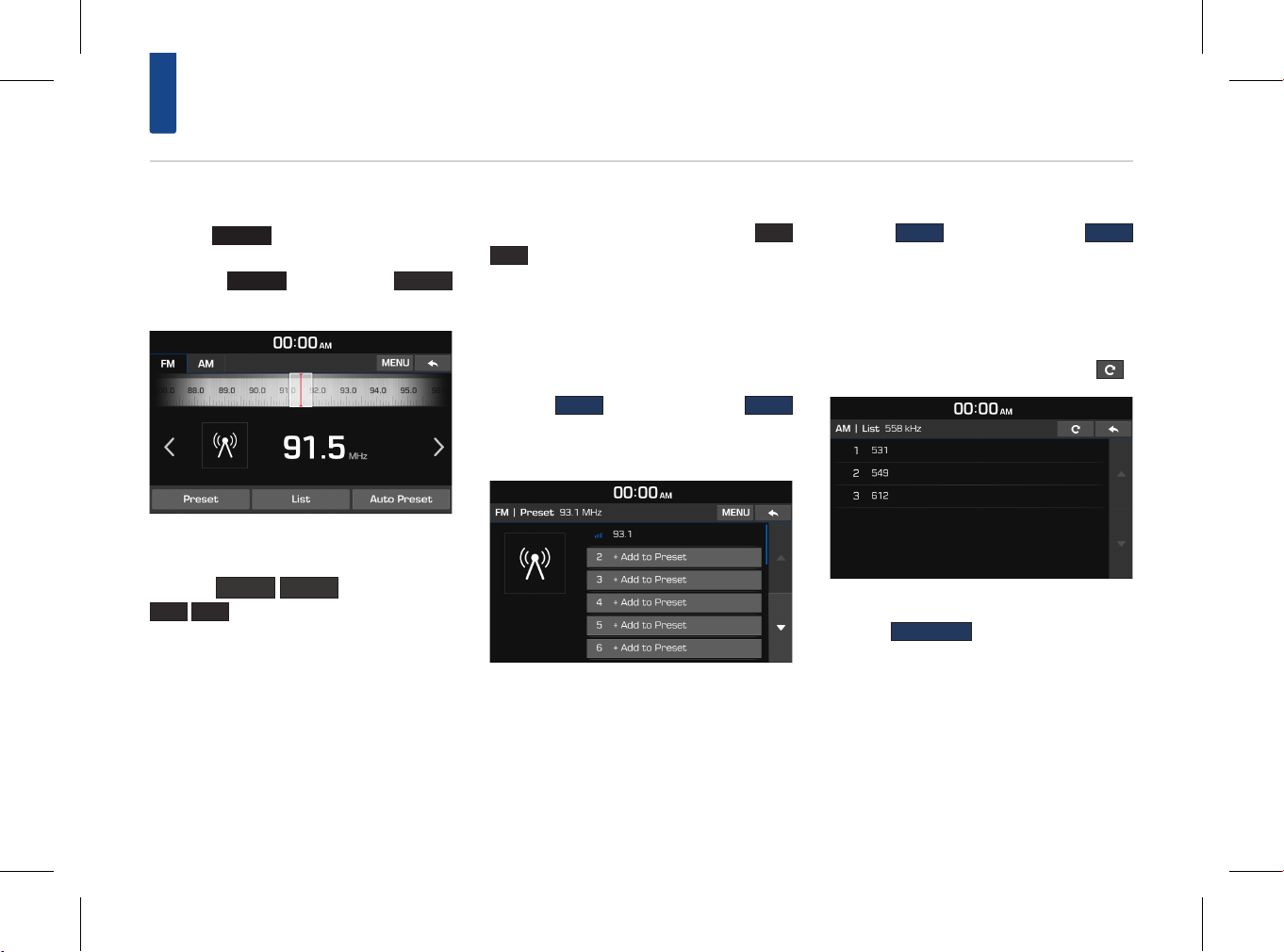

Listening to FM/AM radio
Press the
RADIO
key to change the mode in
order of FM ▶AM ▶FM .
Or Press the
HOME
key ▶Press the
Radio
button ▶ Press FM or AM tab.
Auto tuning
Press the
∧
SEEK
TRACK
∨
key or press the
< >
button to automatically search for
frequencies.
Manual tuning
Turn the TUNE / ENTER knob or press the
<
>
button to manually select the frequency.
The stations move up and down step by step.
Press or drag the frequency bar to search for fre-
quencies that you want.
Selecting Presets
Press the
MENU
button ▶Press the
Preset
button. From the presets, select the frequency
you want to listen to.
Selecting Lists
Press the
MENU
button
▶
Press the
List
button.
From the lists, select the frequency you want to
listen to.
FM lists are automatically updated.
AM lists are manually updated by pressing ( ).
Auto Preset
Press the
Auto Preset
button the automatically
save frequencies with superior reception to pre-
sets.

15
FM/AM
ENGLISH
Saving Radio Frequency
Saving Manually
After selecting frequency ▶Press the
Preset
button ▶Press the
+ Add to Preset
button.
Using Preset Menu
Press and hold the preset list you want to edit.
Button Description
1Tune listens to frequency selected.
2Save overwrites frequency listening
to currently.
3Delete deletes frequency.
NOTE
• Press the
MENU
button▶Press the
Delete all
to delete entire list of presets.
Scan
Scanning Radio Frequency
Press the
MENU
button ▶Press the
Scan
button.
Starting from the current frequency, frequencies
with superior reception are scanned for 3 sec-
onds and the previous frequency is restored.
Scanning Preset frequency
Press the
MENU
button ▶Press the
Preset Scan
button.
Plays frequencies saved to presets for 3 seconds.
NOTE
• When the scan is operating, pressing the controller will
stop the function and return to the stopped station.
Sound settings
Press the
MENU
button ▶Press the
Sound settings
button.
For details, refer to the “Sound” on the page 39.
1
2
3

16
USB
About USB
Connect the USB device after turning on the
engine. The USB device may become damaged
if it is already connected when the ignition is
turned on.
•
•Files that are not standard format files will not
be played.
•
•For MP3/WMA files, only music files with com-
pression rates between 8 Kbps ~ 320 Kbps
can be played.
•
•Heed caution to static electricity when con-
necting/disconnecting external USB devices.
•
•Encoded MP3 Players will not be recognized
when connected as an external device.
•
•When connecting an external USB device, the
device may not properly recognize the USB is
in some states.
•
•Only USB devices formatted as FAT 12/16/32
are supported, and NTFS file system is not
supported.
•
•Some USB devices may not be supported due
to compatibility issues.
•
•Avoid contact between the USB connector
with bodily parts/foreign objects.
•
•Repeated connecting/disconnecting of USB
devices within short periods of time may
result in product malfunction.
•
•Insert USB device after starting the car. If the
car is started while USB device is inserted, it
may damage USB device.
•
•The amount of time required to recognize the
external USB device may differ depending
on the type, size, or file formats stored on the
USB. Such differences in required time are not
indications of malfunction.
•
•The device may not recognize the USB device
if separately purchased USB hubs and exten-
sion cables are being used. Connect the USB
directly with the multimedia terminal of the
vehicle.
•
•When application programs are installed to
specific USBs, files may not properly play.
•
•The device may not operate normally if MP3
Players, cellular phones, digital cameras, or
other electronic devices (USB devices not rec-
ognized as portable disk drives) are connected
with the device.
•
•Charging through the USB may not work for
some mobile devices.
•
•The device may not support normal opera-
tion when using a USB memory type besides
Metal Cover Type USB Memory.
•
•The device may not support normal operation
when using formats such as HDD Type, CF, or
SD Memory.
•
•The device will not support files locked by
DRM (Digital Rights Management).
•
•USB memory sticks used by connecting an
Adaptor (SD Type or CF Type) may not be
properly recognized.

17
USB Music
ENGLISH
Playing USB Music
Once a USB is connected, USB Music mode will
operate automatically.
Press the
HOME
key ▶Press the
Media
button ▶Press the
USB Music
button▶Press
the Play button to play USB music.
NOTE
• If the USB is not connected, or there is no media file
in USB then the USB media button will be disabled.
Searching USB Music Files
While playing ▶Press the
∧
SEEK
TRACK
∨
key or the
I<< >>I
button to play the previ-
ous/next file.
•
•Pressing and holding the
∧
SEEK
TRACK
∨
key or the
I<< >>I
button will rewind or
fast forward the current file.
•
•While the
∧
SEEK
TRACK
∨
key or the
I<<
>>I
button is being pressed, the track will
rewind or fast-forward at high speeds. Once
the key is released, the USB Music will begin
playing at normal speed.
NOTE
• Turn the TUNE / ENTER knob to select the previous/
next file. This key will not rewind or fast-forward the
file.
Repeat
Press the button.
Each time the button is pressed, the option is
changed from Repeat Folder( ) ▶ Repeat
One( ) ▶Off(Repeat All( )).
Shuffle
Press the button.
Each time the button is pressed, the option is
changed from Shuffle All( ) ▶Shuffle Folder
( ) ▶Off( ).
Scan All
Press the
MENU
button ▶Press the
Options
button▶Press the
Scan All
button to scan files
within the USB in random order.
Scan Folder
Press the
MENU
button ▶Press the
Options
button ▶Press the
Scan Folder
button to search
files within the current folder.

18
USB Music
Album Cover view
Press the button ▶Press the
< >
button
to search desired album.
List
Press the
MENU
button ▶Press the
List
but-
ton to display USB Music list screen.
It is possible to search by Folder, Song, Album
and Artist.
Sound settings
Press the
MENU
button ▶Press the
Options
button ▶Press the
Sound settings
button.
For details, refer to the “Sound” on the page 39.

19
USB Video
ENGLISH
Playing USB Video
Once a USB is connected, USB Video mode will
operate automatically.
Press the
HOME
key ▶Press the
Media
button ▶Press the
USB Video
button ▶Press
the Play button to play USB Video.
NOTE
• If the USB is not connected, or there is no media file
in USB then the USB media button will be disabled.
Searching USB Video Files
While playing ▶Press the
∧
SEEK
TRACK
∨
key or
I<< >>I
button to play the previous/
next file.
•
•Pressing and holding the
∧
SEEK
TRACK
∨
key or
I<< >>I
button will rewind or fast
forward the current file.
•
•While the
∧
SEEK
TRACK
∨
key or
I<<
>>I
button is being pressed, the track will
rewind or fast-forward at high speeds. Once
the key is released, the USB Video will begin
playing at normal speed.
NOTE
• Turn the TUNE / ENTER knob to select the previous/
next file. This key will not rewind or fast-forward the
file.
Repeat
Press the button.
Each time the button is pressed, the option is
changed from Repeat Folder( ) ▶ Repeat
One( ) ▶Off(Repeat All( ).
Shuffle
Press the button.
Each time the button is pressed, the option is
changed from Shuffle All( ) ▶Shuffle Folder
( ) ▶Off( ) .

20
USB Video
List
Press the
MENU
button ▶Press the
List
but-
ton to display USB Video list screen.
It is possible to search by Folder and Videos.
Caption
Press the
MENU
button ▶Press the
Caption
button to display caption on USB Video screen.
Display settings
Press the
MENU
button
▶Press the
Display settings
button.
Press the
Reset
button to initialize the settings.
Press the button to set “Brightness” and
“Dimming mode”.
For details, refer to the “Display”on the page 41.
Sound settings
Press the
MENU
button
▶Press the
Sound settings
button.
For details, refer to the “Sound” on the page 39.
NOTE
• USB Video is not available while driving.
(Because of traffic regulations, videos is only available
when your vehicle is parked.)
