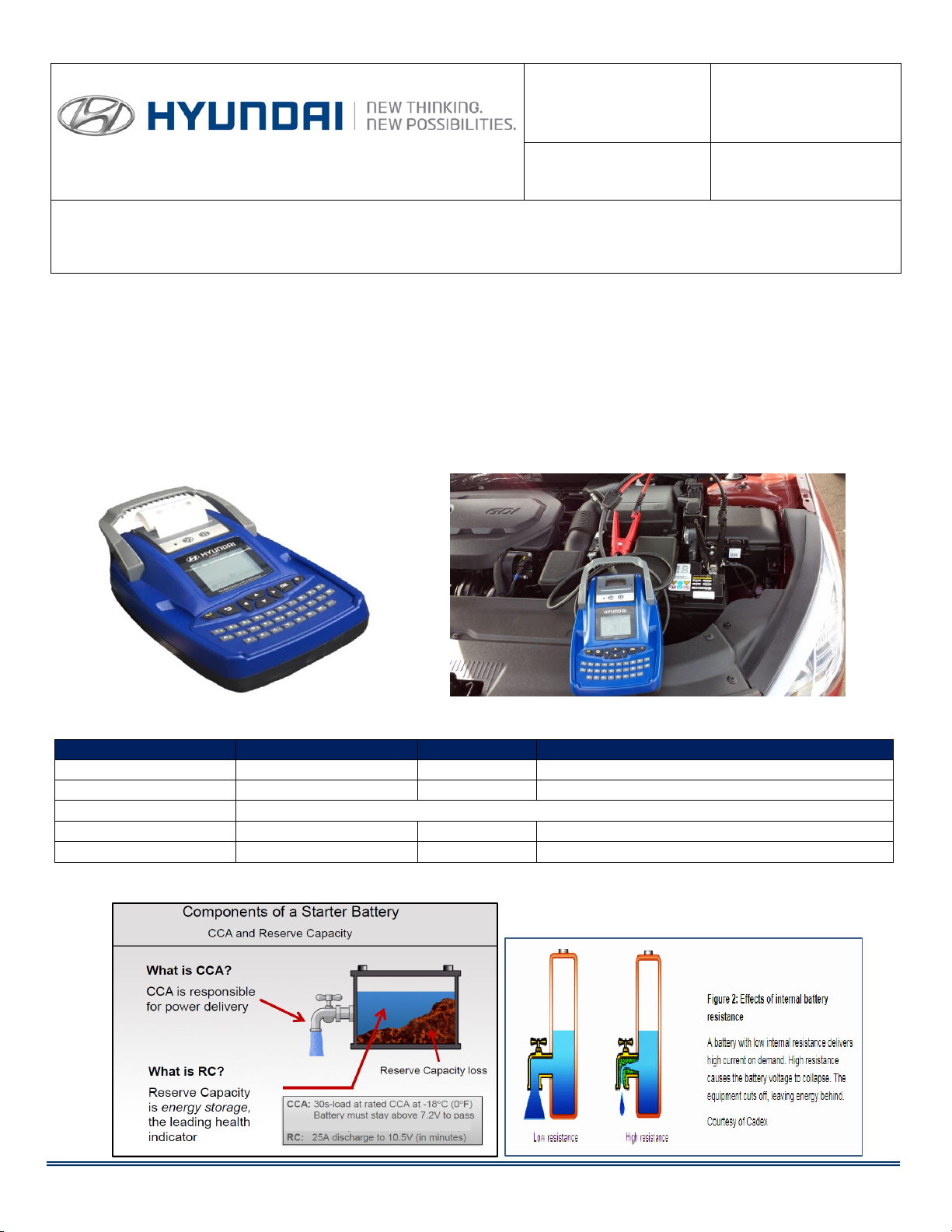

Hyundai CADEX RAPID RC BATTERY TESTER Reference manual

Circulate To: General Manager, Service Manager, Parts Manager, Warranty Manager, Service
Advisors, Technicians, Fleet Repair
Technical Service Bulletin
GROUP
NUMBER
ENGINE
ELECTRICAL
16-EE-001-1
DATE
MODEL(S)
MAY 2016
ALL MODELS
SUBJECT:
CADEX 12-VOLT “RAPID RC BATTERY TESTER”
TOOL AND BATTERY WARRANTY POLICY
(This bulletin has been revised at pages 8-10 of the warranty procedure including need to enter

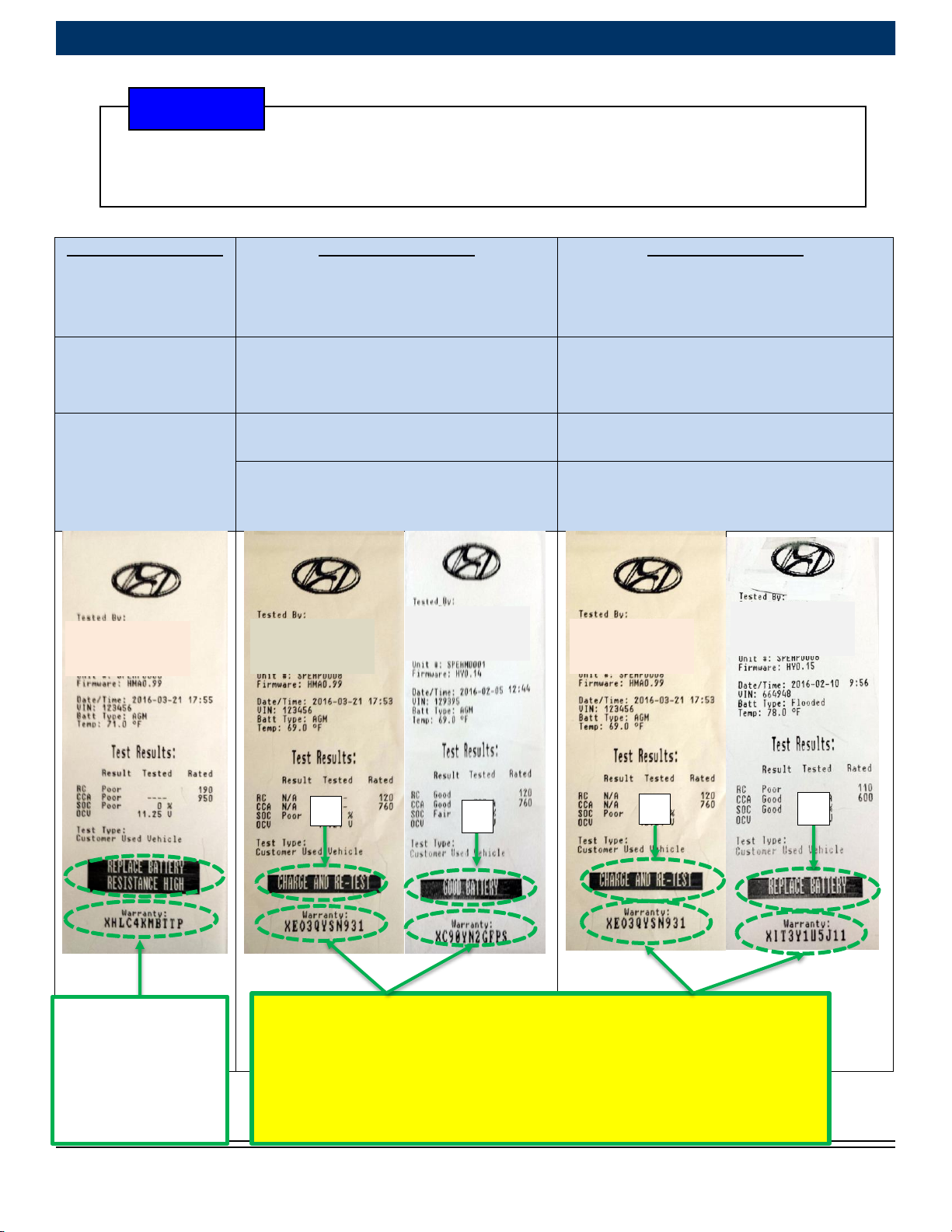

2 Tester printout warranty codes for “Charge only”or “Charge + Replace”claims.)
Description:This bulletin describes operation of the “Rapid RC Battery Tester” for preventive
maintenance battery check, and for repair work on 12-volt batteries. The tester can conduct a
complete battery health check of all service drive vehicles to confirm “Good Battery”,or a “Replace
Battery”result. It can help improve customer satisfaction to avoid potential negative experience of
jump start or no start. The tester has a rapid test time of 15 seconds. A complete test including input
entry, save, and printout takes about 1.2 minutes.
The Rapid RC Tester uses a cutting edge patented 24-frequency “Electrochemical Impedance
Spectroscopy” (EIS) scan to completely check battery health including all of the following conditions:
Battery Condition
Definition
Unit
Comment
RC
Reserve Capacity
Rated mins.
Measured RC is indicated as Good/Poor
CCA (SAE)
Cold Cranking Amps
Amps
Be sure to enter CCA (SAE) rating, not (EN)
Resistance High
Battery internal plate/connection/weld deterioration restricting battery current supply
SOC
State of Charge
%
0-100% full charged.
OCV
Open Circuit Voltage
Volts
Battery CCA, RC and “Resistance High”explained:

CADEX 12V “RAPID RC BATTERY TESTER” TOOL AND BATTERY WARRANTY POLICY
TSB #: 16-EE-001-1
Page 2 of 12
SUBJECT:
Service Area Integration:
The Rapid RC Battery Tester was launched as an additional tool to the current GR8 diagnostic
charger. Both the Rapid RC Battery Tester and GR8 can be used to submit warranty claims. The
printout must be attached to the repair order including the warranty code. Battery charge attempt is
still required when the Rapid RC Battery Tester indicates a Charge & Retest result.
The Rapid RC Battery Tester’s unique EIS technology operates from an internal rechargeable Li-ion
battery. The tester should be charged daily while not in use. The tester can check up to 300 vehicles
on a fully charged internal battery. It can show results for every battery including dead batteries at
very low voltage.
The Rapid RC Battery Tester should be the primary tool to test all service drive vehicles. The battery
test should be done as soon as possible after vehicle check-in. The tester can rapidly decide Good
Battery versus Replace Battery depending on state of charge (SOC) levels as per below:
SOC (%)
OCV (volts)
RC
Test
CCA
Test
Resistance High
Test
Possible Result
60% or
more
Flooded Battery:
(60%=12.35v)
AGM Battery
(60%=12.50v)
Yes
Yes
Yes
Good Battery
or/
Replace Battery
(Resistance High*, RC, or CCA
failed battery)
Below
60%
More than
8.75v
No
No
Yes
Replace - Resistance High*
or/ if resistance OK, then
Charge & Retest
0%
Below
8.75v
No
No
No
Charge & Retest
*Most battery failures will be found by the Rapid RC Tester’s EIS scan for the “Resistance High”category.
Rapid RC Tester “Test Type”:
:
Test Type
Dealer Application
Battery Tester checks
Customer Used Veh
Customer in-use vehicle
RC, CCA, Resistance High
PDI/Stock/New Veh
New vehicle PDI.
Dealer lot stock vehicle
(Refer to TSB 16-EE-002)
Checking a new service
replacement battery.
CCA & Resistance High
(NOTE: RC testing is not done
in this Test Type because new
vehicle aged battery RC can be
at temporary low condition, but
able to be recovered)
The Rapid RC Battery Tester has 2 separate Test Types. To ensure proper warranty coverage
you must select the correct Test Type for the type of vehicle test being performed as per below:
IMPORTANT

CADEX 12V “RAPID RC BATTERY TESTER” TOOL AND BATTERY WARRANTY POLICY
TSB #: 16-EE-001-1
Page 3 of 12
SUBJECT:

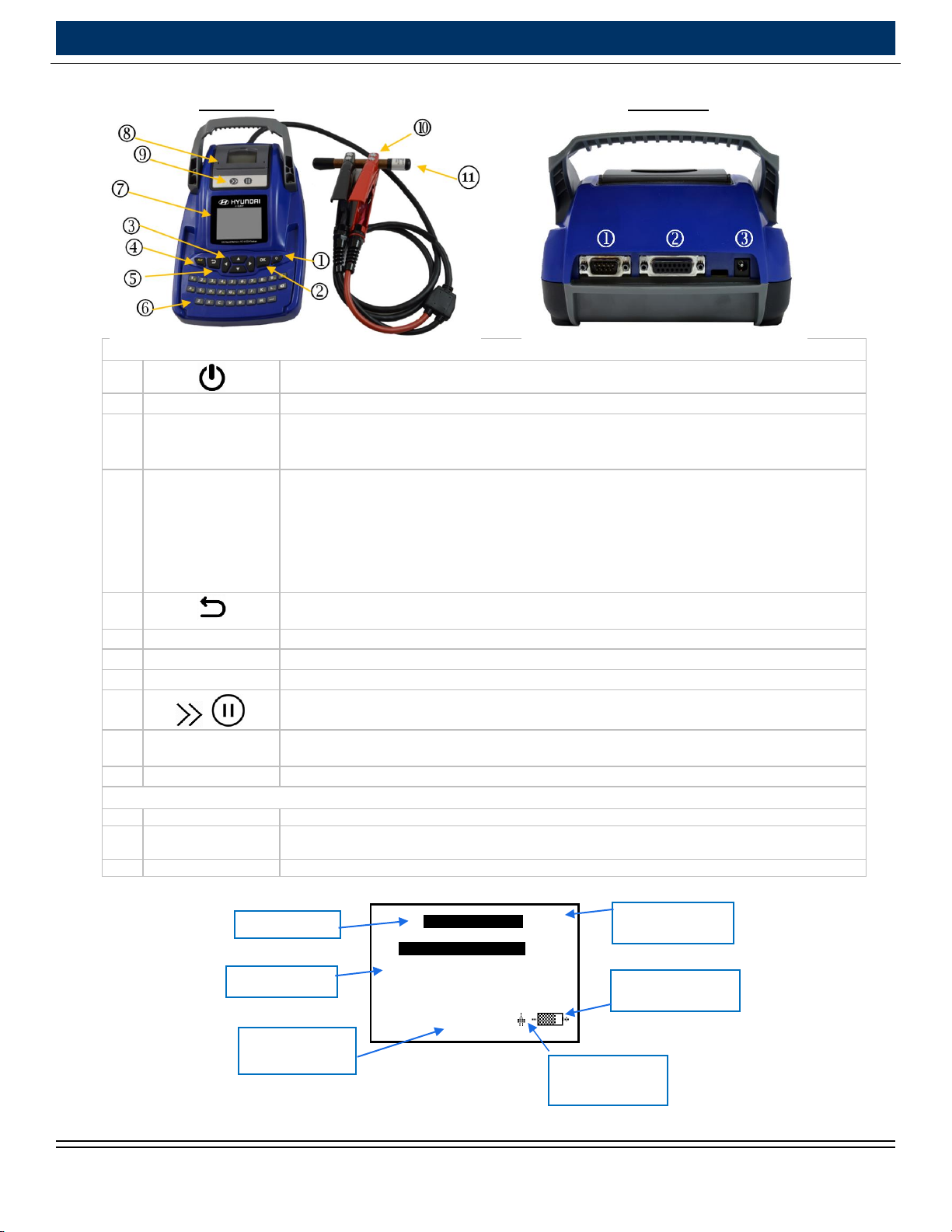

Tester Features:
Top View: Rear View:
Top View Diagram:
1
The Power button. Press and hold to turn the tester on or off.
2
OK
Press to start tests, confirm settings, and select menu items.
3
▲
◄►
▼
Keypad direction keys. Press to scroll throughmenus, results, and settings.
4
ALT
Press to change the data entry mode to numbers/symbols, upper case letters, or lower case
letters. The indicator on the upper right of the screen shows which mode is currently active:
# –Numbers and symbols
A –Upper case letters
a –Lower case letters
If the ALT key won’t toggle and the indicator stays in # mode, it means only numbers can be
entered on that screen.
5
The Back (or Escape) key. Press to exit menus and result screens (without saving any
changes). Press twice to show the internal battery level of the tester.
6
Keyboard
Use to enter data on certain screens.
7
Main Display
The LCD viewing panel
8
Printer
The embedded printer
9
These buttons have no effect; do not use them.
10
Battery Clamps
Connect these clamps to the battery terminals. The red clamp connects to the positive (+)
terminal and the black clamp to the negative (-) terminal.
11
Calibration Shunt
Use to calibrate the tester when it requests calibration.
Rear View Diagram:
1
Serial Port
Plug the supplied serial cable into this port to connect the tester to a computer.
2
Battery Clamp
Port
Connect the battery cable to this 15-pin port.
3
Input Power Port
Connect the external power supply here.
M A IN M EN U . #
T e st B a tt e ry .
S a ve d R es u lts
S y st em S et t in g s
V o lt s :1 2. 7 4V
Tester internal
battery state
Tester charger
connected
Connected
battery voltage
Selection list
Screen name
Data entry
mode indicator

CADEX 12V “RAPID RC BATTERY TESTER” TOOL AND BATTERY WARRANTY POLICY
TSB #: 16-EE-001-1
Page 4 of 12
SUBJECT:
Service Procedure:

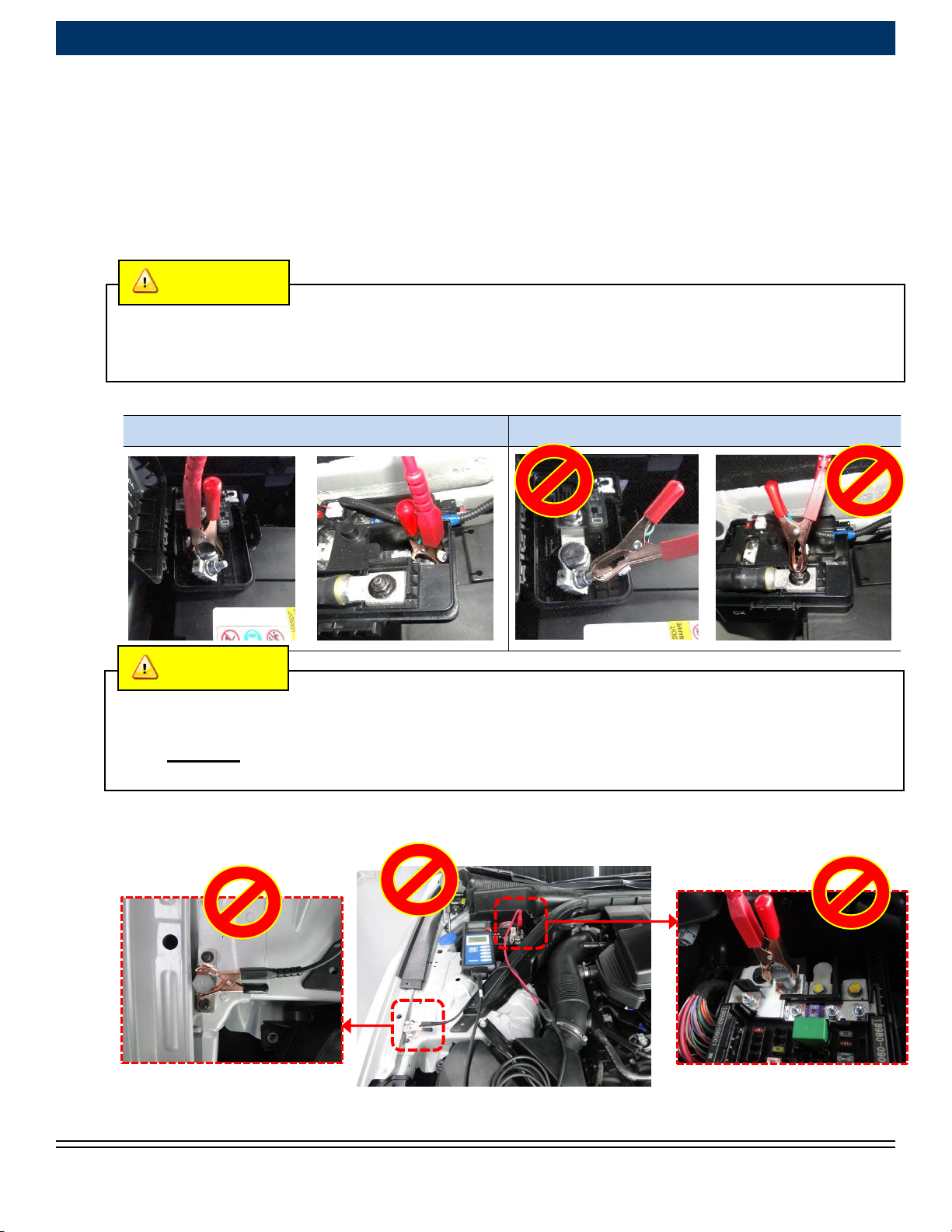

Testing a Battery:
A.
Connect the Battery Tester clamps to the vehicle’s battery, making sure that the black clamp
is connected to the battery negative “-” terminal and the red cable’s clamp is connected to the
battery positive “+” terminal. The Tester will warn if connected backwards.
NOTE: Make sure vehicle ignition, interior and exterior lights are off for battery testing.
GOOD CONNECTION
BAD CONNECTION
Battery extension terminal
(-) Extension
(+) Extension
When testing the battery, connect the battery tester to the battery terminal’s metal or battery
post firmly, not to the securing nuts. Otherwise the test result displayed on the battery tester
will be incorrect.
CAUTION
In some vehicles such as the Genesis Sedan, Equus, and Sonata HEV, the battery is located
in the trunk while there is an extension terminal located in the engine compartment. In this
case, DO NOT test battery using the extension terminal in the front. Always connect the
tester directly to the battery. Otherwise the result will not be correct.
CAUTION

CADEX 12V “RAPID RC BATTERY TESTER” TOOL AND BATTERY WARRANTY POLICY
TSB #: 16-EE-001-1
Page 5 of 12
SUBJECT:
B.
Turn the Rapid RC Tester power on and follow these screen by screen instructions. This
example shown is for a Customer Used Vehicle with a Replace Battery result indicated.
1) Select Test Battery, and then press OK.
2) Using ▲▼ select Test Type*, and then
press OK.
IMPORTANT - *Refer to Page-2 of this TSB
for Test Type explanation and warranty claim
warning.
3) Use ◄► keys to select battery
Chemistry, and then press OK.
NOTE: Refer to these examples. If you are
not sure which, then refer to the battery

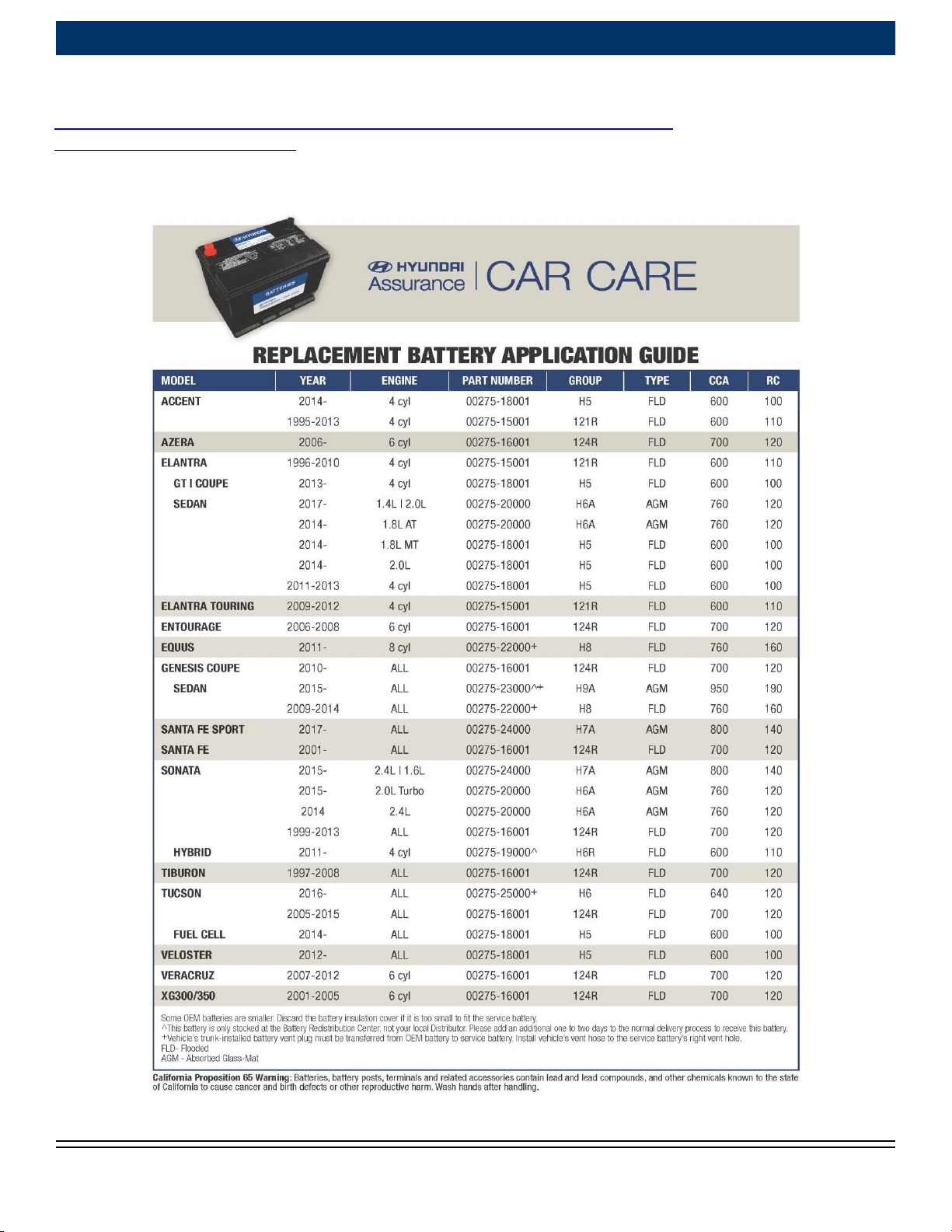

application chart on the last page of this TSB.
FLD=”Flooded”battery label example:
(will not include the letters AGM anywhere)
AGM=”Absorbent Glass Mat”battery label examples:
NOTE: Look for the letters AGM anywhere on the battery label.
Sonata (YF/LF) AGM: Elantra (UD/MD/AD) AGM: Genesis Sedan (DH) AGM:
M AIN M EN U .
T e st B a tt e ry .
S a ve d R es u lts
S y st em S et t in g s
V o lt s : 12. 7 4V
T EST T YP E .
P DI / St o ck /N ew V e h .
C us t om e r Us e d V eh
V o lt s : 12. 7 4V
TEST BATTERY .
Please select:
Chemistry: F L D AG M
<>=T o ggl e OK : Co n t

CADEX 12V “RAPID RC BATTERY TESTER” TOOL AND BATTERY WARRANTY POLICY
TSB #: 16-EE-001-1
Page 6 of 12
SUBJECT:

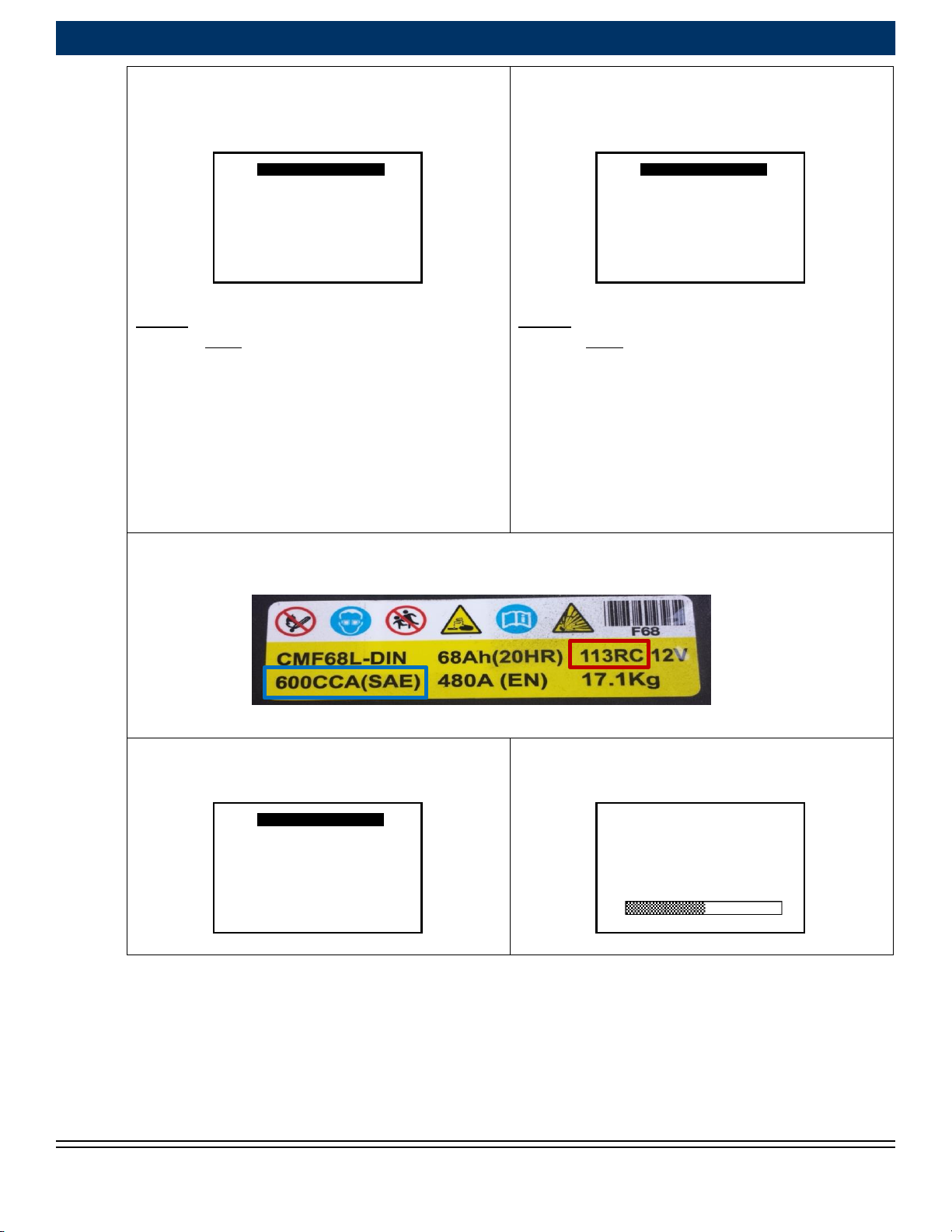

4) For a Customer Used Veh test type
you will enter the RC rating from the
battery label, and then press OK.
NOTE:
You must enter a valid RC rating in the
Customer Used Veh test type to assure
a proper test result.
If RC can’t be read from the battery label,
enter the value from the Hyundai battery
application chart by model/engine (see the
last page of this TSB).
PDI/Stock/New Veh test type does not
require RC to be entered; it is not tested.
5) Enter the CCA (SAE) rating from the
battery label, and then press OK.
NOTE:
You must enter a valid CCA (SAE) rating
to assure a proper test result.
Be sure to select the correct value of
CCA (SAE); not the (EN) value.
If CCA (SAE) can’t be read from the battery
label, enter the value from the Hyundai
battery application chart by model/engine
(see the last page of this TSB).
Example of RC and CCA (SAE) ratings on a Battery Label:
(In this example 113 is entered for RC and 600 for CCA SAE)
6) Enter the last 6 numeric digits of the VIN
then press OK:
7) Testing will proceed for approximately
15 seconds:
T E ST B AT T ERY . #
P l ea s e e n ter
R C ( m in ) r at i ng
1 8 0
B a ck : Exi t O K: Con t
T E ST B AT T ERY . #
P l ea s e e n ter
C C A ( SA E) r at i ng
8 0 0
B a ck : Exi t OK : Co n t
T ES T B A TT ER Y .
P l ea s e e n ter V IN
( l as t 6 d i gi t s)
B a ck : Exi t OK : Co n t
T e st i n p ro gr e ss . ..
5 0 %

CADEX 12V “RAPID RC BATTERY TESTER” TOOL AND BATTERY WARRANTY POLICY
TSB #: 16-EE-001-1
Page 7 of 12
SUBJECT:
8) The Result screen will appear like the
below 2 examples. Press OK to save it
in the tester memory.
9) The battery test result data is saved in
the tester memory.
NOTE:
Up to the last 150 test results are saved
in the Tester’s memory.
Refer to the Cadex User Manual pages
23-27 for instructions on how to access
saved data.
10) Press OK to print the battery test result,
or use ◄► to select No before pressing
OK.
11) Printout will occur if Yes was selected
for Print Receipt:
R EP L AC E B AT T ER Y .
C us t om e r Us e d V eh
R C P o or
C CA 3 25 A P o or
S OC 1 00 % G oo d
O CV 1 2. 8 3 V 7 1 °F
B a ck : Exi t OK : Sa v e
R EP L AC E B AT T ER Y .
C us t om e r Us e d V eh
R C P o or
C C A P o or
S O C 0 % P oor
O CV 1 1. 3 5 V 7 1 °F
RESISTANCE HIGH
B a ck : Exi t OK : Sa v e
Saving Results…
D o ne !
0 0 1 1 23 45 6 2 0 16 - 01-01
Print Receipt?
C o nf i rm Y e s No
T es t ed B y :
A BC H y un d a i
1 H y u n da i d ri v e
L os A n ge l e s, C A
( 12 3 ) 45 6- 7 89 0
U ni t # : S P EH 0 00 01
F ir m wa re : H MA 1 . 00
D at e /T im e : 2 0 1 6 -01- 2 0 2 0: 3 6
V IN : 1 23 4 5 6
B at t T yp e : Fl o o de d
T em p : 69 . 0 °F
Test Results:
Result Tested Rated
RC P oo r 180
CCA P oo r 3 2 5 A 800
SOC G oo d 1 0 0 %
OCV 1 2. 7 4V
T es t T yp e :
C us t om er U s ed V eh i cl e
REPLACE BATTERY
Warranty:
XIYL1K2KZ9C
Always print out the battery test result to attach to the repair order of any warranty claimed
vehicle. Follow page-11 to set Dealer Address, Date and Time if they are incorrect on the
printout. The warranty code(s) must include the correct information for submission.
NOTICE

CADEX 12V “RAPID RC BATTERY TESTER” TOOL AND BATTERY WARRANTY POLICY
TSB #: 16-EE-001-1
Page 8 of 12
SUBJECT:
C.

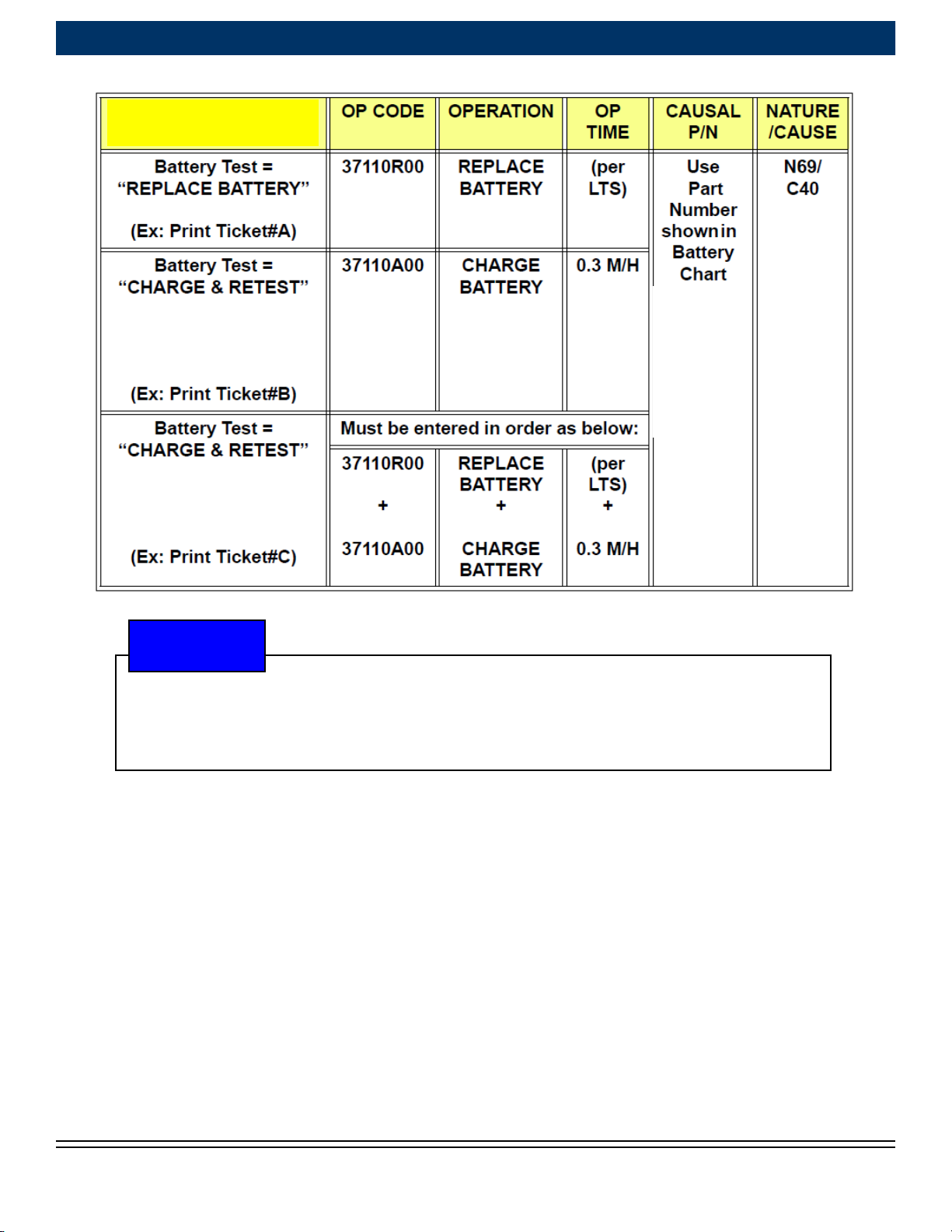

Follow this vehicle battery repair procedure and warranty policy guideline:

CADEX 12V “RAPID RC BATTERY TESTER” TOOL AND BATTERY WARRANTY POLICY
TSB #: 16-EE-001-1
Page 9 of 12
SUBJECT:
Print Ticket Set # A
Print Ticket Set # B
(Both tickets as shown below must be
attached with matching VIN, and the
dates should be close to the RO date)
Print Ticket Set # C
(Both tickets as shown below must be
attached with matching VIN, and the
dates should be close to the RO date)
REPLACE
37110R00 only
CHARGE 37110A00 only
CHARGE 37110A00
+ REPLACE 37110R00
Rapid RC Battery
Tester =
REPLACE
BATTERY
1. Rapid RC Battery Tester initial
result = CHARGE & RETEST
1. Rapid RC Battery Tester initial
result = CHARGE & RETEST
2. Rapid RC Battery Tester result
after charge attempt =
GOOD BATTERY
2. Rapid RC Battery Tester result
after charge attempt =
REPLACE BATTERY
1
2
2
1
For a Charge only or Charge + Replace claims, 2 warranty
codes must be entered into the claim from each of the following
result tickets:
CHARGE AND RETEST initial result.
GOOD BATTERY or REPLACE BATTERY final result after
charge attempt.
When using the Rapid RC Battery Tester the following print tickets must be attached to
the repair order based on the initial Rapid RC Battery Tester results before and after
charge attempt as shown. Also listed are the warranty claim types.
NOTICE
ABC Hyundai
1 Hyundai Drive
Los Angeles, CA
ABC Hyundai
1 Hyundai Drive
Los Angeles, CA
ABC Hyundai
1 Hyundai Drive
Los Angeles, CA
ABC Hyundai
1 Hyundai Drive
Los Angeles, CA
ABC Hyundai
1 Hyundai Drive
Los Angeles, CA
For Replace only
claims enter just
one warranty
code from the
REPLACE
BATTERY result.

CADEX 12V “RAPID RC BATTERY TESTER” TOOL AND BATTERY WARRANTY POLICY
TSB #: 16-EE-001-1
Page 10 of 12
SUBJECT:
Warranty Claim Information:
Attach the print tickets to the repair order per examples shown on page 9 based on
the Rapid RC Battery Tester results, and enter the applicable 11-digit warranty
code(s) into the claim submission as indicated from page-9.
NOTICE
and after
Charge Attempt =
“REPLACE BATTERY”
and after
Charge Attempt =
“GOOD BATTERY”
(see last
page of
this TSB
for
service
battery
part
number)
CADEX RAPID RC
TESTER RESULTS

CADEX 12V “RAPID RC BATTERY TESTER” TOOL AND BATTERY WARRANTY POLICY
TSB #: 16-EE-001-1
Page 11 of 12
SUBJECT:
Dealer Setup of the Rapid RC Battery Tester:
The tester’s printout must have a correct dealer and date/time for warranty submission. Follow these
instructions if any are incorrect and needs setup.
Dealer Address setting:
1. At start-up screen select System Settings:
2. Select Dealer Settings:
3. Select Dealer Address:
4. Enter Dealer Address by keyboard to replace
the default Cadex address, then press OK to
save followed by OK again to confirm. Alt key
switches between alpha/caps/num/symbols.
Date and Time Setting:
1. At start-up screen select System Settings:
2. Select Device Settings:
3. Select Physical Settings:
4. Select Set Clock:
5. On the Set Clock screen, use  to move
from between the date and time values. Use
▼▲to change the time and date.
6. Press OK, then toggle ◄►to select Yes and
save the date and time settings (or No to exit
without saving).
M AIN M EN U .
T e st B a tt e ry
S a ve d R es u lts
S y st em S et t in g s .
V o l t s : 12. 7 4V
S YST EM S E T TI N GS .
D ea l er S ett in gs .
Device Settings
Factory Settings
System Info
V o l t s : 12. 7 4V
D EAL ER S E T TI N GS .
Dealer Info
D ea l er A ddr es s .
Service Options
V o lt s : 12. 7 4V
D EAL ER A D D RE S S . a
A B C H yu nd a i
1 H yu nda i D r i ve
L o s A ng el e s, C A
( 123 ) 2 3 1 -7 7 77
B a ck : Exi t OK : Sa v e
M AIN M EN U .
T e st B a tt e ry
S a ve d R es u lts
S y st em S et t in g s .
V o l t s : 12. 7 4V
S YST EM S E T TI N GS .
Dealer Settings
D ev i ce S ett i ng s .
Factory Settings
System Info
V o lt s : 12. 7 4V
D EVI CE S E T TI N GS .
Electrical Tests
P hy s ic a l Se t ti n gs .
T es t U n it S e tt i ng s
V o lt s : 12. 7 4V
PHYSICAL SETTINGS .
Screen Contrast
O f f Ti m e r s
S e t Cl o c k .
Volts: 12.74V
S ET C LO C K .
T i me : 1 0 2 3: 05
.
D a te : 2 01 6 - 01-29
S ET C LO C K .
T i me : 1 0 2 3: 05
.
D a te : 2 01 6 - 01-29
C onf ir m Yes N o

CADEX 12V “RAPID RC BATTERY TESTER” TOOL AND BATTERY WARRANTY POLICY
TSB #: 16-EE-001-1
Page 12 of 12
SUBJECT:
Hyundai Battery Replacement Application Chart:
Below example is as of March 2016. Check for the latest battery application guide found at:
http://www.hyundaiflashdrive.com/storage/reference-material/pn-reference-
charts/battery_app_guide.pdf
