Ax51B IR Bullet Camera
User Guide
Before attempting to connect or operate this product, read these instructions carefully.
Save this manual for future use.
CONTENTS
1. Warnings and operation notes..........................................3
2. Product Overview ............................................................4
3. Unpacking....................................................................5
4. Installation.....................................................................6
5. Connecting your IP Camera to the SRX-Pro Server....... ...7
6. Advanced Camera Setup..................................................15
7. Specifications.................................................................28

2
i3-TRNG-CAMS-Ax51B.indd Rev. 130411
Ax51B IR Bullet Camera User Guide
COPYRIGHT ©2013 by i3 International, Inc. All rights reserved.
No part of this manual may be reproduced or transmitted in any form or by any
means, electronic or mechanical, including but not limited to, photocopying,
recording, or by any information storage or retrieval system, without the prior
written permission of the copyright owner and the publisher.
Annexxus is a registered trademark of i3 International Inc.
Disclaimer
This user guide is provided as is, without warranty of any kind, expressed or
implied, including but not limited to performance, merchantability, or fitness for any
particular purpose. Neither i3 International Inc. nor its dealers or distributors shall be
liable to any person or entity with respect to any liability, loss, or damage, caused or
alleged to have been caused directly or indirectly by this information.
Furthermore, i3 International Inc. reserves the right to revise this publication, and to
make changes to the content at any time, without notice.
FCC
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Address:
i3 International Inc.
780 Birchmount Road, Unit 16
Scarborough, ON M1K 5H4
Canada
Contact us:
Tech Support: 1.877.877.7241
Email. [email protected]
Web Site: www.i3international.com
Table of Contents
1. Warnings and operation notes
2. Product Overview
3. Unpacking
4. Installation
5. Configuration
6. Advanced Camera Setup
7. Specifications

3Rev. 130411i3-TRNG-CAMS-Ax51B.indd
1. Warnings and operation notes
Thank you for purchasing i3 Ax51B IR Fixed Bullet camera.
Please read this guide carefully before you install the camera. Keep this
guide for future reference.
Ax51B comes with a fixed lens and a built-in heater. 24 high quality IR illuminators
built around the lens facilitate crystal clear pictures with no outside illumination as
far as 25 meters (82 ft). Plus, with IP67-rated all-weather waterproof, aluminum
casing, this camera is ideal for outdoor applications such as convenience stores,
streets and parking lots. PoE, DC12V and AC24V power is supported in the indoor
installations, where the heater is not required. Use DC24V/AC24V power for outdoor
installations only to supply enough power to the built-in heater.
If the system needs to be modified or repaired, contact a certified i3 International
Dealer/Installer. When serviced by an unauthorized technician, the system
warranty will be voided. Should you have any problems or questions regarding our
products, contact your local i3 International Dealer/Installer.
1.1 Precautions
Installation and serving should be performed only by qualified and
experienced technicians to conform to all local codes and to maintain
your warranty.
When installing your Ax51B camera be sure to avoid:
• excessive heat, such as direct sunlight or heating appliances
• contaminants such as dust and smoke
• strong magnetic fields
• sources of powerful electromagnetic radiation such as radios or TV transmitters
• moisture and humidity
• areas with mechanical vibrations
• fluorescent lamps or objects that reflect light
• unstable light sources as this may cause flickering
• temperatures below -40° Celsius or -40° Fahrenheit and above 50° Celsius or
122° Fahrenheit.

4
i3-TRNG-CAMS-Ax51B.indd Rev. 130411
1.2 Power Supply
Ensure the supplied voltage meets the power consumption requirements of this
camera before powering the camera on. Incorrect voltage may cause irreparable
damage to the video camera and will effectively void the camera warranty.
PoE, DC12V and AC24V power is supported in the indoor installations, where the
heater is not required. Use DC24V/AC24V power for outdoor installations only to
supply enough power to the built-in heater.
1.3 Cleaning
• For maximum optical clarity, the camera or lens must remain clean. Use a soft,
dry cloth to remove finger prints and dust from the dome cover.
• Use a blower to remove dust from the lens.
• Clean the body with a soft, dry cloth. If it is very dirty, use a cloth dampened
with a small quantity of neutral detergent, then wipe dry.
• Do not use volatile solvents such as alcohol, benzene, or thinners, as they may
damage the surface finish.
1.4 Servicing
To avoid electrical shock and to preserve the product warranty, DO NOT
disassembles the camera. Refer servicing to qualified personnel only.
2. Product Overview
• High Definition Images
Clear and detailed HD quality images in all conditions. Unlike other megapixel
cameras, Ax51B-series offer higher resolutions and better frame rates. Blurry
images are reduced and individuals and objects of interest come with perfect
clarity.
WARNING! The use of CSA certified/ UL Listed Class 2 power
adapter is required to ensure compliance.
WARNING! To reduce the risk of fire or electric shock, do not
expose the product to rain or moisture.

5Rev. 130411i3-TRNG-CAMS-Ax51B.indd

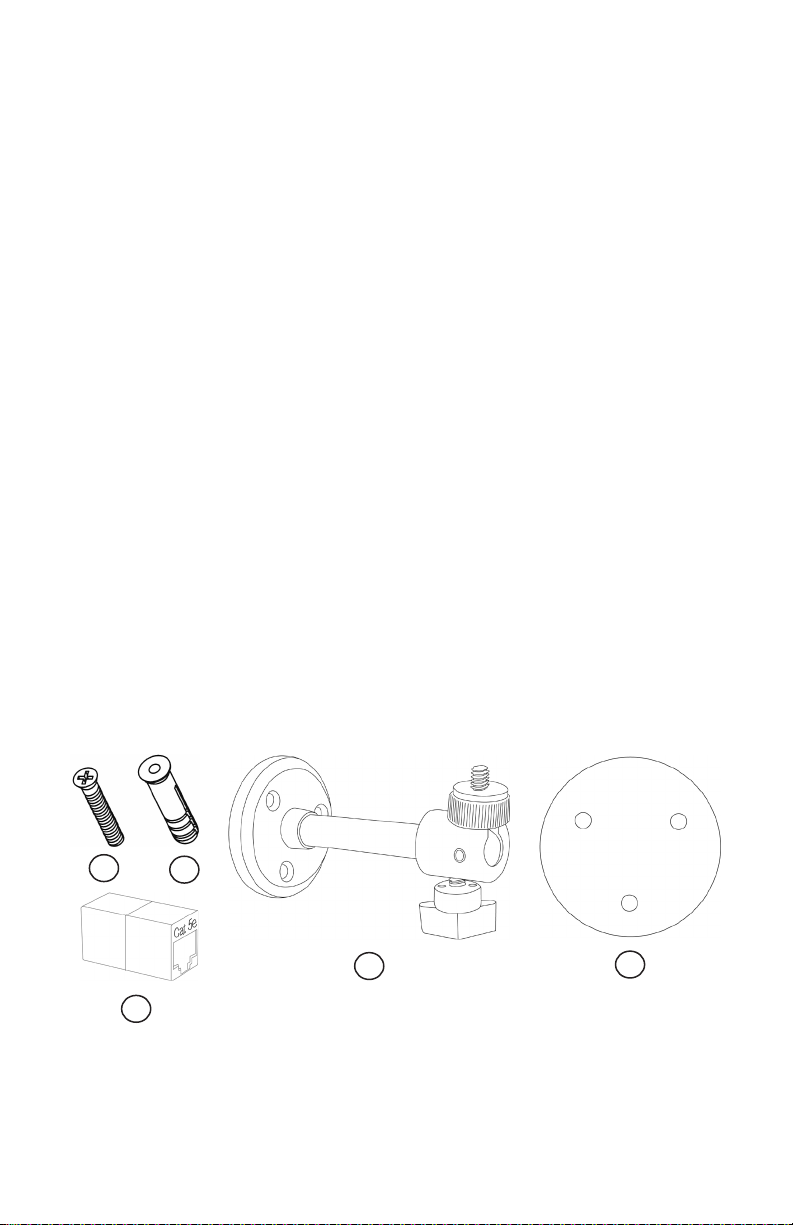

3. Unpacking
Ensure that the items received match those listed on the order form and packing slip.
The dome camera packing box includes, in addition to this manual:
1. Flat Head Screw (Tapping Type) x3
2. Plastic Anchor x3
3. RJ-45 Female / Female Coupler
4. Mounting Pack-in Bracket
5. Guide Pattern Sticker x1
6. Printed Quick Start Guide x1
7. CD (User Manual, Annexxus Finder, Quick Start Guide) x1
8. Fully Assembled Network Bullet IR Camera x1
If any parts are missing or damaged, contact the dealer you purchased the camera
from.
12
3
45
Guide Pattern
Note: Mounting surface material
determines screw type.
• Triple Streaming
The Ax51B-series Network Camera is designed to show extreme image detail.
H.264/MPEG4/MJPEG triple streaming allows you to choose the appropriate
code for your bandwidth.
• Cost-saving H.264 Support
The AX51B-series support the H.264 compression standard. H.264 greatly
reduces the size of video without compromising image quality. Storage and
bandwidth are reduced.

6
i3-TRNG-CAMS-Ax51B.indd Rev. 130411
4. Installation
Use the provided bracket and equipment to mount the camera. After installation,
your network camera should be accessed from your local network. See Section 5:
Connecting your IP Camera to SRX-Pro Server.
4.1 Dimensions
4.2. Camera Parts and Definitions
A. Power In: (Red+/Black-): power connector.
Use DC12V/AC24V for indoor applications, use DC24V/AC24V for outdoor ap-
plications to supply enough power to the built-in heater.
B. RJ-45 Ethernet Connector: network connection.
Supports PoE (Power over Ethernet) cable for indoor applications. PoE power
will not work when the camera is installed outdoors where the use of heater is
required for camera operations.
Note: If PoE (Power over Ethernet) connector is used, an electrical cable is not
required
C. BNC: video output
A. Power In
(Red+/Black-)
B. RJ-45 Ethernet
Connector
C. BNC

7Rev. 130411i3-TRNG-CAMS-Ax51B.indd
4.3 Wall/Ceiling Mount Installation / Adjusting Camera Position
1. Adhere the “Guide Pattern Sticker” to the desired location on the mounting
surface and mark hole positions.
2. Drill 3 mounting holes on the mounting surface according to the guide sticker.
3. For cement surfaces, insert the Plastic Anchors into the holes. For softer sur-
faces, do not use the Plastic anchors.
4. Secure the mounting bracket to the surface using the provided screws.
Tapping
Type
Screws
Plastic
Anchors
Plastic
Anchors
Tapping
Type
Screws
To adjust the view
angle, loosen the knob
to rotate the bracket.
5. Connecting your IP Camera to the SRX-Pro Server
5.1 Camera Connection Options
i3 SRX-Pro Server
Crossover direct connection
LAN
i3 SRX-Pro Server
Via Gigabit Switch
Connection Type 1:
Connection Type 2:

8
i3-TRNG-CAMS-Ax51B.indd Rev. 130411
5.2 Hardware/Software Requirements
The following requirements must be met to achieve a successful network connection
with the Ax51B IR Bullet IP camera.
SRX-Pro Server:
• i3 SRX-Pro Version 3.0 or higher
• Latest GiPi adapter is installed. GiPi adapters can be downloaded from i3 FTP
website. (Please contact i3 Technical Support for more information.)
• Windows XP, XPe or 7 Pro or 7e
• Internet Explorer Version 6.0 or later
• CPU: Intel Pentium Core 2 or higher
• Memory: 1GB or more
• VGA card--supporting Direct X 9.0 or above
Power Supply
PoE, DC12V and AC24V power is supported in the indoor installations, where the
heater is not required. Use DC24V/AC24V power for outdoor installations only to
supply enough power to the built-in heater.
Note: Camera damages resulted from improper power application are
NOT covered by the camera warranty.
Switch
A Gigabit Switch is required to monitor two or more cameras from the same
SRX-Pro Server.
5.3 Using Annexxus Finder to assign IP Address to your IP Camera
To connect your Annexxus camera to your SRX-Pro Server, follow these instructions:

9Rev. 130411i3-TRNG-CAMS-Ax51B.indd
1. Close SRX-Pro Server software by pressing Alt+Shift+Ctrl+F4.
2. Change the IP address on the onboard NIC (LAN) (or on NIC1 if your SRX-Pro
Server has two onboard NIC cards) of your SRX-Pro Server to 192.0.0.XXX to
match the default IP range of your Annexxus IP camera.
3. Connect the network cable from the SRX-Pro Server (crossover direct
connection) or from the Gigabit switch to your Annexxus camera.
4. Turn on your Annexxus camera.
5. Locate the CD that came with your Annexxus camera and insert it in the
CD-ROM drive of your SRX-Pro Server.
6. Double-click “AnnexxusFinder.exe” file to install Annexxus Finder application.
Annexxus Finder application discovers all Annexxus cameras connected to your
network.
7. Follow the Annexxus Finder installation instructions until the application has
been successfully installed on your SRX-Pro Server.
8. Double-click Annexxus Finder icon on the Desktop to launch the application.
The application window will appear displaying a list of active network cameras
9. Next, select desired camera in the Annexxus Finder software by double-clicking
it in the list and click Edit.
10. Enter the new IP address and Subnet Mask of the camera in the Change IP
Camera’s default IP address is 192.0.0.16
Camera’s default subnet mask address is 255.255.255.0.
Default camera User Name: admin and default Password: 1234

10
i3-TRNG-CAMS-Ax51B.indd Rev. 130411
Address area. The new camera IP address must match the original range of
your SRX-Pro LAN or NIC1 card.
E.g. If your original SRX-Pro Server’s IP address was 192.138.10.122, change
your Annexxus camera’s IP address to 192.138.10.XXX.
Remember: Annexxus Cameras cannot share an IP address, each camera
requires its own unique IP address.
11. Enter the default camera password: 1234 in the Input Password field and click

11 Rev. 130411i3-TRNG-CAMS-Ax51B.indd
Save.
12. Wait a few moments as the new IP address is being applied to your Annexxus
camera. Wait for the following message to be displayed. Click OK to close it.

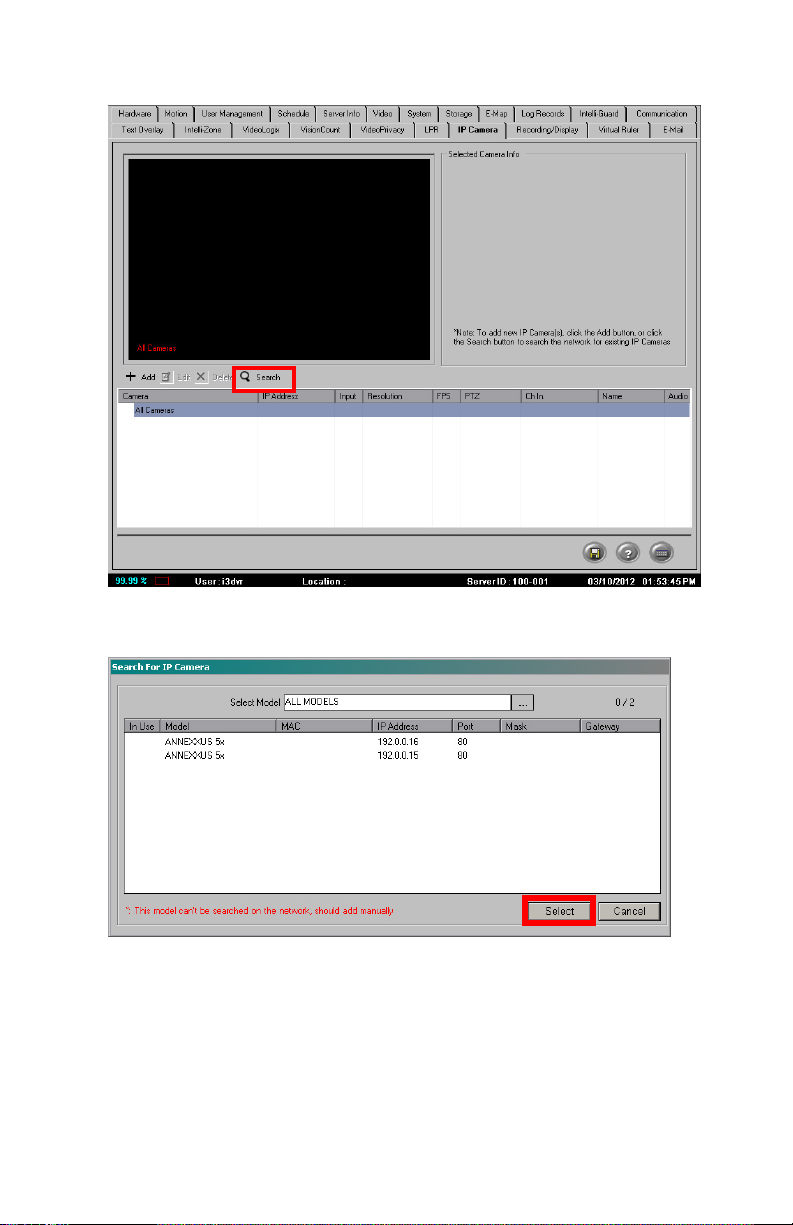

13. Repeat Steps 1-12 for all detected Annexxus cameras in the Annexxus Finder.
14. Now that the new IP address has been successfully assigned to your camera,
make sure you can connect to it through the Internet Explorer:
15. Launch Internet Explorer on your SRX-Pro Server and enter the IP Address you
have just assigned to your Annexxus camera. The password window should be
displayed.
16. Enter the default camera User Name: admin and default Password: 1234

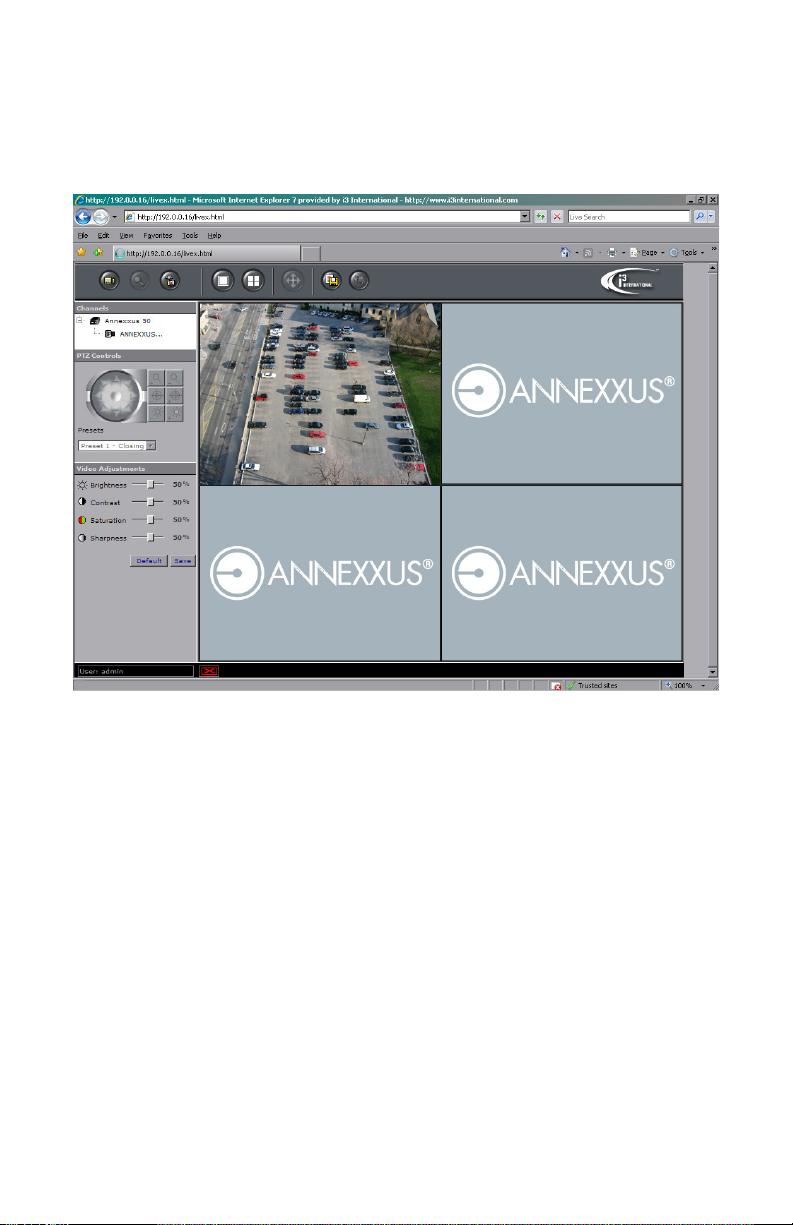

17. Annexxus camera interface will be displayed in the Internet Explorer window.
You should be able to see the camera image on the screen.

12
i3-TRNG-CAMS-Ax51B.indd Rev. 130411
If you do not see the camera image on the screen, call i3 International tech
support for troubleshooting tips: 1.877.877.7241
5.4 Adding your IP Camera to your SRX-Pro Server
1. Make sure that the latest version of GiPi updater is installed on your SRX-Pro
Server. You can download the updates from ftp://files.123ip.com/drivers/gipi.
Please contact i3 Technical Support team for access information.
2. Once the latest GiPi updater has been installed, restart i3 SRX-Pro Server
software.
3. Log In and go to the Setup -> IP Camera tab.
4. Click the Search button to display connected Annexxus cameras.
5. Select the detected camera in the list and click Select.

13 Rev. 130411i3-TRNG-CAMS-Ax51B.indd
6. In the Select IP Camera window, enter the default camera User Name: admin
and default Password: 1234, then click Add.

14
i3-TRNG-CAMS-Ax51B.indd Rev. 130411
7. The selected camera will be added to the IP Camera list.
Don’t forget to assign the IP camera to the SRX-Pro video channel in the
corresponding column (highlighted).
8. Your Annexxus camera is now connected to SRX-Pro Server and is ready to
record. You may change resolution and frame rate for the Annexxus camera in
the IP Camera tab menu or you may choose to configure the camera’s advanced
settings (see the following section).

15 Rev. 130411i3-TRNG-CAMS-Ax51B.indd
6. Advanced Camera Setup
To access Annexxus camera’s advanced setup, go to Setup -> IP Camera tab, select
the camera in the list of added IP cameras and click the Advanced Setup button.
The password window should be displayed. Enter the default camera User Name:
admin and default Password: 1234. Camera’s user interface will be displayed in a
separate Internet Explorer window.

16
i3-TRNG-CAMS-Ax51B.indd Rev. 130411
In the main interface, you may adjust your camera’s
Brightness, Contrast, Saturation and Sharpness levels.
Click Save to save adjusted settings or
Default to set all settings back to 50%.
Note: This panel is enabled in the Live View mode only
and is disabled when in the Setup mode.
Next, click the Setup button to access Annexxus camera Setup features.
6.1 Basic Setup
After making any setting adjustments, remember to click the Save button
to save any changes made.
You may switch to the advanced setup at any time by clicking the button in the
bottom left-hand corner. To switch back to the Basic Setup, click the same button
again.

17 Rev. 130411i3-TRNG-CAMS-Ax51B.indd
Basic Setup is divided into Camera and Network settings. Settings that can be
configured in this setup tab:
Camera Settings:
• Camera Name: The name of the camera will be displayed at the top of the
Internet browser page.
• Video Codec: Set the compression mode to MJPEG, H264 or MPEG4
• Resolution: Set the resolution of the recorded video to D1, SVGA, XGA, 720P,
SXVGA or 1080P (full HD).
• Bit Rate (for H264/MPEG4 codecs): Set the video bit rate from 500-8000 kbit/s
• Quality (for MJPEG codec only): HIGH, NORMAL, LOW
• Frame Rate: Set the frame rate for the recorded video to 1, 3, 7.5, 10, 15
(available only with 1080P resolution), or 30 fps (unavailable with 1080P
resolution)
Network settings:
• DHCP: Enable or Disable to have the network automatically assign an IP address
to the camera.
• IP Address: Manually enter the camera’s IP address here.
This option should NOT be used if DHCP is enabled.
• Subnet Mask: Manually enter the camera’s Subnet Mask here.
This option should NOT be used if DHCP is enabled.
• Default Gateway: Provide the IP address of the network’s router if necessary.
Contact your network administrator for this information.
• DNS: Specify a DNS if necessary.
Contact your network administrator for this information.
• Physical Address: This is the camera’s unique MAC Address. It may not be
changed.
6.2 Video Setup
Switch to the Advanced Setup by clicking the Advance Setup button on the
bottom left-hand corner of the screen as shown on the previous page. The Setup
screen will change to reveal multiple setup tabs. Video Setup tab is displayed by
default.

18
i3-TRNG-CAMS-Ax51B.indd Rev. 130411
Camera Settings:
• Frequency: Select the option which best reduces image flicker: 50Hz or 60Hz
• TV System: NTSC or PAL. Your camera comes pre-programmed with this
setting. If you find that your camera came pre-programmed with the wrong TV
System setting, contact the dealer you purchased the camera from.
• Mirror: Flips the video image. The options for mirror are:
»OFF: Do not use this feature
»HORIZONTAL: flip images left to right.
»VERTICAL: flip images upside-down.
»BOTH: flip both HORIZONTAL and VERTICAL.
• Rate Control: Choose the bit rate of encoding. The options for rate control are:
»VBR (Variable Bit Rate): Maintains good image quality, but will consume
more bandwidth. This setting is not recommended for variable scenes such
as outdoor environments, but is best suited for recording to a local storage
drive or based on video analytics, where quality is desired.
»CBR (Constant Bit Rate): Produces the smoothest streaming for variable
scenes, but is not ideal if highest image quality is desired.

19 Rev. 130411i3-TRNG-CAMS-Ax51B.indd
Annexxus 51B camera series supports triple streaming, where Primary Streaming
is the default stream used for video recording and Third Streaming is used for Live
Viewing. Each stream can be configured separately.
Note: Enabling Streams 2 and 3 may cause frames being dropped on
Stream 1.
Configure Stream 1 - Primary Streaming (Recorded Video):
• Video Codec: Set the compression mode to MJPEG, H264 or MPEG4
• Resolution: Set the resolution of the recorded video to one of the following:
»D1 (720×480)
»SVGA (800×600)
»XGA (1024×768)
»720P (1280×720)
»SXVGA (1280×960) or
»1080P (1920×1080 - full HD)
Note that when the Resolution on the Primary Streaming is set to 1080P,
Secondary streaming will be disabled.
• Bit Rate (for H264/MPEG4 codecs): Set the video bit rate from 500-8000 kbit/s
• Quality (for MJPEG codec only): HIGH, NORMAL, LOW
• Frame Rate: Set the frame rate for the recorded video to 1, 3, 7.5, 10, 15
(available only with 1080P resolution), or 30 fps (unavailable with 1080P
resolution)
Configure Stream 2 - Secondary Streaming:
• Video Codec: Set the compression mode to OFF (disable secondary streaming,
H264 or MPEG4).
• Resolution: Set the resolution of the recorded video to:
»CIF (360×240)
»2CIF (720×240)
»VGA (640×480)
»D1 (720×480)
• Bit Rate: Set the video bit rate from 500-4000 kbit/s
• Frame Rate: Set the frame rate for the recorded video to 1, 3, 7.5, 15 fps
or 30 fps
Configure Stream 3 - Third Streaming (Live View):
• Video Codec: OFF or MJPEG. OFF setting will result in no video on Live View.
• Resolution: Resolution for Third Streaming is pre-set to VGA and cannot be
changed.

20
i3-TRNG-CAMS-Ax51B.indd Rev. 130411
Advance Settings:
• White Balance: Set White Balance mode to Auto or Manual according to the
image’s lighting conditions for the best color temperature.
• Sensitivity (Use when White Balance is set to Auto): Set between 1 and 10.
Adjust the sensitivity of the camera’s white balance function manually.
• R Gain, G Gain, B Gain (Use when White Balance is set to Manual):
Adjust levels of red, green and blue in the image.
Values can be set from 0.4-4.0
• Brightness: adjust the image brightness level, Values range from 0% to 100%.
• Contrast: adjust the image contrast level. Values range from 0% to 100%.
• Saturation: adjust the image saturation level. Values range from 0% to 100%.
• Sharpness: adjust the image sharpness level. Values range from 0% to 100%.
After making any setting adjustments, remember to click the Save button
to save any changes made.
6.3 Communication Setup
The Communication tab is used to configure network and communication settings on
the camera.
Network settings:
• DHCP: Enable or Disable to have the network automatically assign an IP address
to the camera.
• IP Address: Manually enter the camera’s IP address here.
This option should NOT be used if DHCP is enabled.
• Subnet Mask: Manually enter the camera’s Subnet Mask here.
This option should NOT be used if DHCP is enabled.
